LED Lighting Global Light & Power LUKEN LI220107 User manual

www.globallightllc.com [e-mail] Fax: [phone]Tel: [phone]

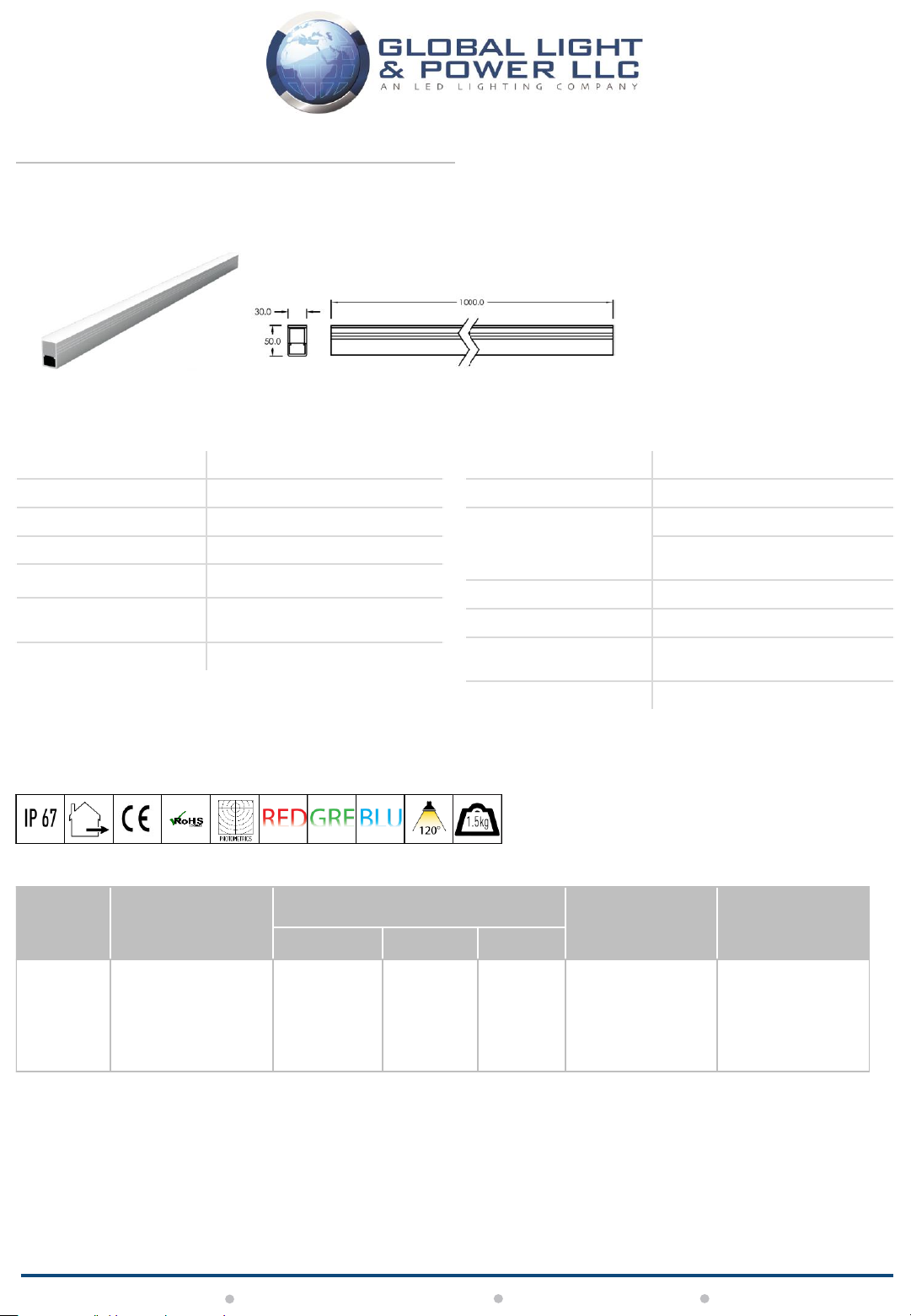

PRODUCT SPECIFICATIONS
Fixture Material Aluminum
Fixture Finish Anodized Gray
Diffuser Frosted Polycarbonate Diffuser
Static Load Pressure 2500kg
Binning 3 Step MacAdam
Wiring 90 Centimeter of 2 core
0.75mm2 rubber cable
Life Span 40,000 hours
LED Chip CREE
Power Consumption 15W
Input Voltage
24V DC
220~240V AC, 50/60Hz
(Available on request)
Operating Temperature from -20°to 65°C
Color Rendering Index >80
Warranty 3 years against manufacturing
defects
Agency Approval CE, RoHS
LI220107
15W LINEAR IN-GROUND LIGHT
Power
(W)
Available color
Temperatures
LED Chip Lumen Efficacy IP Rating Available
Beam Angles
3000K 4000K 6000K
15W
2700K
3000K
4000K
6000K
RED
GREEN
BLUE
95lm/W 100lm/W 110lm/W 67 120°
Standard option.
Non-standard products may be subject to MOQ. Contact your regional sales representative for more information.

www.globallightllc.com [e-mail] Fax: [phone]Tel: [phone]

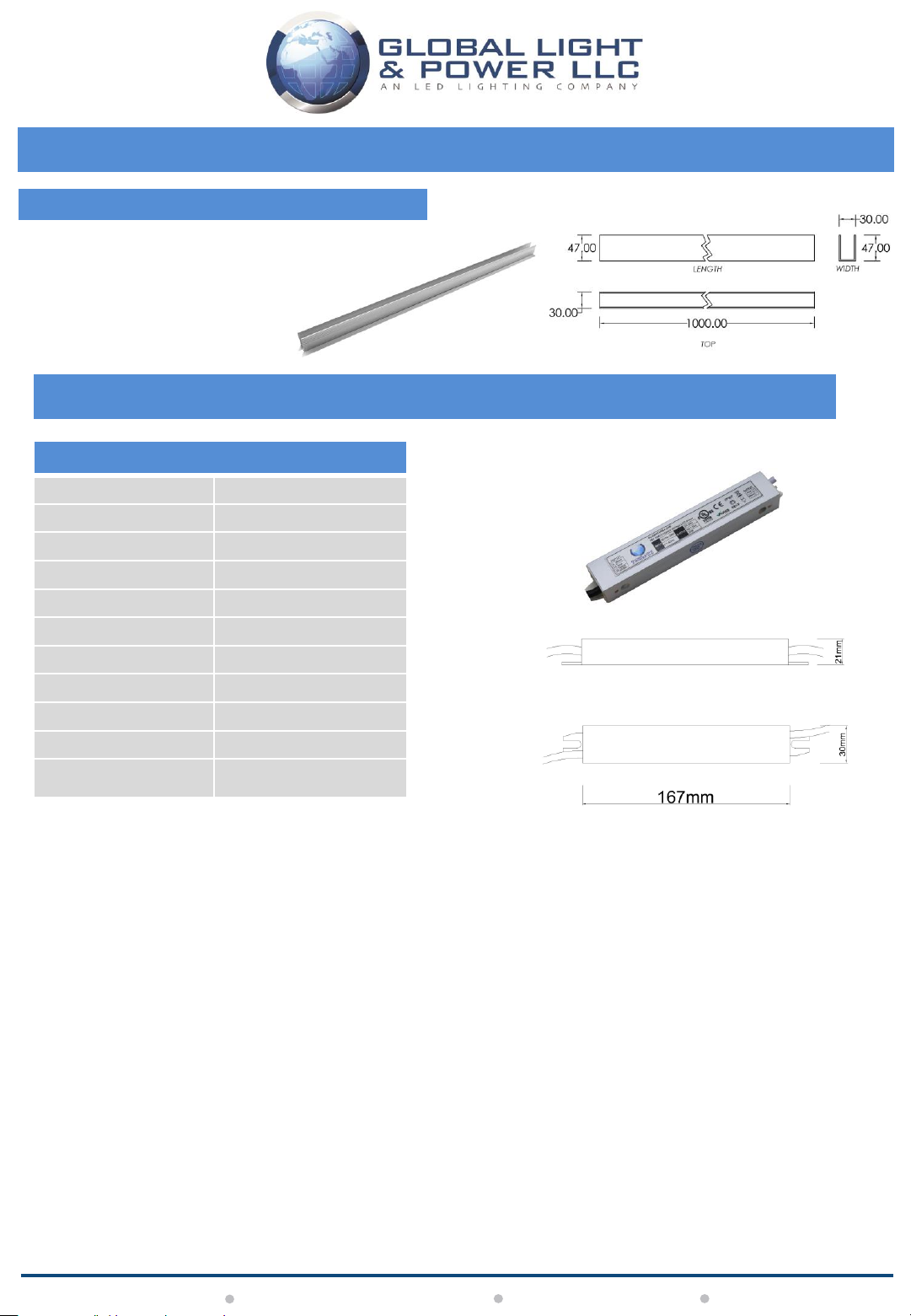

POWER SUPPLY DETAILS
PRODUCT FEATURES
Model GL030CV024-220
Life Span 50,000 hours
Input Voltage 220~240VAC 50/60Hz
Output Voltage Constant 24VDC
Output Current 1.25ADC
Power Rating 30W
Protection Overload & Short circuit
Power Factor 0.95
Operating Temperature from -40°to 60°C
IP Rating 67
Agency Approvals UL, CE, RoHS
ACCESSORIES
POLYCARBONATE SLEEVE
Aluminum material sleeve to be used
with the linear in ground light.

www.globallightllc.com [e-mail] Fax: [phone]Tel: [phone]
INSTALLATION GUIDE
•Step 3:
(A) Attach a junction box near by the fixture and make all
connections inside the junction box, or keep
all wiring connections in the sleeve, below
the light fixture.
(B) Connect the fixture input cable to
the 24V DC supplied wires using minimum
2.5mm cable.
(C) Solder the connections or use terminal
blocks.
(D) Wrap the connections with 3M waterproof tape &
electrical tape.
•Step 4: Place the fixture in the sleeve by pressing linearly and equal pressure from both side.
Step 1
Step 4
Step 3
Step 2
Find the location where the linear in ground light has to be installed. Install suitable wiring from the Power supply
(24V DC) to the light fixture. Do not exceed 30 meter distance between power supply and light fixture. Keep the
Power supply (24V DC) inside the junction box or Mount it on the wall in a DB box.
•Step 1: Dig the linear cut approximately 20cm deep before installing the Sleeve.
•Step 2: Install the sleeve in the ground. Depending on the type of tile thickness, raise the sleeve by
1 - 2cm above the surface.
#Note: The lighting fixture should be installed only after the completion of all mechanical and civil works at site.
Single Color - Diagram
RGB - Diagram
# up to maximum power supply rated power
# up to maximum power supply rated power
# up to maximum power supply rated power
# One remote control 10 Zones

www.globallightllc.com [e-mail] Fax: [phone]Tel: [phone]
DMX WIRING CONNECTION FOR WIRELESS CONTROL
•Step 1: Install DMX master in the control room or inside a DB box, in proximity of the remote in use.
•Step 2: Connect the input of DMX master to 220V AC supplied.
•Step 3: Run signal wire from DMX master to the light fixture and connect the wires.
1. Complete the connection correctly as shown in the above diagram and power ON.
2. Turn ON remote, press learning Key on DMX Master until the red indicator light is ON.
Then immediately press and hold zone number on the remote until the red indicator light
blinks twice, it means remote and DMX master are paired.
Even they are well paired now, you still can’t control it until you do below steps:
3. Hold the zone number over 3~4 seconds until the light fixture turns OFF, then release your finger.
4. Hold the zone number again over 3~4 seconds until the light fixture turns ON. Now the DMX master
is well “unlocked” and working.
5. To pair DMX master from zone 2 to 10 on the remote, repeat the above steps 2 to 4 with the corresponding
zone number.
#NOTE : The remote control can Turn OFF a certain zone by pressing and holding the zone number for over 3
seconds. If you turn off a zone by holding the zone number, you must hold that zone number again for over
3 seconds to turn it ON . Only by holding the zone number for over 3 seconds can you turn ON and OFF that
zone.
Pairing of DMX Master & Remote Controller for each Zone
1
#NOTE :
a) In order to control the light in each zone or area you must have a separate DMX master for each zone.
b) One remote can control up to 10 zones.

www.globallightllc.com [e-mail] Fax: [phone]Tel: [phone]
1. Turn on button and red indicator will turn on. Please make sure the remote indicator light is on while
operating the remote.
2. If 2 or more zones are programmed, each zone can be controlled separately by pressing
corresponding zone number first.
3. To set each zone to an individual color, red, green, or blue, press the zone number and then
corresponding letter on the remote.
4. There are 10 preset color schemes built into the remote and you may press button to run or
pause a preset color scheme. To change from one color scheme to another, you must pause the
existing preset by pressing button and press button again for next preset color scheme.
5. You may use the touch button to set to a desired color simply by dragging over touch ..
If you are in preset color scheme mode, you must press the button before dragging
on touch .
6. Once the desired color scheme is set, you may increase the speed of color changing by pressing
or button. The button will increase and will reduce the speed of color changing.
7. Once the desired color scheme is set, you may increase the intensity or brightness of LED’s by pressing
or button. The button will increase and will reduce the brightness or intensity of LED’s.
How to operate the remote control
Please kindly read the instructions carefully before
installation, and keep it well for your future reference.
All installation and maintenance must be carried out by qualified Technicians and Engineers
#NOTE : When all zones programming is done, Press button to turn all zones off and then turn on again,
this will save all programs.
