LEDISONS LDS77-5CAF-ZI User manual

LDS77-5CAF-ZI
Function introduction
Important: Read All Instructions Prior to Installation
Product Data
Operation
•This device contains button lithium batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Safety & Warnings
Zigbee LED Strip Remote
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Protection Grade
ZigBee 3.0
6V(2*CR2032 battery)
2.4GHz
30m
0.1%-100%
137x45x13mm
IP20
Front side
Bottom side
1.This ZigBee remote is a wireless transmitter that communicates with a variety of ZigBee compatible
systems. This transmitter sends wireless radio signals that are used to remotely control a compatible
system.
2.This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control
DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices.
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
•Basic •Power Configuration •Identify •Diagnostics
Output clusters:
•Identify •Group •Scene •On/off •Level control •Ota •Color control
Click to get the maximum
RGB saturation, press and
hold down to increase/
decrease color saturation
Press and hold down to
decrease light intensity
S1-S7, press and hold down to
save colors, click to recall the
saved colors
RGB Color wheel
LED indicator
Press and hold down to increase
light intensity
Group numbers: Click to choose
the group, with indicator under each
group button, when the groups are
chosen, indicators turn on
Click to recall 6 preset
scenes one by one
6V(2*CR2032 battery)
Note:Before the first use, please remove the protective film on the battery.
ON/OFF button
Click to turn on/off warm white,
press and hold down to adjust
warm white between 0%-100% Click to turn on/off cool white,
press and hold down to adjust
cool white between 0%-100%
Click to recall 5 preset Kelvin one by one
•ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
•High sensitive & high stable touch color wheel, fast & precise color control
•Battery powered remote with low power consumption
•Enables to pair ZigBee lighting devices through touchlink commissioning
•Supports find and bind mode to pair with ZigBee lighting devices
•Supports 4 groups for binding max. 30 lighting devices
•With 6 preset scenes, 5 preset Kelvin, enables to save and recall 7 scenes
•Enables to adjust RGB color saturation
•2.4 GHz global operation
•Transmission range up to 30m
•Compatible with universal ZigBee Gateway products
•Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
Anleitung
Manuel
Handleiding

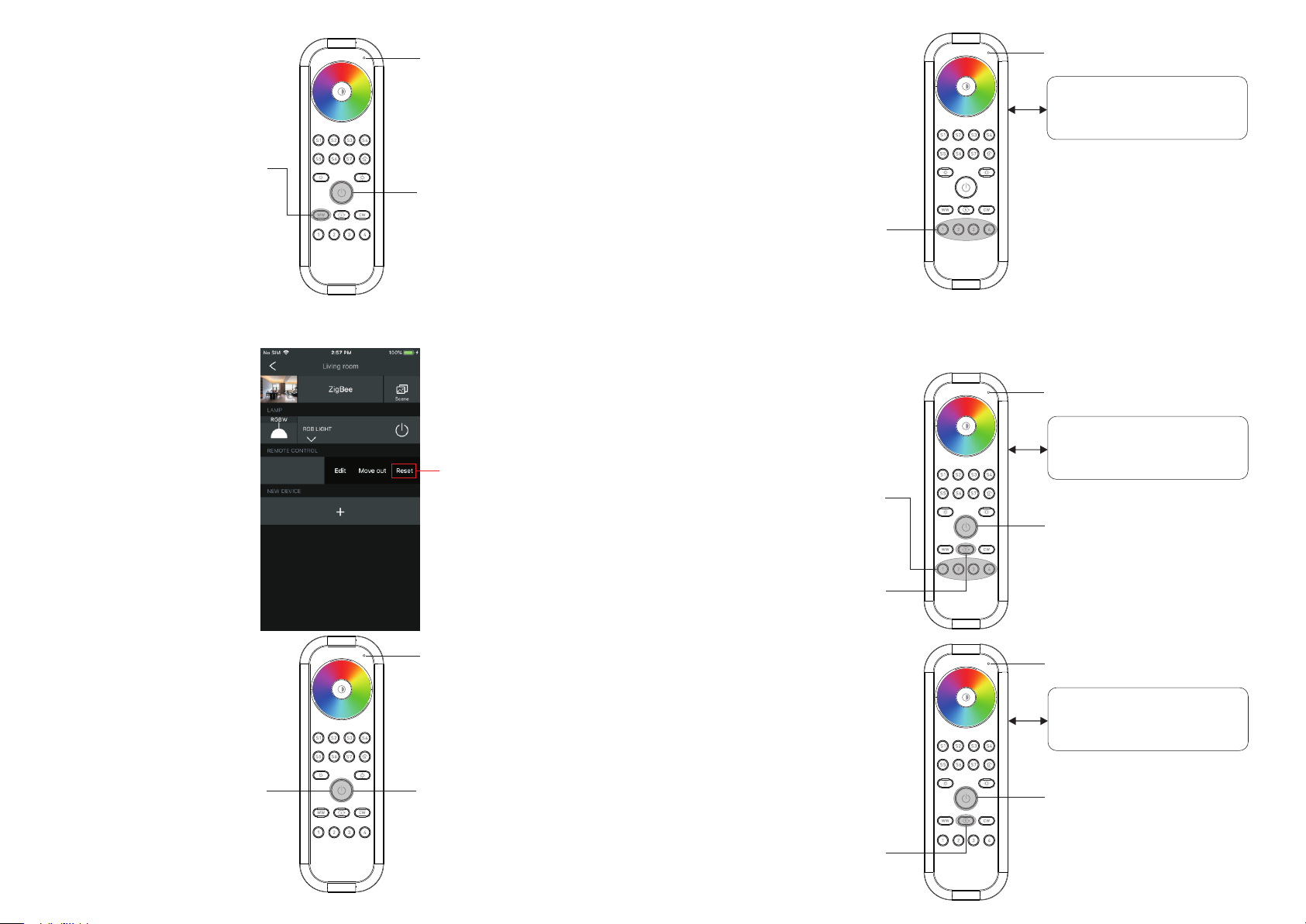

3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
LED indicator
5. Removed from a Zigbee Network through Coordinator or Hub Interface
6. Factory Reset Manually
Note: 1) After pairing successfully, the remote information will appear on the controller or hub interface.
2) No remote information will appear on the hub interface if pairing to Philips Hue Bridge.
4. TouchLink to a Zigbee Lighting Device
Note: 1) Directly TouchLink (both not added to a ZigBee network), each remote can link with 30 devices.
2) TouchLink after both added to a ZigBee network, each remote can link with max. 30 devices.
3) For Hue Bridge & Amazon Echo Plus, add remote and device to network first then TouchLink.
4) After TouchLink, the remote can control the linked lighting devices.
7. Remove a Touchlink Paired ZigBee Lighting Device
8. Factory Reset a Lighting Device (Touch Reset)
Step 1: Remove the remote from
previous zigbee network if it has already
been added to it, otherwise pairing will
fail. Please refer to the part "Factory
Reset Manually".
Step 2: From your zigbee controller or
hub interface, choose to add device or
accessory and enter Pairing mode as
instructed by the controller.
Step 3: Press and hold down until LED
indicator turns on.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network. Indicator
will then blink 5 times quickly for
successful pairing.
From your ZigBee controller or hub
interface, choose to delete or reset
the remote as instructed, indicator
flashes 3 times quickly to indicate
successful removing.
ZigBee Lighting Device
< 10cm
Step 1: Set the Touchlink paired zigbee
device to start TouchLink
commissioning, please refer to its
manual to learn how.
LED indicator
Step 2: Bring the remote within 10cm of
the lighting device.
Step 3: Short press the group button
that the device was linked to.
ZigBee Lighting Device
< 10cm
Step 1: Set the zigbee lighting device to
start TouchLink commissioning, please
refer to its manual to learn how.
LED indicator
Step 2: Bring the remote within 10cm of
the lighting device.
LED indicator
Step 2: Immediately short press 5 times
continuously, indicator flashes 3 times
quickly to indicate successful reset.
Step 1: Press and hold down until LED
indicator turns on.
Note: All configuration parameters
will be reset after the remote is reset
or removed from the network.
Step 3: Press and hold down any group
button to start TouchLink commissioning
of the remote. LED indicator flashes fast
for 3S, then flash 6 times slowly to
indicate successful pairing to the device
and the light connected to the device
will blink twice.
Step 4: Press and hold down until LED
indicator turns on.
Step 5: Immediately short press twice to
start TouchLink removing of the remote.
LED indicator flashes fast for 3S, then
flash 6 times slowly to indicate
successful removing.
ZigBee Lighting Device
< 10cm
Step 1: Set the Touchlink paired zigbee
device to start TouchLink
commissioning, please refer to its
manual to learn how.
LED indicator
Step 2: Bring the remote within 10cm of
the lighting device.
Step 3: Press and hold down until LED
indicator turns on.
Step 4: Immediately short press 5 times
to start Touch Reset of the remote. LED
indicator flashes fast for 3S, then flash 3
times slowly to indicate successful
reset.
Note: the device shall be added to a network,
the remote added to the same one or not
added to any network.

9. Find and Bind a Zigbee Lighting Device
10. Find and Unbind a Zigbee Lighting Device
11. Clear All Find and Bind Mode Paired Lighting Devices of a Group
12. Setup a Network & Add Devices to the Network (No Coordinator or Hub Required)
Step 6: Add more remotes to the network as you would like.
Step 7: Factory reset the lighting devices that you would like then add them to the network, refer to their manuals.
Step 8: Touchlink to pair the added remotes and lighting devices, refer to their manuals. Each remote can link
with max. 30 lighting devices. Each lighting device can be linked by max. 30 remotes.
15. Battery Power Monitor Function
The remote will report battery power value to the coordinator under following situations:
• When powered on.
• When operating the switch to send data packets (over 4 hours since last operation).
• When added to the network by a coordinator.
14. How to Check Whether the Remote Belongs to a Network or not
Short press any other buttons except group buttons, indicator blinking means the remote has already been
added to a network, no blinking of indicator means the remote does not belong to any network.
ZigBee Lighting Device
Step 1: Start find and bind mode on the
Zigbee lighting device (initiator node)
and enable it to find and bind target,
refer to its manual.
LED indicator
Step 2: Short press a group button that
you would like to bind the device to.
Step 4:Short press to enable the remote
(target node) to find and bind initiator.
LED indicator flashes 4 times for
successful binding or twice if binding fails.
Note: Each remote can bind max. 30
lighting devices.
ZigBee Lighting Device
Step 1: Start find and bind mode on the
ZigBee lighting device (initiator node)
and enable it to find and unbind target,
refer to its manual.
Step 2: Short press the group button
that the device already bound to.
Step 4:Short press twice to enable the
remote (target node) to find and unbind
initiator. LED indicator flashes 4 times
for successful unbinding or twice if
unbinding fails.
Step 1: Short press to choose the group
that you would like to unbind all devices.
Step 3:Short press 5 times continuously
to clear all bound lighting devices with this
group. LED indicator flashes 4 times for
successful unbinding.
ZigBee Lighting Device
< 10cm
Step 1: Factory reset the remote and
the lighting device, refer to their
manuals.
LED indicator
Step 2: TouchLink the remote and
device to setup a network, refer to their
manuals.
Step 4: Short press to enable the network
to discover and add devices, LED
indicator will flash twice. 180 seconds
timeout, repeat the operation.
Step 5:Set another remote into network
pairing mode and pair it to the network,
refer to its manual.
Note: Make sure the device and remote already added to the same zigbee network.
13. OTA
The remote supports firmware updating through OTA, and will acquire new firmware from zigbee controller or
hub every 10 minutes automatically.
Step 3: Press and hold down until LED
indicator turns on.
LED indicator
Step 3: Press and hold down until LED
indicator turns on.
LED indicator
Step 2: Press and hold down until LED
indicator turns on.
Step 3: Press and hold down
until LED indicator turns on.
