Lee Engineering S-700 User manual

1

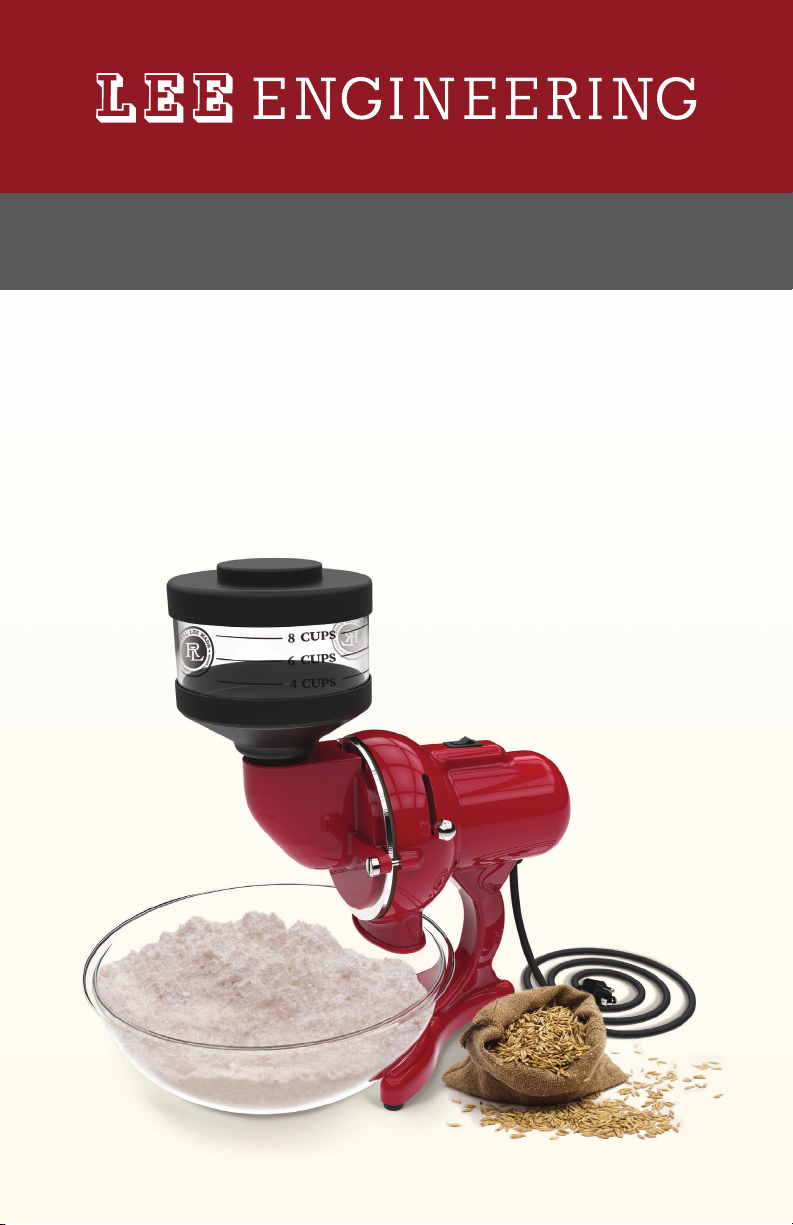

Lee Household Flour Mill
MODEL S-700
INTELLIGENT, HEALTHFUL LIVING™
M150701302 Rev F

2

3
PARTS & FEATURES
Mill shown may dier in color from your appliance.
Thank you for purchasing your Lee Household Flour Mill, model S-700. Lee
Engineering has been helping households stone grind grains for over 70 years
and has become synonymous with quality and durability. You and your family
will appreciate the nutritional and full avored benets of stone milled our.
Housing
Hopper
Inlet
Bowl
Dust Cover (not shown)
Cleaning Brush (not shown)
Disassembly Tool (not shown)
Hopper Cover Grinding Lever with
nine settings
On/O Switch
Power Cord
Parts & Features............................................................................................................ 3
Important Safeguards .................................................................................................. 4
3 Prong Plug................................................................................................................... 5
Before Using the First Time ......................................................................................... 5
How to Use .................................................................................................................... 5-9
Grain Grinding.......................................................................................................... 10
Disassembly.............................................................................................................. 10-11
Cleaning .................................................................................................................... 12
Specications................................................................................................................ 12
Warranty........................................................................................................................ 13
Returns.......................................................................................................................... 13
Contact.......................................................................................................................... 13
TABLE OF CONTENTS
Lee Household Flour Mill
MODEL S-700

4
WARNING: ALWAYS REMOVE THE PLUG FROM THE ELECTRICAL OUTLET BEFORE
DISASSEMBLING THE MILL TO AVOID PERSONAL INJURY.
Basic safety precautions should always be followed when using this appliance.
1. Read these instructions thoroughly before use.
2. This appliance should not be used by children. Close supervision is necessary when using
this appliance near children.
3. Do NOT leave grinder unattended when in use.
4. Do NOT use in damp or wet conditions.
5. For indoor use only.
6. To protect against electrical shock, do not place cord, plug or appliance in water or other
liquid.
7. Unplug from outlet when not in use or when moving or disassembling. Always unplug
using the plug and not by pulling on the cord.
8. Never connect or disconnect plug with wet hands.
9. Do NOT operate our mill with a damaged cord or plug, or if the appliance is damaged
or malfunctions in any way. Call our toll-free customer service number for information
regarding returning or replacing the mill. There are no user serviceable parts in this
appliance.
10. Do NOT allow the cord to hang over the edge of the table or counter or come in contact
with hot surfaces.
11. Only use mill on a solid, level surface.
12. Do NOT allow appliance to rest on the power cord.
13. Maintain a ventilation clearance of four inches on all sides of the mill.
14. If mill stops, or if there is excessive noise, turn power o, unplug from electrical outlet,
disassemble, clean all components then reassemble machine. Discontinue use and call
our toll-free customer service number if cleaning does not resolve these issues.
15. Keep ngers and other objects away from chute.
16. Do NOT push grains into chute.
17. Do NOT put any part of the mill, including the Hopper or Hopper Cover, in a dishwasher.
18. Do NOT store your mill if any part of it is wet or damp.
19. Do NOT grind damp grains.
20. Only grind approved grains, as described later in this manual. Grinding unapproved
grains may impact the performance of your mill and/or void the warranty.
21. Clean grains before milling to remove stones or other small foreign objects.
22. Only use our mill for its intended use.
23. For household use only. This appliance is not intended or approved for commercial use.
24. Avoid contacting moving parts.
25. The use of attachments not recommended or sold by the manufacturer may casue re,
electric shock or injury.
26. Check hopper for presence of foreign ovjects before using.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFEGUARDS
!

5
BEFORE USING THE FIRST TIME
1. Remove all parts from the box.
2. Purge the mill by grinding 2 cups of grain and discarding.
3. Disassemble mill following the instructions in the Disassembly and Cleaning
section of this manual.
4. Hand wash each part, except the grinding stone, in warm soapy water. Bowl is
dishwasher safe.
5. Use a damp cloth to wipe down housing.
6. Dry each part thoroughly before assembling.
IMPORTANT: THE GRINDING STONE SHOULD NEVER BE EXPOSED TO WATER.
WARNING: KEEP FINGERS AND OTHER OBJECTS AWAY FROM INLET TO AVOID
PERSONAL INJURY OR DAMAGE TO MILL.
CAUTION: RISK OF SUFFOCATION - KEEP ALL PACKAGING AND PLASTIC BAGS OUT OF
THE REACH OF CHILDREN.
HOW TO USE
Your Lee Flour Mill is a gravity fed mill with a nine position grinding lever
to change the consistency of the grind from course to ne. The dust cover
reduces air-borne particles of your newly ground our. The mill is equipped
with a safety feature to automatically cut the motor in the event that
overheating occurs. If this happens, switch the power to OFF, unplug the mill
and give the motor 15 minutes to cool down before resuming use.
3-PRONG PLUG
This appliance has a 3-prong (grounding) plug for use in a 3-prong (grounding)
outlet to minimize the possibility of electric shock. This appliance should only be
used with a 120V, 60Hz grounded outlet. Failure to follow these instructions could
result in re, electrical shock, serious injury, or death.
If the plug does not t fully in the outlet, contact a qualied electrician to install a
3-prong (grounding) outlet. Do not attempt to modify the plug in any way. Do not
use an adapter or an extension cord. Failure to follow these instructions could
result in re, electrical shock, serious injury, or death.

6
IMPORTANT: DUE TO OIL CONTENT, IT IS NOT RECOMMENDED TO GRIND SOYBEANS,
NUTS OR SEEDS.
1 PLACE THE HOPPER ON TOP OF THE CHUTE.

7
FILL HOPPER WITH APPROVED GRAINS UP TO
THE DESIRED LEVEL.
2
3 PLACE COVER ON HOPPER.

8
DUST COVER
3 PRONG PLUG3 PRONG OUTLET
CHUTE
4 FIT DUST COVER ON BOWL AND PLACE BOWL
BENEATH CHUTE.
5 PLUG MILL INTO AN APPROVED ELECTRICAL OUTLET.
6

9
7 SWITCH POWER TO ON.
ON OFF
SET THE GRINDING LEVER TO DESIRED CONSISTENCY:
COARSE (TOP) OR FINE (BOTTOM) OR ANY OF
THE SETTINGS IN BETWEEN.
6

10
DISASSEMBLY AND CLEANING
Your Lee Household Flour Mill will provide your family with fresh our from
most dry grains such as wheat and buckwheat. For more information on
compatible grains, visit organicsbylee.com
It is important to thoroughly clean the mill and its internal parts after every
usage in order to keep the mill in good working order and to avoid rancidity.
Refer to the diagram on the following page to become familiar with the parts
of the mill and then follow the step-by-step instructions for disassembly.
DISASSEMBLY
GRAIN GRINDING
IMPORTANT: NEVER MILL GRAINS THAT HAVE A HIGH OIL OR MOISTURE CONTENT.
DO NOT ATTEMPT TO MILL WET OR DAMP PRODUCTS. DO NOT REGRIND FLOUR.
IMPORTANT: THE GRINDING STONE SHOULD NEVER BE EXPOSED TO WATER.
1. Using the disassembly tool or athead screwdriver, remove the two screws that
hold the front cover on the mill housing.
2. Remove the front cover and plate.
3. Grasp the quick coupler and pull straight out.
4. Pull out the governor and disk assembly.
5. Carefully remove the grinding stone.
6. Unscrew the control lever. The disassembly tool can be used to loosen the
control lever.
7. Remove the adjustable ring by turning it clockwise until it stops and pull out.
WARNING: TO AVOID PERSONAL INJURY, ALWAYS SWITCH THE UNIT TO
OFF AND REMOVE THE PLUG FROM THE ELECTRICAL OUTLET BEFORE
DISASSEMBLING THE MILL.
WARNING: ANY OTHER SERVICING SHOULD BE PERFORMED
BY AN AUTHORIZED SERVICE REPRESENTATIVE

11
1
2
3
4
5
6
7
8
9
10
Screws
Front Cover
Front Plate
Quick Coupler
Governor and
Disk Assembly
Grinding Stone
Control Lever
Adjustable Ring
Spacer
Housing
DISASSEMBLY CONT’D
PARTS

12
SPECIFICATIONS
Hopper Capacity
Controls
8 cups
On/o switch, nine texture
settings (coarse to ne)
Stone Type
Electrical
Food grade
stationary
millstone
120 volts AC, 60 hertz,
746 watts, 7 amperes
Available Colors
Accessories
Red, black,
white, green
Bowl cover, glass mixing
bowl, cleaning brush, tool
for disassembling
Dimensions
9.3″W x 13.8″D x 17.6″H
1. Use the cleaning brush to clean the chute, both from the top and bottom.
2. Use the cleaning brush to whisk our dust from all parts, including the
grinding stone.
3. If desired, wash parts in warm soap water with the exception of the
grinding stone.
4. Bowl may be washed by hand or in dishwasher.
5. Rinse or hand-wash the bowl cover in cold water. Air dry.
6. Thoroughly dry all parts before reassembling the mill.
Reassemble the mill following the disassembly instructions in reverse order.
IMPORTANT: YOU MAY NEED TO ROTATE GOVERNOR AND DISK ASSEMBLY WHILE
HOLDING THE MOTOR SHAFT TO MAKE SURE IT IS PROPERLY SEATED ON THE SHAFT.
CAUTION: WHEN INSTALLING THE QUICK COUPLER,
LISTEN FOR A CLICK, INDICATING THAT THE COUPLER
IS FULLY SEATED ON THE MOTOR SHAFT. WHEN SEATED,
THE COUPLER SHOULD ENGAGE AS FOLLOWS
CLEANING
WARNING: KEEP FINGERS AND OTHER OBJECTS AWAY FROM CHUTE TO AVOID
PERSONAL INJURY OR DAMAGE TO MILL.
NOT SEATEDSEATED

13
RETURNS
ONE YEAR LIMITED WARRANTY
Lee Engineering warrants this product to be free from defects in material
and workmanship for one year from date of purchase. Within this warranty
period, manufacturer will repair or replace, at its option, defective parts of the
Lee Flour Mill, model S-700 at no charge, provided the product is returned,
freight prepaid with proof of purchase to Lee Engineering. Allow 2-4 weeks for
return shipping.
This warranty does not cover improper installation, misuse, abuse or neglect
on part of the owner. Warranty is also invalid in any case that the any part is
serviced by anyone other than the manufacturer.
This warranty gives you specic legal rights which may vary from state to state.
Prior to returning your Lee Flour Mill, please contact our toll-free Customer Service
line at 1-844-781-5080 to obtain a Return Merchandise Authorization (RMA).
Send returns to:
Lee Engineering, LLC
1100 Maple Street
Palmyra, WI 53156
WHEN RETURNING AN ITEM:
• Use the original packaging and pack it securely.
• Adequately insure the package in case you need to make a
claim with the carrier you choose for returning your item.
• Include your order number and reason for return.
WARRANTY

14

15

16
Lee Engineering, LLC • 1100 Maple Street, Palmyra, WI 53156 • 262-495-6537
INTELLIGENT, HEALTHFUL LIVING™
PERSONAL NOTES:
Lee Household Flour Mill
MODEL S-700
