Metos PL 6 User manual

PL,PV,PC
POTATO PEELERS
User manual
rev 2.0

rev 2.0
04.08.2005
3
Dear Customer,
Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an
excellent choice. We will do our best to make you a satisfied Metos customer like thousands of cus-
tomers we have around the world.
Please read this manual carefully. You will learn correct, safe and efficient working methods in order to
get the best possible benefit from the appliance. The instructions and hints in this manual will give you
a quick and easy start, and you will soon note how nice it is to use the Metos equipment.
All rights are reserved for technical changes.
You will find the main technical data on the rating plate fixed to the equipment. When you need service
or technical help, please let us know the serial number shown on the rating plate. This will make it
easier to provide you with correct service.
For your convenience, space is provided below for you to record your local Metos service contact
information.
METOS TEAM
Metos service phone number:
Contact person:

4
rev 2.0
04.08.2005
Contents
1 GENERAL...........................................................................................................6
1.2 Symbols used in the manual ................................................................................................6
1.3 Symbols used on the appliance ...........................................................................................6
1.4 Checking the relationship of the appliance and the manual.................................................6
2 SAFETY..............................................................................................................7
2.1 General warnings ...................................................................................................................7
2.2 Safety plates ..........................................................................................................................8
3.Functional description.........................................................................................9
3.1 IDENTIFICATION OF THE.....................................................................................................9
COMPONENTS ..........................................................................................................................9
3.2 IDENTIFICATION OF THE MACHINE ...................................................................................9
3.3 APPLICATIONS, INTENDED USE.......................................................................................10
3.4 Safety device........................................................................................................................10
3.5 Operator areas .....................................................................................................................11
3.6 CONTROL PANEL AND PILOT LIGHTS.............................................................................11
4.Operation instructions.......................................................................................12
4.1 - FUNCTIONING ..................................................................................................................12
4.1.1 Food preparation..........................................................................................................12
4.1.2 Setting of the machine and start .................................................................................13
4.1.3 Optional .......................................................................................................................15
4.1.4 INSTALLATION OF OPTIONAL ACCESSORIES ........................................................16
6. After use...........................................................................................................17
6.1 Cleaning of the machine .....................................................................................................17
6.2 Cleaning of electro magnetic valve filter (except for Mod. PL6/PC3) .................................18
7. Installation........................................................................................................19
7.1 Unpacking ............................................................................................................................19
7.2 -MACHINE LIFTING ............................................................................................................20
7.3 - ASSEMBLING THE FEET .................................................................................................20
7.4 - MACHINE INSTALLATION ................................................................................................21
7.4.1 Installation on bench (PL6/PC3 only)...........................................................................21
7.4.2 Installation on the floor ................................................................................................21
7.5 Water connections ...............................................................................................................22
7.6 ELECTRICAL CONNECTION .............................................................................................23
7.7 FIRST START .....................................................................................................................24
8. Troubleshooting ...............................................................................................25
TECHNICAL INFORMATION...............................................................................40

rev 2.0
04.08.2005
5

6
rev 2.0
04.08.2005
General
Carefully read the instructions in this manual as they contain important informa-
tion regarding proper, efficient and safe installation, use and maintenance of the
appliance.
Keep this manual in a safe place for eventual use by other operators of the ap-
pliance.
The installation of this appliance must be carried out in accordance with the
manufacturer’s instructions and following local regulations. The connection of
the appliance to the electric and water supply must be carried out by qualified
persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in the case of failure or malfunction. The periodical
function checks requested in the manual must be carried out according to the
instructions. Have the appliance serviced by a technically qualified person au-
thorized by the manufacturer and using original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1 GENERAL
1.2 Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand.
Given instructions are mandatory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad
results, appliance damage or hazardous situations.
This symbol informs about recommendations and hints that help to get the best
performance out of the appliance.
1.3 Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The
removal of the part must be carried out by qualified persons only.
This symbol is applied near zones where high temperature may occur.
The rating plate of the appliance indicates the serial number of the appliance. If
the manuals are missing, it is possible to order new ones from the manufacturer
or the local representative. When ordering new manuals it is essential to quote
the serial number shown on the rating plate.
1.4 Checking the relationship of the appliance and the manual

rev 2.0
04.08.2005
7
2 SAFETY
2.1 General warnings
Before installing the machine make sure that the used area is compatible with the
dimensions and the weight of the machine.
For the installation or removal of any machine part, the used lifting and handling
devices should be suitable to the weight and geometrical characteristics of the
part to be lifted or handled.
Only skilled and authorized personnel is allowed to start adjust or repair the ma-
chine.
Mechanical parts and electrical components inside the machine are protected by
totally enclosed panels fastened with screws.
Before cleaning and/or maintaining the machine and before removing any type of
protection, make sure that the general switch is on “OFF” position (O), in order to
turn off the power while the operator is working.
The power supply system of the purchaser should be provided with an automatic
release device above the machine main switch and with a suitable earthling system
complying with the accident prevention regulations.
In case of repairs to be done on the main switch or in themain switch area, turn
off the power of the electrical line.
Make sure that all safety devices (barriers, protections, carter, micro-switches,
etc.) have not been tampered and are perfectly working.
Do not remove the safety devices.
In order to avoid personal risks, only suitable tools should be used, in accordance
with the local safety regulations.
Do not tamper the electric and pneumatic plant or any other mechanism for any
reason.
Do not leave the machine unattended while it is working.
Wear safety clothing only, approved by the law in force.
In case of works to be done in a position that cannot be reached from the ground,
use safe ladders or lifting devices only, in conformity with the local safety regula-
tions.
In case of repairs to be done near or under the machine, make sure that there are
no machine members that can start working and/or instable parts placed on the
machine or near themachine.
Do not use your hands instead of suitable tools to work on the machine.

8
rev 2.0
04.08.2005
Do not use your hands or other tools to stop any moving parts.
Do not use matches, lighters or flames near the machine.
YOUR BEST ATTENTION SHOULD BE PAID TO THE WARNING PLATES LO-
CATED ON THE MACHINE BEFORE DOING ANY WORK ON THE MACHINE
OR NEAR THE MACHINE.
The user is obliged to keep all the warning plates in legible conditions and, if
required, to change their position in order to make them fully visible to the opera-
tor.
Stop the machine before doing any repair work.
In case of malfunction of the machine or damages to its components, get in touch
with the maintenance engineer and do not try to repair the machine.
It is absolutely prohibited to use the machine for other purposes different from
those expressly indicated and documented.
The machine should be used always when and how provided by the good tech-
nique, in compliance with the EEC machine directive 89/392 and in compliance
with the regulations concerning health and safety of the workers, as indicated by
the local regulations or according to the EEC directive 89/ 391.
The manufacturer declines all responsibility for any injury or damage to persons
or things arising from inobservance of the safety regulations and the instructions
contained in this manual.
The machine is not suitable to be used in a place with explosion risk.
FOR ANY ELECTRIC/ELECTRONIC OR MECHANIC TAMPERING OF THE MA-
CHINE BY THE USER OR IN CASE OF A NEGLIGENT USE OF THE MACHINE,
THE MANUFACTURER IS RELIEVED FROM ANY RESPONSIBILITY AND THE
USER WILL BE THE ONLY ONE RESPONSIBLE AGAINST THE COMPETENT
AUTHORITIES FOR THE ACCIDENT PREVENTION.
In case of fire turn off the power by disconnecting the main power switch.Put out
the fire by means of suitable fire extinguishers.
2.2 Safety plates
The warning plates with explanatory symbols are to be found in all those areas
that may be dangerous for operators or engineers.
Anyone preparing to work on the machine should protect the warning plates with
the safety instructions. The non compliance with the instructions mentioned on the
safety plates will release the manufacturer from all responsibilities for damages
or injuries to persons or properties that may arise.

rev 2.0
04.08.2005
9
3.Functional description
3.1 IDENTIFICATION OF THE
COMPONENTS
1. Control panel
2. Cover
3. Cover opening handle (NOT in PL6/PC3)
4. Cover opening levers (PL6/PC3)
5. Food unloading door
6. Base (NOT in PL6/PC3)
7. Adjustable feet (NOT in PL6/PC3)
8. Filter (optional)
9. Water supply connection
10.Data plate
11.Electric cable
3.2 IDENTIFICATION OF THE
MACHINE
The serial number and identification data of the
machine are punched on a plate (10) fastened
to the machine base.
IMPORTANT
The machine serial number should be always
mentioned in your request of technical assistance
or in your spare part orders.
kW
Volt
HzA
Type
Nr
Ali SpA
Viale Lombardia, 33
BOZZOLO (MN)
2
3
5
6
8
7
11
10
1
2
4
5
1
11
9
9
All models PL6/PC3 only

10
rev 2.0
04.08.2005
3.4 Safety device
The machine is provided with following safety sys-
tems:
1) All danger areas are protected by safety guards
with screws.
2) The machine is equipped with two sensors that
stop operation in case the upper lid (1) or the food
unloading door (2) are opened.
3) Low voltage (24V) electric controls.
4) Electrical system featuring IPX5 class protec-
tion.
1
1
1
2
3.3 APPLICATIONS, INTENDED USE
The PL / PV and PC versions are professional machines for modern cooking where 30 to 700 place
settings are needed.
PL version of machine has been designed to peel potatoes of all kinds, carrots and onions.
PV version of machine is a multipurpose one, it has been designed to peel potatoes of all kinds, carrots

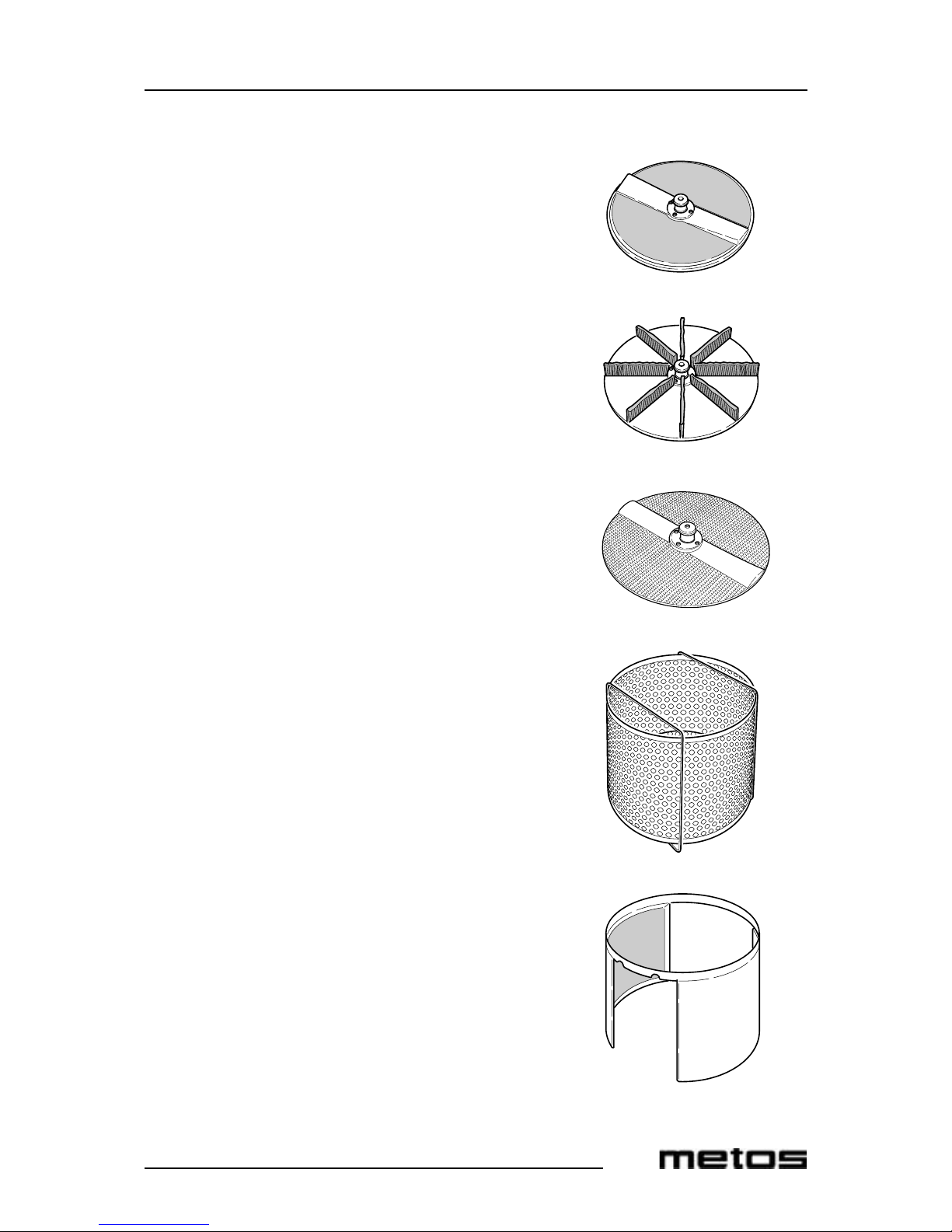

and onions; to clean mussels. Special attachmentscan be added, to brush fruits and vegetables (pears,
apples, kiwis), to centrifuge vegetables (15-23-32 versions only).
PC version of machine has been designed to clean mussels.
Its versions can only be used for the above applications; any other use shall relieve the
manufacturer from all and any liability for injuries or damages and shall result in the forfeiture of any
warranty.

rev 2.0
04.08.2005
11
3.5 Operator areas
The operator, during loading and unloading of food,
can stay either in front or beside the machine. For a
complete description of allowed working positions,
check positions (O).
For maintenance works the engineer is allowed to
stay on the back of the machine (T).
3.6 CONTROL PANEL AND PILOT
LIGHTS
The machine is provided with following controls:
1. Green start button “ I “
When pressed, it starts the machine. [for PL and PC
models: the light (2) will switch on].
In PV models the machine will start at speed 1.
2. Working light (models PL and PC)
When push button (1) is pressed, it switches on; it
switches off when push button (3) is pressed.
3. Red stop push button “ 0 “
Pushing it stops the machine; the button can also
be used in cases of EMERGENCY.
4. Green 2nd speed start button “ II “
(PV model only)
Pushing it will start the machine at speed 2.
5. Timer
Rotating the timer will set the working time, as
soon as the preset time has expired the machine
will stop.
O
O
O
T
06
0,0#
0,0#
3
3
1
5
5
3
2
1
1
3
5
4
2
