lefant F1 User manual

User Manual
Lefant Intelligent
Robot Vacuum Cleaner
F1
Please keep the manual properly and read it carefully before using the product.

1
Congratulations on the purchase of your Lefant ROBOTS!
We hope it brings you satisfaction. We trust your purchase will keep your home clean and provide you
a high-quality life.
Should you encounter situations that have not been properly addressed in this User Manual, please
contact our Customer Service Center, we will solve your specific problem.
For more information, please visit the Lefant ROBOTICS official website:
www.lefantlife.com or send email to [email protected]
The Company reserves the right to make technological and/or design changes to this product for
continuous improvement.

2
For Household use only
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
When using an electrical appliance, basic
precautions should always be followed,
including the following:
WARNING: Read all safety warnings and
instructions. Failure to follow the warnings
and instructions may result in electric
shock, fire or serious injury.
Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
Do not allow children to sit on the vacuum.
Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Robot. Tuck rug fringe under
the rug base, and lift items such as curtains and
table cloths off the floor.
If there is a drop offin the cleaning area due to
a step or stairs, you should operate the Robot
to ensure that it can detect the step necessary
to place a physical barrier at the edge to keep
the unit from falling. Make sure the physical
barrier is not a trip hazard.
1
2
3
Only use as described in this manual. Only use
attachments recommended or sold by the
manufacturer.
Please make sure your power supply voltage
matches the power voltage marked on the
Docking Station.
Do not handle or plug appliance with wet
hands.
Non-rechargeable batteries are prohibited.
Do not use without dust bin and/or filters in
place.
Do not operate the robot in an area where
there are lit candles or fragile objects on the
floor to be cleaned.
Do not use and store in extremely hot or cold
environments (below -5°C /23°F or above
40°C/104°F). Please charge the robot in
temperature above 0°C/32°F and below
40°C/104°F.Follow all charging instructions
5
4
6
7
8
9
10
11
The robot must be used in accordance with
the directions in this User Manual. Our company
cannot be held liable or responsible for any
damages or injuries caused by improper use.
.
.
.
.
.
.
.
.
.
.
.

3
Keep hair, loose clothing, fingers, and all parts
of body away from any openings and moving
parts.
Do not operate the robot in a room where
an infant or child is sleeping.
For INDOOR use ONLY. Do not use the
robot in outdoor, commercial or industrial
environments. Do not use Appliance on wet
surfaces or surfaces with standing water.
Do not allow the robot to pick up large
objects like stones, large pieces of paper or any
item that may clog the robot.
Do not use the robot to pick up flammable or
combustible materials such as gasoline, printer
or copier toner, or use in areas where they may
be present.
Do not use the robot to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a fire.
Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air flow.
12
13
14
15
16
17
18
Take care not to damage the power cord. Do
not pull on or carry the robot or the Docking
Station by the power cord, use the power cord
as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners.
Do not run the robot over the power cord.
Keep power cord away from hot surfaces. Do
not unplug by pulling on cord, To unplug, grasp
the plug, not the cord.
If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
Do not use the Docking Station if it is damaged.
Do not use the robot or the Docking Station if
it is not working properly, has been dropped,
damaged, left outdoors, or come in contact
with water. It must be repaired by the manufac
turer or its service agent in order to avoid a
hazard.
Turn OFF the power switch before cleaning or
maintaining the robot. Turn offall controls
before unplugging.
19
20
21
22
23
and do not charge the battery pack or appliance
outside of the temperature range specified in the
instructions. Charging improperly or at tempera-
tures outside of the specified range may
damage the battery and increase the risk of fire.
.
.
.
.
.
.
.
.
.
.
.
.

4
The plug must be removed from the receptacle
before cleaning or maintaining the Docking
Station.
Remove the robot from the Docking Station,
and turn OFF the power switch to the Appliance
before removing the battery for disposal of the
robot.
The battery must be removed and discarded
according to local laws and regulations before
disposal of the robot.
Please dispose of used batteries according to
local laws and regulations.
Do not incinerate the robot even if it is severely
damaged. The batteries can explode in a fire.
When not using the Docking Station for a long
period of time, please unplug it.
24
25
26
27
28
29
Prevent unintentional starting. Ensure the switch
is in the offposition before connecting to battery
pack, picking up or carrying the appliance.
Carrying the robot with your finger on the switch
or energizing the robot that have the switch on
invites accidents.
When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws,ect, that can make a connection
from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
Do not use a battery pack that is damaged or
modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
Do not expose a battery pack or appliance to fire
or excessive temperature. Exposure to fire or temp-
erature above 130°C/265°F may cause explosion.
31
32
33
34
30 Have servicing performed by a qualified repair
person using only identical replacement parts.
Do not modify or attempt to repair the robot or
the battery pack (as applicable) except as
indicated in the instructions.
Do not operate the robot in a room that has lit
candles on furniture that the vacuum may
accidentally hit or bump into.
35
36
371
.
.
.
.
.
.
.
.
.
.
.
.
.
.

5

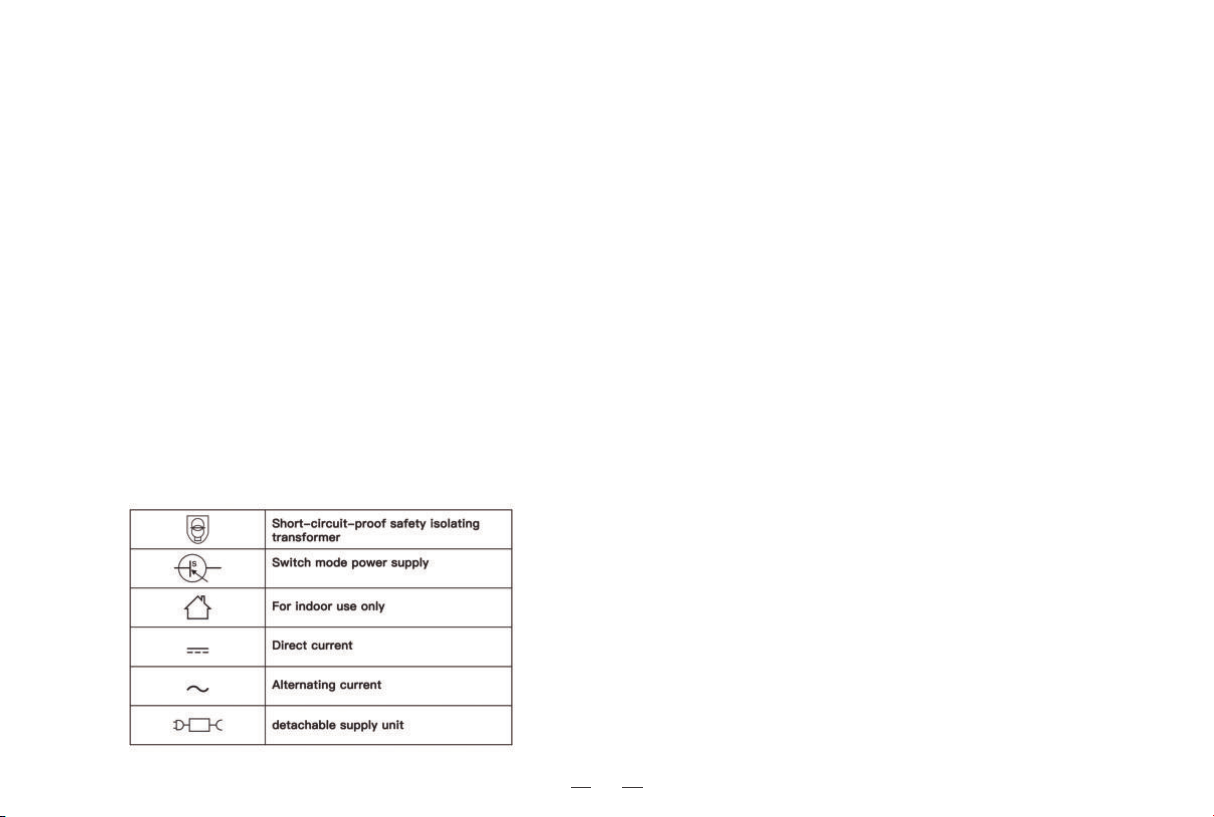

Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
Use the robot only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury
and fire.
SAVE THESE INSTRUCTIONS
38
39
The robot contains batteries that are only
replaceable by skilled persons. To replace the
robot's battery, please contact Customer
Service.
If the robot is not going to be used for a long
time, fully charge the robot, power it OFF,
and unplug the Docking Station.
41
40
.
.
.
.

6
Federal Communications Commission (FCC)
Interference Statement
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user 5s authority to oper-
ate this equipment.
RF exposure warning
This equipment complies with FCC radiation expo-
sure limits set forth for an uncontrolled environment.
This equipment must be installed and operated in
accordance with provided instructions and the
antenna(s) used for this transmitter must be installed
to provide a separation distance of at least 20 cm
from all persons and must not be collocated or
operating in conjunction with any other antenna or
transmitter.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generate, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment offand on, the user is encouraged to try to
correct the interference by one of the following mea-
sures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

7
Contents
. Product composition
·························································································· 8
. Using the product ···························································································· 11
. Maintenance and servicing
·············································································· 18
. Lighting effect and alarm prompt ····································································· 21
. Troubleshooting ······························································································· 23
. Technical parameters ······················································································ 26

8
1. Product composition / 1.1 Packing list
Robot vacuum cleaner
X 1
High Efficient Particulate Air
(HEPA) Filter
X 2
Side brush X2
&
Cleaning tool X 1
AC Adapter
X 1 Mop support X 1
&
Re-usable mop X 2
The figures in this manual are only for reference. The actual appearance may differ.
User manual
X 1 Disposable wet mop
X 2
Dust bin
X 1 Docking Station
X 1

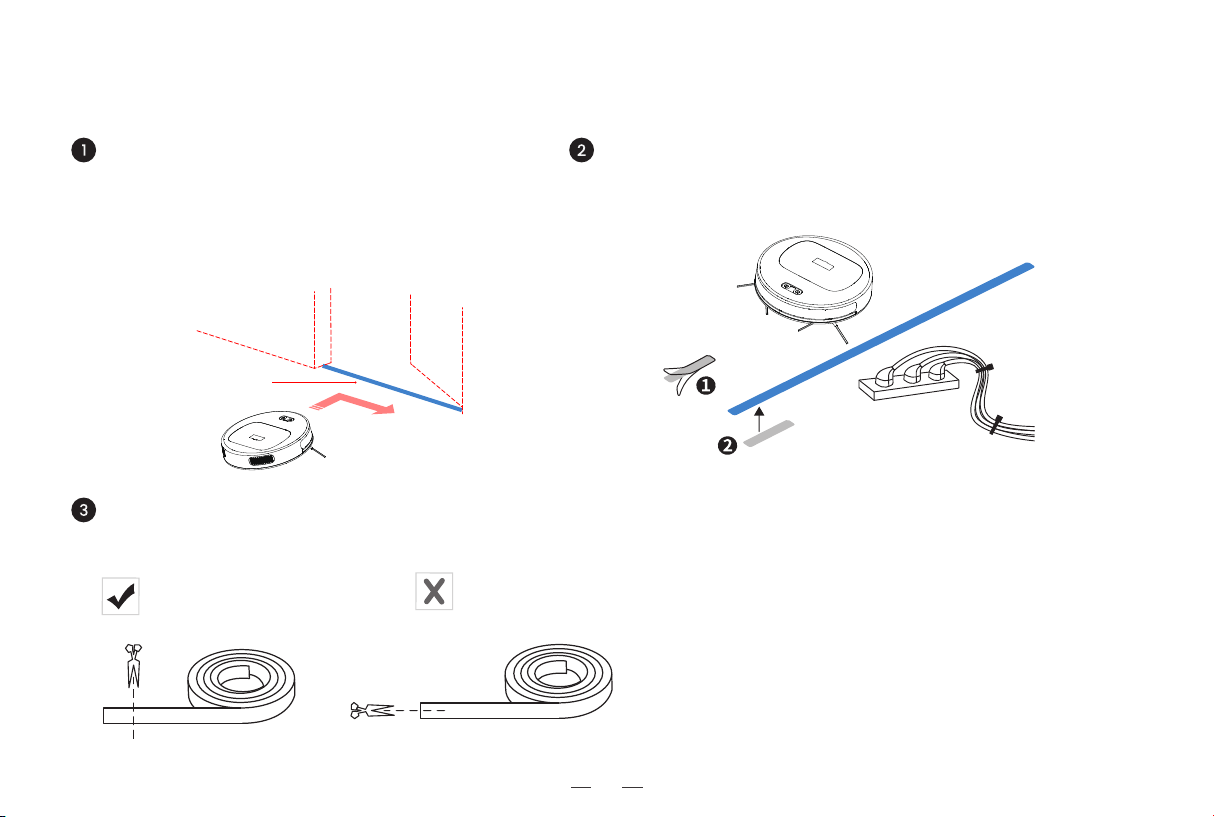

Magnetic strip
X 1
Note: Fast dry without any water stainsDisposableLocking WaterNon-woven fabric
5
User Manual
Lefant Intelligent
Robot Vacuum Cleaner
F1
Pleasekeep the manual properly and read it carefully before using the product.

9
Anti-falling sensor
Suction port
mecanum wheel
Side brush
Anti-falling sensorAnti-falling sensor
Charging electrode
Top view
Botton view
1. Product composition / 1.2 Part name
Dust bin handle
[Timer button]
[Start/pause button]
Anti-collision sensor
[Start/pause button]
Dust bin
[Timer button]
Gear indicator light
Driving Wheels

10

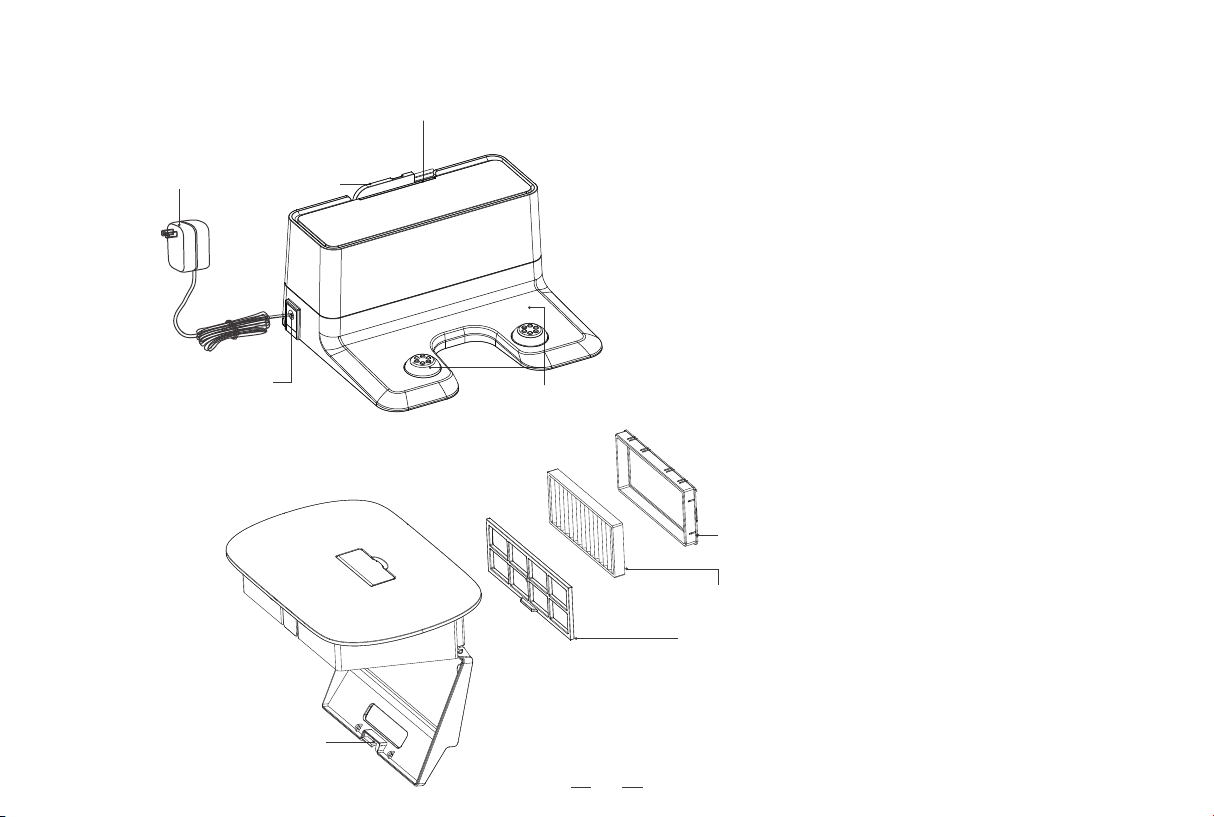

Dust bin
Docking Station
Cleaning tool
Charging Electrodes
Power adapter
Power adapter socket
High Efficient Particulate Air (HEPA) Filter
HEPA support
Pre-filter
Dust bin padlock
Indicator light

11
2. Using the product / 2.1 Precautions
Arrangement of room to be cleaned
12
If your carpet has tassels, please put the
tassels below the carpet to prevent them
from getting stuck in the robot. Please do
not use the floor-mopping function of
product on carpets.
Put away wires, cleaning pads,
slippers, etc. to prevent them
from getting stuck in the robot.
Please put tables, chairs, floor fan, weighing scale, etc. in place
before using the robot to maximize the cleaning area.
Prevention of robot falling
Although the robot has built-in anti-falling sensors, it is still a good
idea to put a physical barrier around steep edges to prevent the
robot from falling.

12

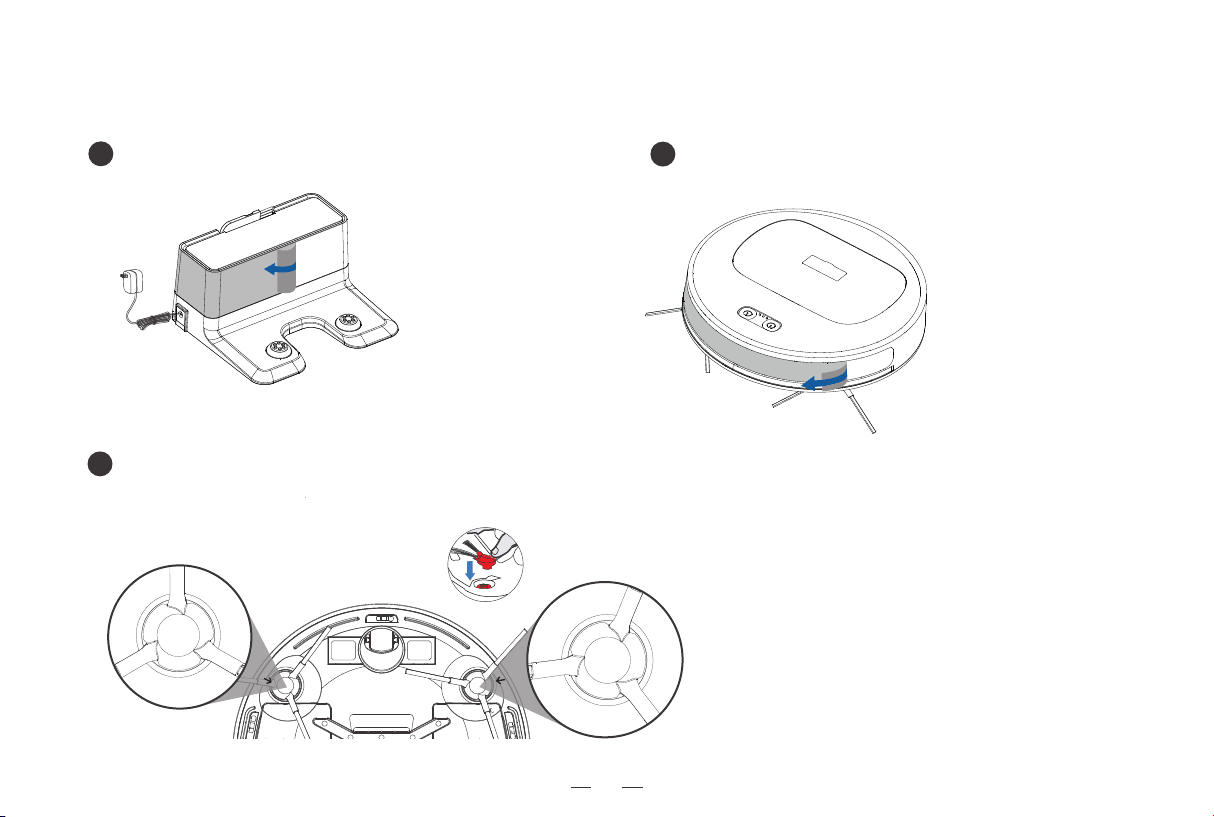

Remove the protective film on the Docking Station
3
1
Installation of the side brushes
2Remove the protective film on the Robot
2. Using the product / 2.2 Preparation
Please install the side brushes in the side brush sockets at the bottom of product.
A click sound indicates a proper installation.

13
1Placement of the charging base/
connection of power supply
2
Turning on the robot
3Charging the robot
2. Using the product / 2.3 Charging the robot
≥4-5h
󾗨
󽘘󽘙
Place the robot at Docking Station and make sure to align the charging electrodes
on the robot and the Docking Station.
[Start/pause button] Slow lighting and dimming
of the ice blue color indicates the product is charging;
[Start/pause button] After the robot is fully charged,
the Start/pause button will turn off.
A full charge takes 4 – 5 hours.
Keep pressing the [start/pause button] for three seconds to turn
on/off the robot.
To charge the robot, the robot must be turned on.
It is recommended not to turn off the robot after it finishes cleaning.
Keep the robot in its charging base to prevent unnecessary loss of
battery life.
* Place the charging base against the wall and on flat ground. Make sure that
no objects are placed within 0.5m on both sides and 1.5m in the front.
* Connect the power supply.
* Please arrange power line to avoid machine twining.
Placement of the Docking Station Connection of the AC adapter

14
2. Using the product / 2.4 Controlling the robot with buttons
Keep pressing the [start/pause button] for 3 seconds
Button operation
Single press of the [start/pause button]
Double clicking the [start/pause button]
Single press of [Timer button]
Double clicking the [Timer button]
Function
ON/OFF
Start/pause
Automatic recharge
Setting/Refreshing a scheduled daily
cleaning at the current time of day.
Timing turn off
Keep pressing the [Timer button] for 3 seconds Changing suction level
Simultaneously pressing the [start/pause button]
and the [Timer button] for 3 seconds Entering WiFi pairing mode

15
2. Using the product / 2.5 Floor-mopping functions
Mopping the floor
Maintenance and servicing
2
2
3
34
1
1
4

16
2. Using the product / 2.6 Application of virtual wall with magnetic strip
Virtual wall with magnetic strip
A magnetic strip can be used to separate an area not
expected to be cleaned (e.g. bathrooms or an area
where the robot may get stuck).
The magnetic strip shall be placed on the ground
across the entrance to the area.
Cut the magnetic strip short with scissors if necessary.
Please place the virtual wall with magnetic strip on dry ground for
best performance.

17
iOS 9.0
or above Android 4.0 or above
Method II : Search "Lefant" in the app store, download and
install the Lefant app.

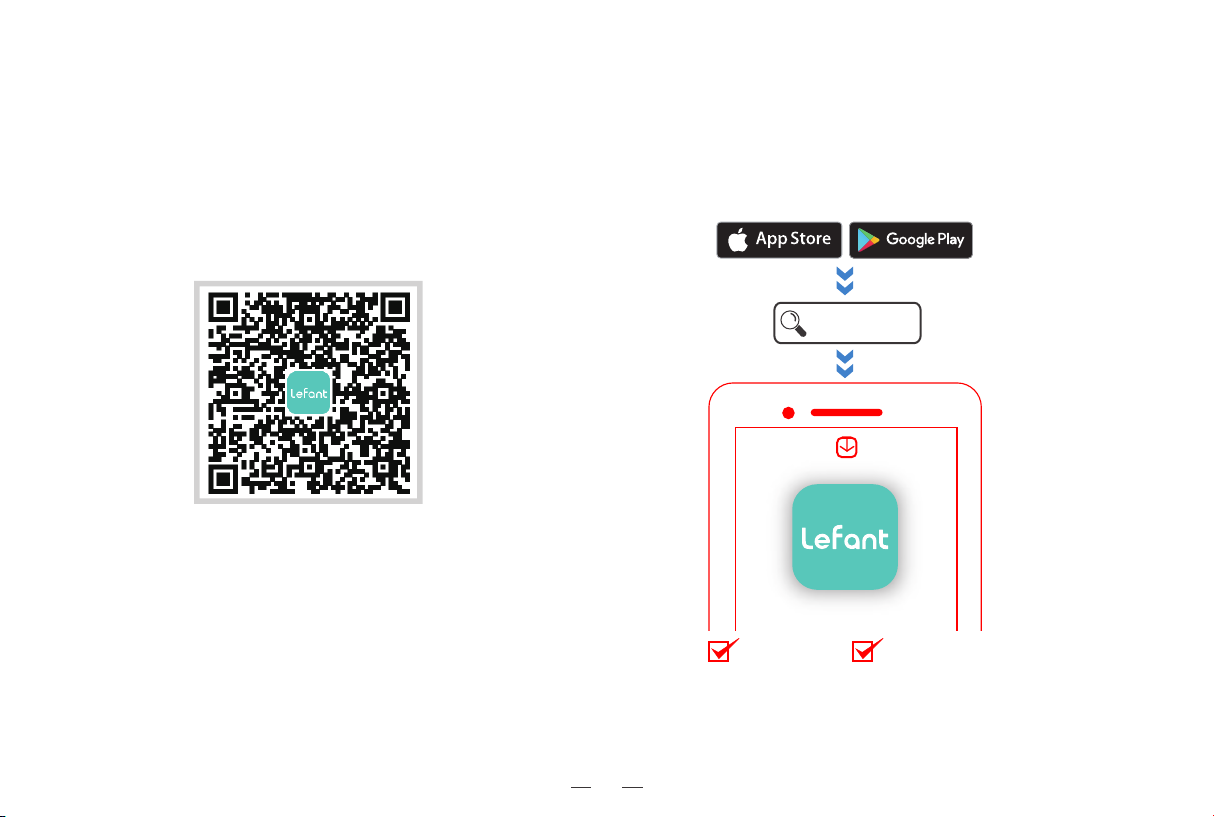

2. Using the product / 2.7 App download and configuration
Downloading and installation of the Lefant app
Method I : Scan the following QR code (also printed on the
robot), and then download and install App
according to the prompt.
Tips: * Follow the guidance in the Lefant app to register, login, and pair the robot.
* Please make sure that the mobile phone is connected to your WiFi network before paring the robot vacuum cleaner.
* Note that the robot works with 2.4-GHz WiFi networks only.
Lefant

18

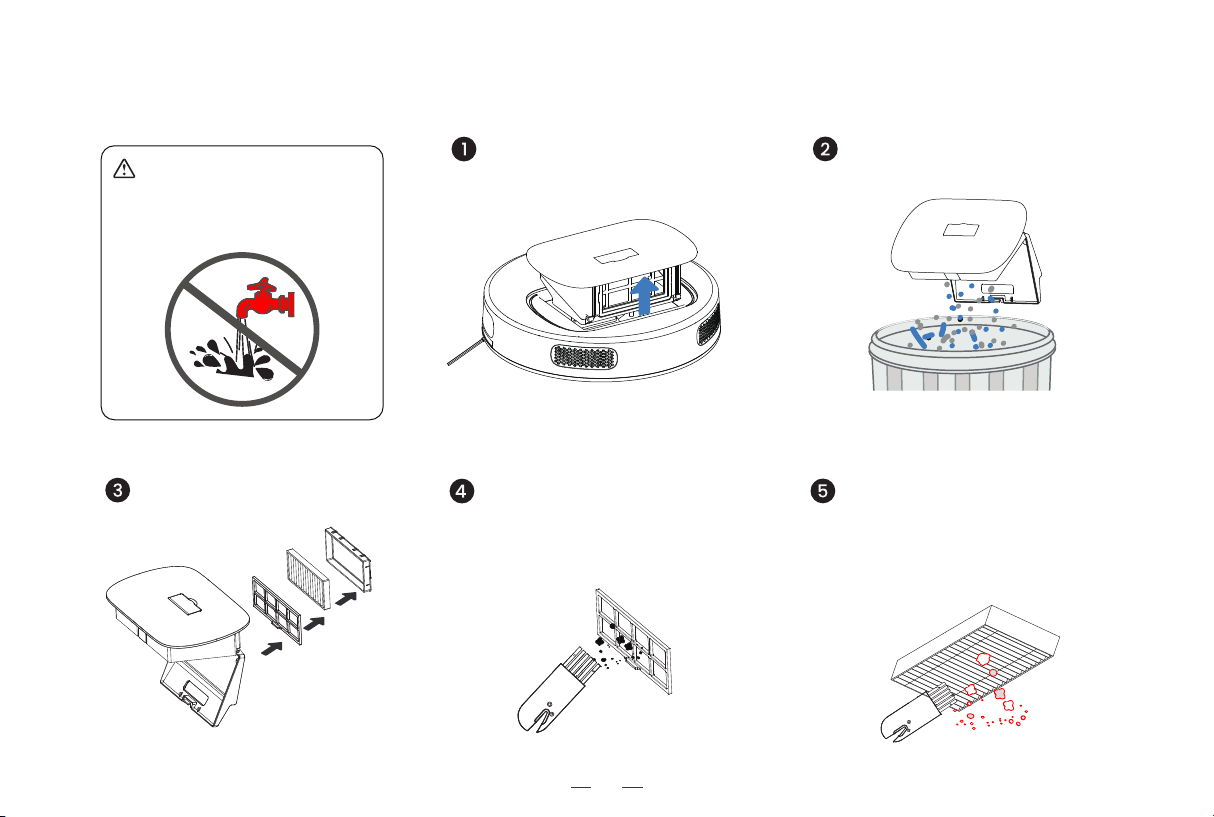

3. Maintenance and servicing / 3.1 Dust bin and HEPA filter
Warning:
Neither the dust bin nor the HEPA
filter can be washed with water.
Open the dust bin lock latch,
to dump the dust.
Remove the dust filtering
components.
Lift up the handle on the top
surface of dust bin to take it out.
Clean the dust on the pre-filter
with the brush on the cleaning
tool. It’s a good idea to clean up
both the inner and outer surfaces.
Clean the dust on the HEPA
filter with the brush of the
cleaning tool.

19
12

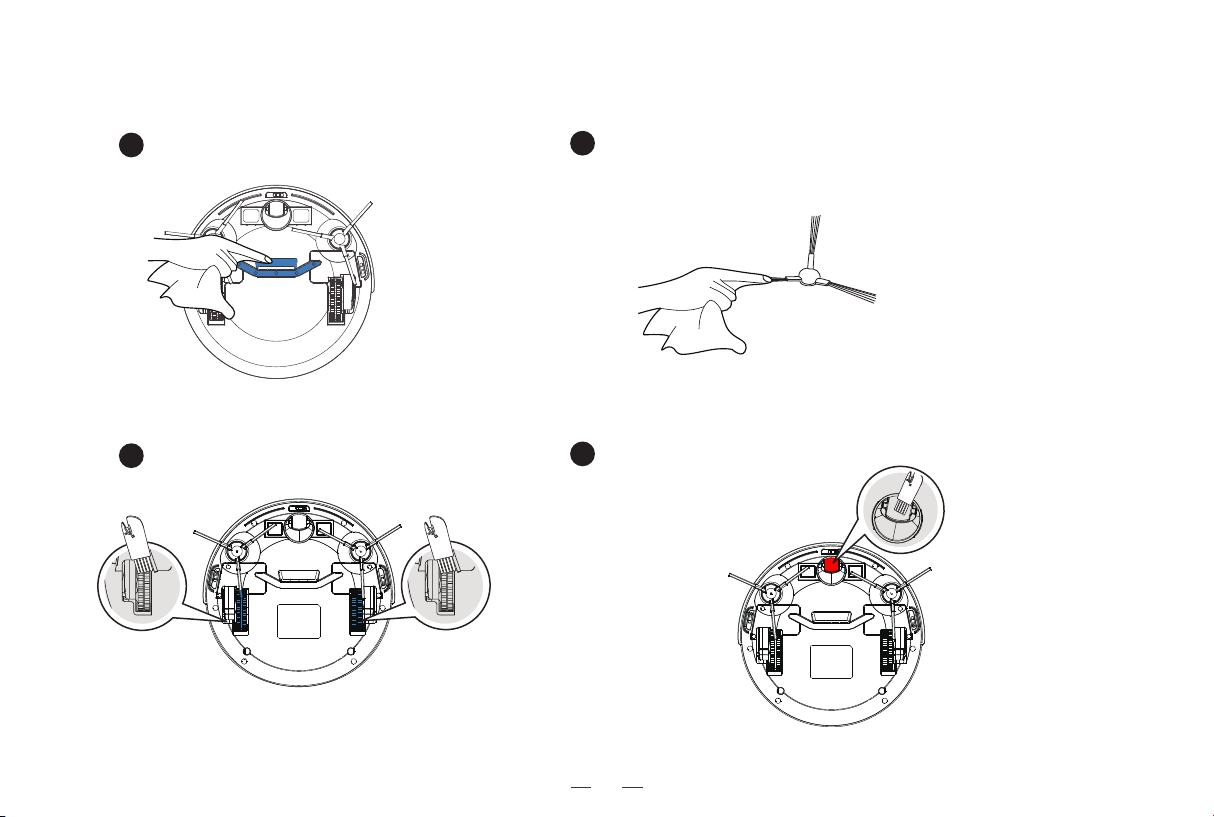

Clean the suction inlet Clean side brush
Unplug the side brushes and wipe them with a piece of clean cloth.
3 4
Clean the driving wheels Clean the mecanum wheel and remove
any hair tangles
3. Maintenance and servicing / 3.2 Suction inlet and side brushes
