Please read these instructions carefully before using the product and keep it in a safe placeUser ManualApplicable for M201Robot Vacuum Cleaner

Congratulations on the purchase of your Lefant ROBOTICS!We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time to do other things.Wisdom Inspired FreedomShould you encounter situations that have not been properly addressed inthis Instruction Manual, please contact our Customer Service Center where atechnician can address your specific problem or question.For more information, please visit the Lefant ROBOTICS official website:www.lefantlife.com or send email to [email protected]The Company reserves the right to make technological and design changes to this product for continuous improvement.2

Contents6. Troubleshooting7. Technical Parameters4. Maintenance 14 4.1 Dust Bin and Filters14 4.2 Sucking assembly and Side Brush15 4.3 Other Components3. Product Operating and Programming 3.1 Notes Before Cleaning7 3.2 Quick Start85. Indicator Light and Alarm Sounds 5.1 Indicator Light 17 5.2 Alarm Tips 172. Product Composition1. Important Safety Instructions16457171819····························································································································································································· 3.3 APP Download and Network Configuration10··························································································································································································································································································································································································································3

1.Important Safety Instructions When using the product, please keep your vigilance and follow below information:1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuckrug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.3. If there is a drop off in the cleaning area due to a step or stairs,you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling.Make sure the physical barrier is not a trip hazard.4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.5. Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.7. Non-rechargeable batteries are prohibited.8. Do not use without dust bin and/or filters in place.9. Do not operate the Appliance in an area where there are li t candles or fragile objects.10. Do not use in extremely hot or cold environments (below-5℃/23℉ or above 40℃/104℉).11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.12. Do not operate the Appliance in a room where an infant or child is sleeping.13. Do not use Appliance on wet surfaces or surfaces with standing water.14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.20. Do not use the Charging Dock if it is damaged.21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.22. Turn OFF the Power Switch before cleaning or maintaining the Appliance.EN23. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.24. Remove the Appliance from the Charging Dock, and turn OFF the Power Switch to the Appliance before removing the battery for disposal of the Appliance.25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.26. Please dispose of used batteries according to local laws and regulations.27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.28. When not using the Charging Dock for a long period of time, please unplug it.29. The Appliance must be used in accordance with the directions in this Instruction Manual. LEFANT ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.30. The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.31. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.4

2.Product CompositionRobotTop CoverStart/Pause ButtonDust BinDriving WheelAnti-Drop Sensor Anti-Drop SensorSuction AssemblyUniversal WheelSide BrushCharging ContactAnti-Drop SensorDriving WheelCharging ContactBumper StripAnti-Collision SensorsTop CoverPower Switch5

2.Product CompositionCharging DockMulti-FunctionCleaning ToolCharging Dock PinsPower Indicator LightPower AdapterPower Adapter PortDust BinHigh Efficiency Filter (HEPA)Filter Net Dust Bin Cover HEPA Cover6

3.Operating and Programming3.1 Notes Before CleaningPlease refer to the following guidelines to check the cleaning area before using the robot.Remove power cords and small objects from thefloor that could entangle the products.The product is not suitable for use on long-pile carpet. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves.If there is a step or stairs in the cleaning area,please operate robot to ensure its Anti-Drop Sensors can detect the drop off. It may be necessary to place a physical barrier at the edge of the drop off to keep the unit from falling over the edge.Please be aware that the robot needs at least an 8 cm (3”) clearance to clean under furniture without complications.7

3.Operating and ProgrammingAttach Side Brush to the bottom of robot by pressing a brush into each slot until it clicks. Install Side Brush2
1M1M
2M
Side Brush3.2 Quick StartPlace the Charging Dock on a level floor surface against the wall with the base perpendicularto the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3’) on both sides of the charger clear of objects and reflective surfaces.Plug the Charging Dock in, the Power Indicator Light on the Charging Dock glows.Charging Dock PlacementConnect the adapter to the charging Dock1Place the Charging DockConnect the power supply8

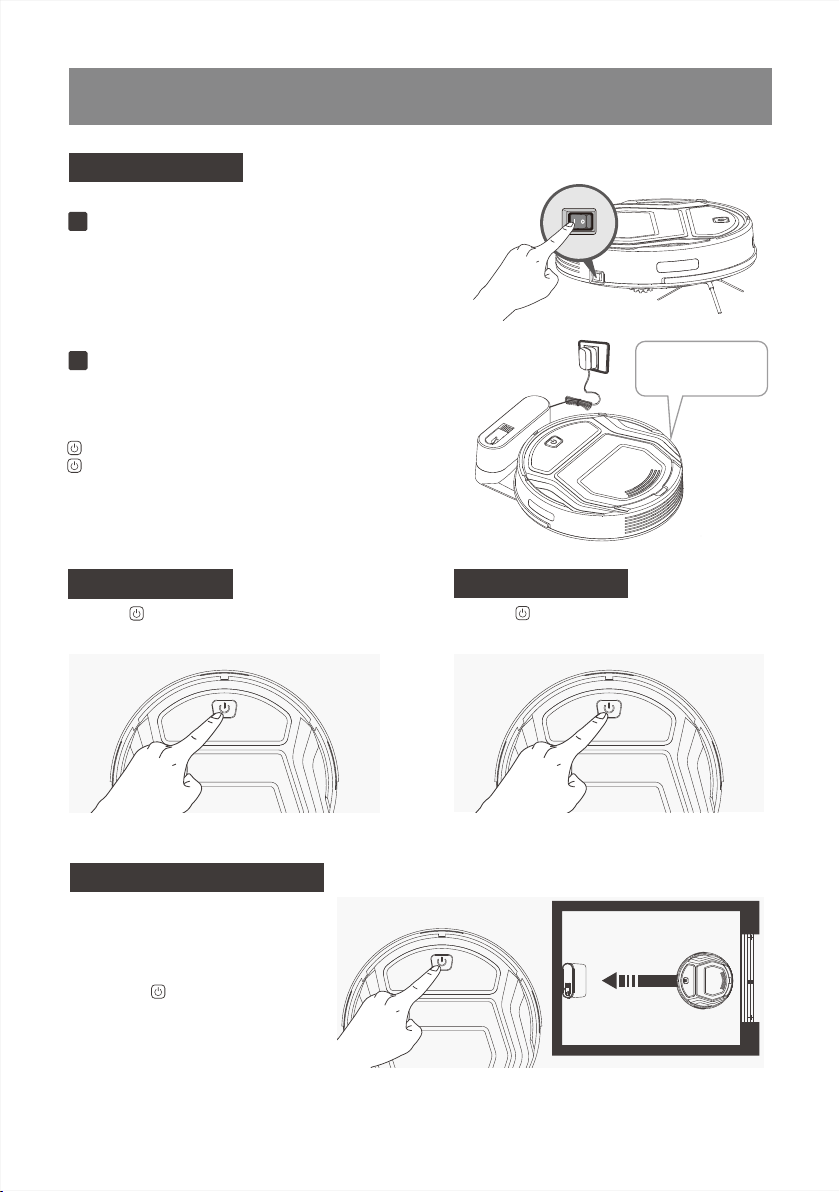

button in breathing status when robot is charging, button stops glowing after robot is fully charged.Usually take 3.5 hours from low battery mode to fully charged.3.Operating and ProgrammingTurn the robot’s Side Power Switch to the ON position. “-” indicates power ON and“O” indicates power OFF. Robot is powered ON when button glows a continuous BLUE.Start to ChargeStart CleaningTurn on the Robot1Charge Robot2Place robot on the Charging Dock making sure the Charging Contacts on robot and the Charging DockPins make a connection.When battery power gets low, Robot automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself. Alternatively, double click on the Start/Pause button on the robot to start the Return to Charger Mode.Press the button to Pause the Cleaning.Press the button on the robot to start the automatic cleaning mode.Pause CleaningReturn to Charging dockMake sure to turn the robot’s Power Switch on before charging.9

3.Operating and ProgrammingScan the QR code to download and install the appConnect to your Indoor 2.4G WIFI networkThis app is compatible with IOS9.0 and Android 4.0 or above.ios system: Please search “Lefant life” in the app store.Android system: Please scan the QR code or search "Lefant Life" on google play to download.
3.3 APP download and network configuration
Make sure the mobile device is connected to the indoor 2.4G WIFI network, and the signal quality is good enough, register and log in to the mobile app.101
The robot enters the network configuration EZ
mode, and the start / pause flash quickly in blue.
Network paring EZ mode (Only 2.4G Wi-Fi can be supported)
1
2
Turn on the side switch. Press and hold the key for about 3 seconds until you hear a beep and release.
12
EZ MODE

The robot enters the nerwork configuration AP
mode, and the start / pause flash slowly in blue.
Network paring AP mode(Only 2.4G Wi-Fi can be supported)11 Turn on the side switch. Press and hold the key for about 6 seconds until you hear two beeps and release.
12
3.Operating and ProgrammingOpen the app and select add device, the interface as follows:If you experience with network pairing failure, please restart the robot and start over again. Or try the AP mode network pairing method instead.2
2
1
1
AP MODE

3.Operating and Programming Add Manually- Wi-Fi-AP Mode12
12
Turn on the side switch
12
Turn on the side switch Press and hold the start/Pause button for 6 seconds until you hear two beeps sound and release2

3.Operating and ProgrammingConnect your phone to a Wi-Fi that starts with then name “SmartLife”.After successfully connecting to the Wi-Fi, return the the APP and start the network configuration. 133
4

Open the Top Cover to take out the Dust Bin, open the Dust Bin Cover and empty the Dust Bin.4.1 Dust Bin and FiltersRemove the High Efficiency Filter. Pat the High Efficiency Filter clean. Do not rinse the High Efficiency Filter under water.Flush the Dust Bin and the Filter Net.Dry the High Efficiency Filter, Dust Bin and Filter Net completely before reinstalling.
4.Maintenance
234Remove the Dust Bin, open the Dust Bin Cover, and empty the Dust Bin.1
14

4.Maintenance
4.2 Suction Assembly and Side BrushIf there is a lot of dust in the suction port, use a cloth clean up.Clean the suction port1Remove the Side Brush. Wipe the Side Brush and their slot with a dry cloth. Cleaning the Side Brush24 Clean the Driving Wheels to maintain their effectiveness. Use the Multi-Function Cleaning Tool to cut off and remove any hair tangled around the Universal Wheel.3
15

4.Maintenance
■ Wipe the Charging Contacts and Charging Dock Pins with the brush of the Multi-Function Cleaning Tool or a dry clean cloth to maintain their effectiveness.4.3 Other Components■ Clean Anti-Collision Sensors.■ Wipe the Anti-drop Sensors with the brush or the felt side of the Multi-Function Cleaning Tool to maintain their effectiveness.
16

5. Indicator Light and Alarm Sounds
Robot Status
Indicator LightChargingGlows a solid PINK or BLUEFinished ChargingThe BLUE goes outHas a ProblemFlashes RED or glows a solid REDLow BatteryGlows a solid REDCleaning ModeGlows a solid BLUEBefore starting network pairingGlows a solid BLUEnetwork pairing process/WiFi connection was lostExit the network pairing mode after 3minutes, the BLUE goes outConnect to Wi-FiGlows a solid BLUE
5.1 Indicator Light5.2 Alarm Tips
No.Cause of issueMotor Fan abnormalSide Brush abnormalDriven wheel abnormal32145321BeepsAPP Error prompts and solutionsGlowing a solid RED
When the robot fails, the robot indicator flashes red and a beeping sound of varying lengths is emitted. Refer to the following table to query the cause of the failure:
Please wipe the Charging Contacts and Charging Dock Pins, otherwise replace the adapter.Manually place the robot on the Charging Dock to charge.Place the robot on an even surface, or remove the obstacles, and restart the robot.The robot is floating, please move to the ground.2 beeps 3 times3 beeps 3 times4 beeps 3 times5 beeps 3 times6 beeps 3 timesPlease check if the Power Switch is on.Flashing RED1 beep 3 times2 beeps 3 times3 beeps 3 timesPlease empty the Dust Bin, clean the Filter Net and High Efficiency Filter.please check if the Side Brush is entangled, and clean the Side BrushPlease check whether the Driving Wheels is entangled and clean the Driving Wheels.If the trouble cannot be eliminated according to the above operation, Please try the following operations Re-open the Power Switch on the side of the robot and restart the robot.Please contact [email protected].Charging voltage abnormalLow BatteryFailure to get out of troubleAnti-drop detection alarmCharging abnormal17

Please use this chart to troubleshoot common problems using robot.
6.Troubleshooting
MalfunctionPossible CausesSolutions01 02
Robot is not able to connect to the home Wi-Fi network.Robot is not charging.Robot gets intotrouble while working and stops.Robot returns to the Charging Dock before it finishes cleaningRobot will not clean automatically at scheduled time.Robot does not clean the whole area.Incorrect home Wi-Fi username or password entered.Download the incorrect APP.Robot is not within range of your home Wi-Fi signal.Robot isn't in network pairing mode.Enter the correct home Wi-Fi username and password.Please scan the QR code in the user manual or search "Lefant life" on google play or app store.Make sure robot is within range of your home Wi-Fi signal.Make sure the robot is in the network pairing mode.Robot does not support 5GHz Wi-Fi.Your smartphone’s operating system needs to be updated.Robot is not switched ON.Switch ON robot.Robot has not connected to the Charging Dock.The Power Adapter is not connected to the Charging Dock.Be sure that the robot’s Charging Contacts have connected to the Charging Dock Pins.Make sure the Power Adapter is firmly connected to theCharging Dock. The Power Adapter is not connected to the power supply.Make sure the Power Adapter is connected to the power supply.
The robot is tangled with something on the floor (electrical cords, drooping curtains, carpet fringe etc.).Robot will try various ways to get itself out of trouble. If it is unsuccessful, manually remove the obstacles and restart.Side Brush is stuck or the rotation speed of the Side Brush decreases.Remove the debris tangled around the Side Brush. If theSide Brush still rotates slowly, contact Customer Service.When battery power gets low, robot automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself.This is normal. No solution necessary.Working time varies according to floor surface,room complexity and the Cleaning Mode selected.This is normal. No solution necessary.Time Scheduling function is cancelled.Reset Time Scheduling function.Robot is powered OFF.Power ON robot.Robot’s battery is low.Keep robot powered ON and on the Charging Dock to make sure it has a full battery to work at any time.Robot’s components are tangled with debris.Power OFF robot, clean the Dust Bin, and invert the robot. Clean Side Brush as described in section 4.The cleaning area is not tidy.Remove small objects from the floor and tidy up the cleaning area before robot starts cleaning.
Make sure the robot has connected with 2.4GHz Wi-Fi network.Update your smartphone’s operating system. The Lefant life App runs on iOS9.0 and above, Android 4.0 and above.
03040506
The images are only for reference, please refer to the actual item as the standard. Lohas reserves the right to update products without prior notice.
If the trouble cannot be eliminated according to the above operation, Please contact [email protected]
No.18

7.Technical Parameters Robot Model：M201Charging StandWorking Voltage(V): 12.8Power Rating(W): 15Rated Input Voltage(V): 19Rated output current(A): 0.619

Official website
Shenzhen Lohas Technology Co.，LTDhttp://www.lefantlife.com / [e-mail] area, 4th Floor, Factory Building 3, Longcheng Industrial Park, Huanggekeng Community, Longcheng Street, Longgang District, Shenzhen M2-20200818 V1.3
