Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
4
important information
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT
WARRANTY WARNING
Do not open any control boxes, motors or
remote control devices (with the exception of
the remote control and power down box battery
compartments). The product warranty will be
void if these components are tampered with.
Do not attempt to alter component wiring or
adjust or modify the structure of the product in
any way or the warranty will be void. Any repair
or replacement of bed parts must be performed
by authorized personnel.
LUBRICATION
This product is designed to be maintenance
free. The lift motors are permanently lubricated
and sealed—no additional lubrication is
required. Do not apply lubricant to lift motor
lead screws or any nylon nuts or the base may
inadvertently creep downward from the elevated
position.
PRODUCT RATINGS
The base lift motors are not designed for
continuous use. Reliable operation and full
life expectancy will be realized as long as the
lift motors do not operate any more than five
(5) minutes over a thirty (30) minute period,
or approximately 15% duty cycle. Note:
Massage equipped bases are not designed
for continuous, extended massage operation.
Massage systems are rated for a maximum
of 2 hours of use within any 6 hour period.
Any attempt to circumvent or exceed product
ratings will shorten the life expectancy of the
product and may void the warranty.
The recommended weight restrictions for Sleep
Comfort™ adjustable beds are 450 lb (204kg)
all sizes. The base will structurally support the
recommended weight distributed evenly across
the head and foot sections. This product is not
designed to support or lift this amount in the
head or foot sections alone. Note: Exceeding
the recommended weight restrictions could
damage the base and void the warranty.
For best performance, consumers should enter
and exit the adjustable base with the base in
the flat (horizontal) position. DO NOT SIT ON
THE HEAD OR FOOT SECTIONS WHILE IN THE
RAISED POSITION.
UL (Underwriters Laboratories) recognized
components.
CFR 1633 approved for use with most
mattresses.
Assembled in USA.
ADVISORY
ELECTRICAL GROUNDING
This product is equipped with a polarized or
grounded electrical power cord. The power cord
will only fit into a grounded, electrical surge
protection device (not included) or a grounded
electrical outlet.
ELECTRICAL RATING
Electrical components are rated for 110/120
voltage, 60Hz, 3.9 amp.
FOR OPTIMUM ADJUSTABLE BASE
OPERATION, USE A GROUNDED,
ELECTRICAL SURGE PROTECTION DEVICE
(NOT INCLUDED). FAILURE TO USE A
SURGE PROTECTION DEVICE COULD
COMPROMISE SAFETY OR CAUSE PRODUCT
MALFUNCTION.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 5
ADVISORY
FCC COMPLIANCE
Components meet Class B digital device
rating (Part 15, FCC rules) for residential use.
Adjustable bases generate, use and may radiate
radio frequency energy. Radio communication
may be affected if not installed and operated
as recommended in this manual. Changes or
modifications not expressively approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
Radio frequency = 310MHz.
LOCKING CASTER SAFETY FEATURE
Many adjustable bases are equipped with
locking casters to prohibit the base from
movement. For best results, place rubber caster
cups under locking casters when the base is
located on smooth or hard surface flooring—it
is possible for locking caster equipped beds to
slide without the use of rubber caster cups.
To activate locking casters, push down on the
lock tab. To disengage the locking mechanism,
push up on the lock tab (see illustration below).
LOCKING CASTER
DETAIL
LOCK
SMALL CHILDREN / PETS WARNING
After the adjustable base is unboxed,
immediately dispose of packaging material as it
can smother small children and pets. To avoid
injury, children or pets should not be allowed to
play under or on the base. Children should not
operate this base without adult supervision.
HOSPITAL USE DISCLAIMER
This base is designed for in-home use only. It
is not approved for hospital use and does not
comply with hospital standards. Do not use this
bed with tent type oxygen therapy equipment,
or use near explosive gases.
PACEMAKER WARNING
This product produces a vibrating sensation.
It is possible that individuals with heart-assist
pacemakers may experience a sensation similar
to exercise. Consult physician for complete
information.
SERVICE REQUIREMENTS
Service technicians are not responsible for
moving furniture, removing headboards and
footboards or any items required to perform
maintenance on the base. In the event the
technician is unable to perform service due
to lack of accessibility, the service call will
be billed to the purchaser and the service will
have to be rescheduled.
important information
READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
6
ACOUSTICS
LIFTING/LOWERING MECHANISMS
The lift/lower feature will emit a minimal
humming sound during operation. This is
normal.
During operation, the lift arm wheels make
contact with the platform support of the base.
This applies slight tension on the moving
components and resonance is reduced to a
minimum level. If excessive noise or vibration is
experienced, reverse the movement action (up or
down) of the base with the remote control. This
should realign the base’s activating mechanisms
to the proper operational position.
MASSAGE OPERATION
The massage feature will emit a minimal tone
during operation. This is normal. When the
massage level is increased, motor resonance
will intensify accordingly.
LOCATION ENVIRONMENT
The level of sound experienced during
operation is directly related to the location
environment. For example, when a base is
located on a hardwood floor with the massage
feature in operation, a vibrating tone will be
audible. To minimize this resonance, place
a piece of carpet—or optional rubber caster
cups—under each leg or caster of the base.
See the accessory sheet for rubber caster cup
order information.
It is possible to experience vibration or noise
from the headboard brackets, headboards or
footboards if mounting bolts are not firmly
tightened.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 7
INSTALLATION

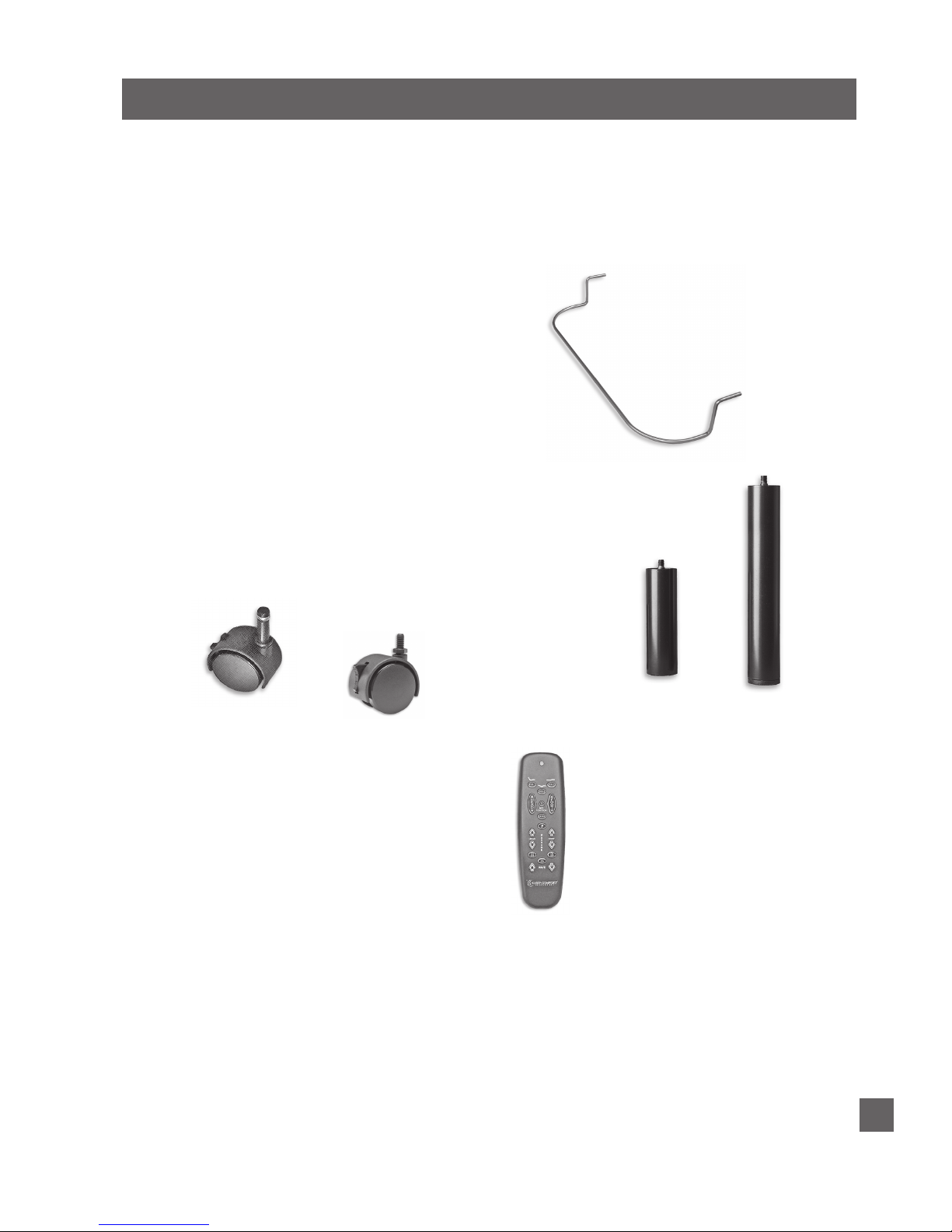

4” LEG
(4 pieces) 7” LEG
(4 pieces)
For installation and setup, complete the numbered procedure indicated below and on the
following pages:
PUSH-IN LOCKING
LEG CASTER
(4 pieces) SCREW-IN LOCKING
LEG CASTER
(4 pieces)
MATTRESS
RETAINER
(1 per base)
STEP 1
Before discarding any packing materials,
check the adjustable base shipping carton
and verify the following items are
included:
• (1) Mattress Retainer
• (4) 4 inch Bed Legs
• (4) 7 inch Bed Legs
• (4) Push-in Locking Leg Casters
• (4) Screw-in Locking Leg Casters
• (1) Remote Control
• (1) Owners Manual
• (1) Warranty Activation Card
• (1) Adjustable Base Quick Setup Guide
REMOTE CONTROL

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
8
INSTALLATION
STEP 2
Carefully lift the adjustable base frame from the shipping carton,
keeping the unit top-side-down.
STEP 3

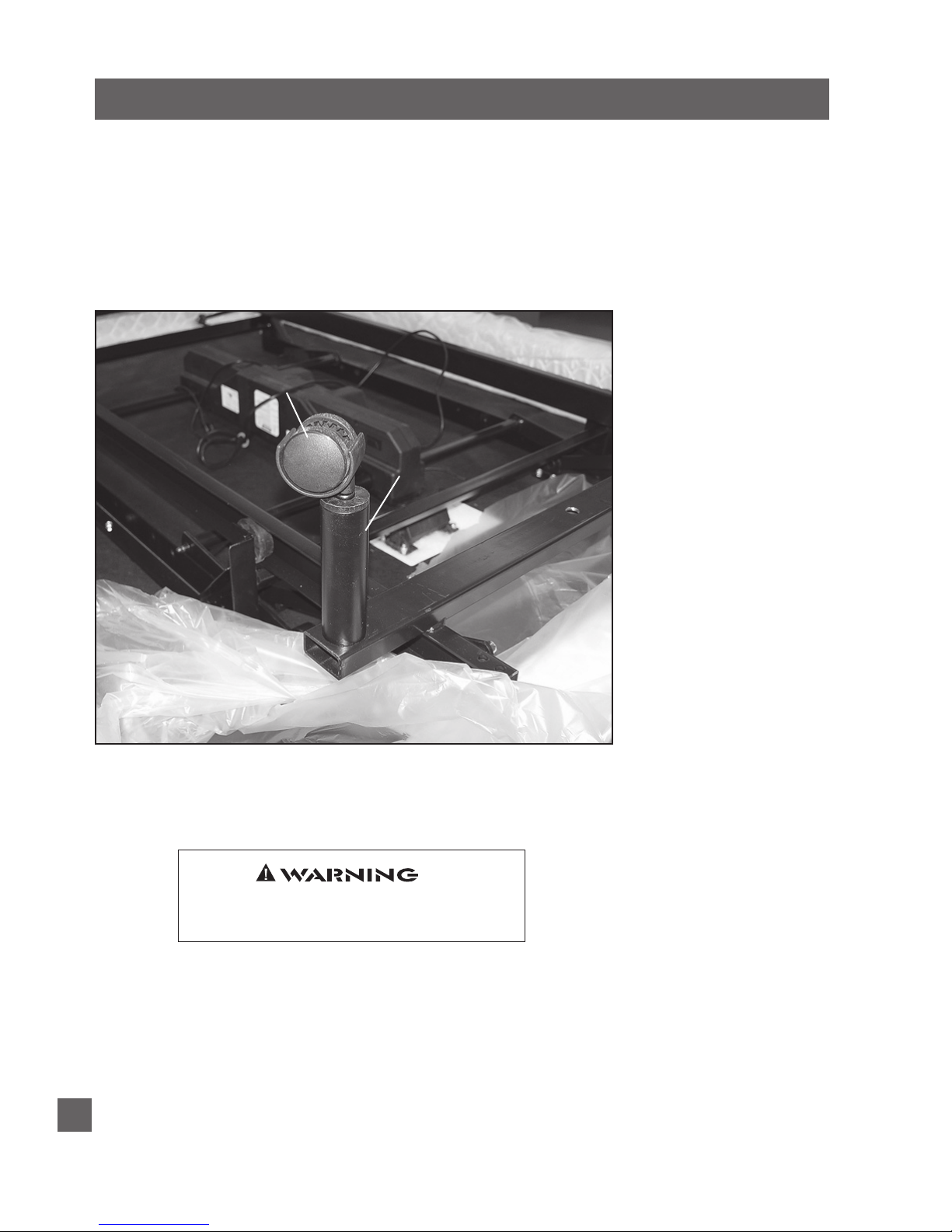

Install (4) legs into the base frame. Simply screw each leg into a tapped
hole at each corner of the base frame (FIGURE 1). Insert casters into the
bottom of each bed leg.
FIGURE 1: Leg and caster installation.
STEP 4
Remove and extend out power cord from the protective packaging.
POWER CORDS MUST NOT INTERFERE WITH
ANY ADJUSTABLE BASE MECHANISMS.
LEGS – SCREW INTO
TAPPED HOLE AT
EACH CORNER
CASTERS –
PRESS-FIT
INTO BOTTOM
OF LEGS

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 9
FIGURE 2: Power down battery compartment door
removal.
PRESS IN (SLIGHTLY) AND
PUSH DOWN TO REMOVE
BATTERY COMPARTMENT
DOOR
FIGURE 3: Power down box battery installation and battery compartment door
reinstallation.
BATTERY ORIENTATION IS
INDICATED INSIDE BATTERY
COMPARTMENT
TABS
STEP 5
Install (2) 9 volt batteries into the power down box (FIGURES 2 and 3).
DOOR INSTALLATION:
PRESS COMPARTMENT DOOR
AGAINST THE BATTERY ENDS,
SLIDE DOOR UP AND IN TO
ENGAGE THE DOOR TABS
INSTALLATION

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
10
STEP 6
Remove the plastic packaging from the adjustable base frame. Carefully rotate
the base frame over to position the base top-side-up.
STEP 7
Plug electrical power cord into a working, grounded electrical outlet.
Note: an electrical surge protection device is recommended (not included).
STEP 8
Install batteries in remote control (4-AAA size, included). Briefly activate
all functions of the base with the remote control to verify all features are
in working order. If base does not operate, refer to the Troubleshooting
section of this manual.
STEP 9
Return base to the level position.
STEP 10
Install mattress retainer at the foot end of the base as follows:

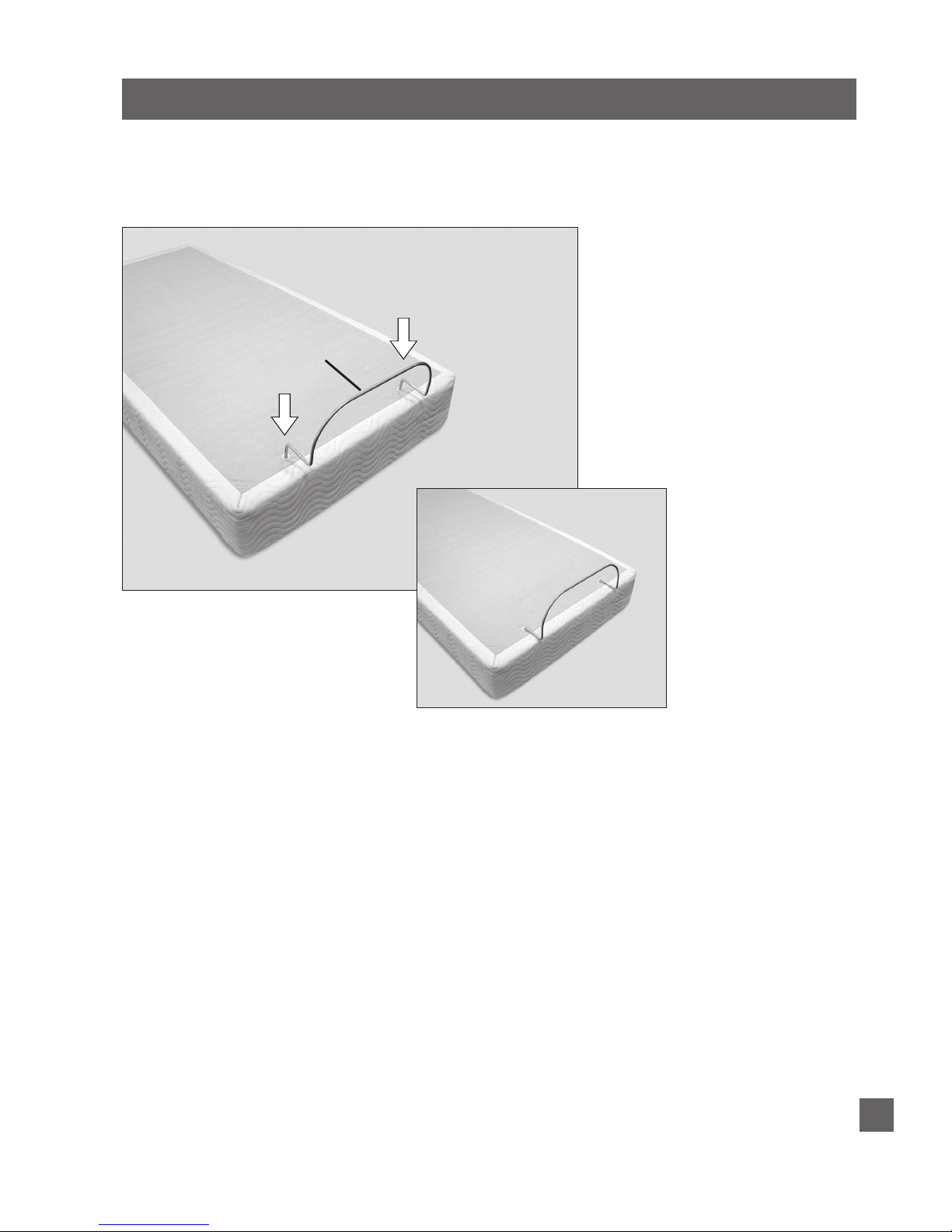

a. Locate grommeted holes at foot of base (FIGURE 4).
GROMMETED
HOLES
FIGURE 4: Grommeted hole locations.
FOOT END OF BASE
INSTALLATION

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 11
b. Place mattress retainer ends into grommeted holes in top surface of
adjustable base (FIGURES 5 and 6). Press down until horizontal retainer
section is flush against base.
FIGURE 5: Mattress retainer installation.
FIGURE 6: Mattress retainer installed.
MATTRESS
RETAINER
INSTALLATION
FOOT END OF BASE
Typical adjustable base installation is now complete.
STEP 11
Install mattress on adjustable base.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
12

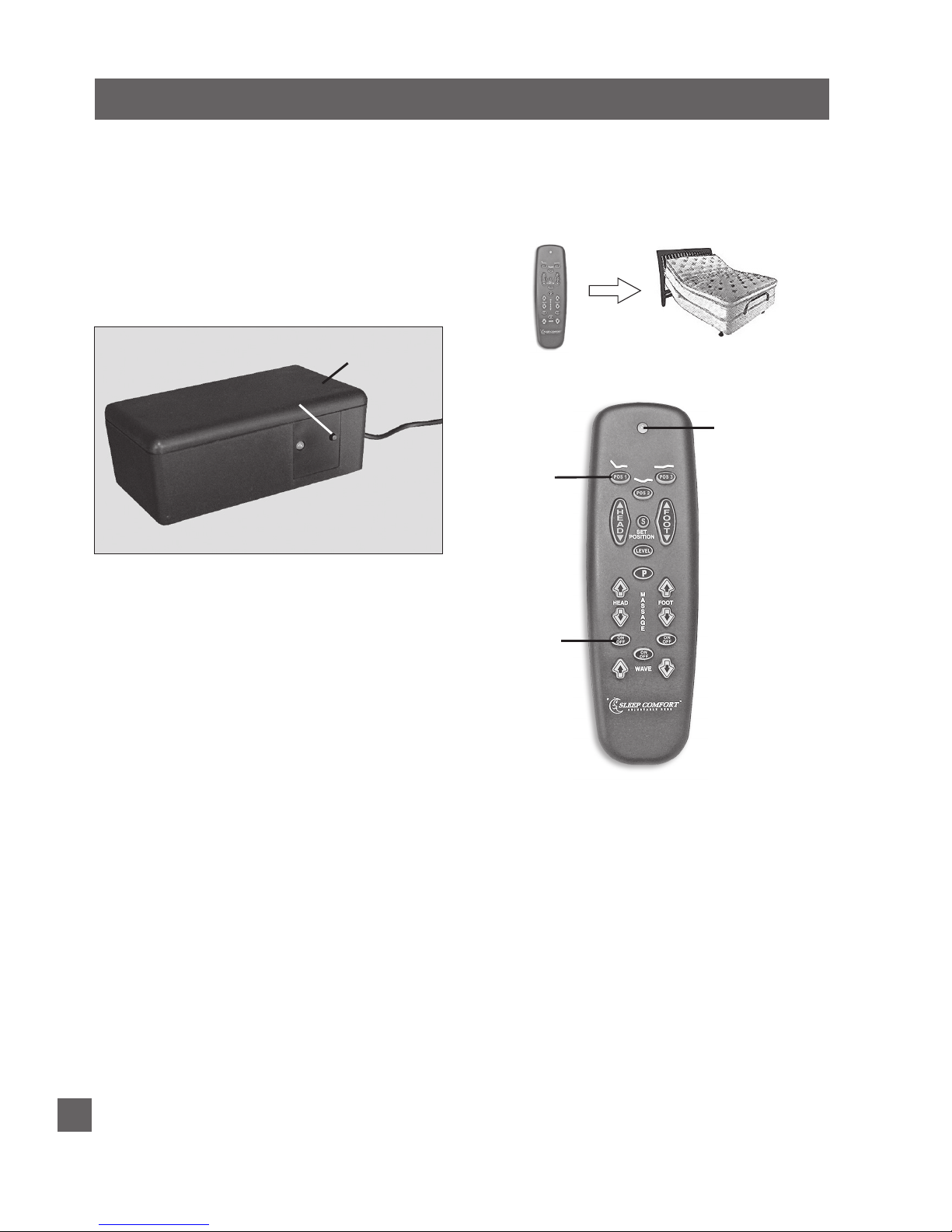

SC-MR2 REMOTE CONTROL FUNCTION
NOTE
REMOTE CONTROL REQUIRES FOUR (4) AAA SIZE BATTERIES. TO CONSERVE
BATTERY LIFE, THE TRANSMITTER TURNS OFF ALL FUNCTIONS WHEN ANY BUTTON
IS PRESSED FOR MORE THAN 50 SECONDS.
TRANSMISSION
INDICATOR LIGHT
Verifies a button is being pressed and
data is being sent to the bed.
FOOT UP/DOWN BUTTON
Press and hold to raise or lower the
foot section.
FOOT MASSAGE BUTTONS
Press and hold to increase or
decrease foot massage intensity.
HEAD UP/DOWN BUTTON
Press and hold to raise or lower the
head section.
HEAD MASSAGE BUTTONS
Press and hold to increase or
decrease head massage intensity.
LEVEL BUTTON
Press to adjust the bed to the flat
position. This button will also turn off
the massagers.
CUSTOM POSITION SET BUTTON
Press to capture any position and/or
function (massage and/or wave) of the
bed as a programmed position. Press
the custom position recall button
to return the bed to the custom
programmed position.
POSITION BUTTONS
The adjustable base is equipped
with 3 factory preset positions. Press
and release a button and the bed
will automatically move to the preset
position. To stop the bed while in
motion, press and hold any button
until the bed stops.
CUSTOM POSITION
RECALL BUTTON
Press to adjust the bed to the custom
programmed position.
FOOT MASSAGE ON/OFF BUTTON
Switches the foot massage on or
off. When switched on, the massage
feature will automatically shut off
after 30 minutes.
HEAD MASSAGE ON/OFF BUTTON
Switches the head massage on or
off. When switched on, the massage
feature will automatically shut off
after 30 minutes.
WAVE ON/OFF BUTTON
Press—after the head and/or foot
massage have been activated—to
activate or deactivate the wave
vibration system.
WAVE SPEED BUTTONS
Press and hold—after the head and/
or foot massage, and the wave system
have been activated—to increase or
decrease the wave speed.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 13
In case of a power outage, press and hold the
learn button on the power down box to lower
the base to the flat position (FIGURE 7).
This function is only for lowering the base and
will not operate the base to any other position.
The two (2) 9 volt batteries should be replaced
after this function is used.
In the event the power down feature does not
work, check to make sure the two (2) 9 volt
batteries are good.
The power down box is factory wired to the motor,
but the box itself is mobile and can be placed
anywhere under the adjustable base on the floor.
Position the power down box near your remote
control when programming for best results.
POWER
DOWN BOX
LEARN
BUTTON
FIGURE 7: Power down box learn button.
RECEIVER UNIT OPERATION

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
14

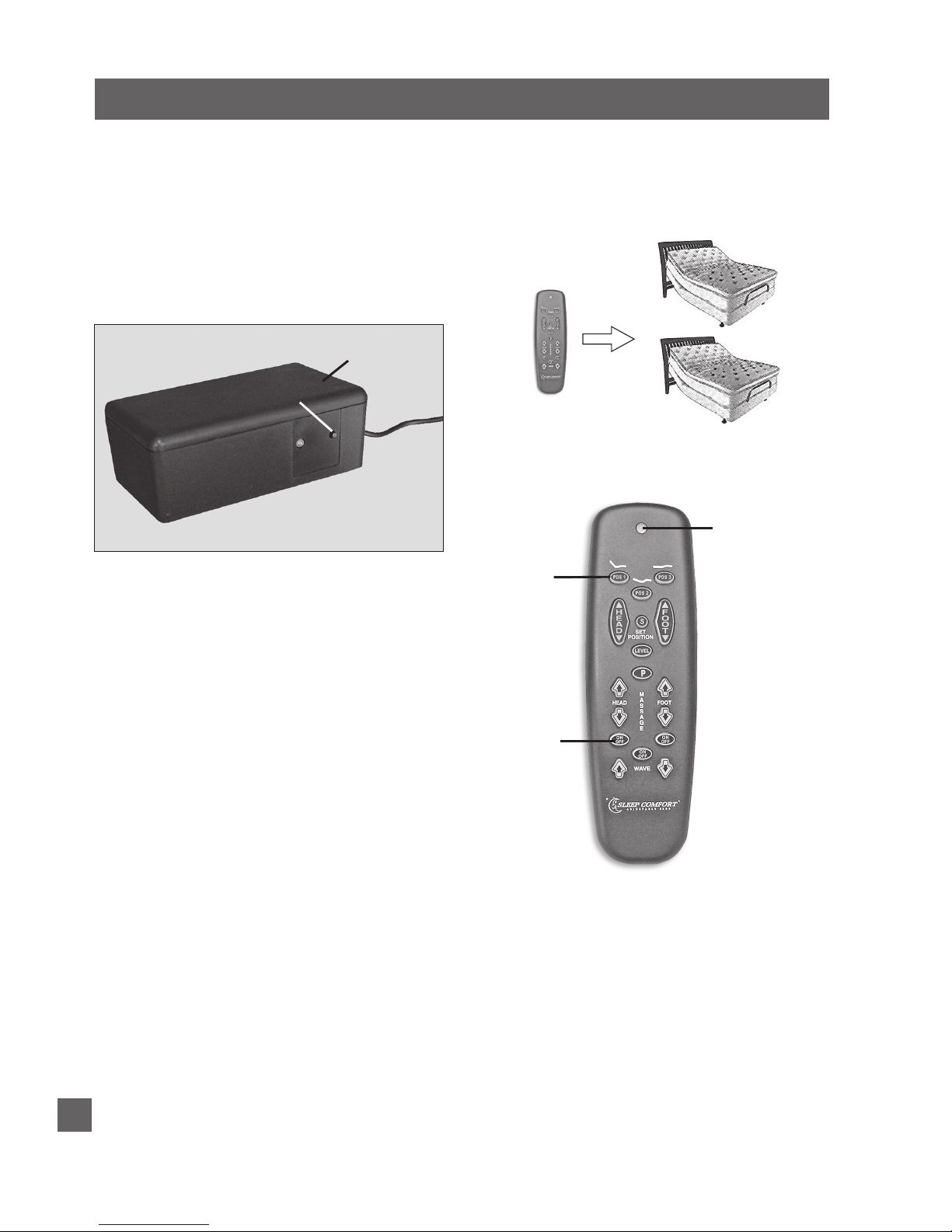

SC-MR2 REMOTE CONTROL PROGRAMMING ( 1 remote control - 1 base)
The two step procedure below is required to program 1 remote control to operate 1 base.
Before beginning, make certain the base is plugged into a working grounded electrical outlet. If
programming fails, initiate the programming procedure a second time.
STEP 1
Locate the receiver unit (power down box)
for the base and press the learn button for 1
second and release (FIGURE 7).
POS 1
BUTTON
HEAD
MASSAGE
ON/OFF
BUTTON
TRANSMISSION
INDICATOR LIGHT
FIGURE 8
STEP 2
On the remote control, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
One remote control is now programmed to
operate one base.
POWER
DOWN BOX
LEARN
BUTTON
FIGURE 7: Power down box learn button.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 15

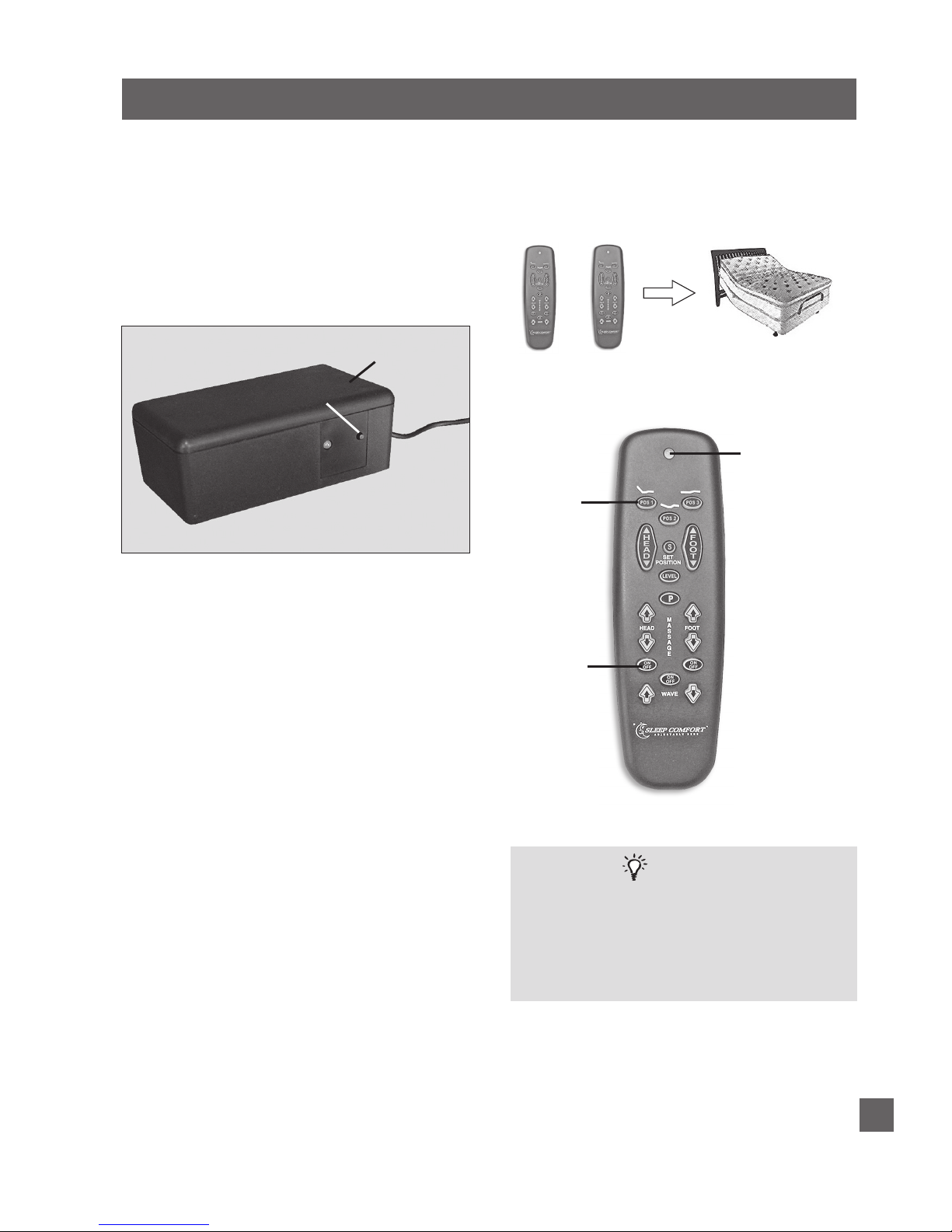

SC-MR2 REMOTE CONTROL PROGRAMMING ( 2 remote controls - 1 base)
The three step procedure below is required to program 2 remote controls to operate 1 base.
Before beginning, make certain the base is plugged into a working grounded electrical outlet. If
programming fails, initiate the programming procedure a second time.
REMOTE
CONTROL 1
REMOTE
CONTROL 2
OPERATE ONLY ONE (1) REMOTE CONTROL
AT A TIME. OPERATING TWO (2) REMOTE
CONTROLS AT THE SAME TIME WILL
MOMENTARILY BLOCK BOTH RF SIGNALS
AND PREVENT BOTH CONTROLS FROM
FUNCTIONING.
NOTE
STEP 2
On remote control 1, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
STEP 3
Repeat Step 1 and Step 2 with remote control 2.
Two remote controls are now programmed to
operate one base.
STEP 1
Locate the power down box for the base and
press the learn button for 1 second and release
(FIGURE 7).
POWER
DOWN BOX
LEARN
BUTTON
FIGURE 7: Power down box learn button.
POS 1
BUTTON
HEAD
MASSAGE
ON/OFF
BUTTON
TRANSMISSION
INDICATOR LIGHT
FIGURE 8

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
16

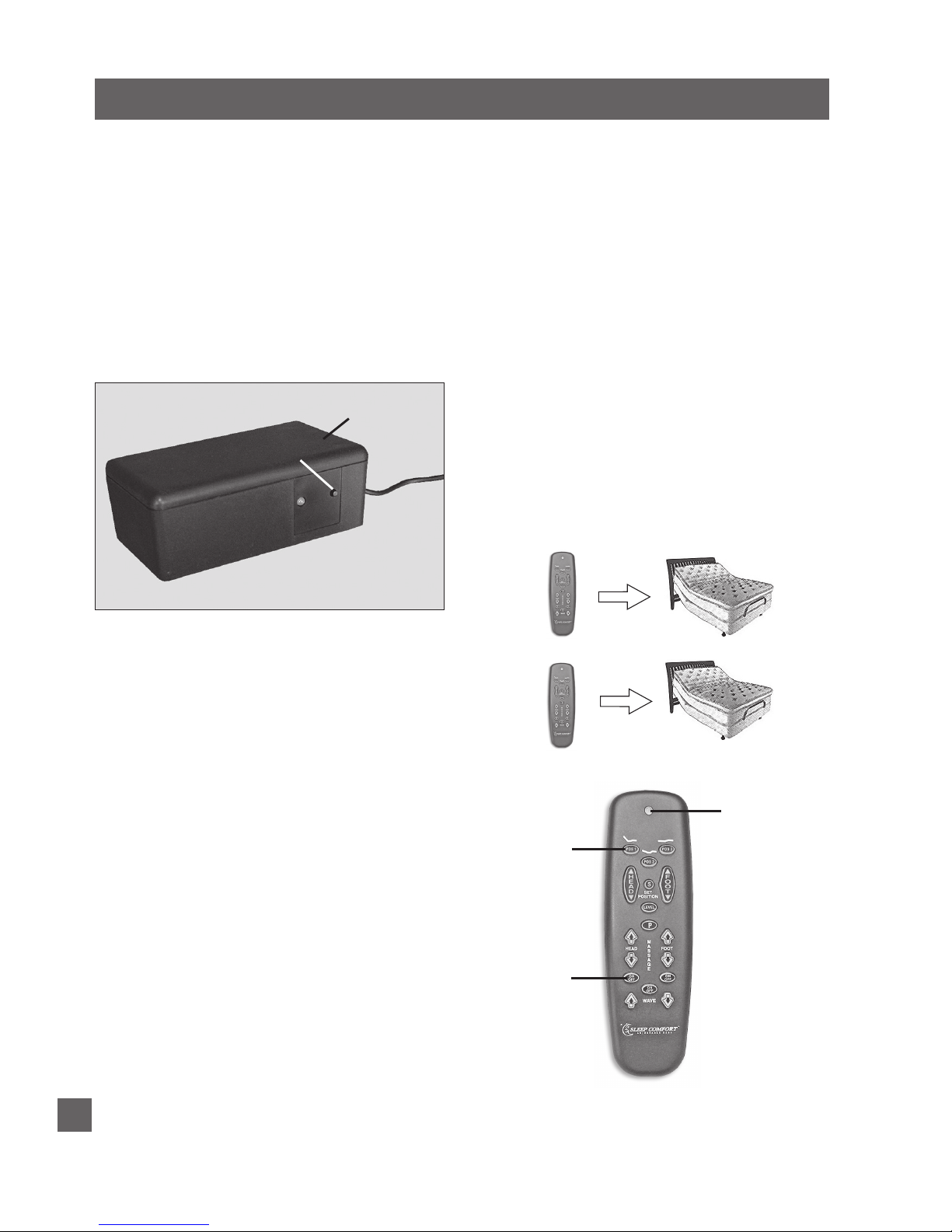

SC-MR2 REMOTE CONTROL PROGRAMMING (1 remote control - 2 bases)
The three step procedure below is required to program 1 remote control to operate 2 bases.
Before beginning, make certain the base is plugged into a working grounded electrical outlet. If
programming fails, initiate the programming procedure a second time.
BED 1
BED 2
STEP 2
On the remote control, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
STEP 3
Repeat Step 1 and Step 2 for base 2.
One remote control is now programmed to
operate two bases.
STEP 1
Locate the power down box for base 1 and
press the learn button for 1 second and release
(FIGURE 7).
POWER
DOWN BOX
LEARN
BUTTON
FIGURE 7: Power down box learn button. POS 1
BUTTON
HEAD
MASSAGE
ON/OFF
BUTTON
TRANSMISSION
INDICATOR LIGHT
FIGURE 8

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 17

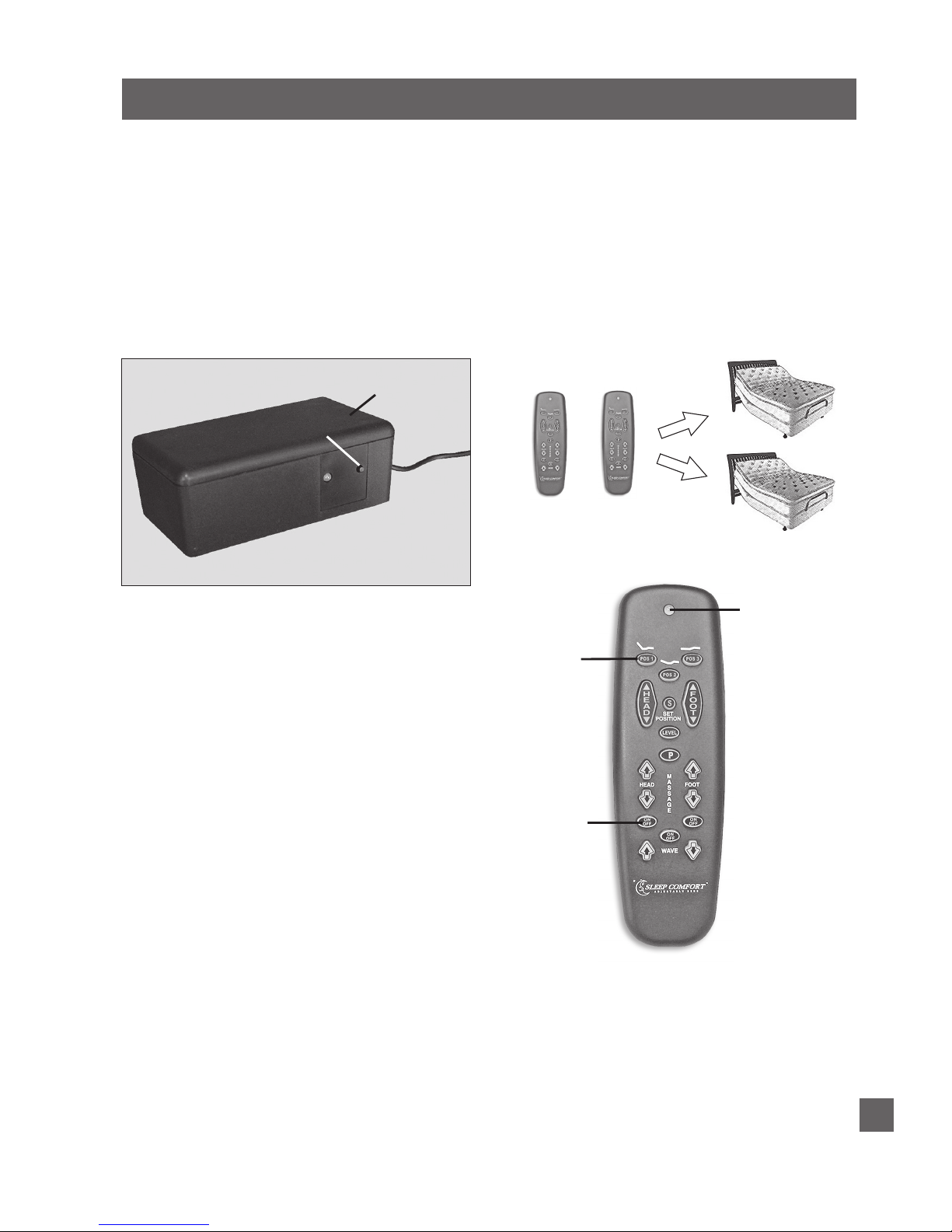

SC-MR2 REMOTE CONTROL PROGRAMMING (2 remote controls - 2 bases)
The six step procedure below is required to program 2 remote controls to operate 2 bases.
Before beginning, make certain the base is plugged into a working grounded electrical outlet. If
programming fails, initiate the programming procedure a second time. NOTE: OPERATE ONLY ONE
(1) REMOTE CONTROL AT A TIME. OPERATING TWO (2) REMOTE CONTROLS AT THE SAME TIME WILL
MOMENTARILY BLOCK BOTH RF SIGNALS AND PREVENT BOTH CONTROLS FROM FUNCTIONING.
REMOTE
CONTROL 1
REMOTE
CONTROL 2
BED 1
BED 2
STEP 2
On remote control 1, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
STEP 3
Repeat Step 1 and Step 2 with remote control 2.
STEP 4
Locate the power down box for base 2 and
press the learn button for 1 second and
release. (FIGURE 7).
STEP 5
On remote control 1, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
STEP 6
Repeat Step 4 and Step 5 with remote control 2.
Two remote controls are now programmed to
operate two bases.
STEP 1
Locate the power down box for base 1 and
press the learn button for 1 second and release
(FIGURE 7).
POWER
DOWN BOX
LEARN
BUTTON
FIGURE 7: Power down box learn button.
POS 1
BUTTON
HEAD
MASSAGE
ON/OFF
BUTTON
TRANSMISSION
INDICATOR LIGHT
FIGURE 8

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
18
SC-MR2 REMOTE CONTROL PROGRAMMING (separating 2 bases)
The six step procedure below is required to separate 2 remote controls from operating 2 bases. One
remote control per base operation will result. Before beginning, make certain the base is plugged
into a working grounded electrical outlet. If programming fails, initiate the programming procedure
a second time. NOTE: OPERATE ONLY ONE (1) REMOTE CONTROL AT A TIME. OPERATING TWO (2)
REMOTE CONTROLS AT THE SAME TIME WILL MOMENTARILY BLOCK BOTH RF SIGNALS AND PREVENT
BOTH CONTROLS FROM FUNCTIONING.
REMOTE CONTROL 1
REMOTE CONTROL 2
STEP 2
On remote control 1, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
STEP 3
Repeat Step 1 and Step 2 with remote control
1. Note: Wait 90 seconds before proceeding to
Step 4.
STEP 4
Locate the power down box for base 2 and
press the learn button for 1 second and release
(FIGURE 7).
STEP 5
On remote control 2, simultaneously press and
hold the POS 1 and head massage on/off buttons.
The transmission indicator light will flash slowly
and then flash rapidly to indicate programming
mode. Continue to hold for 5 seconds and then
release the buttons (FIGURE 8).
STEP 6
Repeat Step 4 and Step 5 with remote control 2.
Independent remote control operation is now
restored (remote control 1 operating base 1;
remote control 2 operating base 2).
BED 1
BED 2
POS 1
BUTTON
HEAD
MASSAGE
ON/OFF
BUTTON
TRANSMISSION
INDICATOR LIGHT
FIGURE 8
STEP 1
Locate the power down box for base 1 and
press the learn button for 1 second and release
(FIGURE 7).
POWER
DOWN BOX
LEARN
BUTTON
FIGURE 7: Power down box learn button.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b 19
ACCESSORIES
OPTIONAL EQUIPMENT
Contact customer service toll free (800-888-3078) to order the accessories indicated in the chart
below.
4B2385
4B2284
4B2100
4B1209
4B1792
4B1034
4B6117
4B6118
Glides1(set of 4, replaces legs)
3” Legs (set of 4)
5” Legs (set of 4)
Swing-away Hinges2
Bed Straps (connects two bases together)
Rubber Caster Cups (set of 4)
Head Board Brackets - TXL
Head Board Brackets - FXL/Q
ACCESSORY DESCRIPTION CODE IMAGE
1Headboard brackets cannot be used with glides or screw-in locking casters.
2Swing-away hinges are designed for use with dual queen or dual king size bed bases. The swing-away hinge allows easy access
between two mated bases for domestic cleaning (i.e. sweeping, changing sheets) by swinging the bases apart.

Sleep Comfort™ Adjustable Base Owners Manual 99301076-b
20

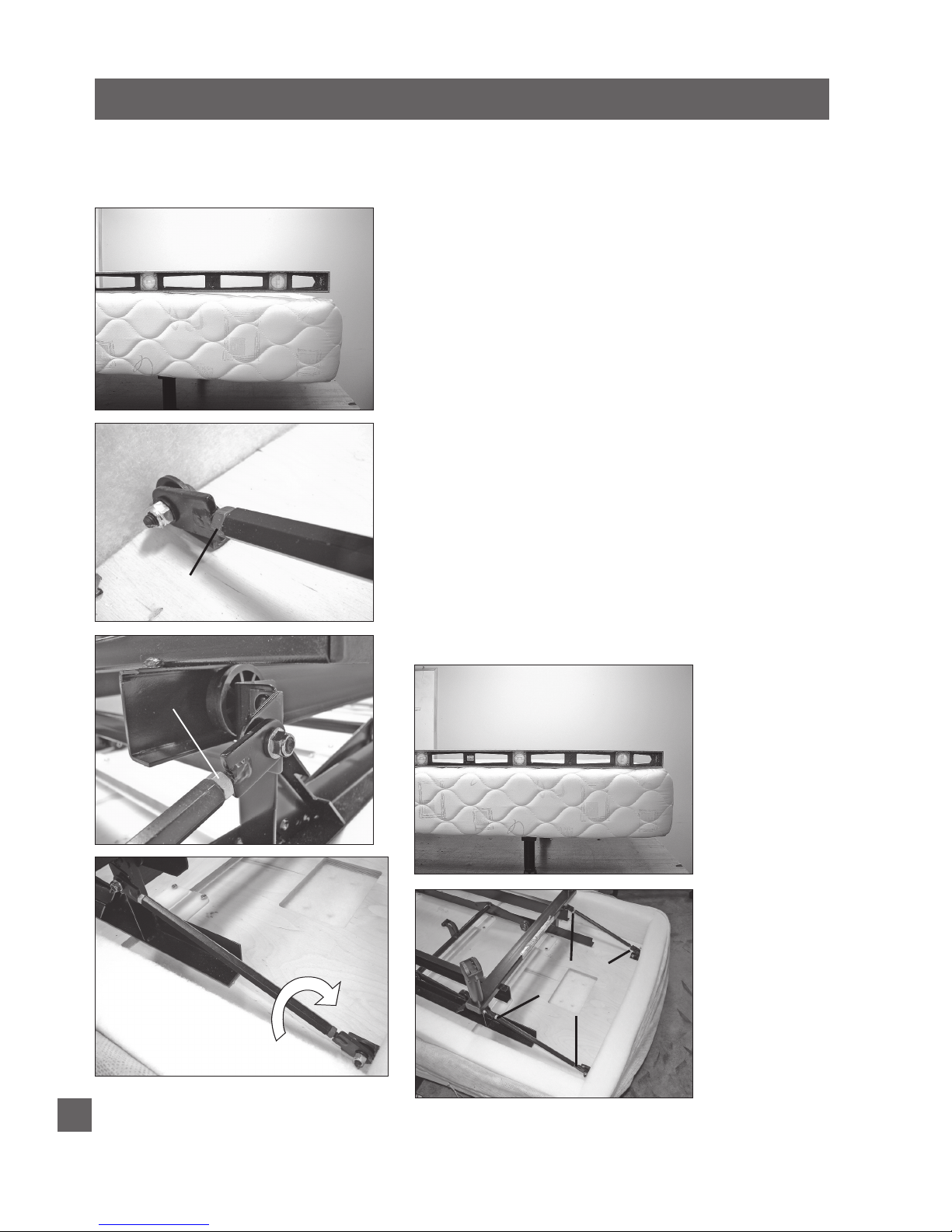

STEP 1
On one side of bed base, loosen jam nut on board end of
turnbuckle assembly using a ½” wrench (FIGURE 2). Threads
are right-hand threads. Repeat on other side of bed base.
STEP 2
On one side of bed base, loosen jam nut on carriage end of
turnbuckle assembly with ½” wrench (FIGURE 3). Threads are
left-hand threads. Repeat on other side of bed base.
STEP 3
After loosening both jam nuts, grasp and rotate the body of the
turnbuckle on one side of the bed base (FIGURE 4). The foot
of the bed base will rise and flatten out. Repeat on other side
until bed base is completely level.
STEP 4
After adjustments have been made, check the levelness of the
bed base using a straight-edge instrument (FIGURE 5).
STEP 5
When level, tighten all jam nuts in assembly with ½“ wrench
(FIGURE 6). Hold the body of the turnbuckle assembly while
tightening to ensure base remains level. Jam nuts need to be
tight enough to prevent movement in turnbuckle.
Turnbuckle adjustment is complete.
If the foot end of the bed base becomes unlevel (FIGURE 1), adjust by following the
numbered instructions below.
FIGURE 1
FIGURE 2
FIGURE 4
FIGURE 6
FIGURE 5
FIGURE 3
FOOT END OF BASE UNLEVEL
JAM NUT - BOARD
END OF ASSEMBLY
JAM NUT - CARRIAGE
END OF ASSEMBLY
ROTATE BODY OF
TURNBUCKLE UNTIL
BED BASE FLATTENS
OUT
USE STRAIGHT-EDGE TO
CHECK LEVELNESS
WHEN LEVEL,
TIGHTEN ALL
JAM NUTS
TURNBUCKLE ADJUSTMENT
