Leica Geosystems CS20 CDMA DISTO User manual

Leica CS20 & GS07 Sensors
User Manual
Version 1.0.2
English

Introduction
Congratulations on the purchase of the Leica CS20/GS07.
This manual contains important safety directions as well as instructions for set-
ting up the product and operating it. Refer to "1 Safety Directions" for further
information.
Read carefully through the User Manual before you switch on the product.

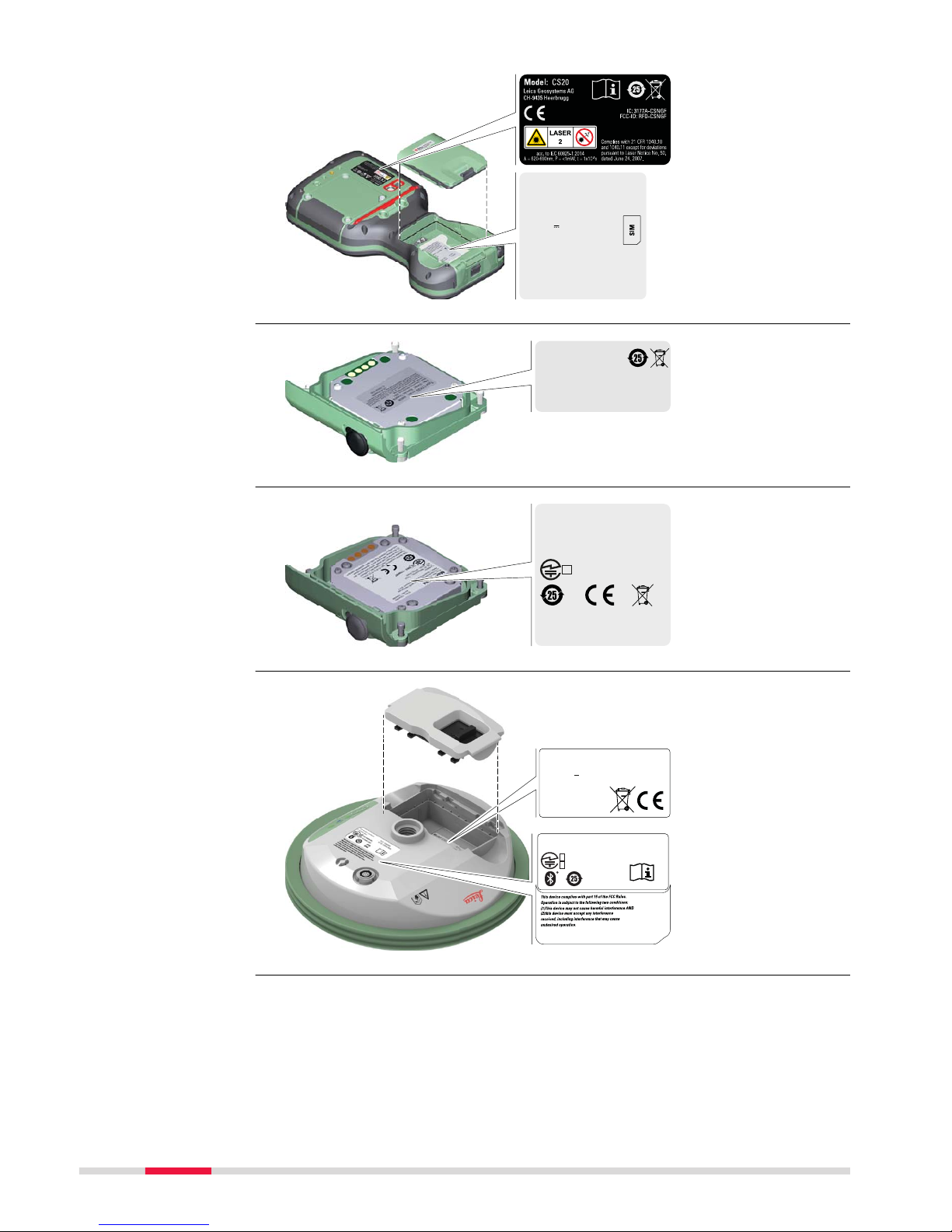

The model and serial number of your product are indicated on the type plate.
Always refer to this information when you need to contact your agency or
Leica Geosystems authorised service centre.
•Windows is a registered trademark of Microsoft Corporation in the United
States and other countries
•SD Logo is a trademark of SD-3C, LLC.
•
Bluetooth
®is a registered trademark of Bluetooth SIG, Inc.
All other trademarks are the property of their respective owners.

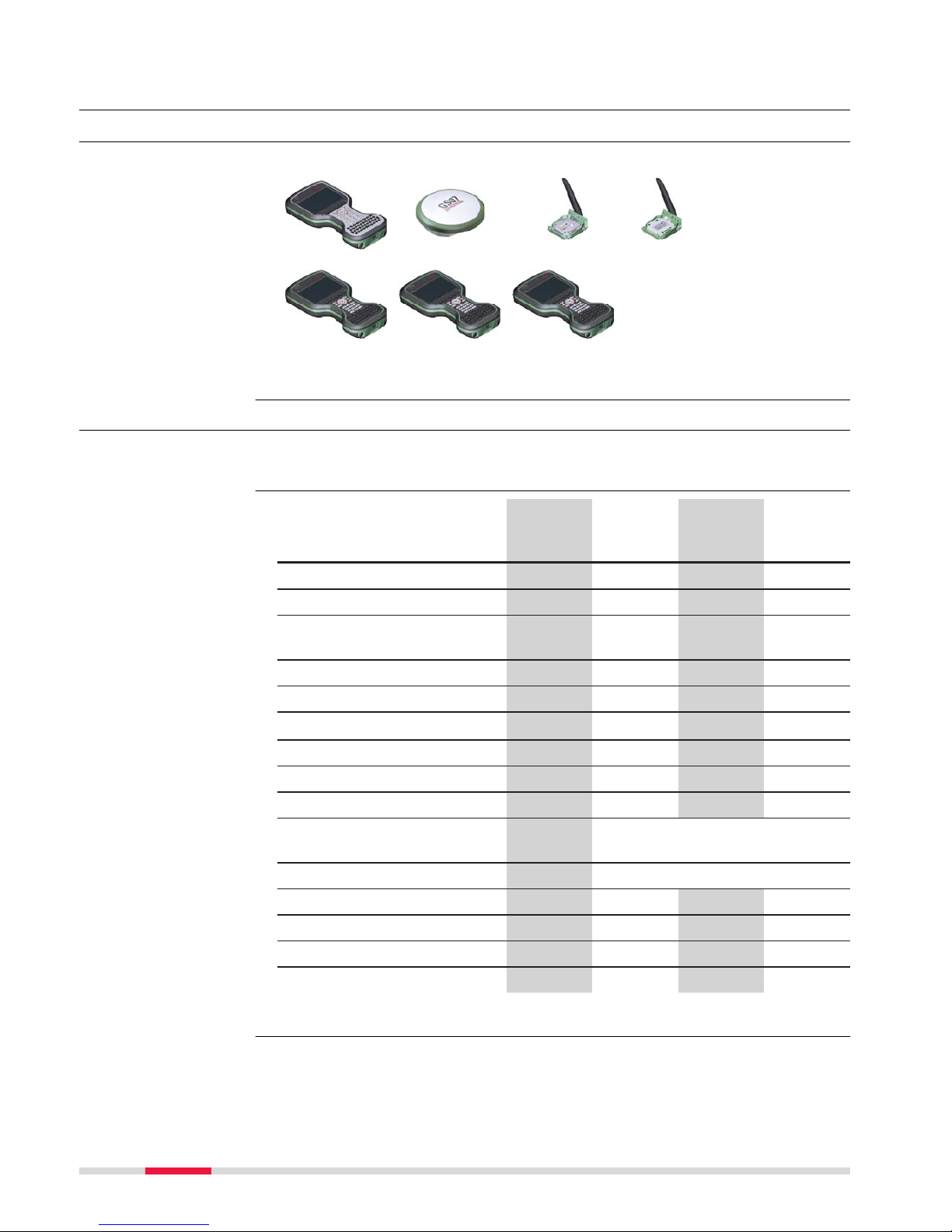

This manual applies to the CS20 field controller, the GS07 and the CTR20/CGR4
expansion packs. Differences between the various models are marked and
described.
Name Description/Format
CS20 Quick Guide Provides an overview of the product
together with technical data and
safety directions. Intended as a quick
reference guide.
ü ü
CS20 User Manual All instructions required in order to
operate the product to a basic level
are contained in the User Manual.
Provides an overview of the product
together with technical data and
safety directions.
-ü
Name Description/Format
Leica Captivate
Technical Reference
Manual
Overall comprehensive guide to the
product and apps. Included are
detailed descriptions of special soft-
ware/hardware settings and soft-
ware/hardware functions intended
for technical specialists.
-ü
Refer to the following resources for all CS20 documentation/software:
•the Leica USB documentation card
•https://myworld.leica-geosystems.com
Purchase
Product identification
Trademarks
Validity of this
manual
Available
documentation
2

On the last page of this manual, you can find the address of Leica Geosystems
headquarters. For a list of regional contacts, please visit
http://leica-geosystems.com/contact-us/sales_support.
myWorld@Leica Geosystems (https:/
/myworld.leica-geosystems.com) offers
a wide range of services, information and training material.
With direct access to myWorld, you are able to access all relevant services
whenever it is convenient for you.
Service Description
myProducts Add all products that you and your company own
and explore your world of Leica Geosystems: View
detailed information on your products and update
your products with the latest software and keep up-
to-date with the latest documentation.
myService View the current service status and full service his-
tory of your products in Leica Geosystems service
centres. Access detailed information on the services
performed and download your latest calibration cer-
tificates and service reports.
mySupport Create new support requests for your products that
will be answered by your local Leica Geosystems
Support Team. View the complete history of your
support requests and view detailed information on
each request in case you want to refer to previous
support requests.
myTraining Enhance your product knowledge with Leica Geosys-
tems Campus - Information, Knowledge, Training.
Study the latest online training material on your
products and register for seminars or courses in your
country.
myTrustedServices Add your subscriptions and manage users for Leica
Geosystems Trusted Services, the secure software
services, that assist you to optimise your workflow
and increase your efficiency.
Leica Geosystems
address book
3

Table of Contents
1 Safety Directions 6
1.1 General Introduction 6
1.2 Definition of Use 7
1.3 Limits of Use 7
1.4 Responsibilities 8
1.5 Hazards of Use 8
1.6 Laser Classification 12
1.6.1 General 12

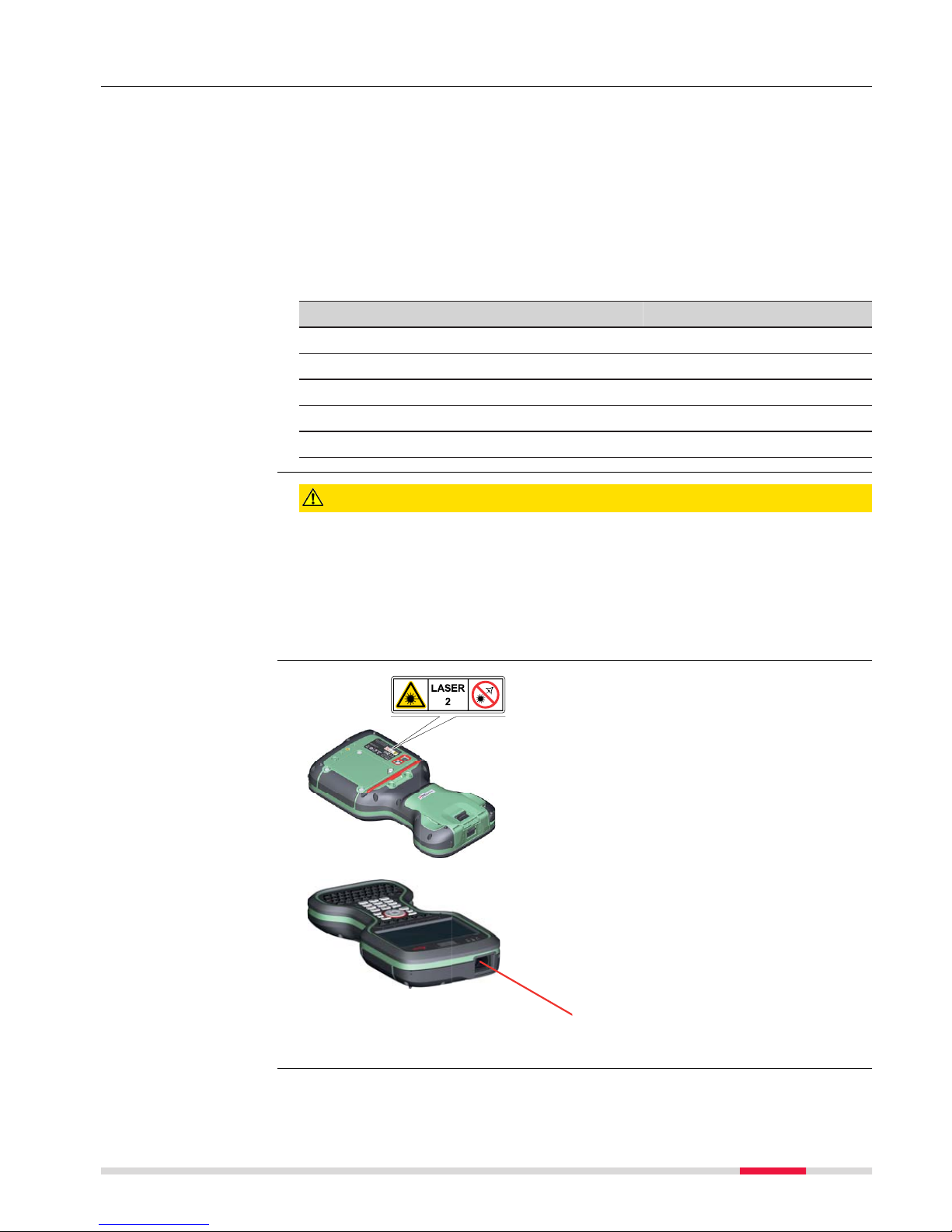

1.6.2 DISTO 13
1.7 Electromagnetic Compatibility EMC 14
1.8 FCC Statement, Applicable in U.S. 15
2 Description of the System 18
2.1 Overview 18
2.2 Terminology 18
2.3 System Concept 19
2.3.1 Software Concept 19
2.3.2 Power Concept 21
2.3.3 Data Storage Concept 21
2.4 Container Contents 22
2.5 CS Components 25
2.6 GS07 Components 25
3 User Interface 26
3.1 Keyboard 26
3.2 Operating Principles 28
3.3 LED Indicators on CS20 28
3.4 LED Indicators on GS07 29
4 Operation 31
4.1 Equipment Setup 31
4.1.1 Setting up as a Post-Processing Base 31
4.1.2 Fixing the Field Controller to a Holder and Pole 33
4.1.3 Fixing a Hand Strap to the CS 34
4.1.4 Fixing the Utility Hook to the CS 35
4.1.5 Replacing the Display Foil on the CS 35
4.1.6 Inserting and Removing a SIM Card 36
4.1.7 Setting Up for Remote Control or RTK using an Expansion Pack 37
4.1.8 Connecting to a Personal Computer 38
4.1.9 Enabling WLAN in Windows EC7 40
4.2 Batteries 40
4.2.1 Operating Principles 40
4.2.2 Changing the Battery 41
4.2.3 Charging the Battery 42
4.3 Power Functions 43
4.4 Working with the Memory Device 44
4.4.1 Working with the SD Card 44
4.4.2 Working with a USB Memory Stick 45
4.5 Using the Digital Camera 45
4.6 Using the Camera Flash Light as Torch 46
5 Care and Transport 47
5.1 Transport 47
5.2 Storage 47
5.3 Cleaning and Drying 47
4 Table of Contents

6 Technical Data 49
6.1 CS20 49
6.2 GS07 51
6.2.1 Tracking Characteristics 51
6.2.2 Accuracy 51
6.2.3 Technical Data 52
6.3 Conformity to National Regulations 53
6.3.1 Products without Radio 53
6.3.2 CS20 54
6.3.3 GS07, CTR20 55
6.3.4 CGR4 56
7 Software Licence Agreement 57
Appendix A Pin Assignments and Sockets 58
A.1 CS20 58
A.2 GS07 58
Table of Contents 5

1 Safety Directions
1.1 General Introduction
The following directions enable the person responsible for the product, and the
person who actually uses the equipment, to anticipate and avoid operational
hazards.
The person responsible for the product must ensure that all users understand
these directions and adhere to them.
Warning messages are an essential part of the safety concept of the instru-
ment. They appear wherever hazards or hazardous situations can occur.
Warning messages...
•make the user alert about direct and indirect hazards concerning the use
of the product.
•contain general rules of behaviour.
For the users‘ safety, all safety instructions and safety messages shall be
strictly observed and followed! Therefore, the manual must always be available
to all persons performing any tasks described here.
DANGER, WARNING, CAUTION and NOTICE are standardised signal words for
identifying levels of hazards and risks related to personal injury and property
damage. For your safety, it is important to read and fully understand the fol-
lowing table with the different signal words and their definitions! Supplemen-
tary safety information symbols may be placed within a warning message as
well as supplementary text.
Type Description
DANGER Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
may result in minor or moderate injury.
NOTICE
Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
may result in appreciable material, financial
and environmental damage.
☞Important paragraphs which must be adhered
to in practice as they enable the product to
be used in a technically correct and efficient
manner.
Description
About warning
messages
6 Safety Directions

1.2 Definition of Use
•Remote control of product.
•Data communication with external appliances.
•Recording measurements.
•Computing with software.
•Carrying out measurement tasks using various GNSS measuring techni-
ques.
•Recording GNSS and point related data.
•Measuring raw data and computing coordinates using carrier phase and
code signal from GNSS satellites.
•Use of the product without instruction.
•Use outside of the intended use and limits.
•Disabling safety systems.
•Removal of hazard notices.
•Opening the product using tools, for example screwdriver, unless this is
permitted for certain functions.
•Modification or conversion of the product.
•Use after misappropriation.
•Use of products with recognizable damages or defects.
•Use with accessories from other manufacturers without the prior explicit
approval of Leica Geosystems.
•Inadequate safeguards at the working site.
•Controlling of machines, moving objects or similar monitoring application
without additional control and safety installations.
1.3 Limits of Use
Suitable for use in an atmosphere appropriate for permanent human habita-
tion: not suitable for use in aggressive or explosive environments.
WARNING
Working in hazardous areas, or close to electrical installations or simi-
lar situations.
Life Risk.
Precautions:
▶Local safety authorities and safety experts must be contacted by the per-
son responsible for the product before working in such conditions.
The following advice is only valid for battery charger, power adapter and car
adapter.
Suitable for use in dry environments only and not under adverse conditions.
Intended use
Reasonably
foreseeable misuse
Environment
☞
Environment
Safety Directions 7

1.4 Responsibilities
Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as Leica
Geosystems, is responsible for supplying the product, including the user man-
ual and original accessories, in a safe condition.
The person responsible for the product has the following duties:
•To understand the safety instructions on the product and the instructions
in the user manual.
•To ensure that it is used in accordance with the instructions.
•To be familiar with local regulations relating to safety and accident preven-
tion.
•To inform Leica Geosystems immediately if the product and the application
becomes unsafe.
•To ensure that the national laws, regulations and conditions for the opera-
tion of the product are respected.
•To ensure that the radio modem is not operated without the permission of
the local authorities on frequencies and/or output power levels other than
those specifically reserved and intended for use without a specific permit.
The internal and external radio modems have been designed to operate on
frequency ranges and output power ranges, the exact use of which differs
from one region and/or country to another.
1.5 Hazards of Use
DANGER
Risk of electrocution
Because of the risk of electrocution, it is dangerous to use poles, levelling
staffs and extensions in the vicinity of electrical installations such as power
cables or electrical railways.
Precautions:
▶Keep at a safe distance from electrical installations. If it is essential to
work in this environment, first contact the safety authorities responsible
for the electrical installations and follow their instructions.
WARNING
Distraction/loss of attention
During dynamic applications, for example stakeout procedures, there is a dan-
ger of accidents occurring if the user does not pay attention to the environ-
mental conditions around, for example obstacles, excavations or traffic.
Precautions:
▶The person responsible for the product must make all users fully aware of
the existing dangers.
Manufacturer of the
product
Person responsible
for the product
8 Safety Directions

WARNING
Inadequate securing of the working site.
This can lead to dangerous situations, for example in traffic, on building sites
and at industrial installations.
Precautions:
▶Always ensure that the working site is adequately secured.
▶Adhere to the regulations governing safety, accident prevention and road
traffic.
CAUTION
Not properly secured accessories.
If the accessories used with the product are not properly secured and the
product is subjected to mechanical shock, for example blows or falling, the
product may be damaged or people can sustain injury.
Precautions:
▶When setting up the product, make sure that the accessories are correctly
adapted, fitted, secured, and locked in position.
▶Avoid subjecting the product to mechanical stress.
WARNING
Incorrect fastening of the external antenna
Incorrect fastening of the external antenna to vehicles or transporters poses
the risk of the equipment being broken by mechanical influence, vibration or
airstream. This may result in accident and physical injury.
Precautions:
▶Attach the external antenna professionally. The external antenna must be
secured additionally, for example by use of a safety cord. Ensure that the
mounting device is correctly mounted and able to carry the weight of the
external antenna (>1 kg) safely.
WARNING
Lightning strike
If the product is used with accessories, for example masts, staffs, poles, you
may increase the risk of being struck by lightning.
Precautions:
▶Do not use the product in a thunderstorm.
Safety Directions 9

DANGER
Risk of being struck by lightning
If the product is used with accessories, for example on masts, staffs, poles,
you may increase the risk of being struck by lightning. Danger from high vol-
tages also exists near power lines. Lightning, voltage peaks, or the touching of
power lines can cause damage, injury and death.
Precautions:
▶Do not use the product in a thunderstorm as you can increase the risk of
being struck by lightning.
▶Be sure to remain at a safe distance from electrical installations. Do not
use the product directly under or close to power lines. If it is essential to
work in such an environment contact the safety authorities responsible for
electrical installations and follow their instructions.
▶If the product has to be permanently mounted in an exposed location, it is
advisable to provide a lightning conductor system. A suggestion on how to
design a lightning conductor for the product is given below. Always follow
the regulations in force in your country regarding grounding antennas and
masts. These installations must be carried out by an authorised specialist.
▶To prevent damages due to indirect lightning strikes (voltage spikes)
cables, for example for antenna, power source or modem should be pro-
tected with appropriate protection elements, like a lightning arrester. These
installations must be carried out by an authorised specialist.
▶If there is a risk of a thunderstorm, or if the equipment is to remain
unused and unattended for a long period, protect your product additionally
by unplugging all systems components and disconnecting all connecting
cables and supply cables, for example, instrument - antenna.
CAUTION
Inappropriate mechanical influences to batteries
During the transport, shipping or disposal of batteries it is possible for inappro-
priate mechanical influences to constitute a fire hazard.
Precautions:
▶Before shipping the product or disposing of it, discharge the batteries by
running the product until they are flat.
▶When transporting or shipping batteries, the person in charge of the prod-
uct must ensure that the applicable national and international rules and
regulations are observed.
▶Before transportation or shipping contact your local passenger or freight
transport company.
WARNING
Exposure of batteries to high mechanical stress, high ambient tempera-
tures or immersion into fluids
This can cause leakage, fire or explosion of the batteries.
Precautions:
▶Protect the batteries from mechanical influences and high ambient temper-
atures. Do not drop or immerse batteries into fluids.
10 Safety Directions

WARNING
Short circuit of battery terminals
If battery terminals are short circuited e.g. by coming in contact with jewellery,
keys, metallised paper or other metals, the battery can overheat and cause
injury or fire, for example by storing or transporting in pockets.
Precautions:
▶Make sure that the battery terminals do not come into contact with metal-
lic objects.
For the AC power supply:
WARNING
If unit is not connected to ground, death or serious injury can occur.
Precautions:
▶To avoid electric shock power cable and power outlet must be grounded.
The following advice is only valid for power adapter and car adapter.
WARNING
Electric shock due to use under wet and severe conditions
If unit becomes wet it may cause you to receive an electric shock.
Precautions:
▶If the product becomes humid, it must not be used!
▶Use the product only in dry environments, for example in buildings or vehi-
cles.
▶Protect the product against humidity.
The following advice is only valid for power adapter and car adapter.
WARNING
Unauthorised opening of the product
Either of the following actions may cause you to receive an electric shock:
•Touching live components
•Using the product after incorrect attempts were made to carry out repairs
Precautions:
▶Do not open the product!
▶Only Leica Geosystems authorised service centres are entitled to repair
these products.
☞
☞
Safety Directions 11

WARNING
Improper disposal
If the product is improperly disposed of, the following can happen:
•If polymer parts are burnt, poisonous gases are produced which may
impair health.
•If batteries are damaged or are heated strongly, they can explode and
cause poisoning, burning, corrosion or environmental contamination.
•By disposing of the product irresponsibly you may enable unauthorised
persons to use it in contravention of the regulations, exposing themselves
and third parties to the risk of severe injury and rendering the environment
liable to contamination.
Precautions:
▶The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with
the national regulations in force in your country.
Always prevent access to the product by unauthorised
personnel.
Product-specific treatment and waste management information can be
received from your Leica Geosystems distributor.
WARNING
Improperly repaired equipment
Risk of injuries to users and equipment destruction due to lack of repair knowl-
edge.
Precautions:
▶Only Leica Geosystems authorised service centres are entitled to repair
these products.
1.6 Laser Classification
1.6.1 General
The following chapters provide instructions and training information about laser
safety according to international standard IEC 60825-1 (2014-05) and technical
report IEC TR 60825-14 (2004-02). The information enables the person
responsible for the product and the person who actually uses the equipment,
to anticipate and avoid operational hazards.
☞According to IEC TR 60825-14 (2004-02), products classified as laser
class 1, class 2 and class 3R do not require:
•laser safety officer involvement,
•protective clothes and eyewear,
•special warning signs in the laser working area
if used and operated as defined in this User Manual due to the low
eye hazard level.
☞National laws and local regulations could impose more stringent
instructions for the safe use of lasers than IEC 60825-1 (2014-05)
and IEC TR 60825-14 (2004-02).
General
12 Safety Directions

1.6.2 DISTO
The DISTO module built into the product produces a visible red laser beam
which emerges from the window at the top of the product.
The laser product described in this section is classified as laser class 2 in
accordance with:
•IEC 60825-1 (2014-05): “Safety of laser products”
These products are safe for momentary exposures but can be hazardous for
deliberate staring into the beam. The beam may cause dazzle, flash-blindness
and after-images, particularly under low ambient light conditions.
Description Value
Wavelength 620 nm - 690 nm
Maximum average radiant power 0.95 mW
Pulse duration > 400 ps
Pulse repetition frequency (PRF) 320 MHz
Beam divergance 0.16 mrad x 0.6 mrad
CAUTION
Class 2 laser product
From a safety perspective, class 2 laser products are not inherently safe for the
eyes.
Precautions:
▶Avoid staring into the beam or viewing it through optical instruments.
▶Avoid pointing the beam at other people or at animals.
008577_001
008468_001
a
Laser Radiation
Do not stare into the beam.
Class 2 Laser Product according to
IEC 60825-1 (2014 - 05)
Po £ 0.95 mW
l= 620 nm - 690 nm
a Laser beam
General
Labelling and location
of laser aperture
Safety Directions 13

1.7 Electromagnetic Compatibility EMC
The term Electromagnetic Compatibility is taken to mean the capability of the
product to function smoothly in an environment where electromagnetic radia-
tion and electrostatic discharges are present, and without causing electromag-
netic disturbances to other equipment.
WARNING
Electromagnetic radiation can cause disturbances in other equipment.
Although the product meets the strict regulations and standards which are in
force in this respect, Leica Geosystems cannot completely exclude the possibil-
ity that other equipment may be disturbed.
CAUTION
Use of the product with accessories from other manufacturers. For
example field computers, personal computers or other electronic equip-
ment, non-standard cables or external batteries
This may cause disturbances in other equipment.
Precautions:
▶Use only the equipment and accessories recommended by Leica Geosys-
tems.
▶When combined with the product, they meet the strict requirements stipu-
lated by the guidelines and standards.
▶When using computers, two-way radios or other electronic equipment, pay
attention to the information about electromagnetic compatibility provided
by the manufacturer.
CAUTION
Intense electromagnetic radiation. For example, near radio transmit-
ters, transponders, two-way radios or diesel generators
Although the product meets the strict regulations and standards which are in
force in this respect, Leica Geosystems cannot completely exclude the possibil-
ity that function of the product may be disturbed in such an electromagnetic
environment.
Precautions:
▶Check the plausibility of results obtained under these conditions.
CAUTION
Electromagnetic radiation due to improper connection of cables
If the product is operated with connecting cables attached at only one of their
two ends, for example external supply cables, interface cables, the permitted
level of electromagnetic radiation may be exceeded and the correct functioning
of other products may be impaired.
Precautions:
▶While the product is in use, connecting cables, for example product to
external battery, product to computer, must be connected at both ends.
Description
14 Safety Directions

WARNING
Use of product with radio or digital cellular phone devices
Electromagnetic fields can cause disturbances in other equipment, in installa-
tions, in medical devices, for example pacemakers or hearing aids and in air-
craft. It can also affect humans and animals.
Precautions:
▶Although the product meets the strict regulations and standards which are
in force in this respect, Leica Geosystems cannot completely exclude the
possibility that other equipment can be disturbed or that humans or ani-
mals can be affected.
▶Do not operate the product with radio or digital cellular phone devices in
the vicinity of filling stations or chemical installations, or in other areas
where an explosion hazard exists.
▶Do not operate the product with radio or digital cellular phone devices
near to medical equipment.
▶Do not operate the product with radio or digital cellular phone devices in
aircraft.
1.8 FCC Statement, Applicable in U.S.
WARNING
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by Leica Geosystems for
compliance could void the user's authority to operate the equipment.
Safety Directions 15

Art. No.:
123456
Equip. No.:
1234567
Serial No.:
1234567
Power:15V nominal / 2.5 Amax.
Made in Switzerland
Manufactured: MM. YYYY
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
008466_002
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC-ID:RFD-CTR20
IC:3177A-CTR20
Made in Switzerland, Manufactured: 20XX
Leica Geosystems AG, CH-9435 Heerbrugg
S.No.:1234567 Equip.No.:12345678
Art.No.: 808038
Type:CTR20
008467_002
0014952_001
Model: CGR4
Equip.No.:12345678
Leica Geosystems AG, CH-9435 Heerbrugg
Made in Switzerland, Manufactured: 2017
Contains:
FCC ID: MRBSATEL- TA23
IC: 2422A - SATELTA23
S.No.: 1234568
Art.No.: 798498
R: 003 - 170097
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device contains
a transmitter:
FCC: PVH0925
IC ID: 5325A-0925
R 202-SMA054
T D 12-0040 202
IP66
IP68
Model: GS07 Art.No.:
Equip. No.: 12345678 S.No.: 123456
Power: 7.4V --- nominal / 0.6 A max.
Leica Geosystems AG
CH-9435 Heerbrugg
Manufactured: 20XX
Made in Switzerland
869374
0016445_002
Labelling CS20
Labelling CTR20
Labelling CGR4
Labelling GS07
16 Safety Directions

0008469_006
11WE
MH29443
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Type: G EB331
Li-Ion Battery
11.1 V / 2.8 Ah
15 A / 31.1 Wh
Leica Geosystems AG, CH-9435 Heerbrugg
Art.No.: 799190
S.No.: XXXXX
Made in China
005044_002
005044
_002
Made in China
Type: GEB212
2ICR19/66
Art. No.: 772806
7.4V /2.6Ah
10A 19Wh XXXXXXXX-XXXXXX
A/S:[phone]
Leica Geosystems AG, CH-9435 Heerbrugg
Li-Ion Battery
5A/130 C
S. No.:10412 전지
Manufactured by Huizhou Longji Electronics Co., Ltd.
The wireless device is a radio transmitter and receiver. It is designed and manu-
factured not to exceed the emission limit for exposure to radio frequency (RF)
energy set by the OET Bulletin 65 Supplement C / Ministry of Health (Canada),
Safety Code 6. These limits are part of comprehensive guidelines and estab-
lished permitted levels of RF energy for the general population. These guide-
lines are based on the safety standards previously set by international standard
bodies. These standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
This device has been shown to be capable of compliance for localised specific
absorption rate (SAR) for uncontrolled environment / general public exposure
limits specific in ANSI/IEEE C95.1-1992 and had been tested in accordance with
the measurement procedures specified in IEEE Std. 1528-2003.
WARNING
This Class (B) digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe (B) est conforme à la norme NMB-003
du Canada.
Canada Compliance Statement
This device complies with Industry Canada’s license-exempt RSSs. Operation
is subject to the following two conditions:
1.This device may not cause interference; and
2.This device must accept any interference, including interference that
may cause undesired operation of the device.
Canada Déclaration de Conformité
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux con-
ditions suivantes:
1.l’appareil ne doit pas produire de brouillage;
2.l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Labelling GEB331
Labelling internal
battery GEB212
Exposure to radio fre-
quency (RF) signals
Safety Directions 17

2 Description of the System
2.1 Overview
0016300_001
CTR20CGR4
CS20 CDMA
DISTO
CS20 3.75G
DISTO
CS20 3.75G
CS20 GS07
2.2 Terminology
CS is a collective term describing the various models of the multi-purpose field
controller which is used with GNSS and TS instruments.
Model CS20 CS20
3.75G
CS20
3.75G
DISTO
CS20
CDMA
DISTO
Touch screen üüüü
Colour display üüüü
Internal long-range TS com-
munication radio
-üüü
Internal 3.75G modem - üüü
Internal CDMA modem - - - ü
Internal battery1üüüü
DISTO - - ü ü
SD card üüüü
Bluetooth üüüü
External long-range TS com-
munication radio
- As expansion pack CTR20
GNSS UHF RTK radio - As expansion pack CGR4
Wireless LAN 802.11b/g/n üüüü
Windows EC 7 üüüü
Camera with flash üüüü
Camera in DISTO - - ü ü
1removable
System components
CS general descrip-
tion
Available models
18 Description of the System

Radios for remote control (RCS) or real-time kinematic (RTK) GNSS are
available in the following variations:
Type Description
CS20 Radio unavailable
CS20 with internal long-range
TS communication radio
Field controller with an integrated long-range
TS communication radio.
CS20 with expansion pack Field controller with an integrated long-range
TS communication radio. A high-performance
wireless data transfer device (CTR20) can be
attached.
2.3 System Concept
2.3.1 Software Concept
Software type Description
CS firmware This software includes:
(CS_xx.fw) •The multi- language-specific version of
Windows EC 7.
•The necessary functionality of the instru-
ment, including Leica Captivate.
•The main applications and languages are
integrated into the firmware. Languages
cannot be deleted.
•The software for the CGR4 UHF radio.
Software type Description
ME firmware This software includes:
(ME_xx.fw) - The firmware for the measurement engine.
☞Uploading firmware can take some time. Ensure that the battery is at
least 75% full before beginning the upload, and do not remove the
battery during the upload process.
CS available radios
Software
Software for the
GS07
Software upload
Description of the System 19

Software for Description
All CS models The software is stored in the flash RAM of
the field controller.
Firmware update instructions
•Download the most recent firmware file
from
https://myworld.leica-geosystems.com.
•Copy the firmware file into the \SYSTEM
folder on the Leica SD card.
☞Ensure that the Leica SD card is
inserted into the field controller
before starting the upload.
•Start Leica Captivate. To open the
Update Software panel, select Settings
> Tools > Update software.
•Select the firmware file to upload and
start the update process. When the
update process is finished, the new ver-
sion of Leica Captivate is started.
GS07 The software is stored in the flash RAM of
the GS07.
ME firmware update instructions
•Go to www.myworld.leica-geosys-
tems.com and log in.
•Go to myProducts and select your prod-
uct.
☞If your product is not in the list,
click Add Product.
•Click the Software tab and download
the software to your computer.
•Unzip the file and store the required files
in the \SYSTEM directory of the data stor-
age device.
•Insert the data storage device into the
connected field controller an turn it on.
•Captivate: Go to Settings\Tools\Update
software.
•File to load: Select the firmware to
upload.
•Click OK. The software is uploaded to
your product.
CGR4 The software is stored in the UHF radio mod-
ule in the CGR module.
20 Description of the System
