1. Safety Information
This information should be read and thoroughly understood before use of the Salamander.
It is the responsibility of the user to be fully aware of all potential consequences and actions when
using this machine.
The manufacturer cannot be held responsible for events occurring due to use of this machine by
unqualified or untrained personnel.
Warning: All directions in the manual should be read thoroughly and completely
understood before any attempt to use the machine.
The machine should only be operated by or under the instruction of trained personnel.
Any maintenance of the machine should only be carried out by the manufacturer or after
the manufacturer’s strict approval.
Should there be any doubt as to the safety of operation of the machine under any
circumstances, the machine should be taken out of service immediately.
The Salamander must not be used in confined spaces, under any conditions of rain, snow
or precipitation of any fluids, or moving air which will cause the flame to divert from a
vertical path.
The Salamander should not be subjected to temperatures below 5°C or above 45°C, nor
exposed to unsheltered conditions.
Warning: Failure to observe correct operating procedures may lead to serious injury,
damage by fire, or explosion.
Warning: Before initial use and each subsequent use, the Salamander should be checked
for functional suitability. Should any damage be observed or doubt about suitability of use
occur, it should be immediately decommissioned and held for service.

Le Maitre Ltd. Salamander User Manual
2
1.1. Operational Guidance
The Salamander is only suitable for indoor use, or situations that meet the same
environmental conditions.
The machine must only be used vertically, secured in position, protected from
unauthorised interference, impact forces and vibration.
Any installation or repositioning should only be performed when the machine is cool,
disconnected from the mains supply and all data communication.
Changing canisters should only be performed when the machine is powered down, the HSI
is cold, and no other sources of ignition are present. Operator must check no residual fluid
is present or alight.
Safety distances must be given a priority when using the Salamander. This includes persons
in the performance area, and surrounding flammable objects. Minimum safety distances
are as follows:
oHorizontal radius: 2 metres.
oVertical safety height: 8 metres for a single unit or 2 units coupled in a single location.
oVertical safety height: 10 metres if three or more units are coupled in a single location.
Full risk assessments must be made before use, and all relevant emergency failure
procedures must be immediately available, including qualified personnel, fire extinguishers
and first aid.
All operations should have undergone preliminary tests and rehearsal.
Always ensure it is possible to shut the machine down immediately in case of emergency.
Use of an Emergency Stop to interrupt mains supply is recommended.
Use only Le Maitre Chameleon Flame Fuel or Le Maitre Salamander Flame Fuel. Use of
alternate fuels might lead to unexpected behaviour.

Le Maitre Ltd. Salamander User Manual
3
The Salamander is controlled by instruction from the DMX-512 protocol. The manufacturer
cannot be held responsible for incorrect application or malfunction of data sent via DMX.
Should DMX isolation or other devices be required for safe operation, this will be deemed
the responsibility of the operator.
Avoid live-wiring DMX to the Salamander, ie. do not plug in or unplug DMX cables while the
controller is actively transmitting data.
The Salamander is not designed for continual flame use. It is intended for short duration
bursts, ie. maximum duration of 5 seconds.
Should the Salamander fail to fire correctly, immediately shut down the machine and allow
it to cool before investigating the problem.

Le Maitre Ltd. Salamander User Manual
4
2. Contents
1. Safety Information ..........................................................................................................................1
1.1. Operational Guidance.............................................................................................................2
2. Contents..........................................................................................................................................4
3. Features and Dimensions................................................................................................................5
4. Product Overview ...........................................................................................................................6
4.1. Product Description ................................................................................................................6
4.2. Features ..................................................................................................................................6
4.3. Specification............................................................................................................................7
5. Operation........................................................................................................................................8
5.1. Getting Started........................................................................................................................ 8
5.2. Control Panel...........................................................................................................................9
5.3. DMX Operation .......................................................................................................................9
5.4. Set-Up ...................................................................................................................................10
5.5. Coupling Units.......................................................................................................................11
5.6. Fixing points ..........................................................................................................................12
5.7. Shutdown..............................................................................................................................12
6. Advanced Settings.........................................................................................................................13
6.1. DMX Filter .............................................................................................................................13
6.2. Tilt Switch..............................................................................................................................13
7. Troubleshooting............................................................................................................................14
8. Maintenance .................................................................................................................................15
8.1. Solenoid Testing....................................................................................................................16
8.2. Firing Pin Adjustment............................................................................................................16
8.3. O-Ring Replacement .............................................................................................................17
8.4. HSI Testing.............................................................................................................................18
9. Contact Details..............................................................................................................................19
10. Warranty ...................................................................................................................................20

Le Maitre Ltd. Salamander User Manual
5
3. Features and Dimensions

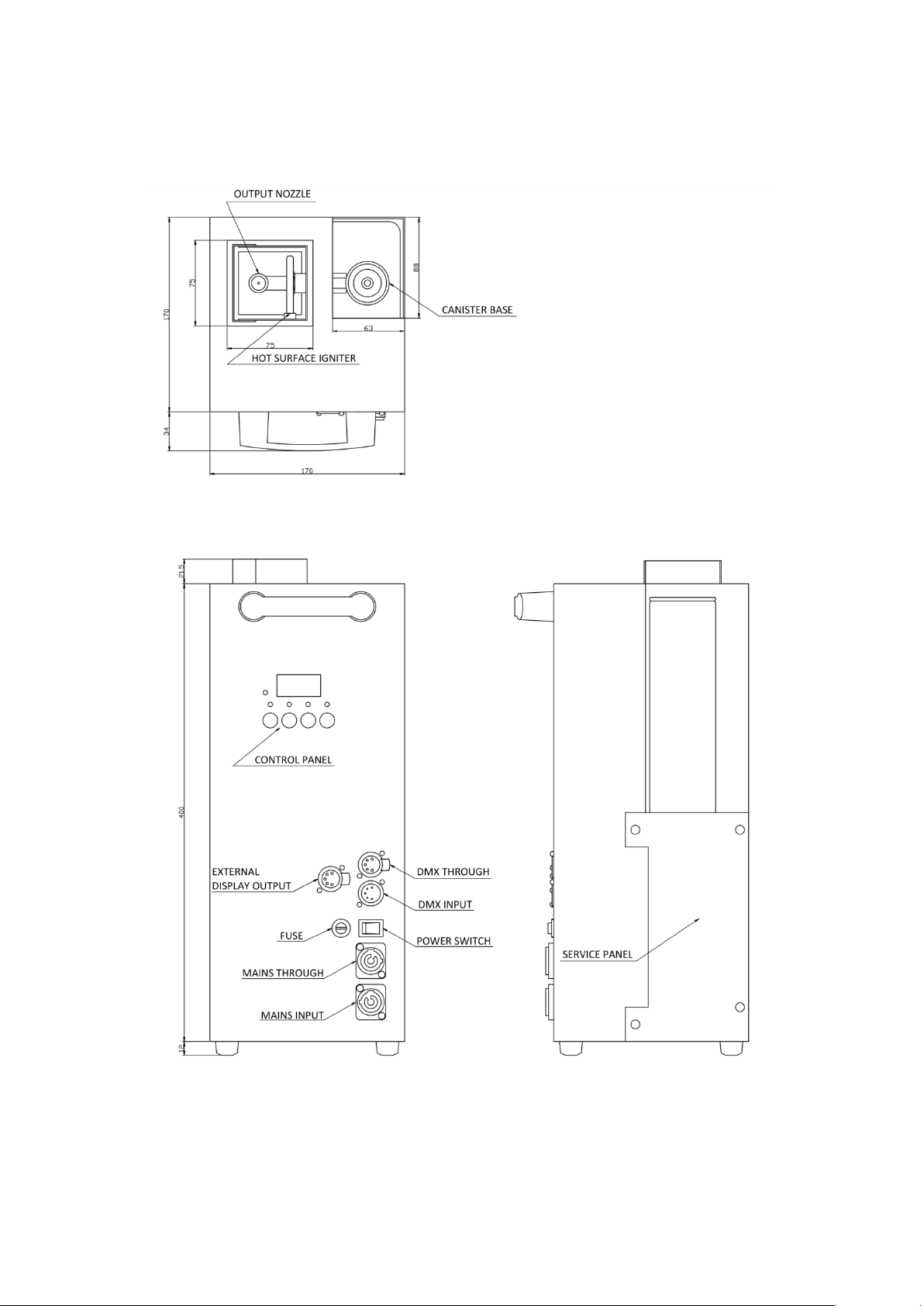

Figure 1: Salamander Features and Dimensions
All dimensions are in millimetres.

Le Maitre Ltd. Salamander User Manual
6
4. Product Overview
4.1. Product Description
The Salamander is a versatile new real flame effect from Le Maitre Ltd. The small footprint and
modular design allow the Salamander to produce stunning flame effects of over 6 metres in height
with a purely canister based system. The unique firing mechanism eliminates the requirement for
internal valves and accumulators, minimising the risk of flammable gas leaks, and a robust hot
surface igniter ensures reliable flame ignition.
The canister based design removes the requirement for bulky and expensive propane bottles and
high pressure hosing, and allows for a choice of fuels making the Salamander ideal for any venue
where propane is not permitted.
Details of the full range of Le Maitre products are available online at:
www.lemaitreltd.com and www.lemaitreusa.com
4.2. Features
4m high flame effect from a single unit
Over 6m high flame effect from 4 coupled units
Canister based system
Multiple colours and fuels available
Up to 35 seconds of flames from a single canister
No internal valves or accumulators; flammable fuels are only stored within the canisters
themselves
Small footprint
Modular; designed to allow easy coupling of multiple units
DMX operation
Optional external display for remote monitoring
Robust hot surface igniter
Tilt safety switch
Igniter current monitoring

Le Maitre Ltd. Salamander User Manual
7
4.3. Specification
Power Requirements (EU):
(US):
230VAC, 50Hz, 250W
120VAC, 60Hz, 250W
External Fusing (EU):
(US):
3.15AT
6.3AT
Fuel Capacity:
1 x 500ml Canister
Fuel Type:
Propane / Butane mix OR Ethanol / Methanol
mix (colour specific)
Effect Duration:
30s continuous / up to 50 fireballs
Control:
DMX512 –2 Channels (Igniter, Fire)
Dimensions (mm):
433 (H) x 170 (W) x 204 (D) (including handle)
Weight:
10kg

Le Maitre Ltd. Salamander User Manual
8
5. Operation
5.1. Getting Started
Remove the Salamander from all packaging and place on a flat, stable surface.
Prior to use, the Salamander should be inspected for damage. If the unit is found to be damaged, it
should be removed from service immediately, and referred to Le Maitre for servicing and repair.
Install a canister of Le Maitre Chameleon or Salamander flame fuel by screwing the canister into the
brass canister base. Be careful not to over-tighten the canister as this risks damage to the canister,
the canister base, and the seals within the canister base.
Unlike other flame effect systems, no gas should leave the canister as it is being installed. If escaping
gas is detected, immediately remove the canister. The most probable cause is the tension of the

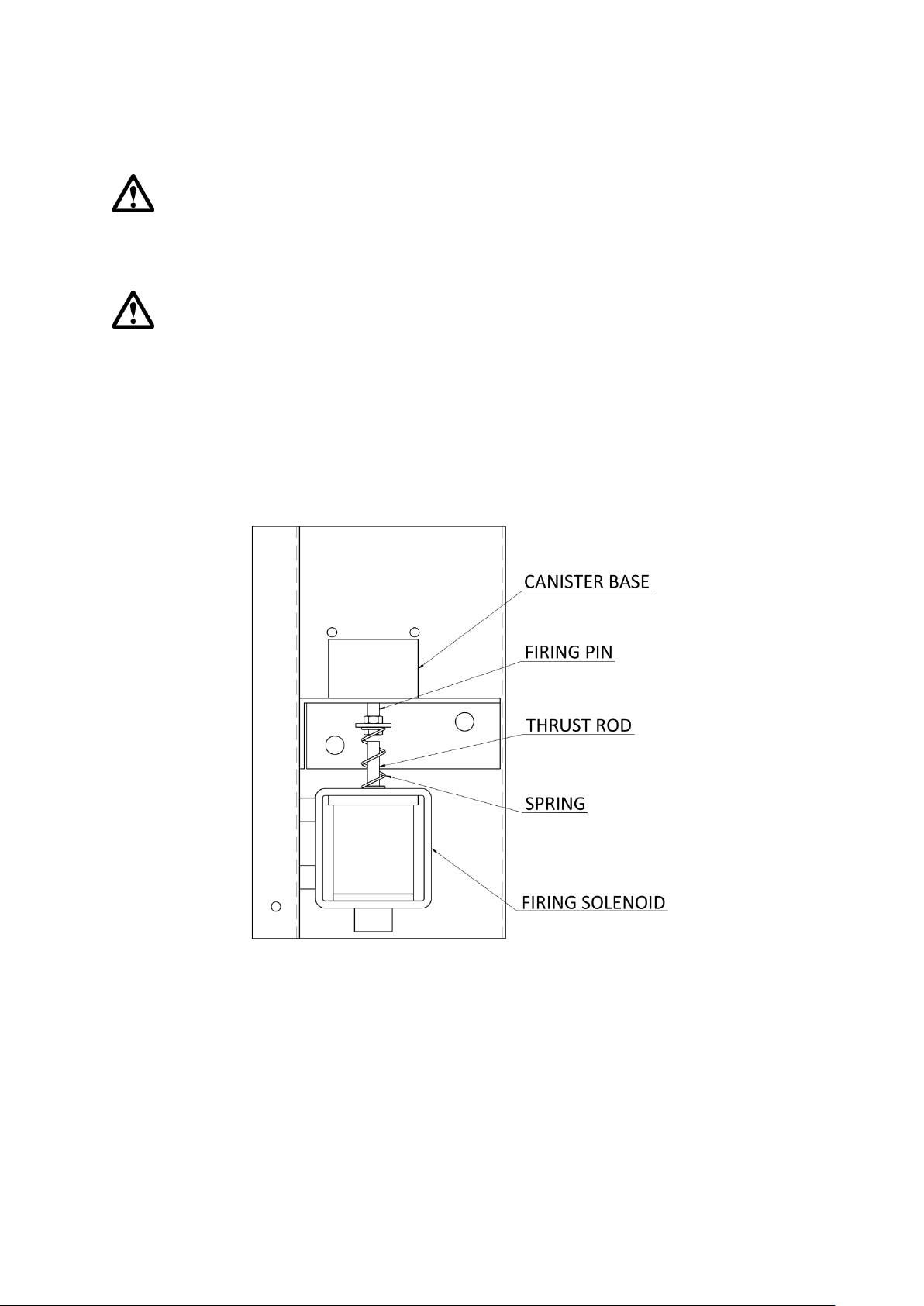

spring supporting the firing pin. Refer to the Maintenance instructions for correct adjustment of this
spring.
The unit is controlled via DMX protocol (see section 5.3). Plug in your DMX control into the DMX IN
socket. DMX OUT socket allows for daisy-chaining multiple DMX units together on a single DMX
output from the controller. For safety, it is advised that such network be reserved for flame units.
Power is supplied to the Salamander via the blue Neutrik PowerCon socket. A suitable mains cable
fitted with a blue PowerCon plug must be used to connect the Salamander to a mains supply. The
white PowerCon socket is a mains through connector allowing multiple Salamander to be powered
from a single mains supply.
Please note: The blue Powercon must only ever be used as a mains input, and the white
Powercon must only ever be used as a mains through / output.
Please note: Electrically, the Salamander’s fuse and power switch are located after the
mains through socket. This means the mains through socket will always be live while the
Salamander is connected to a live mains supply, even if the unit is switched off, or the fuse
has blown.
The power switch isolates the unit from the power socket –put it in ON position in order to turn on
the machine. When turned on and loaded with a canister, the unit should be treated as if it could
fire at any moment. Immediately move to safe distance after turning the machine on and never
adjust settings while canisters are fitted.

Le Maitre Ltd. Salamander User Manual
9
5.2. Control Panel
The Salamander is configured through an on board control panel featuring a 3 x 7-Segment LED
display, 5 x indicator LEDs and 4 x multi-function buttons.

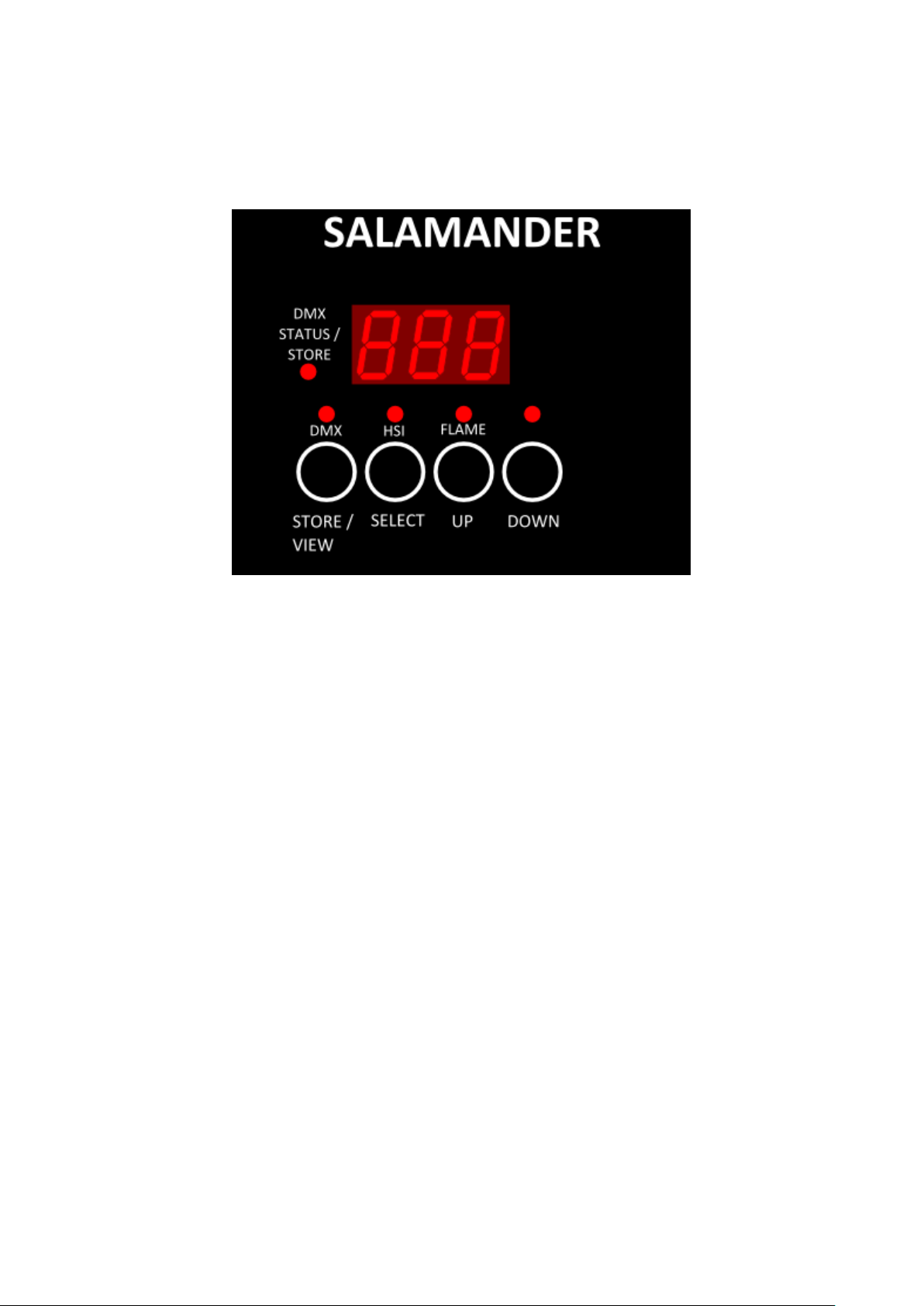

Figure 2: Salamander Control Panel
5.3. DMX Operation
The Salamander can only be operated through DMX-512. Two channels are required –one channel
activates the HSI, the second channel activates the firing solenoid.
These two channels can be set independently.
The HSI will be activated when the HSI channel is raised above 50%. The display will show the text
H99. At this point, a timer will activate, preventing the unit from being fired until the HSI has had
time to reach full temperature. While the timer is active, the 3 digit display will flash. When the
display stops flashing, the unit is ready to fire.
When the Fire channel is raised above 50%, a solenoid forces a plunger into the fuel canister,
opening the canister valve and allowing the pressurised fluid to escape via the output nozzle located
at the base of the flue.
It is recommended that the fire channel is activated with the ‘flash’ buttons present on most DMX
controllers. This allows for greater control over the effect produced. A brief activation of the channel
(0.5 –1s) will produce a short-duration fireball effect. A longer activation will produce a tall ‘tongue’
of flame.
It is recommended that operators of the Salamander take some time to familiarise themselves with
the effects produced in order to achieve the best results.

Le Maitre Ltd. Salamander User Manual
10
Warning: The firing solenoid should never be continuously activated for more than 30
seconds. Keeping the solenoid powered for extended periods risks damage to the solenoid
coil.
Please note: After the Salamander has been fired, there can occasionally be seen a small
flickering flame within the flue. This is produced by residual fuel in the nozzle vaporising
after the Fire channel has been released. This is expected in normal operation, however, if
the effect is not desirable, it can be minimised by gently warming the fuel canisters prior to
use. This increases the volatility of the fuel, allowing it to vaporise more rapidly.
5.4. Set-Up
The Salamander is programmed for operation through the control panel (see above). This must be
carried out with all DMX cables unplugged.
When powered up, doF will flash. This is short for DMX OFF.
Setting DMX Channels:
Press the SELECT button. The HSI indicator LED will light up, and the currently selected HSI channel
will be displayed. Use the UP / DOWN buttons to cycle through DMX channels. When the desired
channel is selected, press STORE / VIEW to save the setting.
Press SELECT again, and the FLAME indicator LED will light up. This is the Fire channel. Select the
desired channel and save it as above. Pressing SELECT again will return to the DMX status display.
Setting HSI Delay:
Press STORE / VIEW and UP simultaneously. dEL will scroll across the display, followed by a value.
This value corresponds to the timer delay after the HSI is activated before the Salamander can be
fired. The default setting is 101. This corresponds to a delay of approximately 10s. In some adverse
conditions it might be desirable to increase this delay.
Care should be taken when adjusting the HSI Delay. If it is set too short, the HSI might not have time
to reach full temperature when the Salamander is fired. This can result in the fluid failing to ignite.
In addition, if the HSI Delay is reduced to 10 or below, the HSI will not activate. This allows the firing
system to be tested without the HSI active.
Warning: The canister must be removed before reducing the HSI delay. While the HSI delay
is set to 6, the firing solenoid will activate. This will cause gas to be released if a canister is
installed at the time.

Le Maitre Ltd. Salamander User Manual
11
5.5. Coupling Units
The Salamander has been designed to allow up to four units to be coupled together with a minimal
footprint.

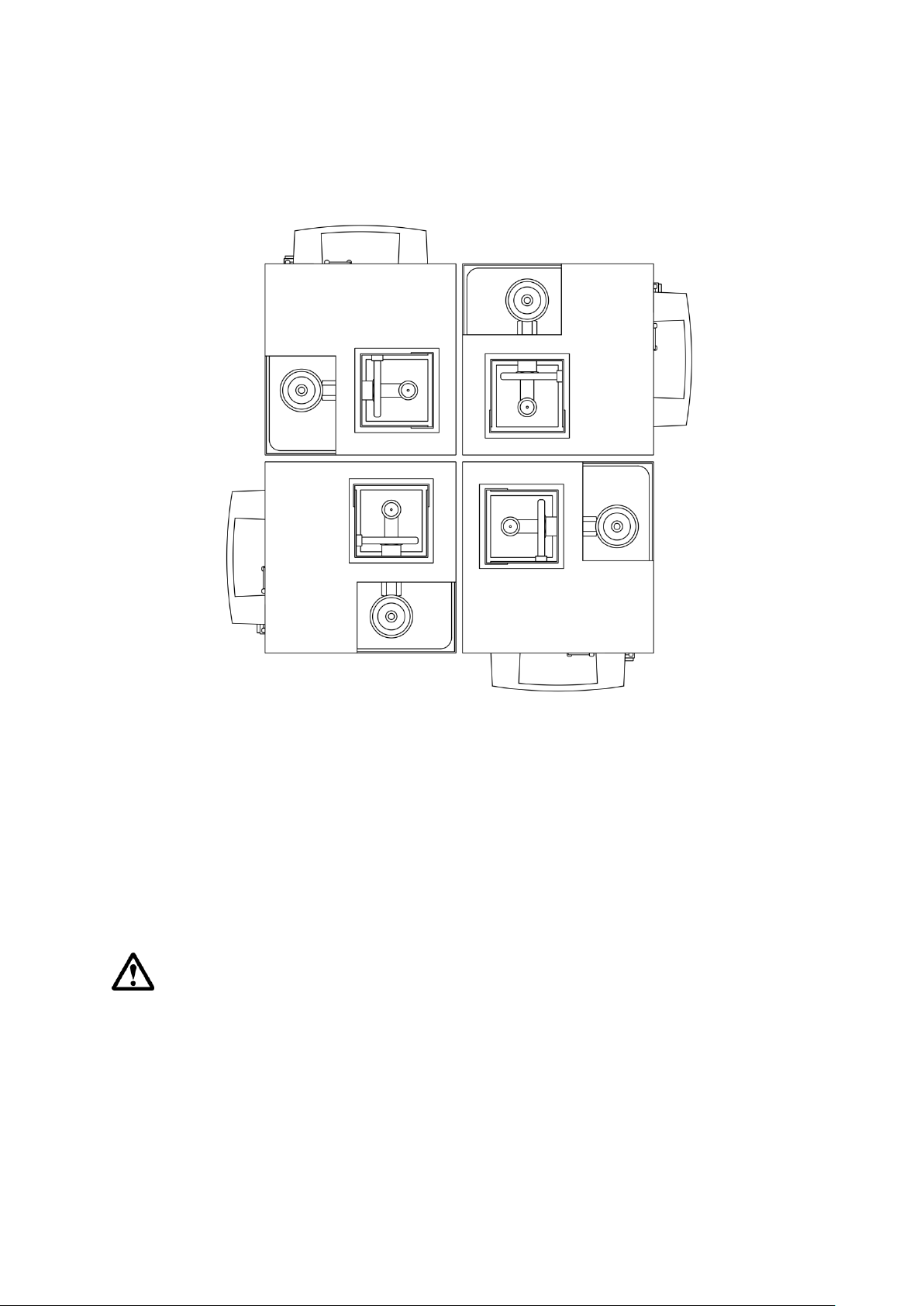

Figure 3: Positioning of 4 coupled Salamanders (top-down view)
When coupled in this manner, the effect has a footprint of less than 350 x 350mm, and can be used
to give the impression of multiple different coloured flames from a single source, or to produce a
single flame of much greater size.
Daisy-chaining Mains and DMX connectors allows for the entire effect to be powered and controlled
by a single mains supply and DMX line respectively.
Please note: The US (120VAC) model will draw a peak current of about 7 Amps when the
ignitor is activated. This inrush current will last for less than a second and settle rapidly to a
steady-state current of about 1.5 Amps. However, this means four coupled units have the
potential to draw an inrush current of 28 Amps. If there is any doubt that the mains supply
being used can supply this peak current, it might be necessary to stagger the ignitor
activation when multiple units are sharing a single mains supply.

Le Maitre Ltd. Salamander User Manual
12
5.6. Fixing points
The Salamander has fixing points on the front and rear. These can be used to install the Salamander
in an enclosure, attach rack ears for recess into a stage, as fixing points for safety chains, or any
similar application that requires attachments to the Salamander’s chassis.
These fixing points are M6 rivet bushes fixed to the Salamander chassis. On the rear of the unit, they
will be supplied fitted with M6x16 bolts. On the front, they are used to secure the handle to the unit.
The handle can be removed, and the fixing points can be used for other purposes.
Fixing point spacings are as follows:
Front: 93.5mm
Rear: 46.75mm
5.7. Shutdown
Each of the following steps disables the machine. The order presented is for a recommended
normal shutdown procedure. In case of an emergency always perform the easiest, safest and
quickest step available first.
1. Disarm via the control system –set HSI DMX channel (and fire channel) value to 0.
2. Cut the power to the machine.
3. Switch the power switch to the OFF position.

Le Maitre Ltd. Salamander User Manual
13
6. Advanced Settings
6.1. DMX Filter
In order to minimise the possibility of incorrect triggering of the Salamander through DMX, the
software contains a DMX data filter. This will cause a small delay in the unit’s response to DMX
commands (approximately 75ms.) In practical terms, this delay should be too short to have any
effect on functionality, however it is possible to disable the DMX filter if this is desired.
Warning: If the Salamander is operated with the DMX filter disabled, the manufacturer will
not be held responsible for any unexpected behaviour under DMX control.
To disable the DMX filter:
1. With all DMX cables unplugged, press SELECT until doF is displayed.
2. Press STORE / VIEW and UP at the same time.
3. While dEL is still scrolling on the display, press DOWN.
4. FILtEr will scroll across the display, followed by the setting. F –1 indicates the filter is
switched on.
5. Press UP and DOWN to toggle between filter on (F –1) and filter off (F –0).
6.2. Tilt Switch
The Salamander contains a safety tilt switch that will disable the unit if it is tipped beyond 40
degrees from vertical. This will prevent the unit from operating should it be knocked over. It is
possible to disable this tilt-switch if desired.
Warning: The Salamander is only designed to be used in a vertical position. If the unit is to
be used in any other position, it is the sole responsibility of the user to ensure safe
operation.
To disable the tilt switch:
1. With all DMX cables unplugged, press SELECT until doF is displayed.
2. Press STORE / VIEW and UP at the same time.
3. While dEL is still scrolling on the display, press DOWN.
4. While FILtEr is still scrolling on the display, press UP.
5. tILt loc will scroll across the display, followed by the setting. L –1 indicates the tilt switch is
enabled.
6. Press UP and DOWN to toggle between tilt switch enabled (L –1) and disabled (L –0).

Le Maitre Ltd. Salamander User Manual
14
7. Troubleshooting
Problem
Cause
Action
Fuse or circuit
breakers blowing
when HSI activated
Too many Salamanders
on single supply
Assign HSIs different DMX channels and stagger
activation
Faulty HSI
Refer to Maintenance instructions / contact Le
Maitre
HSI element in contact
with chassis
Return to correct position. HSI might need to be
replaced.
HSI not heating
HSI Delay set below 10
Set HSI Delay to above 10 (101 recommended.)
Refer to Set-Up Instructions.
Incorrect DMX channel
Set to correct DMX channel. Refer to Set-Up
HSI stuck in heating
delay (display
constantly flashing)
HSI disconnected
Re-connect HSI. Refer to Maintenance
instructions / contact Le Maitre.
Firing solenoid not
activating
HSI still heating
Wait until HSI is fully heated. The display will
stop flashing when the Salamander is ready to
fire.
Incorrect DMX channel
Set to correct DMX channel. Refer to Set-Up
instructions.
Firing solenoid
activating, but no gas
released
Empty canister
Replace canister.
Canister nozzle
damaged
Replace canister.
Firing pin sticking
Remove firing pin and clean or replace o-ring.
Refer to Maintenance instructions.
Firing pin too low.
Increase firing pin height. Refer to Maintenance
instructions.
No response from unit
Tilt lock-out engaged
Position on a level surface and turn unit off and
on again.
DMX signal not received
Check DMX controller and test cables.
Gas leaking when
canister is installed
Firing pin too high.
Reduce firing pin height. Refer to Maintenance
instructions.

Le Maitre Ltd. Salamander User Manual
15
8. Maintenance
Please note: While the Salamander contains several components that have been designed
to be user-serviceable, the maintenance procedures described in this section should only
be performed by qualified personnel. The manufacturer cannot be held responsible for
events occurring due to incorrect maintenance of this machine.
Please note: All the procedures described in this section should be performed with the
Salamander isolated from any power supply, after the unit has been allowed to cool for at
least 10 minutes.
The Salamander features a service panel secured by 4xM4 bolts. Removal of this service panel allows
access to the majority of user-serviceable components within the Salamander:
Figure 4: Salamander Firing Mechanism

Le Maitre Ltd. Salamander User Manual
16
8.1. Solenoid Testing
The Salamander features a test setting that allows the firing solenoid to be activated without DMX.
This setting disables the HSI so it cannot be used to fire the unit. This allows the action of the firing
solenoid to be tested without requiring a DMX controller.
To test the solenoid:
1. Turn on the Salamander and unplug all DMX cables. Remove any canisters from the unit.
2. Press STORE / VIEW and DOWN. dEL will scroll across the display.
3. Reduce the HSI delay to 6. While the delay is set to 6, the firing solenoid will be active.
Warning: The firing solenoid should never be continuously activated for more than 30
seconds. Keeping the solenoid powered for extended periods risks damage to the solenoid
coil.
8.2. Firing Pin Adjustment
While the firing solenoid is not active, the firing pin should not protrude above the top surface of the
canister base:
Figure 5: Correct and Incorrect firing pin positions
If the pin protrudes above the top surface of the canister base, this might lead to the pin opening the
canister valve as a canister is installed, causing gas to be released.
The relaxed position of the firing pin can be changed by adjusting the position of the two M5 plain
nuts and the washer on the firing pin shaft. Winding this assembly further up the pin will reduce the
height of the pin while it is in a relaxed state.

Le Maitre Ltd. Salamander User Manual
17
To perform this adjustment:
1. Depress the spring.
2. Using a 7mm spanner, wind the nuts up the firing pin shaft one at a time.
3. When the pin is in the desired position, tighten both nuts against the washer.
Figure 6: Firing pin assembly and adjustment
8.3. O-Ring Replacement
The Salamander contains two user-replaceable O-rings.
One is located at the base of the thread in the brass canister base.
The other is located on the firing pin.
The canister base O-ring should be inspected every time the canister is changed. If the rubber
appears worn, frayed or split, the O-ring should immediately be replaced. It might be necessary to
cut the O-ring out of the canister base using a small blade such as a scalpel.
The replacement O-ring can simply be pressed into place.
It is recommended that the firing pin O-ring is periodically examined for damage. Checking the O-
ring every 6-12 canisters is usually appropriate, however this will vary based on the precise
operating conditions of the unit.

Le Maitre Ltd. Salamander User Manual
18
In addition, if the Salamander fails to fire correctly, or the response when firing is delayed or ‘sticky’,
the firing pin O-ring must be cleaned or replaced.
To access the firing pin O-ring:
1. Depress the spring.
2. Pull the firing pin straight down towards the bottom of the canister base.
3. When it meets the top of the thrust rod, gently twist it to one side.
4. Pull the firing pin out past the side of the thrust rod.
If the O-ring appears worn, frayed or split it must be replaced. The O-ring should be cut off the firing
pin with a sharp blade such as a scalpel, taking care not to scratch the firing pin itself. A new O-ring
should be eased into place from the top end of the pin. Do not push the O-ring over the thread on
the firing pin.
A chemically inert lubricant such as general purpose silicone grease must be applied to the O-ring
before the pin is replaced. A thin layer should be applied to the O-ring, and any excess should be
wiped away.
When the O-ring has been replaced, re-install the firing pin.
Please note: Under no condition should the firing pin be pushed up out of the top if the
canister base. This will force the firing pin O-ring across the canister base’s side opening,
damaging the rubber and compromising the seal created.
Warning: Failure to apply lubricant to the O-ring may result in the pin sticking. This can
lead to a delay in firing or shutting off, and reduce the life of the O-ring.
8.4. HSI Testing
If the HSI is failing to heat up, or causing fuses to blow when it is activated, the HSI can be inspected
to determine if it is faulty.
To access the HSI:
1. Remove the Salamander Service Panel and Lid.
2. Undo the two M5 bolts securing the front two feet of the unit. These also secure the control
panel.
3. Unplug the HSI from the chassis-mount relay on the control panel.
Using a multimeter, the cold resistance of the HSI should measure between 9 and 16 Ohms.
If the HSI resistance does not fall into this range, it has developed a fault. Contact the manufacturer
for a replacement.

Le Maitre Ltd. Salamander User Manual
19
9. Contact Details
UK:
Le Maitre Ltd
6 Forval Close
Wandle Way
Mitcham
Surrey
CR4 4NE
Tel: [phone]
Fax: [phone]
Email: [email protected]om
USA:
Le Maitre USA, LLC
13975 Grand Valley Parkway
Las Vegas, NV 89165
USA
Tel: [phone]
Fax: [phone]
Email: [email protected]om
