LENCO DVT-1541 User manual

- 1 -
Table Of Contents
Important Safety Instructions......................................................................................................... 2
Disc Information .............................................................................................................................. 4
Front Panel ....................................................................................................................................... 5
Rear Panel ........................................................................................................................................ 6
Remote Control................................................................................................................................ 7
System Connections ..................................................................................................................... 11
TV Function .................................................................................................................................... 16
Image Setting................................................................................................................................... 16
Audio Setting ................................................................................................................................... 19
Timer/Setup Setting ......................................................................................................................... 20
TELETEXT Function ...................................................................................................................... 25
NICAM Function............................................................................................................................. 26
DVB-T Setup................................................................................................................................... 27
System Setting................................................................................................................................. 27
Channel Setting ............................................................................................................................... 31
Channel/Favorite List....................................................................................................................... 33
System Info/EPG ............................................................................................................................. 35
DVD Playback Operation............................................................................................................... 37
DVD Playback.................................................................................................................................. 37
CD Playback .................................................................................................................................... 39
JPEG Playback................................................................................................................................ 40
MP3 Playback.................................................................................................................................. 41
DIVX Playback................................................................................................................................. 42
USB and SD/MS/MMC Card Function .......................................................................................... 43
DVD System Setup ........................................................................................................................ 44
Troubleshooting ............................................................................................................................ 52
Specifications ................................................................................................................................ 53

- 2 -
Important Safety Instruction
s
Caution: use of any controls, adjustments, or procedures other than those specified herein may
result in hazardous radiation exposure.
Caution
1. The product contains a low-power device. In order to ensure the safety of the laser device, do
not remove any cover and attempt to repair the unit. If any service is needed, please contact the
distributor or its authorised service centre.
2. To reduce the risk of electric shock, do not remove the cover (back). No user-serviceable parts
inside. Refer servicing to qualified service personnel. Unplug the product from the wall outlet
before servicing or when it is unused for a long period of time.
3. The manufacturer will not be held responsible for the damage caused by any substitutions and
modification of the product without authorisation from the manufacturer’s or authorised service
agent.
WARNING
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright protection technology must be authorised by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise
authorised by Macrovision. Reverse engineering or disassembly is prohibited.
The images in this manual are for reference only and may differ from your model.

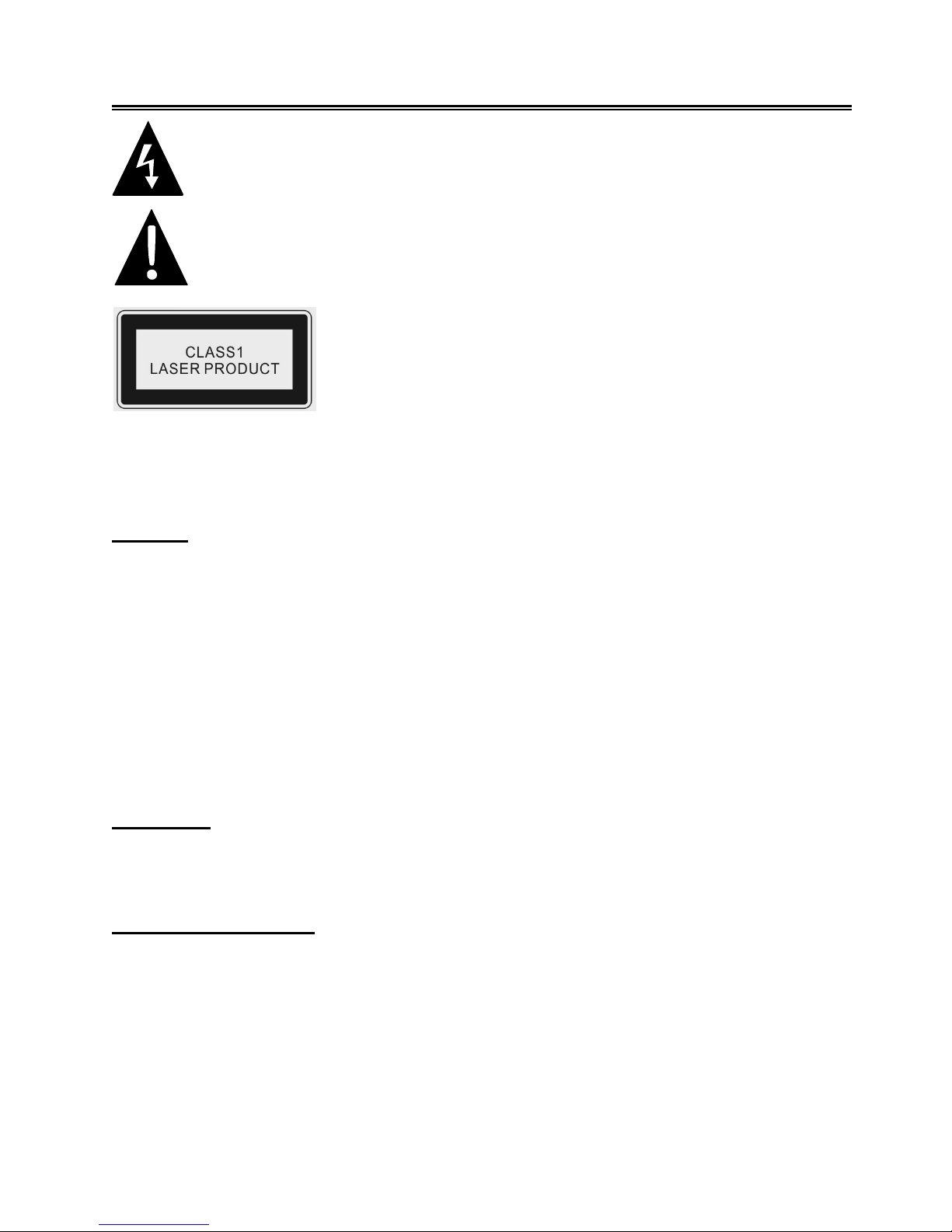

This symbol indicates that dangerous voltage instituting a risk of electric shock is
present within this unit.
This symbol indicates that there are important operation and maintenance
instructions in the literature accompanying the appliance.
Caution: Laser radiation when open. Do not stare into beam.

- 3 -
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the back cover. There are
no user serviceable parts inside the unit. Leave all
servicing to qualified service personnel.
Important Safety Instruction
s
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use near water.
6. Clean only with adry cloth.
7. Do not block any ventilation
openings. Maintain well
ventilated conditions around the
product. Do not put product on a bed, sofa or anything that blocks ventilation. Install according
to the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the apparatus;
10. The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
11. The mains socket-outlet shall be installed near the apparatus and the mains plug shall remain
readily operable.
12. Protect the power cord from being walked on or pinched particularly at plugs, power sockets,
and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the manufacturer.
14. Use only with the stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus.
15. Unplug the apparatus during lightning storms or when unused for long periods of time.
16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Note: Do not touch the color TFT LCD screen directly by hand.

- 4 -
Disc Information
Discs Supported

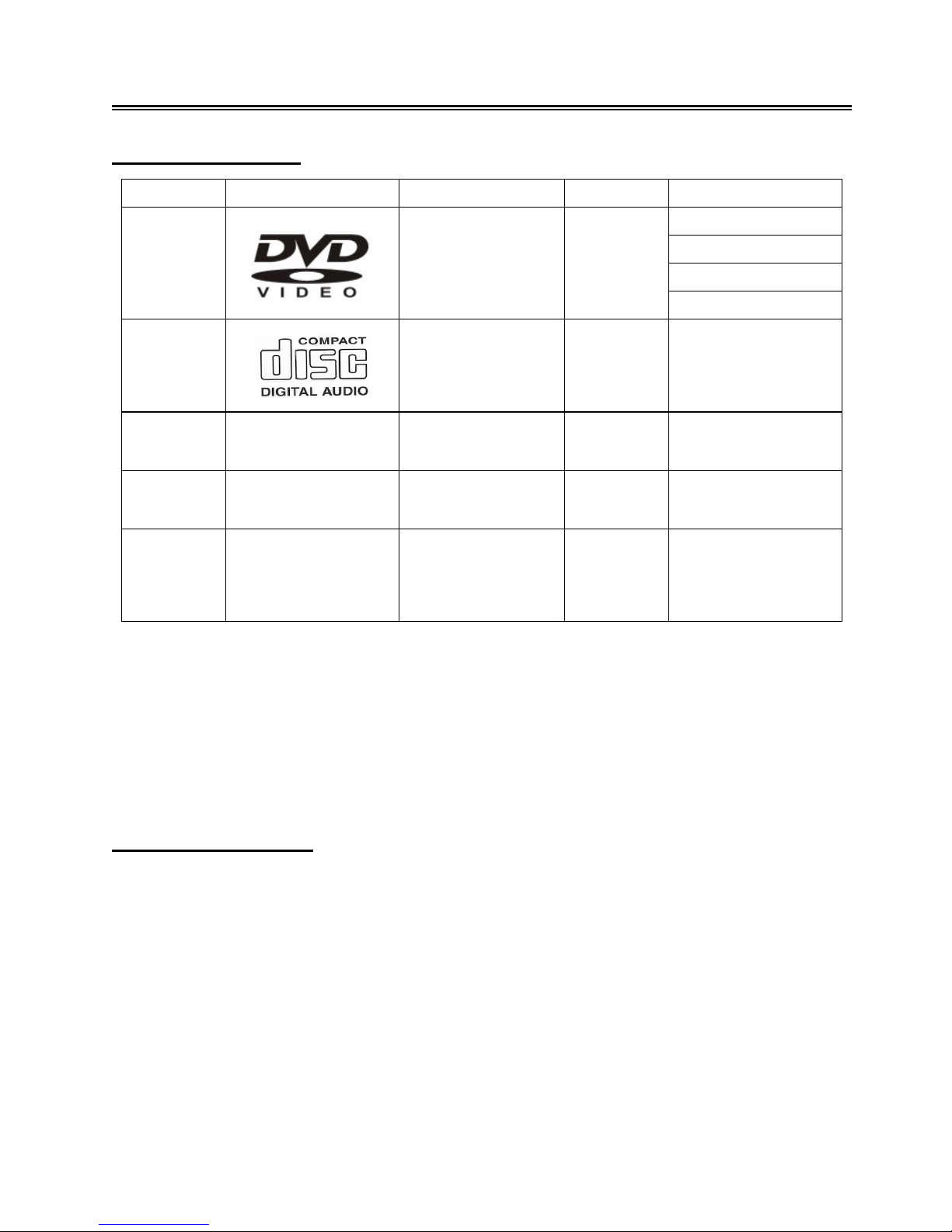

DISC LOGO CONTENTS SIZE MAXIMUM TIME
133min(SS-SL)
242min(SS-DL)
266min(DS-SL)
DVD
Audio+Video
(active picture) 12cm
484min(DS-DL)
CD Audio 12cm 74min
JPEG Still high resolution 12cm
MP3 12cm
MPEG4 Audio+Video
(active picture) 12cm
The operating method of some DVD discs is specified by the software maker. Please refer to the
instruction manual of the disc.
The unit will play most recordable (CD-R) or erasable (CD-RW) CDs, but playback of CD-R or
CD-RW discs created on a computer requires proper formatting and finalization of the disc for
audio playback. Some computers and/or software programs may not be capable of creating
compatible discs.
About Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several sections, “title”.
Chapter
The smaller section unit of pictures or music in a DVD under the title, usually one title is comprised of
one or more chapters and each of them is numbered for easy searching. But some discs may not
have a recording by chapter facility.
Track
A segment of picture or music on a CD. Each track is numbered for searching.

- 5 -
Front Panel

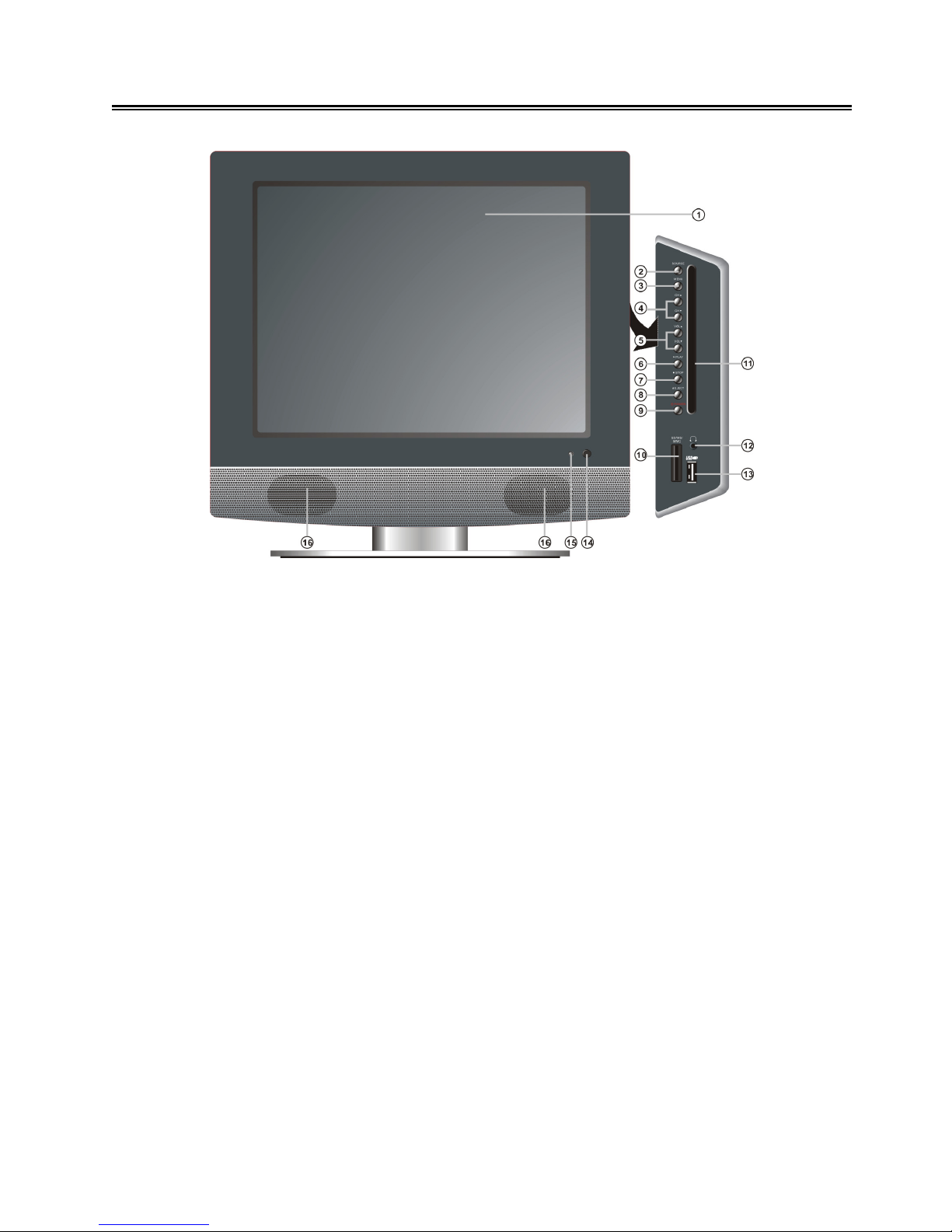

1. Colour TFT screen
2. SOURCE button
Press this button repeatedly to select input,
choose from: TV, SCART, Composite,
S-VIDEO, COMPONENT, VGA, DVD or
DVB mode.
In setup menu, use the ENTER button for
the same function.
3. MENU button
Press this button to enter or exit the setup
menu.
4. CH ▲/▼button
In TV or DVB mode, press it to select
channels.
In setup menu, use the ▲/▼direction
buttons for the same function.
5. VOL ▲/▼button
Press it to increase or decrease the volume;
In setup menu, use the ◄/►direction for
the same function.
6. 

PLAY button
Press it to play the disc in DVD mode.
7. ■STOP button
Press it to stop disc playback.
8. EJECT button
Press it to eject the disc out.
9. POWER button
Press it to enter or exit the standby mode.
10. SD/MS/MMC Card Port
Insert the SD/MS/MMC card into the port.
11. Disc Tray Slot
Used to load the disc.
12. Earphone Jack
When connected to an earphone, the
internal speakers will automatically turn off.
13. USB Connecting Port
To connect an external USB device.
14. Remote Sensor
15. Power Indicator
During normal operation, it is blue; in
standby mode, it is red.
16. Speakers

- 6 -
Rear Panel

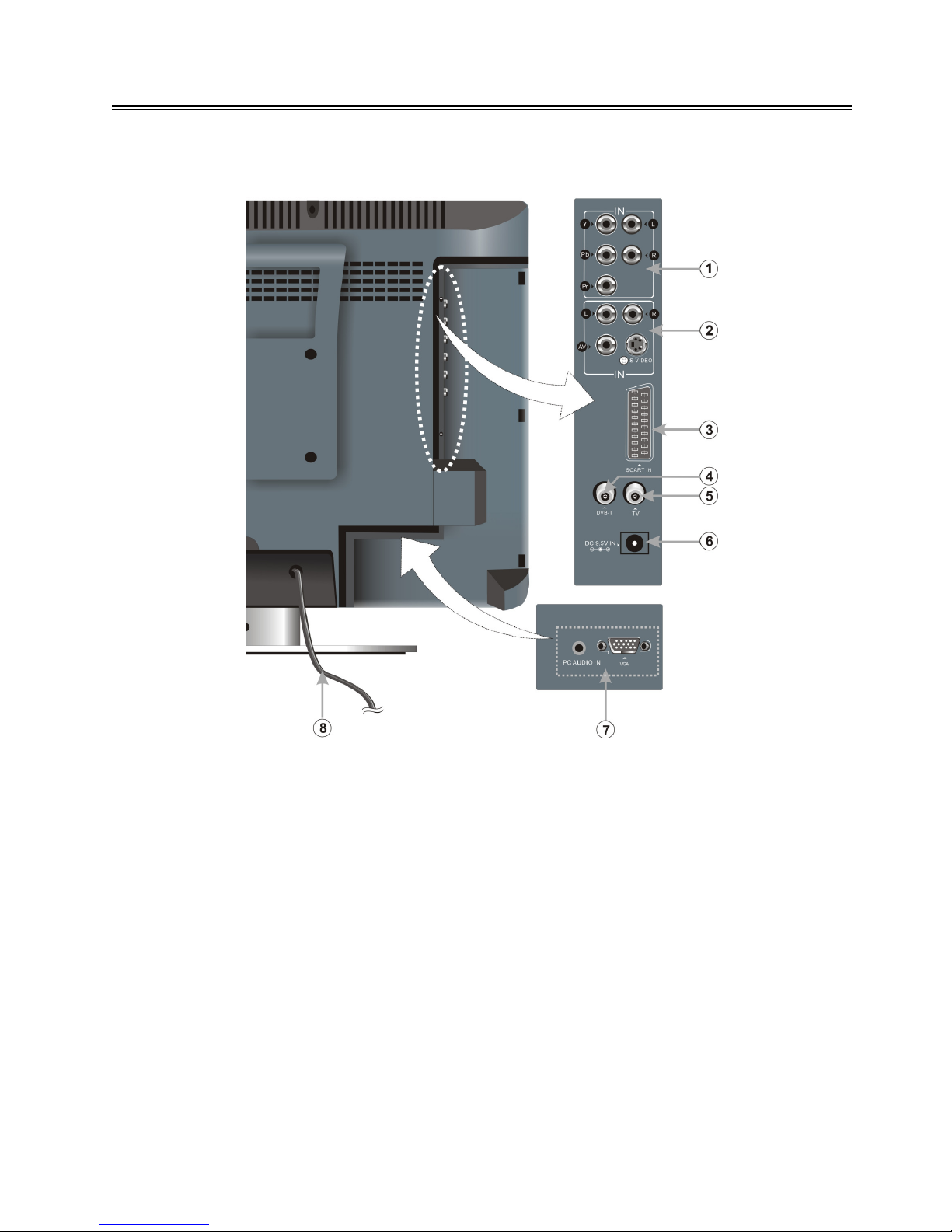

Open the back cover on the right side of the unit’s rear panel and you will see all jacks, as
shown below:
1. Y/Pb/Pr and L/R audio Input Jacks
To connect an Y/Pb/Pr signal source in
COMPONENT mode.
2. VIDEO/S-VIDEO and L/R Audio Input
Jacks
In S-VIDEO mode, connect an S-VIDEO
signal source.
In COMPOSITE mode, connect the
external video signal source.
The L/R audio input jacks can be used in
both S-VIDEO and COMPOSITE modes.
3. SCART Input Jack
To connect aSCART signal source in
SCART mode.
4. DVB signal Input Jack
To connect a DVB-T antenna signal source.
5. TV antenna Input Jack
To connect aTV antenna signal source.
6. DC 12V Input Jack
Connect the power adapter or car adapter.
7. VGA Input Jacks
To connect a VGA signal source in VGA
mode.
8. Power Supply Cord

- 7 -
Remote Control

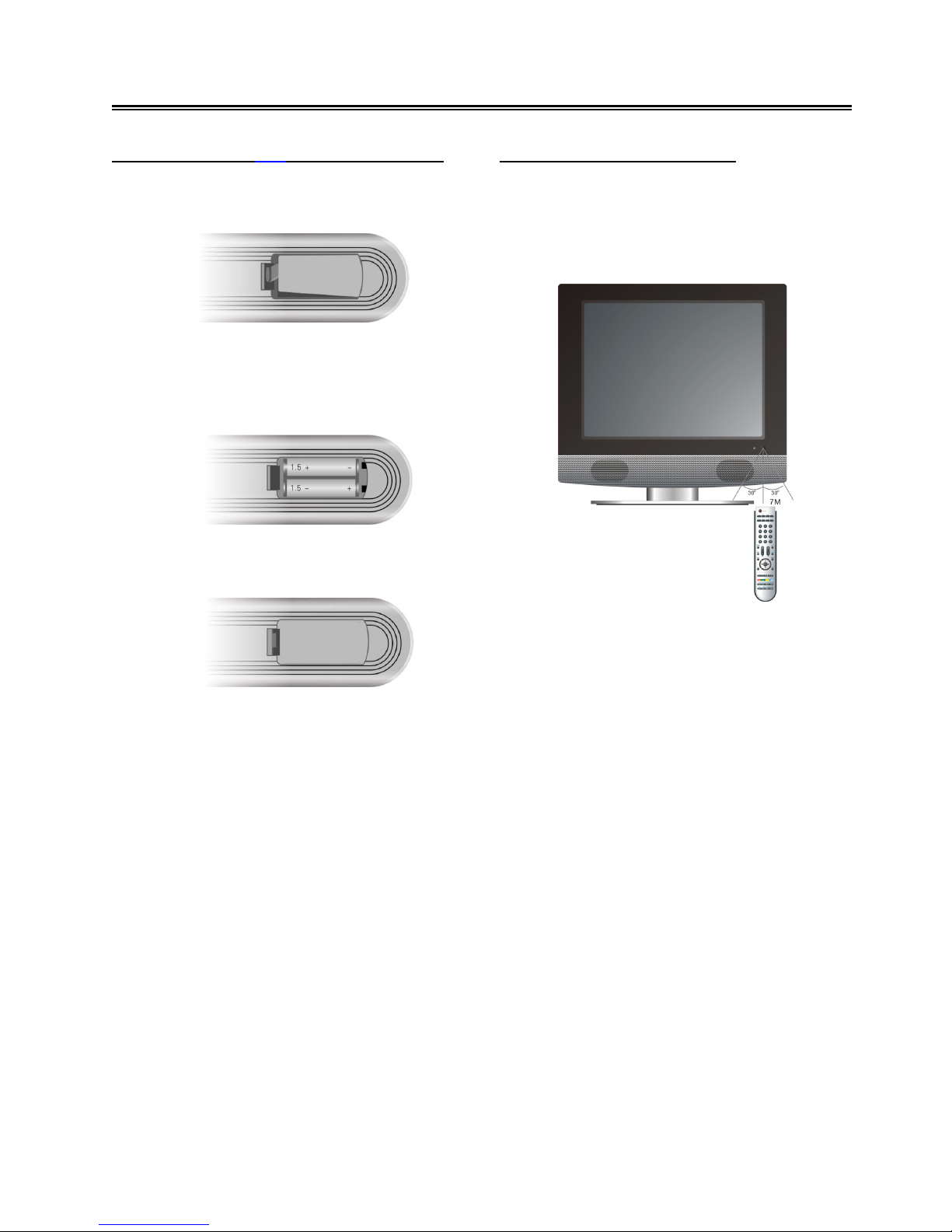

Preparation of the Remote Control
Softly push the clip of the back cover to open
the battery compartment.
Insert two batteries (1.5V, size AAA), please
make sure the polarity matches the marks
inside the compartment.
Softly press the back cover to close it.
 Under normal use the battery will last for six
months.
 Take out the batteries when the remote is
not in use for a long time.
Using of Remote control
Point the remote control unit from no more than
about 7 meters from the remote control sensor
and within about 60 degrees of the front of the
unit.
•The operating distance may vary
depending on the brightness around.
Notes:
•Do not point bright lights directly at the
remote control sensor.
•Do not place objects between the remote
control unit and the remote control sensor.
•Do not use this remote control unit while
simultaneously operating the remote
control unit of any other equipment.

- 8 -
Remote Control

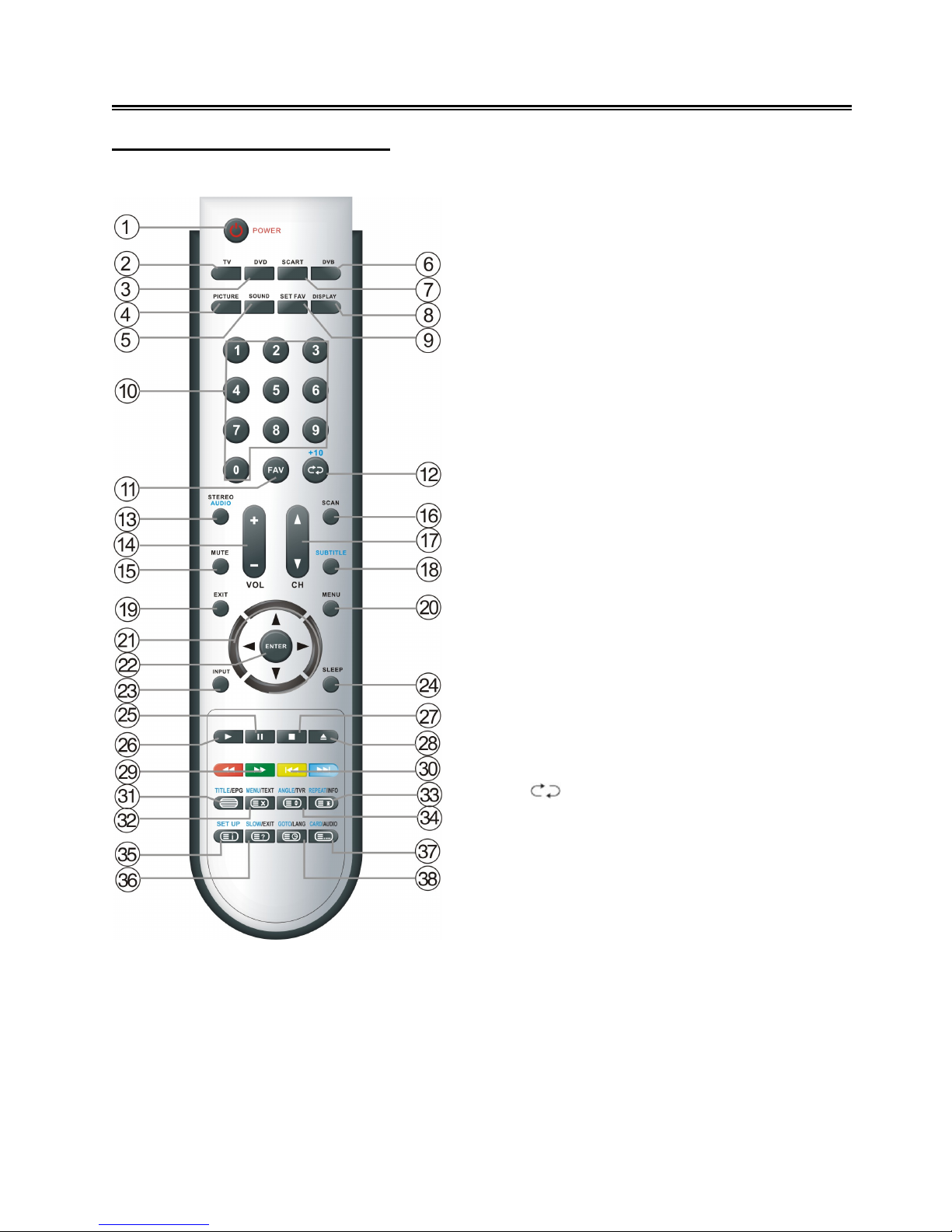

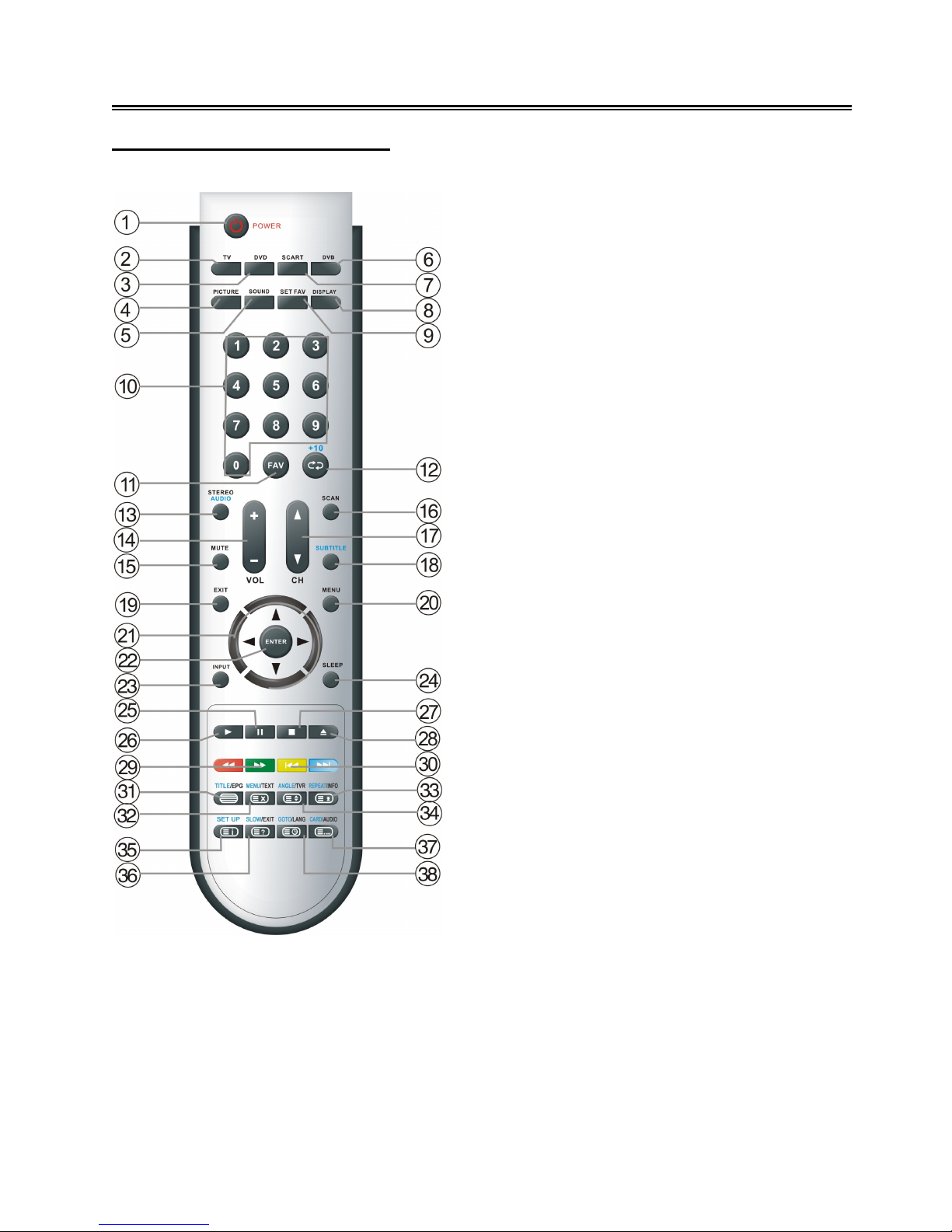

Remote Control Drawing
1. POWER button
Press to enter or exit standby mode.
2. TV button
Press to enter TV mode.
3. DVD button
Press to enter DVD mode.
4. PICTURE button
Press to select the screen picture mode:
choose from User, Standard, Soft, Bright or
Shine.
5. SOUND button
Press to select the sound mode: Choose
from User, Standard, Music, Movie or
Speech.
6. DVB button
Press to enter DVB mode.
7. SCART button
Press to enter SCART mode.
8. DISPLAY button
Press to display the reference information
about the current program in TV or DVB
mode.
9. SET FAV button
Press to set the current channel as your
favourite channel in TV or DVB mode.
10. 0~9 Number buttons
Press to select numbers.
11. FAV button
In TV mode, press to access your favourite
channel.
In DVB mode, press to display the favourite
list.
12. /+10 button
In TV or DVB mode, press to return to the
channel previously viewed.
Press to select numbers greater than 10 in
DVD mode.
13. STEREO/AUDIO button
In TV mode, press to change sound
parameters when receiving Nicam or Dual
Audio Language broadcasts.
In DVD mode, press to select the audio
language if the disc has multiple audio
languages.
14. VOL+/- button
Press to increase or decrease the volume.

- 9 -
Remote Control
15. MUTE button
Press to turn on or off the speaker output.
16. SCAN button
In TV mode, press to scan the programs
and press again to stop scanning.
17. CH▲/▼button
In TV mode, press to select channel.
18. SUBTITLE button
Press to display or remove the subtitle
language in DVD mode.
Press to select the desired subtitle
language in DVB mode.
19. EXIT button
Press to exit the setup menu.
20. MENU button
Press to enter or exit the setup menu.
21. Direction buttons (▲▼◄►)
In the setup menu, press the ▲▼ button to
select a desired item and press the ◄►
button to adjust or set.
22. ENTER button
Press to confirm your operation in setup
menu.
In DVB mode, press to display the channel
list.
23. INPUT button
Press repeatedly to select TV, SCART,
Composite, S-VIDEO, COMPONENT,
VGA, DVD or DVB mode.
24. SLEEP button
This feature allows you to set up sleep time
in TV mode. Press the button and then press
the ENTER button to activate this function.
Then press the ▲▼ direction buttons to
select the desired time to sleep.
25. PAUSE 

button
Press to pause the playback and press the
PLAY ►button to resume in DVD mode.
26. PLAY ►button
Press to play a disc when in DVD mode.
27. STOP ■button
Press to stop disc playback in DVD mode.
28. EJECT button
Press to eject the disc.
29. 

/

button
In DVD mode, press to search backward or
forward.
In teletext mode, they’re the color buttons.
In DVB mode, they’re operation indication
buttons.
30. 

/

button
Press to play the previous/next
chapter/track in DVD mode.
In teletext mode, they’re the color buttons.
In DVB mode, they’re operation indication
buttons.
31. TITLE/EPG button
In TV or SCART video mode, press to
display or close the teletext.
In DVD mode, press to display the title
menu of the disc.
In DVB mode, press to enter the channel
schedule.
32. MENU/TEXT button
In teletext mode, press to disable teletext
display for page updates and press again
to resume.
In DVD mode, press to access the disc
menu.
In DVB mode, press to display the teletext.
33. REPEAT / INFO button
In teletext mode, press to hold the current
page and press again to resume.
Press to repeat a chapter, track, title or all
program content in DVD mode.
Press to display detailed information in
DVB-T mode.
34. ANGLE/TVR button
In teletext mode, press the button first time
to double the size of teletext letters in the
upper half of the screen, second to double
the size of teletext letters in the lower half of
the screen and third to resume normal
status.

- 10 -
Remote Control
Remote Control Drawing
34. ANGLE/TVR button
Press to select various camera angles (if
the DVD supports multiple camera angles)
in DVD mode.
Press to select TV or Radio in DVB mode.
35. SETUP button
In teletext mode, press to display the index
page.
Press to enter or exit the DVD setup menu
in DVD mode.
In DVB mode, press to enter the DVB setup
menu.
36. SLOW/EXIT button
In teletext mode, press once to display the
concealed information, such as solution of
riddles or puzzles; press again to remove
the riddles answers from the display.
Press to activate slow playback function in
DVD mode.
Press to exit the setup menu in DVB mode.
37. CARD/AUDIO button
In teletext mode, press to select four
groups of 3-digit numbers that are
displayed in different colours at the bottom
of the screen. Press the colour buttons on
the remote control to select, then use the
number buttons to input the corresponding
number to display the page.
Repeat the above procedures for each
page to be stored, using a different colour
button each time.
Press to select audio track in DVB mode.
Press to shift among disc playback, USB
playback and SD/MS/MMC playback in
DVD mode.
38. GOTO/LANG button
In TV mode, press to display subpage of
teletext.
Press to select audio language in DVB
mode.
Press to select the desired disc starting
time, title or chapter in DVD mode.
