Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs). In this document, CRUs will be referred to as parts.
This guide does not include procedures for all parts. It is expected that cables,
switches, and certain mechanical parts can be replaced by trained service personnel
without the need for step-by-step procedures.
This guide contains instructions for replacing the following parts:
Note: Use only the parts provided by Lenovo
™
.
vMemory module
vPCI adapter card
vKeyboard
vMouse
Safety information
Do not open your computer or attempt any repair before reading the “Important
safety information” in the Safety and Warranty Guide that was included with your
computer. To obtain acopy of the Safety and Warranty Guide,go to the World Wide
Web at http://www.lenovo.com/support.
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
vCRU removal and installation instructions
vCRU removal and installation videos
vPublications
vTroubleshooting information
vParts information
vDownloads and drivers
vLinks to other useful sources of information
vSupport phone list
To access this information, point your browser to http://www.lenovo.com/support
Tools required
To replace some parts in your computer, you might need aflat-blade or Phillips
screwdriver. Additional tools might be needed for certain parts.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components and parts.
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. v

When replacing apart, do not open the static-protective package containing the
new part until the defective part has been removed from the computer and you are
ready to install the new part.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
vPrevent others from touching the parts and other computer components.
vBefore you replace anew part, touch the static-protective package containing the
part to ametal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
vWhen possible, remove the new part from the static-protective packaging and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
vDo not place the part on the computer cover or other metal surface.
vi Hardware Replacement Guide

Chapter 1. Locations
This chapter provides illustrations to help locate the various connectors, controls
and components of the computer. To remove the computer cover, see “Removing
the cover” on page 7.
Locating the connectors on the front of your computer
The following illustration shows the location of connectors on the front of the
computer.
1 Headphone connector 3 USB connector
2 Microphone connector 4 USB connector
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. 1

Locating the connectors on the rear of your computer

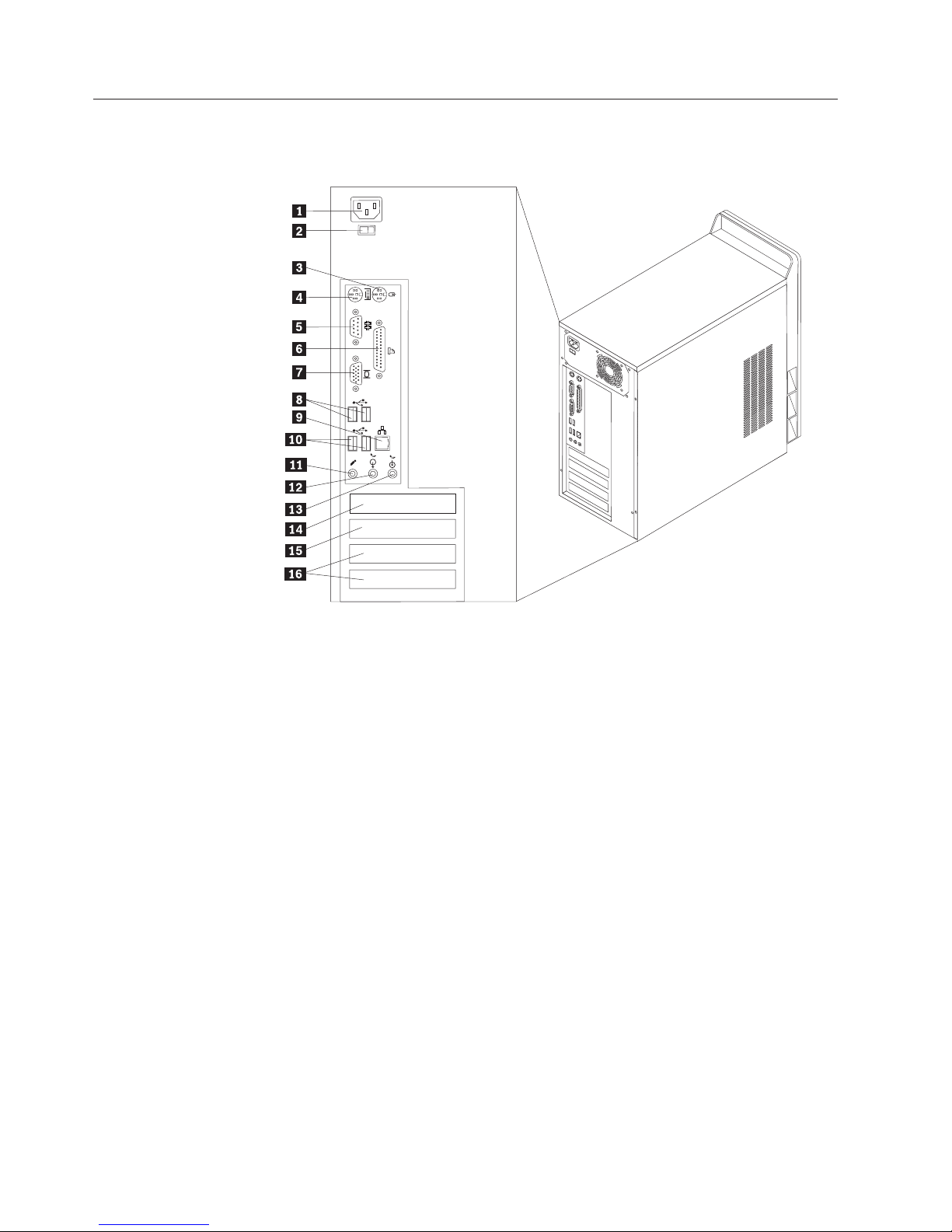

The following illustration shows the location of connectors on the rear of the
computer.
1 Power connector 9 Ethernet connector
2 Voltage-selection switch (some
models)
10 USB connectors
3 Mouse connector 11 Microphone connector
4 Keyboard connector 12 Audio line out connector
5 Serial connector 13 Audio line in connector
6 Parallel connector 14 PCI Express x1 adapter or PCI Express x16
adapter connector (some models)
7 VGA monitor connector 15 PCI Express x1 adapter or PCI Express x16
adapter connector (some models)
8 USB connectors 16 PCI adapter connectors
2Hardware Replacement Guide

Locating components

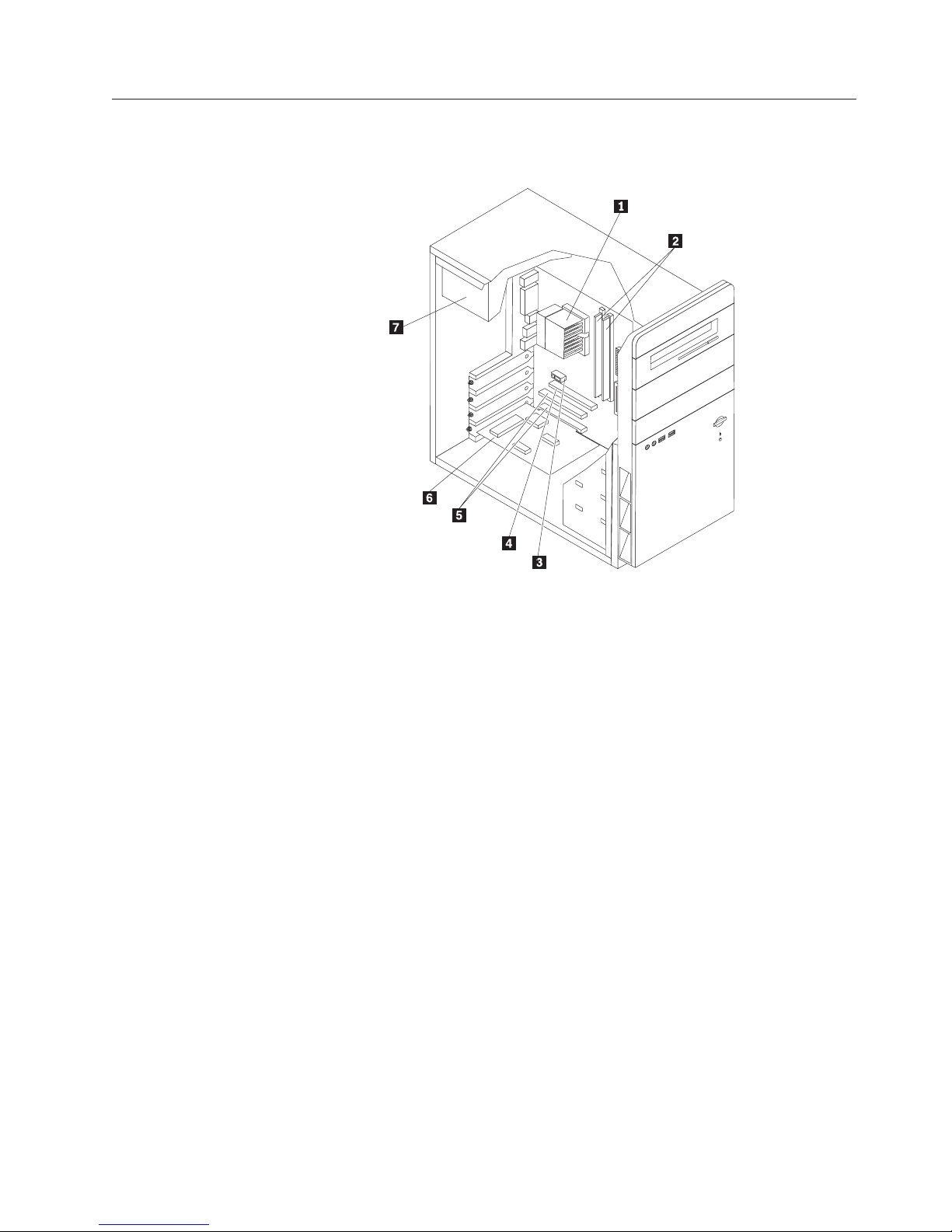

The following illustration will help you locate the various components in your
computer.
1 Microprocessor and heat sink 5 PCI adapter connectors
2 Memory modules 6 PCI adapter
3 PCI Express x1 adapter or PCI Express
x16 graphics adapter connector (some
models)
7 Power supply assembly
4 PCI Express x16 graphics adapter or
PCI Express x1 adapter connector
(some models)
Chapter 1. Locations 3

Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices.

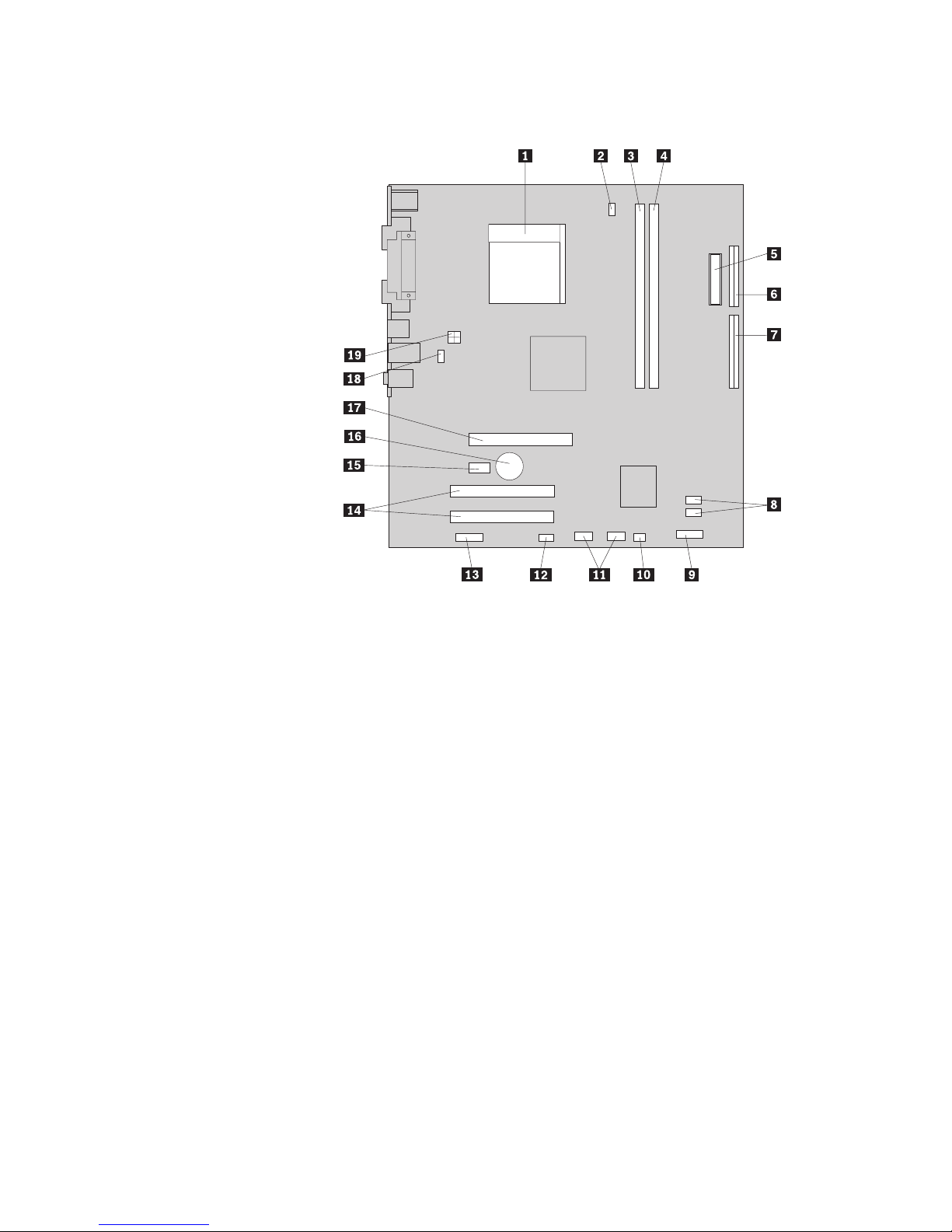

The following illustration shows the locations of parts on the system board for
some computer models.
1 Microprocessor fan connector 11 Front panel connector
2 Microprocessor and heat sink 12 SATA IDE connectors (2)
3 Memory connector 113 Front USB connectors (2)
4 Memory connector 214 Serial (COM) connector
5 Clear CMOS/Recovery jumper 15 PCI adapter connectors
6 Power connector 16 Front audio connector
7 Diskette drive connector 17 PCI Express x16 graphics adapter
connector
8 IDE connector 118 PCI Express x1 adapter connector
9 IDE connector 219 System fan connector
10 Battery 20 12v power connector
4Hardware Replacement Guide

The following illustration shows the locations of parts on the system board for
some computer models.
1 Microprocessor and heat sink 11 Front USB connectors (2)
2 Microprocessor fan connector 12 Serial (COM) connector
3 Memory connector 113 Front audio connector
4 Memory connector 214 PCI adapter connectors (2)
5 Power connector 15 PCI Express x1 adapter connector
6 Diskette drive connector 16 Battery
7 IDE connector 17 PCI Express x16 graphics adapter
connector
8 SATA IDE connectors (2) 18 System fan connector
9 Front panel connector 19 12v power connector
10 Clear CMOS/Recovery jumper
Chapter 1. Locations 5

6Hardware Replacement Guide

Chapter 2. Replacing hardware
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide,go to http://www.lenovo.com/support.
Note: Use only the parts provided by Lenovo.
Removing the cover
Important
Turn off the computer and wait 3to 5minutes to let the computer cool
before opening the computer cover.
To remove the computer cover, do the following:
1. Shut down your operating system, remove any media (diskettes, CDs, or tapes)
from the drives, and turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. 7

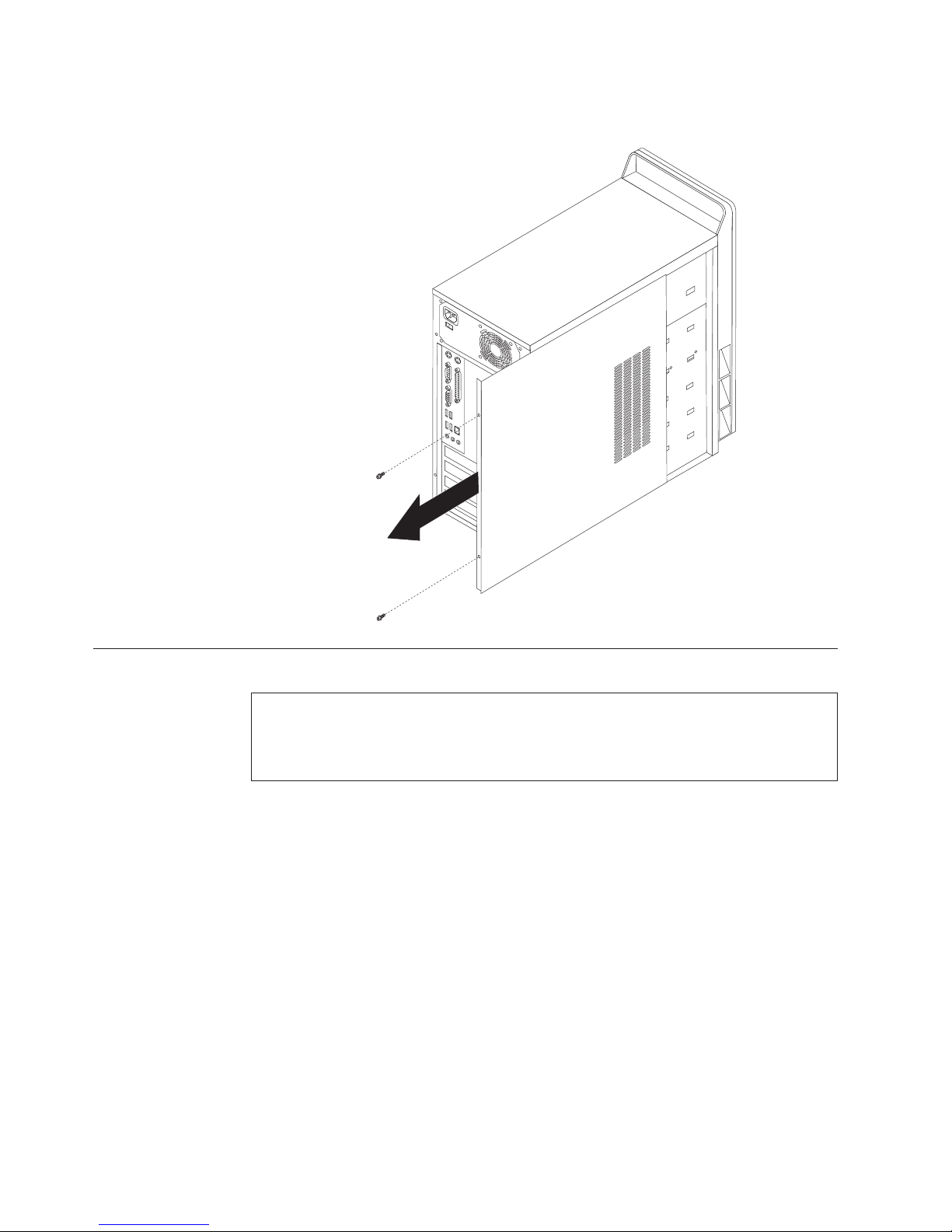

4. Remove the two screws at the rear of the left side cover and slide the cover to
the rear to remove.
Replacing amemory module
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide,go to http://www.lenovo.com/support.
This section provides instructions on how to replace amemory module.
Note: Your computer has support for two memory modules.
1. Remove the computer cover. See “Removing the cover” on page 7.
8Hardware Replacement Guide

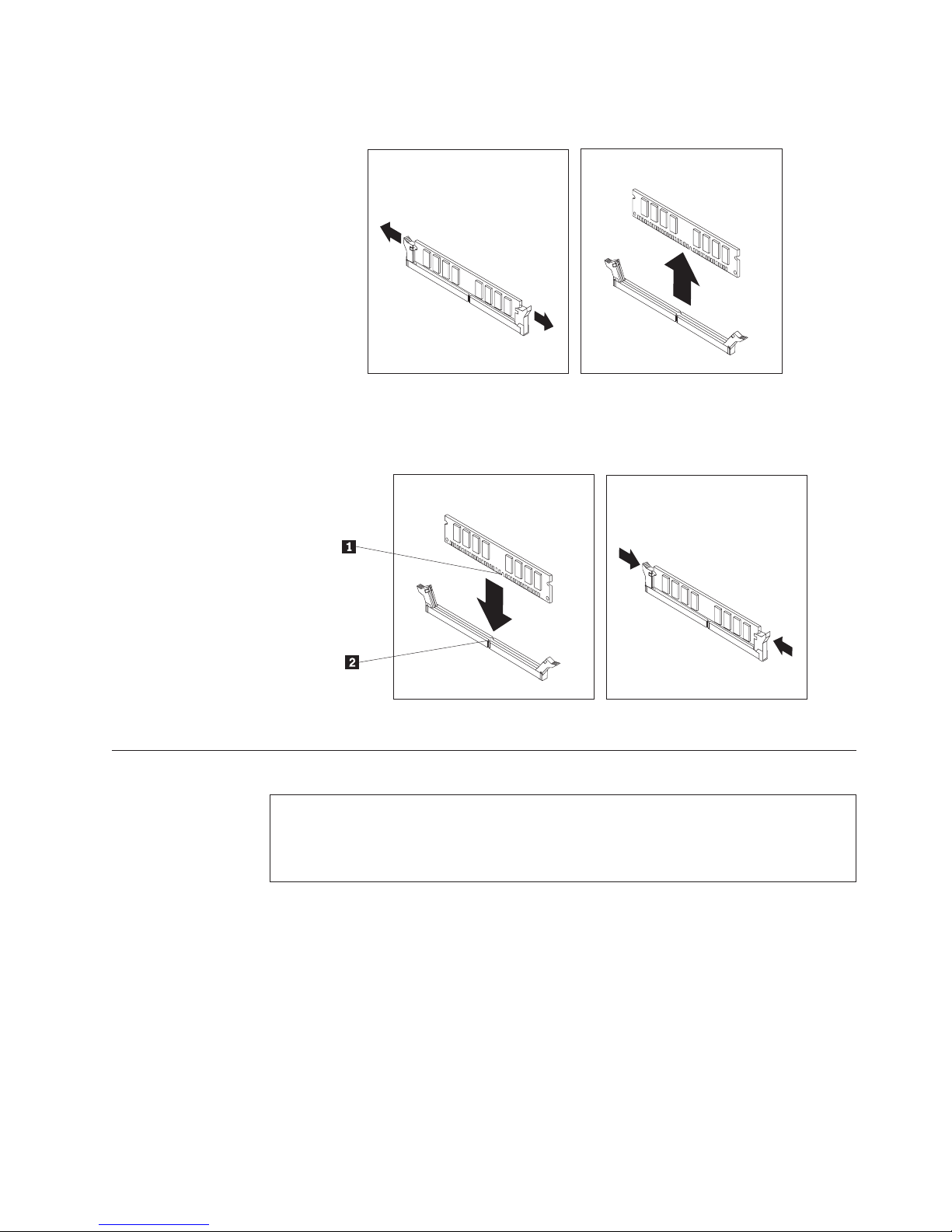

2. Remove the memory module being replaced by opening the retaining clips as
shown.
3. Position the replacement memory module over the memory connector. Make
sure that the notch 1on the memory module aligns correctly with the
connector key2 on the system board. Push the memory module straight
down into the memory connector until the retaining clips close.
4. Go to “Completing the parts replacement” on page 12.
Replacing aPCI adapter
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide,go to http://www.lenovo.com/support.
Chapter 2. Replacing hardware 9

This section provides instructions on how to replace aPCI adapter.
1. Remove the computer cover. See “Removing the cover” on page 7.
2. Remove the screw securing the adapter in the connector.
3. Remove the adapter being replaced.
4. Remove the new adapter from its static-protective package.
5. Install the new adapter into the appropriate slot on the system board.
6. Install the screw to secure the new adapter.
7. Go to “Completing the parts replacement” on page 12.
10 Hardware Replacement Guide

Replacing akeyboard
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide,go to http://www.lenovo.com/support.
This section provides instructions on how to replace akeyboard.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Locate the keyboard connector.

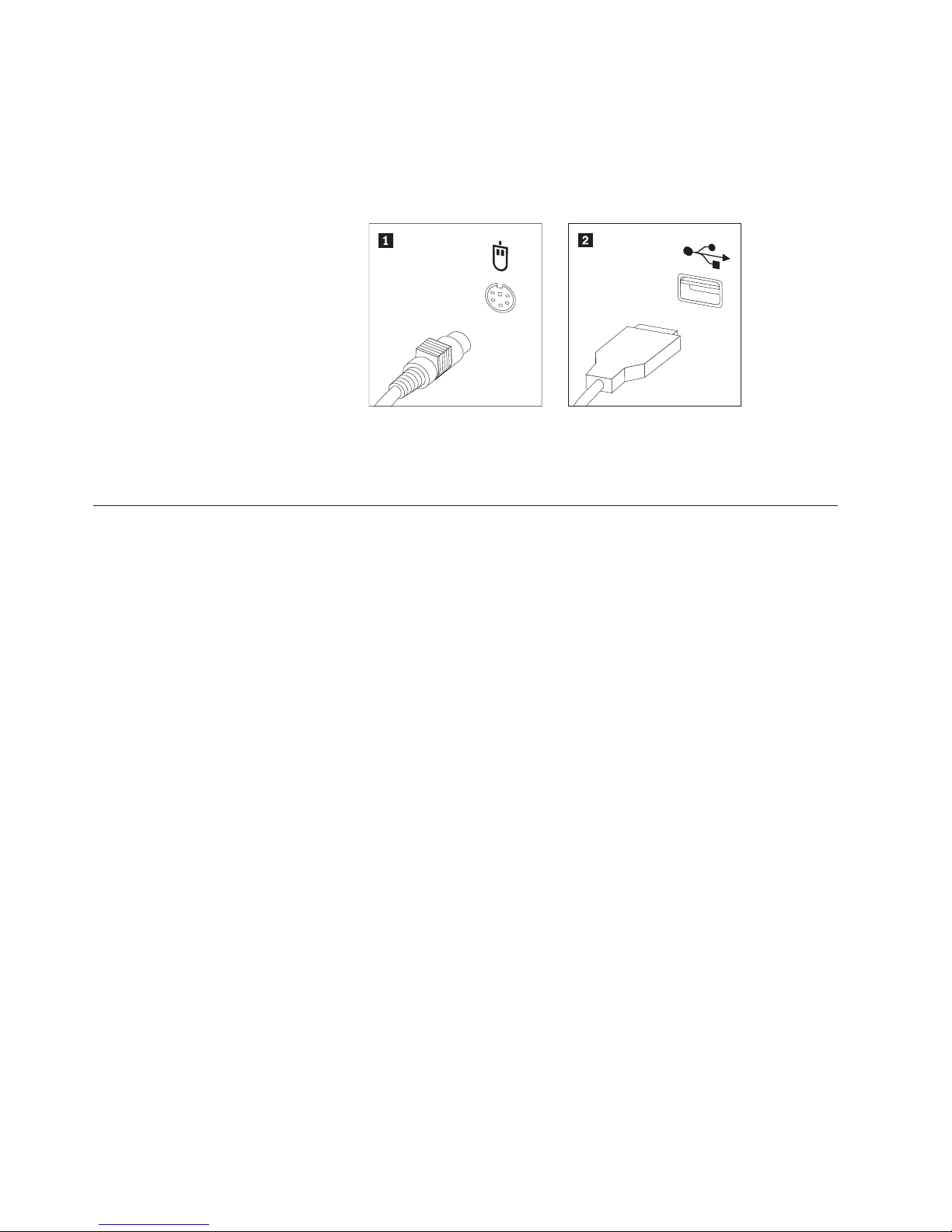

Note: Your keyboard might be connected to astandard keyboard connector
1or aUSB connector 2.Depending on where your keyboard is
connected, see “Locating the connectors on the rear of your computer”
on page 2or “Locating the connectors on the front of your computer” on
page 1.
4. Disconnect the failing keyboard cable from the computer.
5. Connect the new keyboard to the appropriate connector on the computer.
6. Go to “Completing the parts replacement” on page 12.
Replacing amouse
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide,go to http://www.lenovo.com/support.
This section provides instructions on how to replace amouse.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
Chapter 2. Replacing hardware 11

3. Locate the mouse connector.
Note: Your mouse might be connected to astandard mouse connector 1or a
USB connector 2 in the front or rear of your computer. See “Locating
the connectors on the rear of your computer” on page 2or “Locating the
connectors on the front of your computer” on page 1.
4. Disconnect the failing mouse cable from the computer.
5. Connect the new mouse to the appropriate connector on the computer.
6. Go to “Completing the parts replacement.”
Completing the parts replacement
After working with parts, you need to replace the computer cover and reconnect
any cables, including telephone lines and power cords. Also, depending on the
part that was replaced, you might need to confirm the updated information in the
Setup Utility program.
1. Ensure that all components have been reassembled correctly and that no tools
or loose screws are left inside your computer.
2. Reposition any cables that might impede the replacement of the cover.
12 Hardware Replacement Guide
