Lenovo H405 Parts list manual

Version 1.0 2010.09
Hardware Replacement Guide
H4 Series
Machine type: 10059/7723
10060/7724
31045292
31045292_H4_HRG_FM_EN_V1.0.indd 1 2010.9.19 11:10:38 AM

Hardware Replacement Guide
31045292_H4_HRG_EN_V1.0.indd 1 2010.9.19 11:11:04 AM

Contents
Overview ..................................................................................... 1
Chapter 1 Locations ................................................................. 4
Locating components ...................................................................4
Locating connectors on the front of the computer .........................5
Locating connectors on the rear of the computer ..........................6
Identifying parts on the system board ...........................................8
Chapter 2 Replacing hardware.............................................. 11
Removing the computer cover ....................................................11
Removing and replacing the front bezel .......................................13

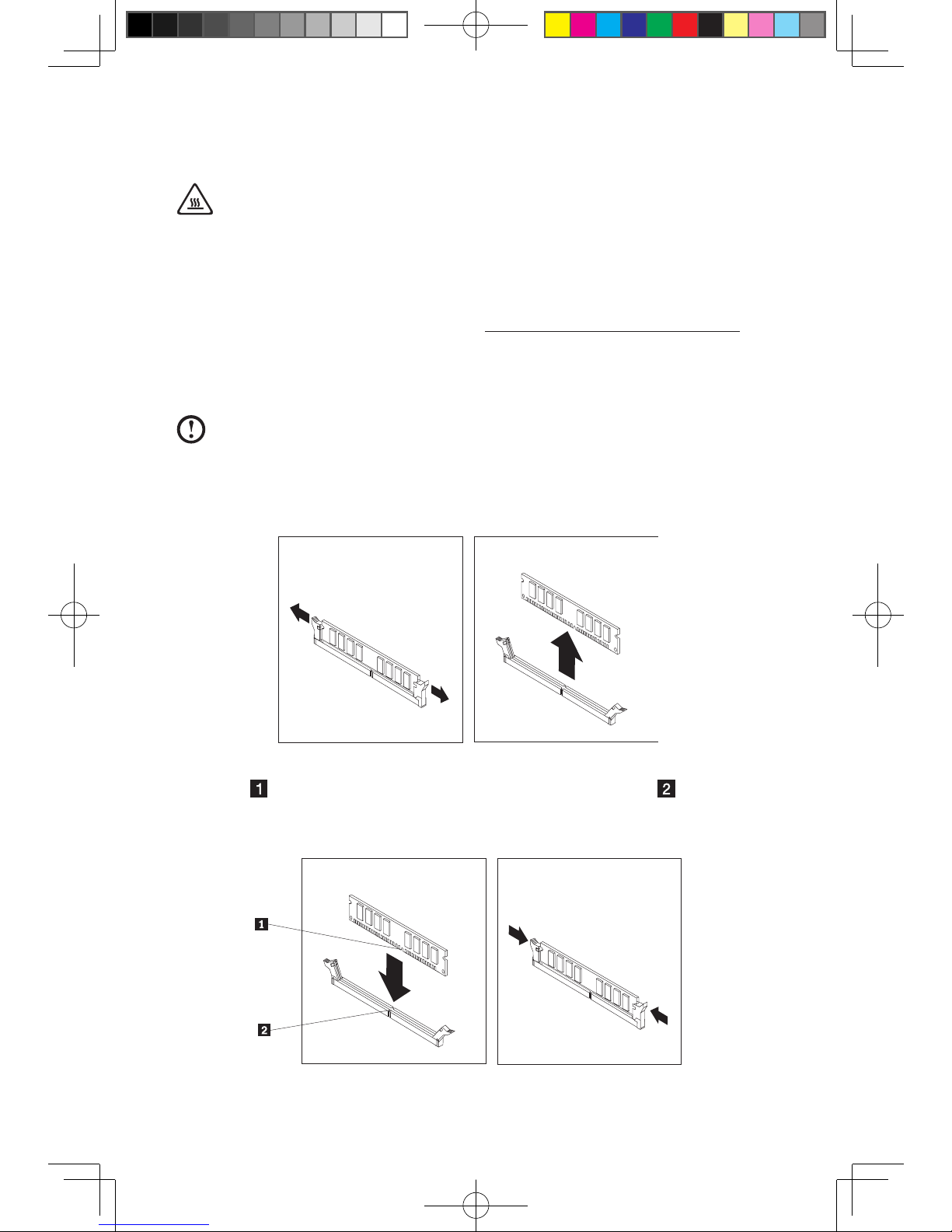

Replacing a memory module ......................................................14

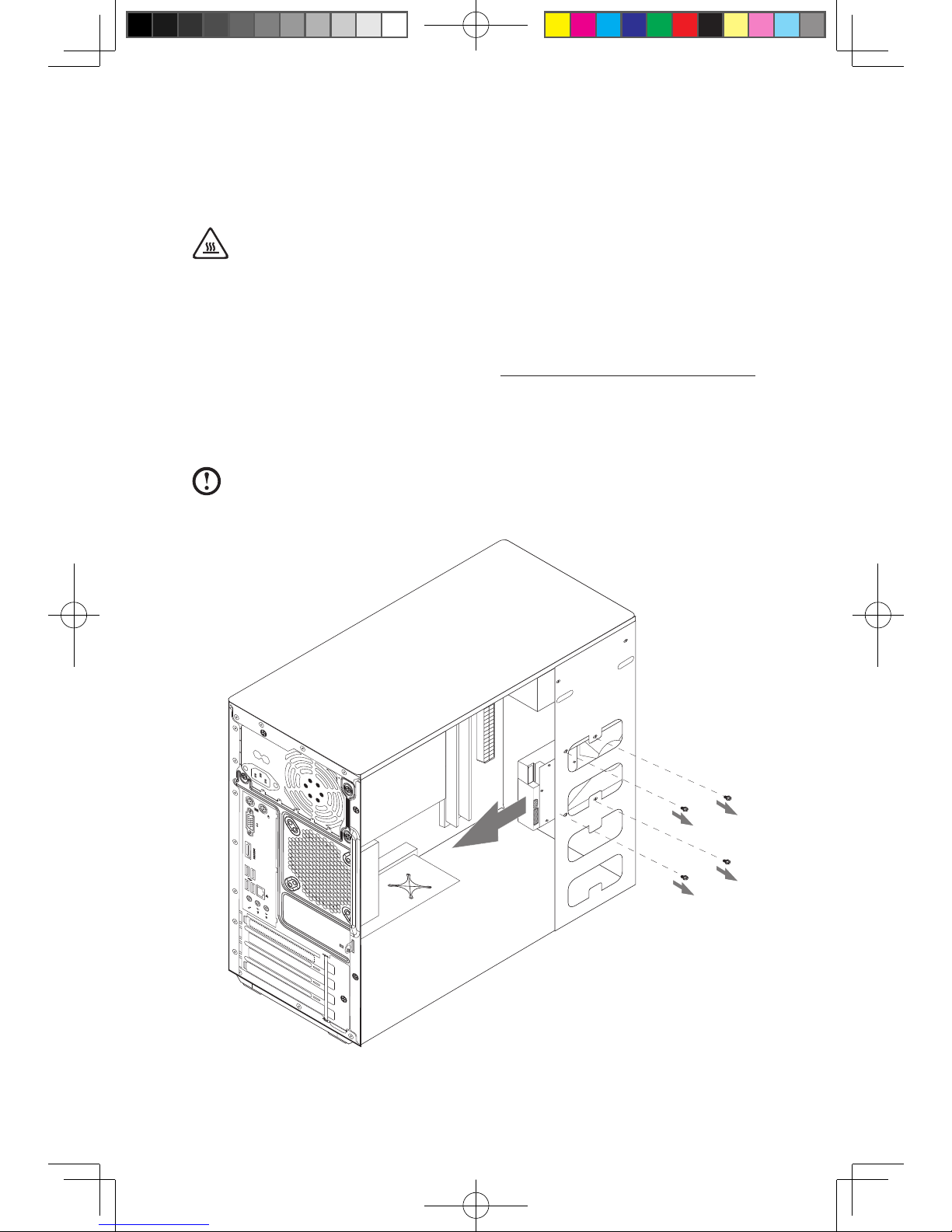

Replacing the hard disk drive ......................................................15
Replacing an optical drive ...........................................................16
Replacing the heatsink assembly ................................................18
Replacing a PCI or AGP adapter .................................................19
Replacing the keyboard ..............................................................21
Replacing the mouse ..................................................................22
Completing the installation ..........................................................23
Appendix. .................................................................................. 25
31045292_H4_HRG_EN_V1.0.indd 2 2010.9.19 11:11:04 AM

1
Hardware Replacement Guide
Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs) as well as trained service personnel who are replacing
Field Replaceable Units (FRUs). In this guide, CRUs and FRUs will be referred to as
parts.
Note: Trained service personnel should refer to the Hardware Maintenance
Manual (HMM) for parts ordering information.
This guide does not include procedures for all parts. It is expected that cables,
switches, and certain mechanical parts can be replaced by trained service
personnel without the need for step-by-step procedures.
Note: Use only parts provided by Lenovo™.
The description of the TV card in this manual applies only to machines which have
a TV card. It does not apply to machines which do not have a TV card.
This guide contains procedures for replacing the following parts:
• Memory modules
• Hard disk drive
• Optical drive
• Graphic Card
• TV Tuner
• WLAN Card
• Heatsink & Fan
• Keyboard
• Mouse
Safety information for replacing CRUs
Do not open your computer or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer. If you no longer have this copy of the Safety
and Warranty Guide, you can obtain one online from the Support Web site at
http://consumersupport.lenovo.com
31045292_H4_HRG_EN_V1.0.indd 1 2010.9.19 11:11:05 AM

2Hardware Replacement Guide
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
• CRU removal and installation information
• Publications
• Troubleshooting information
• Parts information
• Links to other useful sources of information
To access this information, go to http://consumersupport.lenovo.com.
Tools required
To disassemble the computer, you need the following tools:
• Wrist grounding strap and conductive mat for preventing electrostatic
discharge
• Flat screwdriver
• Phillips screwdriver
• Hex screwdriver
• Plastic flat screwdriver
• Plastic tweezers
Note: The screws for the different components vary in size. During the
disassembly procedure, group the screws with their corresponding
components to avoid a mismatch when replacing the components.
Handling static-sensitive devices
Static electricity is harmless to you, but it can seriously damage computer
components.
When you are replacing a part, do not open the antistatic package containing the
new part until the defective part has been removed from the computer and you are
ready to install the new part.
Take these precautions to avoid static electricity damage when handling parts and
other computer components:
• Limit your movement. Movement can cause staticelectricity to build up around
31045292_H4_HRG_EN_V1.0.indd 2 2010.9.19 11:11:05 AM

3
Hardware Replacement Guide
you.
• Always handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the
edges. Never touch any exposed circuitry.
• Prevent others from touching the parts and other computer components.
• Before you replace a new part, touch the antistatic package containing the
part to a metal expansion slot cover or other unpainted metal surface on
the computer for at least two seconds. This reduces static electricity in the
package and your body.
• When possible, remove the new part from its antistatic packaging and install
it directly into the computer without setting the part down. When this is not
possible, place the antistatic package that the part came in on a smooth, level
surface and place the part on it.
• Do not place the part on the computer cover or other metal surface.
31045292_H4_HRG_EN_V1.0.indd 3 2010.9.19 11:11:05 AM

4Hardware Replacement Guide
Locations
Chapter
This chapter provides illustrations to help locate the various connectors, controls
and components of the computer. To remove the computer cover, refer to
“Removing the computer cover”.

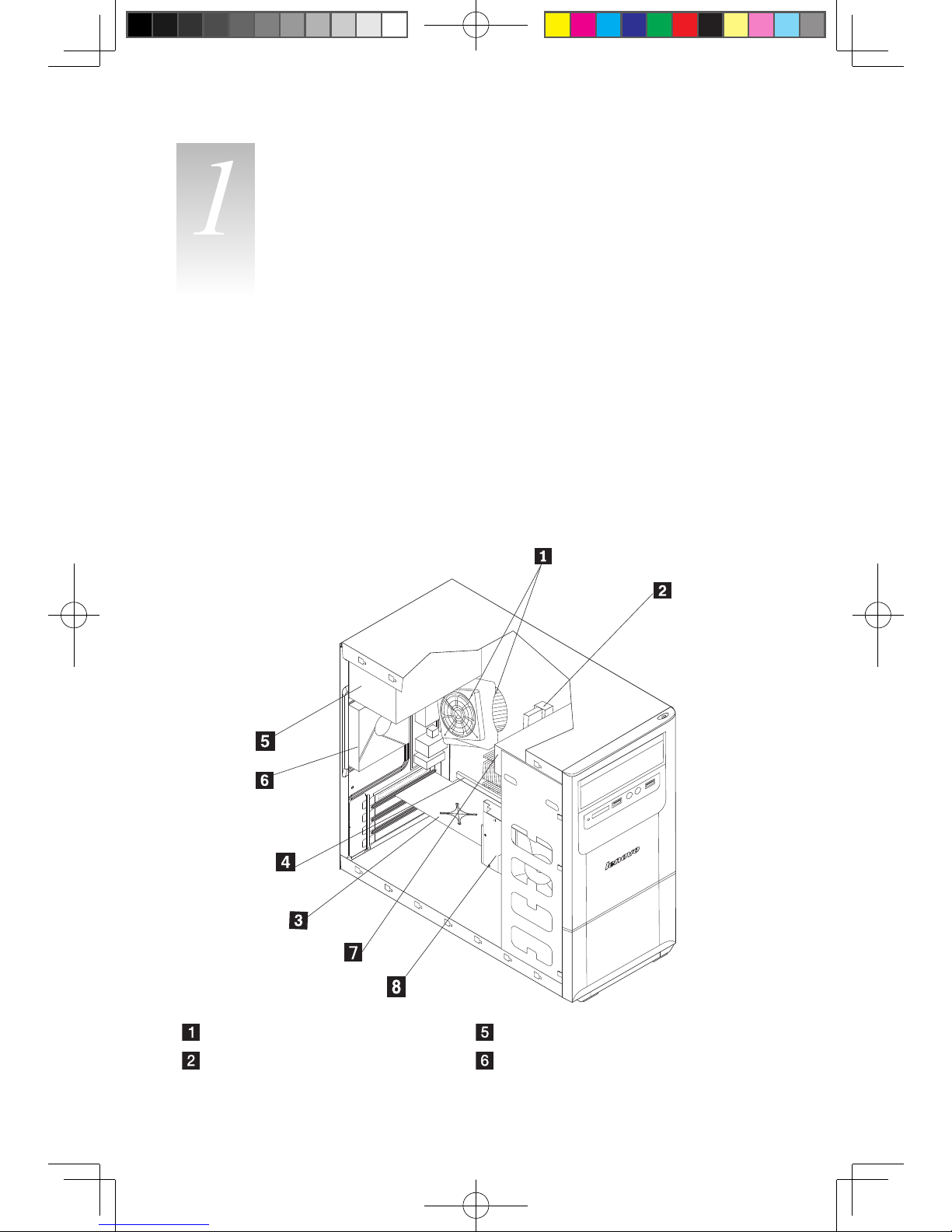

Locating components
The following illustration will help you to locate the various components in your
computer.
Microprocessor fan and heatsink Power supply
Memory modules System fan
31045292_H4_HRG_EN_V1.0.indd 4 2010.9.19 11:11:08 AM

5
Hardware Replacement Guide
PCI Express adapter card Optical drive
PCI Express adapter connectors Hard disk drive

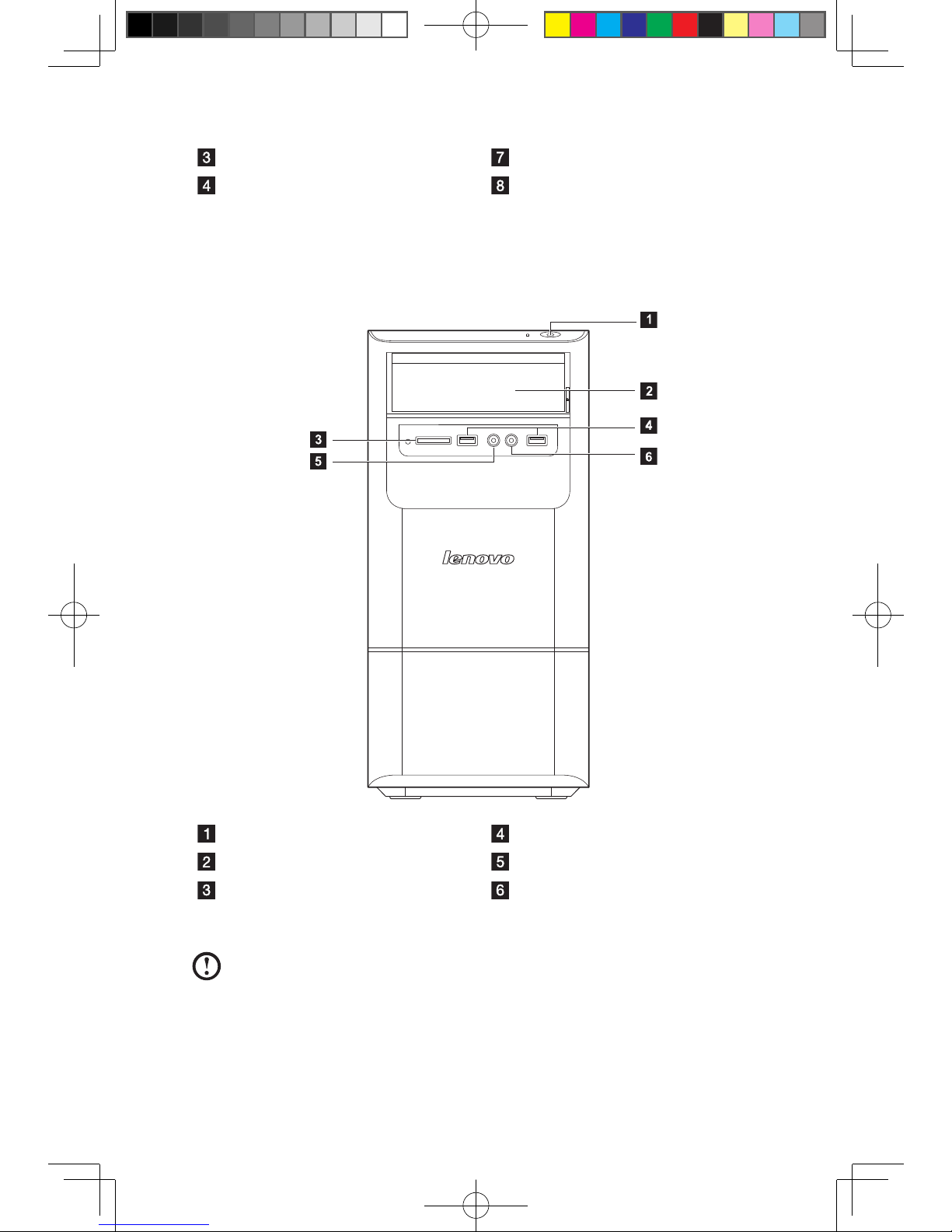

Locating connectors on the front of the computer
The following illustration shows the location of connectors on the front of the
computer.
Power button USB connectors (2)
Optical Drive (selected models only) Headphone connector
Memory card reader
(selected models only)
Microphone connector
Note: This computer only can be placed in a vertical position.
31045292_H4_HRG_EN_V1.0.indd 5 2010.9.19 11:11:09 AM

6Hardware Replacement Guide

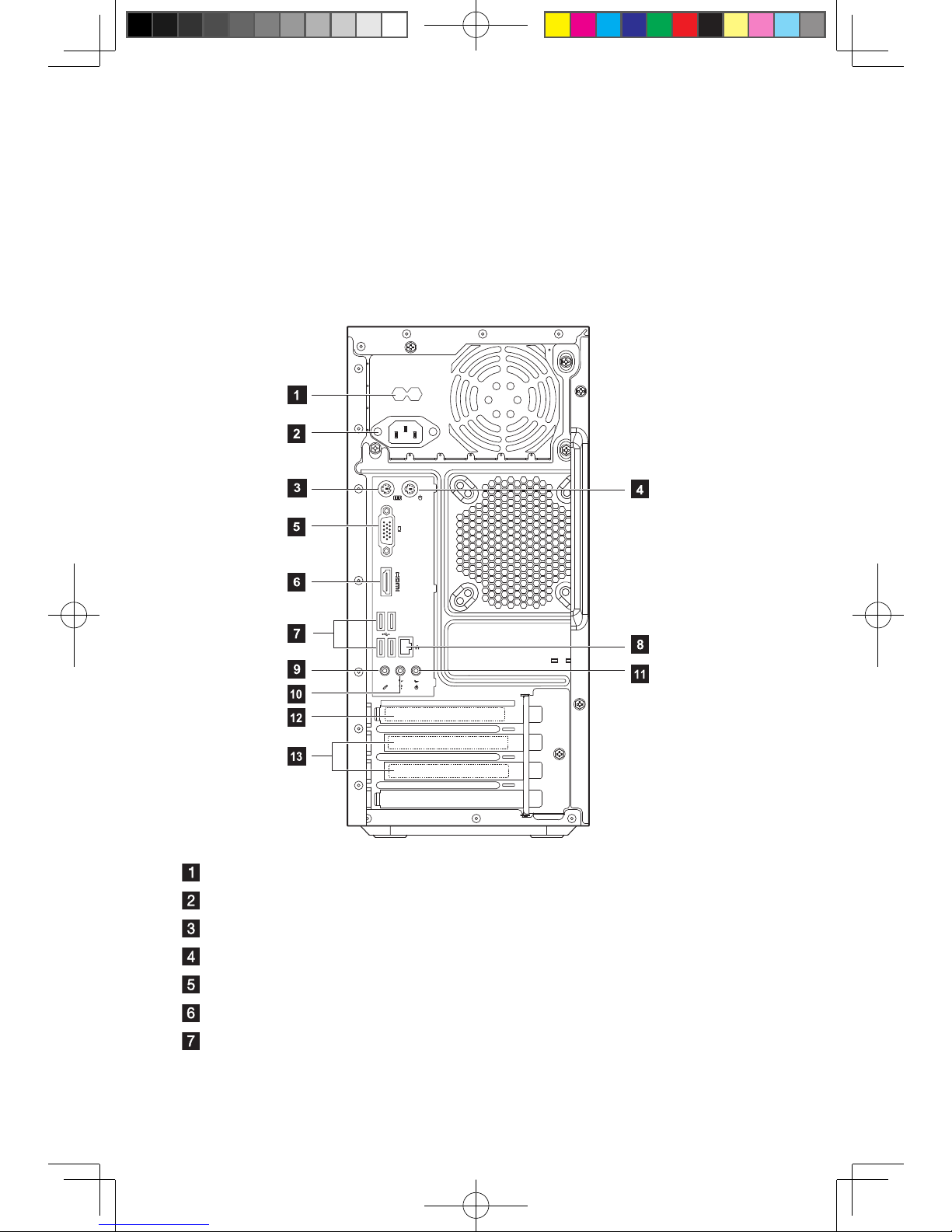

Locating connectors on the rear of the computer
The following illustration shows the location of connectors on the rear of the computer.
They show the placement of connectors for some but not all models. The location
of the connectors on your computer may not be identical but should be similar
to these. Please refer to the keys that follow the illustrations which identify the
connectors.
Voltage selection switch (selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
On-board VGA connector (selected models only)
HDMI connector (selected models only)
USB connectors (4)
31045292_H4_HRG_EN_V1.0.indd 6 2010.9.19 11:11:10 AM

7
Hardware Replacement Guide
Ethernet connector
Microphone connector
Audio line-out connector
Audio line-in connector
PCI Express x16 graphics adapter connector (Some models are equipped
with a graphics card)
PCI Express x1 adapter connector (Some models are equipped with a WIFI
card or TV tuner card)
Voltage selection switch (selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
HDMI connector (selected models only)
31045292_H4_HRG_EN_V1.0.indd 7 2010.9.19 11:11:12 AM

8Hardware Replacement Guide
On-board VGA connector (selected models only)
USB connectors (4)
Ethernet connector
Microphone connector
Audio line-out connector
Audio line-in connector
PCI Express x16 graphics adapter connector (Some models are equipped
with a graphic card)
PCI Express x1 adapter connector (Some models are equipped with a WIFI
card or TV tuner card)
Identifying parts on the system board
The system board (sometimes called the motherboard) is the main circuit board
in your computer. It provides basic computer functions and supports a variety of
devices that are factory-installed or that you can install later.
The following illustrations show the locations of parts on the system board (Only
one of below system boards was preinstalled on your computer.).
31045292_H4_HRG_EN_V1.0.indd 8 2010.9.19 11:11:12 AM

9
Hardware Replacement Guide
4
1
2
3
5
7
89
10
16
6
15
14
13
12
11
Microprocessor and heatsink
Microprocessor fan connector
Memory connector
Memory connector
Thermal sensor header connector
Power connector
SATA IDE connectors (4)
Front panel connector
Clear CMOS
Front USB connectors (2)
Front audio connector
PCI apater connector
PCI Express X 1 adapter connectors (2)
PCI Express X 16 graphics adapter connector
System fan connector
12V power connector
31045292_H4_HRG_EN_V1.0.indd 9 2010.9.19 11:11:13 AM

10 Hardware Replacement Guide
8
4
1
2
3
5
7
9
10
16
6
15
14
13
12
11
Microprocessor and heatsink
Microprocessor fan connector
Memory connector
Memory connector
Thermal sensor header connector
Power connector
SATA IDE connectors (4)
Front panel connector
Front USB connectors (2)
Clear CMOS
Front audio connector
PCI apater connector
PCI Express X 1 adapter connectors (2)
PCI Express X 16 graphics adapter connector
System fan connector
12V power connector
31045292_H4_HRG_EN_V1.0.indd 10 2010.9.19 11:11:14 AM

11
Hardware Replacement Guide
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
Note: Use only parts provided by Lenovo.
Removing the computer cover
Important
Turn off the computer and wait three to five minutes to let it cool down
before removing the cover.
To remove the computer cover:
1. Remove any media (disks, CDs, or memory cards) from the drives, shut down
the operating system, and turn off the computer and all attached devices.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. Refer to “Locating connectors on the rear of the computer”.

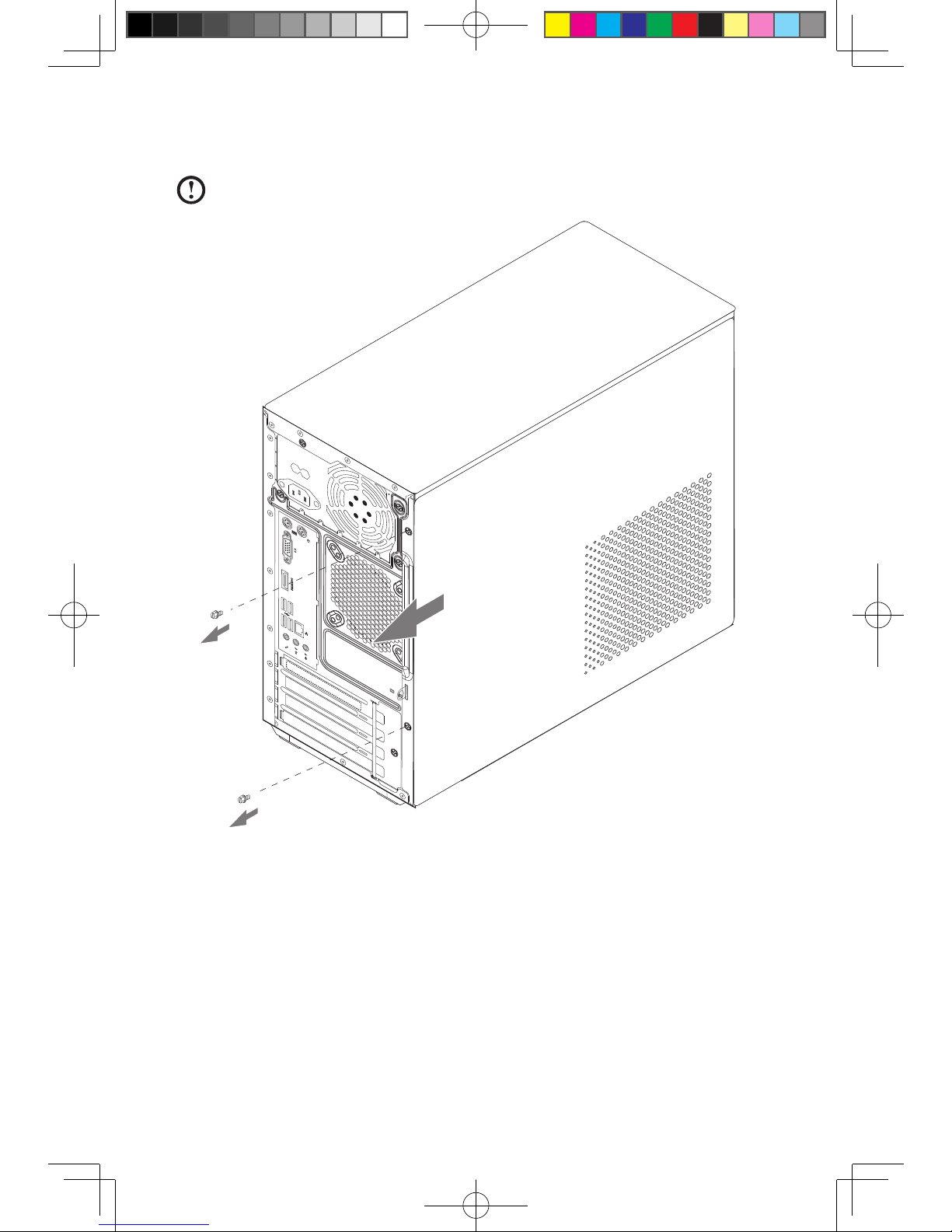

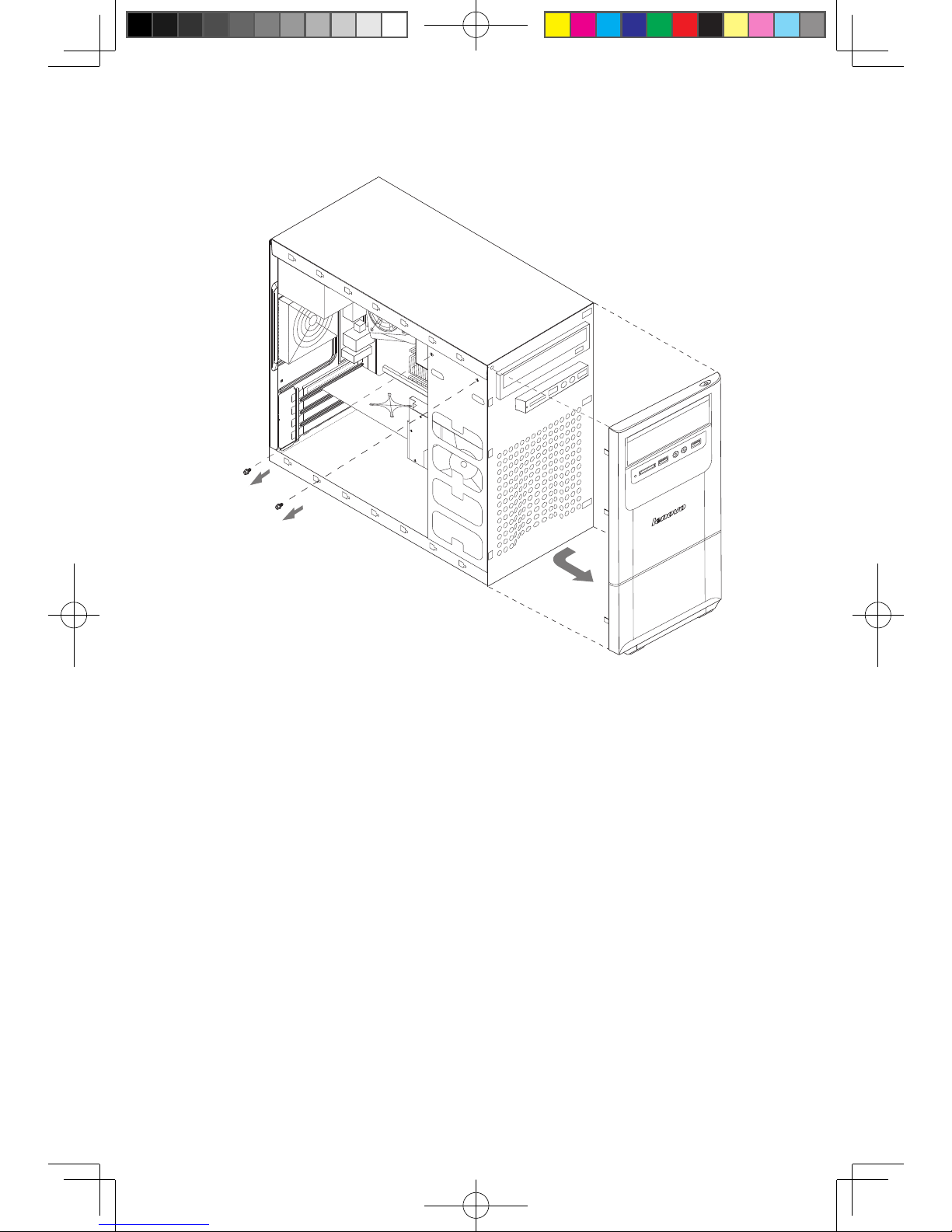

4. Remove the two screws that secure the computer cover at the rear of the
chassis.
Replacing hardware
Chapter
31045292_H4_HRG_EN_V1.0.indd 11 2010.9.19 11:11:15 AM

12 Hardware Replacement Guide
5. Slide the computer cover to the rear of the chassis to remove it.
Note: For this procedure, it helps to lay the computer on its side.
31045292_H4_HRG_EN_V1.0.indd 12 2010.9.19 11:11:18 AM

13
Hardware Replacement Guide

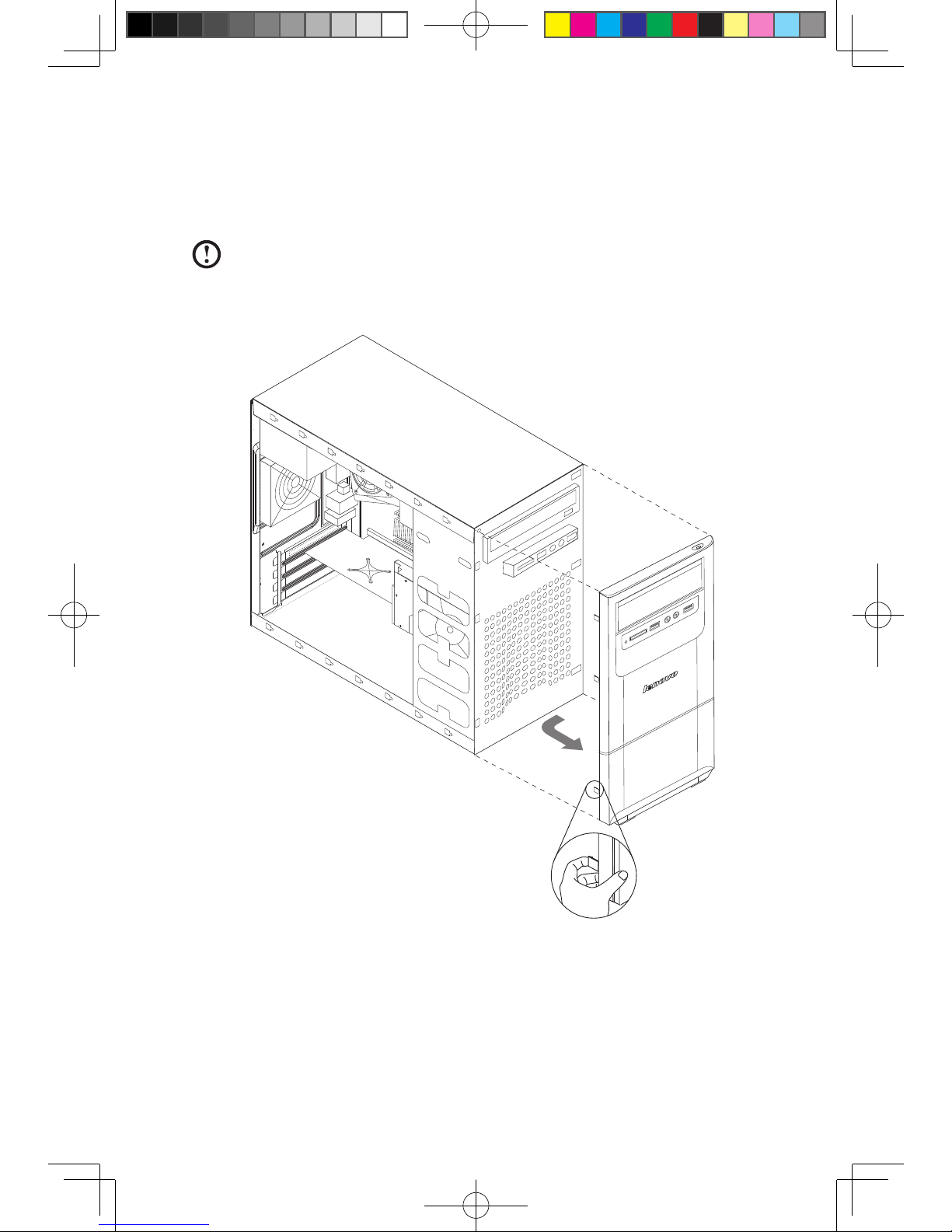

Removing and replacing the front bezel
To remove and replace the front bezel:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Remove the front bezel by releasing the three plastic tabs inside the chassis
and pushing the bezel outward as shown.
3. To reinstall the bezel, align the plastic tabs on the bottom of the bezel with the
corresponding holes in the chassis, then snap them into position at the bottom
and top.
4. Refer to “Completing the installation”.
31045292_H4_HRG_EN_V1.0.indd 13 2010.9.19 11:11:21 AM

14 Hardware Replacement Guide
Replacing a memory module
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace a memory module:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Locate the memory module connectors. Refer to “Locating components”.
3. Remove the memory module being replaced by opening the retaining clips as
shown.
4. Position the new memory module over the memory connector. Make sure the
notch on the memory aligns correctly with the connector key on the
system board. Push the memory module straight down into the connector until
the retaining clips close.
31045292_H4_HRG_EN_V1.0.indd 14 2010.9.19 11:11:22 AM

15
Hardware Replacement Guide
5. Refer to “Completing the installation”.
Replacing the hard disk drive
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace the hard disk drive:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Disconnect the data and power cables from the hard disk drive.
31045292_H4_HRG_EN_V1.0.indd 15 2010.9.19 11:11:24 AM

16 Hardware Replacement Guide
3. Remove the four screws that secure the hard disk drive to drive bay.
4. Remove the hard disk drive by pulling it straight out of the drive bay.
5. Slide the new hard disk drive into the drive bay.
6. Secure the new hard disk drive to the drive bay with the four screws.
7. Connect the power and data cables to the hard disk drive. Refer to “Identifying
parts on the system board”.
8. Refer to “Completing the installation”.
Replacing an optical drive
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace an optical drive
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Remove the front bezel. Refer to “Removing and replacing the front bezel”.
3. Disconnect the data and power cables from the rear of the optical drive.
4. Remove the two screws that secure the optical drive to drive bay.
31045292_H4_HRG_EN_V1.0.indd 16 2010.9.19 11:11:25 AM

17
Hardware Replacement Guide
5. Push the optical drive straight out of the front of the chassis.
6. Slide the new optical drive into the bay from the back until it snaps into
position.
7. Secure the optical drive to the bay with the two screws.
8. Connect the data and power cables to the drive.
9. Install the front bezel. Refer to “Removing and replacing the front bezel”.
10. Refer to “Completing the installation”.
31045292_H4_HRG_EN_V1.0.indd 17 2010.9.19 11:11:27 AM
