Lenovo N3 Series User manual

Version 1.0
Machine type: 10153/F0AH
2013.10
Lenovo
N3 Series
User Guide
31506210

Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or product
damage.
The interface and functions shown in this User Guide are provided for reference
only and may differ from actual product appearance. Product design and
specifications may be changed without notice.
Danger: Be aware of extremely hazardous or potentially lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2013. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction,
or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

i
Contents
Contents
Important Safety Information
Using the Computer Hardware ................................................. 1
Front view of the computer.........................................................................2
Left and right view of the computer ............................................................3
Rear view of the computer .........................................................................4
Computer stand .........................................................................................5
Connecting your computer.........................................................................6
Important information about using the computer ........................................7
Mounting the computer onto a wall ............................................................8
Troubleshooting and Confirming Setup ................................. 11
Troubleshooting Problems Hard Disks ......................................................12
Performing Daily Maintenance Tasks ........................................................12
Appendix. .................................................................................. 14
Declaration...............................................................................................14
Trademarks ..............................................................................................15

ii Contents

This chapter contains the following
topics:
ØIntroduction to the computer hardware
ØInformation on computer connections
Note: The descriptions in this chapter might be
different from what you see on your computer,
depending on the computer model and
configuration.
User Guide 1
Using the Computer Hardware

2User Guide
Front view of the computer
41 2 3
Built-in microphone Camera LED
Camera Ambient light sensor *
* Ambient light sensor: The ambient light sensor detects the amount of light in
your surroundings. The screen brightness automatically adjusts depending on
the ambient light conditions detected by the built-in ambient light sensor.
Note: Battery status is displayed in several places in the status bar. You
will be alerted when the battery starts to run low. Make sure you connect
the power supply when you receive an alert.

3
User Guide
Left and right view of the computer
1
2
4
5
3
USB 2.0 connector Headphone connector
Memory card reader Ethernet connector
Power connector

4User Guide
Rear view of the computer
Attention: Be careful not to block any air vents on the computer. Blocked
air vents can cause overheating.
12 3 4
4
Power button Volume up
Volume down Air vents

5
User Guide
Computer stand
Use the stand to position the display to your preference. It can be rotated 15°
forward and 90° backward.

6User Guide
Connecting your computer
Note: Your computer may not have all of the connectors described in this
section.
Basic connector instructions
Connector Description
Ethernet connector Use this connector to attach the computer to an Ethernet
type local area network.
Microphone Use this connector to attach a microphone to your
computer when you want to record sound or if you use
speech-recognition software.
Headphone Use this connector to attach headphones to your computer
when you want to listen to music or other sounds without
disturbing anyone.
USB connector Use this connector to attach a device that requires a USB
connection.
Note: If your computer is equipped with a wireless keyboard or mouse,
follow the installation instructions for those devices.
Connecting the power cord

7
User Guide
Important information about using the
computer
Press the power button on the top of the computer for over 5 seconds to turn on
the computer.
Hold the computer tightly when you carry it.

8User Guide
Mounting the computer onto a wall
The computer can be mounted onto a wall. Before doing this, you will first need to
attach a UL listed VESA wall mount* (to be purchased separately) onto the back
of the computer.
To attach a VESA wall mount
Note: It may be helpful to place the computer face-down on a soft flat
surface for this procedure. Lenovo recommends that you use a blanket,
towel, or other soft cloth to protect the touch screen from scratches or
other damage.
1. Open the hinge cover and remove the stand as shown below.
* VESA wall mount spec: VESA100, 100mm x 100mm, M4 bolts.

9
User Guide

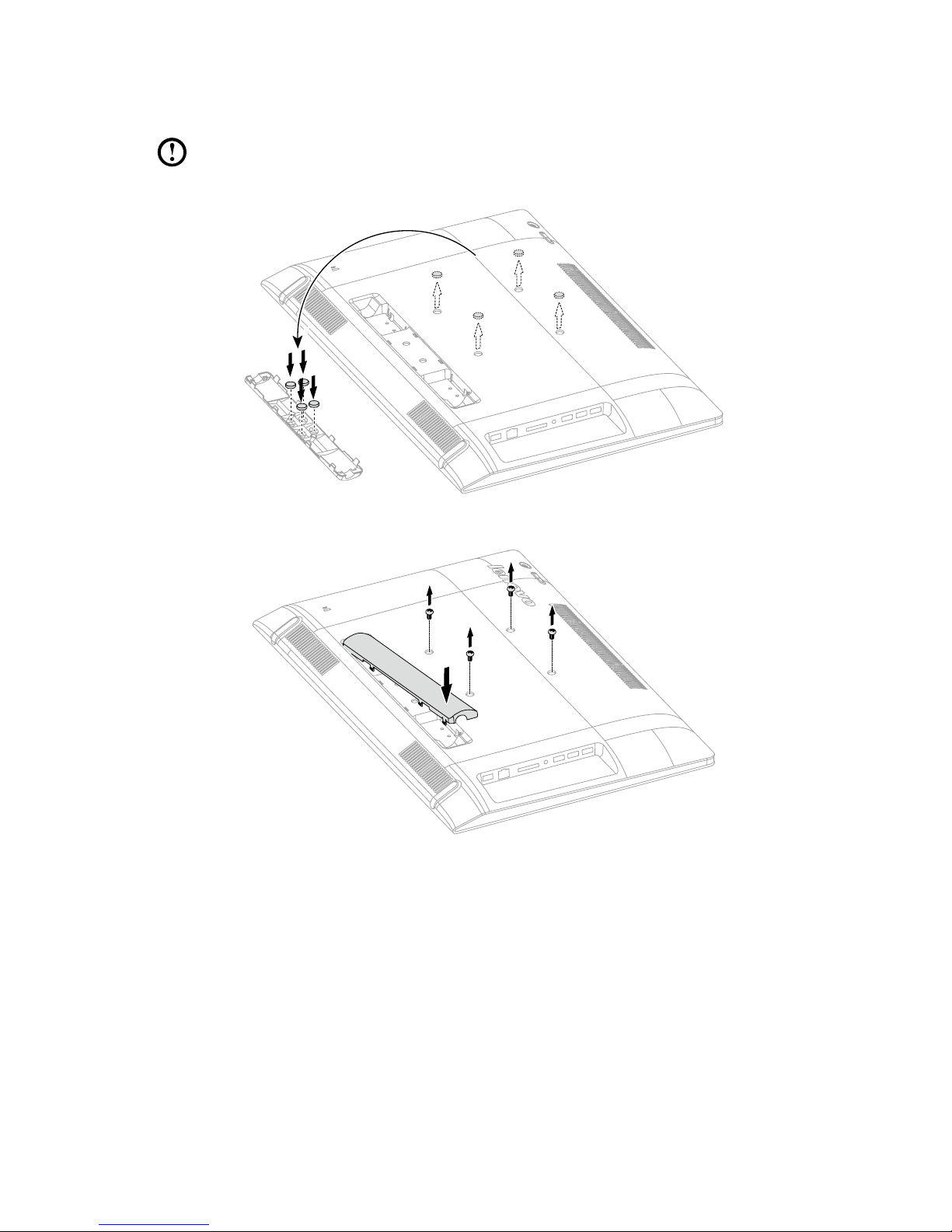

2. Remove the four rubber caps on the back cover of the computer as shown
below.
Note: We recommend that you put the rubber caps into the storage slots
in the hinge cover.
3. Remove the four screws which were under the rubber caps and reattach the
hinge cover.
4. Align the VESA wall mount with the mounting holes on the back of the
computer, and then secure it to the computer with the four screws.

10 User Guide

Troubleshooting and
Confirming Setup
This chapter contains the following
topic:
ØTroubleshooting and Problem Resolution
User Guide 11

12 User Guide
Troubleshooting Problems Hard Disks
Problem: The capacity of the hard disk, as indicated by the system, is less than
the nominal capacity.
Further Technical Explanation: The nominal capacity of the hard disk is
expressed in the decimal system as 1000 bytes. But the actual hard disk capacity
is expressed in the binary system as 1024 bytes (For example, the nominal
capacity 1G is 1000M, while the actual capacity 1G is 1024M).
The capacity of the hard disk shown in Windows can be calculated according to
the calculations in the following example:
The nominal capacity of the hard disk is 40G, while its actual capacity should
be: 40 x 1000 x 1000 x 1000/(1024 x 1024 x 1024) = 37G.
If the Service partition of 3G - 3 x 1000 x 1000 x 1000/(1024 x 1024 x 1024)
= 2.79G is subtracted, the capacity of the hard disk shown in the system can
be obtained.
The capacity of the hard disk as calculated using this method may be slightly
different from the actual capacity due to the rounding of totals.
Performing Daily Maintenance Tasks
Cleaning the computer components
Because many of the computer components consist of sophisticated integrated
circuit boards, it is very important to periodically clean the computer to prevent
dust buildup. The cleaning supplies you need to clean the components include:
a vacuum cleaner, a soft cotton cloth, pure water (preferably purified or distilled
water) and cotton swabs.
Attention: Before you clean your computer, disconnect the computer
from the electrical outlet. Clean your computer with a soft cloth
dampened with water. Do not use liquid or aerosol cleaners, which may
contain flammable substances.
Note: To avoid damaging the computer or display, do not spray cleaning
solution directly onto the display. Only use products specifically designed
for cleaning displays, and follow the instructions included with the product.

13
User Guide
The following are general methods for cleaning the components:
• Youcanuseasoftclothtoremovedustonthesurfaceofthecomputer,the
monitor, the printer, the speakers and the mouse.
• Youcanuseavacuumcleanertocleaninotherwiseinaccessiblecorners.
• Tocleanthekeyboardthoroughly,shutdownthecomputerandscrubitgently
with a wet cloth. Do not use the keyboard until it is dry.
Do not do any of the following:
• Allowwatertoenterthecomputer.
• Useaheavilydampenedcloth.
• Spraywaterdirectlyontothesurfaceofthemonitororinsidethecomputer.
LCD monitor should be cleaned daily. Use a dry cloth to brush dust from the
monitor and keyboard every day. Keep all surfaces clean and free of grease stains.

14 User Guide
Appendix.
Declaration
Thank you for using Lenovo products.
Carefully read all documents shipped with your computer before you install and
use the product for the first time. Lenovo is not responsible for any loss except
when caused by installation and operations performed by Lenovo professional
servicepersonnel.Youareresponsibleifyoufailtooperatetheproductaccording
to instructions and requirements in the manuals included with your computer, or
operate the product inappropriately.
This manual could include technical inaccuracies or typographical errors. Changes
are made periodically to the information herein; these changes will be incorporated
in new editions of the publication.To provide better service, Lenovo reserves the
right to improve and/or modify the products and software programs described in
the manuals included with your computer, and the content of the manual, at any
time without additional notice.
The manuals included with your computer are provided to help you use Lenovo’s
products appropriately. For the configuration of the product, refer to the related
contract (if any) or product packing list, or consult the distributor for the product
sales.
The content of the manuals included with your computer is protected by copyright
laws and rules. None of the manuals included with your computer may be
reproduced or transcribed by any means or translated into any language without
prior written permission of Lenovo.
The software interface and function and hardware configuration described in
the manuals included with your computer might not match exactly the actual
congurationofthecomputerthatyoupurchase.Youarewelcometocontactus
about the manuals included with your computer. For the latest information or any
questions or comments, contact or visit the Lenovo Web site:
Service Web site: http://support.lenovo.com

15
User Guide
Trademarks
Lenovo and the Lenovo logo, IdeaCentre and IdeaCentre logo are trademarks of
Lenovo in the United States, other countries, or both.
Other company, product, or service names referred to herein or in other Lenovo
publications may be trademarks or service marks of others.
All rights reserved.
Names or marks of certain companies mentioned in the manuals included with
your computer or this document do not necessarily indicate that related software
or hardware is included. The actual configuration of the product depends on the
packing list description.
