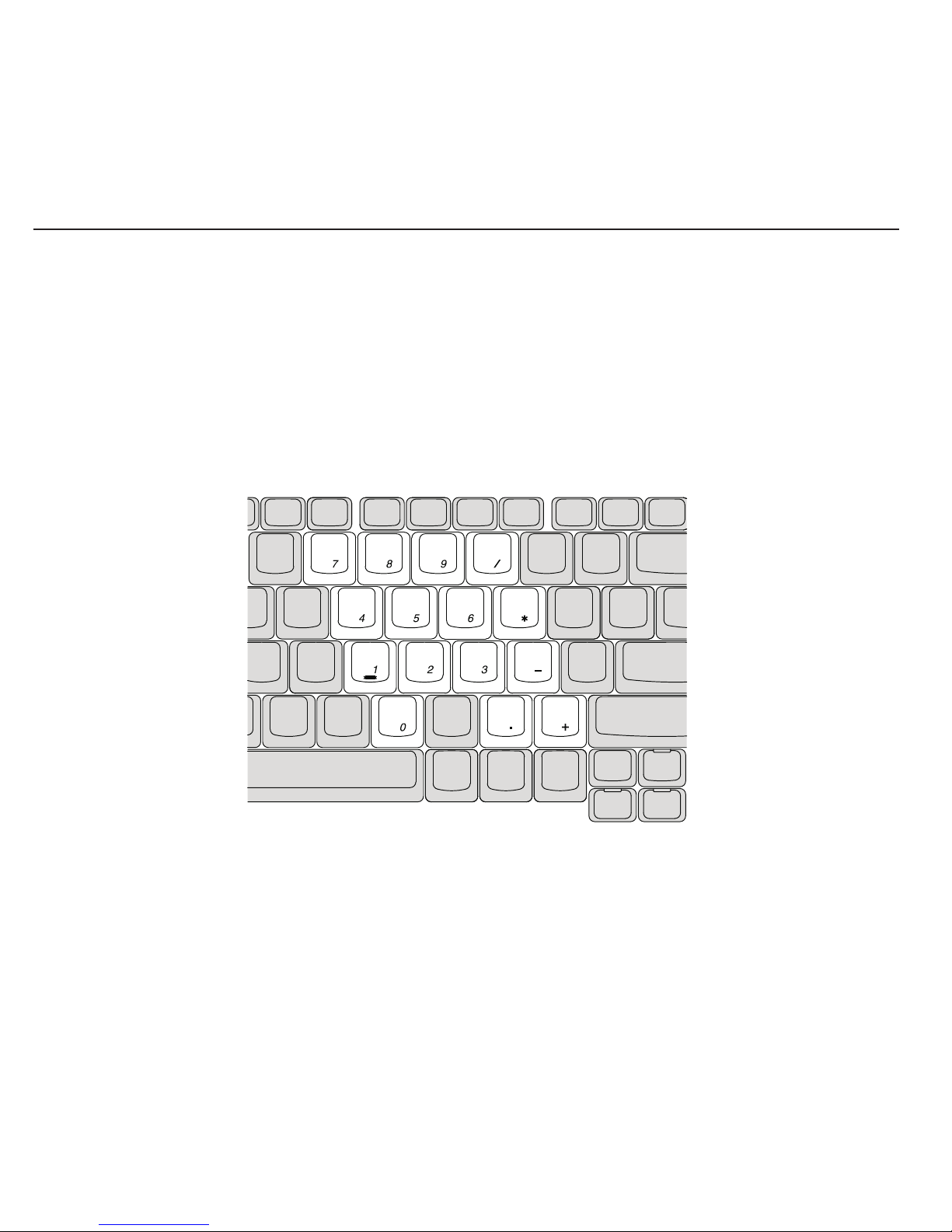

Numeric keypad ...................12
Function key combinations ................13
Using memory cards ...................15
Inserting amemory card .................15
Removing amemory card.................16
Using the integrated camera .................16
Using the Internet ....................16
Using LAN port ...................17
Using wireless LAN ..................18
Securing your computer ..................18
Attaching asecurity lock (optional) ..............18
Using passwords ...................19
Installing device drivers ..................25
Using battery and AC adapter ................26
©Copyright Lenovo 2008 iii

Your computer batteries .................27
Checking battery status .................27
Using the AC adapter ..................28
Charging the battery ..................30
Handling the battery ..................30
Using Lenovo Quick Start..................33
Chapter 3. Using external devices .............35
Connecting aUniversal Serial Bus (USB) device ...........35
Connecting aPC card device .................37
Connecting an external display ................38
Connecting aVGA monitor ................38
Connecting aheadphone and audio device ............39
Connecting an external microphone ...............41
Connecting aBluetooth device ................41
Enabling Bluetooth communications .............42
Chapter 4. Troubleshooting ...............43
Frequently asked questions .................43
Diagnosing problems ...................45
Diagnosing problems using PC-Doctor for DOS ..........46
Troubleshooting.....................47
Display problems ...................47
Password problems ..................48
Keyboard problems ..................49
Standby or hibernation problems ..............49
Computer screen problems ................51
Sound problems ...................54
Battery problems ...................55
Ahard disk drive problem ................56
iv Lenovo®IdeaPad™S9e and S10e User Guide

Astartup problem ...................56
Other problems ....................57
Chapter 5. Upgrading and replacing devices .........59
Replacing the battery ...................59
Upgrading the hard disk drive ................64
Replacing memory ....................71
Chapter 6. Getting help and service ............77
Getting help and service ..................77
Getting help on the Web ..................77
Calling the Customer Support Center ..............78
Getting help around the world ................80
Worldwide telephone list ..................81
Chapter 7. Safety, use, and care information .........83
Important safety information .................83
Conditions that require immediate action ............84
Safety guidelines ...................85
Caring your computer .................. 105
Be careful about where and how you work ........... 105
Be gentle with your computer ............... 108
Carry your computer properly ............... 108
For outdoor use ................... 108
Handle storage media and drives properly ........... 109
Data safety ..................... 109
Take care in setting passwords ............... 109
Other important tips .................. 109
Cleaning the cover of your computer .............110
Cleaning your computer keyboard .............. 111
Contents v

Cleaning your computer display ..............112
Accessibility and comfort .................112
Ergonomic information .................112
What if you are traveling? ................114
Questions about vision? .................115
Maintenance .....................115
General tips for maintenance ...............115
Appendix A. Warranty information ............119
Lenovo Limited Warranty .................119
Warranty information .................. 126
Types of warranty service ................ 128
Suplemento de Garantía para México .............. 130
Appendix B. Customer Replaceable Units (CRUs) ....... 133
Appendix C. Specifications ............... 137
Specifications ..................... 137
Appendix D. Notices ................. 139
Notices ....................... 139
Export classification notice ................. 141
Television output notice .................. 141
Wireless related information................. 141
Wireless interoperability ................. 141
Usage environment and your health ............. 143
Electronic emissions notices ................. 143
Federal Communications Commission (FCC) Statement ....... 144
Industry Canada Class Bemission compliance statement ....... 145
vi Lenovo®IdeaPad™S9e and S10e User Guide

Avis de conformité àla réglementation d’Industrie Canada ...... 145
European Union EMC Directive conformance statement ....... 145
EU-EMC Directive (2004/108/EC) EN 55022 class BStatement of Compliance 146
Japanese VCCI Class Bstatement .............. 148
Japan compliance statement for power line harmonics ........ 148
WEEE and recycling statements ............... 149
General recycling statement ................ 149
EU WEEE Statements................... 149
Japan recycling statements ................. 150
Collecting and recycling adisused Lenovo computer or monitor ..... 150
Disposing of aLenovo computer components .......... 150
Disposing adisused battery pack from Lenovo notebook computers.... 151
Notice for users in the U.S.A. ................ 151
Notice on deleting data from your hard disk drive or solid state drive .... 152
ENERGY STAR model information............... 153
Explanation of hard disk capacity ............... 155
Trademarks .................... 157
Index ....................... 159
Contents vii

viii Lenovo®IdeaPad™S9e and S10e User Guide

Chapter 1. Getting to know your computer
Top view

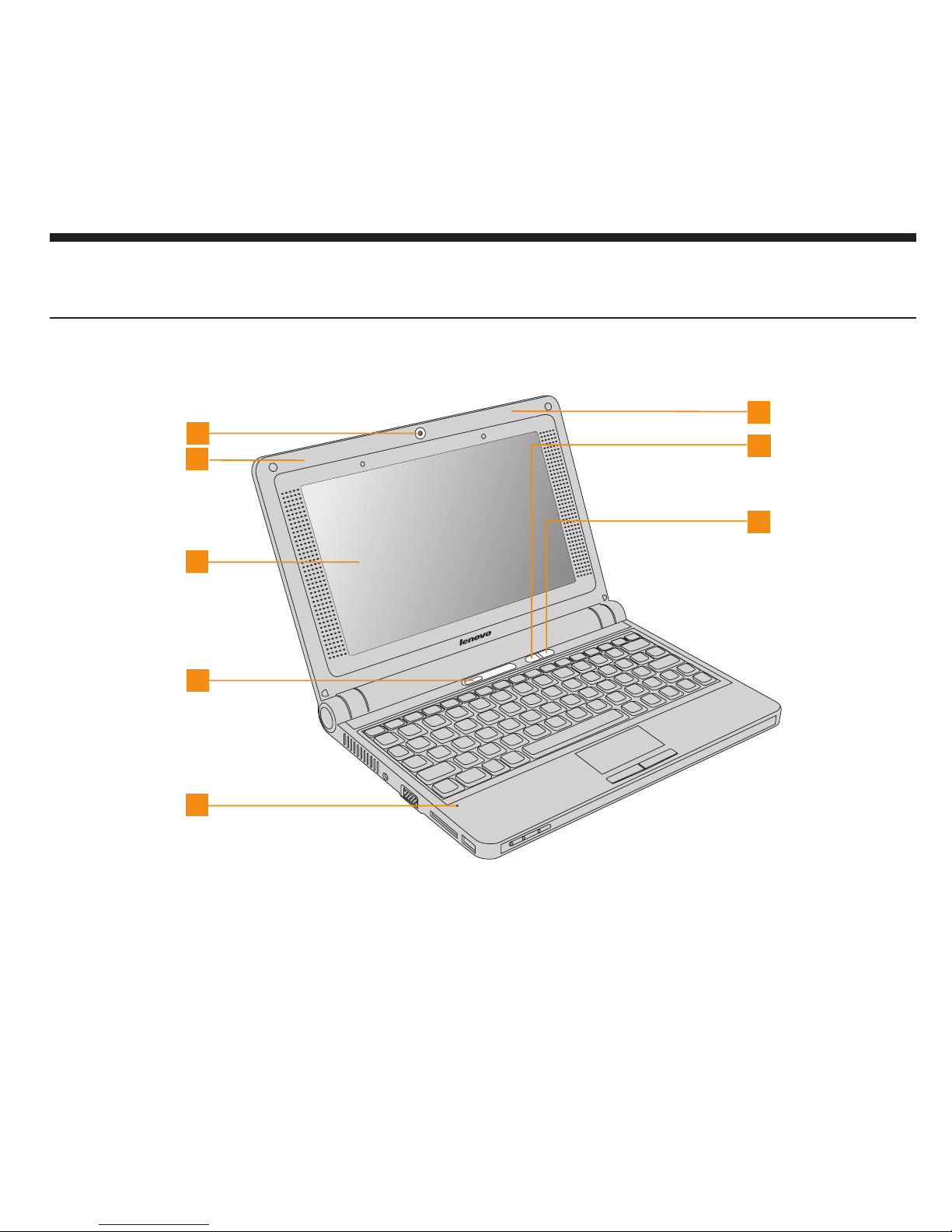

1
2
3
4
5
6
7
8
*The illustrations in this manual may differ from the actual product.
©Copyright Lenovo 2008 1

1Integrated camera
See “Using the integrated camera” on page 16.
2
Wireless LAN (main)
See “Using wireless LAN” on page 18.
3
Computer display
The color display with TFT technology provides clear and brilliant text and
graphics.
4
Power button
Use the power button to turn on the computer.
5
Microphone (built-in)
The built-in microphone can be used for video conferencing, voice
narration, or simple audio recordings.
6
Wireless LAN (auxiliary)
See “Using wireless LAN” on page 18.
7
Novo button
Use to open Application Launcher when the Windows®operating system is
running. The Application Launcher provides quick access to common and
frequently used applications.
For more information about using the Novo button with Lenovo Quick
Start, see “Using Lenovo Quick Start” on page 33.
2Lenovo®IdeaPad™S9e and S10e User Guide

8Wireless device switch
Use this switch to simultaneously turn on or turn off Wireless LAN and
Bluetooth devices.
Left-side view

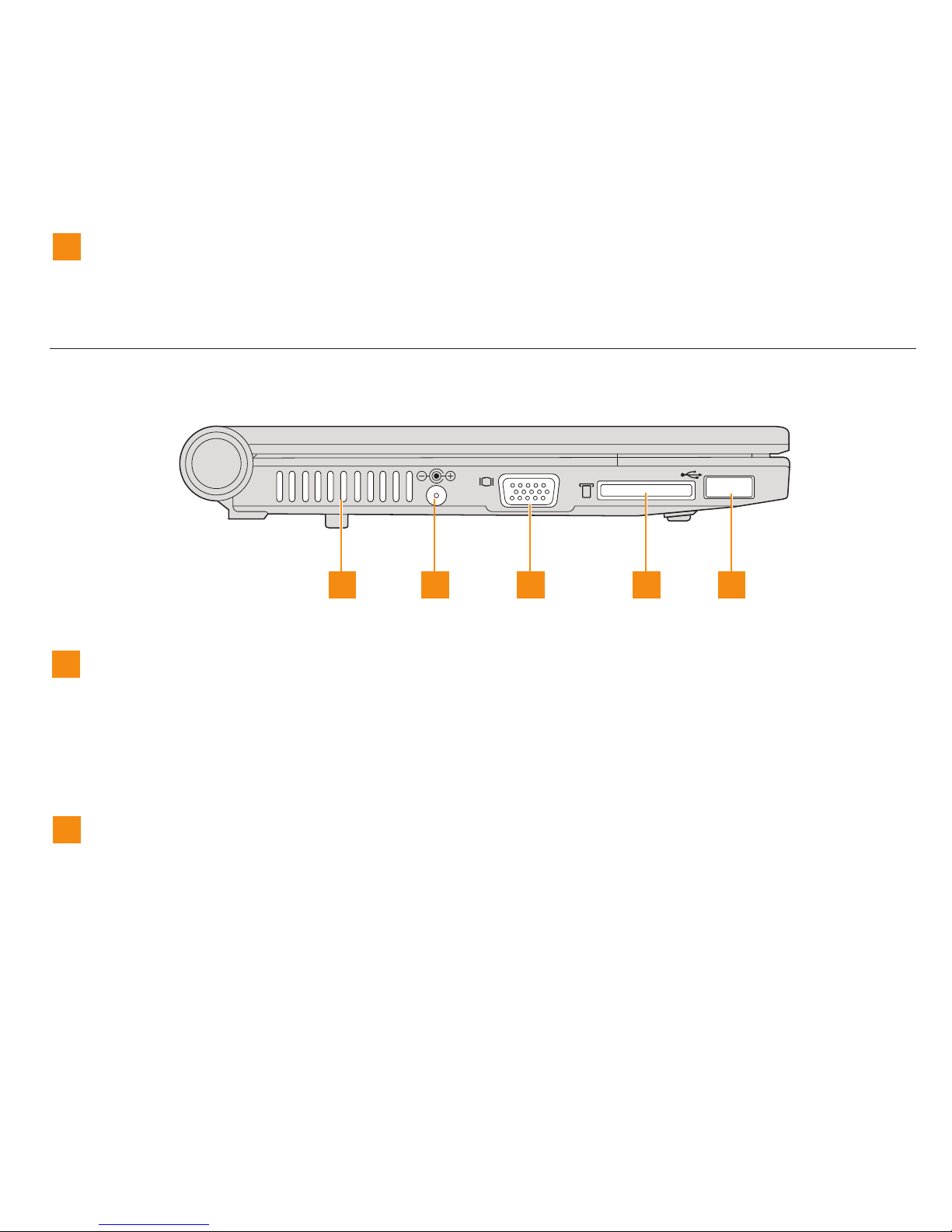

1 2 3 4 5
1
Fan louvers
The fan louvers allow warm air to exit the computer.
Important:
Make sure that paper, books, clothing, cables, or other objects do not block
any of the fan louvers or else overheating of the computer may occur.
2
AC power adapter jack
Connect the power adapter here to supply power to the computer and
charge the internal battery.
Chapter 1. Getting to know your computer 3

Note:
To prevent damage to the computer and battery pack, use the supplied AC
adapter only. The AC adapter is for this product. Do not use it for any
other product.
3
VGA port
See “Connecting aVGA monitor” on page 38.
4
Multi-media reader slot
See “Using memory cards” on page 15.
5
USB 2.0 port
See “Connecting aUniversal Serial Bus (USB) device” on page 35.
Right-side view

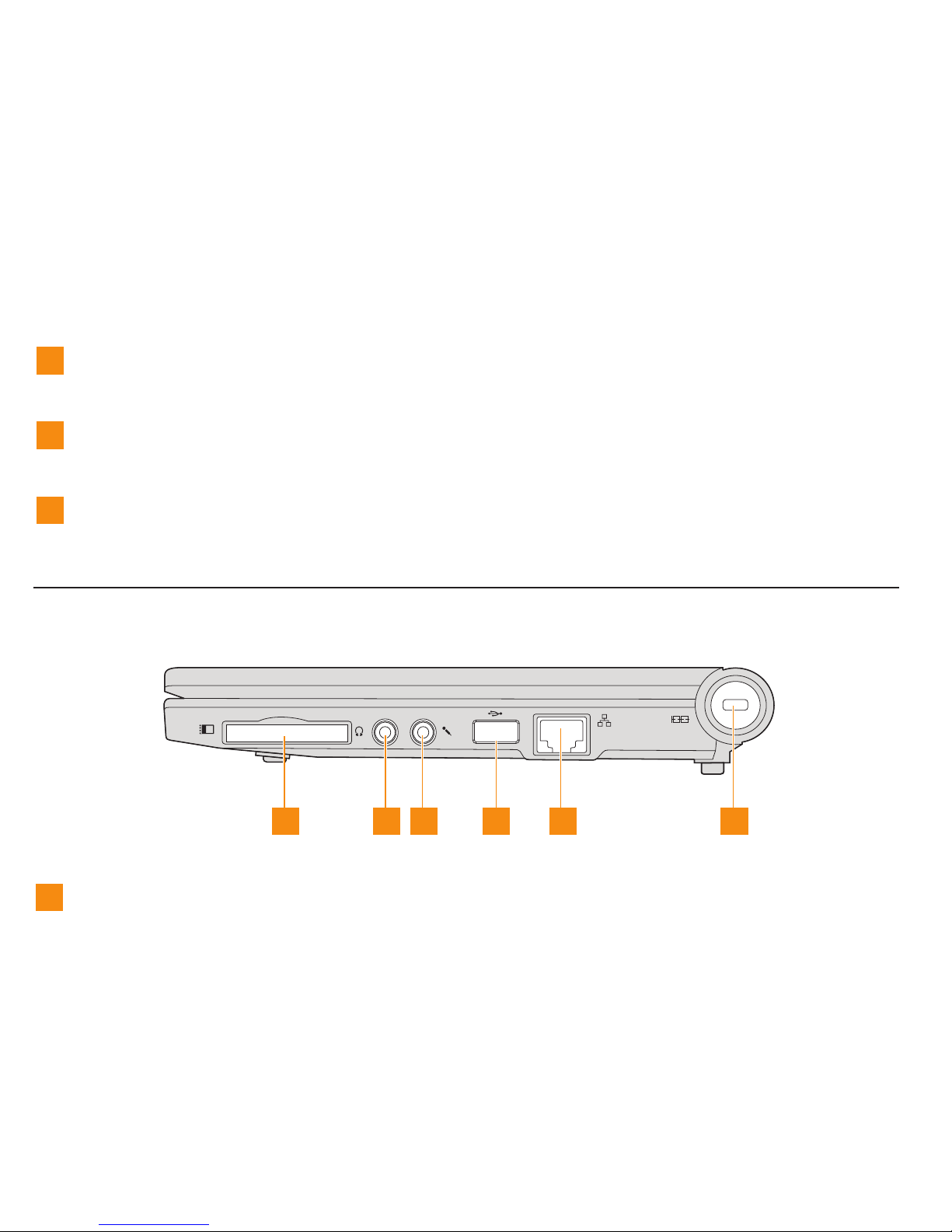

1 2 4 5 6
3
1
PCI Express card slot
See “Connecting aPC card device” on page 37.
4Lenovo®IdeaPad™S9e and S10e User Guide

2Headphone jack (external)
See “Connecting aheadphone and audio device” on page 39.
3
Microphone jack (external)
See “Connecting an external microphone” on page 41.
4
USB 2.0 port
See “Connecting aUniversal Serial Bus (USB) device” on page 35.
5
LAN port
See “Using LAN port” on page 17.
6
Security keyhole
Your computer comes with asecurity keyhole. You can purchase asecurity
cable and lock to fit this keyhole.
Note:
Before purchasing any security product, verify that it is compatible with
this type of security keyhole.
Chapter 1. Getting to know your computer 5

Front view
1 2
1
System status indicators
The system status indicators show the current status of your computer.
2
Speakers
Built-in speakers for rich powerful sound.
6Lenovo®IdeaPad™S9e and S10e User Guide

Bottom view

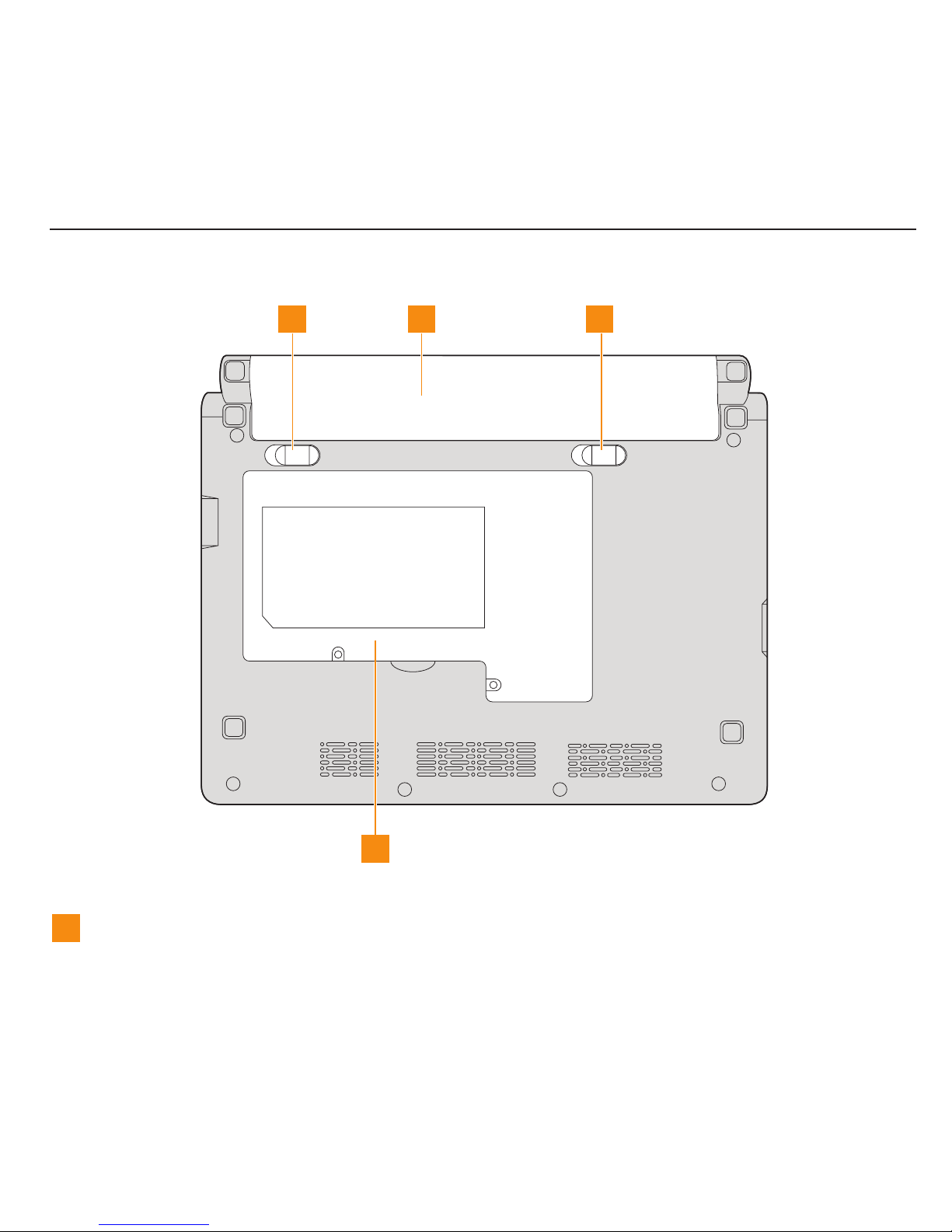

1 2 3
4
1
Battery latch -spring loaded
The spring-loaded battery latch keeps the battery pack secured in place.
Chapter 1. Getting to know your computer 7

When you insert abattery pack, this latch automatically secures the battery
in place. To remove the battery, hold this latch in the unlocked position.
2
Battery pack
See “Handling the battery” on page 30.
3
Battery latch -manual
The manual battery latch is used to keep the battery pack secured. Move
the manual battery latch to the unlocked position to insert or remove the
battery pack. Move the manual latch to the locked position after inserting
the battery pack.
4
Hard disk drive/memory (RAM) compartment
vHard disk drive
The hard disk drive is secured in acompartment.
Important:
Do not disassemble the hard disk drive by yourself. If you do need to, ask
aLenovo authorized service center or dealer to disassemble it.
vMemory (RAM) compartment
The memory compartment provides expansion capabilities for additional
memory. The BIOS automatically detects the amount of memory in the
system and configures CMOS accordingly during the Power-On Self-Test
(POST) process. There is no hardware or software (including BIOS) setup
required after the memory is installed.
Note:
Only purchase expansion modules from authorized retailers of this
computer to ensure maximum compatibility and reliability.
8Lenovo®IdeaPad™S9e and S10e User Guide

Chapter 2. Using your computer
Putting your computer to standby or shutting it down
When you finish working with your computer, you can put it to standby or shut it
down.
The computer with the solid state drive (SSD) does not support hibernation function.
Putting your computer to standby
If you will be away from your computer for only ashort time, put the computer to
standby.
When the computer is in standby, you can quickly wake it and bypass the startup
process.
To put the computer to standby, do one of the following.
vClick Start and select Standby from Turn Off Computer.
vPress Fn +F1.
WARNING
Wait until the power indicator light starts blinking (indicating that the computer is in
standby) before you move your computer. Moving your computer while the hard disk is
spinning can damage the hard disk, causing loss of data.
©Copyright Lenovo 2008 9

To wake the computer, press the power button.
Shutting down your computer
If you are not going to use your computer for aday or two, shut it down.
To shut down your computer, click Start and select Turn Off from Turn Off
Computer.
Using the touch pad
The touch pad consists of apad
1
and two click buttons at the bottom of the
keyboard. To move the cursor
2
on the screen, slide your fingertip over the pad in
the direction in which you want the cursor to move. The functions of the left
3
and
right
4
click buttons correspond to those of the left and right mouse buttons on a
conventional mouse.
10 Lenovo®IdeaPad™S9e and S10e User Guide

1
2
3 4
Note:
You can also attach and use aUSB mouse through the USB connector.
For details, see “Connecting aUniversal Serial Bus (USB) device” on page 35.
Chapter 2. Using your computer 11

Using the keyboard
Your computer has anumeric keypad and function keys incorporated in the standard
keyboard.
Numeric keypad
The keyboard has keys that, when enabled, work as a10-key numeric keypad.
To enable or disable the numeric keypad, press Fn +F7.
*The illustrations in this manual may differ from the actual product.
12 Lenovo®IdeaPad™S9e and S10e User Guide
