ENERGY STAR model information
ENERGY STAR®is a joint program of the U.S. Environmental Protection
Agency and the U.S. Department of Energy aimed at saving money and
protecting the environment through energy efficient products and practices.
Lenovo®is proud to offer our customers products with an ENERGY STAR
compliant designation. Lenovo computers of the following machine types,
if the ENERGY STAR mark is affixed, have been designed and tested to
conform to the ENERGY STAR 4.0 program requirements for computers.
• 20020
• 4189
By using ENERGY STAR compliant products and taking advantage of the
power-management features of your computer, you reduce the consumption
of electricity. Reduced electrical consumption contributes to potential
financial savings, a cleaner environment, and the reduction of greenhouse
gas emissions.
Y450 UserGuide V1.0 EN.book Page 1 Tuesday, February 24, 2009 10:53 AM

For more information about ENERGY STAR, visit
http://www.energystar.gov.
Lenovo encourages you to make efficient use of energy an integral part of
your day-to-day operations. To help in this endeavor, Lenovo has preset
the following power-management features to take effect when your
computer has been inactive for a specified duration:
To awaken your computer from sleep or standby mode, press the power
button on your keyboard. For more information about these settings, refer to
your Windows Help and Support information system.
Table 1. ENERGY STAR power-management features, by operating system
Windows®XP Windows Vista®
•Turn off monitor: After 10
minutes
•Turn off hard disks: After 30
minutes
•System standby: After 20 minutes
•System hibernates: After 2 hours
Power plan: Balanced
•Turn off the display: After 10
minutes
•Put the computer to sleep: After 25
minutes
•Advanced power settings:
- Turn off hard disks: After 20
minutes
- Hibernate: After 1 hour
Y450 UserGuide V1.0 EN.book Page 2 Tuesday, February 24, 2009 10:53 AM

Explanation of hard disk capacity
Dear user,
While using your computer, you may discover that the nominal hard
disk capacity indicated is somewhat different from the disk capacity
displayed by the operating system. For example, a nominal 40GB hard
disk will appear as less than 40GB in the operating system. This
discrepancy is not an error in hard disk installation nor any other
problem, but a normal phenomenon of computers. This phenomenon is
primarily due to the following reasons:
I. Different standards used by the manufacturer and operating
system when calculating hard disk capacity
Hard disk manufacturers use a radix of 1000, i.e. 1GB = 1,000MB,
1MB = 1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk
capacity, operating systems use a radix of 1024, i.e. 1GB = 1,024MB,
1MB = 1,024KB, 1KB = 1,024 bytes. The standard adopted by your
computer is that of the hard disk manufacturers. Since the standards
adopted by the hard disk manufacturer and operating system are different,
the hard disk capacity displayed by the operating system will be different
from the nominal hard disk capacity.
For example, if the hard disk is nominally X GB, even when it is completely
empty, the capacity displayed by the operating system will be:
X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) ≈X × 0.931
Y450 UserGuide V1.0 EN.book Page 3 Tuesday, February 24, 2009 10:53 AM

If a portion of the hard disk space has been used for some specific purpose,
then the capacity indicated by the operating system will be even less than
X × 0.931 GB.
II. A portion of the hard disk space is used for specific purposes
Lenovo computers come with preinstalled OneKey™ Rescue System, so
the hard disk has a special portion partitioned before delivery, which is
used to store hard disk mirror and OneKey Rescue System program files.
The size of the reserved space for this partition varies according to the
model, operating system and software of the computer. For the sake of
safety, this partition is not evident, which is commonly referred to as a
“hidden partition”.
In addition, after the hard disk is partitioned or formatted, the system will
assign a certain amount of hard disk space for the system files.
For the above reasons, the available hard disk space indicated by the
operating system is always less than the computer’s nominal hard disk
capacity.
Y450 UserGuide V1.0 EN.book Page 4 Tuesday, February 24, 2009 10:53 AM

i
Chapter 1. Getting to know your computer .................................................... 1
Top view.................................................................................................................1
Left-side view ........................................................................................................3
Right-side view .....................................................................................................5
Front view..............................................................................................................7
Bottom view...........................................................................................................9
Chapter 2. Using your computer.................................................................... 11
Using the touchpad ............................................................................................11
Using the keyboard ............................................................................................14
Special keys and buttons....................................................................................17
Using the optical drive.......................................................................................19
Using memory cards ..........................................................................................20
Using Lenovo remote (specific models only) .................................................22
Using the integrated camera .............................................................................22
Using the Internet ...............................................................................................23
Securing your computer ....................................................................................29
Installing device drivers ....................................................................................31
Using battery and AC adapter..........................................................................31
Chapter 3. Using external devices................................................................. 35
Connecting a Universal Serial Bus (USB) device ...........................................35
Connecting an eSATA device ...........................................................................37
Connecting an IEEE 1394 device ......................................................................38
Connecting an ExpressCard/34 device ...........................................................39
Connecting an external display ........................................................................41
Contents
Y450 UserGuide V1.0 EN.book Page i Tuesday, February 24, 2009 10:53 AM

ii
Contents
Connecting a headphone and audio device ...................................................43
Connecting an external microphone................................................................45
Connecting Bluetooth enabled devices (specific models only) .....................46
Chapter 4. Troubleshooting............................................................................ 47
Frequently asked questions ..............................................................................47
Troubleshooting..................................................................................................49
Chapter 5. Getting help and service .............................................................. 58
Getting help and service....................................................................................58
Getting help on the Web....................................................................................59
Calling the Customer Support Center.............................................................59
Getting help around the world.........................................................................62
Chapter 6. Safety, use, and care information ............................................... 63
Important safety information ...........................................................................63
Caring your computer .......................................................................................82
Accessibility and comfort..................................................................................90
Maintenance ........................................................................................................93
Appendix A. Lenovo limited warranty ........................................................... 97
Warranty Information......................................................................................107
Lenovo warranty service telephone numbers..............................................111
Appendix B. Customer Replaceable Units (CRUs)..................................... 113
Appendix C. Specifications .......................................................................... 114
Specifications.....................................................................................................114
Y450 UserGuide V1.0 EN.book Page ii Tuesday, February 24, 2009 6:56 PM

Contents
iii
Appendix D. Notices ..................................................................................... 116
Notices................................................................................................................116
Wireless related information...........................................................................119
Electronic emissions notices............................................................................122
WEEE and recycling statements.....................................................................128
Turkish statement of compliance ...................................................................129
EU WEEE statements .......................................................................................129
Japan recycling statements ..............................................................................130
Notice for users in the U.S.A...........................................................................132
Notice on deleting data from your hard disk...............................................132
Trademarks........................................................................................................134
Index ............................................................................................................... 135
Y450 UserGuide V2.0 EN.book Page iii Wednesday, May 13, 2009 6:07 PM

1
Chapter 1. Getting to know your computer
Top view -------------------------------------------------------------------------------------------
* The illustrations in this manual may differ from the actual product.
Please refer to the actual product.
Y450










Y450 UserGuide V2.0 EN.book Page 1 Thursday, May 14, 2009 5:23 PM

Chapter 1. Getting to know your computer
2
Wireless LAN antennas
An isotropic antenna system is built into the display.
Integrated camera ............................................................................ 22
Array microphone (built-in)
The built-in microphone can be used for video conferencing, voice
narration, or simple audio recordings.
Computer display
The color display with LED-backlit technology provides clear and
brilliant text and graphics.
Speakers
System status indicators
Touch inductive panel ..................................................................... 17
OneKey Rescue System button...................................................... 19
Power button









Y450 UserGuide V2.0 EN.book Page 2 Thursday, May 14, 2009 5:23 PM

3
Chapter 1. Getting to know your computer

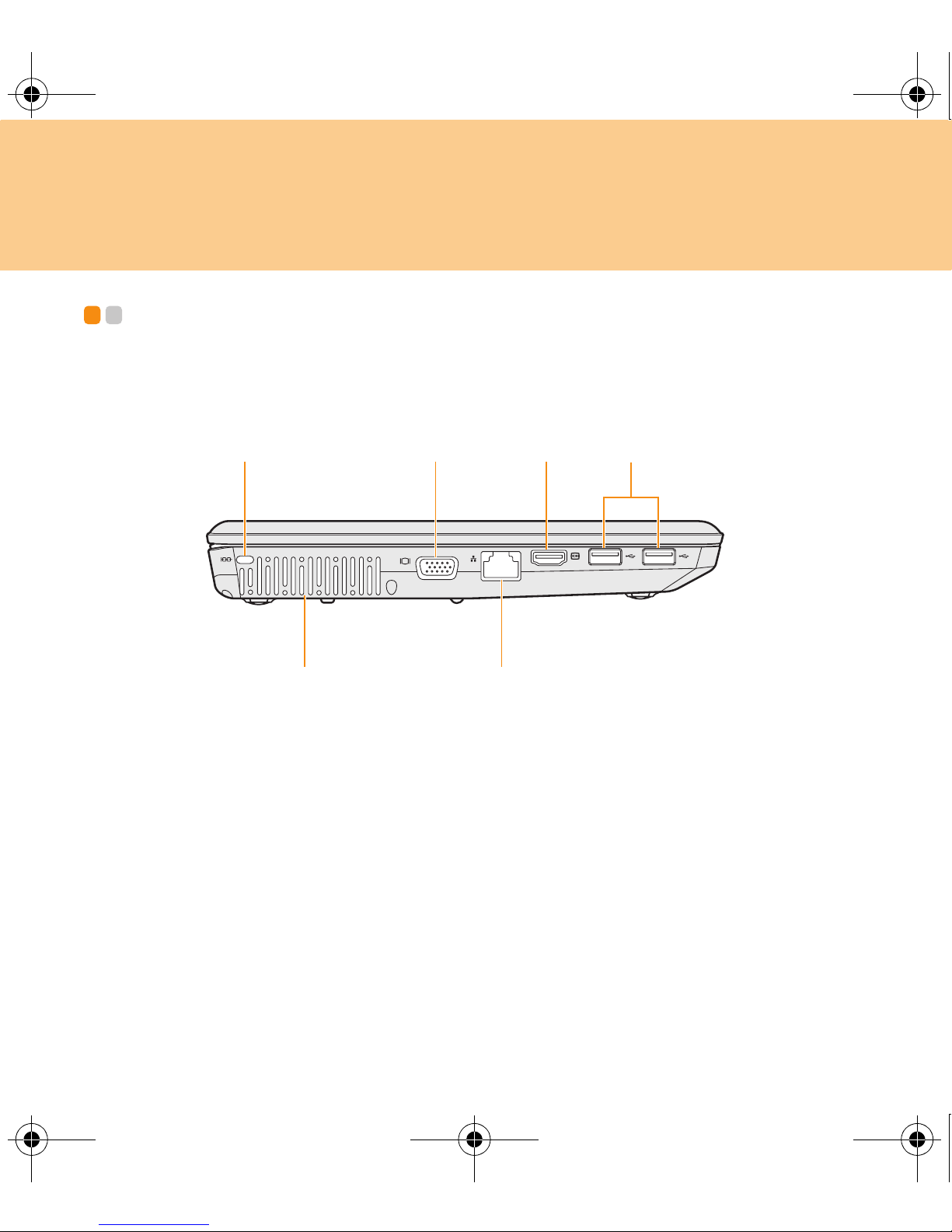

Left-side view ------------------------------------------------------------------------------
 


Y450 UserGuide V2.0 EN.book Page 3 Thursday, May 14, 2009 5:23 PM

Chapter 1. Getting to know your computer
4
Security keyhole
Your computer comes with a security keyhole. You can purchase a
security cable and lock to fit this keyhole.
Note:
Before purchasing any security product, verify that it is compatible
with this type of security keyhole.
VGA port ........................................................................................... 41
HDMI™ port ...................................................................................... 42
USB port ........................................................................................... 35
Fan louvers
Important:
Make sure that any of the fan louvers are not blocked or else
overheating of the computer may occur.
RJ-45 port ......................................................................................... 23








Y450 UserGuide V2.0 EN.book Page 4 Thursday, May 14, 2009 5:23 PM

5
Chapter 1. Getting to know your computer
Right-side view --------------------------------------------------------------------------

 
 
Y450 UserGuide V2.0 EN.book Page 5 Thursday, May 14, 2009 5:23 PM

Chapter 1. Getting to know your computer
6
IEEE 1394 connector ....................................................................... 38
eSATA/USB combo port .................................................................. 37
Optical drive ..................................................................................... 19
AC power adapter jack
Connect the power adapter here to supply power to the computer and
charge the battery pack.
Note:
To prevent damage to the computer and battery pack, use the supplied
AC adapter only.
ExpressCard®/34 slot....................................................................... 39
USB port ........................................................................................... 35







Y450 UserGuide V2.0 EN.book Page 6 Thursday, May 14, 2009 5:23 PM

7
Chapter 1. Getting to know your computer

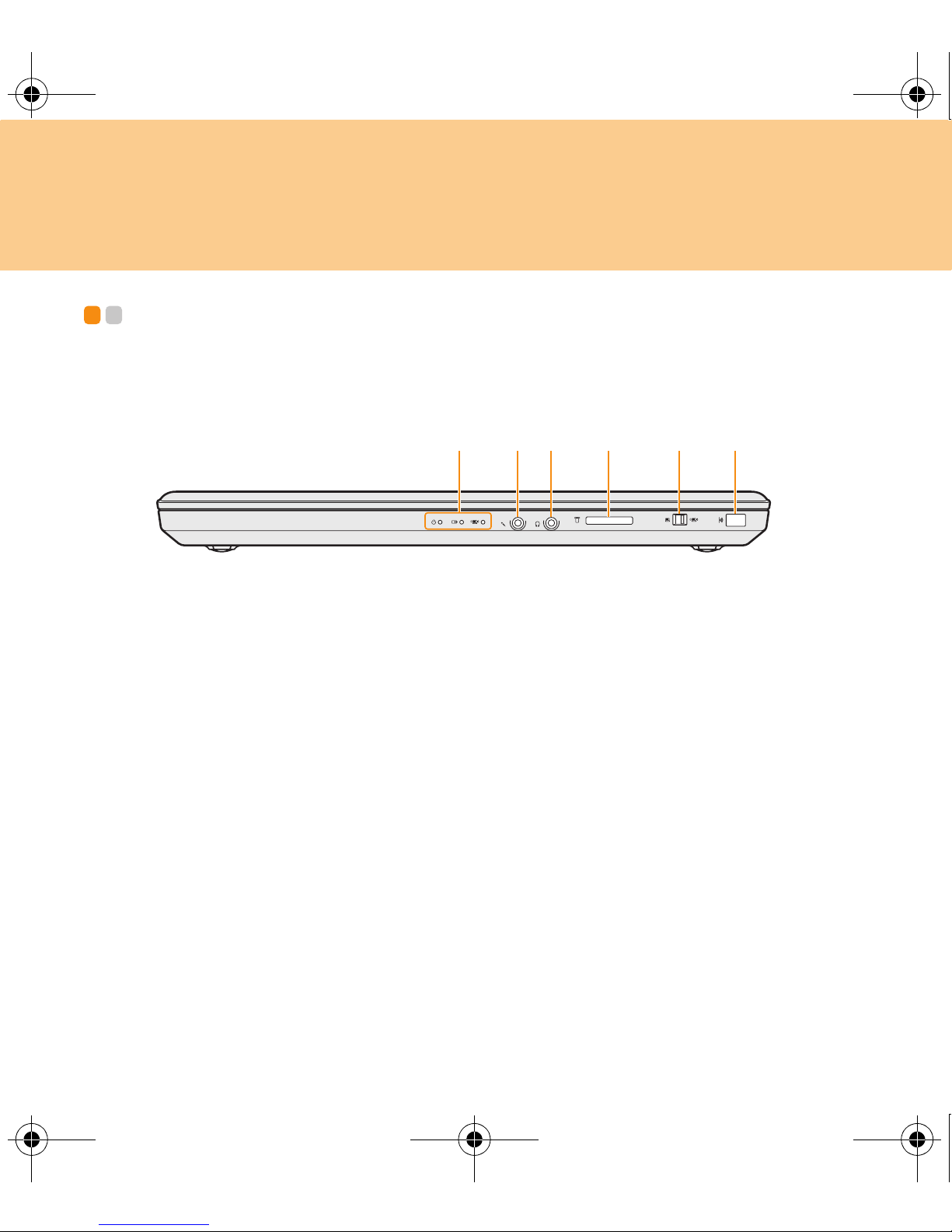

Front view ---------------------------------------------------------------------------------------
     
Y450 UserGuide V2.0 EN.book Page 7 Thursday, May 14, 2009 5:23 PM

Chapter 1. Getting to know your computer
8
System status indicators
Microphone jack (external) ............................................................. 45
Headphone jack (S/PDIF) (external) ............................................... 43
Memory card slot ............................................................................. 20
Integrated wireless device switch
Use this switch to disable the wireless radio of all the integrated
wireless devices on your computer.
CIR port............................................................................................. 22
CIR port, used for Lenovo remote controller.






Y450 UserGuide V2.0 EN.book Page 8 Thursday, May 14, 2009 5:23 PM

9
Chapter 1. Getting to know your computer

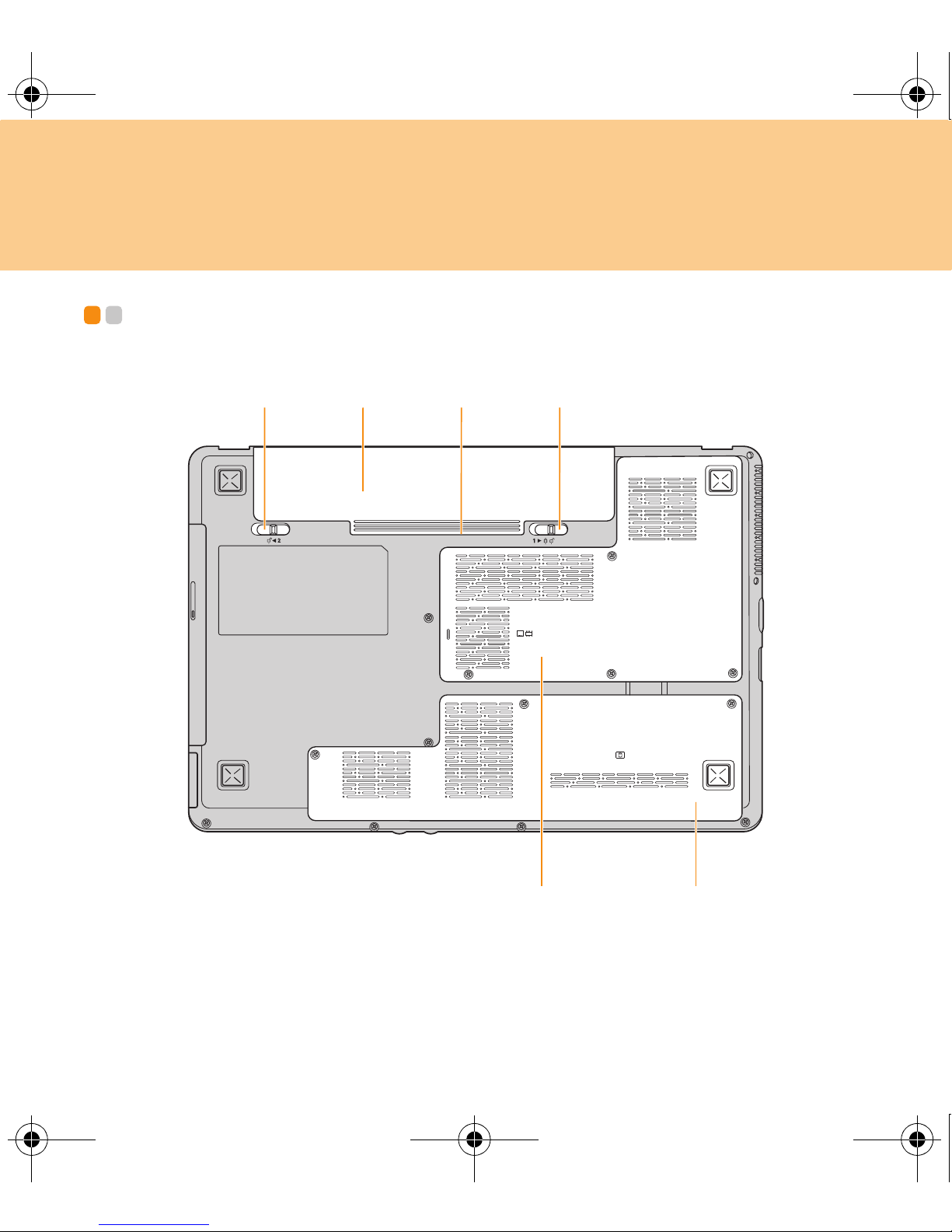

Bottom view ----------------------------------------------------------------------------------
  

Y450 UserGuide V2.0 EN.book Page 9 Thursday, May 14, 2009 5:23 PM

Chapter 1. Getting to know your computer
10
Battery latch - spring loaded
The spring-loaded battery latch keeps the battery pack secured in
place. When you insert a battery pack, this latch automatically secures
the battery in place. To remove the battery, hold this latch in the
unlocked position.
Battery latch - manual
The manual battery latch is used to keep the battery pack secured.
Move the manual battery latch to the unlocked position to insert or
remove the battery pack. Move the manual latch to the locked position
after inserting the battery pack.
Central Processing Unit (CPU)/ Memory (RAM) compartment
Hard Disk compartment
Important:
Do not disassemble any component by yourself! If you do need to,
ask a Lenovo authorized service center or dealer to disassemble it.
Battery pack ..................................................................................... 31
SIM card slot (inside the battery bay, specific models only)







Y450 UserGuide V2.0 EN.book Page 10 Thursday, May 14, 2009 5:23 PM

11
Chapter 2. Using your computer
Using the touchpad ---------------------------------------------------------------------
The touchpad consists of a pad and two click buttons at the bottom of
the keyboard. To move the cursor on the screen, slide your fingertip
over the pad in the direction in which you want the cursor to move. The
functions of the left and right click buttons correspond to those of
the left and right mouse buttons on a conventional mouse.




%
$
'&
Y450
Y450 UserGuide V2.0 EN.book Page 11 Thursday, May 14, 2009 5:23 PM
