Lenovo T1 User manual

Smart Robot Vacuum Cleaner T1
Please read the User Manual before using---Warranty card included, pictures are for reference only.
User Manual


Safety information
Service restriction
This product is intended for floor cleaning use only in the home environment. Do not use it outdoors (such
as open balcony), non-ground surface (such as sofas), commercial or industrial environments.
nvironment (such as a duplex flat, open balcony, top of home) without a
protective fence.
nvironment where the temperature is above 40°C or below 0°C, or there is any liquid
or viscous substance.
round in your home before use, in order to avoid dragging when the robot is running.
Put away the fragile items and sundries (such as vases, plastic bags, etc.) on the ground to avoid the robot
being blocked or damage to the valuables in the home caused by slight collision during running.
rdered physical, mental or cognitive abilities, including children, to use or
operate the product.
ow children to use the robot as a toy. Keep the children and pets as far as possible while the
robot is working.
tool of the main brush in the area which is accessible to children.
Keep the human body, pet's hair, fingers, etc. away from the suction inlet of the machine when the robot
is running.
to clean any burning objects (such as un-extinguished cigarettes).
for suction of hard or sharp objects (such as decoration waste, glass, steel nails, etc.).
ove the robot by holding the cover of laser distance sensor, the cover of the machine or the impact
bumper as the handle.
ny part of the product with a wet cloth or liquid.
nvironment with carpet.
roduct in accordance with the instructions in the manual. Any loss or damage caused by
improper use is the user’s own responsibility.
forbidden to incinerate the product even if it has been severely damaged, for the battery inside may
cause an
This appliance is not intended for use by persons (including children) with reduced physical sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensuere that they do not play with the appliance.
explosion.
Battery and charging
ny third-party batteries, chargers, and charging bases.
ssemble, repair or modify the battery or the charging base.
ce the charging base near a heat source (such as a radiator).
rging base with a wet cloth or wet hands.
rd inactive batteries at will, but hand them to professional recycling facilities for handling.
ower wire is broken or snapped, stop using it immediately and contact customer service in time.
package is recommended.

Charging button
Short press to activate the charging function.
Cleaning/Power button
Short press to activate the cleaning function.
Partial cleaning button
Short press to activate partial cleaning.
Reset WiFi
Press and hold the Partial cleaning button
and the Charging button for more than 3
seconds at the same time.
Note: Press any button to pause during
cleaning/charging or partial cleaning.
Packing list and introduction
Main machine x1

Packaging list and introduction
Main machine
Laser distance sensor
Speaker
TOF sensor for wall/
Infrared auxiliary
charger sensor
Laser head cover
Laser head cover
pressure sensor
Infrared charger sensor/
Infrared anti-collision sensor
Infrared auxiliary
charger sensor
Collision sensor
Dust box
Dust box opening button
Vent outlet

Driving wheel
Rolling brush
Docking electrode slice
for dust collecting
Docking electrode
slice for charging
Universal wheel
Side brush
Accessories list for Smart Robot Vacuum Cleaner
Water tank x1 Disposable mop x10
Main machine
Packaging list and introduction

Dust box module x1 Mopping module x1
Find and install the filter screen before using Find and install the water tank and mop
(or disposable mop) before using
Packaging list and introduction
Dust box fastene
Cleaning tool
Dust box upper bracket
Dust box filter screen
Dust box lower bracket
Dust box flip cover
Dust box button
Water tank
Water tank
cover
Paste area
Water tank
filter element
Water tank
wheel set
Mop
Water tank
fastener

1.Charging base
Charging base indicator
Signal emission zone
Front side of charging base Back side of charging base Charging base adapter
Power port
2.Dust collector (Two-in-one for dust collection and charging)
List of optional accessories (Users can choose one of the two sets according to actual demands----Charging base +
Charging base adapter or Dust collector + Dust collector charging wire.)
Cover
Dust collector barrel
Charging/Dust collecting indicator
Infrared lens
Dust collecting inlet
Charging/Dust collecting clip
Front side of dust collector
Air outlet
Back side of dust collector
Packaging list and introduction
PLEASE NOTICE: The electric plug
attached is subject to your country
specification.
Charging Contact Pins

1.Install the charging base
Place the charging base on a flat surface against the wall.
Ensure that there is more than 1.2-meter clear space in front and more
than 0.5-meter clear space on both sides of the charging base.
Against the wall Not against the wall
Installation

The color of power button
indicates the power of the
battery.
White light: power>15%
Orange breathing light: power<15%
on the charging clip of the charging base. The orange light of the power button will be always
on when charging.
Long press the button for power-on. Press the charging ley, the machine will find the
charging base automatically for charging.
Installation

2.Install the dust collector
Place the dust collector 6mm or more away from the wall on a flat surface
0.06m away from the wall
Ensure that there is more than 1.2-meter clear space in front and more than
0.5-meter clear space on both sides of the dust collector.
Note:
If choosing the charging base, please ignore the installation of dust collector
When charging base and dust collector exist at the same time, place them in
Installation

10
Lenovo Cleaner T1
Connect to the mobile client (skip the step if APP control isn’t required)
1.Download APP
Search “Lenovo Cleaner T1” in App Store (Apple: search “Lenovo
Google Play) to download and install.
2.Register
Open “Lenovo Cleaner T1”APP to register or login account.
3.Enter Network Distribution Status
Put the cleaner on the ground and press the “Charging button” and
“Partial cleaning button” for more than 3 seconds. It successfully
enters network distribution status if the orange indicator of flashes
slowly.
4.WiFi Network Configuration
Make sure that your mobile phone has been connected to
WiFi (only support 2.4GHz band. It can’t be connected to
WiFi which has no password. Please set password prior to
your connection. In addition, WiFi name and password
should exclude English double quotes).
5.Add Device
Click “Add Device” in the main interface of “Lenovo Cleaner T1”APP
or “My Device Interface”.
Android phone:
b. Select the hotspot of cleaner , then, click “the Next Step”;
a. Input WiFi name and password, then, click “the Next Step”;
c. The cleaner start to distribute network after successful
automatic connection. If it fails to automatically connect to the
hotspot of cleaner please try it again according to the prompt
message.
Apple iphone:
a. Connect to home WiFi, input WiFi name and password,
then, click “the Next Step”;
b. Switch to the WiFi setting interface of your phone to
select the corresponding hotspot of
cleaner ;
c. Return to APP and click to connect to
cleaner . Then,
the
cleaner starts to distribute network;
Use APP to control and use the
cleaner if it is connected
to WiFi successfully.
Installation

Installation and removal of mopping module
Install mop: Wet out the mop and dry it until there is no water
drop. Put the mop on the mopping module and stick it firmly.
Do not use the mopping function when there
is nobody at home.
If there are carpets in the home, please set
restricted areas on App.
Fill the water tank: Open the water tank cover,
fill it with water and install it back.
Note: Some floor cleaners or disinfectants
can block the filter element in water tank.
Please use them cautiously.
Install module: Push the joint on the mopping module in
parallel along the back of the machine. When hearing
the "click", it means that the installation is in place.
Note: Clean the mop every 30 minutes is recommended,in
Remove module: Stop the machine, press the joints
on both sides inward by hand, drag backward and
remove the mopping module.
When charging or not using the machine, remove
the mopping module, pour out the remaining water
in the water tank and clean the mop to avoid
mildewing or odor.
If placing the charging base on the wooden floor,
remove the mopping module in time to avoid
floor soaking.
Installation

Press the button to start the whole house cleaning
When the machine is running, press any button to pause. If
pressing again after pause, the machine will continue to clean,
Press button and the machine will go to charge and end the
cleaning. Press button and the machine will execute partial
cleaning.
Note: If charging the machine by moving it to the charger base
during the pause, the cleaning will be ended.
Long press button for power-on. The indicator of the button
turns on slowly, and the machine gets in standby state. When
The white light slowly extinguishes, and the cleaning is over.
Note: The machine cannot shut down during charging.
Instructions
Pause
Charge
Automatic mode: After cleaning, the machine will automatically
find it way to charge.
Manual mode: In pause state, press button to start charging.
When the machine is charging, the orange indicator of the power
button is always on. The white breathing indicator will be on when
the battery is full.
Note: If the machine does not start cleaning from the charging
base or dust collector, auto-charging may fail because the
machine will automatically return to the position where it starts.
Please manually put the machine back to the charging base or
dust collector for charging.
Cleaning mode
After cleaning starts, the machine will scan the room, generate
a map and zone the room intelligently. In the zoning, it will firstly
clean along the wall, plan the sweeping path and then clean
each zone one by one in zigzag, and cover all zones in an orderly
return to the charging base for charging.
Whole house cleaning
(see the picture of cleaning route as below).
Press any button to pause while cleaning.
Area 1 has been
cleaned up
Area 2 has been
cleaned up
Area 3 is being
cleaning
Area 4 is to be
cleaned
It is recommended that the vacuum robot start the
cleaning from the charging base or dust collector.
If the power is too low to start the whole house
cleaning, please charge it first and then start the
whole house cleaning.
machine will automatically return to the charging base
point to continue cleaning when the battery is fully charged.
Please tidy up all kinds of wires (power lines) on the ground
before cleaning, so as to avoid outage and damage to articles
or wires caused by the machine dragging when cleaning.
Note:

machine by other causes, press and hold the button
the mopping module and press to continue working.
If the machine needs to add water or clean the mop during
cleaning, please press the power button to pause before removing
the mopping module. After adding water or cleaning mop, re-install
Partial cleaning
When the machine is on standby or pause, press the partial
cleaning button to start partial cleaning. This mode can clean
a 1.6m x 1.6m square area taking the machine as the center.
After the cleaning, the machine will automatically return to the
starting position and stop working.
Note: Starting partial cleaning when in pause will end the last
cleaning and start a new cleaning task.
Adding water in the water tank or cleaning mop
during cleaning
Fault condition
When abnormality occurs in the operation of the machine, the
power button indicator flashes orange and voice prompt sounds.
For solutions, please refer to page 20, "Troubleshooting".
Note: After 10 minutes under the fault condition without operation,
the machine will automatically sleep.
Sleep mode
If there is no operation for more than 20 minutes, the machine
will enter sleep mode automatically. In the sleep mode, after
the breathing light turns out, the machine can be activated by
pressing any button.
Note:
The machine will not enter sleep mode when charging on
the charging base.
When it turns low battery during sleep mode, the machine
will automatically shut down
Reset WiFi
When the configuration of router is changed, password
forgotten or the mobile phone fails to connect to the
and button until the voice prompt "Reset WiFi" appears,
and then reset the WiFi connection referring to the relevant
steps of the WiFi network configuration in the quick setup
instructions.
Instructions
Whole house cleaning
Click on the whole house cleaning in the mobile phone
application, the machine will perform the whole house
cleaning.
Room cleaning
Click on the room cleaning in the mobile phone
application, add and set rooms, then select the room
and execute cleaning.
Fixed location cleaning
Select target location in the mobile phone application, the
machine will automatically plan the route and get to the
selected location.
Set up zoning cleaning function in the mobile phone
application, the machine will clean the area designated
on the mobile phone.
Zoning cleaning
The default mode is standard mode. Quiet mode, automatic
mode, powerful mode and mop-only mode are optional on
the mobile client.
Standard mode

Main brush (Weekly cleaning is recommended)
1.Turn over the machine, press down the fastener and
remove the main brush cover.
2.Take the main brush out and clean the main brush bearing.
3.Cut the winding hair on the main brush with the matching
cleaning tool of the main brush.
4.Re-install the main brush and press down the main brush
cover tight, then fix the fastener.
Center bracket
Center rolling brush
Note: It is recommended to replace the main brush every
Usage of the cleaning tool of center
rolling brush
Routine maintenance

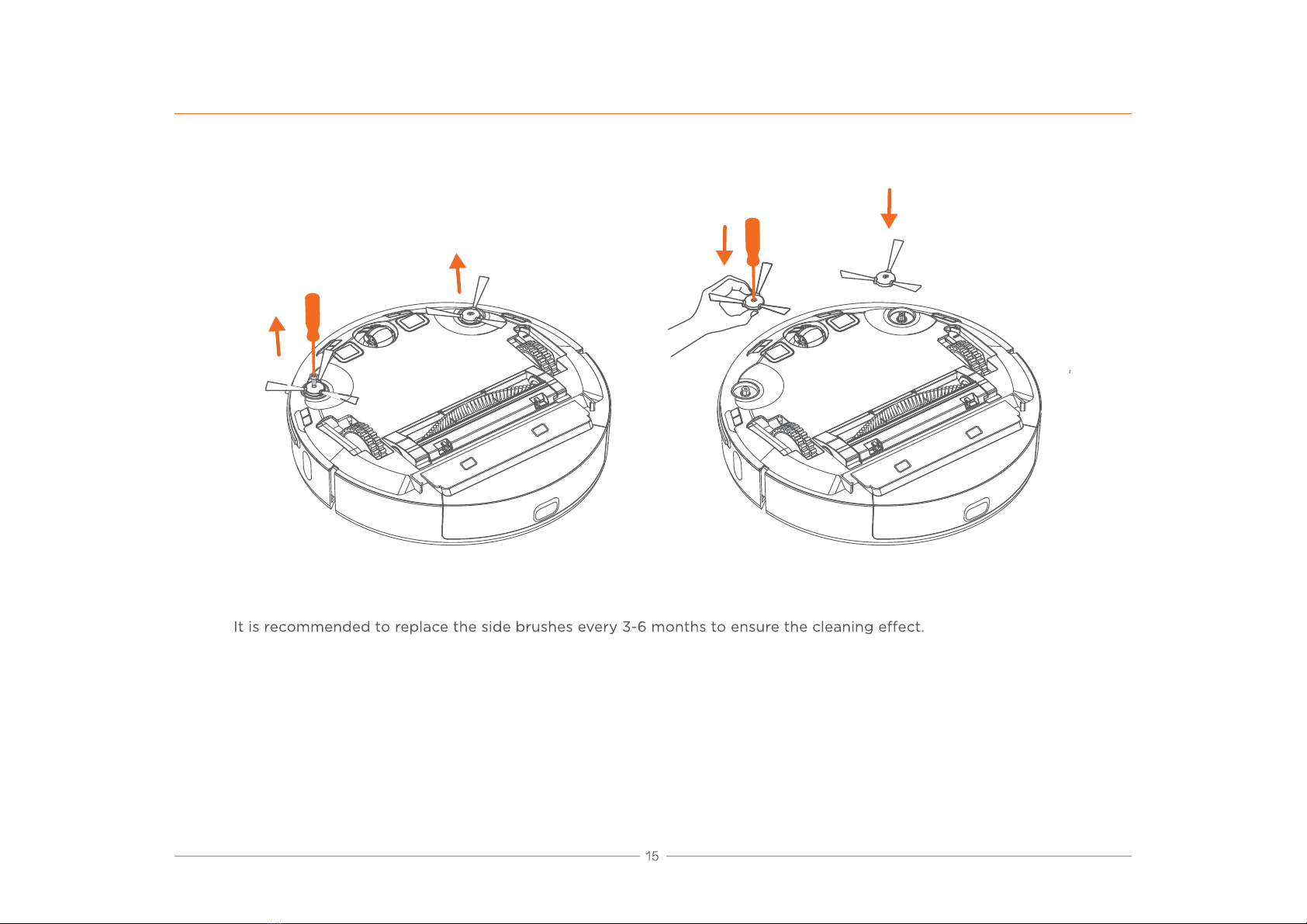

Use a screwdriver to unscrew and clean the side brush.
Note:
Battery
The machine has built-in high performance rechargeable lithium battery pack. For maintaining battery performance, please keep
the machine in charging for daily use.
Note: If not use it for long, please shut down and store it. Charge it at least once every three months to avoid battery damage
due to over-discharge.
Side brush (Weekly cleaning is recommended)
Routine maintenance

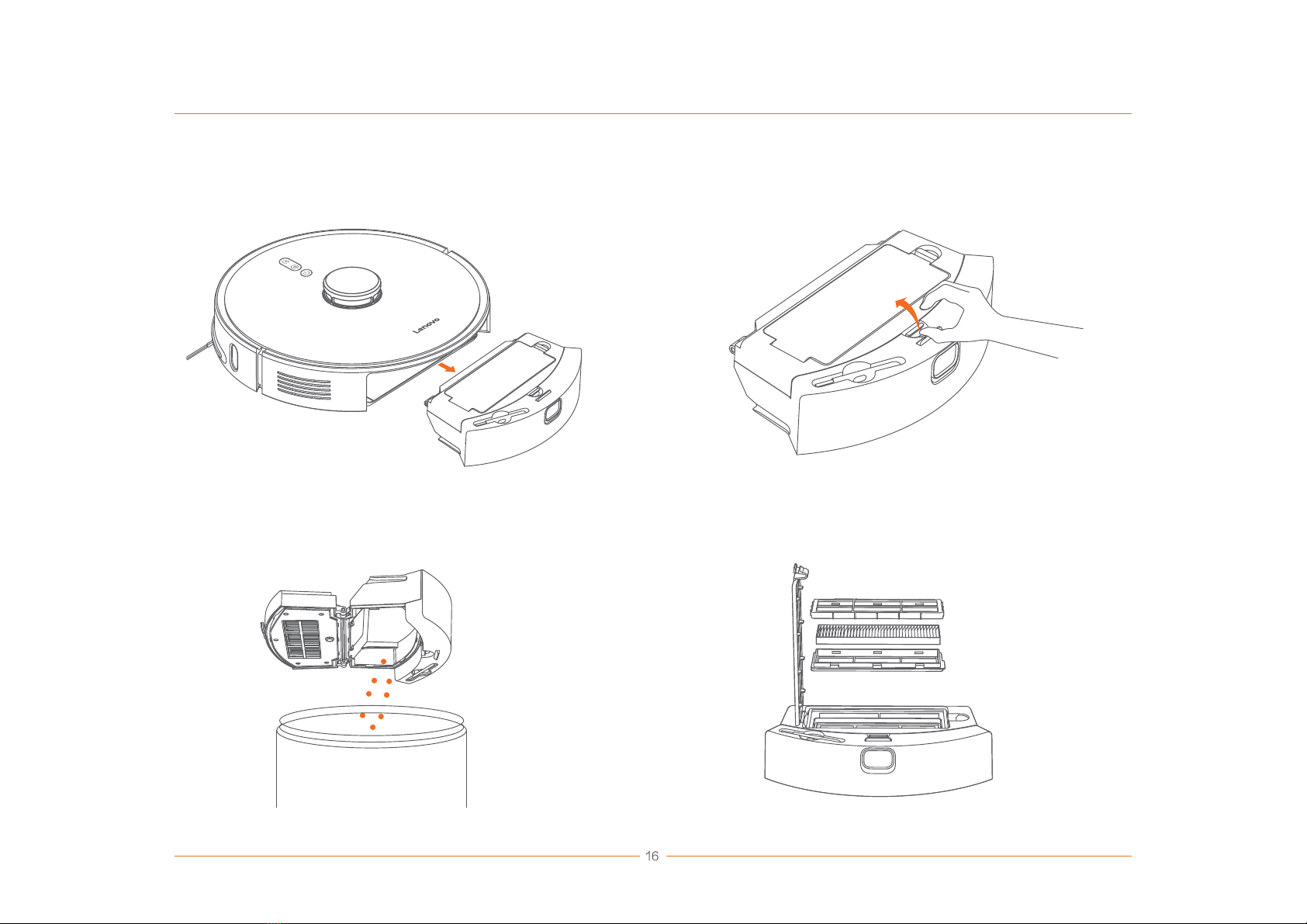

1.Press the dust box releasing button to remove it. 2.Open the dust box fastener.
3. Clean up the garbage. 4.Open the dust box cover and remove the
mesh cover and filter screen(HEPA).
Dust box and filter screen (Weekly cleaning is recommended)
Routine maintenance

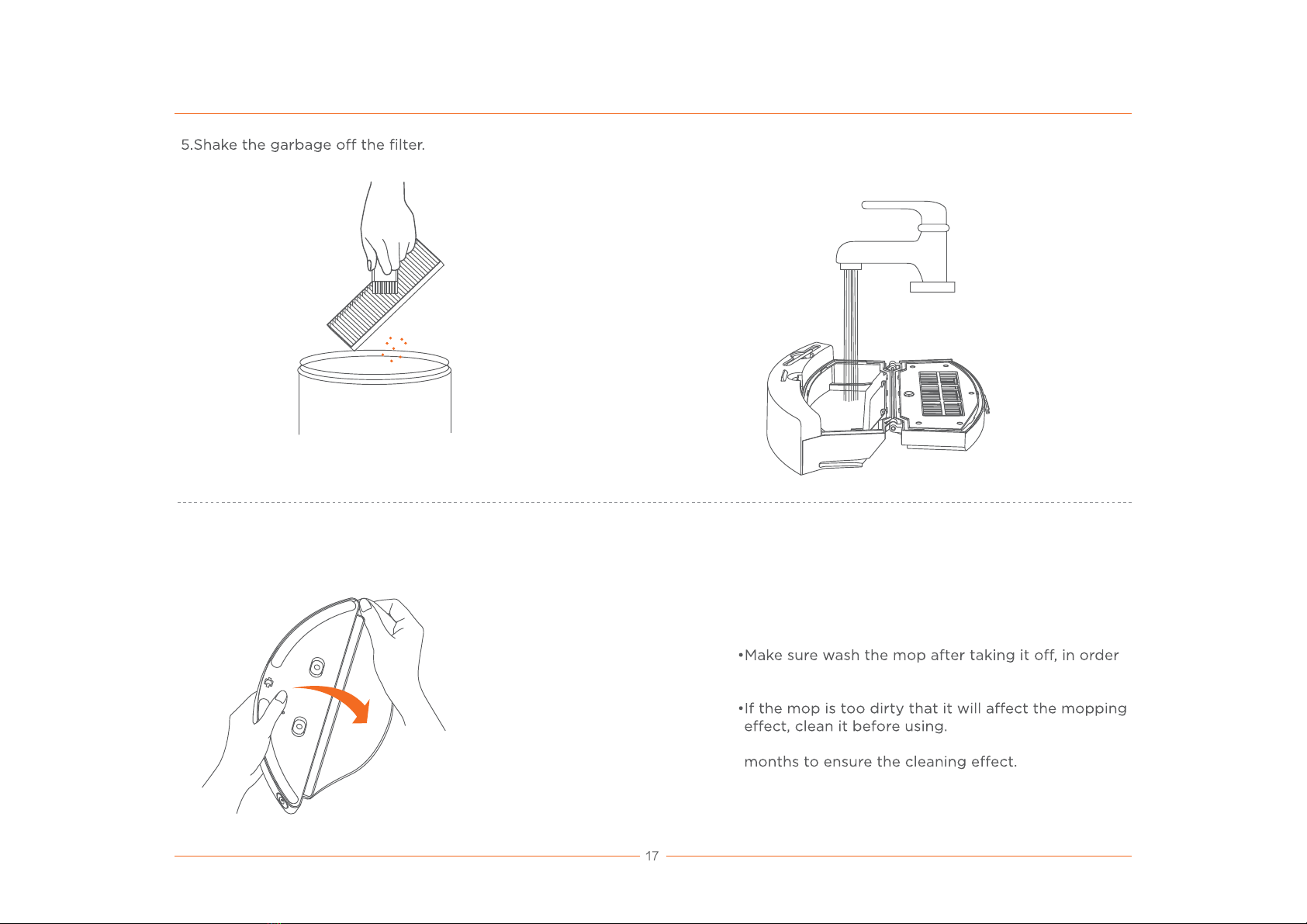

6.Fill the dust box with clean water, close and shake it,
then pour out the dirty water inside. Repeat this step
several times until the dust box is cleaned up.
Note: It is recommended to replace the filter every 3-6 weeks.
Mop (Cleaning after each use is recommended)
1.Remove the mop from the mopping module. 2.Clean mop and air it
Note:
to avoid backfilling of dirty water that would clog
the filter element.
It is recommended to replace the mop every 6-12
Routine maintenance

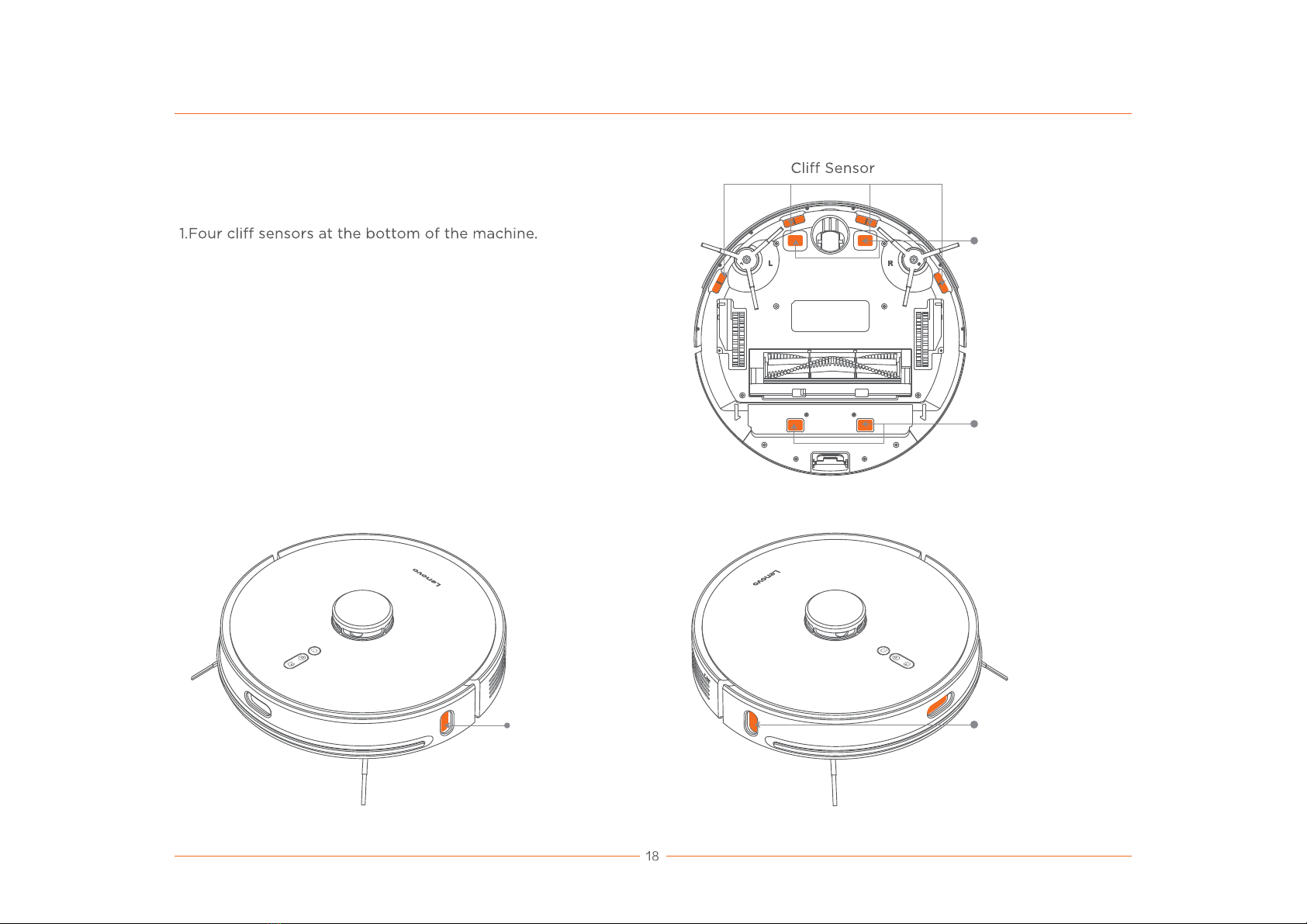

Machine Sensor
Wipe the sensors of the machine with a soft and dry
cloth, including:
2.Wall sensor on the right side of the machine.
3.Charging docking electrode slice at the bottom of the machine
4.The dust collecting electrode slice at the bottom of the machine.
5.Infrared auxiliary charger sensor.
Infrared auxiliary
charger sensor
Charging docking
electrode slice
Dust collecting
electrode slice
TOF sensor for wall/
Infrared auxiliary
charger sensor
Routine maintenance
