Lenze AC Tech MCH Series User manual

MCH PARAMETERS
MCH FAULT HISTORY
Parameter 99 - FAULT HISTORY stores the last eight faults that tripped
the drive. The FAULT HISTORY indicates the number of the fault
(number 1 is the most recent fault), the fault message, and the status of
the drive at the time of the fault. An example is shown below:
MCH FAULT MESSAGES
In the example above, the second fault is being viewed, which is an
OVERLOAD fault that ocurred while the drive was accelerating.
QRMH-OBOC
NOTE: Before installing and operating the MCH drive, please
read and become familiar with the MCH Series Installation and
Operation Manual.
NOTE 1: REFER TO THE MCH MANUAL.
NOTE 2: THESE PARAMETERS ARE VIEW-ONLY.
FAULT
NUMBER
FAULT
MESSAGE
DRIVE
STATUS
99 FAULT HISTORY
2 OVERLOAD ACCEL
MCH Series
Quick Reference Guide
FAULT DESCRIPTION
OUTPUT Output transistor fault: Output current exceeded
200%. May be ground fault or short circuit.
LO VOLTS Low DC Bus Voltage fault: DC bus voltage dropped
below 60%. May be low line voltage.
HI VOLTS High DC Bus Voltage fault: DC bus voltage
exceeded 120%. May be overhauling load.
HI TEMP High Temperature fault: Heatsink or ambient
temperature too high.
OVERLOAD Current Overload fault: Output current exceeded
100% for too long. VFD may be undersized.
PWR TRAN Power Transient fault.
PWR SAG Power Sag fault: New control board installed.
Perform factory reset using Parameter 65.
LANGUAGE Language EEPROM fault.
EXTERNAL External fault: TB-13D activated (Parameter 50).
DB ERROR Dynamic Brake fault: DB Resistors overloaded.
CONTROL Control Board fault: Was new software installed?
Perform factory reset using Parameter 65.
INTERNAL Internal fault.
INTERN (#) Internal fault.
FLWR / SER Loss of Follower/Serial fault: 4-20 mA signal at
TB-5B dropped below 2 mA (Parameter 55), or the
serial link was lost (Parameter 56).
NO. PARAMETER
NAME
FACTORY
DEFAULT NO. PARAMETER
NAME
FACTORY
DEFAULT
0 LINE VOLTS AUTO 40 TB5 MAX FREQ 60.00 HZ
1 PRESET #1 20.00 HZ 41 AN INPUT FLTR 0.02 SEC
2 PRESET #2 20.00 HZ 42 TB10A OUTPUT NONE
3 PRESET #3 20.00 HZ 43 TB10A SCALING 60.00 HZ
4 PRESET #4 20.00 HZ 44 TB10B OUTPUT NONE
5 SKIP FREQ #1 .00 HZ 45 TB10B SCALING 125 %
6 SKIP FREQ #2 .00 HZ 47 TB13A INPUT NONE
7 BANDWIDTH 1.00 HZ 48 TB13B INPUT NONE
8 ACCEL RATE 30.0 SEC 49 TB13C INPUT NONE
9 DECEL RATE 30.0 SEC 50 TB13D INPUT EXT FAULT
10 MINIMUM FREQ .50 HZ 52 TB14/RELAY #2 NONE
11 MAXIMUM FREQ 60.00 HZ 53 TB15/RELAY #3 NONE
12 DC BRAKE VOLT .0 VDC 54 RELAY #1 NONE
13 DC BRAKE TIME .0 SEC 55 TB5B LOSS FAULT
14 DYNAMIC BRAKE OFF 56 SERIAL LOSS FAULT
16 CURRENT LIMIT 120 % 57 SERIAL DISABLE
17 MOTOR OVRLOAD 100 % 58 SERIAL ADDRES 30
18 BASE FREQ 60.00 HZ 61 PASSWORD 0019
19 FIXED BOOST (NOTE 1) 63 SOFTWARE VERS (NOTE 2)
22 TORQUE CONSTANT 64 MONITOR MODE ON
23 CARRIER FREQ 2.5 KHZ 65 PROGRAM RESET 60
24 AUTO SOURCE 4-20 MA 66 CLEAR HISTORY MAINTAIN
25 START METHOD NORMAL 70 PID MODE OFF
26 STOP METHOD COAST 74 PID FEEDBACK TB-5B
28 SPEED SRC KEY ENABLED 75 FEEDBACK @ MIN 0.00 %
29 HAND SOURCE KEYPAD 76 FEEDBACK @ MAX 100.0 %
30 CONTROL NORMAL 77 PROPOR. GAIN 5.00 %
31 UNITS spd HERTZ 78 INTEGRAL GAIN 0.0 SEC
32 HZ MULTIPLIER 1.00 79 DIFF. GAIN 0.0 SEC
33 UNITS DECIMAL XXXXX 80 PID ACCEL 30.0 SEC
34 LOAD MULTIPLY 100 % 81 MIN ALARM 0.00 %
35 LCD CONTRAST MED 82 MAX ALARM 0.00 %
36 SLEEP THRSHLD .00 HZ 98 LANGUAGE ENGLISH
37 SLEEP DELAY 30.0 SEC 99 FAULT HISTORY (NOTE 2)
39 TB5 MIN FREQ .00 HZ
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: [email protected]
1. Press the PROG/RUN key. This will cause the PASSWORD
prompt to appear (unless the password protection has been
disabled), as shown below:
THE MCH KEYPAD
PROGRAMMING THE MCH DRIVE
MCH KEYPAD FUNCTIONS MCH DISPLAYS
Shown below are examples of MCH displays. To scroll through
the LOAD and MOTOR VOLTAGE displays, press and release the
ENTER key.
Press and hold the ENTER key to activate the AUXILIARY MODE,
which will cycle in one second intervals between a CONTROL display
and a TIME display. An example is shown below:
2. Use the  and  keys to scroll to the correct password value
(the factory default password is 0019) and press ENTER. The
PROGRAM mode will be entered at the start of the parameter
menu. A cursor will highlight the parameter number.
3. Use the  and  keys to scroll to the desired parameter and
press ENTER. The cursor will shift from the parameter number
to the parameter value, as the example below illustrates:
4. Use the  and  keys to scroll to the desired parameter value,
and press ENTER to store the new value.
5. Press PROG/RUN to exit the PROGRAM mode.
Press the HAND (START) key to start the drive.
The HAND (START) key is only active in Keypad
H/O/A mode.
Press the OFF (STOP) key to stop the drive.
NOTE: The OFF (STOP) key is active in both Keypad
H/O/A mode and Remote H/O/A mode.
The OFF (STOP) key is also used to reset faults. If the
fault condition has passed, pressing the OFF (STOP)
key will clear the fault and return the drive to a KSTOP
condition.
Press the AUTO (START) key to select AUTO mode.
In AUTO mode, close TB-1 to TB-2 to start the drive,
and open TB-1 to TB-2 to stop the drive. The AUTO
(START) key is only active in Keypad H/O/A mode.
UP and DOWN ARROWS - Used to scroll through the
parameter menu, change parameter values, and change
the speed/PID setpoint when the Keypad is the selected
speed/PID reference source.
Press the SPEED SOURCE key to select the desired
speed reference source, and then press the ENTER key
within three seconds to confirm the change.
The SPEED SOURCE key is only active if Parameter
28 is ENABLED.
Used to enter and exit the PROGRAM mode to set the
parameters.
Used for: toggling the display between LOAD and
MOTOR VOLTAGE; confirming new parameter values;
confirming SPEED SOURCE selections.
Press and hold the ENTER key to activate the
AUXILIARY MODE, which consists of two displays
that cycle in one second intervals. One indicates Keypad
H/O/A or Remote H/O/A mode, the speed reference
source, and the setting of the SPEED SOURCE key,
and the other is an elapsed time meter that indicates
total run time.
PROG
RUN
AUXILIARY MODE
CONTROL DISPLAY
AUXILIARY MODE
TIME DISPLAY
STOP 20.00 HZ
0 % LOAD OFF
ENTER
PROG
RUN
AUTO
(START)
HAND
(START)
OFF
(STOP)
SPEED
SOURCE AUTO
(START)
HAND
(START)
OFF
(STOP)
SPEED
SOURCE
PERCENT
LOAD
RUN 60.00 HZ
85 % LOAD AUTO
DRIVE
STATUS
DRIVE
SPEED
H/O/A
MODE
MOTOR
VOLTAGE
RUN 60.00 HZ
460 VAC AUTO
DRIVE
STATUS
DRIVE
SPEED
H/O/A
MODE
TIME: 4872.7 HRS
SPEED SOURCE
KEY SETTING
KEYPAD HOA - KEY
SRC=NORM
H/O/A
SOURCE
SPEED
REFERENCE
PRESS
& HOLD
ENTER
LOAD DISPLAY
MOTOR VOLTAGE
DISPLAY
ENTER
The AC Tech web site is oriented to support our customers. This
site includes a Technical Library area that gives you access to all
current technical literature 24 hours a day, 7 days a week!
ENTER
CURSOR
PASSWORD
0000
CURSOR
8 ACCEL RATE
30.0 SEC
ENTER
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: [email protected]

Other manuals for MCH Series

2

Other Lenze AC Tech DC Drive manuals

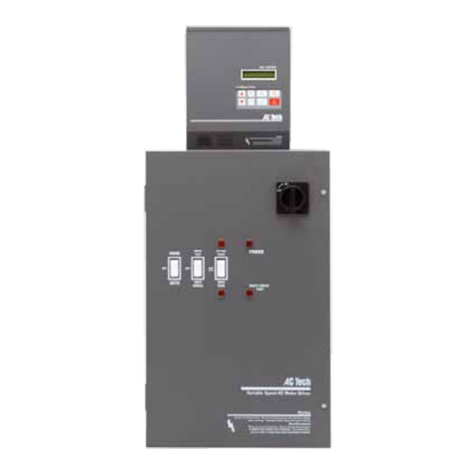

Lenze AC Tech LonWorks MCH Series Use and care manual

Lenze AC Tech

Lenze AC Tech LonWorks MCH Series Use and care manual

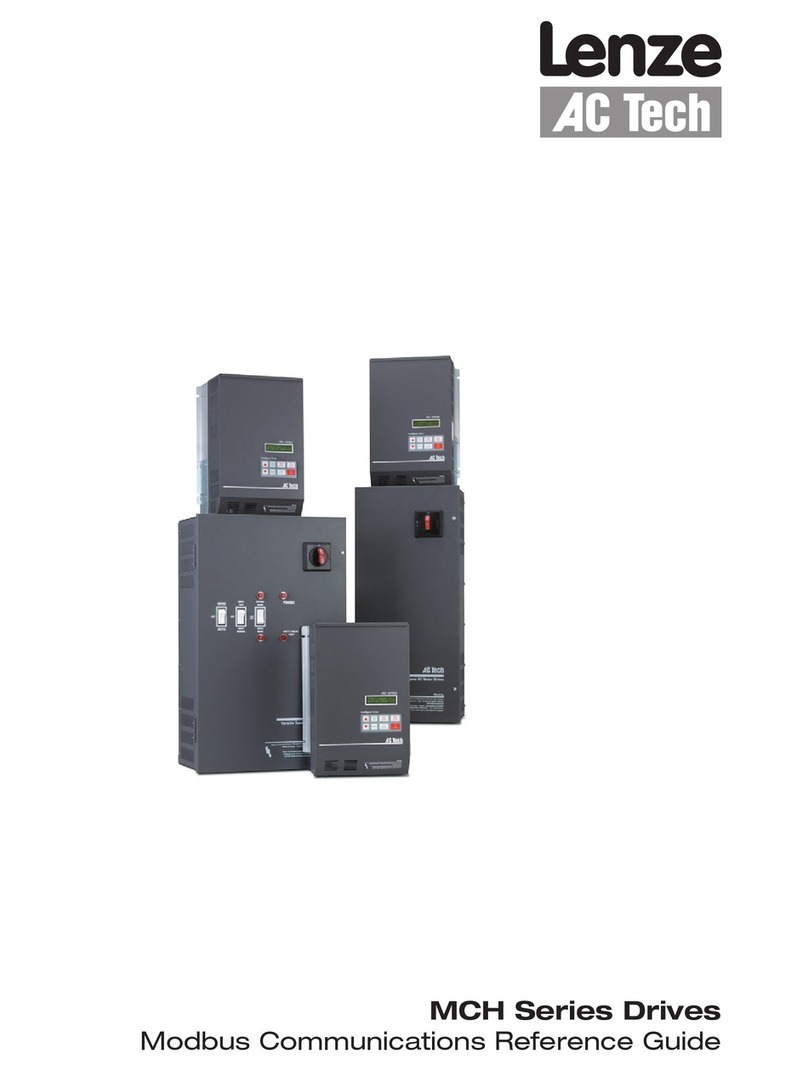

Lenze AC Tech MCH Series User manual

Lenze AC Tech

Lenze AC Tech MCH Series User manual

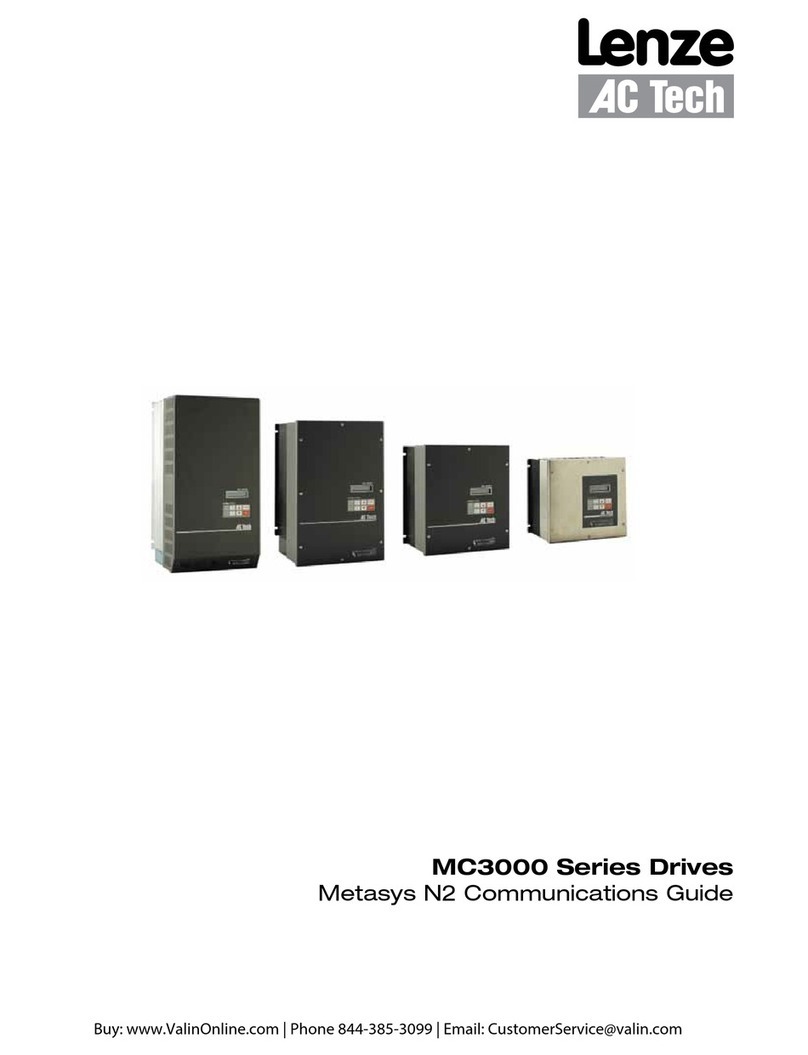

Lenze AC Tech MC3000 Series Use and care manual

Lenze AC Tech

Lenze AC Tech MC3000 Series Use and care manual

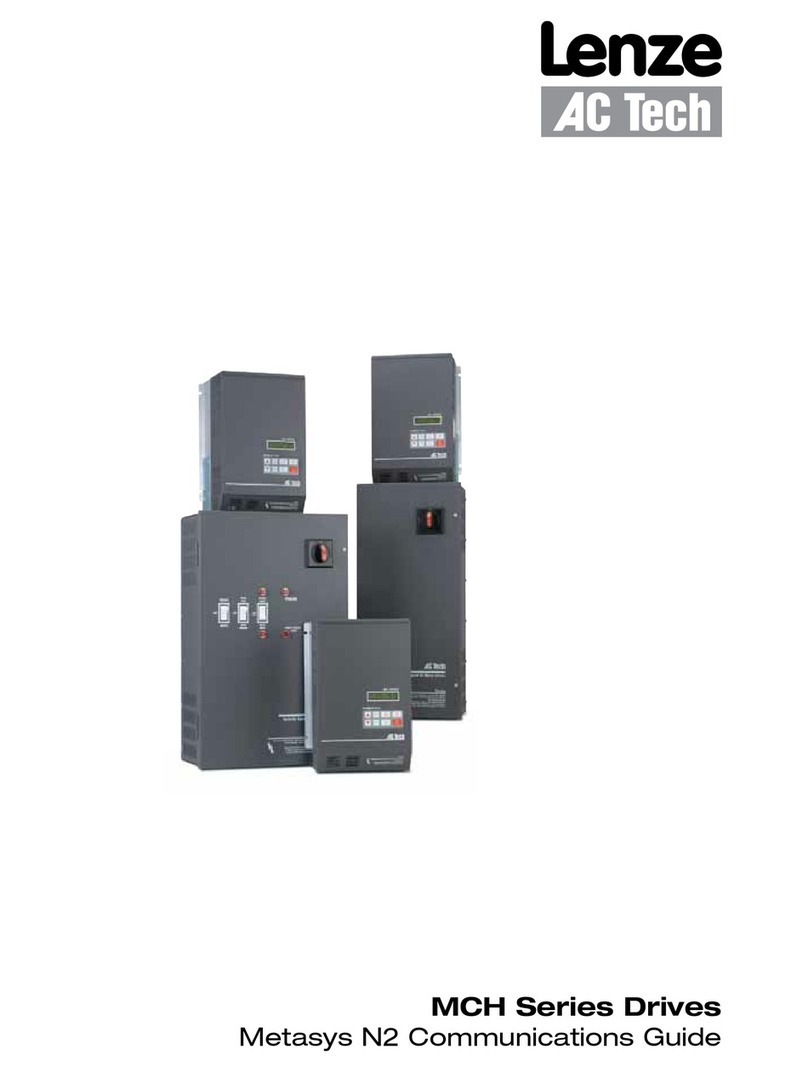

Lenze AC Tech MCH Series User manual

Lenze AC Tech

Lenze AC Tech MCH Series User manual

Popular DC Drive manuals by other brands

Geckodrive G210X manual

Geckodrive

Geckodrive G210X manual

GMTCNT GSTD2860 user guide

GMTCNT

GMTCNT GSTD2860 user guide

Sprint Electric 1600i product manual

Sprint Electric

Sprint Electric 1600i product manual

Danfoss VLT CDS 303 operating instructions

Danfoss

Danfoss VLT CDS 303 operating instructions

Kinco CV20-1S-0002G user manual

Kinco

Kinco CV20-1S-0002G user manual

Minarik XP-AC Series user manual

Minarik

Minarik XP-AC Series user manual

SHS HT7 Series user guide

SHS

SHS HT7 Series user guide

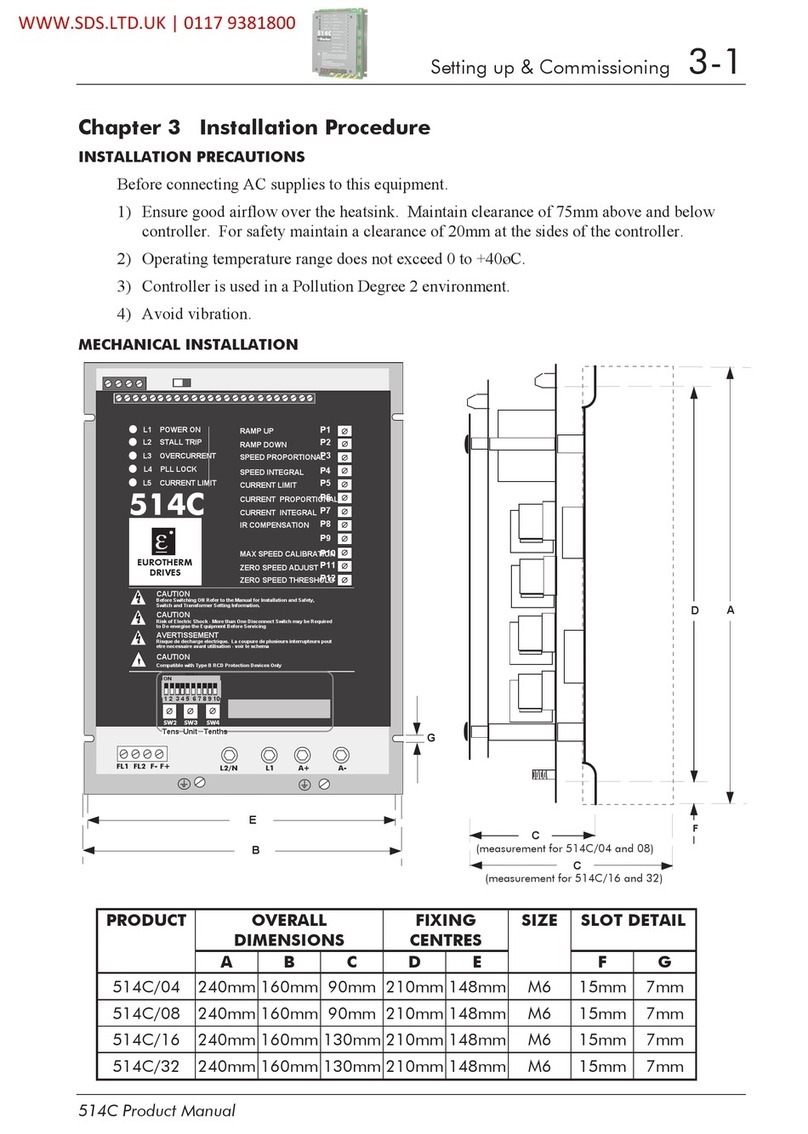

Eurotherm Drives 514C Series Setting up & Commissioning

Eurotherm Drives

Eurotherm Drives 514C Series Setting up & Commissioning

Medion LIFE P89638 instruction manual

Medion

Medion LIFE P89638 instruction manual

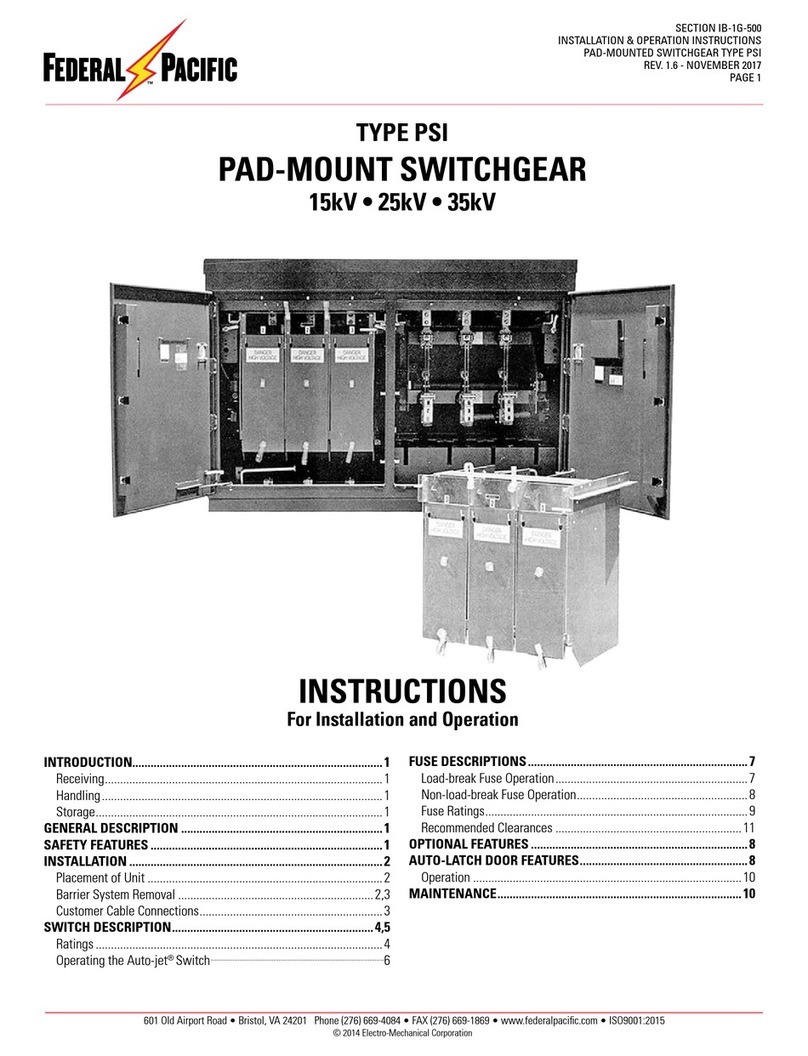

FEDERAL PACIFIC PSI Series General description
