Leonton EG5-1002-10GSFP Series User manual

LEONTON
EG5-1002-10GSFP Series
User Manual

© Copyright 2019 Leonton Technologies Co., Ltd.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or
implied, including but not limited to the implied warranties of merchantability and fitness for a
particular purpose. Leonton Technologies, Co. Ltd. may make improvements and/or changes to the
product and/or specifications of the product described in this manual, without prior notice.
Leonton Technologies, Co. Ltd. will not be liable for any technical inaccuracies or typographical
errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to
change without prior notice.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
Déclaration FCC
Cet équipement a été testé et reconnu conforme aux limites de la classe A pour les équipements
numériques, conformément à la section 15 des Réglementations FCC. Ces limites sont conçues
pour fournir une protection raisonnable contre toutes interférences nuisibles dans un milieu
résidentiel. Cet équipement génère, utilise, et peut émettre de l’énergie de fréquence radio et, s’il
n’est pas installé et utilisé conformément au manuel d’instruction, peut perturber la réception
radio. Cependant, il n’est pas garanti que l’équipement ne produira aucune interférence dans une
installation particulière. Si cet équipement cause des interférences nuisibles à la réception radio ou
télévisée, qui peuvent être déterminées en l’éteignant et le rallumant, l’utilisateur est encouragé à
essayer de remédier au problème en prenant les mesures suivantes:
* Réorienter ou déplacer l’antenne réceptrice.
* Augmenter la distance entre l’équipement et le récepteur.
* Connecter l’équipement à une prise secteur sur un circuit différent de celui utilisé par le
récepteur.
* Consulter le négociant ou un technicien radio/TV expérimenté.
Caution: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
ATTETNION: Tout changement ou modification non expressément approuvé par le concessionnaire
de cet appareil pourrait annuler l'autorité de l'utilisateur à utiliser l'équipement.

CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
CE Mark AVERTISSEMENT
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en
présence d'interférences radio.
This document is the current official release manual. Please check our website (www.leonton.com)
for any updated manual or contact us by e-mail (s[email protected]).

Contents
Overview..............................................................................................................................................................1
Key Features....................................................................................................................................................1
Package Contents............................................................................................................................................2
Safety Precaution.............................................................................................................................................2
Hardware Description..........................................................................................................................................3
Physical Dimensions........................................................................................................................................3
Front Panel.......................................................................................................................................................4
Top View ..........................................................................................................................................................4
LED Indicators..................................................................................................................................................5
Ethernet Ports ..................................................................................................................................................6
Cabling.............................................................................................................................................................7
Wiring the Power Inputs...................................................................................................................................9
Wiring the Fault Alarm Contact........................................................................................................................9
Grounding Note..............................................................................................................................................10
Mounting Installation..........................................................................................................................................11
DIN-Rail Mounting..........................................................................................................................................11
Wall Mounting ................................................................................................................................................13
Hardware Installation.........................................................................................................................................15
Installation Steps............................................................................................................................................15
Trouble Shooting ...............................................................................................................................................16

1
Overview
This series is rated compact size IP30 and installation by DIN Rail. Each unit of this industrial
gigabit managed Ethernet switch series has 8*10/100/1000Tx with 8*IEEE 802.3at compliant
ports (30W/port), suitable for applications that require high bandwidth communication.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This
also allows it to function in harsh environments, as well as support power redundancy with a dual
power input design with reverse polarity protection.
Key Features
Interface & Performance
All Copper ports support auto MDI/MDI-X function
EG5-1002-10GSFP - Embedded 8*10/100/1000Tx (PSE 30W/port) + 2*1G/10GbE SFP
Store-and-forward switching architecture
16K MAC Address Table
Supports 9.6Kbytes Jumbo Frame
8Mbits memory buffer
Power Input
EG5-1002-10GSFP: Dual 12-48VDC redundant power inputs
1 removable 6-contact terminal block
Max. current 10A
Certification
CE/FCC
UL 61010-1
UL 61010-2-201
Operating Temperature
Standard operating temperature model: -40°C ~ 60°C
Case/Installation
IP30 protection
Installation in pollution degree to environment
DIN-Rail and Wall mount design

2
Package Contents
1. EG5-1002-10GSFP x 1
2. Wall mounting brackets and screws kit x 1
3. RJ45 to DB9 Serial Console cable x 1
4. Quick installation guide x 1
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware
specs, ports, cabling information, and wiring installation will be described within this user manual.
ATTETNION
Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur
l'entrée d'alimentation. Fourniture par courant industriel homologué UL. Les spécifications
matérielles, les ports, les informations de câblage et l'installation du câblage du convertisseur de
média industriel seront décrits dans ce manuel d'utilisation.

3
Hardware Description
Physical Dimensions

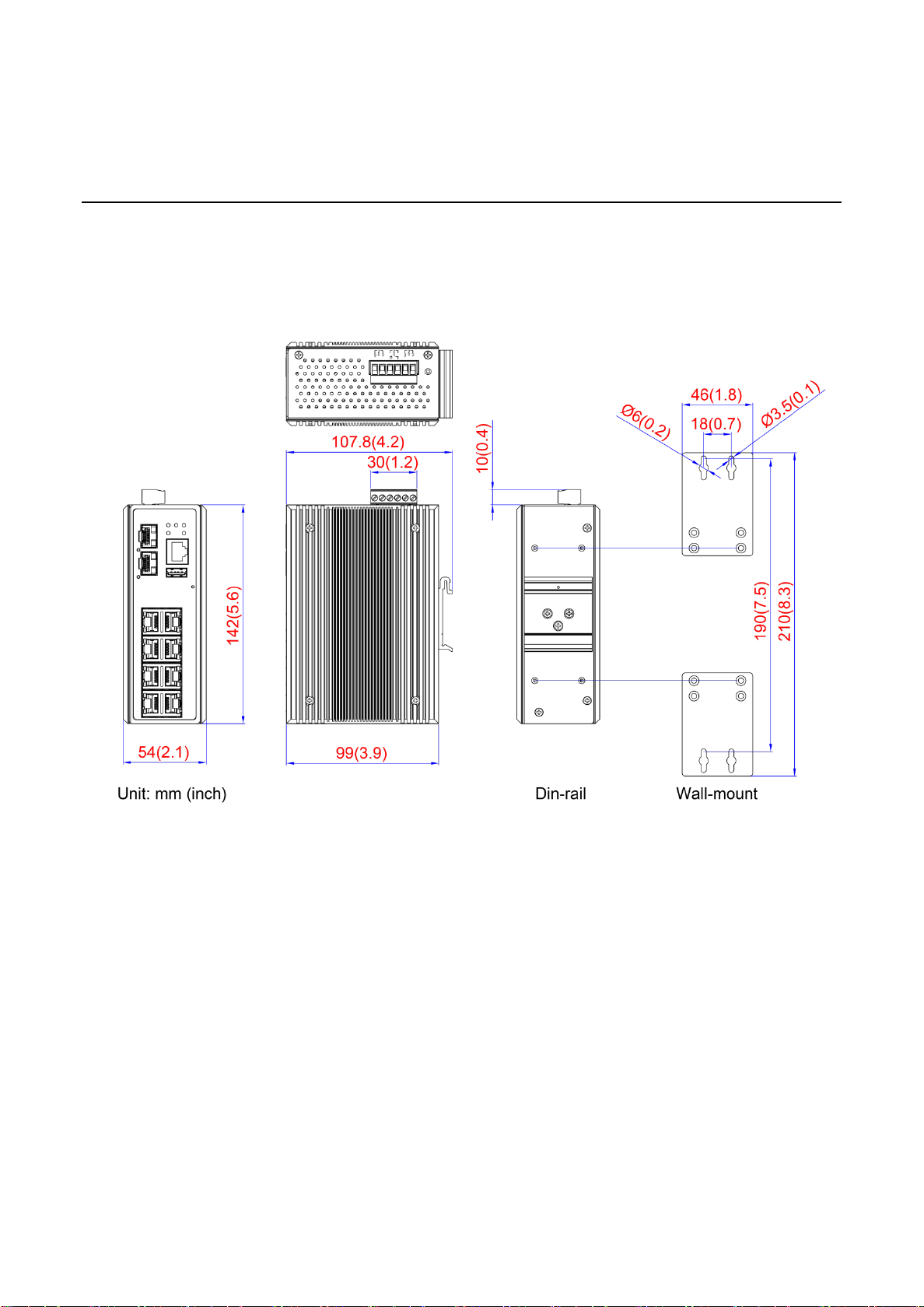

Figure 2.1, below, shows the physical dimensions.
54mm (W) x 142mm (H) x 99mm (D)
Figure 2.1: Physical Dimensions

4
Front Panel
The front panel of the EG5-1002-10GSFP series industrial gigabit managed Ethernet switch is
shown below in Figure 2.2.
Figure 2.2: The Front Panel
Top View
Figure 2.3, below, shows the top panel of the EG5-1002-10GSFP series switches that is equipped
with one 6-pin removal terminal block connector for dual DC power inputs (12-48VDC).
Figure 2.3: Top Panel View

5
LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
STATUS
Green
On
No configured event happens
Red
Off
1. System booting
2. Configured event happens
MASTER
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
RING
Green
On
ERPS Ring Network is active and works well
Flashing
ERPS Ring works abnormally or misconfigure
Off
ERPS Ring Network is not active
1G
(LAN Port 1-8)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
10/100
(LAN Port 1-8)
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
L/A
(SFP Port 9-10)
Green
On
Connected to network, 10Gbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Table 2.1: LED Indictors

6
Ethernet Ports
RJ-45 Ports (Auto MDI/MDIX)
The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T devices connections. Auto MDI/MDIX means that the
switch can connect to another switch or workstation without
changing the straight-through or crossover cabling. See the figures
as below for straight-through and crossover cabling schematics.
10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.2)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2
1000BASE-T RJ-45 Pin Assignments (Table 2.3)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

7
Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100
meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP) that complies with IEC 60825-1
and classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique (SFP) conforme à la norme
CEI 60825-1 et classé comme produit laser de classe 1.

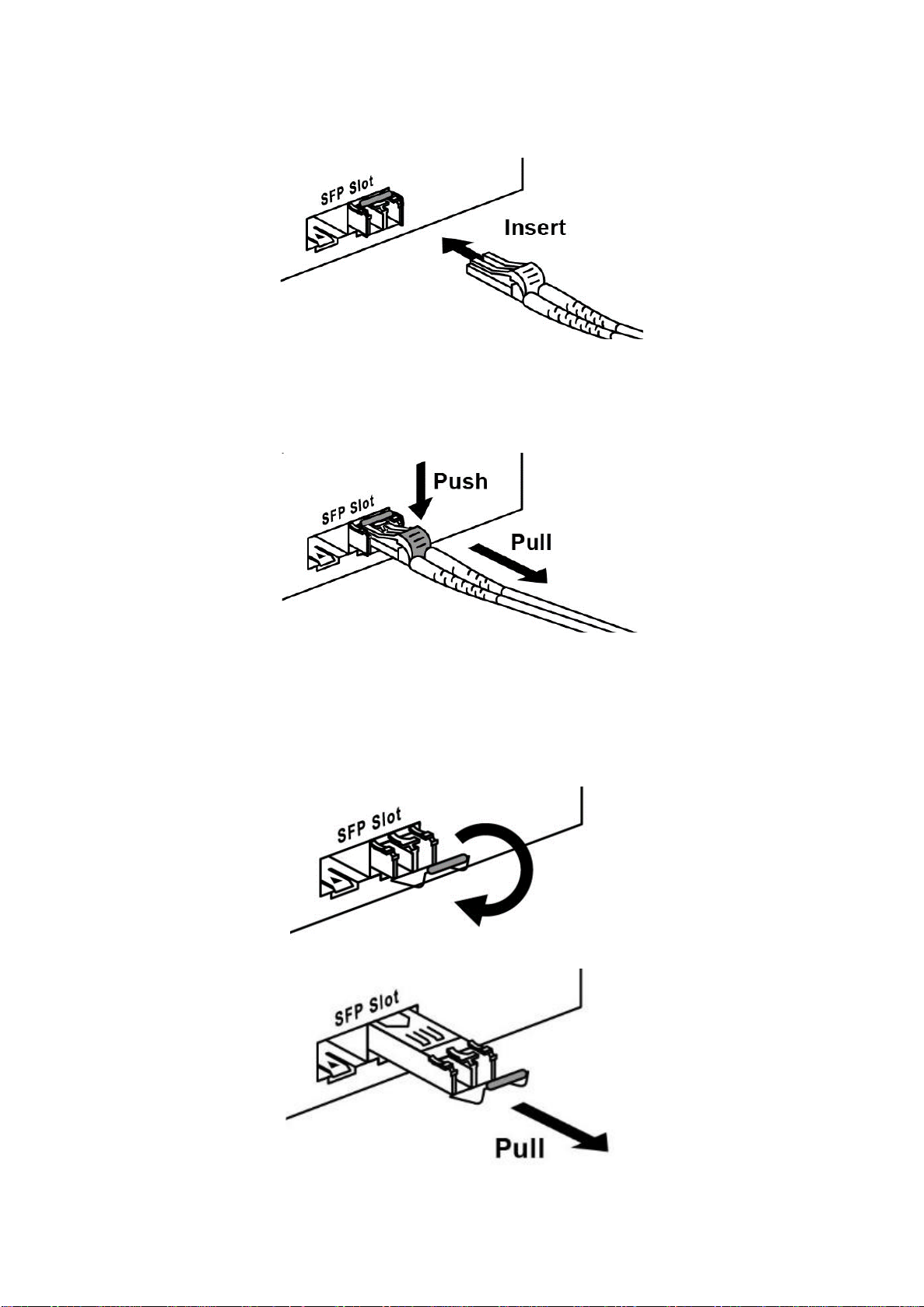

To connect the transceiver and LC cable, please follow below steps:
Step 1 Insert the SFP transceiver module into the SFP slot as shown below in Figure 2.4. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.5 shows SFP transceiver
module was inserted.
Figure 2.4: Transceiver to the SFP Module
Figure 2.5: Transceiver Inserted

8
Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure
2.6.
Figure 2.6: LC Connector to the Transceiver
To remove the LC connector from the transceiver, please follow the steps shown below:
Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release
as shown below in Figure 2.7
Figure 2.7: Remove LC Connector
Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown
below in Figure 2.8
Figure 2.8: Pull Out from the SFP Slot

9
Wiring the Power Inputs
Caution: Please follow the below steps to insert the power wire.
Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation.
Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.9.
Figure 2.9: Power Terminal Block
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in
Figure 2.10.
Figure 2.10: Power Terminal Block
Caution: Only use copper conductors, 125°C, tighten to 5 in-lbs (0.56 Nm). The wire gauge
for the terminal block should range between 18~20 AWG.
Attention: Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 in-lbs (0.56
Nm). Le calibre du bornier doit être compris entre 18 et 20 AWG.

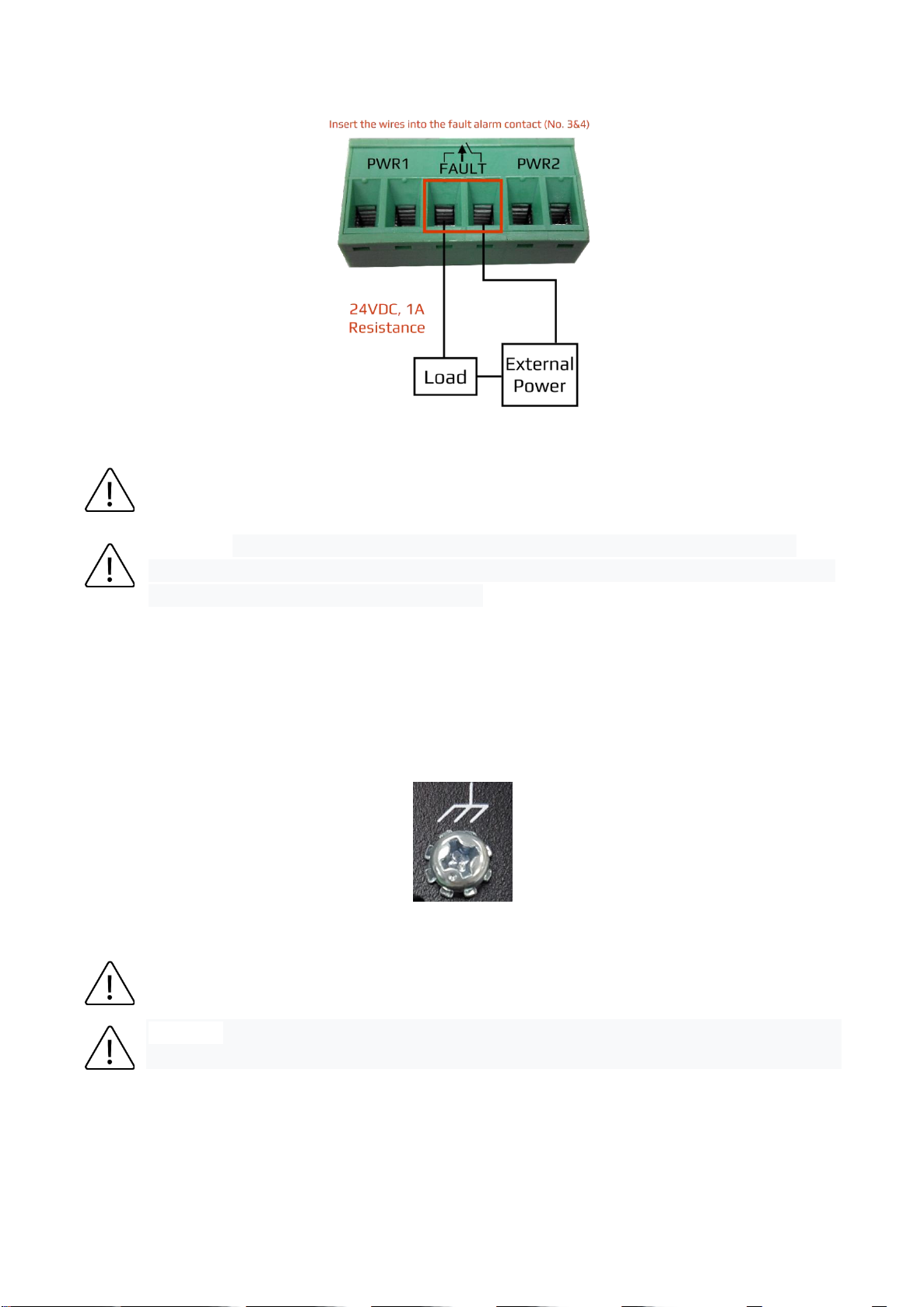

Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows
below in Figure 2.11. By inserting the wires, it will detect the fault status including power
failure or port link failure (managed industrial switch only) and form a normally open circuit.
An application example for the fault alarm contact is shown below in Figure 2.11.

10
Figure 2.11: Wiring the Fault Alarm Contact
Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate
power fault alarm.
Attention: Le calibre des fils du bornier doit être compris entre 12 et 24 AWG. Si vous
n'utilisez qu'une seule source d'alimentation, jumelez les broches 1 à 5 et les broches 2 à 6
pour éliminer l'alarme de panne de courant.
Grounding Note
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to
connecting devices. The grounding screw symbol is shown blow in Figure 2.12.
Figure 2.12: Grounding screw
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité
électromagnétique.

11
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket
Follow the steps below to learn how to hang the industrial Ethernet switch.
Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet
switch.
Step 2. To remove the DIN-Rail bracket, do the opposite from Step 1.
Step 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the
DIN-Rail on to the track as shown below in Figure 3.2.

12
Figure 3.2: Insert the Switch on the DIN-Rail
Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
Figure 3.3: Stable the Switch on DIN-Rail
Step 5. Check if the bracket is mounted tightly on the rail.
Step 6. To remove the industrial Ethernet switch from the rail, do the opposite from the above
steps.

13
Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket
as shown below in Figure 3.4.
Step 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
Step 3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Step 4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial
Ethernet switch on the wall.
Step 5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4: Remove DIN-Rail Bracket from the Switch and Install the Wall Mount Bracket

14
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5: Wall Mounting Bracket Dimensions

15
Hardware Installation
Installation Steps
This section will explain how to install EG5-1002-10GSFP series.
Installation Steps
Step 1. Unpack the industrial Ethernet switch from the original packing box.
Step 2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the DIN-Rail
Mounting section for DIN-Rail installation.
If you want to wall mount the industrial Ethernet switch, please refer to the Wall Mounting
section for wall mounting installation.
Step 3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
Step 4. Power on the industrial Ethernet switch and then the power LED light will turn on.
If you need help on how to wire power, please refer to the Wiring the Power Inputs section.
Please refer to the LED Indicators section for LED light indication.
Step 5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
Step 6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into
the networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45)
LED on the industrial Ethernet switch will turn on when the cable is connected to the
networking device.
Please refer to the LED Indicators section for LED light indication.
Step 7. When all connections are set and the LED lights all show normal, the installation is
complete.
