Lesco Premium Series User manual

For Help, Informaon or Parts, Call 1.800.347.4272
Lesco, Inc.
1301 East 9th Street, Ste 1300
Cleveland, OH 44114
www.Lesco.com
CAUTION: Read and follow all instrucons
Manual No. 184319
Rev A : 11/25/2019
ECN19-149
5 1/2” X 8 1/2” Booklet
Use and Care Manual

Page 2
If you experience problems or have questions contact our toll free Customer Service
Center, Monday - Friday | 8:00 AM - 5:00 PM EST at 1.800.347.4272 or access online at:
www.Lesco.com.
SAFETY PRECAUTIONS
• Read owner’s manual completely before operating this sprayer.
• Always use goggles, gloves, and protective clothing when using sprayer.
• Read and follow all instructions and cautions on label of products used in this sprayer.
• Never use ammable liquids, caustics, acids, or hot water in this tank.
• Do not leave sprayer in the sun when not in use.
• Spray when air is calm to prevent drift of chemicals.
• Do not use sprayer near open ame or anything that could cause ignition of the spray.
• Always inspect hose and all hose connections before each use. A damaged hose, or loose hose
connection can result in unintended exposure to the pressurized chemical, resulting in serious injury or
property damage.
• Do not lift or carry sprayer by the hose, shut-o valve, or extension. Carry by pump handle only,
making sure handle is properly locked in place before lifting.
• Do not pressurize with any mechanical device such as an air compressor, since this can create a
dangerous pressure level and bursting of parts resulting in serious injury. Only use original pump.
• Do not store chemicals in this tank.
• Always release pressure when sprayer is not in use and before removing pump from tank.
• Do not stand with face or body over top of tank when pumping or loosening pump, to prevent pump or
solution from striking you, resulting in serious injury.
• Clean and rinse sprayer thoroughly after each use.
• Never attempt to alter sprayer from original condition.
• Always use replacement parts from original manufacturer.
• Keep the sprayer and all chemicals out of the reach of children.
WARNING
The sprayer is operated with liquid under pressure. Failure to observe caution and to follow instructions
for operating and cleaning can cause tank, hose and other parts to be weakened and rupture under
pressure. This can result in serious injury from high pressure discharge of liquids or forcible ejection
of parts. Do not use ammable materials in this sprayer. Material could ignite or explode, causing seri-
ous injury and/or possible death. For safe use of this product, you must read and follow all instructions
before use.
TEST SPRAYER WITH WATER BEFORE USING ANY CHEMICALS.
CAUTION
Always empty, clean and dry tank, pump system, shut-o, hose, and extension after each use. FAIL-
URE TO DO SO MAY WEAKEN SPRAYER COMPONENTS, CAUSING COMPONENTS TO RUPTURE WHEN
PRESSURIZED. Additionally, FAILURE TO CLEAN AND PROPERLY MAINTAIN YOUR SPRAYER WILL VOID
MANUFACTURER’S WARRANTY.
WARNING
ALWAYS CLEAN THE SPRAYER AND SHUT-OFF THOROUGHLY AFTER EACH USE
OR WHEN CHANGING APPLICATIONS AS DESCRIBED IN THE CLEANING SECTION.
FAILURE TO COMPLETELY CLEAN MAY CAUSE CROSS-CONTAMINATION.

Page 3

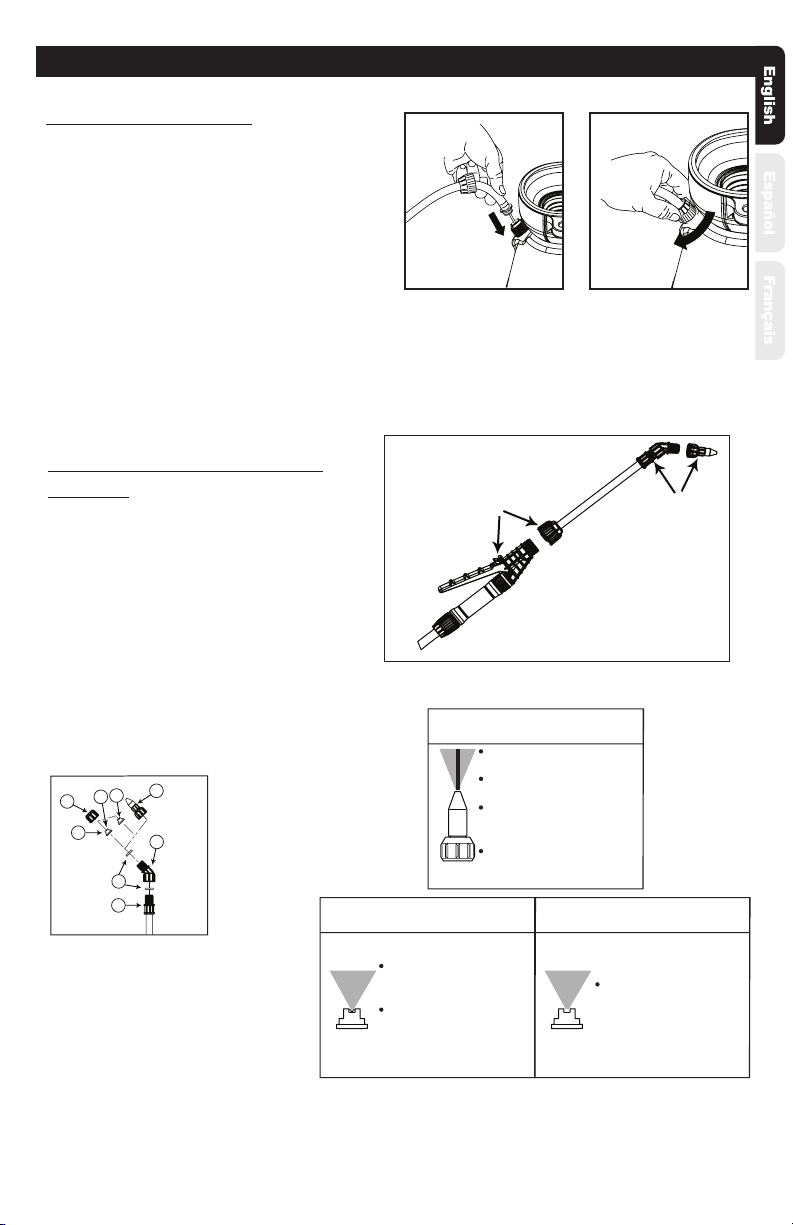

ASSEMBLE EXTENSION, SHUT-OFF
& NOZZLE
1. Install the extension onto the shut-o
assembly and tighten the nut securely.
(See Figure C)
2. Install selected nozzle onto the end of the
extension and tighten securely. (See Figure D)
ASSEMBLY INSTRUCTIONS
ASSEMBLE HOSE TO TANK
IMPORTANT: do not attempt to heat or alter hose,
hose nut, or barb prior to assembly.
1. Align hose barb tabs, push hose barb into tank
until it stops (See Figure A).
2. Slide hose nut into place and turn clockwise to
tighten. (See Figure B).
NOTE: Do not use tools to tighten hose nut.
SELECT NOZZLE FROM CHART BELOW
A. Cap Nut
B. Adjustable Cone Nozzle
C. Red High-Volume Fan Nozzle
D. Yellow Low-Volume Fan Nozzle
E. Flat Seal
F. Adapter
G. Extension
B
A
F
C
E
G
D
Figure A Figure B
Spot spraying in or around
ower beds, trees and shrubs.
Edging along fences, driveways,
and walkways.
Killing brush such as poison
ivy, poison oak, kudzu and wild
blackberry.
Preparing garden beds fo
planng of ornamentals and
vegetables.
Lawn replacement. Kill lawn
and weeds before planng a
new lawn.
Preparing large areas for
planng of ornamental and
vegetable gardens.
For precision spraying in
conned areas such as
gardens and ower beds.
ADJUSTABLE CONE USES:
RED HIGH VOLUME FAN
NOZZLE USES:
YELLOW LOW VOLUME
FAN NOZZLE USES:
Figure D
Figure C
C

Page 4
OPERATING INSTRUCTIONS

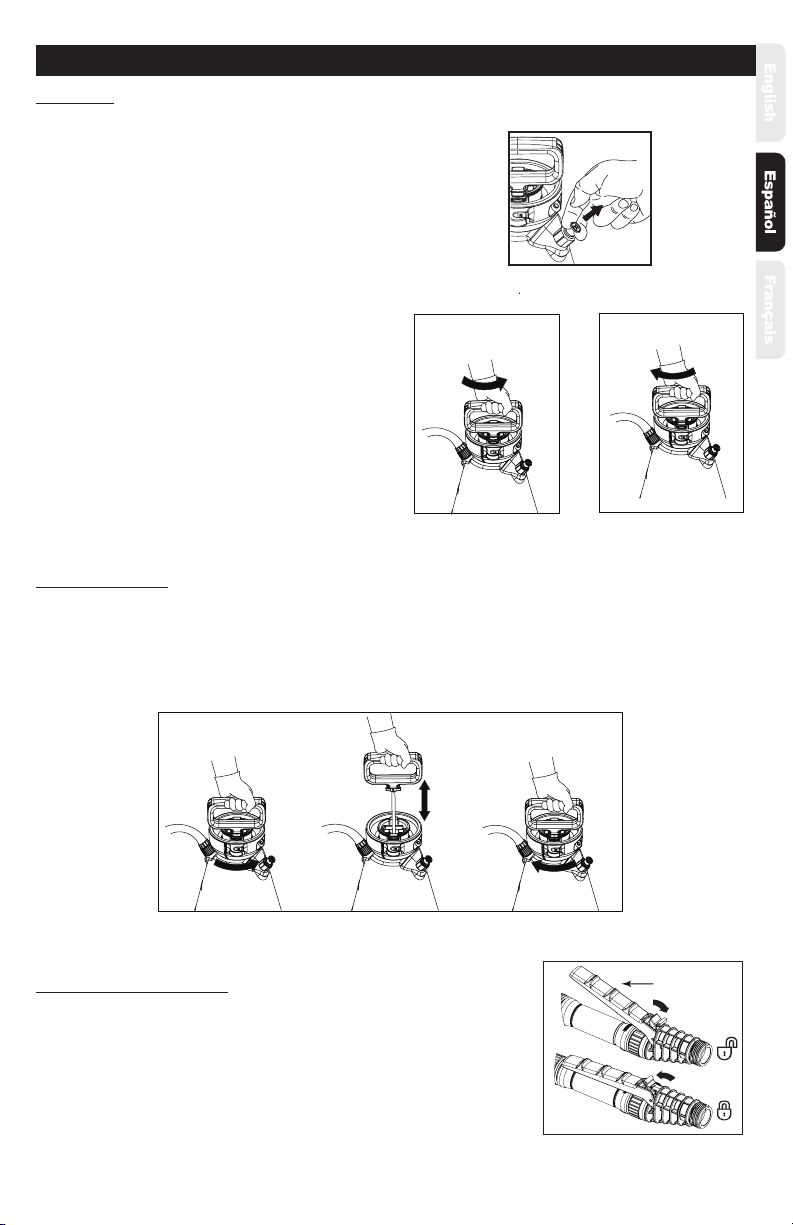

FILLING
IMPORTANT: Always make sure the pressure is
released from the tank before lling or servicing.
1. Pull up on the knob of the pressure release
valve until all the pressure is released from the
tank. (See Figure E.)
2. Turn the pump handle counterclockwise to remove
the pump (See Figure F).
3. Fill the tank to the desired level. See ll markings
on side of tank. (Always refer to chemical
manufacturer for proper mixture).
4. Install the pump into the tank opening and turn
clockwise until tightly sealed against the tank
(See Figure G).
PRESSURIZING
1. Make sure shut-o lock is not engaged. (If shut-o lock is engaged while pressurizing, the unit
will immediately start spraying).
2. Push down on the handle and turn counterclockwise to unlock the handle (See Figure H-1H).
3. Pressurize the sprayer by pumping the handle in a smooth up and down motion (See Figure H-2H).
4. Push down on the handle and turn clockwise to lock the handle into the pump (See Figure H-3H).
SPRAYING AND LOCKING
1. Direct nozzle away from you and squeeze shut-o
lever to begin spraying.
2. For continuous spraying, squeeze lever and rotate
lock (See Figure J).
3. Unlock if needed and release shut-o lever to stop
spraying.
4. Turn the nozzle tip to adjust the spray pattern.
Figure J
LEVER
Figure H
Figure E
Figure G
Figure F
1H 2H 3H

PUMP DISASSEMBLY & REASSEMBLY
NOTE: Remove pump from tank prior to disassembly.
CLEANING
1. Remove the pump as described in the Finish section.
2. Fill the tank with cool, clean tap water. Replace the pump and tighten securely.
3. Agitate the tank to rinse the chemical from the tank wall and pump.
4. Remove the pump and empty the contents into gravel or bare soil.
5. Rell the tank with cool, clean tap water.
6. Make sure the pump is free of dirt or debris and reinstall into the tank. Tighten securely.
7. Pressurize the tank as described in the Pressurizing section.
8. Direct the nozzle away from you and activate the shut-o for at least 30 seconds to clean the
hose and shut-o.
9. Release pressure as described in the Release Tank Pressure section.
10. Remove the pump and empty the contents into gravel or bare soil.
11. Repeat steps 5 – 10 until thoroughly cleaned.
FINISH
1. Depressurize the tank as described in Release Tank Pressure section.
2. Turn the pump handle counterclockwise to remove the pump.
3. Empty any remaining liquid according to the product disposal directions.
4. Follow the Cleaning instructions.
OPERATING INSTRUCTIONS CONTINUED
SPRAYER STORAGE
1. Sprayer tank should be hung upside down, with the pump removed.
2. Do not store or leave any solution in the tank after use.
3. Store in a warm, dry location out of direct sunlight.
4. Keep the sprayer and all chemicals out of the reach of children.

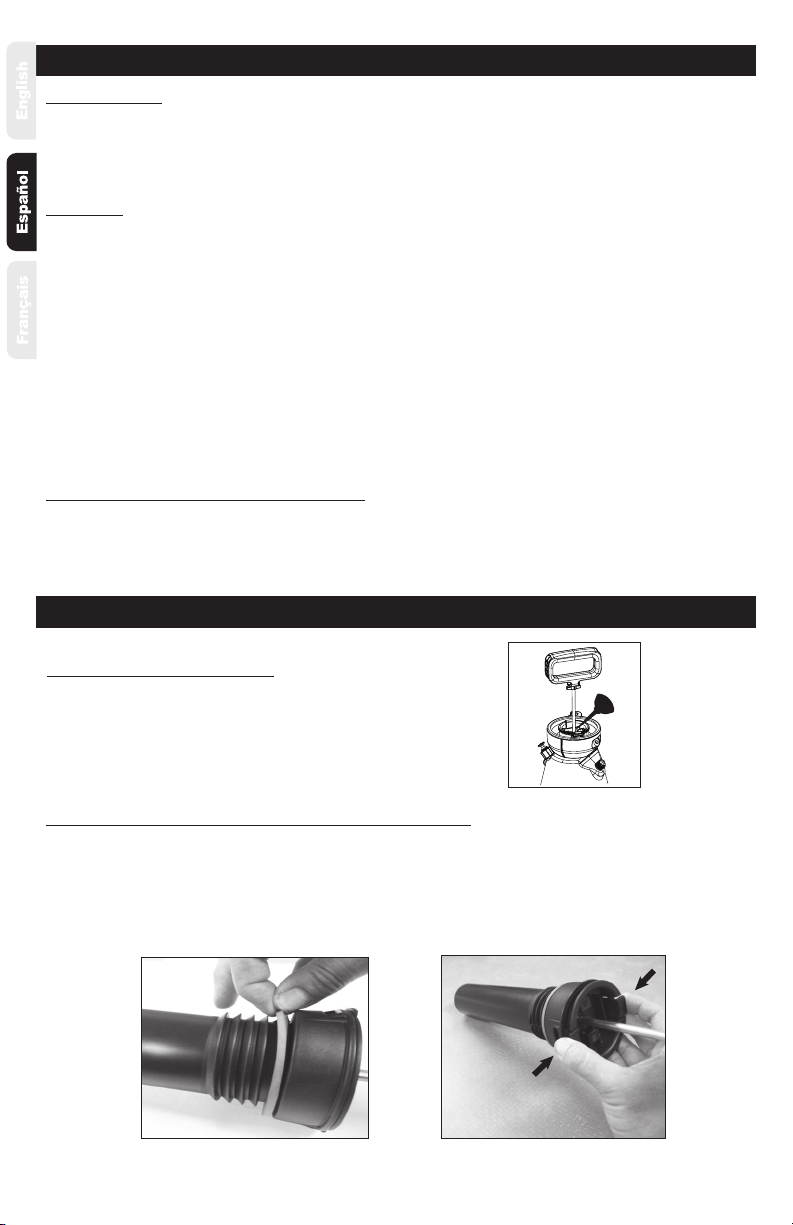

PUMP LUBRICATION
Pump should be periodically oiled by applying 10 to
12 drops of light oil down the pump rod through the
opening in the pump cap as shown.
MAINTENANCE
1. Inspect gasket. If worn or damaged, remove and replace. (See Figure 1)
2. To remove pump cap from pump barrel, squeeze the tabs on the cap and pull away from barrel.
(See Figure 2)
Figure 2Figure 1
Page 5

Page 6

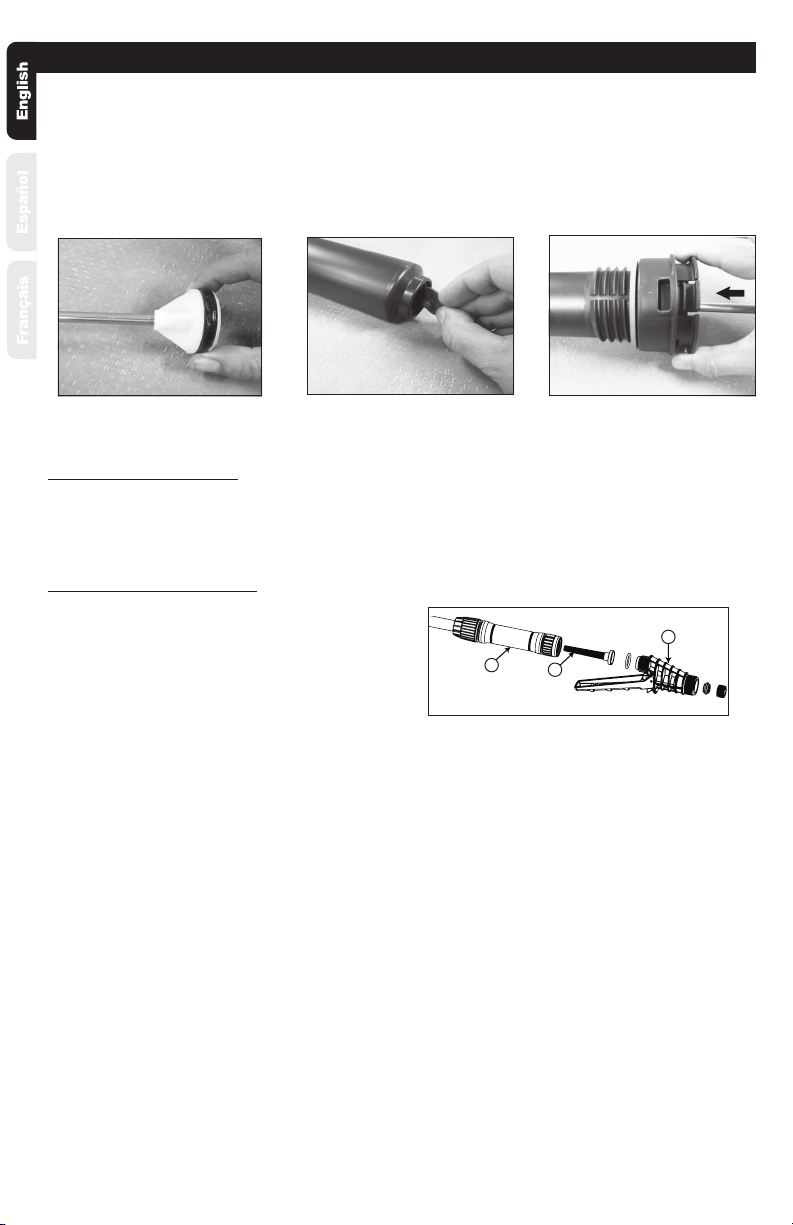

NOZZLE MAINTENANCE
1. If nozzle clogs, remove and disassemble the nozzle assembly.
2. Clean the openings of any obstructions and reassemble.
SHUT-OFF MAINTENANCE
Always depressurize sprayer before maintenance.
1. Unscrew the handle from the shut-o assembly.
2. Remove the lter from the shut-o assembly.
3. Clean any debris from inside the handle,
shut-o assembly, or the lter by rinsing with
cool, clean water.
4. Reassemble the components as shown and
tighten all connections securely.
A. Handle
B. Filter
C. Shut-o Assembly
MAINTENANCE CONTINUED
3. Inspect o-ring. If worn or damaged, remove and replace. Lubricate o-ring with petroleum jelly.
(See Figure 3)
4. Inspect check valve in bottom of barrel. If worn or damaged, remove and replace by pressing into
hole in bottom of barrel. (See Figure 4)
5. Insert the pump handle assembly into the barrel. Align the tabs of the pump cap with the rectangle
cutouts on the barrel. Push cap into place until the cap snaps securely into position. (See Figure 5)
Figure 3 Figure 4 Figure 5
AB
C

Page 7
TROUBLE LOOK FOR REMEDY
Sprayer starts to spray when
pumping or sprayer will not
stop spraying when shut-o
lever is released.
Shut-o lock is engaged.
Squeeze shut-o lever and rotate the
lock towards the nozzle as described in
Spraying and Locking section.
Sprayer leaks at pump or spray-
er does not build pressure.
1. Dirt or debris on pump gasket
or closure.
2. Chipped, torn, swollen, or
defective pump gasket
3. Check valve at bottom of pump
assembly.
4. Worn or damaged o-ring on
piston.
1. Clean dirt or debris from gasket
or closure.
2. Remove old gasket and replace with
new as described in Pump
Disassembly & Reassembly section.
3. Replace if missing or damaged as
described in Pump Disassembly &
Reassembly section.
4. Replace if worn or damaged as
described in Pump Disassembly &
Reassembly section.
Sprayer material overows
through pump barrel or pump
handle rises when handle
is unlocked.
1. Dirt or debris under check
valve on pump.
2. Chipped, torn, or swollen
pump check valve.
1. Clean check valve and valve sealing
surface on pump.
2. Replace check valve as
described in Pump Disassembly &
Reassembly section.
Hose leaks at tank or shut-o. 1. Loose hose.
2. Cracked, swollen, or faulty hose.
1. Tighten hose nut.
2. Replace shut-o assembly.
Sprayer is dicult to pump. 1. Damaged piston o-ring.
2. Piston o-ring is dry.
1. Replace piston o-ring as described in
Pump Disassembly & Reassembly
section.
2. Lubricate piston o-ring as described
in Pump Disassembly & Reassembly
section.
Sprayer tank leaks. Evidence of spray material
escaping from the tank. Replace entire sprayer.
Nozzle drips when shut-o
lever is released.
1. Dirt or debris in shut-o valve.
2. Damaged o-ring or seal in
shut-o (Kit #7).
1. Clean shut-o as described in
Shut-o Maintenance section.
2. Service shut-o seals as described in
Maintenance service Kit #7.
Nozzle tip leaks, poor spray
pattern, partial spray or com-
plete stoppage.
1. Flat seal is missing or
damaged.
2. Spray extension or nozzle
clogged.
1. Replace at seal at extension tip
(Kit #7).
2. Remove nozzle and clean as
described in Nozzle Maintenance
section.
TROUBLESHOOTING

Page 8

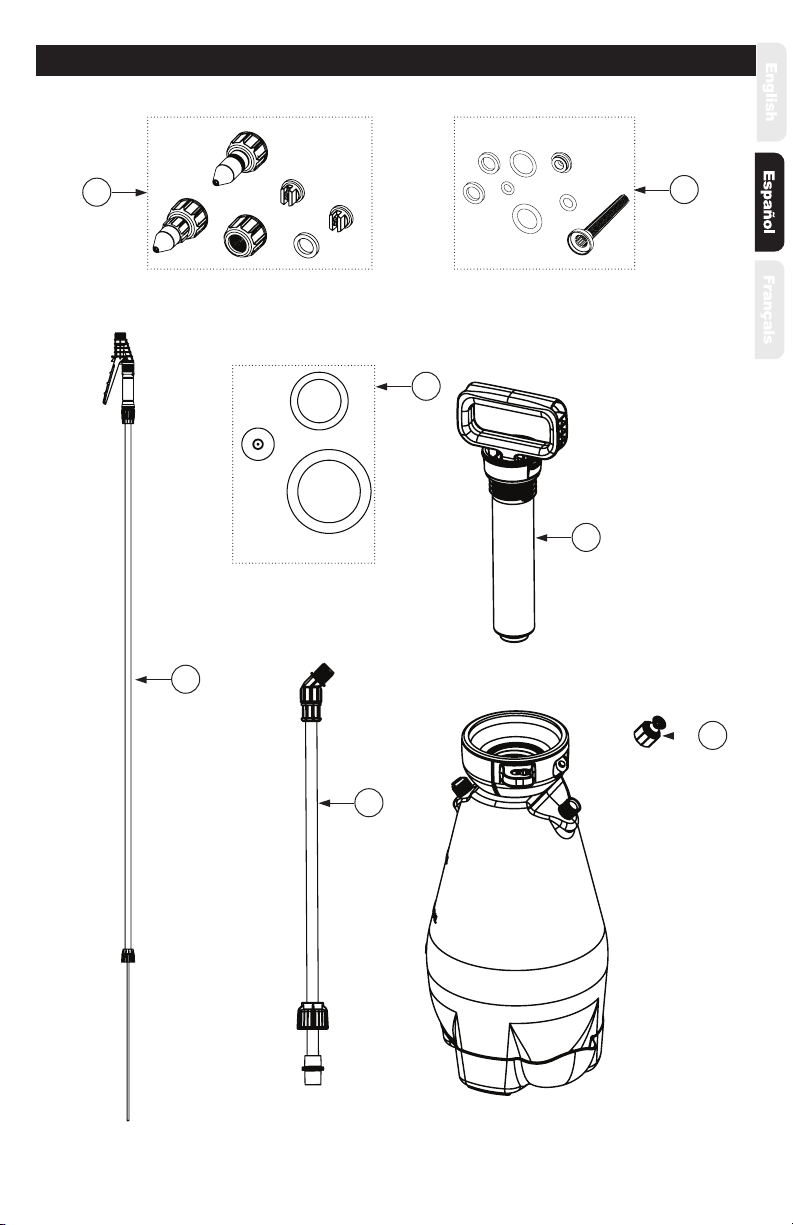

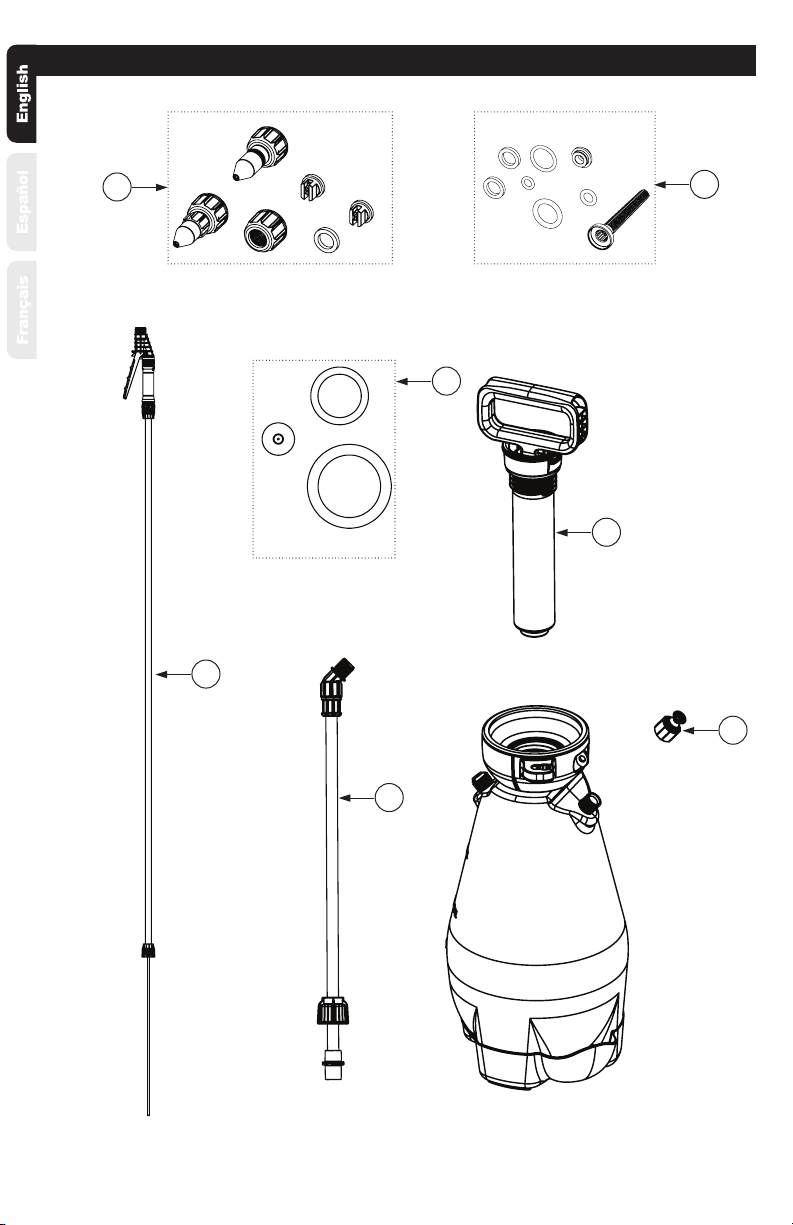

KITS, PARTS & ACCESSORIES
67
3
2
1
4
5

Page 9
SERVICE KITS, PARTS & ACCESSORIES ARE AVAILABLE BY CONTACTING
Lesco, Inc.
Monday - Friday | 8:00 AM - 5:00 PM EST
Toll Free: 1.800.347.4272
Access online at: www.Lesco.com
KEY# PART# DESCRIPTION
1 180836 PRV ASSEMBLY
2 182259 PUMP
3 184524 PUMP SERVICE KIT
INCLUDES PISTON O-RING
PUMP GASKET
CHECK VALVE | VITON
4 183173 SHUT-OFF ASSEMBLY | 2 GAL
5 182112 21”EXTENSION ASSEMBLY | STAINLESS STEEL
6 181910 SHUT-OFF SERVICE KIT
INCLUDES VALVE BODY O-RING
POPPET SEAL
BARB O-RING
FILTER
FLAT NOZZLE SEAL (2)
WAND O-RING
ADJUSTABLE NOZZLE O-RING
7 184318 ADJUSTABLE NOZZLE KIT
INCLUDES BRASS ADJUSTABLE NOZZLE
POLY ADJUSTABLE NOZZLE
YELLOW FLAT FAN NOZZLE (LOW VOLUME)
RED FLAT FAN NOZZLE (HIGH VOLUME)
FLAT NOZZLE SEAL
NOZZLE CAP NUT
KITS, PARTS & ACCESSORIES

Manual No. 184319
Rev A: 11/25/2019
ECN19-149
5 1/2” X 8 1/2” Booklet
Manual de uso y cuidado
Para obtener ayuda, información o piezas, llame al: 1.800.347.4272
Lesco, Inc.
1301 East 9th Street, Ste 1300
Cleveland, OH 44114
www.Lesco.com
PRECAUCIÓN: Lea y siga todas las instrucciones
