Letro LEGEND II User manual

Important Information:
The Letro Legend II automatic pool cleaner comes ready to connect into a female threaded
1-1/2" dedicated return line. Other connections are possible, but they require additional fittings. For
more information, please contact our Technical Support Department at 1-800-223-1695. Also, if you
have a chlorinator, solar system or other air inducing equipment, please contact our Technical
Support Department before you install the Legend II.
The following are important facts to remember before installing and operating the Legend II.
1. Always disconnect the Legend II from the pool wall when cleaning or back washing the pool
filter.
2. After cleaning or back washing, let the filtration system run for at least five minutes before
reconnecting the Legend II.
3. New plumbing lines should be flushed out before installing the Legend II.
4. The Legend II should not be used to remove plaster dust in new pools.
5. Always remove the Legend II before swimmers enter the pool.
6. Always handle the Legend II with care. Do not let children or pets play with the unit:
it is not a toy.
7. Always pick up the Legend II by theVacuum Tube especially when lifting the unit out of the
water.
8. Unless checking the wheel RPM, do not handle the Legend II while it is operating.
9. Always remove the Legend II from the pool before chemical shock treatments. As a rule, any
pool water that is unsafe for swimming is unsafe for the Legend II.
10. Carefully cut the feed hose following the instructions on Page 7.
By following these simple guidelines, you can help protect against injury and prolong the life of
your Legend II.
Before the Legend II is installed, please take a moment to record the serial number. This number
is located on your warranty card and on the back of the Legend II near the rear jet. You will be asked
this number when you contact our Technical Support Department.
SERIAL #__________________________________
LETRO LEGEND II
LX 2000

Dear Customer:
Letro Products, Inc. warrants the Letro LEGEND II Cleaner for three years and LEGEND II frame for 10
years from the ori inal date of purchase to be free of defects in materials and workmanship, with the
exception of the exclusions listed below.
THIS WARRANTY EXCLUDES AND DOES NOT COVER:
1. Whip hoses and feed hoses (which are warranted free of defects when shipped from Letro Products, Inc.).
2. Any wear item (such as tires, nose wheel, bearin s, ba s, etc.) which are warranted free of defects when
shipped from Letro Products, Inc.
3. Any dama e, accident, injury, loss, failure or malfunction of the equipment, due to: improper operation or
maintenance (as defined in product owner's manual and directions), alteration of equipment (by anyone other
than an authorized representative of Letro Products, Inc.) an act of God, tamperin , unreasonable use,
abuse, misuse, omission, ne li ence, defect, or failure or dama e to related product.
4. Any dama e to parts or injury from: improper installation, pump runnin dry, resultant to pump or parts
due to loss of prime, or plu ed or obstructed lines.
5. Any dama e, malfunction, failure, or chan e of appearance due to chemical reaction.
If a defect in material or workmanship on any item covered by this warranty should occur durin the term
of the warranty, owner may ship the product via prepaid frei ht to the warranty station: Letro Products, Inc.,
1497 Geor e Drive, Reddin , CA 96003. Upon determination of a defect in workmanship or materials, ship
the defective item as soon as possible. Enclose a letter which includes the Letro LEGEND II cleaner
Warranty Number and date of purchase. owner's name and address, and a description of the problem.
Letro Products, Inc., at our option and expertise, will repair and return to Owner all defective Letro
LEGEND II parts which are covered by this warranty. Any parts not covered by this warranty will be returned
to Owner by frei ht collect. Letro Products, Inc. will not be responsible for any extra cost of packin ,
handlin , shippin or transportation, unless required by law.
Letro Products, Inc. is not responsible for any loss of time, in convenience, or any incidental or
consequential expenses (such as telephone calls, labor or material char es), unless required by law.
No Distributor nor dealer nor representative has any authority to make any warranties or representations
(implied or expressed) concernin Letro Products, Inc. or the Letro LEGEND II cleaner, except as contained
herein.
This warranty is valid only in the United States of America and Canada.
To record your three year limited warranty, complete the warranty card and mail it to Letro Products, Inc.,
1497 Geor e Drive, Reddin CA 96003, or. re ister on-line at our Web Site: www.letro.com. This will be your
proof of ori inal purchase, unless you can provide another acceptable form of written proof of purchase.
Unless the warranty card has been received at Letro Products, Inc. Letro Products, Inc. reserves the ri ht to
refuse repair service or to honor any warranty.
was purchased from:____________________________________________________On this date:__________
City:____________________________________State:_________________________Zip Code:____________
Serial/Warranty Number:______________________________________________________________________
Letro LEGEND II
THREE YEAR LIMITED WARRANTY
10 YEAR FRAME WARRANTY

TABLE OF CONTENTS
I. Introduction........................................................................................................................ 5
A. ThankYou for Choosing the Letro Legend II
B. What to Expect from the Legend II.
II. Installation Instructions..................................................................................................... 6
A. Legend II Components..
B. Pool Connections
C. Installing the Twist Lock Pressure Relief Valve (Wall Fitting)...................................... 7
D. Pressure Testing Instructions................................................................................ ..... 7
E. Cutting the Feed Hose............................................................................................... 7
F.Hooking Up the Legend II...........................................................................................8
G. Checking Operation....................................................................................................8
H. Fine Tuning the Legend II............................................................................................9
1. Thrust Jet Adjustment
2. Sweep Hose Adjustment
3. Checking Wheel RMP
III. Operation & Periodic Maintenance........................................................................... ...... 11
A. Connecting/Disconnecting the Legend II
B. Turning the Legend II On/Off
C. Cleaning the Sand & Silt Bag
D. Periodic Maintenance
1. Wall Fitting Screen...............................................................................................12
2. Tires & Bearings
3. Roller Rings
4. Debris Bags
5. Sweep Hose
6. Debris Valve
E. Back washing the Pool Filter..................................................................................... 12
F. Storage and Winterizing............................................................................................13
G. Accessories...............................................................................................................13
1. Sweep Hose Weight............................................................................................ 14
2. Leaf Bag.............................................................................................................. 15
3. Step Adapter................................................................................................. 5 & 15
IV.Troubleshooting....................................................................................................... 14 - 16
Legend Parts List.................................................................................................... 17 - 19

B. What to Expect form the Legend II
When operating correctly, the Legend II will
travel randomly throughout the pool,
vacuuming and sweeping the bottom. The
climbing ability of the Legend II is
dependent on the pools shape. It will climb
better in pools without sharp angles or
curves in the transition from the pool floor to
the pool wall.
The Legend II comes equipped with a Wall
Fitting (Part#LXW22) that features a Twist
Lock Automatic Pressure Relief Valve. If the
Legend II is receiving too much water
pressure to the unit, the relief valve will
automatically reduce water pressure.
Approximately every three minutes and 30
seconds the Legend II will go into a back up
mode. At this time the Back Up Valve will
pull the Legend II away from problem areas.
Occasionally some vinyl pools have steps
installed so the unit may not climb and
remains stationary until the Back Up Valve
pulls the unit away from the steps. When
this occurs you need to use the optional
Step Adapter (Part#LXU13) to prevent
wearing the vinyl liner.
The Sweep Hose operates in a gentle
sweeping motion to prevent debris from
becoming trapped in hard to reach corners
of the pool.
I. Introduction
A. ThankYou for Choosing the Letro
Legend II Pool Cleaner
Congratulations on the purchase of your
new automatic pool cleaner. The Legend II
is designed to give you years of dependable
and efficient service. With the Legend II,
you and your family will spend more time
relaxing and enjoying your pool and less
time cleaning it.
The Legend II has beed designed and built
with time proven features and patented
innovations to create an automatic pool
cleaner that will give you years of
dependable service. The Letro Legend II is
built with pride in the U.S.A., by people who
care about the product using state of the art
materials and backed by a limited warranty
that protects against defects in parts and
construction.
Like any mechanical device, the Legend II
requires some preventative maintenance
and the replacement of certain working
parts. We recommend that you have your
Legend checked annually. For best results
have your Legend II installed by a qualified
swimming pool professional.
For pool owners with plumbing and
mechanical experience, installation
instructions are included in this manual.
Please put safety first! Be sure to take
your Legend II out of your pool and store it
carefully in a shaded area before anyone
enters the pool.

B. Pool Connections
The Legend II comes equipped to connect
to a female threaded 1-1/2" dedicated return
line. An adjustable gate valve with a
pressure gauge should be installed to allow
a regulated amount of water flow from your
pool system to the Legend II. For more
information contact our Technical Support
Department at 1-800-223-1695.
Also, if the pool doesn't have a dedicated
cleaner line please contact our Technical
Support Department at 1-800-223-1695

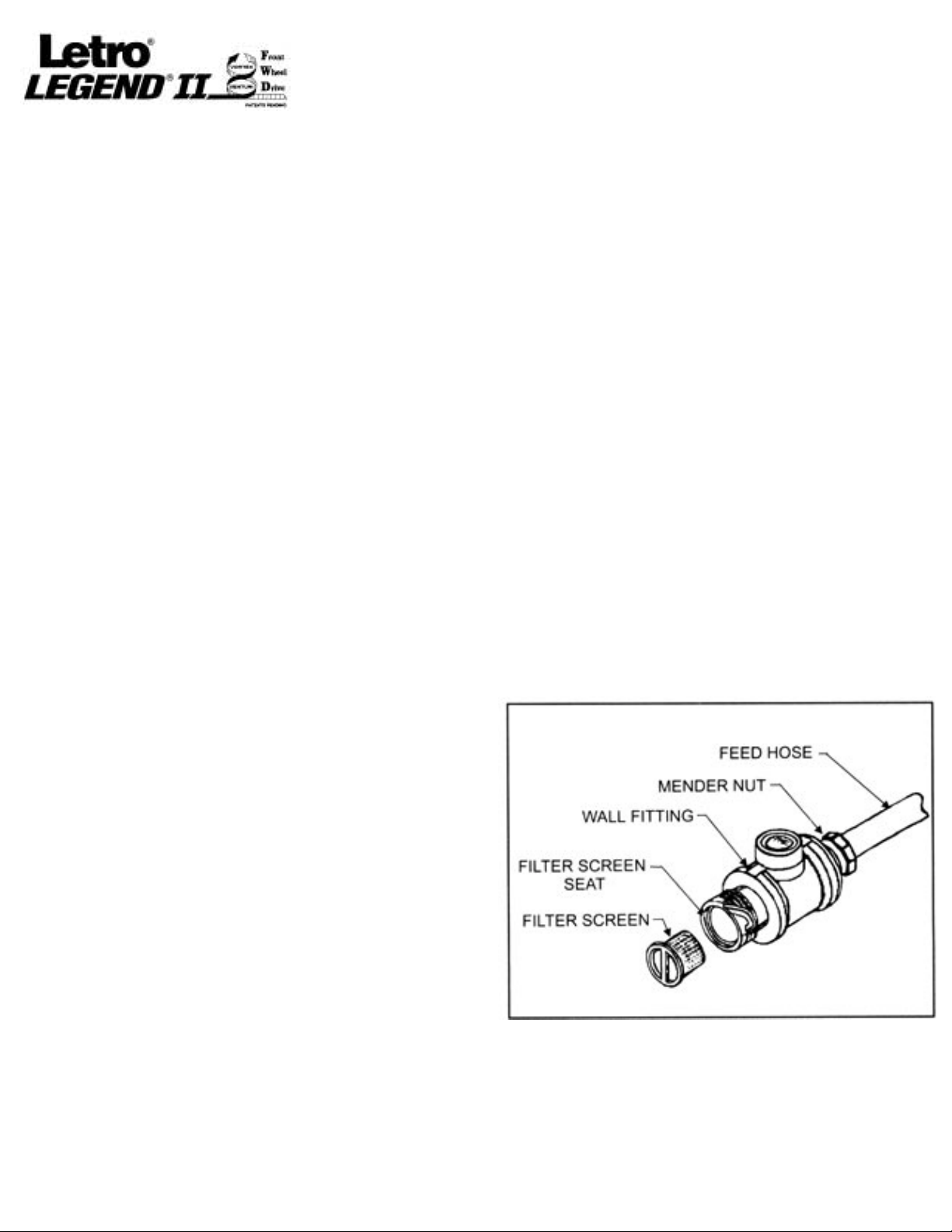

C. Installing theTwist Lock Pressure
ReliefValve (Wall Fitting)
II. Installation Instructions
A. Legend II Components
The Legend II Box Contains:
1. Cleaner Head
2. Sand & Silt Bag
3. Sweep Hose

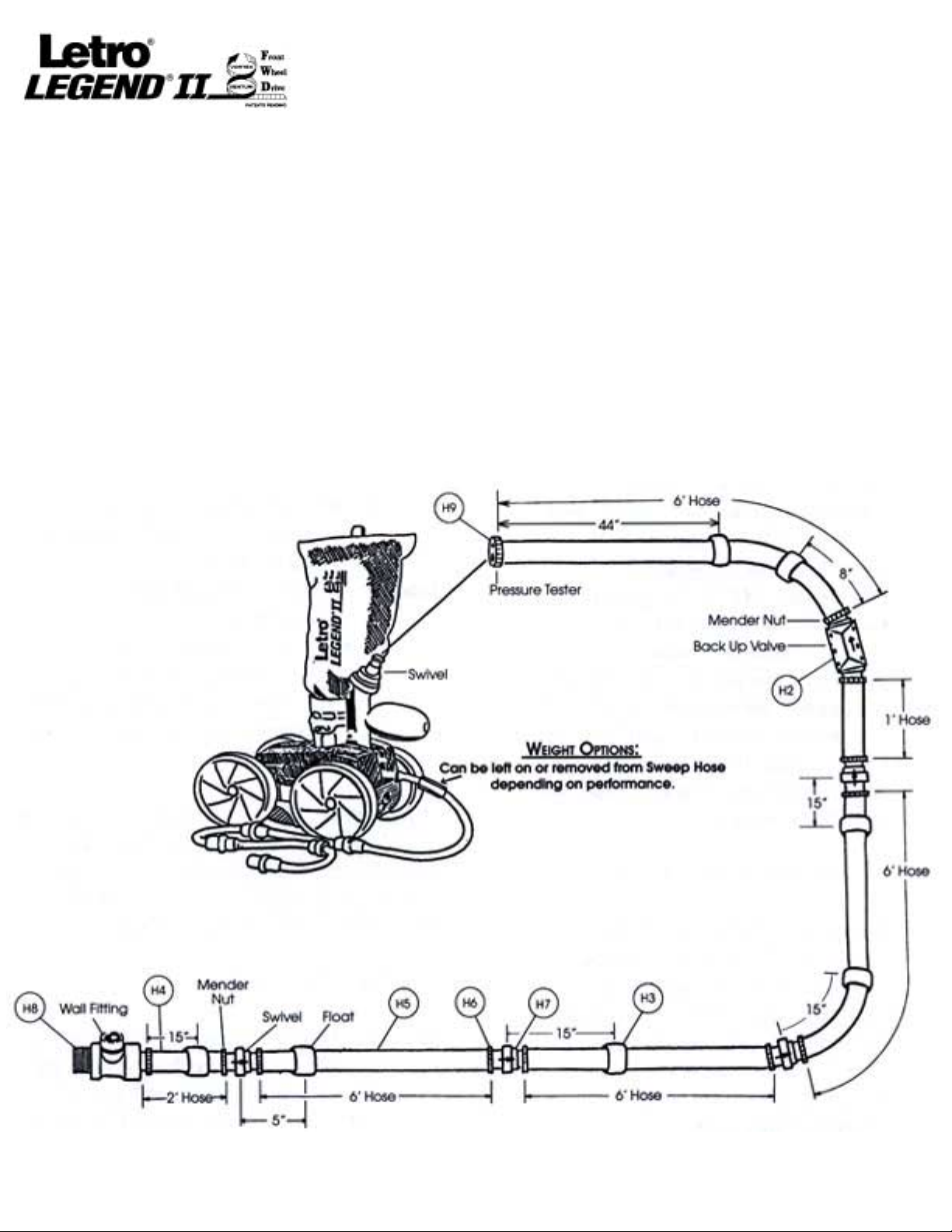

4. Complete Feed Hose
a. 1 - 1 ft hose
b. 1 - 2 ft hose
c. 1 - 5 ft hose
d. 3 - 6 ft hose
e. 1- Back-Up Valve
f. 4 - Swivels
g. 1 - Wall Fitting
h. 12 Mender Nuts
i. 7 - Hose Floats
j. 1 - Pressure Tester 1. Take out any existing pool cleaner and/or
wall fitting.
2. Turn on the filtration pump and booster
pump, flush out the plumbing line.
3. Turn off filter pump
4. Remove the Wall Adapter from the Wall
Fitting and screw Adapter by hand into the
dedicated line. Turn until tight.
5. Take the Wall Fitting and Twist Lock the
Wall Fitting into the Wall Adapter 1/4 turn; to
a snug fit. Once the Wall Adapter is secure
you can now twist lock and unlock to remove
Wall Fitting with ease from the Wall Adapter.

2. With the pool pump on, hold the free end
of the Feeder Hose underwater. Gently pull
the hose to the farthest end of the corner of
the pool, do no stretch the hose. (The
Legend II usually will not climb the top step,
so you do not need to include it in the
measurement.) If the hose just reaches the
farthest point of your pool, and without any
excess hose hanging over the deck, then go
to Section F.

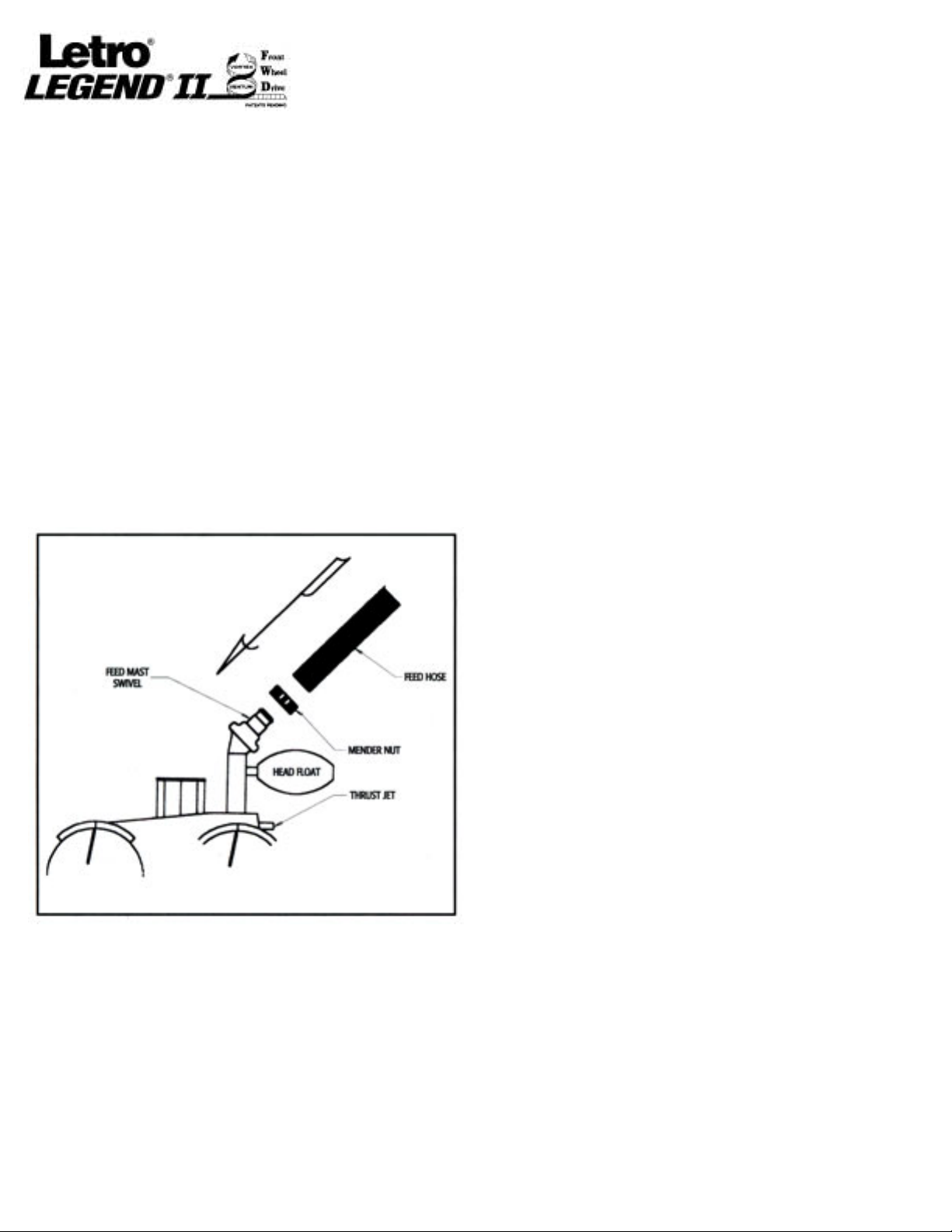

3. If the Feeder Hose extends past the
farthest end of the pool, mark the excess
hose hanging over the deck, turn off your
pool pump, and cut first 6' section of hose,
closest to the wall, the length of excess.
4. IMPORTANT: Please double check the
hose length to insure you will be getting the
maximum performance from your pool
cleaner. The hose lengthens when under
pressure (when your pump is on).
D. PressureTesting Instructions
1. Make sure the pool filter is clean before
conducting this pressure test.
2. Twist lock the Wall Fitting with Feeder
Hose into the Wall Adapter.
3. Have someone hold the Pressure Tester
end of the Feed Hose beneath the water
while you turn on the pool pump. Continue
holding the hose under the water and cover
the large hole of the pressure tester.
4. Reach down and feel around the
Pressure Relief Valve on the Wall Fitting to
see if the Relief Valve is releasing any water
pressure. If valve is releasing water
pressure go on to section E. If it is not, the
pool filtration pump may not have sufficient
amount of water pressure to operate the
Legend II.
BEFORE YOU GO TO THE NEXT STEP,
CONTACT OUR TECHNICAL SUPPORT
DEPARTMENT AT: 1-800-223-1695
E. Cutting the Feed Hose (see Hose
Diagram on Page 15)
The Hose assembly comes in 6 sections
covering approximately 30 ft. of the pool,
which provides ample hose for most
residential pools. For larger or smaller pools
see Page 14 for instructions for Adding or
Deleting Additional Feeder Hose.
1. Take Feeder Hose out of box and lay the
hose straight in the sun for one day if
possible, (this will take any memory out of
the hose due to being coiled up in the box).

3. Gently place the Legend II in the pool.
Turn on the pool filtration pump.
4. Check to make sure the wheel RPM is
between 25-32. See section H-# on page 9
for instructions on wheel RPM.
G. Checking Operation
F. Hooking up the Legend II
1. Remove the Pressure Tester from the
free end of the Feeder Hose by unscrewing
the Hose Nut. Left hand thread (reverse)
(See illustration previous page).
2. Place mender nut on Legend II Swivel
Mast. Connect the open end of the Feed
Hose to the top of the Legend II Swivel Mast
and secure with the mender nut. The arch
of the Feed Hose should align in the same
direction as the Swivel Mast, there should
be no twist in the Feed Hose after
connection. (See illustration below).
3. Carefully twist lock the Sand & Silt debris
bag onto the top of the Legend II Vacuum
Tube. Make sure there is a Rubber Debris
Valve attached to the top of the Vacuum
Tube before locking on the Sand & Silt bag,
(this valve is similar to a check valve to help
keep debris inside the bag when the water
pressure is off).
When operating correctly, the Legend II will
travel in a random pattern throughout the
pool, vacuuming and sweeping the bottom.
The climbing ability of the Legend II is
dependent on the pools structure and water
flow coming into the pool. It will perform
more efficiently in pools without sharp
angles or curves in the transition from the
floor of the pool to the wall.
The Legend II comes with a Twist Lock
Pressure Relief Valve (Wall Fitting). If the
Legend II is receiving too much water
pressure, the Relief Valve in the Wall Fitting
will release the excess water pressure.
Approximately every three minutes and 30
seconds the Legend II will go into a back-up
mode. The Back-Up Valve cycle time, while
in the back-up mode, is approximately 30
seconds, pulling the Legend II from problem
areas.
The Sweep Hose operates in a gentle
sweeping motion to prevent debris from
becoming trapped in hard to reach corners
of the pools.
If the Legend II does not travel to all areas of
the pool, turn off the pool filtration pump and
make the necessary adjustments from the
instructions on the next page.

H. FineTuning the Legend II
1. Thrust Jet Adjustment
There are two Thrust Jets located in the
back of the Legend II. These Thrust Jets
alter the direction of the cleaner. The factory
standard position for the upper jet is set at
ten o' clock, and the lower jet is set in the
middle and straight out. (See illustration
below).
2. Sweep Hose Adjustment
The Sweep Hose operates in a gentle
sweeping motion. To increase or decrease
the motion of the Sweep Hose, adjust the
screw located on the Swivel Mast Barb
below the upper Thrust Jet. Turning the
screw clockwise will decrease the motion
and counter clockwise to increase the
motion of the Sweep Hose.
3. Checking Wheel RPM
To determine whether the Legend II is
receiving the proper water pressure, turn off
the pool pump, and carefully remove the
Legend II from the pool.
Mark the front drive Tire/Wheel with a
marker, or use the Letro Logo located on the
side of tire as a marker to count the
rotations of the wheel per minute.
Have someone turn on pool pump while you
place the Legend II in the pool just beneath
the water surface. (Be sure to hold onto the
Sweep Hose to avoid getting wet).
Count the rotations of the marked wheel for
exactly one minute. (Be sure the Back-Up
Valve isn't cycling at this time). The
rotations will give you the Revolutions Per
Minute. (RPM)
For proper performance, the Legend II
operates between 25-32 RPM. If the RPM
is below 25 then closely follow the
instructions on the next page.

H. Checking RPM (cont)
1. Clean the Screen located inside the Wall
Fitting. A small amount of debris will
significantly affect the performance of the
cleaner.
2. Clean the skimmer basket, pump basket
and pool filter.
3. Check the hoses, all the connections,
and Back-Up Valve for leaks that could
cause loss of water pressure.
4. If an adjustable Gate (3-way) Valve has
been installed, adjust the valve to increase
water flow to the Legend II.
5. If the RPM is more than 32, at the Wall
Fitting, unscrew the Pressure Relief Valve
slowly until the RPM falls between 25-32.
Again, if an adjustable gate (3-way) valve
has been installed, adjust the gate valve to
decrease water flow to the Legend II.
6. If you continue to have problems with
either the water flow or obtaining the
specified water pressure to operate the
Legend II, call your Professional Pool
Dealer.
If you have any additional questions,
please contact Letro Products Technical
Support Department @ 1-800-223-1695,
Monday through Friday, 7:30a.m. to 4:30
p.m., PST.

D. Periodic Maintenance
The following parts are wear items that
should be checked, maintained or replaced
as needed. Wear items are considered any
working or moving part(s) being worn due to
the use of the cleaner. Wear items are not
covered under warranty.
1. Wall Fitting Screen
Inside the wall fitting is a filter screen that
acts as a secondary filter. This screen is to
keep debris that is passed by the pool filter
out of the Legend II. Running the Cleaner
without the filter screen can damage the
Legend II and will void the warranty.
III. Operation/Periodic Maintenance
A. Connecting/Disconnecting the
Legend II
Turn off booster pump and pool pump. Then
take the Wall Fitting and twist lock the Wall
Fitting clockwise into the Wall Adapter. To
disconnect the Legend II, unlock and twist
counter clockwise. The Wall Adapter should
remain in the pool wall.
B. Turning On/Off the Legend II
The Legend II operates off the water flow
coming from the pool filtration pump, and can
be turned on or off by merely turning on/off
your filtration pump. The Legend II will
operate on the same time cycle that the pool
filtration pump operates.
C. Cleaning the Sand & Silt Bag
Carefully unlock the debris bag from the
vacuum tube and open the Velcro closure at
the top of debris bag and dump debris.
If you have a lot of debris in your pool,
especially after a storm, you can run your
Legend II in two shorter cycles per day and
empty the debris bag between cycles.
Reconnect the debris bag to the vacuum
tube. Do NOT over turn.
If the Velcro strip on top of the debris bag
does not stay secure, rinse well, let it dry and
clean with a stiff brush.
A Helpful Hint: It is easier to empty the
debris bag when it is dry. A second bag may
be used while the full debris bag is drying.
It's best to empty the debris bag when it
becomes half full. The Legend will have
better performance if the bag is not
overloaded.

A continuous plugged or dirty screen is a sign of
problems in your pool filtration system and you
need to contact your local pool professional.
To clean the filter screen; pull the screen out
from inside the Wall Fitting and rinse thoroughly
and push back inside the wall fitting.
Whenever cleaning, back washing or repairing
filter, remove the wall fitting and flush out the
dedicated line before using the Legend II.
III. Operation/Periodic Maintenance
(cont)
5. Sweep Hose
The Sweep Hose is provided to help keep the
bottom and sides of your pool clean. The
Sweep Hose is warranted free of defects when
shipped from the factory, and is considered a
wear item.
6. DebrisValve
This valve is located under the Debris Bag, it is
designed to keep the debris inside the bag. It
functions like a check valve to allow the debris
to only enter through the bag one way.
Replacement is needed when valve begins to
stiffen.
E. Back Washing the Pool Filter
Always disconnect the Legend II from the pool
wall before cleaning or back washing the pool
filter. After cleaning or back washing, let the
pool filtration system run for a minimum of five
minutes to flush out the return lines before
reconnecting the Legend II.
2. Tires & Bearings
The tires are designed to protect the bottom of
your pool and provide better traction. You need
to rotate or replace the tires when edges
become rounded.
The Wheel Bearings are warranted free of
defects when shipped from Letro Products Inc.,
and are considered a wear item. A good
bearing will spin freely.
3. Roller Rings
Your Sweep Hose has a series of Roller Rings
to protect the Sweep Hose. Replace the rings
as needed. You can rotate the Roller Rings to
prevent flat spots.
4. Debris Bags
Fine Mesh Sand & Silt Bag
The Legend II comes with a Sand & Silt bag for
general use in all pools. We do not recommend
using the fine mesh bag to pick up leaves and
twigs or other large debris for they have sharp
points and edges that can poke holes and
eventually rip the bag.
Optional Leaf Bag
The leaf bag is a larger mesh bag made to pick
up heavier debris such as leaves. twigs, acorns,
etc. This bag can be helpful especially after a
storm.
A Helpful Hint: To prolong the life of bags,
remove cleaner from pool before adding
chemicals.

III. Operation/Periodic Maintenance
(cont)
F. Storage andWinterizing
Never leave or store the Legend II in direct
sunlight. When storing the Legend II for the
winter, be sure to drain all the water from it.
This is important since freeze damage is not
covered under the warranty. Also, remove
the Wall Fitting.
G. Accessories
1. Sweep HoseWeight
If the sweep hose tends to break the surface
of the water therefore squirting nearby
windows or innocent bystanders, a weight
can be installed to the end of the sweep
hose.
(Part # for Hose Weight is LXB2)
2. Leaf Bag
(See previous page)
3. Step Adapter
This adapter is designed for vinyl liner pools
that have steps installed in such a way that
the unit may not climb and remains
stationary until the Back-Up Valve comes
on. The adapter acts as a bumper to turn
the cleaner away from the steps and
continue on cleaning your pool.
It's easy to install: Simply slide the Step
Adapter into one of the slots (either side)
located in the front of your Legend II and
adjust to the appropriate height.
(Part # for Step Adapter is LXU13)

Problem: Legend II will not back up.
Solution: 1. Determine if the Back-UpValve is
cycling. (Hold the valve out of the
water and the jet should come on for
approx. 30 seconds, and shut off for
approx. 3 minutes and 30 seconds).
2. Check the wheel RPM (See page
9-10).
3. Empty the debris bag if full or half
full.
Problem: Legend II will not climb.
Solution: 1. Even if your pool doesn't show
algae you still need to brush
the sides of the pool wall.
2. Check the wheel RPM (See page
9-10).
3. Reposition the Thrust Jet. Loosen
the two screws to adjust the Thrust
Jet. Instructions for different
positioning are located on page 9.
A reminder: The climbing ability of the Legend
II is dependent on the pool's shape and
available water pressure. It will climb better in
pools without sharp angles or curves in the
transition from the pool floor to the pool wall.
Problem: Hoses tangling.
Solution: 1. Check the length of the Feed
Hose, they may be to long. (See
pages 7 ).
2. Check to see that the Feed Hose
is floating on top of surface. Check
hose floats for even spacing.
3. Twist the Hose Swivels to see if
they spin freely and replace any that
will not.
4. Lay out the Feed Hose straight in
the full sun to remove any memory.
To insure the best performance from your
cleaner, follow the troubleshooting guide
listed below.
A. PROBLEMS & SOLUTIONS
Problem: Cleaner doesn't move or moves
sluggishly or hangs up on steps.
Solution: 1. Be sure filter and filter pump are
on and working properly. (You may
need to clean your pool filter system).
2. Check to see if the skimmer basket
and basket are clean.
3. Check the Wall Fitting screen for
debris and rinse clean.
4. Check wheel RPM (See page 9-10).
5. Determine if the Back-UpValve is
cycling. (Hold the valve out of the water
and the jet should come on for approx.
30 seconds and shut off for approx.3
minutes and 30 seconds.
6. Check all the Hose connections and
Swivels for leaks that can cause loss of
water pressure.
7. Check debris that may be jammed in
the gear teeth on one of the front drive
wheels.gently rotate the front wheels
backward to dislodge debris.
Problem: Legend II flies around pool.
Solution: 1. Check wheel RPM, and if more than
32 RPM make adjustment at Wall
Fitting by turning the Pressure Relief
Valve slowly until RPM falls between
25-32, or if an adjustable gate valve
has been installed, adjust the valve to
decrease water flow.
2. Air in System
IV. TROUBLESHOOTING AND
PERFORMANCETIPS

IV. TROUBLESHOOTING AND
PERFORMANCETIPS
A. PROBLEMS & SOLUTIONS (cont)
Problem: Sweep Hose is sucked into the
cleaner.
Solution: 1. Adjust the Sweep Hose using the
Adjustment Screw located on the
bottom of the Swivel Mast and just
below the upper Thrust Jet. Turn
Adjustment Screw clockwise until the
Sweep Hose is in a gentle sweeping
motion.
Problem: Sweep Hose breaks surface and sprays
nearby windows, patio decks and
bystanders.
Solution: 1. Adjust Sweep Hose to a gentle
sweeping motion.
2. Add optional Sweep Hose weight.
(See page 13)

TIPS FOR CUTTING HOSE IN A SMALL POOL,
AND FOR ADDING HOSES FOR LARGE
POOLS.
1. Tips on Hose Cutting for Larger Pools.
If the hose is short of the farthest end of the
pool, add an additional section of hose (Part #
LX17), one Swivel (Part # LX19), two Mender
Nuts w/O-Rings (Part # LX20), and one Hose
Float (Part # LXD10). See diagram below. Re-
measure and follow guide on page 7.
1. Tips on Hose Cutting for Smaller Pools.
If the hose hangs over the deck more than 9
feet or the pool is less than 6 feet deep and
narrow, cut 36 inches off the 5 ft. section hose
at the end of the feed hose and remove one
float. Then remove one 6 ft.hose (see
diagram), 1 swivel and 2 mender nuts. Re-
measure and cut hose according to the guide
on page 7.

Part #
LXU5
LXU145N
LXU10N
LXU6
LXC86
LXC83
LXC80
LXA40
LXC110
LXC120
LL120
LLC121
LXB5
LXB10
LXB25
LXB20
LXA20
LXH07
LXU15
LXU16
LLU9
LXU7
LXC140
LXC130
LXC135
LXC115
LXC65
LXC70
LXC45
LXC6
LXC60
LXC55
LXC1
LXC125
LXC40
Diagram #
1
2
3
4
5
6
7
8
9
10A
10B
11
12
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
34
36
37
39
40
41
42
Quantity
1
1
1
1
1
2
2
1
1
1
1
1
1
9
1
1
1
10
1
1
1
1
2
2
2
2
4
4
8
4
8
4
4
7
8
Description
Top Cover
Main Frame
Bottom Cover
Feed Mast w/O-Ring & Swivel
Turbine Drive Shaft - Complete
Turbine Spacers
Turbine Bearings
Turbine Shaft Shield
Turbine Cover w/Elbows
Turbine Cover Hose 9"
Turbine Cover Hose 7 3/4"
Venturi Jet Hose 7 3/4"
Sweep Hose - Complete
Sweep Hose - Wear Ring
Sweep Hose - Jet w/Collar
Sweep Hose - Adjustment Screw
Ballast Float
Sweep Hose - Hose Sleeve
Coarse Mesh Bag (Optional)
Fine Mesh Bag
Debris Valve
O-Ring for Feed Mast
O-Ring for Thrust Jet
Thrust Jet
Thrust Jet - Plate
Elbow for LXC110
Axle - Large Wheels
Axle Plate
Axle - Lock Washer
Wheel w/out Bearings
Wheel Bearings Only
Wheel - Plastic Washer
Wheel - Rubber Tire
Hose Clamp
Screw for Turbine Bearings, Thrust Jet
PARTS LIST

Part #
LXC40
LXC64
LXB2
LXA30
LXU76
LXU147
LXU79
LXU8
LXU180
LX10
LX11
LX12
LX13
LX14
LX15
LX16
LXD10
LX17
LX18
LX45
LX19
LXW22
LX23
LX24
LX25
LX26
Diagram #
47
53
54
57
60
62
63
64
65
H2
inside H2
inside H2
inside H2
inside H2
inside H2
inside H2
H3
H5
H4
H6
H7
H8
inside H8
inside H8
inside H8
H9
Quantity
2
4
1
3
8
2
1
2
2
1
1
1
1
1
1
1
5
4
1
12
4
1
1
1
1
1
Description
Screw for Bottom Cover
Wheel - Plastic Washer
Sweep Hose Weight
Screw for LXC110
Axle Bolt
Snap Fit Vac Tube Posts
Nut & Bolt - Feed Mast to Vac Tube
Venturi Jet
Hex Screw - Cover to Frame
Back Up Valve - Low Pressure
Back Up Valve - Housing
Back Up Valve - Top Cover
Back Up Valve - Housing O-Ring
Back Up Valve - O-Ring Gear Assembly
Back Up Valve - Screw Housing Body
Back Up Valve - Gear Assembly
Feed Hose Float
Feed Hose - 6 ft. Section
Feed Hose - 2 ft. Section
Feed Hose Mender w/O-Ring #0252
Feed Hose Swivel
Wall Fitting - Complete
Wall Fitting Adapter
Wall Fitting Screen
Wall Fitting - Valve Assembly
Pressure Tester
PARTS LIST (cont)

EXPLODEDVIEWWITH
PART NUMBERS
