PRODUCT DATA
Footcandles
Energy
Savings
Begin
Perceived
Light
Level
Min.
Light
Level
Light
Maintain
Level
Light generated from
xture attached to Leviton
Lighting Control System
Ambient light
6AM 8AM NOON10AM 2PM 4PM 6PM
Leviton Manufacturing Co., Inc.
201 N. Service Rd. Melville, NY 11747-3138 • Tech Line: 1-800-824-3005 • Fax: [phone]
© 2013 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Photocells
Photocells
Leviton’s Photocell sensors precisely monitor
either task or ambient light levels. As part of a
Leviton energy management system, photocells
work with other components in the system
to automatically adjust light levels to a user-
defined level. Photocells are most suitable for
installation in rooms with windows and open
spaces receiving substantial ambient light.
Photocells must be hardwired to a compatible
Leviton lighting control system. The photocell
measures ambient light in a specific area and
sends this data to a dimmer or relay that, in
turn, adjusts fixtures to a constant lighting
level as measured in that specific area. Daylight
Harvesting is achieved as lights in a room (with
windows or significant, artificial ambient light)
automatically brighten or dim depending on how
much light the photocell detects.
DAYLIGHT HARVESTING
With Daylight Harvesting, ambient (often natural)
light supplements in-room, artificial light in order
to keep a constant lighting level while saving
energy. This constant level is programmed into
a compatible control device. Once hardwired to
the photocell, the dimmer or relay will receive
the photocell’s real-time light measurement and
maintain a steady level within the photocell’s
area of detection.
RULES OF OPERATION
Measured light level = Light Maintain Level
Action: Output to lights remains constant
Measured light level < Light Maintain Level
Action: Lights are brightened
Measured light level > Light Maintain Level
Action: Lights are dimmed

PRODUCT DATA
Photocells
FEATURES
• Indoor photocells designed with a flat Fresnel lens
that looks downward in a 60° cone of reference to
measure actual light on the work surface, and reducing
the influence of stray light striking the photocell from
nearby windows or incidental side lighting
• Outdoor photocells are IP54 rated to guarantee ultimate
protection from dirt, dust, oil, and other non-corrosive
material
• Measures light from any source in the visible spectrum
within a 60º cone or 180º angle of response depending on
the model
• ODC0P-00W photocell with 60° clear lens operates
between 0-70fc. ODC0P should be surface mounted or
direct to ceiling box
• ODC0P-S0W switching photocell with 60° clear lens
operates between 1-750fc. ODC0P should be surface
mounted or direct to ceiling box
• PCIND indoor photocell with 60° clear Fresnel lens is
default setting = 0-100fc sensing range; can be field
adjusted to 750fc max sensing range. PCIND should be
mounted to the ceiling, facing down
• PCOUT outdoor photocell is enclosed in a weatherproof
housing with a visor for shading and lens protection.
Default setting = 0-250fc sensing range
• PCIND-0SV side view photocell for applications where
ceiling mounting is required yet the view should be of
the lighting entering the space through a window; or, for
installation to the wall of skylights where the view should
be up into the skylight. Default setting = 0-3fc sensing
range; can be field configured with a jumper for a 3fc,
30fc, 300fc, or 600fc max sensing range
• PCOUT-0SV side view photocell for applications where
wall mounting is required yet the view should be of the
lighting entering the space through a top/side and/or
face of the photocell. Reference placement diagrams.
Default setting = 0-3fc sensing range; can be field
configured with a jumper for a 3fc, 30fc, 300fc, or 600fc
max sensing range
• PCATR atrium photocell with opaque dome lens filters
33% of light level in upper atrium. Default setting =
0-1000fc sensing range; can be field adjusted to 2500fc
max sensing range
• PCSKY skylight photocell with dark dome lens filters
90% of light level in skylight. Default setting = 0-2000fc
sensing range; can be field adjusted to 7500fc max
sensing range
BENEFITS
• Constant lighting at the optimal level for greater visual
comfort and acuity, which contributes to improved
productivity
• Provides convenient, automatic hands-free daylight
harvesting when integrated with Leviton lighting control
products
• Lowers electric bills by reducing usage of lighting where
ambient natural light is also present
• Lumen maintenance opportunity compatible
OUTDOOR
(PCOUT)
1.35”
1.85”
ATRIUM/SKYLIGHT
(PCATR/PCSKY)
1.28”
2.25”
INDOOR
(PCIND)
1.15”
1.28”
Diameter: 2.511”
0.76”
0.99”
0.23”
PHOTOCELL
(ODC0P)
SIDE VIEW PHOTOCELL
(PCIND-0SV/PCOUT-0SV)
Diameter: 2.04”
1.36”

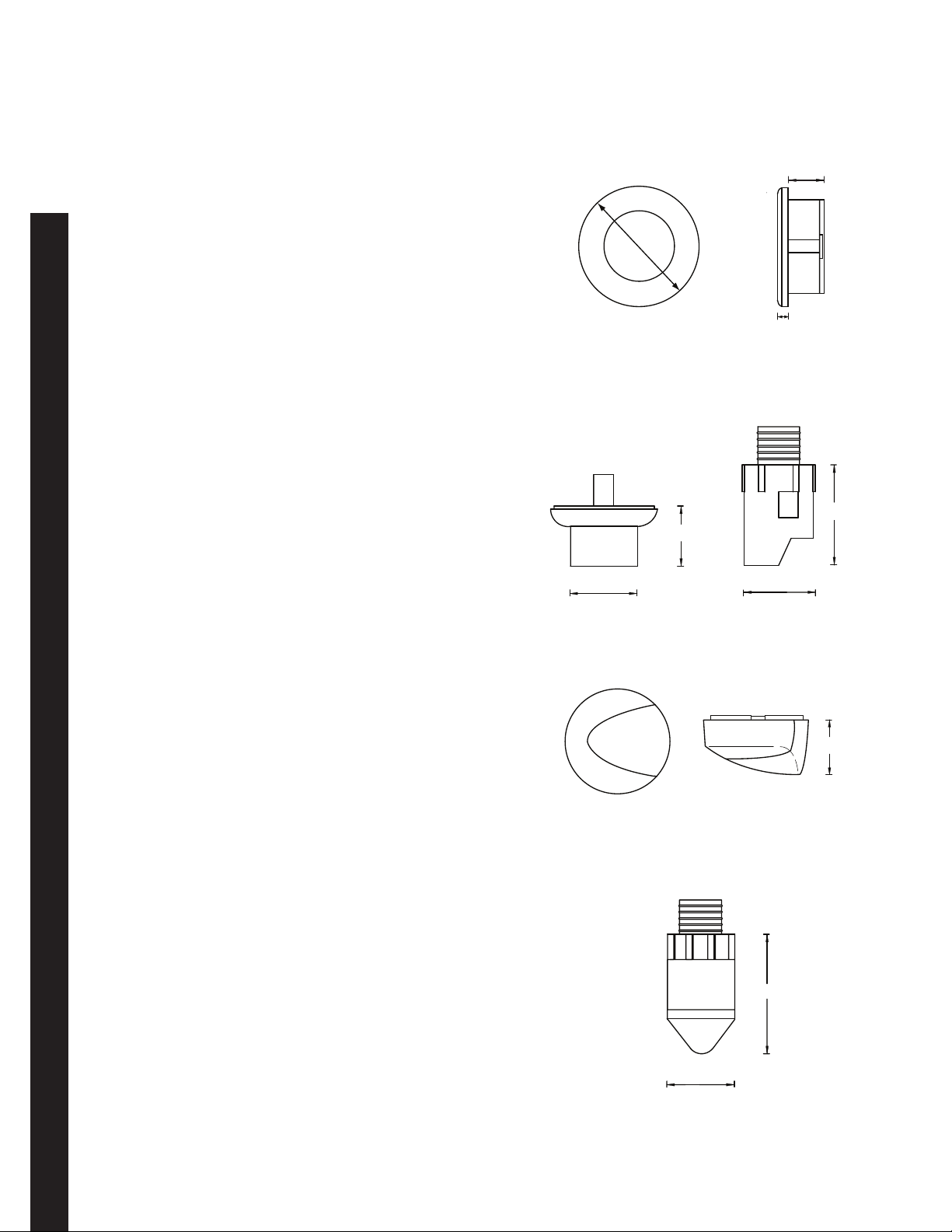

DIMENSIONS

Leviton Manufacturing Co., Inc.
201 N. Service Rd. Melville, NY 11747-3138 • Tech Line: 1-800-824-3005 • Fax: [phone]
© 2013 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice. • www.leviton.com
Photocells
PHOTOCELL PLACEMENT
ODC0P/INDOOR PHOTOCELL MOUNTING LOCATION ATRIUM PHOTOCELL MOUNTING LOCATION
REFLECTING WALL USING INDOOR SENSOR
SKYLIGHT APPLICATION WITH SKYLIGHT PHOTOCELL
OUTDOOR PHOTOCELL MOUNTED IN 1/2” CONDUIT
Light well - no sconces - indoor photocell
18”
PCIND
PCIND
Light well - with sconces - (UP or UP/DOWN)
Mount photocell in elevation on centerline
of xture. Do not mount directly in line
with sconces.
Top of photocell should
be level with top of
skylight curb
Photocell in 1/2”conduit.
Photocell must be at
least 12” from side of
skylight and facing up
NOTE:
Support conduit from
unistrut as required
per NEC
UNISTRUT
JUNCTION BOX
1/4” ANGLE
SUPPORT
Sconces
Snow Line
North
Outdoor photocell mounted horizontally on roof or equal,
facing northern sky
Hooded portion on top, pointed away from any nighttime
light sources
60
ODC0P
or PCIND
6-8 FT.
PCATR
Ideal photocell location is in the
middle of the atrium glass pointing
toward the glass

PRODUCT DATA
G-7189D/K13-aa
REV NOV 2013
Photocells
INSTALLATION
• Low Voltage Class 2 Wiring
- Connect directly to dimmer or relay panel
SELECTION
PHOTOCELL LENS MOUNTING ORIENTATION HEIGHT DIAMETER
ODC0P-00W Clear Ceiling Down 0.99” (2.5cm) 2.51” (6.4cm)
ODC0P-S0W Clear Ceiling Down 0.99” (2.5cm) 2.51” (6.4cm)
PCIND-000 Fresnel Ceiling Down 2.00” (5.1cm) 1.23” (3.1cm)
PCIND-0SV Diffuse Ceiling/Wall Up/Down 1.36” (3.45cm) 2.04” (5.2cm)
PCOUT-000 Clear Hood ½” IPT Horizontal 1.85” (4.7cm) 1.28” (3.3cm)
PCOUT-0SV Diffuse Ceiling/Wall Up/Down 1.36” (3.45cm) 2.04” (5.2cm)
PCATR-000 Dome/Frost ½” IPT Horizontal 2.25” (5.7 cm) 1.28” (3.3cm)
PCSKY-000 Dome/Frost ½” IPT Up 2.25” (5.7 cm) 1.28” (3.3cm)
ORDERING INFORMATION
CAT. NO. DESCRIPTION COLOR
ODC0P-00W Photocell White
ODC0P-S0W Switching Photocell White
PCIND-000 Indoor Photocell White
PCIND-0SV Indoor Photocell White
PCOUT-000 Outdoor Photocell White
PCOUT-0SV Outdoor Photocell White
PCATR-000 Atrium Photocell White
PCSKY-000 Skylight Photocell White
ADJUSTABLE CORRESPONDING FC RANGES
SENSOR MAXIMUM
ODC0P-00W 0-70 FC
ODC0P-S0W 1-750 FC
PCIND 50-750 FC
PCIND-0SV 3, 30, 300 or 600 FC
PCOUT 50-750 FC
PCOUT-0SV 3, 30, 300 or 600 FC
PCATR 200-2500 FC
PCSKY 1000-7500 FC
Leviton Manufacturing Co., Inc. Global Headquarters
201 N. Service Rd. Melville, NY 11747-3138 • Tech Line: 1-800-824-3005 • Fax: [phone]
Leviton Manufacturing Co., Inc. Lighting & Energy Solutions
20497 SW Teton Avenue, Tualatin, OR 97062 • Tele: 1-800-736-6682 • FAX: [phone] • Tech Line (6:00AM-4:00PM P.S.T. Mon-Fri): 1-800-959-6004
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: [phone] • FAX: [phone]
Leviton S. de R.L. de C.V.
Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. [phone] • FAX: [phone] • www.leviton.com.mx
Visit our Website at: www.leviton.com/les
© 2013 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice
SPECIFICATIONS
ODC0P-00W ODC0P-
S0W PCIND PCOUT PCIND- 0SV PCOUT- 0SV PCATR PCSKY
Input Voltage 24VDC
Input Current 10mA
IP Rating 32 20 54 20 54 65 65
Default Range 0-70 FC
(0-753 LUX) 1-750 FC (10-8072 LUX) 50-750 FC (753-8072
LUX)
50-750 FC
(753-8072
LUX)
0-30 FC
(0-322
LUX)
0-300 FC
(0-3229
LUX)
200-2500 FC
(2152-26909
LUX)
1000-7500
FC
(10763-
80729 LUX)
Output Voltage 12-24VDC 12-24VDC 10 VDC full output 0-10VDC 10VDC full output
Operating
Temperature
Range 32°F to 131°F
(0°C to 55°C)
32°F to 131°F
(0°C to 55°C)
12°F to 140°F
(-11°C to 60°C)
-40°F to 122°F
(-40°C to 50°C)
12°F to 140°F
(-11°C to 60°C)
Storage
Temperature
Range
14°F to 185°F
(-10°C to 85°C)
Warranty Limited
5-Year
Warranty
Limited 5-Year
Warranty Limited 2-Year Warranty
