Lex MI945A User manual

MI945A
667MHz FSB / VGA / LAN / Sound / Mini PCI /PCI
NO. MI945A
Release date: DEC . 8 . 2008
Intel Core 2 Duo . 667MHz FSB . All-in-one .
Sound . LAN . Video-In . Touch Screen . LVDS .
DVI . PCIe mini card . SATA . 8 USB . CF

i
MI945A
Warning!...........................................................................................................................
Hardware Notice Guide .............................................................................................
CHAPTER 1 GENERAL INFORMATION ........................................................................
1-1 MAJOR FEATURE........................................................................................................
1-2 SPECIFICATION ..........................................................................................................

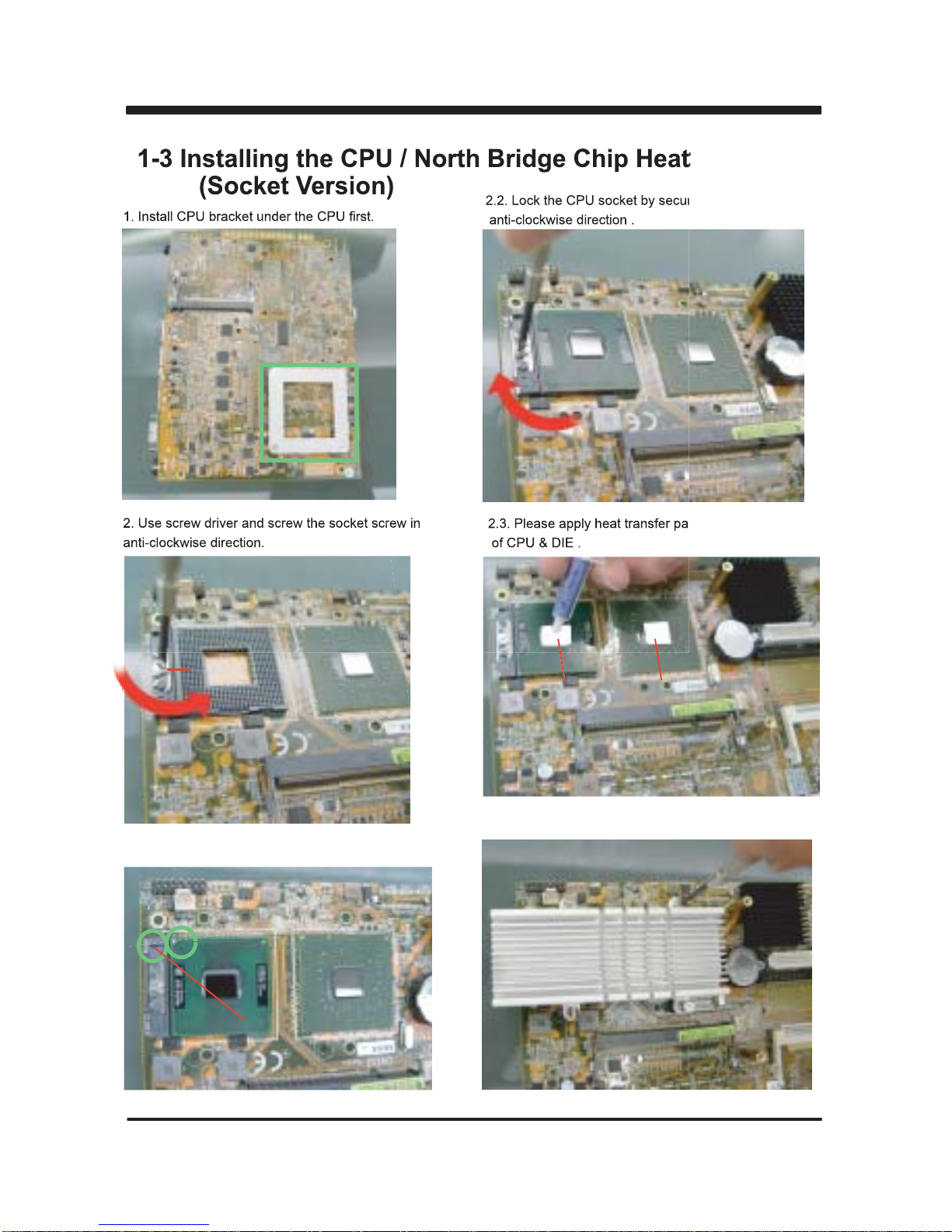

1-3 INSTALLING THE CPU/ NORTH BRIDGE CHIP HEATSINK.(SOCKET VERSION)...
1-4 VERTICAL SODIMMASSEMBLY GUIDE ....................................................................
1-5 DIRECTIONS FOR INSTALLING THE MINI CARD ....................................................
1-6 INSTALLING THE MINI PCI CARD .............................................................................
1-6-1.1 REMOVING THE MINI PCI CARD ........................................................................

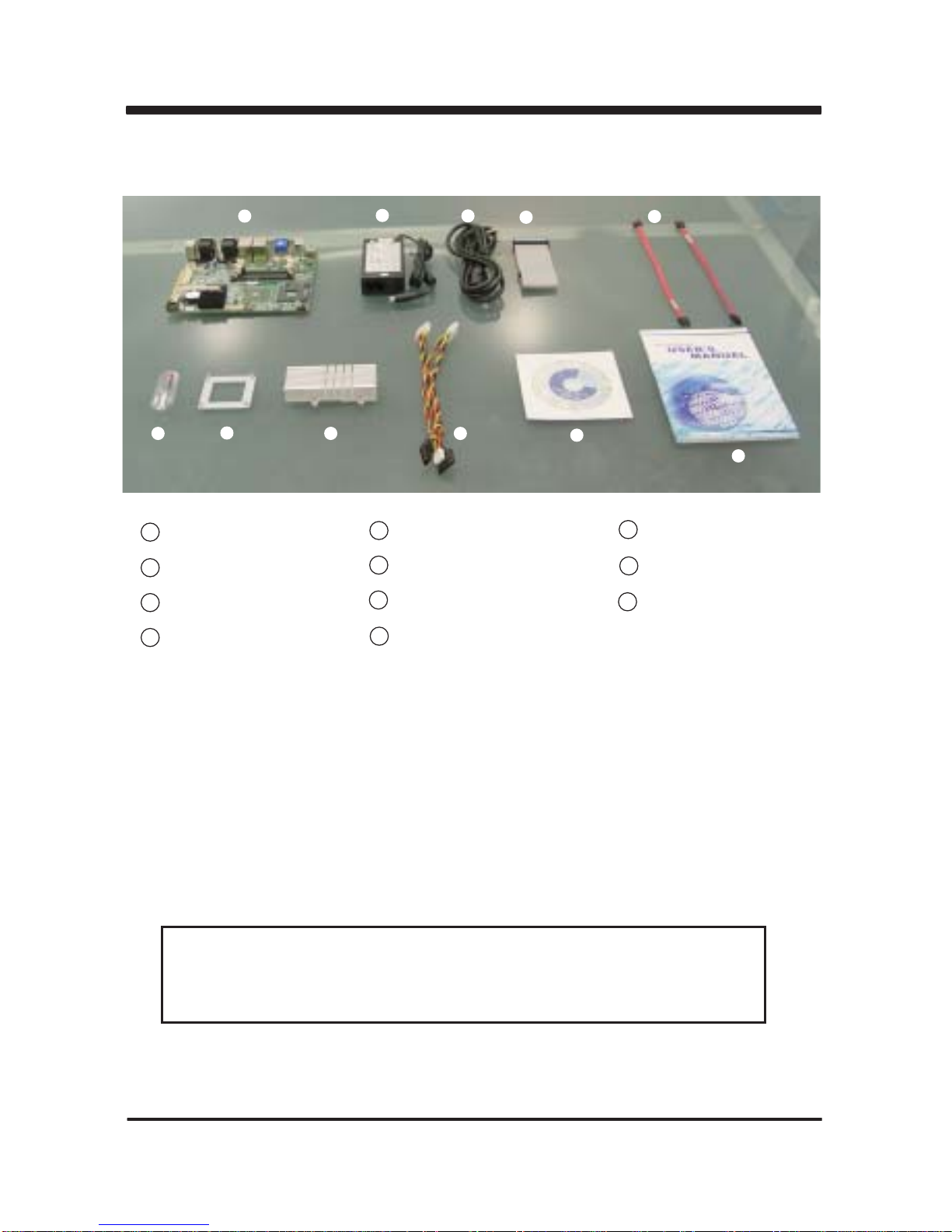

1-7 PACKING LIST..............................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ...................................................................
2-1 UNPACKING PRECAUTION .......................................................................................
2-2 UNPACKING CHECKUP .............................................................................................
2-3 DIMENSION-MI945A (200 x 150m) .............................................................................
2-4 LAYOUT-MI945A ..........................................................................................................
2-5 DIAGRAM-MI945A .......................................................................................................
2-5-1 BOTTOM SIDE DIAGRAM-MI945A.........................................................................
2-6 INSTALL MEMORY .....................................................................................................
2-7 LIST OF JUMPERS ....................................................................................................
2-8 JUMPER SETTING DESCRIPTION ..........................................................................
2-9 CMOS DATA SET .......................................................................................................
2-10 JCF1 CF CARD POWER VOLTAGE SELECT .........................................................
2-11 JCF2 CF CARD MASTER AND SLAVE SELECTION ..............................................
2-12 JT1: USB / COM TOUCH CONTROL SELECT ........................................................
2-13 JAT1 AT AND ATX SELECTION ...............................................................................
2-14 JC8: COM1 POWER SELECT ..................................................................................
2-15 JC1: COM2 POWER VOLTAGE SELECT ................................................................
2-16 JV2: LVDS PANEL POWER SELECT (2 ) ..............................................................
2-17 JV1: INVERTER POWER SELECT (2 ) .................................................................
2-18 JV3: LVDS PANEL POWER SELECT (1 ) ..............................................................
2-19 JV4: INVERTER POWER SELECT (1 ) .................................................................
2-20 JUV1: USB PORT 4 POWER SELECT ....................................................................
2-21 JSV1: S VIDEO / HDTV SELECT .............................................................................
CHAPTER 3 CONNECTION ........................................................................................
3-1 LIST OF CONNECTORS ...........................................................................................
3-2 FAN CONNECTOR ....................................................................................................
3-3 SERIALATA ................................................................................................................
Contents
7
8
9
10
10
1
2
4
5
6
11
13
14
12
21
20
17
22
19
23
22
18
15
16
12
23
25
24
25
26
30
26
27
24
28
20
28
30
nd
nd
nd
nd

ii
3-4 IDE CONNECTORS ...................................................................................................
3-5 COMPACT - FLASH MEMORY SOCKET ...............................................................
3-6 VGA CONNECTOR ....................................................................................................
3-7 DVI-D CONNECTOR ................................................................................................
3-8 KEYBOARD AND MOUSE CINNECTOR ...................................................................
3-9 USB PORT / HEADER ................................................................................................
3-10 LAN PORT ................................................................................................................
3-11 COM PORT CONNECTOR ....................................................................................
3-12 AUDIO PORT CONNECTOR ...................................................................................
3-13 VIDEO OUT CONNECTOR ......................................................................................
3-14 CX23885 VIDEO IN / AUDIO IN ...............................................................................
3-15 WDT/DIO FUNCTION PORT ....................................................................................
3-15-1 FOR F75111N I2C WATCH DOG TIMER DEVICE: ..............................................
3-16 I2C WDT/DIO W75IO.H REFERENCE SAMPLE CODE: ........................................
3-16-1 I2C WDT/DIO F75111N REFERENCE SAMPLE CODE: .....................................
3-17 LVDS INTERFACE CONNECTOR ...........................................................................
3-18 PANEL POWER CONNECTOR ...............................................................................
3-19 TOUCH SCREEN DEVICE (OPTION) .....................................................................
3-20 LVDS(2ND) INTERFACE CONNECTOR (OPTION) ................................................
3-21 PANEL(2ND) POWER CONNECTOR (OPTION) .....................................................
3-22 VGA(2ND) CONNECTOR ........................................................................................
3-23 FRONT PANEL PORT HEADER ..............................................................................
3-24 DC 12V IN .................................................................................................................
3-25 DC +5/+12V OUTPUT CONNECTOR ......................................................................
3-26 SOUND OUT HEADER ............................................................................................
3-27 VGA WAFER .............................................................................................................
CHAPTER 4 INTRODUCTION OF BIOS.......................................................................
4-1 ENTER SETUP ...........................................................................................................
4-2 GETTING HELP ..........................................................................................................
4-3 THE MAIN MENU .......................................................................................................
4-4 STANDARD CMOS FEATURES ................................................................................
4-5 ADVANCED BIOS FEATURES ...................................................................................
4-5-1 CPU FEATURE .......................................................................................................
4-5-2 HARD DISK BOOT PRIORITY ................................................................................
4-5-3 USB BOOT PRIORITY ............................................................................................
4-6 ADVANCED CHIPSET FEATURES ............................................................................
4-7 INTEGRATED PERIPHERALS ...................................................................................
4-7-1 ONCHIP IDE DEVICE ..............................................................................................
4-7-2 SUPER IO DEVICE ..................................................................................................
4-7-3 USB DEVICE SETTING ...........................................................................................
33
39
32
31
33
35
34
36
40
38
42
37
46
41
41
61
59
60
61
62
62
56
57
56
63
63
65
66
59
60
68
58
58
68
69
70
72
73
74
74

iii
4-8 POWER MANAGEMENT SETUP ..............................................................................
4-8-1 PCI EXPRESS PM FUNCTION ..............................................................................
4-9 PNP/ PCI CONFIGURATION .....................................................................................
4-9-1 IRQ RESOURCES ..................................................................................................
4-10 PC HEALTH STATUS ...............................................................................................
4-11 FREQUENCY / VOLTAGE CONTROL .....................................................................
4-12 LOAD FAIL-SAFE / OPTIMIZED DEFAULTS ...........................................................
4-13 SET SUPERVISOR / USER PASSWORD ...............................................................
CHAPTER 5 DRIVER INSTALLATION........................................................................
5-1 INF INSTALL INTEL 945GME CHIPSET SYSTEM DRIVER ..................................
5-2 VGA INSTALL INTEL 945GME VGA DRIVER ...........................................................
5-3 SOUND INSTALL VIAHID AUDIO CODEC DRIVER ...............................................
5-4 HOW TO UPDATE BIOS ............................................................................................
APPENDIX A: POWER CONSUMPTION TEST ..............................................................
APPENDIX B: RESOLUTION LIST ..................................................................................
INTEL 945GME SERIES CPU SUPPORT LIST ...............................................................
76
77
78
79
79
80
80
81
82
84
86
88
90
91
92
93

DEC . 08. 2008
2008

1
1. CF card & 2.5” HDD first boot issue
Due to the frequent update and change of Compact Flash card, it can’t always
work with 2.5” HDD at the same time. Users may try and get the test result.
2. Battery
Battery on board is consumables. Lex doesn’t guarantee the life time of it.
3. Fanless solution with HDD
Please be aware of specification & limitation for HDD when fanless solution
is implemented.
4. Lex will not give further notification if there is any change about the product
information and the manual.
5. SATA does not support Hot SWAP
6. There would be 20% difference of WDT at room temperature.
7. Please make sure the voltage specification meet the requirement
of the equipment before plugging into the power.
Warning !
+
-

2
Hardware Notice Guide
1. Before installing the power supply with this motherboard, please attach the 12V/DC
( 4 pin connector )of the adapter to motherboard first.
After that, plug the adapter power to AC outlet.
Always normally shut down the computer before you move the system unit or remove
the power supply from the motherboard.
Please unplug the 12V/DC ( 4 pin connector ) of the adapter from motherboard first.
Then unplug the adapter from the AC outlet.
Please refer to procedure from the photo 1
2. There will be high possibility to burn out the CPU if you change/ modify any parts of the
CPU cooler.
3. Please wear wrist strap and attach it to a metal part of the system unit before handling a
component.
You can also touch an object that is of ground connection or with metal surface if you don't
have wrist strap.
4. Please be careful when you handle this product. Pay attention to & don't touch the
sharp-pointed components at the bottom PCB .
5. Please pay attention to this: Remove or change any components form the motherboard
will VOID the warranty of the motherboard you purchased .
6. Before you install/remove any components or make any jumper setting on the motherboard,
please make sure to disconnect the power first.
( Please follow the instructions as of this guide )
7. Please only use single sided Mini PCI card, do not use the double sided Mini PCI card
which is not suitable.
8. This does not support 16 bit mini PCI card
9. Please follow this instruction carefully when using the "POWERON after PWR-Fair" function.
When the DC power adaptor runs out of power, unplug it from the DC current;
when power returns plug it back in only after 5 seconds. If there is a power outage,
unplug it from the AC current, when power returns plug it back in only after 30 seconds.
Otherwise it will cause system locking or serious damage.
Remark 1:
Always insert/unplug the 12V/DC ( 4 pin connector ) horizontally & directly from the
motherboard.
DO NOT twist the 12V/DC ( 4 pin connector ) gently, it is designed to fit snugly .
Moreover, erratic pull / push testing with the DC Jack might cause the unpredictable
damage to the component & system unit.
*

3
Photo 1
2
1
3
1
2
3
Insert
Unplug

4
The MI945A is an All-In-One Multimedia system control Board. The board's design combines
all necessary input and output effects interfaces, which makes itself an ideal all-in-one control
board for demanding multimedia applications. MI945A is the perfect platform for a whole
range of small form factor, low-power multimedia devices.
The MI945A’s Intel 945GME chipset features excellent flexibility for developers of embedded
applications by offering improved graphics and increased I/O bandwidth, as well as remote
asset management capabilities and improved storage speed and reliability.
It supports improved hardware motion compensation for MPEG2, all format decoder
(18 ATSC formats) supported. Dynamic Bob and Weave support video streams, Software DVD
at 60 Fields/second and 30 frames/ second full screen. MI945A on Board total has several
video outputs for different type of displays, including VGA, DVI, LVDS and TV-Out. Touch
screen controller and one video input are integrated on board to fulfill more applications’ need.
MI945A is supported with one 10/100/1000 Ethernet for seamless broadband connectivity,
with Wake On LAN function and the PXE function in BIOS for Realtek LAN chip only.
Except CompactFlash, MI945A can integrate with various type of PCI Card / Mini PCI Card.
In addition, with the 8 hi-speed USB version 2.0 enhanced host controller interface, the
MI945A ensures the high performance level and also the powerful and flexible expansion.
On board 2 x RS232 ports are reserved for connecting additional devices.
With Ultra DMA-100/66 access of mode 4 to IDE drive interface architecture, the IDE
supports maximum 100MB/sec in data transfer rating.
The MI945AAll-In-One motherboard supports two DDR2 SODIMM up to 4GB. Compact Flash
reader supports IDE/ATA interface.A single Flash chip holds the system BIOS, and you can
change the Flash BIOS by the Utility Update.
The MI945A/ All-In-One motherboard is fully compatible with industry standards, plus
technical enhancements, and thousands of software applications developed for IBM PC/AT
compatible computers. The control logic provides high-speed performance for the most
advanced multi user and multitasking applications available today.
Chapter-1
General lnformation

5
1. Intel Core 2 Duo / Core Duo CPU ( FSB 533/667 Mhz )
2. Intel 945GME Chipset on board, Graphic Chip Integrated
3. Support DDR2 SODIMM up to 4GB
4. Support 2 x 10 / 100 / 1000M LAN on Board ( Realtek LAN Chip ).
Support PXE / RPL Function (for Realtek LAN only)
5. Support Intel Gen 3.5 Integrated Graphics Engine
6. 18/36 bits LVDS Interface on Board. Support up to UXGA Resolution
7. Support touch screen on board (option)
8. Support TV-OUT and video-in
9. Support 1 x 40 Pins IDE and 1 x Compact Flash Card Socket on Board
10. Support 2 x SATA.
11. Support PCI gold finger on board, Mini PCI Socket on board,
and PCIe mini card for PCIe and USB interface (Note: -5V, -12V no support)
12. External +12V Power Supply
13. Compact PCB Dimension: 200 x 150 mm
1-1 Major Feature

6
1. CPU : Intel Core 2 Duo / Core Duo CPU ( FSB 533/667 Mhz )
2. Chipset : Intel 945GME and Intel ICH7M (82801GBM)
3. Memory : two DDR2 SODIMM up to 4GB
4. VGA : Internal Graphics Memory supports DVMT 3.0
5. I/O Chip : ITE IT8712F IO
6. SATA : Two SATAports with independent DMA operation supported on ports 0 and 2
7. Video-in : 1 port with Conexant Fusion CX23885 video codec
8. IDE : Ultra ATA 100/66/33, BMIDE and PIO mode
9. LAN : 2 x Realtek RLT8111C 10/100T/Giga, PCIe interface
10. Storage Device : 1 x 50 pins Compact Flash Socket
1 x 40 pins IDE
11. Serial Port : 2 x RS232
12. USB : 8 x USB 2.0
13. Keyboard & Mouse : PS/2 10pins Header
14. Sound : HD audio specification 1.0, 2 channel sound
15. LVDS : Support 18bits/36bits LVDS interface resolution up to 1600x1200
16. TV-Out : NTSC/PAL, HDTV support
17. WDT/DIO : Hardware watch dog timer support, 0~255 sec programmable. 8xDI/8x DO
18. Touch screen (option): C8051F321 USB interface touch screen controller,
support 4-, 5-, 8- wireAnalog resistive touch screen
19. Expand interface : 1 x Mini PCI socket for PCI Rev. 2.2 interface,
1 x PCI gold finger for PCI Rev. 2.2 interface,
1 x PCIe Mini card for PCIe x1 and USB interface
20. BIOS : Award BIOS version V6.1
21. Dimension : 200 x 150 mm
22. Power : DC 12V-In (12V +-5%)
23. Power Consumption : Please refer to page 91
1-2 Specification

7
1-3 Installing the CPU / North Bridge Chip Heatsink.
(Socket Version)
2. Use screw driver and screw the socket screw in
anti-clockwise direction.
2.1. Locate Pin1 in the socket, look for a golden narrow .
Golden arrow
Socket Pin1
2.2. Lock the CPU socket by securing the screw in an
anti-clockwise direction .
2.3. Please apply heat transfer paste on the center
of CPU & DIE .
Heat transfer paste
1. Install CPU bracket under the CPU first.
Socket screw
Socket screw
3. Secure the 4 screws by using slotted screwdriver.

8
1-4 Vertical SODIMM assembly guide
1.
Install the memory into SODIMM. 2. Press down firmly to ensure the memory
is locked.
1. Pull open both sides of the memory slot. 2. Take out the memory.
Uninstall

9
1-5 Directions for installing the Mini Card
1. Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle

10
1-6 Installing the Mini PCI card
1.Align the Mini PCI card with the connector at
a 45 degree angle. 2. Press the Mini PCI into the connector until you hear
a click.
Notices:
1.The connectors are designed to ensure the
correct insertion. If you feel resistance, check the
connectors & golden finger direction, and realign the card.
2. Make sure the retaining clips (on two sides of the slot)
lock onto the notches of the card firmly
1-6-1.1 Removing the Mini PCI card
1. Release the Mini PCI card by pulling outward
the two retaining clips and the card pops up slightly. 2. Lift the mini PCI card out of its connector carefully.

11
1-7 Packing List
Please contact with your dealer if any of these items is missing or damaged
on delivery. And please keep all parts of the delivery package with packing
materials in case if you need to deliver or store the product in the future.
*The packing list above is for the users who purchase single motherboard. The users
who purchase the board with chassis may refer to the packing list in the Assembly Guide.
1 MotherBoard
2 DC 12V Power Adapter(4P)
3 Power cord
4 ATA 66 HDD Cable(40P)
12345
678910
11
5 SATA HDD Cable(7P)
6 Haet Transfer Paste
7 CPU Heatsink Under Bracket
8 CPU+NB Heatsink
9 Power Cable
10 Utility CD Disk
11 User’s Manual

12
Hardware Installation
This chapter provides the information how to install the hardware of MI945A.
Please follow section 1-6, 2-1 and 2-2 to check the delivery package and unpack
carefully. Please follow the jumper setting procedure.
Chapter-2
2-1 Unpacking Precaution
The MI945A board has been well packed with an anti-static bag to protect its
sensitive components and circuitry from damage due to static electric discharge.
You should follow these
steps to protect the board from the static electric
discharge whenever you handle the board:
1. Ground yourself by a grounded wrist strap at all times when you
handle the MI945A.
Well secure the ALLIGATOR clip of the strap to the end of the shielded wire lead from
a grounded object. Please put on and connect the strap before handling the
MI945A for harmlessly discharge any static electricity through the strap.
2. Please use anti-static pad to put any components, parts, or tools on the pad whenever
you work on them outside the computer. You may also use the anti-static bag instead of
the pad. Please ask your local supplier for necessary parts on anti-static requirement.
3. Do not plug any connector or set any jumper when the power is on.
1. Do not touch the board or any other sensitive components without all necessary
anti-static protection.
2. Please pay attention to the voltage limitation of DC-IN12 V 5 %.
Overuse of DC-IN voltage limitation or change to another power adapter
( not provided with this system ) will VOID warranty.
NOTE!
+
-

13
2-2 Unpacking checkup
First of all, please follow all necessary steps of section 2-1 to protect MI945A
from electricity discharge. With reference to section 1-6, please check the delivery package
again with following steps:
1. Unpack the MI945A board and keep all packing material, manual
and driver disc etc, do not dispose !
2. Is there any components lose or drops from the board? DO NOT CONTINUE
TO INSTALL THIS BOARD! CONTACT THE DEALER YOU PURCHASED THIS
BOARD FROM, IMMEDIATELY.
3. Is there any visible damage on the board? DO NOT CONTINUE TO INSTALL
THIS BOARD!CONTACT THE DEALER YOU PURCHASED THIS
BOARD FROM, IMMEDIATELY.
4. Check your optional parts (i.e. DDR, CF etc.), all necessary jumpers
setting to jumper pin-set, and CMOS setup correctly.
Please also refer to all information of jumper settings in this manual.
5. Check your external devices (i.e. Add-On-Card, Driver Type etc.)
for complete add-in or connection and CMOS setup correctly.
Please also refer to all information of connector connection in this manual.
6. Please keep all necessary manual and driver disc in a good condition for future
re-installation if you change your Operating System.

14
2-3 Dimension 200 x150m
32.50
132.65
191.87
200.00
156.31
175.49
53.44
9.50
16.60
1.20
25.48
3.70
6.28
84.48
105.72
24.00
14.38
65.38
79.00
150.00
6.20
1.85
2.80
19.10
22.35
19.10
rj45 rj45
93.090
6.21
6.21
68.36
68.36
MI945A-M0.2
MI945A-M0.2
2008,09,08
2008,09,08

CN4
CN16
JV1
CN22 JV2
CN21
JC8
JKM1
CN15
CN14 CN5
CN2
CN6
CN11
CN10
CN8
JSV1 CN20
CN7
CN1 CN13
CN3
JF1
CN24
CN23
CN25
JCF1
CN27
CN26
CN30
CN32
CN29 JCF2
CN31
SATA1
SATA2
JUV1
CN28
CN33
CN35
CN42
CN41
JF2
JAT1
CN43
SODIM1 SODIM2
CN37
CN38
JV4
JT1
JB1
CN40 JV3
CN39
Layout2-4
15
JC1
CN19
