LEYMORE LMFT-1459068F User manual

OWNERS MANUAL
Outdoor Fire-Pit
Model:LMFT-1459068F
0063DM7967

OWNERS MANUAL
WARNING: FOR YOUR SAFETY
DANGER!
FOR OUTDOOR USE ONLY. DO NOT USE FOR COOKING.
IF YOU SMELL GAS:
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: KEEP THIS MANUAL FOR FUTURE REFERENCE
•Shut off gas to the applience
• extinguish any open flame
• If odor continues leave the area immediatley
• After leaving the area, call your supplier or fire
department
Installation and service must be performed by a qualified installer,
service agency or gas supplier.
Do NOT leave this appliance unattended while it is in operation.
Do NOT obstruct the ventilation holes of the cylinder housing.
Do NOT move the appliance when in operation.
Shut off the valve at the gas cylinder or the regulator before moving
the appliance.
In case of violent wind precautions must be taken against tilting of the
appliance.
Do not leave any outdoor gas appliance unattended when
in use.
The appliance will become hot when in use.
This appliance has a naked flame, please ensure
children, the elderly and infirm are protected
1.Do NOT store or use gasoline or other flammable vapors or liquids in
the vicinity of this or any other appliance.
2.An LP-cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance. This appliance is intended for
decorative purposes.
For Outdoor use only
The appliance is for Outdoor use. Only use in well
ventilated spaces.
Never use this appliance inside the home, car, camper
or tent.
This appliance is for decorative use
Read the instrucion before use;
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life.
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage personal injury or loss of
life.
Installation and service must be performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment, alteration, service or maintenance
can cause injury or property damage.
Read the installation, operation and maintenance instructions thoroughly
before installing or servicing this equipment.
Save these instructions for future reference. If you are assembling this
unit for someone else, give this manual to him or her to read and save
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Read the installation, operating and maintenance
instructions thoroughly before installing or servicing
this equipment.
If the information in these instructions is not
followed exactly, a fire or explosion may result in
property damage, personal injury or loss of life

OWNERS MANUAL
SPECIFICATION IMPORTANT SAFETY INFORMATION
Product
Name OUTDOOR GAS FIREPIT PRODUCT
Model
□LMFT-10010068Y2;□LMFT-10010072Y2;□LMFT-858572Y2;□LMFT-808050F2;□
LMFT-858550F2;□LMFT-858572F2;□LMFT-10010068F2;□LMFT-10010072F2;□LMFT-
858550F;□LMFT-909050F;□LMFT-909068F;□LMFT-909072F;□LMFT-13013068F;□
LMFT-13013072F;□LMFT-12012068F;□LMFT-12012072F;□LMFT-11011068F;□LMFT-
11011072F;□LMFT-10010068F;□LMFT-10010072F;□LMFT-8550Y;□LMFT-9050Y;□
LMFT-9072Y;□LMFT-9068Y;□LMFT-13068Y;□LMFT-13072Y;□LMFT-12068Y;□LMFT-
12072Y;□LMFT-11068Y;□LMFT-11072Y;□LMFT-10068Y;□LMFT-10072Y;□LMFT-
8250Y;□LMFT-82635Y;□LMFT-8268Y;□LMFT-7650Y;□LMFT-76635Y;□LMFT-7668Y;
□LMFT-7250Y;□LMFT-72635Y;□LMFT-7268Y;□LMFT-15010072F;□LMFT-
17010072F;□LMFT-1459068F;□LMFT-1458068F;□LMFT-18010072F;□LMFT-
16010068F;□LMFT-16010072F;□LMFT-1005050F;□LMFT-1105050F;□LMFT-
1206050F;□LMFT-1458568F;□LMFT-1508668F;□LMFT-1508672F;□LMFT-1488568F;
□LMFT-15090068F;□LMFT-15090072F;□LMFT-15010068F;□LMFT-15010072F
Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners an circulating air passa geways ofthe appliance are kept clean.
WARNING Failure to follow the dangers, warning and cautions in this manual may result in
serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNING:DO NOT throw anything onto the fire when the unit is in operation.
IMPORTANT NOTICE Read and understand all warnings and precautions prior to assembly and
use of your gas fire table. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. This appliance was designed and made in
accordance with EN14543, EN509(where appliance) and EN437 plus subsequent amendments (gas
standards) This appliance complies with the prescriptions of European Directive (Gas
Appliance Directive GAR 2016/426/EC).
ATTENTION: This appliance is fitted with flexible gas rubber pipe and clamps that must
be used; never use different kind and always according to the National Rules in force
ofthe country of destination. Minimum Clearance from Unit to Combustible Materials 65"
(165.1cm) from the top: 48" (121.9cm) from all sides and back. Do not locate this fire
table under any overhead enclosure.
IF YOU SMELL GAS:
Shut off gas supply to the fire table.
Extinguish any open flame.Do not try lighting any appliance.
Do not touch any electrical switch; do not use any phone in your building. Immediately
call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.If
you cannot reach your gas supplier, call the fire department. Children and adults should
be alerted to the hazards ofhigh surface temperatures and be kept at a safe distance
while fire table is in use. This outdoor fire table is not to be operated by children.
Young children should be closely supervised when in the vicinity ofthis outdoor fire
table. Do not hang or place clothing or other flammable materials on or near the gas fire
table. Any guard or protective device removed for servicing the appliance shall be
replaced prior to operating the appliance. Keepthese instructions for future reference.
If you are assembling this unit for someone else, give this manual to him or her to read
and keepfor future reference. This gas fire table must be used ONLY outdoors in a well-
ventilated space and shall NOT be used insi de a building, garage, or any other anclosed
area.
DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes
can accu mulate and cause asphyxiation.
Pin Code 0063DM7967
Heat Input 11.73KW(G30:852.9g/h;G31:837.7g/h)
Gas category I3B/P(30) I3B/P(37) I3B/P(50) I3+(28-30/37) I2H
Gas
Type/Gas
pressure
G30 Butane
and G31
Propane at
30mbar
G30 Butane
and G31
Propane at
37mbar
G30 Butane
and G31
Propane at
50mbar
G30 Butane
at 28-30mbar
G31 Propane
at 37mbar
G20 Natural
gas
at 20mbar
Injector
diameter □1.86mm □1.74mm □1.65mm □1.86mm □3.45mm
Destination
countries
BE, BG, CY,
CZ,
DK,EE, FI,
FR,
GB, GR,
HR,HU,
IT, LT,
LU,LV,MT,
NL, NO, RO,
SE,
SI, SK, TR
PL
AT, CH, CZ,
DE,
LU, SK
BE, CH, CY, CZ, ES, FR,
GB, GR, IE,
IT, LT, LU, LV, PT, SI, SK,
TR
AT,BG,CH,B
E, BG,
CY,CZ,DK,E
E,ES,FI,
FR,GB,GR,H
R,HU,IE,
IT, LT,
LU,LV,MT,
NL,
NO,PT,RO,SE
,
SI,SK,TR
Gas regulator Certified regulator according to EN 16129 (flow rate: max. 1.5kg/h)
Gas hose Certified gas hose according to applicable EN-standard (max1.5m)
Gas cylinder Standard gas cylinder (recommend to use 4.5kg ~ 15kg) CARBON MONOXID HAZARD
This appliance can prodce carbon monoxid which has no odor.
Using it in an enclosed place can kill you
Never use this appliance in an encloses space such as a
camper, tent, car or home.
Appliance
dimension
110*110*68cm;100*100*68cm;100*100*72cm;85*85*72cm;80*80*50cm;85*85*50c
m;85*85*72cm;100*100*68cm;100*100*72cm;90*90*50cm;90*90*68;90*90*72cm;1
30*130*68cm;130*130*72cm;120*120*68;120*120*72cm;110*110*72cm;82*82*68c
m;76*76*50cm;76*76*68cm;150*100*72cm;170*100*72cm;145*90*68cm;145*80*68
cm;180*100*72cm;160*100*68cm;160*100*72cm;100*50*50cm;110*50*50cm;120*
60*50cm;145*85*68cm;150*86*68cm;150*86*72cm;148*85*68cm;150*90*68cm;15
0*90*72cm;150*100*68cm;150*100*72cm

OWNERS MANUAL
NEVER LEAVE this gas fire table unattended when in use.
Do not attach a remote gas supply to this unit. This unit is not intended for
natural gas.
Converting this unit to natural gas is dangerous and not recommended. The
conversion of this unit will void the manufacturer warranty.
Do not use a flame to check for gas leaks.Do not store any combustible materials in
the base enclosure.
Do not store or use gasoline or other flammable vapors and liquids within 25 feet
(7.62m} of this or any other appliance. The use of alcohol, prescription or non-
prescription drugs may impair an individual's ability to properly assemble or
safely operate this outdoor fire table. •DO NOT use in an explosive
atmosphere. Keep gas fire table area a clear and free from combustible materials,
gasoline and other flammable
vpors and liquids.
This outdoor fire table is not to be installed or used in or on recreational
vehicles and/or boats. Always remove protective cover before operating(if
applicable}.
DO NOT set the protective cover over the unit until it is turned off and completely
cooled down.
DO NOT use in windy conditions.
•Keep all electrical cords away from a hot outdoor fire table.
Certain areas of this outdoor fire table when in use will become too hot to touch.
Do not touch hot surfaces until the unit has cooled unless you
are wearing protective gear such as insulated pot holders or heat resistant gloves
or mittens to avoid burns.
DO NOT attempt to move or store this outdoor fire table until all parts are cool.
DO NOT lean over this outdoor fire table when lighting or when in use.
•Use only the regulator and hose assembly provided. The replacement regulator and
hose assembly shall be that specified by the manufacturer.
•DO NOT attempt to disconnect the gas regulator from the tank or any gas fitting
while the outdoor fire table is in use.
•Always shut off the supply at the tank valve and disconnect regulator from the
tank when the fire table is not in use
•DO NOT sit on the fire table when the unit is in operation. DO NOT throw anything
onto the fire when the unit is in operation.
•Glass beads are very hot; please keep children or pets at a safe distance.
It is essential to keep the outdoor fire table valve compartment, burners, and
circulating air passages clean. Inspect outdoor fire table before each use.
Check for leaks after not using the unit for long periods of time.
•Prior to each fire table operation, check the hose for evidence of excessive
abrasion or wear by looking through the visual replaced before using the gas
fire table. The hose assembly assembly specified by the manufacturer. Please call
Creative Outdoor Solutions at 866-292-8800.

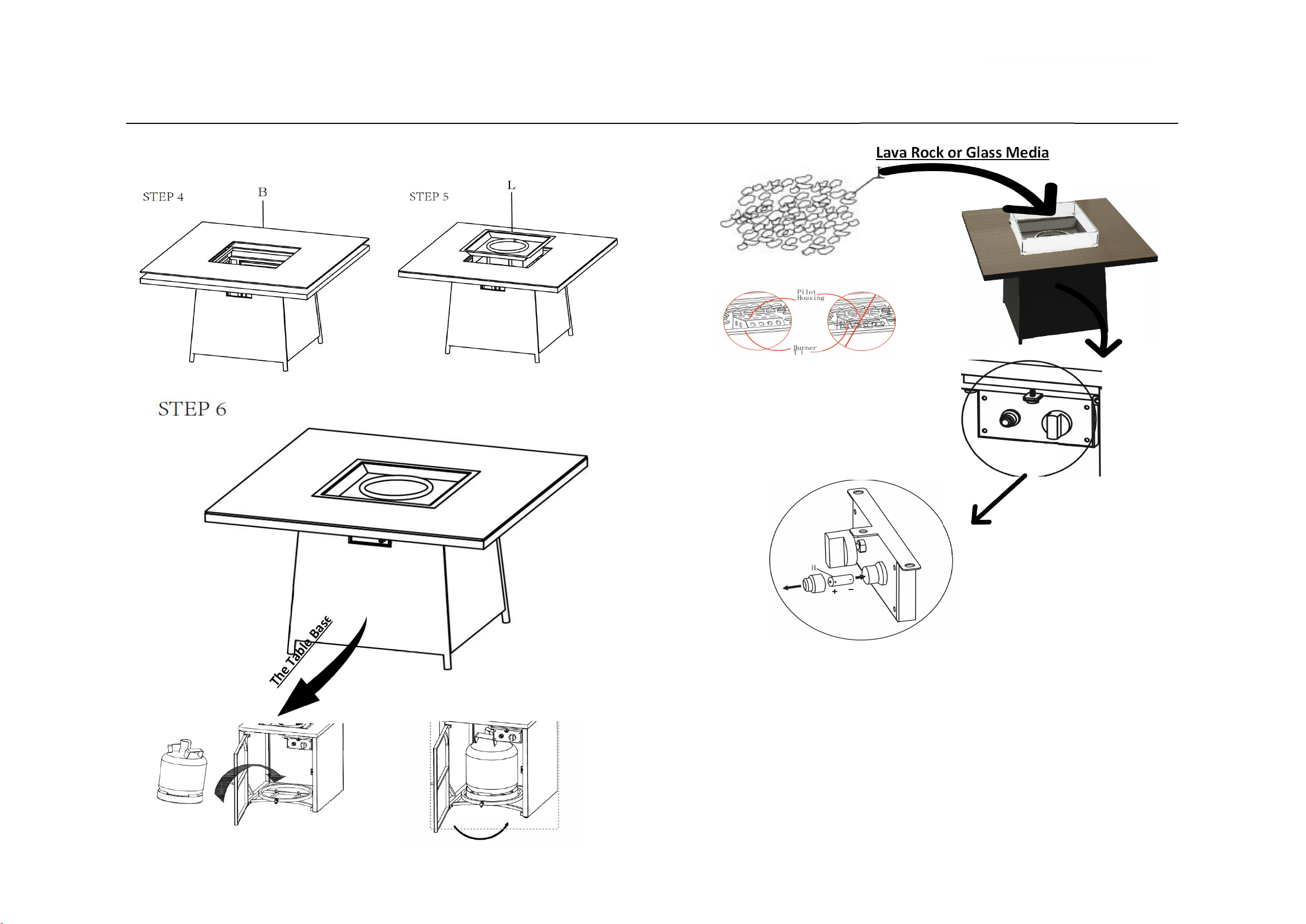

Before each use, remove the lava rocks. Examine the burner and its components. If
dirty,
clean with a soft brush and soapy water solution. Also examine the area around the
Place the hose out of the pathways where people may trip over it (if using
external tank). Do not place the hose in areas where it may be
subjected to accidental damage.
PROPANE AND BUTANE DANGERS AND WARNINGS
PROPANE AND BUTANE GAS
PROPANE AND BUTANE gas is flammable and hazardous if handled improperly.
Become aware of the characteristics before using any LP gas product.
PROPANE AND BUTANE Characteristics• Flammable, explosive under pressure,
heavier than air and settles in pools in low areas.
•In its natural state, propane and butane has no odor. For your safety, an
odorant has been added.
•Contact with propane and butane could burn your skin.
•Propane is extremely flammable and hazardous if handled improperly.
PROPANE AND BUTANE GAS WARNINGS
•Cylinders must be stored outdoors in a well-ventilated area out of reach
of children.
•Disconnected cylinders must have threaded valve plugs tightly installed
and must not be stored in a building, garage or any other enclosed area.
•Never use a propane and butane cylinder with a damaged body, valve,
collar or footing.
•Dented or rusted propane and butane cylinders may be hazardous and should
be checked by your propane gas supplier.
We suggest use this appliance with propane or butane gas cylinder of 5KG.
Propane and butane gas tank must be arranged for vapor withdrawal.
•The propane and butane gas tank must have a listed overfilling prevention
device (OPD).
The propane and butane gas tank must have a tank collar to protect the
tank valve.
The propane and butane gas tank should not be dropped or handled roughly.
Tanks must be stored outdoors out of the reach of children. Do NOT store
in a building, garage, or any other enclosed area.
Never store your propane and butane gas tank where temperatures can reach
over 125°F.
•Do not store the propane and butane gas cylinder in direct sunlight or
near a source of heat or combustion.
•Never keep a fulled propane and butane gas tank in a hot car or car
trunk. Heat will cause the gas pressure to increase, which may open the
relief valve and allow gas to escape.
•Place dust cap on valve outlet whenever the propane and butane gas tank
is not in use. Only install the type of dust cap on the propane and butane
gas tank valve outlet that is provided with the propane and butane gas
tank valve. Other types of caps or plugs may result in leakage of propane.
a.Do not store a spare LP gas cylinder under or near this appliance.
b. Never fi II the LP gas cylinder beyond 80% full.
c.If the information in (a) and (b) is not followed exactly, afire causing

OWNERS MANUAL
•propane and butane gas cylinders should be filled only by a certified propane and
butane gas dealer. Never attempt to attach this appliance to the self-contained LP
gas system of a camper trailer, motor home or house.
•Always use the pressure regulator and hose assembly provided with the appliance to
connect to a propane and butane gas cylinder. Never connect to an unregulated
propane and butane gas supply Hand turn the manual gas control valve. Never use
tools. If the valve will not turn by hand, do not try to repair it. Call a Certi行
ed Gas Technician. The use of force or any self attempted repair may result in a行
re or explosion.
AMPLY VEN TILATED AREA
The use of this appliance in enclosed areas is DANGEROUS and is PROHIBITED
1)For use outdoors or in amply ventilated areas
2)An amply ventilated area must have a minimum of25 % of the surface area
open.
MINIMUM CLEARENCES
Die unten angegebenen Abmessungen sind Mindestabstande, die bei der
Installation des Gerats The dimensions shown below are MINIMUM CLEARANCES
to maintain when you install the unit.
ALL CLEARANCES AND INFORMATIONS STATED HERE MUST BE MAINTAINED AND
FOLLOWED.
165
Zentimeter
(65 in) Above
clearance
122 Zentimeter (48
in) Side clearance
122
Zentimeter
(48 in) Side
clearance
122 Zentimeter (48
in) Side clearance

OWNERS MANUAL
ERWEITERTE ANSICHT 1
TECHNICAL DATA

OWNERS MANUAL
Select the position cylinder to install:
For safe use, please do the following: the cylinder in the unit should follow the
following criteria:
(a)the bottom cover of the bottle must be inserted between the bottle supports and
leveled on the bottom panel.
Bottle size
465 mm, maximum height
289 mm width (or rectangle)
318 mm (largest circular base)
(b)the maximum capacity of the cylinder is 6 pounds (6 kilograms).
The size of several cylinder is allowed (2).
WARNING:lf cylinders do not buy , do not meet the size requirements, do not
connect the furni一 ture inside . Put the bottle on the door bottle or put it on
the floor. Otherwise, you may damage and cause a fire or a flexible explosion,
resulting in injury, serious or even fatal, and property damage.
WARNING:Change the gas cylinder in a amply ventilated area, away from any ignition
source(candle, cigarettes, other flame producing appliances).

OWNERS MANUAL
HOSE &REGULATOR ASSEMBLY AND REPLACEMENT
1. This fireplace comes equipped with a standard gas hose and regulator including
the appliance side connection for Cylinder Connection Device. The gas hose and
regulator supplied with this行re table must be used. In case it is not included,
follow the description specifying which type to use. Type of regulator: Low
pressure LPG regulator;
Regulator for specified standards:EN 1612-:2013 Only a hose and regulator specified
by manufacturer can be used for replacement.
7. For the connection of the hose and regulator to the tank, refer to the
"Connection" section of the gas cylinder section.
GAS HOSE CONNECTIONS
Two adults will be needed, to assist each other with assembly. Upraise the
fire pit and attach the hose to the manifold inlet nipple and tighten hose
clip, or secure the hose to the manifold inlet fitting as shown in FIG.01
& FIG.02 below.
NOTE: Installation and service must be performed by a qualified installer,
service agency or your gas provider and Plastics hose tubing and
assemblies. length of tubing or flexible hose usable for the gas supply to
the appliance from the gas cylinder:SOcm
a.The connection incorporates a magnetic flow limiting device that acts to limit
the flow of gas if a leak is detected between the regulator
and the burner valve.
b. If the burner valve is open prior to the gas cylinder service valve being
opened, the connection will interpret this free flow of gas to be a leak.
c.The connection safety feature will reduce gas flow from the regulator to the
appliance to a minimal level.
d.Be sure that the burner control valve is closed prior to opening the gas cylinder
service valve to ensure that the connection flow limiting
device is not triggered mistakenly.
e.If the connection flow limiting device is triggered mistakenly, close the gas
cylinder service valve and the burner valve, wait 10 seconds to allow the device to
reset, open the cylinder service valve, then open the burner valve and light the
fireplace as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if
the hose contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a.Inspect the hose before each use of the fire table. If the hose shows signs of
cracks, abrasions, cuts or damage of any kind, do not operate the appliance. Fix or
replace the hose as required
before using the appliance. For assistance with repair or replacement of the hose.
Use only replacement parts from the manufacturer.
b. Inspect the seal inside the service valve on the gas cylinder when replacing the
cylinder or at least once per year. lf there is any indication of damage, have the
seal replaced by a certified gas dealer before operating the appliance.
4.Do not use tools to tighten the connection nut onto the gas cylinder service
valve.
5.Be careful to not cross the threads on the connection when tightening the
connection on to the gas cylinder service valve.
6."Leak Test" should always be performed after attaching the connection to the gas
cylinder service valve.

OWNERS MANUAL
Lava Rock Warning
Lava Rock Warning:
1aDo not change or substitute the lava rock media material provided with this fire
pit. lfreplacing, use only replacement lava rock media available from your local
authorized dealer/distributor.
2.Pour the lava rock media evenly in to the burner area(with the exception of the
screen-if applicable). The lava rock should be ½一1" above the burner.
3.IMPORTANT:Do not exceed a height of 1" above the burner when placing lava rock
media. Ensure no media coves the igniter box. Store any excess media in a safe
location.
4. Do not light or use this firetable iflava rocks are wet. Ensure lava rocks are
completely dry before lighting. Intense heat can cause wet lava rocks to explode
and they could hit someone causing injury.
5.Please keep away from the firetable for at least 20 minutes during initial start-
up as lava rocks could retain some moisture from manufacturing and shipping
Glass Media Warning
Glass Beads Warning:
Glass media may have sharp edges. Wear safety glasses and gloves when handing
1aDo not change or substitute the glass media material provided with this fire pit.
If replacing, use only replacement glass media available from your local authorized
dealer/distributor.
2.Pour the glass media evenly in to the burner area(with the exception of the
screen-if applicable).The glass should be ½-1" above the burner.
3.IMPORTANT:Do not exceed a height of 1" above the burner when placing glass media.
Ensure no media coves the igniter box. Store any excess media in a safe location.
4. Do not light or use this firetable if glass are wet. Ensure glass are completely
dry before lighting. Intense heat can cause wet glass to explode and they could hit
someone causing injury.
5.Please keep away from the firetable for at least 20 minutes during initial start-
up as glass could retain some moisture from manufacturing and shipping.

OWNERS MANUAL

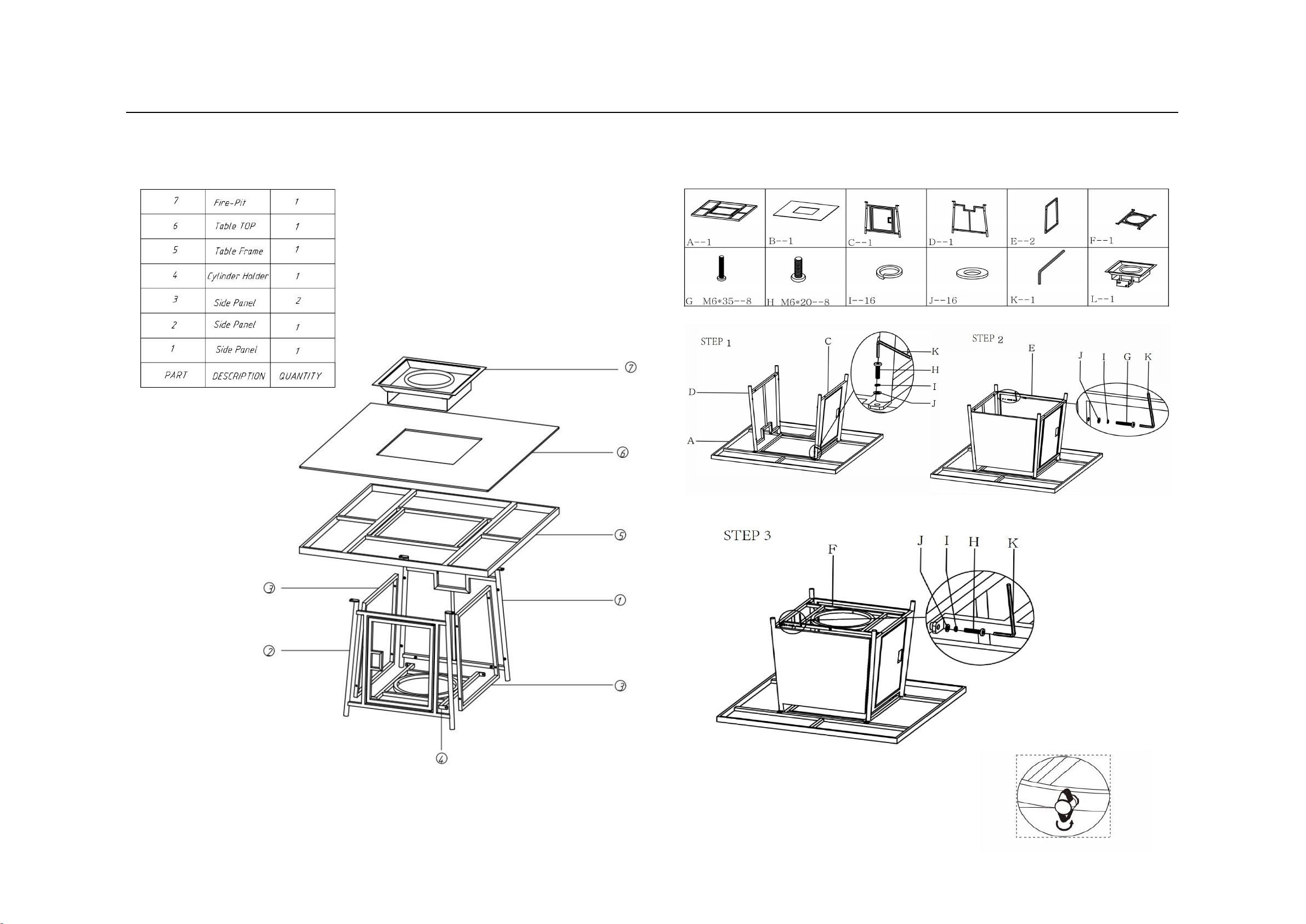

PACKAGE CONTENTS
ASSEMBLY INSTRUCTIONS
HARDWARE CONTENTS

OWNERS MANUAL
The Table Base
Lava Rock or Glass Media

OWNERS MANUAL
Battery for electric ignitor is not included. Please purchase one standard AAA
battery (1,5 V). and insert as shown in fig... Step 9"Pay attention to correct
polarity. In case of longer non-use of the the fire table, please remove battery to
prevent leaking.Battery take-back
Looking for possible gas leaks
It's not the flame that looks for the gas leak. Make sure there is no
spark or flame near the area during sealing inspection. Sparks and flames
can cause fires or explosions, which can cause serious or even fatal
damage and material damage.
* Batteries must not be discarded into domestic waste.
* The consumer is legally required to return batteries after use, e.g. to public
collection centers or battery distributors.
*Contaminant-containing batteries are labelled with the sign "cross-out trashcan"
and one of the chemicals. Used batteries should be disposed environmentally-
friendly and should not be discarded into domestic waste. Your dealer is equally
required to take back old batteries.
KONTROLLE AUF LECKS
Make a leak check solution by mixing 1 part dish washing soap with
3 parts water in a spray bottle. Make sure control knob is "OFF." Then,
turn LP gas tank to
"ON" at valve. Spray leak solution on valve connections paying particular
attention to the areas indicated by arrows. If any bubbles appear turn LP
gas tank OFF, reconnect and re-test. If you continue to see bubbles after
several attempts, disconnect LP gas source and contact xxxxxxxxx at
xxxxxxxxxxxx for assistance.
If no bubbles appear after one minute turn tank OFF, wipe away solution
and proceed.
OPERATING INSTRUCTIONS
To connect the gas bottle to the unit
To connect the gas bottle to the unit:
1.Ensure that all connecting threads and surfaces are undamaged, clean
and free from oil dirt. When fitting the hose make sure that it is free
from twisting, kinks or sharp bends. Do not allow the hose to touch any
hot surface or sharp edges.
2.Attach the regulator to the gas cylinder. Refer to the instructions
supplied with the regulator for details regarding fitting.
3.Test for gas leaks.
Do a leak test each time the cylinder is installed, whether or not it
has been filled.
Check all other joints at least once a year. If the hose shows
deterioration or damage, leak test the entire outer surface, while under
pressure. Replace at first sign of leak or age cracking. Remember to
turn the cylinder valve OFF before removing the hose

OWNERS MANUAL
Turn LP gas tank to "ON" at valve
Lighting
WARNING: NEVER light t he burner wit h t he cover on t he out door firep
lace.
CAUTION: Keep outdoor gas app liance area clear and free from combustible
mat erials, gasoline and other flammable vapors and liquids.
CAUTION: Do NOT obstruct t he combustion and ventilation air.
CAUTION : Check and clean burner/venturi tubes for insects and insect
nests. A clogged tube can lead to a fire.
1.Make sure all labels, p ackaging and prot ective films have been removed
from t he out door firep lace.
2.Check for obst ructions of airflow to t he burner. Spiders, insects and
webs can clog t he burner/ venturi tube. Aclogged burner tube can lead to
a fire.
3.Control knob must be in t he" OFF" p osition .
4.Clear small area of glass rocks away from t he ignit er cover .
5.Connect LP gas tank p er "Installing LP Gas Tank" section.
6.Turn LP gas tank valve to "OPEN ".
7.Push and hold t he electronic ignit er to creat e sparks wit hin t he
elect rode, continue to hold.
8.Push in t he control knob and turn to t he "ON " p osition, Keep holding
down t he control knob to al low gas to flow for 20 seconds.
9.Aft er 20 seconds, release and turn cont rol knob count erclockwise to
adjust flame to desired height.
10.lfignition does not occur in 20 seconds turn burner cont rol knob to"
OFF" wait 5 minut es, fan wit h a newsp ap er or magazine, and rep eat
lighting procedure.
11.Remove cover and lid from out door fireplace before lighting.
12.lfignit er does not light burner
Check for leaks at these locations:
a. Wearing heat -resistant gloves, p osition a long lit match or long lit
butane light er near t he pilot
housing.
b. Push and turn contorl knob to "ON "
C. Remove mat ch/light er once burner is lit
CAUTION: Aft er lighting - using a fireplace tool and heat -resistant
gloves, carefully move t he glass beads back to t heir p rop er, p
osition, being careful to avoid t he flame.
13. After lighting, observe t he burner flame make sure all burner p orts
are lit and flame height matches illustration(Figure 5)
CAUTION: If ignition does not occur in 5 seconds, turn control knob t o"
OFF", wait 5 minut es, fan wit h a newsp ap er or magazine and rep eat
lighting procedure.
Turning off 1. Turn LP gas tank valve to" CLOSED". 2. Turn control knob to
t he" OFF" p osition. Not e: A "p oof" sound is normal as t he last of t
he LP gas is burned. 3. Disconnect LP gas tank p er "Disconnecting LP Gas
Tank" section

OWNERS MANUAL
CLEANING AND MAINTAIN AND STORAGE
TROUBLESSHOOTING
CAUTION: 1. All cleaning and maintenance should be done when outdoor fireplace is
cool and with the fuel supply disconnected.
2. Do not clean any outdoor行replace part in a self-cleaning oven, the extrem e heat
will damage the什nish.
3. Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
Notices:
1. This outdoor fireplace should be thoroughly cleaned and inspected on a regular
basis.
2. Abrasive cleaners will damage this product.
3. NEVER use oven cleaner to clean any part of this outdoor fireplace.
Cleaning Burner System:
1. Remove the lava rock or glass beads from the burner pan .
2. Examine the burner and its components. If dirty, clean with a soft brush and soapy
water solution.
3. examine the area around the burner: any dirt or foreign material, such as spider
webs or nests in this area should be removed.
4. lf it is evident that the burner is damaged, the fire table must not be used.
Before Each Use
1. Keep the outdoor fireplace area clear and free from any combustible materials,
gasoline and other flammable vapors and liquids.
2. Do not obstruct the flow of the combustion of LP gas and the ventilation of air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from
debris.
4. Visually check the burner flames to make sure your outdoor fireplace is working
properly (Figure 5).
5. See below for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check for obstructions of airflow to the burner. Spiders, insects and webs can
clog the burner/venturi tube. A clogged burner/venturi tube can lead to a fire.
9. If damage to any component is detected, do NOT operate until repairs are
completed.
Cleaning Surfaces:
1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with
water. 2. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing
brush.3. Rinse clean with water. 4. Allow to air dry.
Before Storing
1. Turn LP gas tank valve to "CLOSED".
2. Turn control knob to the " OFF" position. Note: A "poof" sound is normal as the
last of the gas is burned. 3. Disconnect LP gas tank per "Disconnecting LP Gas Tank"
section. 4. Clean all surfaces. 5. Lightly coat the burner with cooking oil to
prevent excess rusting.CAUTION: NEVER place cover on hot outdoor fireplace.6. If
storing the outdoor fireplace indoors, cover the outdoor fireplace and store in a
cool dry location away from children and pets. 7. If storing the outdoor fireplace
outdoors, cover the outdoor fireplace with the included cover for protection from the
Problem: Burner will not light using igniter
Possible Cause 1: Electrode and burners are wet.
---Wipe dry with cloth.
Possible Cause2: Igniter battery is dead or backwards.
---Check that the AAA battery is inserted correctly in the igniter (see
page 10) or replace the battery.
Possible Cause 3: Igniter Pin cracked or broken - sparks at crack.
-Call SELLER for technical support.
Possible Cause 4: Wire loose or disconnected. -Reference page 16, step 1,
reconnect wire. Call SELLER
Possible Cause 5: Wire is shorting (sparking) between igniter and
electrode. -Call SELLER for support. Possible Cause 6: Igniter Pin not
pointing at BURNER HOSE.
-turn electrode to point at BURNER HOSE.
Possible Cause 7: Bad Igniter.
---Call SELLER for support.
Problem: Burner will not light with match
Possible Cause 1: No Gas Flow.
---Check if the gas tank is empty. If empty, replace and refill. If the
gas tank is not empty, refer to "Problem: Sudden drop in gas flow" on the
following page.
Possible Cause 2: Coupling nut and regulator not fully connected.
---Turn the coupling nut about one half to three fourths a turn, until you
feel a solid stop. Do not use tools, tighten by hand only.
Possible Cause 3: Obstruction of gas flow.
---Check for bent or kinked hose.
Possible Cause 4: Spider webs or insect nest in the Venturi.
---Clean the Venturi.
Possible Cause 5: Burner ports clogged or blocked.
---Clean the burner ports as described there.
Problem: The Fire Table emits a lot of black smoke when in use
Possible Cause 1: Hose from gas fireplace is pinched.
----Make sure the hose is not pinched between the fire table and the
source of the gas.
Possible Cause 2: Flame is being obstructed at burner ports.
----Make sure that the gas ports on the burner are free of any lava rocks
so that the flame can flow naturally.
Problem: Sudden drop in gas fl ow, or a reduced flame height
Possible Cause 1: Out of gas.
---Replace or refill LP gas tank.
Possible Cause 2: Excess flow safety device may have been activated.

OWNERS MANUAL
---Turn control knob to "OFF", wait 30 seconds and light outdoor fireplace. If
flames are still too low reset the excessive flow safety device by the control knob
and gas tank valve. Disconnect regulator. Turn burner control knob to "HIGH". Wait
1 minute. Turn burner contr . Reconnect regulator and perform a leak check at tank
connection. Turn gas tank valve on slowly, wait 30 seconds and then light outdoor
fire table.
AFTER SALES SERVICE
For any questions please check whith your local dealer first.
For second level support your dealer or yourself may contact
the service center at:
Problem: Irregular flame pattern, flame does not run the full length of the burner
Possible Cause: Burner ports are clogged or blocked.
----Clean burner ports. Do this by inserting a paperclip into each of the burner
ports to ensure they are not clogged.
WARNING: Make sure burner is not on and the gas supply has been properly
disconnected. Allow 15 minutes for unit to cool before touching it.
Problem: Flame blow out
Possible Cause 1: High or gusting winds.
---Increase flame to "HIGH" setting.
Possible Cause 2: Low on LP gas.
---Replace or refill LP gas tank.
Possible Cause 3: Excess flow valve tripped.
---Refer to "Problem: Sudden drop in gas flow"
Problem: Flame seems to lose heat when burning in cold weather temperature below
S0°F
Possible Cause 1: Ice has built up on the outside of the LP gas tank because the
vaporization process is too low.
----Turn the control knob and the gas tank to "OFF". Replace with a spare gas tank
and resume burning. Store the spare gas tank in a well ventilated area, away from
children.
