LG Chem RESU10H StorEdge Assembly instructions

The information provided in this document is for informational purposes only and is subject to change without notice.
Do Not Publish

Do Not Publish

Do Not Publish
Dear Customer
First of all, we would like to thank you for purchasing LG Chem’s RESU high voltage battery.
We are consistently improving the product to enhance customer satisfaction, but we can
only
maintain the product quality with your help, too. As the installation volume grow, we are
finding
a growing number of reports related to the Auxiliary power switch.
This is a non-safety related problem, but it can affect the battery functionality.
Your caution is required in order to avoid the problem as the battery can be damaged.
Do not turn off the ‘Auxiliary power switch’ when the circuit breaker is in on position, as
follows.
1) Operation mode(Charging/Discharging)
2) F/W update mode
3) Beginning of the initialization
4) Commissioning
LG Chem has found that the power created from the Auxiliary switch when switched off can
damage the major parts in the DC/DC convertor, if the circuit breaker is in on position.
The current still exit the DC/DC converter even though inverter is turned off.
Please be aware that customers are allowed to turn off the power switch after moving the
circuit breaker to the off position.
Notify your LG Chem regional contact immediately when failed to do so or if you find
another
unfamiliar symptom.
Please be aware that the product can be used again after the repair by a certified
personnel from LG Chem. However, LG Chem cannot guarantee a defective product
caused
by the customer.
Sincerely yours,
Hyunchul Lyu
LG Chem ESS Customer service team leader

Do Not Publish

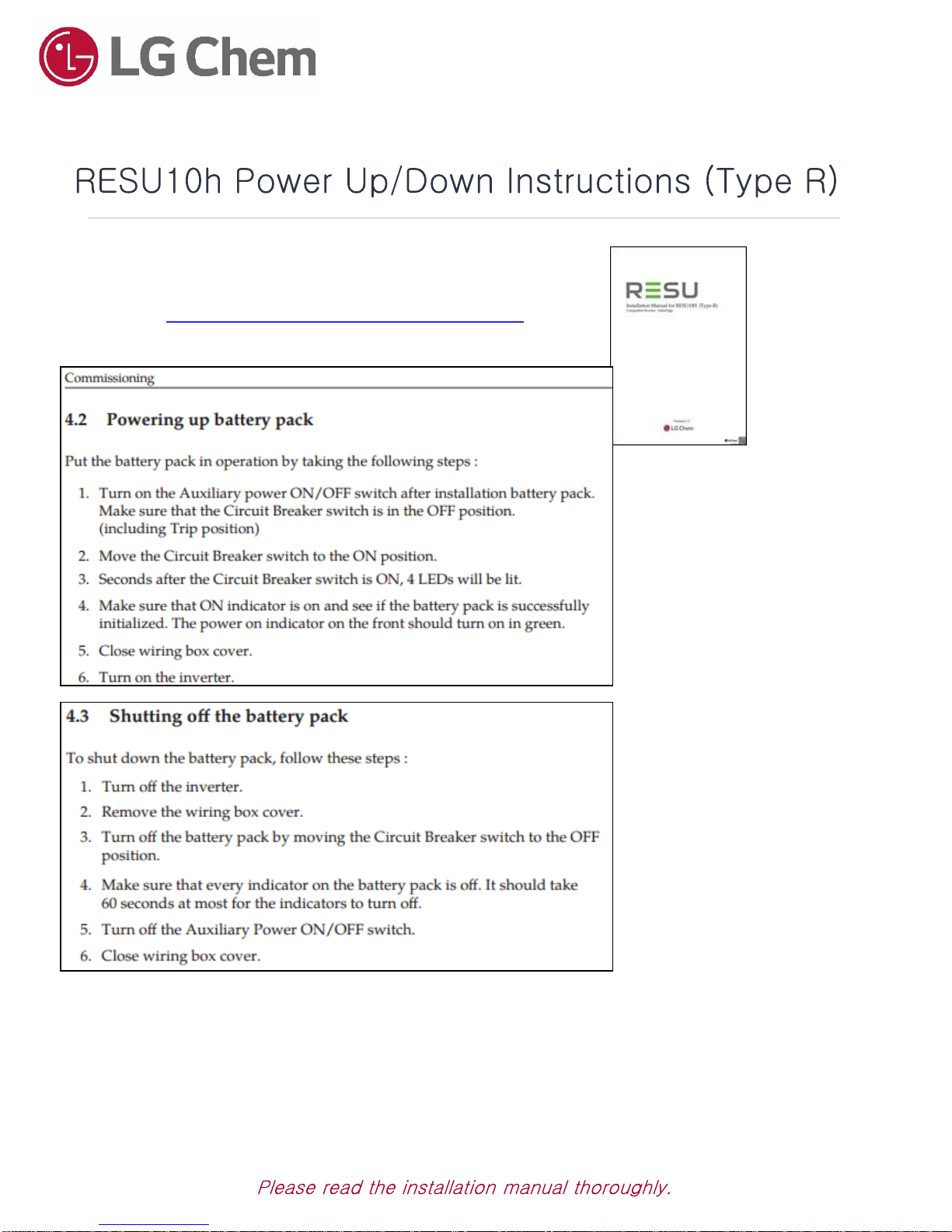

RESU10h Installation Manual

Do Not Publish
1
2
If you are not going to
commission the battery
the same day that you
install it, you need to turn
off the circuit breaker and
then the auxiliary switch!

Do Not Publish

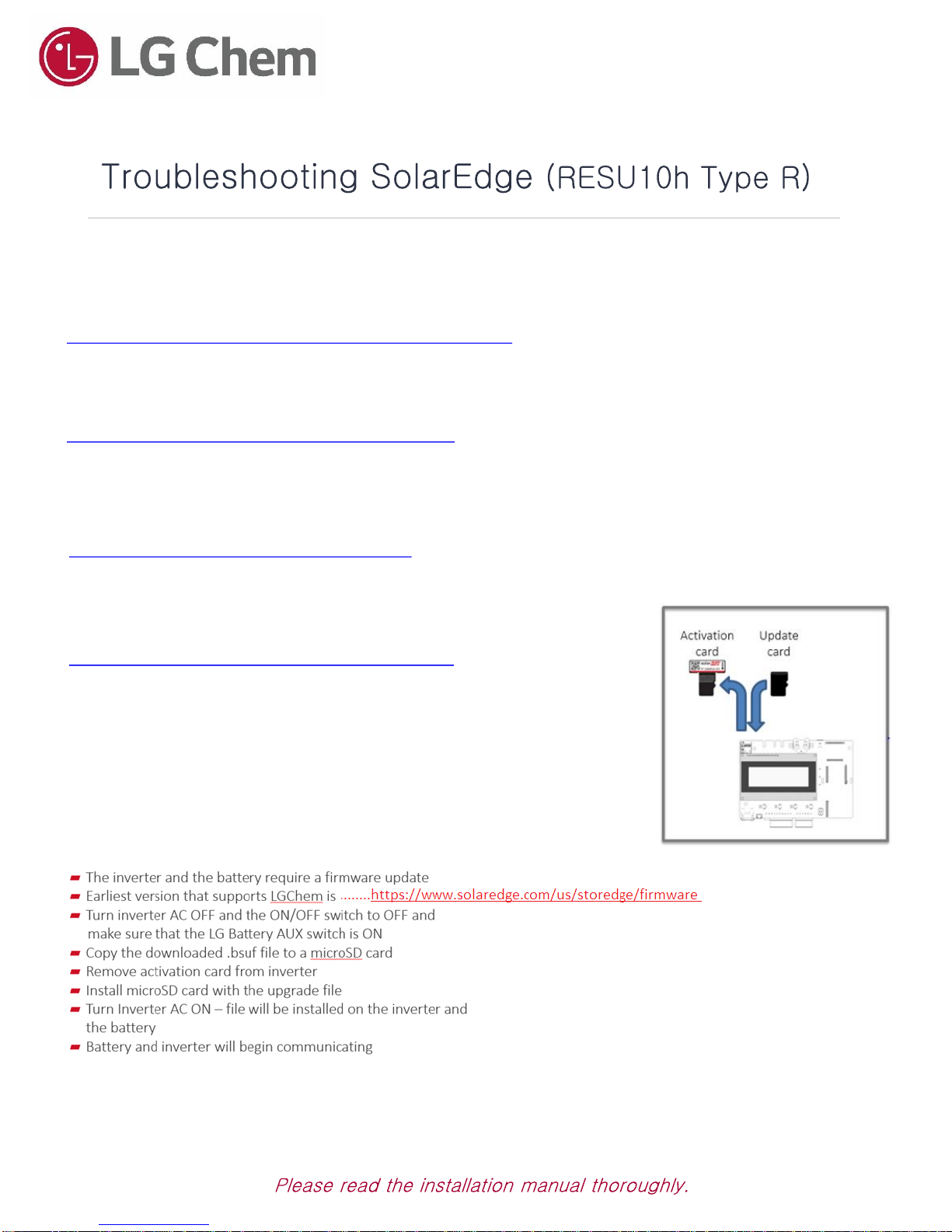

SolarEdge/RESU10h Post Installation Checklist
Strongly recommended to exhaust all inverter troubleshooting before resorting to the battery.
Latest SolarEdge Firmware Updates
SolarEdge Firmware Update Instructions
Firmware Update by SDS/MicroSD Card
* Please check for latest firmware versions *

Do Not Publish
Strongly recommended to exhaust all inverter troubleshooting before resorting to the battery.
RESU10h Fault ID Checklist
RESU10h Type R Installation Manual
LED Definitions

Do Not Publish
.
RESU pack voltage should be measured after 180 days from manufacture date.
Your distributor is actively monitoring the age of the RESUs.

Do Not Publish
Battery Location Restrictions –Exposure to rain
The battery has an IP55 rating which means it’s tested to:
•Ingress of dust is not entirely prevented, but it must not enter Solid particle protection:
in sufficient quantity to interfere with the satisfactory operation of the equipment.
•Liquid ingress protection: Water projected by a nozzle (6.3 mm) against enclosure
from any direction shall have no harmful effects.
An IPX4 rating (liquid ingress protection against splashing) is generally considered
sufficient for rainfall as it protects against splashing from any direction. An IP55 rating
provides a greater level of protection.
The installation manual addresses water exposure in three places:
Page 6: "Do not expose or place near water sources like downspouts or sprinklers"
Page 7: "However, if installed outdoors, do not allow the battery back to be exposed to dir
ect sunlight and water sources as it may cause..."
Page 16: "The waterproof and properly ventilated area is recommended.
The page 6 reference identifies water sources as things like downspouts and sprinklers, it
ems that could subject the battery to sustained water flow. Rain fall isn’t a sustained stre
am of water and shouldn’t be considered a ‘water source.’
In addition, page 16 clarifies that a waterproof area is recommended, not required.

Do Not Publish
Illumination as required by NEC 706.10(E)
NEC 706.10(E) states:
Illumination. Illumination shall be provided for working spaces associated with ESS and their equipment and
components. Luminaires shall not be controlled by automatic means only. Additional luminaires shall not be required
where the work space is illuminated by an adjacent light source. The location of luminaires shall not do either of the
following:
(1) Expose personnel to energized system components while performing maintenance on the luminaires in the system
space
(2) Create a hazard to the system or system components upon failure of the luminaire
Existing illumination in a customer’s garage will satisfy this requirement:
“Luminaires shall not be controlled by automatic means only.”
This allows for automatic control so long as there is also manual control available. If the light is switched, it
should meet this requirement
“Additional luminaires shall not be required where the work space is illuminated by an adjacent light source.”
Per 210.70(A)(2)(1): "At least one wall switch–controlled lighting outlet shall be installed in hallways, stairways,
attached garages, and detached garages with electric power.”
A garage is required to have a switch controlled lighting outlet so illumination is available in the same space the battery
will be installed in.
In addition, the language in 706.10(E) mirrors 100.26(D):
Illumination. Illumination shall be provided for all working spaces about service equipment, switchboards, switchgear,
panelboards, or motor control centers installed indoors. Control by automatic means only shall not be permitted.
Additional lighting outlets shall not be required where the work space is illuminated by an adjacent light source or as
permitted by 210.70(A)(1), Exception No. 1, for switched receptacles.
Which suggests that the lighting currently accepted for other equipment associated with the solar installation (notably
the inverter) is also acceptable to meet the requirements of 706.10(E).

Do Not Publish

Do Not Publish

Do Not Publish

Do Not Publish

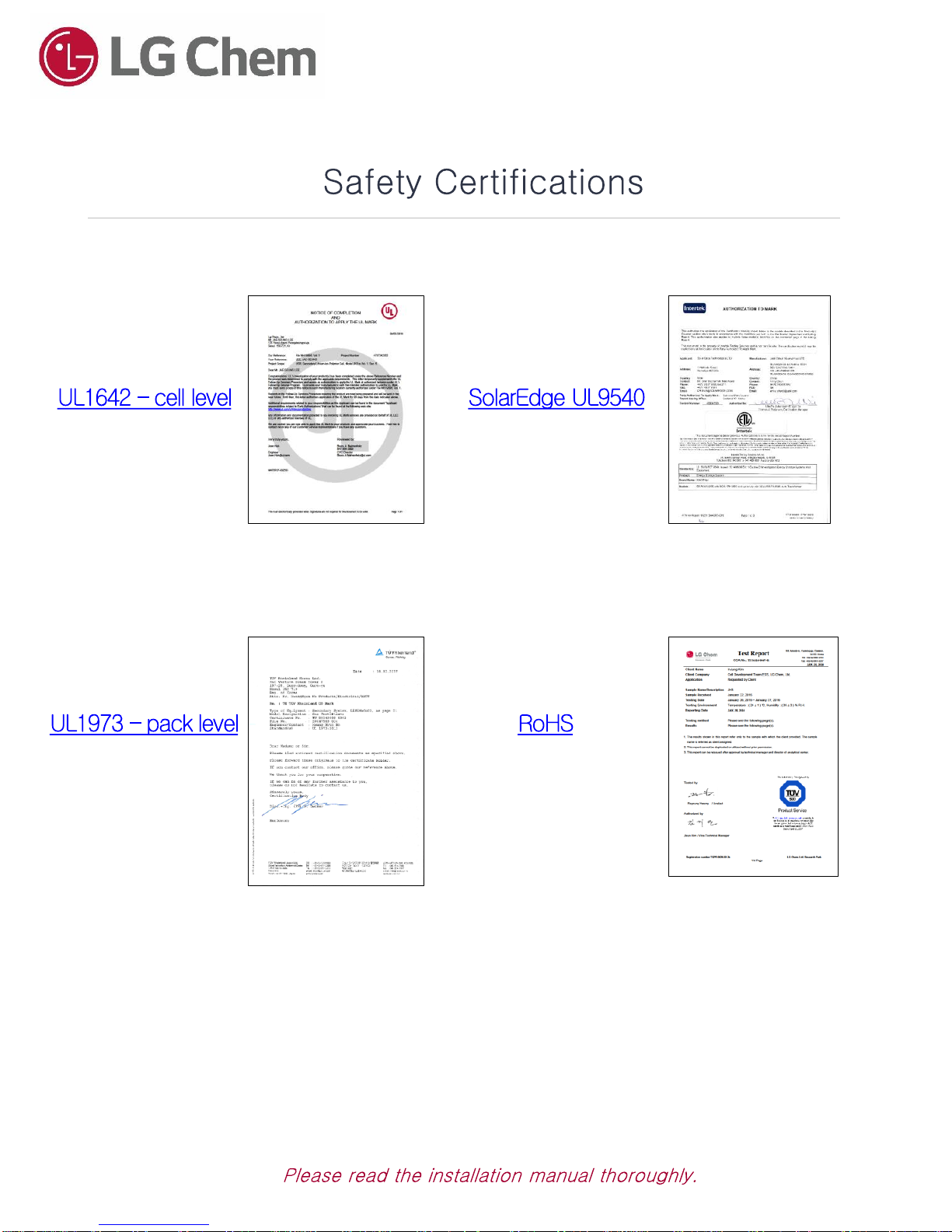

Disclosure: This information is being provided for your ease of reference in order to save you time and money. We value your safety
and business acumen. LG Chem is not affiliated with any of these organizations.
DOT Certification 3rd Party Online Test……………………………...………40% discount code “13437”
U.S. DOT, FAA……..………………………………………………New Standards for Li-on Bat. Transportation
FMCSA (Federal Motor Carrier Safety Administration)……………………. shipper responsibilities
Video: Traveling Safely w/ Li-ion Batteries
Overview of Battery Transport
Regulations
IATA/DOT New Li-on Battery Rules
FedEx & UPS
Batteries In Transport
Safety Tips for Travelers
Video: Li-ion Batteries & Safety

Do Not Publish
Authorized RESU Distributors………….Only purchase RESU from an Authorized RESU Supplier!!
Installer Resources……………………………………… Please check here for immediate RESU needs
Product Registration………………….…………… Include photos of your installation & serial number
RESU Installation Certification Test………..…..……..… 100% to pass, enter email correctly

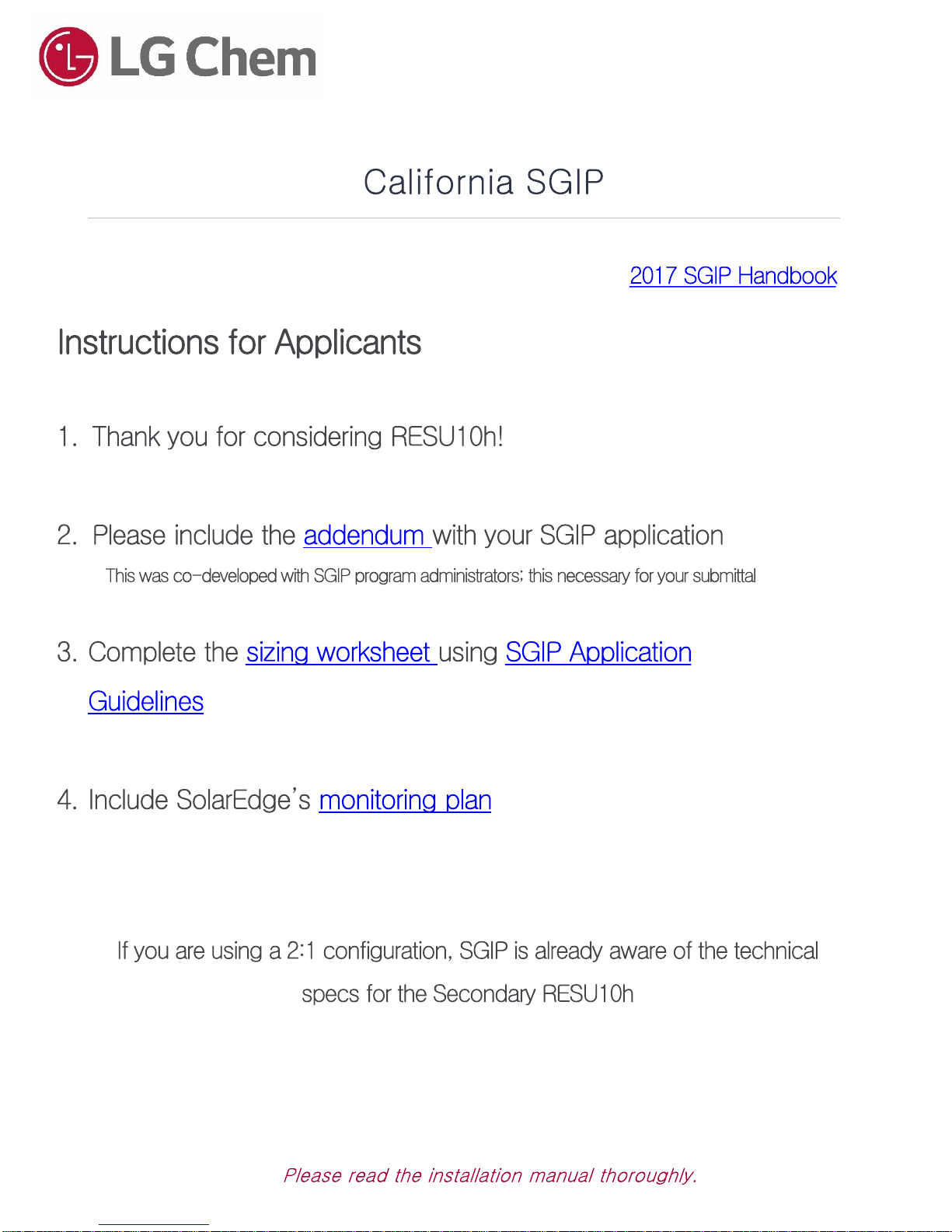

CA SGIP Incentives..………………….……………… Current applications an be swapped with RESU10h

Do Not Publish
LG Chem Sales & Marketing Support:
Linh Tran
[email protected] 415.715.4673

Do Not Publish
I. Installer must ensure the RESU has been registered at:
https://form.jotform.com/RESU_registrations/RESU_Product_Registration
i. the LG Chem certified installer should register the RESU
ii. Include images of:
•RESU Product label with S/N
•Conduit & cable terminations
•Installation area including peripheral equipment
•SolarEdge label and S/N
II. Call/email SolarEdge Customer Support: 510.498.3200 or
[e-mail]
•Select option 2 at the voice prompt for the support team
•Select option 3 at the support to be directed to the SE Support team most
familiar with SE/RESU
•Always retain the SolarEdge Case number for future reference
III. Once SE support team has confirmed inverter troubleshooting
exhausted:
•Reach our to LG Chem please reach out to LG Chem Customer support:
[email protected] or 1.888.375.8044
•Installers will file an issue report:
https://form.jotform.com/RESU_registrations/RESU_issue_report
•LG Chem will reach out for RESU troubleshooting and provide RMA number if
needed
•RMA’d RESUs should be sent to: 1064 Chicago Rd, Troy, MI 48083, USA
•Pack the RESU in the original packaging for easier return shipping
•Coordinate return shipping with your distributor
•S hipping costs are the responsibly of the installer; once a warranty claim is
issued, your distributor will invoice LG Chem for a full refund. In order for
LG Chem to reimburse you, the transaction must take place with the
distributor.
•LG Chem will confirm the issue diagnosis and if possible, refurbish and return
the RESU to the installer.
•If refurbishing is not possible, LG Chem will process the RMA credit to the
distributor and distributor invoices LG Chem for all related shipping costs paid
by the installer.

Do Not Publish

Do Not Publish

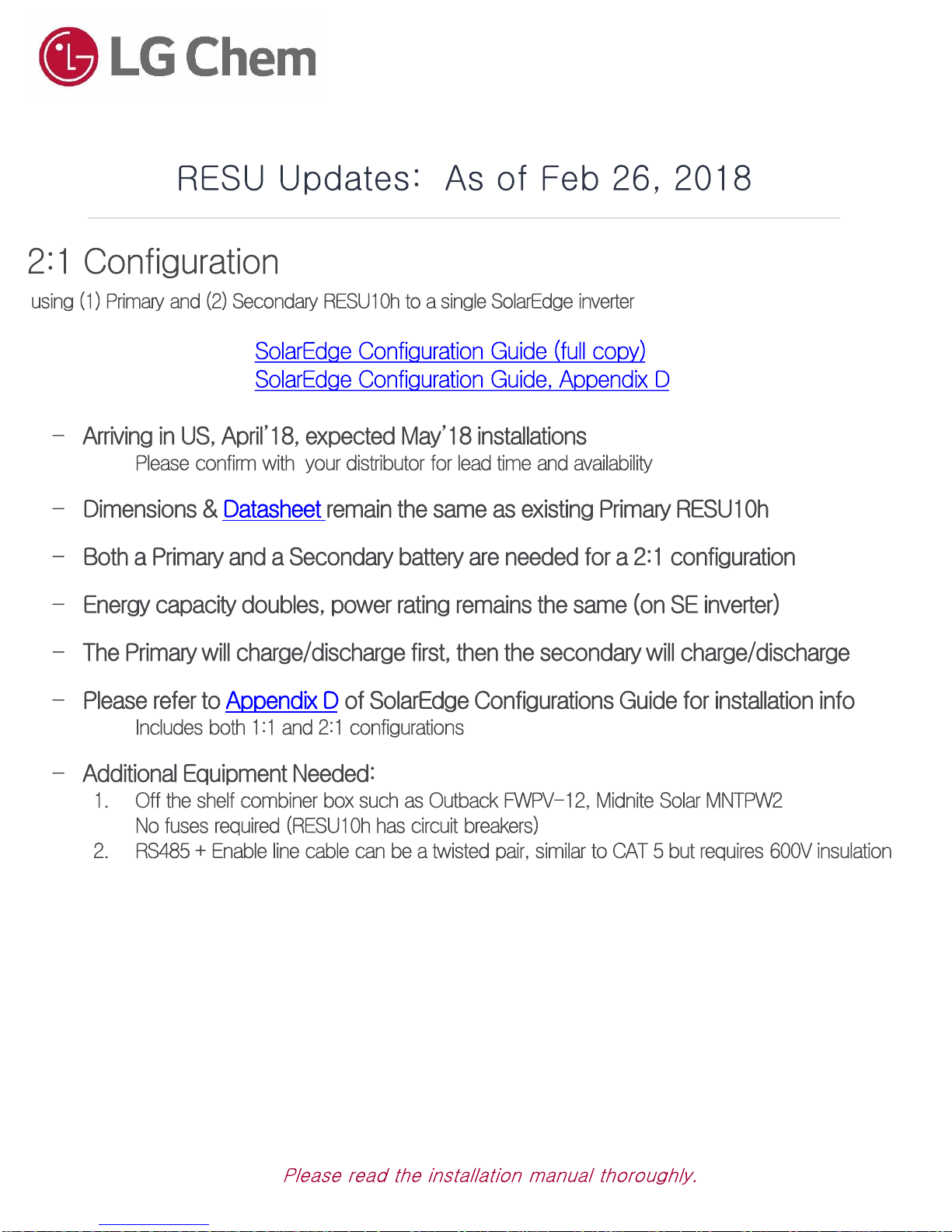

for SolarEdge 2:1 configuration

Do Not Publish
Please see Appendix D of the SolarEdge Applications & Configurations Guide
