LG PW-DN427 User manual

PW-DN427
Wireless N USB Adapter
Rev: 2.0.0
1910020432

I
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF exposure
compliance. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR
measurements are based on 5mm spacing from the body and that compliance is achieved at that
distance.

II
CE Mark Warning
This is a class B product. In a domestic environment,this product may cause radio interference, in
which case the user may be required to take adequate measures.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor use and
public service
France
Outdoor use limited to 10
mW e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation Only for indoor applications
Note: Please don’t use the product outdoors in France.

CONTENTS
Package Contents....................................................................................................1
Chapter 1 Introduction ..........................................................................................2
1.1 Product Overview ............................................................................................2
1.2 Main Features..................................................................................................2
1.3 LED Status ......................................................................................................2
Chapter 2 Installation Guide .................................................................................3
2.1 Hardware Installation.......................................................................................3
2.2 Software Installation ........................................................................................3
2.2.1 Overview.............................................................................................................3
2.2.2 Installation Guide................................................................................................3
2.3 Uninstall Software............................................................................................8
2.3.1 Uninstall the utility software from your PC..........................................................8
2.3.2 Uninstall the driver software from your PC.........................................................8
Chapter 3 Configuration........................................................................................9
3.1 Configuration of Utility......................................................................................9
3.1.1 Site Survey........................................................................................................10
3.1.2 Profile................................................................................................................10
3.1.3 Link Information ................................................................................................22
3.1.4 Advanced..........................................................................................................24
3.1.5 About.................................................................................................................25
3.1.6 An example for application ...............................................................................25
3.2 Configure with Windows XP Wireless Zero Configuration..............................26
Chapter 4 AP Mode..............................................................................................28
4.1 Config AP ......................................................................................................29
4.2 Advanced ......................................................................................................30
4.3 Access Control List........................................................................................31
4.4 Associate List ................................................................................................33
4.5 About.............................................................................................................34
Chapter 5 Example for Application ....................................................................35
5.1 Configuration of PSP XLink Online game ......................................................35
Appendix A: Glossary.........................................................................................39
Appendix B: Specifications................................................................................41

PW-DN427 Wireless N USB Adapter User Guide
- 1 -
Package Contents
The following items should be found in your package:
One PW-DN427 Wireless N USB Adapter
One USB extension cable
Quick Installation Guide
One Resource CD for PW-DN427 Wireless N USB Adapter, including:
•Drivers and Utility
•User Guide
•Other Helpful Information

Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.

PW-DN427 Wireless N USB Adapter User Guide
- 2 -
Chapter 1 Introduction
1.1 Product Overview
Thank you for choosing the PW-DN427 Wireless N USB Adapter.
The adapter is designed to provide a high-speed and unrivaled wireless performance for your
computer. With a faster wireless connection, you can get a better Internet experience, such as
downloading, gaming, video streaming and so on.
The PW-DN427 Wireless N USB Adapter complies with IEEE 802.11n, IEEE 802.11g and IEEE
802.11b standards. It can perfectly interoperate with all the 802.11n/g/b devices. The
PW-DN427’s auto-sensing capability allows high packet transfer rate of up to 150Mbps for
maximum throughput.
Additionally, the PW-DN427 adapter has good capability on anti-jamming and supports WEP,
TKIP, AES，WPA and WPA2 encryption to prevent outside intrusion and protect your personal
information from being exposed.
The adapter is easy to install and manage. The PW-DN427 supports WPS function, which can
help you create a wireless connection immediately. Quick Setup Wizard is supported and detailed
instructions are provided step by step in this user guide.
Featuring high performance transmission rates, simple installation and adaptability, as well as
strong security, the PW-DN427 Wireless N USB Adapter is the perfect solution for small office
and home needs.
1.2 Main Features
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
Supports USB 2.0 standard
Supports WPA data security, IEEE 802.1x authentication, TKIP/AES encryption, 64/128-bit
WEP encryption
Supports wireless LAN data transfer rate of up to 150Mbps
Supports Ad-Hoc and Infrastructure modes
Supports roaming between access points when configured in Infrastructure mode
Eases configuration and provides monitoring information
Supports Windows XP/ Vista/ 7
1.3 LED Status
The LED on the top of this card indicates Link/Act status. It blinks when sending and receiving
data.

PW-DN427 Wireless N USB Adapter User Guide
- 3 -
Chapter 2 Installation Guide
2.1 Hardware Installation
1. Connect one end of the USB cable to the Adapter.
2. Connect the other end of the USB cable to the USB port on your computer. The Adapter gets
its power from the host and there is no external power supply. The LED should light up when
the Adapter is plugged in and the PC is on.

Note:
The Adapter can also be plugged into the USB port on your computer directly.
2.2 Software Installation
2.2.1 Overview
The Adapter’s Setup Wizard will guide you through the installation of the Utility and drivers. Before
you install the software, please connect the USB adapter with your computer by USB cable. After
that, you will be prompted “Found New Hardware Wizard”, click the Cancel button, and run the
Setup Wizard program on the CD-ROM.

Note:
The Setup steps for Windows XP/ Vista/ 7 are very similar, so the following installation guide
takes Windows XP for example.
2.2.2 Installation Guide
1. Insert the Resource CD into your CD-ROM drive, then go to My Computer to double-click
CD-ROM PW-DN427 3.0, and you will see the screen as Figure 2-1. Double-click Setup.exe
to start the installation.

PW-DN427 Wireless N USB Adapter User Guide
- 4 -
Figure 2-1 Start the Installation
2. You’ll see the screen as below. You can choose which to be installed and click Next.
Figure 2-2 Setup Type
3. In the following screen, select the configuration tool and click Next.

PW-DN427 Wireless N USB Adapter User Guide
- 5 -
Figure 2-3 Setup Type
1) If you want to install the RL52 Wireless N Client Utility, please select the Wireless
Configuration Tool.
2) If you only want to use the Microsoft Zero Configuration Tool to configure the wireless
connection, please select Microsoft Zero Configuration Tool.
4. Choose the destination location and click Next.
Figure 2-4 Choose Destination Location

PW-DN427 Wireless N USB Adapter User Guide
- 6 -
5. You will see the next screen as below. Click Install to continue.
Figure 2-5 Ready to Install the Program
6. The following screen for installing will appear.
Figure 2-6 Setup Status

Note:
While files are copying, a warning box about Windows Logo testing (shown in Figure 2-7) may
pop up, please click Continue Anywayto continue the installation for our drivers have been
tested thoroughly and are able to work with the operating system.

PW-DN427 Wireless N USB Adapter User Guide
- 7 -
Figure 2-7 Windows XP Warning Box
7. After the files have been successfully copied, the screen in Figure 2-8 will appear. Click the
Finish button to finish the installation and reboot the system.
Figure 2-8 InstallShield Wizard Complete
After installing the driver successfully, you should see an icon or in your system tray.

PW-DN427 Wireless N USB Adapter User Guide
- 8 -
2.3 Uninstall Software
2.3.1 Uninstall the utility software from your PC
1. On the Windows taskbar, click the Start button, point to All programs

Wireless, and then
click Uninstal-RL52 Wireless N Client Utility.
2. Follow the Install Shield Wizard to uninstall the utility software from your PC.
2.3.2 Uninstall the driver software from your PC
1. On the Windows taskbar, click the Start button, and then click Control Panel.
2. Click the System icon, click on the Hardware tab in the System window.
3. Click on the Device Manager button, double-click Network adapters, and then right-click
Wireless N Client Adapter.
Figure 2-9 Device Manager
4. Click Uninstall shown in above Figure 2-9, the system will uninstall the driver software of the
adapter from your PC.

PW-DN427 Wireless N USB Adapter User Guide
- 9 -
Chapter 3 Configuration
3.1 Configuration of Utility
PW-DN427 Wireless N USB Adapter can be configured by its utility for Windows XP/ Vista/ 7. This
section will take the configuration in Windows XP for example and guide you to configure your
wireless adapter for wireless connectivity with trustable data security encryption features.
The configuration steps in Windows XP/ Vista/ 7 are similar. For the configurations in Windows
Vista/ 7, please refer to the instructions in Windows XP.
After the Adapter's driver and utility have been installed, the adapter’s tray icon, or , will
appear in your system tray. It means the utility is running on your system. If the utility does not run,
you can run the utility by clicking: Start> All programs> Wireless> RL52 Wireless N Client
Utility. If the icon still does not appear, the driver or utility may be installed incorrectly or the
adapter is unplugged, please try again.
Icon means the connection has been established.
Icon means there is no connection.
Right-click the icon and choose Launch Config Utility, the configuration screen of the utility
will appear as shown in the figure below.
Figure 3-1 Configuration Screen
The utility provides complete and easy manage tools to:
Display current status information
Edit and add configured profiles
Display current diagnostics information

Note:
If your OS is Windows XP, you can use Windows XP to configure the wireless network settings.
(To use this function, you must upgrade the OS with sp2). Just right-click the icon at the
bottom of the screen, and click Use Zero Configuration as Configuration utility to switch the
utility.

PW-DN427 Wireless N USB Adapter User Guide
- 10 -
3.1.1 Site Survey

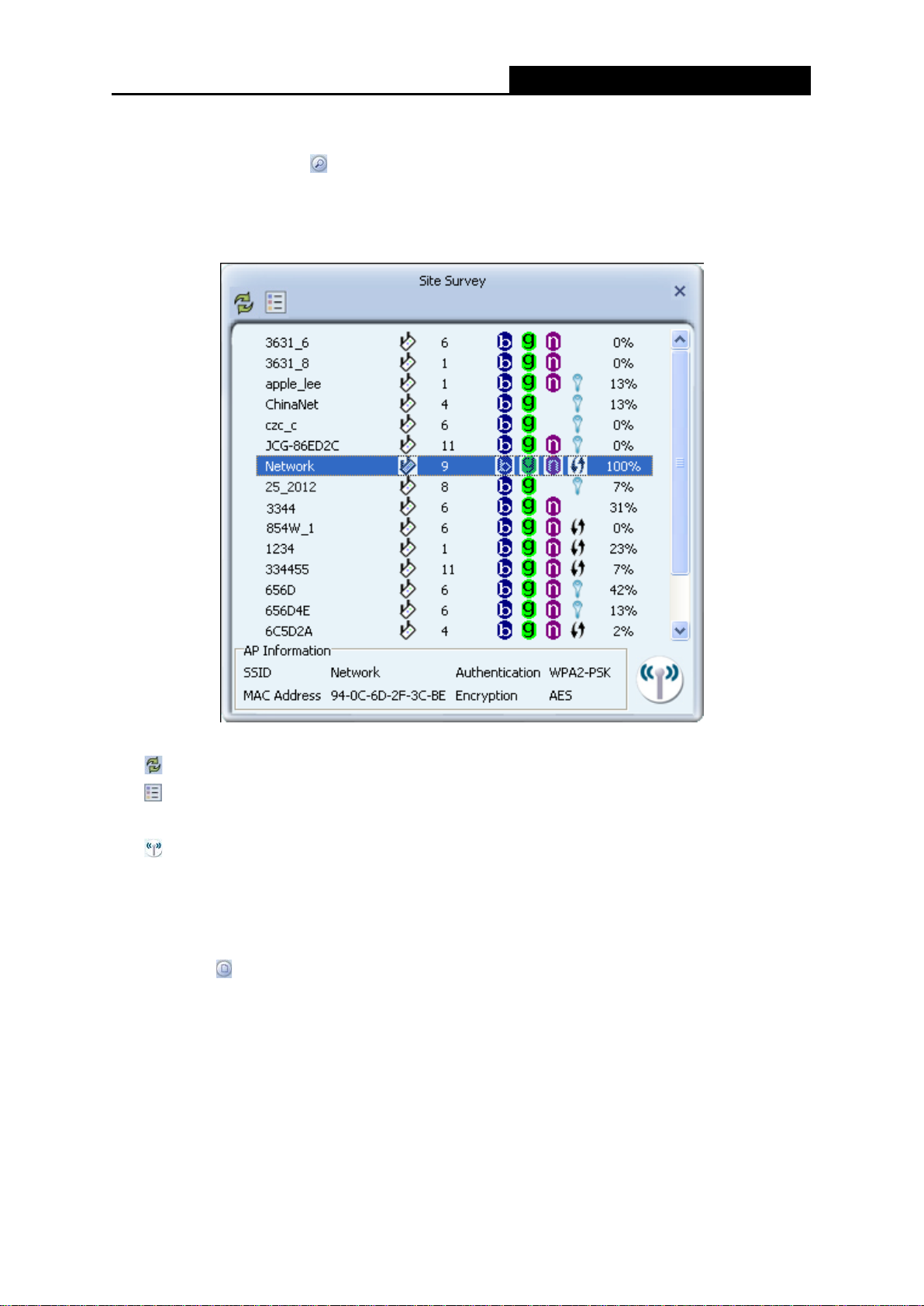

Click the Site Survey icon on the screen of the Utility and the Site Survey screen with many
available wireless network choices will appear. The AP list will be updated every two seconds.
The AP list includes most used fields, such as SSID, network type, channel used, wireless mode,
security status and the signal percentage. The dialog box is shown in Figure 3-2.
Figure 3-2 Site Survey
(Rescan): Click the Rescan icon to refresh the list at any time.
(Add to Profile): Choose an SSID and click the Add to Profile icon to add the network to
the profile.
(Connect): Choose an SSID and click the Connect icon to connect to an available
network without adding it to the profile.
3.1.2 Profile
Click the icon on the screen of the Utility and the Profile List screen will appear as Figure 3-3.
The Profile List keeps a record of your favorite wireless settings at home, office, and other public
hot-spots. You can save multiple profiles, and activate the correct one at your preference. Figure
3-3 shows the basic profile section.
The Profile screen provides tools to:
Add a profile
Delete a profile

PW-DN427 Wireless N USB Adapter User Guide
- 11 -
Edit a profile
Import a profile
Export a profile
Add a WPS profile
Figure 3-3 Profile List
-Click to add a new profile.
-Deletes an existing profile.
-Click to edit an existing profile.
-Imports an existing profile.
-Exports an existing profile.
- Add a WPS profile
Profile Name - Name of profile, preset to PROF* (* indicate 1, 2, 3...).
SSID - The access point or Ad-hoc name.
Authentication - Indicates the authentication mode used.
Encryption - Indicates the encryption type used.
3.1.2.1. Add a profile
1. Click the Add icon on the Profile List screen (Figure 3-3), the Profile configuration screen
will appear as shown in Figure 3-4. Enter the Profile Name and choose the SSID from the
pull-down list, then click the Next icon to continue.

PW-DN427 Wireless N USB Adapter User Guide
- 12 -
Figure 3-4 Add a new profile
- Cancel button.
- Back to the previous page.
- Continue to the next page.
Profile Name -Identifies the configuration profile. This name must be unique. Profile names
are not case-sensitive.
SSID -The IEEE 802.11 wireless network name. This field has a maximum limit of 32
characters.
Network Type: There are basically two modes of networking:
•Infrastructure -All wireless clients will connect to an access point or wireless router.
•Ad Hoc -Directly connecting to another computer, for peer-to-peer communication,
using wireless network adapters on each computer, such as two or more PW-DN427
wireless adapters.

Note:
1) An Infrastructure network contains an Access Point or wireless router. All the wireless
devices or clients will connect to the wireless router or access point.
2) An Ad Hoc network contains only clients, such as laptops with wireless desktop adapters. All
the adapters must be in Ad Hoc mode to communicate.
2. In the following screen, select the corresponding Authentication mode and Encryption type
of the profile from the drop-down lists (here takes WPA2-PSK and AES for example), then
click the Next icon to continue.

PW-DN427 Wireless N USB Adapter User Guide
- 13 -
Figure 3-5 Authentication and Encryption
Authentication - You can choose the Authentication Type from the pull-down list with
seven options, Open, Shared,WPA, WPA-PSK, WPA2, WPA2-PSK, and 802.1X.
Encryption - Displays which encryption type that the adapter is using. When you select
Open as Authentication, there are two options: None and WEP. If you select Shared and
802.1X as Authentication, there is only one option: WEP. When you select WPA,
WPA-PSK or WPA2-PSK as Authentication, there are two options: TKIP and AES. When
you select WPA2 as Authentication, four options are available: TKIP, AES, TKIP(MFP) and
AES(MFP).
3. In the screen that follows, enter the key of the AP in the empty field. Here takes Key
1234567890 for example. If the wireless network you are trying to connect is
security-enabled, you must enter the corresponding key to establish a successful connection.
Then click the Next icon to continue.
Figure 3-6 Enter the Key
4. The Pre-logon Connect configuration page as shown in Figure 3-7 will then appear. Click the
Next icon to continue.

PW-DN427 Wireless N USB Adapter User Guide
- 14 -
Figure 3-7 Use Pre-logon Connection
Use Pre-logon Connection - Use ID and Password in Profile.
5. Some advanced settings can be made in Figure 3-8.
Figure 3-8 Profile
Tx Power - Manually force the AP’s transmitting power.
Use RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If you are
not sure, please leave it default here.
Use Fragment Threshold - This value is the maximum size determining whether packets will
be fragmented. Setting the Fragment Threshold too low may result in poor network
performance because of excessive packages. You are recommended to leave it default if you
are not sure about it.
6. Click the Active icon in the screen below to connect to the chosen network. When the
screen looks like below, it shows that you have successfully added a new profile and
connected to the wireless network.

PW-DN427 Wireless N USB Adapter User Guide
- 15 -
Figure 3-9 Profile Added Successfully
3.1.2.2. Delete a profile
Highlight the desired profile name on Profile List and click the Delete icon . The profile will be
removed from the list.
Figure 3-10 Delete a Profile
3.1.2.3. Edit a profile
Highlight the desired profile name on Profile List, and click the Edit icon , the Profile
configuration screen will appear as shown in Figure 3-11. You can make some changes of the
profile, for instance, you can change the Profile Name to name it like My Network.

PW-DN427 Wireless N USB Adapter User Guide
- 16 -
Figure 3-11 Edit a Profile
3.1.2.4. Import a profile
1. From the Profile List screen (shown in Figure 3-3), click the Import icon . Then the Import
Profile screen will appear below.
2. Browse to the directory where the profile is located.
3. Highlight the profile name.
4. Click Open, the imported profile will then appear in the Profile List.
Figure 3-12 Import a Profile
3.1.2.5. Export a profile
1. From the Profile List screen (shown in Figure 3-9), highlight the profile to be exported.
2. Click Export icon , the Export Profile window will then appear below.
3. Browse the directory to export the profile to.
4. Click Save. The profile should then be exported to the specified location.
