OWNER’S MANUAL
AIR CONDITIONER
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
P/NO : MFL42262860
TYPE : WALL MOUNTED
Indoor Unit Outdoor Unit
K09AWN-NM11 K09AWN-UM11
K12AWN-NM11 K12AWN-UM11
ENGLISH

2TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con-
ditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block
the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :

SAFETY PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
WARNING
It can result in serious injury or death when the directions are ignored.
CAUTION
It can result in minor injury or product damage when the directions are ignored.
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• Installation MUST conform with local building codes or, in the absence of local codes, with
the Nation Electrical Code NFPA 70/ANSI C1-1003 or current edition and Canadian Electrical
Code Part1 CSA C.22.1.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment mal-
function, property damage, personal injury and/or death.
Installation
• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Fail-
ure to do so may result in electric shock or product failure.
• Contact an authorized service center when you install or relocate the air conditioner. Failure to
do so may result in serious injury or product failure.
• Always use a power plug and socket with a ground terminal.Failure to do so may result in
electric shock or product failure
• Install the panel and the cover of the control box safely. Failure to do so may result in explo-
sion or fire.
• Install a dedicated electric outlet and circuit breaker before you use the air conditioner. Failure
to do so may result in electric shock or product failure.
• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Fail-
ure to do so may result in electric shock or product failure.
• Do not modify or extend the power cable. If the power cable or cord has scratches or skin
peeled off or deteriorated then it must be replaced. It may result in fire or electric shock.
• Be cautious when you unpack or install the air conditioner. Failure to do so may result in seri-
ous injury or product failure.
• Contact an authorized service center when you install or relocate the air conditioner. Failure to
do so may result in serious injury or product failure.
• Do not install the air conditioner on an unstable surface or where there may be a danger of it
falling. It may result in death, serious injury, or product failure.
!
!
!
3
ENGLISH

4SAFETY PRECAUTIONS
ENGLISH
Operation
• Do not let the air conditioner run for a long time when the humidity is very high or when a door or
window has been left open. Failure to do so may result in product failure.
• Make sure that the power cord is not pulled or damaged while the air conditioner is operating. Fail-
ure to do so may result in fire, electric shock, or product failure.
• Do not place any objects on the power cord. It may result in electric shock or product failure.
• Do not turn on or off the air conditioner by plugging in or unplugging the power plug. It may result in
fire or electric shock.
• Do not touch, operate or repair the air conditioner with wet hands. It may result in electric shock or
product failure.
• Do not place a heater or other heating appliances near the power cable. It may result in fire, electric
shock, or product failure.
• Do not allow water to run into the air conditioner. It may result in explosion or fire.
• Do not leave flammable substances such as gasoline, benzene and thinner near the air conditioner.
It may result in explosion or fire.
• Do not use the air conditioner for an extended period of time in a small place without ventilation.
Ventilate the place regularly. Failure to do so may result in explosion or fire.
• When there is a gas leak, ventilate sufficiently before using the air conditioner again. Failure to do so
may result in explosion or fire.
• Unplug the power plug if there is a noise, smell or smoke coming from the air conditioner. Failure to
do so may result in explosion or fire.
• Stop operating and close the window in strom or hurricane.If possible remove the product from the
window before hurricane arrives
• Do not touch the electrostatic filter after opening the front grille. Failure to do so may result in elec-
tric shock or product failure.
• Contact an authorized service center when the air conditioner is submerged into water due to flood-
ing. Failure to do so may result in explosion or fire.
• Be cautious water could not enter the product
• Make sure to ventilate sufficiently when this air conditioner and a heating appliance such as a heater
are used simultaneously. Failure to do so may result in fire, serious injury, or product failure.
• Turn the main power off and unplug the power plug when you clean or repair the air conditioner.
Failure to do so may result in death, serious injury, or product failure.
• Unplug the power plug when the air conditioner is not used for an extended period of time. Failure
to do so may result in product failure.
• Do not place any objects on the air conditioner. It may result in product failure.
• For inner cleaning, contact an Authorized Service Center or a dealer.
Do not use harsh detergent that causes corrosion or damage on the unit.
Harsh detergent may also cause failure of product, fire, or electronic shock.

SAFETY PRECAUTIONS
CAUTION
Installation
• Make sure to check if there is a refrigerant leak after you install or repair the air conditioner. Failure
to do so may result in product failure.
• Install the drain hose properly for smooth drainage of condensed water. Failure to do so may result
in product failure.
• Keep level even when installing the product.
• Install the air conditioner where the noise from the outdoor unit or the exhaust gas will not incon-
venience the neighbors. Failure to do so may result in conflict between neighbors.
• When transporting the equipment, there should be at least 2 or more people, or a forklift. It may re-
sult in serious injury.
• Do not install the air conditioner where it will be exposed to sea wind (salt spray) directly. It may re-
sult in product failure.
Operation
• Do not expose people, animals or plants to the cold or hot wind from the air conditioner. It may re-
sult in serious injury.
•
Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a con-
sumer air conditioner, not a precision refrigeration system. It may result in death, fire or electric shock.
• Do not block the inlet or outlet of air flow. It may result in explosion or product failure.
• Do not use strong cleaning agents or solvents when you clean the air conditioner, or spray water.
Use a smooth cloth. It may result in serious injury or product failure.
• Never touch the metal parts of the air conditioner when you remove the air filter. It may result in se-
rious injury or product failure.
• Do not place any objects on the air conditioner. It may result in product failure.
• Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if
necessary.
• Do not insert hands or other objects through the air inlet or outlet while the air conditioner is operat-
ing. It may result in electric shock.
• Do not drink the water drained from the air conditioner. It may result in serious health complications.
• Use a sturdy stool or ladder when you clean, maintain or repair the air conditioner at a height. Failure
to do so may result in serious injury or product failure.
• Do not mix the batteries for the remote control with other types of batteries or mix new batteries
with used batteries. Failure to do so may result in product failure.
•
Do not recharge or disassemble the batteries. Failure to do so may result in explosion, fire or serious injury.
• Stop using the remote control if there is a battery fluid leak. If your cloth or skin is exposed to the
battery fluid from a leak, wash it off with clean water. Failure to do so may result in serious injury.
• If you swallow the battery fluid from a leak, wash out the inside of your mouth thoroughly and then
consult a doctor. Failure to do so may result in serious health complications.
• Do not open or close the front panel by force during the front panel moving.
• Should open front panel after lift down front panel slowly when the product is operating.
!
5
ENGLISH

TABLE OF CONTENTS
2 TIPS FOR SAVING ENERGY
3IMPORTANT SAFETY
INSTRUCTIONS
7BEFORE USE
7Components
7Operation ranges
8Health care

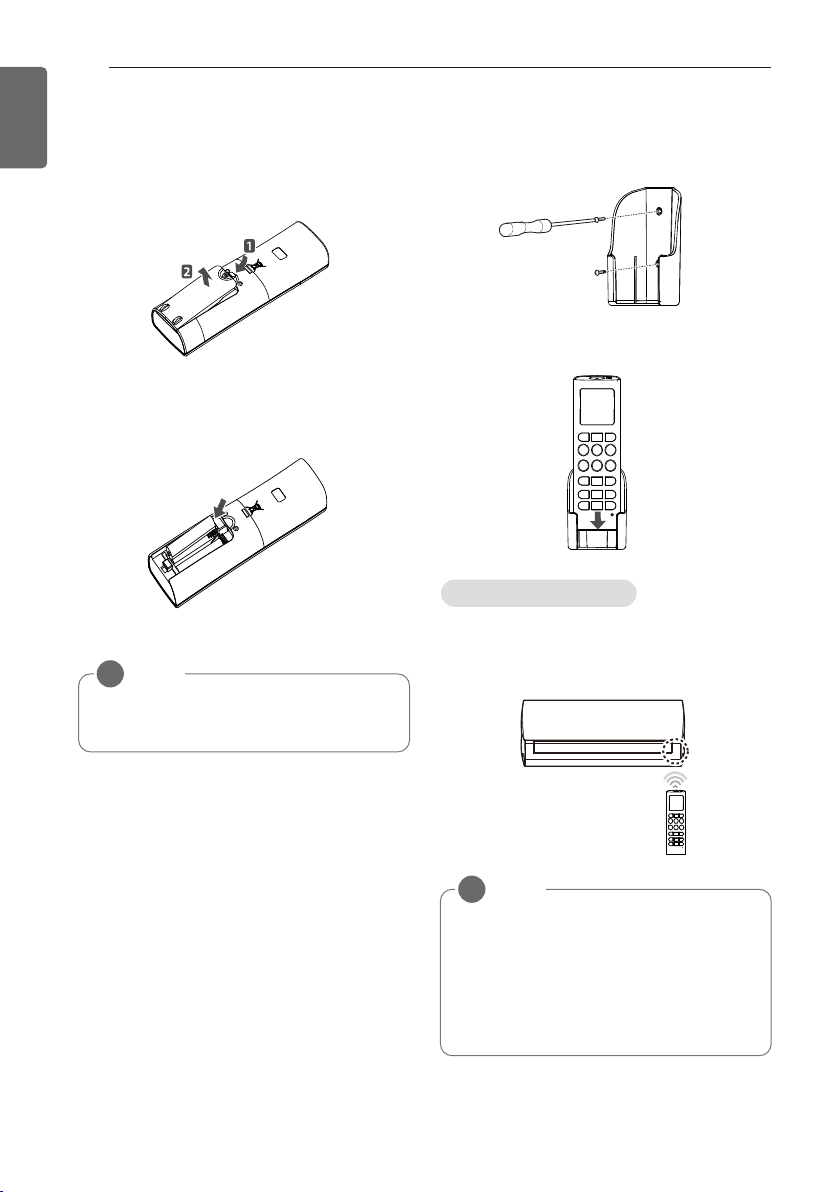

9Using the remote control
10 - Inserting batteries
10 - Installing the remote control holder
11 BASIC FUNCTIONS
11 Cooling your room
11 Heating your room
11 Removing humidity
12 Airing your room
12 Adjusting the fan speed
12 Adjusting the air flow direction

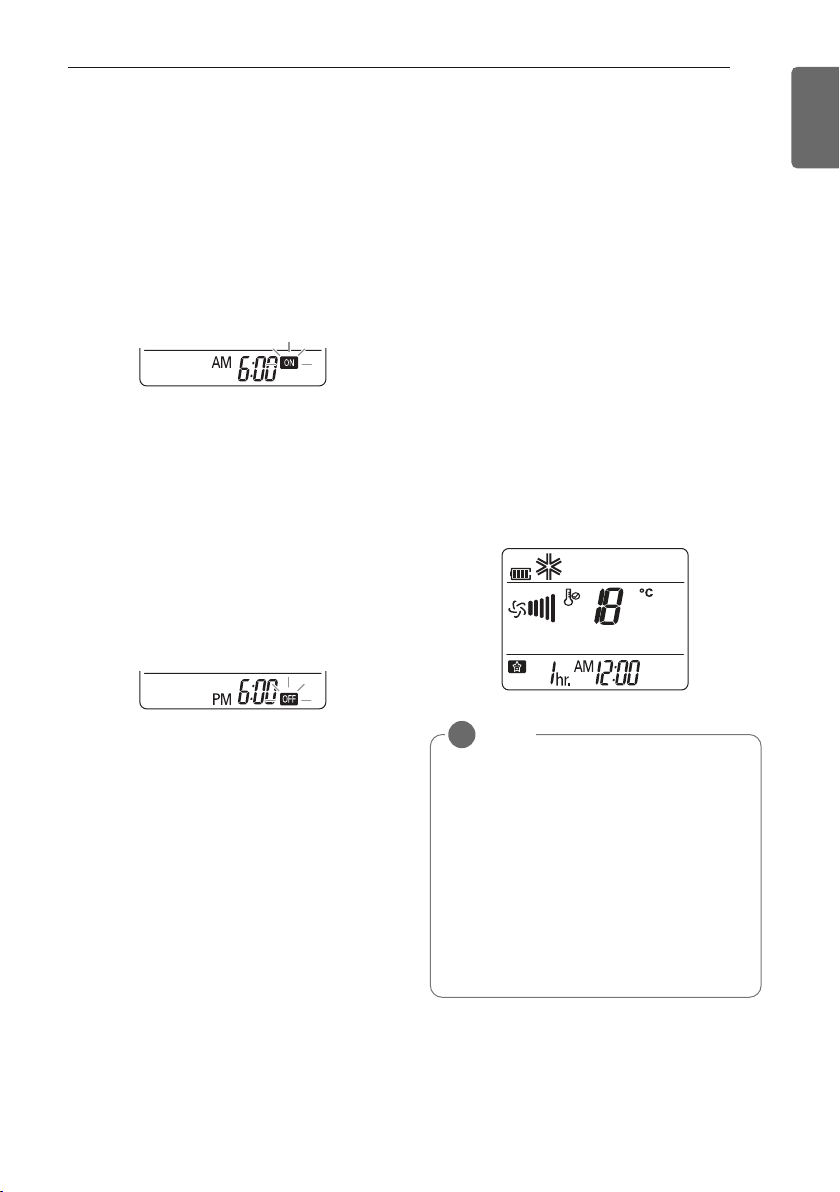

12 Setting the timer
12 - Setting the current time
13 - Turning on the air conditioner
automatically at a set time
13 - Turning off the air conditioner
automatically at a set time
13 - Canceling the timer setting
13 - Setting sleep mode
14 ADVANCED FUNCTIONS
14 Changing room temperature quickly
14 Indoor air purification
14 - Auto clean operation
15 Plasma purification operation
15 Auto operation
16 Auto changeover operation
16 °C/°F Conversion
16 Energy saving cooling mode
16 Display screen brightness
17 Operating the air conditioner without the
remote control
18 Restarting the air conditioner
automatically
19 MAINTENANCE
20 Cleaning the air filter
20 Cleaning the honeycomb filter
20 Cleaning the Plasmaster filter
21 TROUBLESHOOTING
21 Self-diagnosis function
21 Before requesting service
TABLE OF CONTENTS
6
ENGLISH

Air inlet vents
Air outlet vents
Base plate
Coolant piping
Connection
wire
Drain hose

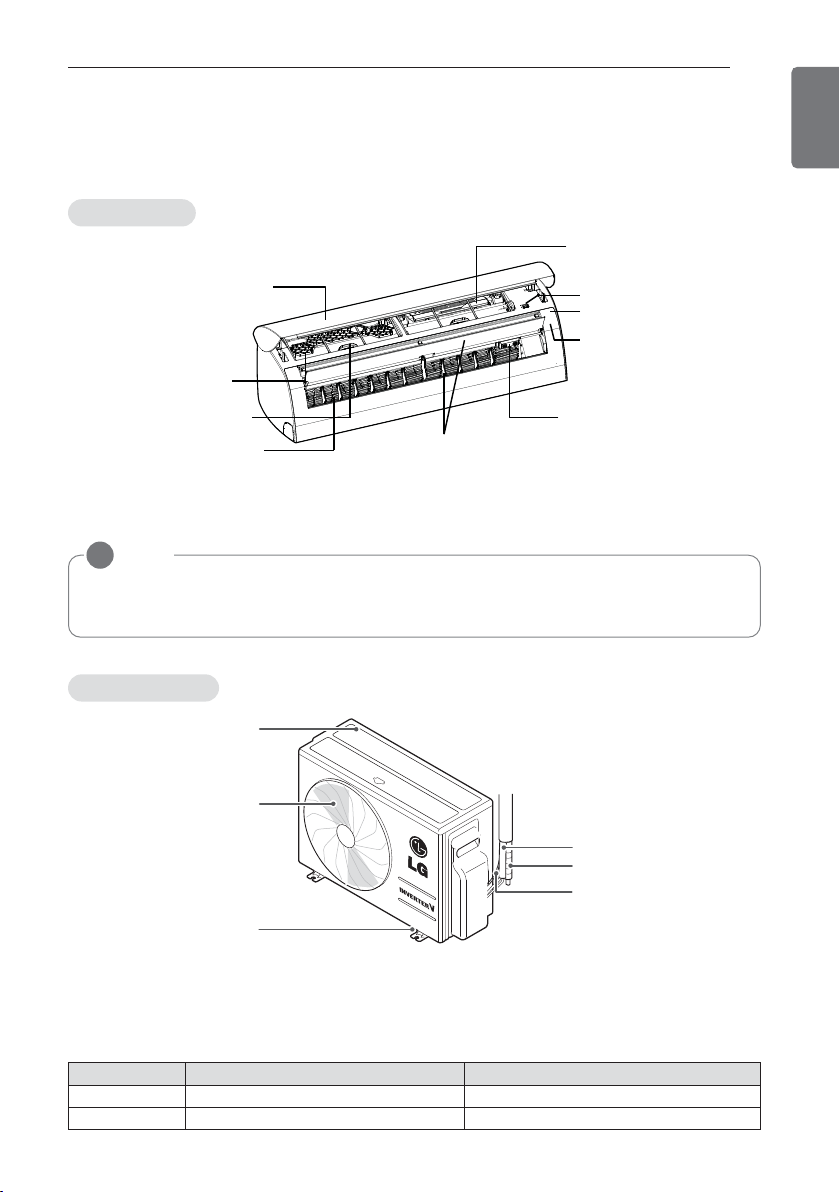

BEFORE USE
Components
Outdoor unit
Plasmaster filter
On/Off button
Signal receiver
Operation lamp
Plasmaster Ionizer
Air deflector
(vertical louver & Horizontal vane)
Air outlet
Honeycomb Filter
Front Panel
Air Filter
NOTE
!
• The number of operation lamps and their locations may vary, depending on the model of
the air conditioner.
7
BEFORE USE
ENGLISH
Indoor unit
* The feature can be changed according to a type of model.
* The feature can be changed according to a type of model.
Operation ranges
The table below indicates the temperature ranges the air conditioner can be operated within.
Mode Indoor temperature outdoor temperature
Cooling 18°C~32°C -10°C~48°C
Heating 16°C~30°C -15°C~24°C

8BEFORE USE
ENGLISH
Honey comb Filter
<Honeycomb Filter>
<Plasmaster Ionizer>
<Plasmaster filter>
1By providing maximum space with mini-
mum material, honeycomb is the most effi-
cient design which creates maximum
filtration space while being stable and bal-
anced in structure.
2Common odor filter removes ordinary odors
that cause migraine and chronic fatigue.
3LG Virus & Allergy Safe Filter blocks neu-
ramidase and hemagglutinin, which is acti-
vated when the virus breaks up from host
cell to proliferate.
Plasmaster Ionizer
1Plasmaster ion particles sterilize the aerial
bacteria and other harmful substances.
2Plasmaster ion sterilize not only the air
going through the air conditioner, but all
surrounding harmful substances and even
odor.
Plasmaster filter
1Tiny dust particles are incinerated and
eliminated when captured by electric field.
2The plasma air purifying system can re-
duce microscopic contaminants and dust.
3This filter removes house mites, micro
dust, and pet fur in order to protect user
from allergy and asthma symptoms
Health care

BEFORE USE 9
ENGLISH
Using the remote control
You can operate the air conditioner more conveniently with the remote control.
You will find the buttons for the additional functions bellow the down of the display screen.
Wireless remote control
Display
screen
Control
panel
* Some functions may not be supported, depending on the
model.
Control
panel
Display
screen Description
aF
Plasma button*:Plasmaster filter purifies
the air by removing mites, micro dust and
pet fur. Plasmaster Ionizer sterilize the aerial
bacteria and other harmful substances.
l
=
Sleep mode auto button*: Sets the
sleep mode auto operation.
e
y
Temperature adjustment buttons: Ad-
justs the room temperature when cool-
ing and heating.
d-On/Off button: Turns the power on/off.
g
7 v
Indoor fan speed button: Adjusts the
fan speed.
fAC
DBE
Operation mode selection button*: Se-
lects the operation mode.
Cooling operation (A) / Auto operation
or auto changeover (C) / Dehumidify-
ing operation (D) / Heating operation
(B) / Air circulation (E)
hNJet cooling/heating button*: Warms up
or cools down the indoor temperature
within a short period of time.
ij HI Air flow direction button: Adjusts the air
flow direction vertically or horizontally.
kS
Temperature display button: Displays
the room temperature. Press key and
hold it for longer than 5 second.
Display change °C/°F
mn
z
Timer button: Sets the current time and
the start / end time.
c
b
uJGP
Navigation and functions button*: Ad-
justs the time and sets the special
functions.
J: Auto clean / G: Operates energy
saving cooling / P: Adjusts the bright-
ness of the indoor unit display
p-Set/clear button: Sets or cancels func-
tions.
r-Reset button: Resets the air condi-
tioner settings.

10 BEFORE USE
ENGLISH
Inserting batteries
Insert batteries before using the remote
control. The battery type used is AAA (1.5 V).
1 Remove the battery cover.
2Insert the new batteries and make sure
that the + and - terminals of the batteries
are installed correctly.
3Reattach the battery cover.
Installing the remote control holder
Install the holder where there is no direct sun-
light to protect the remote control.
1Choose a safe and easily-accessible place.
2Fix the holder by fastening the 2 screws
firmly with a screwdriver or using adhered
double-sided adhesive tape.
3Slide the remote control into the holder.
Point the remote control towards the signal
receiver at the bottom of the air conditioner to
operate it.
NOTE
!
• If the display screen of the remote con-
trol starts to fade, replace the batteries.
NOTE
!
• The remote control may operate other
electronic devices if pointed towards
them. Make sure to point the remote
control towards the signal receiver of
the air conditioner.
• For proper operation, use a soft cloth to
clean the signal transmitter and receiver.
Operating method
