LG L1004R User manual

LG
Window-Type Air Conditioner
OWNER'S MANUAL
LG
website http://www.lgservice.com
MODELS, MODELOS:
WK Series: LW7000ER
LW8000ER
WL Series: L1004R
LW1000ER
L1204R
LW1200ER
L1404R
LB1000ER
LB1200ER
WP Series: LW1400ER
L1504R
LW1500ER
L1804R
LW1800ER
ESPAÑOLENGLISH
IMPORTANT
Please read through this manual. It contains valuable
information about your air conditioner. This manual may
help save time and money by explaining proper air
conditioner maintenance and preventing improper use.
PRECAUTIONS
Pay close attention to precautions in order to prevent
potential hazards and damage from misuse or improper
installation. LG is not responsible for any damages
caused by misuse of the air conditioner.

2
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need
it to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use
and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call
for service at all.
PRECAUTION
•Contact the authorized service technician for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance with
the National Electric Code by qualified and authorized
personnel only.
1. Safety Precautions
2. Operating Instructions
3. Care and Maintenance

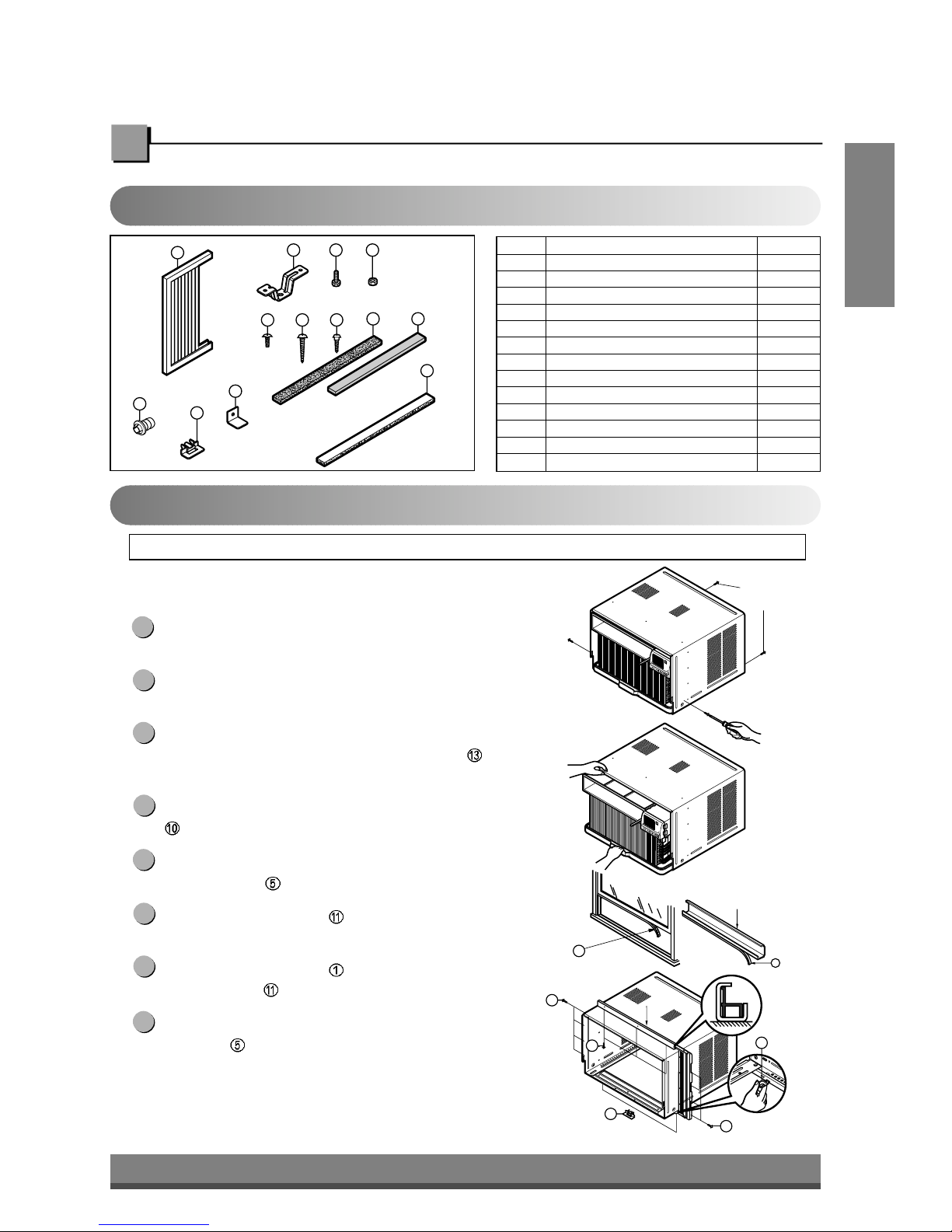

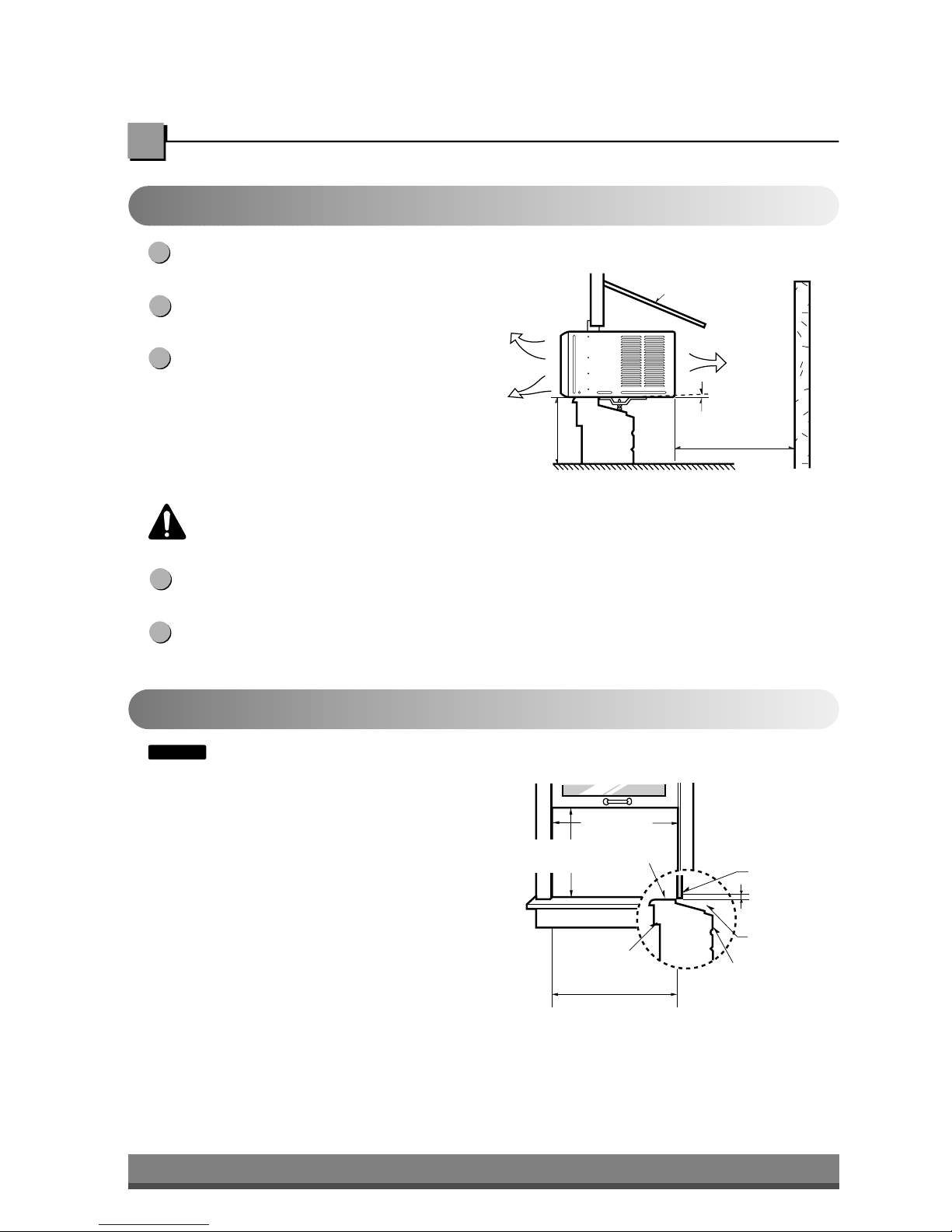

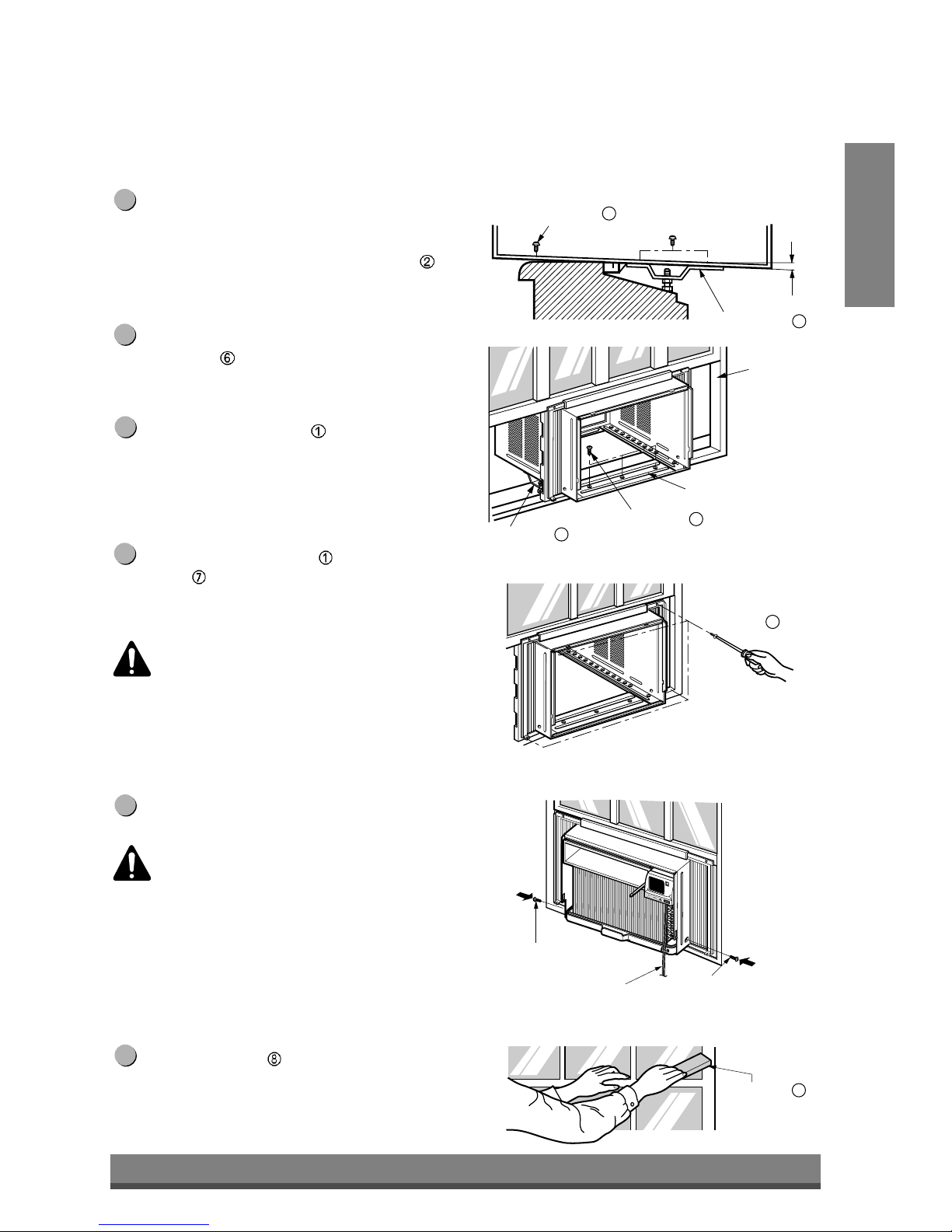

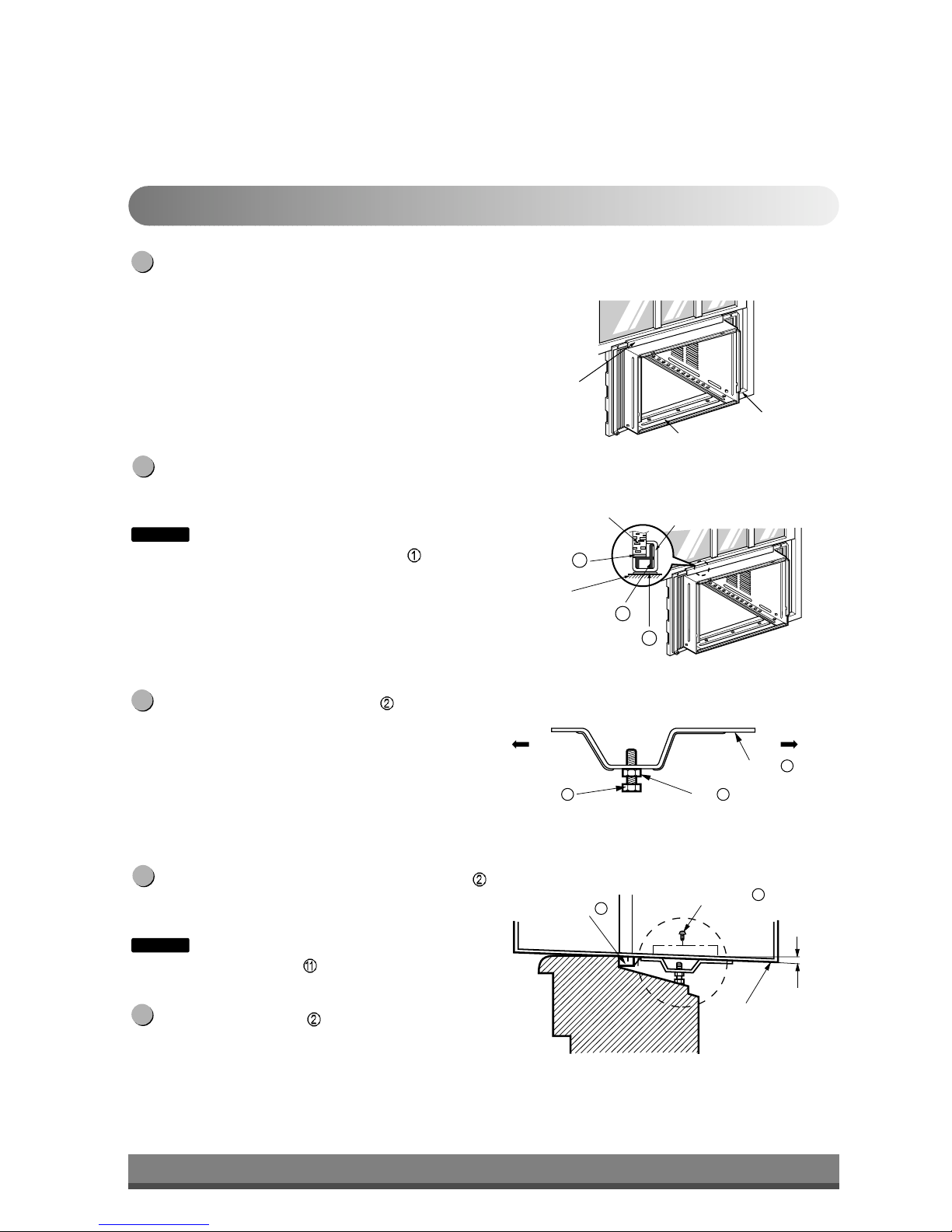

4. Hardware Installation
5. Common Issues

3
ENGLISH
Precautions
Safety
Precautions
To prevent injury to the user or other people and property damage, the following instructions must
be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
WARNING
■Installation
Always install the expansion panel(s).
• No installation may cause fire and electric
shock accident.
Do not place the power cord near a heater.
• It may cause fire and electric shock.
Do not use the power cord near flammable
gas or combustibles such as gasoline,
benzene, thinner, etc.
• It may cause explosion or fire.
Do not disassemble or modify products.
• It may cause failure and electric shock.
Gasolin

4

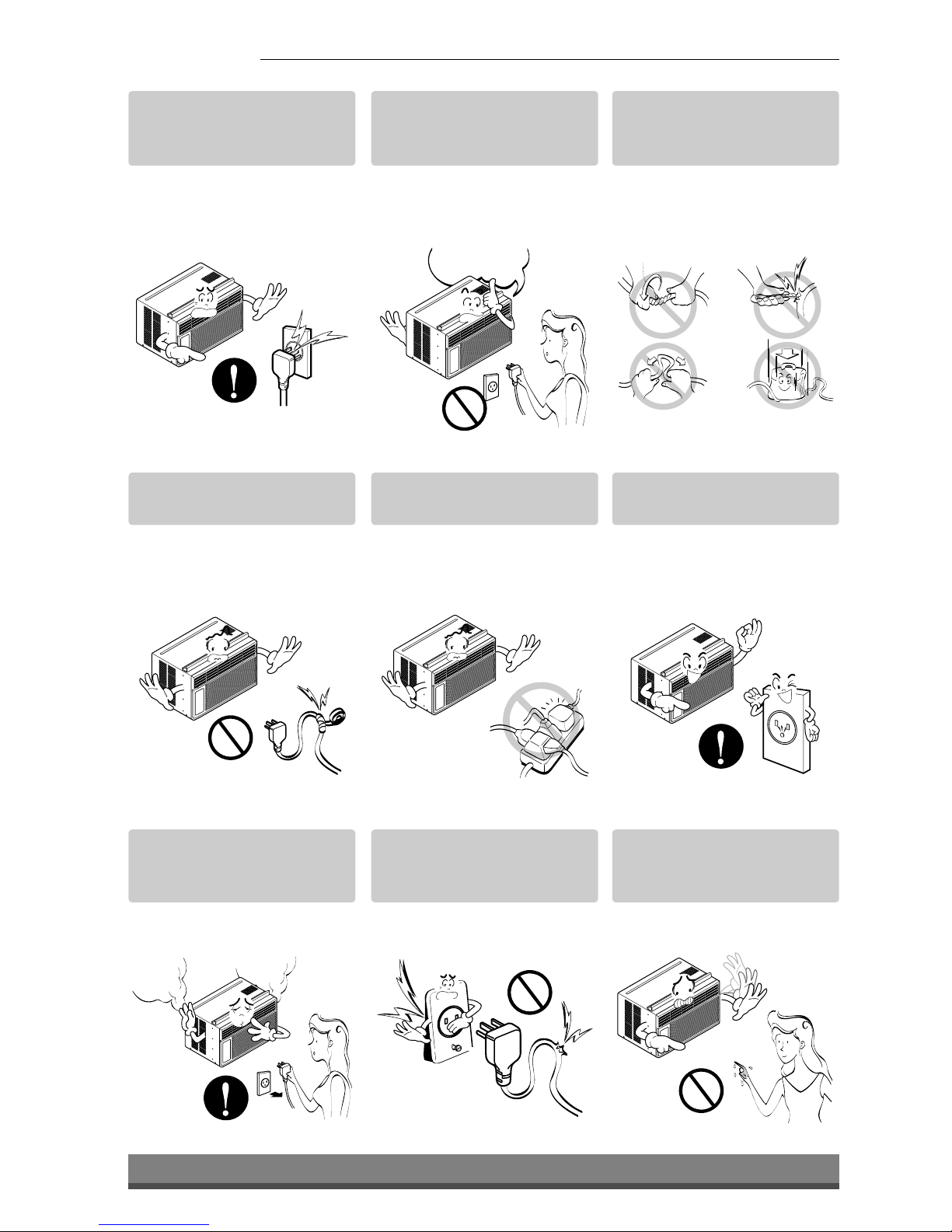

■Operation
Plug in the power plug
properly.
• Otherwise, it will cause
electric shock or fire due to
heat generation or electric
shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or
fire due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or
fire.
Do not modify power cord
length.
• It will cause electric shock or
fire due to heat generation.
Do not share the outlet with
other appliances.
• It will cause electric shock or
fire due to heat generation.
Always plug into a
grounded outlet.
• No grounding may cause
electric shock (See
Installation Manual).
Unplug the unit if strange
sounds, odors, or smoke
come from it.
• Otherwise it may cause fire
and electric shock accident.
Do not use the socket if it is
loose or damaged.
• It may cause fire and electric
shock.
Do not operate with wet
hands or in damp
environment.
• It will cause electric shock.
ON

5
ENGLISH
Do not allow water to run
into electric parts.
• It will cause failure of machine
or electric shock.
Leave the door closed while
the air conditioner is
running.
• It is not designed to cool the
entire house.
Ventilate before operating
air conditioner when gas
goes out.
• It may cause explosion, fire,
and burn.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Do not block the inlet or
outlet.
• It may cause failure of
appliance or accident.
Ensure that the outer case
is not damaged by age or
wear.
• If leaving appliance damaged,
there is concern of damage
due to the falling of product.
Be cautious not to touch the
sharp edges when
installing.
• It may cause injury.
Hold the plug by the head
when taking it out.
• It may cause electric shock
and damage.
Turn off the main power
switch when not using it for
a long time.
• Prevent accidental startup
and the possibility of injury.
CAUTION
■Installation
Sharp
edges
■Operation

6
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
•There is danger of fire or
electric shock.
If water enters the product,
turn off the the power switch
of the main body of appliance.
Contact service center after
taking the power-plug out
from the socket.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Turn off the power and
breaker firstly when
cleansing the unit.
•Since the fan rotates at high
speed during operation, it
may cause injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
•This could injure the pet or
plant.
Do not use this appliance
for special purposes such
as pets, foods, precision
machinery, or objects of art.
•It is an air conditioner, not a
precision refrigeration system.
Always insert the filter
securely.
Clean it every two weeks.
•Operation without filters will
cause failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
•The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not drink water drained
from air conditioner. / Do
not direct airflow at room
occupants only.
•It contains containments and
will make you sick. / This
could damage your health.
Wax
Thinner

Prior to Operation
Safety
Precautions
7
ENGLISH
Preparing for operation
Contact an installation specialist for installation.
Plug in the power plug properly.
Do not share the same outlet with other appliances
Do not use an extension cord.
Do not start/stop operation by plugging/unplugging the power cord.
If cord/plug is damaged, replace only with an authorized part.
6
5
4
3
2
1
Usage
Cleaning and maintenance
Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp
metal edges.
Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading
to possible electric shock.
When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a
very high speed during operation. There is a possibility of injury if the unit’s power is accidentally
triggered on while cleaning inner parts of the unit.
3
2
1
Service
For repair and maintenance, contact your authorized service dealer.
Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not
expose occupants, pets, or plants to direct airflow for extended periods of time.
Due to the possibility of oxygen deficiency, ventilate the room when using together with stoves or other
heating devices.
Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices,
food, pets, plants, and art objects). Usage in such a manner could harm such property.
3
2
1

TIMER MODE
AIR
PURIFIER
TEMP POWER
FAN
SPEED
COOL
INDOOR DESIRED
ENERGY
SAVER
AIR
PURIFIER
CLEAN
FILTER
FAN
FAN
DRY
127345
6
Air
Purifier Power
Temp
Sleep Mode
Timer Auto
Swing
Fan Speed
AIR
PURIFIER
17
8
2
4
3
5
˚F
TEMP
F1 LOW
F2 MED
F3 HIGH
Dry Timer
Fan
Energy
Saver
Cool
2
6Power
Temp
Fan Speed
Timer Mode
1
2
3
4
5
13 45
8
Remote Control Operations
Operating
Instructions
The remote control and control panel will look like those represented in the following pictures.

ENGLISH
9

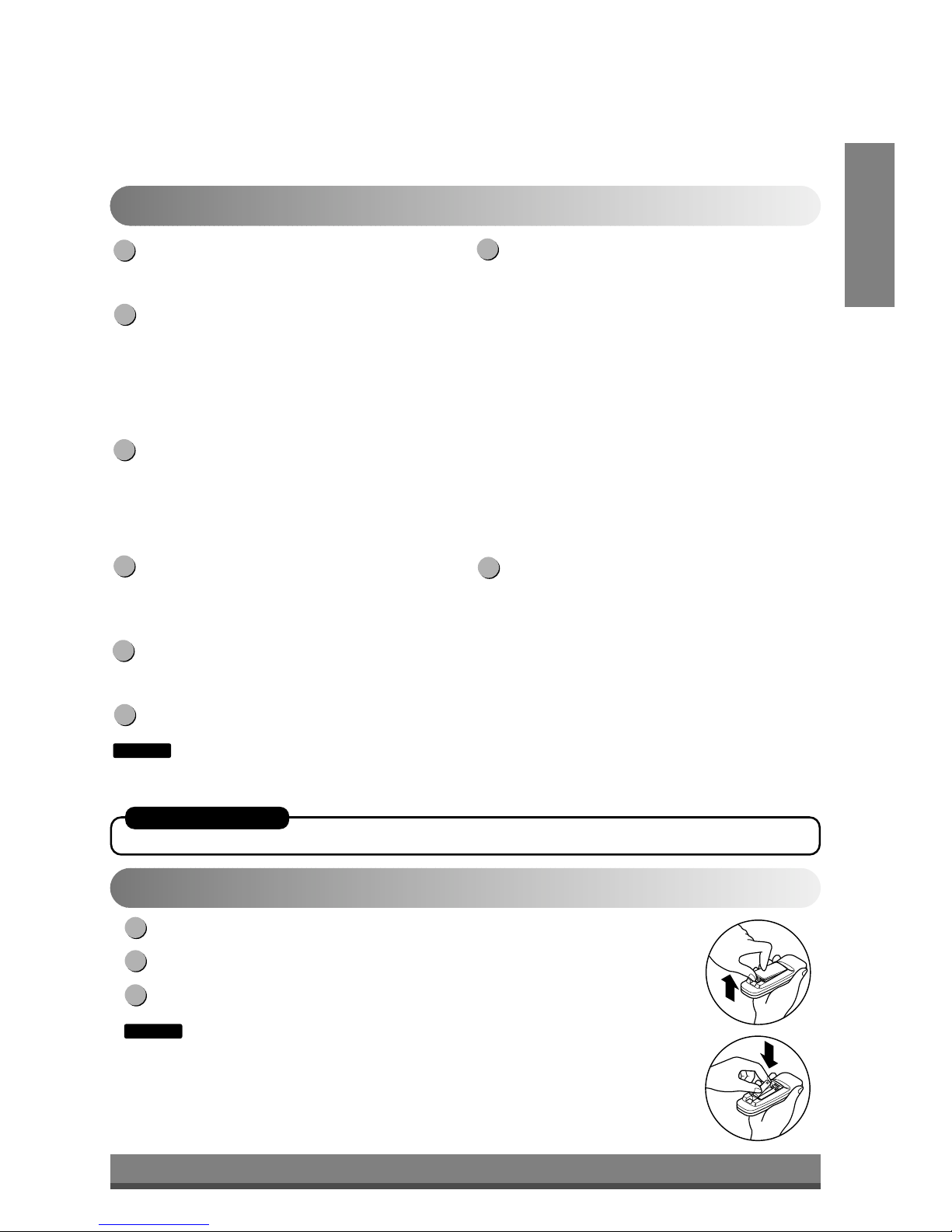

Push out the cover on the back of the remote control with your thumb
Pay attention to polarity and insert two new AAA 1.5V batteries.
Reattach the cover.
: Do not use rechargeable batteries. Make sure that both batteries are new.
• In order to prevent discharge, remove the batteries from the remote control if the air conditioner is not going to be
used for an extended period of time
Keep the remote control away from extremely hot or humid places.
To maintain optimal operation of the remote control, the remote sensor should not be exposed to direct sunlight.
•The remote control can be mounted on a wall using the mountable holder.
NOTICE
3
2
1
Inserting the Remote Control Batteries
Remote Control OperationsRemote Control Operations
AUTO RESTART
In failure of electric power, the unit runs as previous setting operation.
POWER
Operation starts when this button is pressed and
stops when you press the button again.
TEMPERATURE CONTROL
The thermostat monitors room temperature to
maintain the desired temperature.
The thermostat can be set between 60°F~86°F
(16°C~30°C).
The unit takes an average of 30 minutes to adjust the
room temperature by 1°F.
OPERATION MODE SELECTOR
Select cooling mode to cool the room.
Select energy saver mode for energy saving
operation.
Select fan mode for basic ventilating fan operation.
Select dry mode for dry operation.
FAN SPEED SELECTOR
For increased power while cooling, select a higher
fan speed.
3steps:High➔Low ➔Med
ON/OFF TIMER
The timer can be set to start and stop the unit in
hourly increments (up to 12 hours).
REMOTE CONTROL SENSOR
AIR PURIFIER
•Press the Air Purifier button. Operation will start
when the button is pressed and stop when the
button is pressed again.
•Set the fan speed again with the remote control.
You can select the fan speed in three steps-high,
low or medium.
Each time the button is pressed, the fan speed
mode is shifted.
•If you press the only Air Purifier button, only air
purifying operates without cooling.
Then, fan speed is low.
You can select the fan speed in three steps; high,
low, or medium.
Each time the fan speed button is pressed, the fan
speed mode is shifted.
SLEEP MODE
•Press the sleep mode button to set the time you
want the unit to turn off automatically.
•Every time you push this button, the remaining time
will be set as follows. (1Hour →2Hours →3Hours →
4Hours →5Hours →6Hours →7Hours →0Hours →
1Hour →2Hours →...)
8
7
6
5
4
3
2
1
: CLEAN FILTER
You can see "CLEAN FILTER" display after 1000 hours that it is the time of cleaning filter when
operating in Air purifier.
NOTICE

10
VENTCLOSE OPEN Part
A

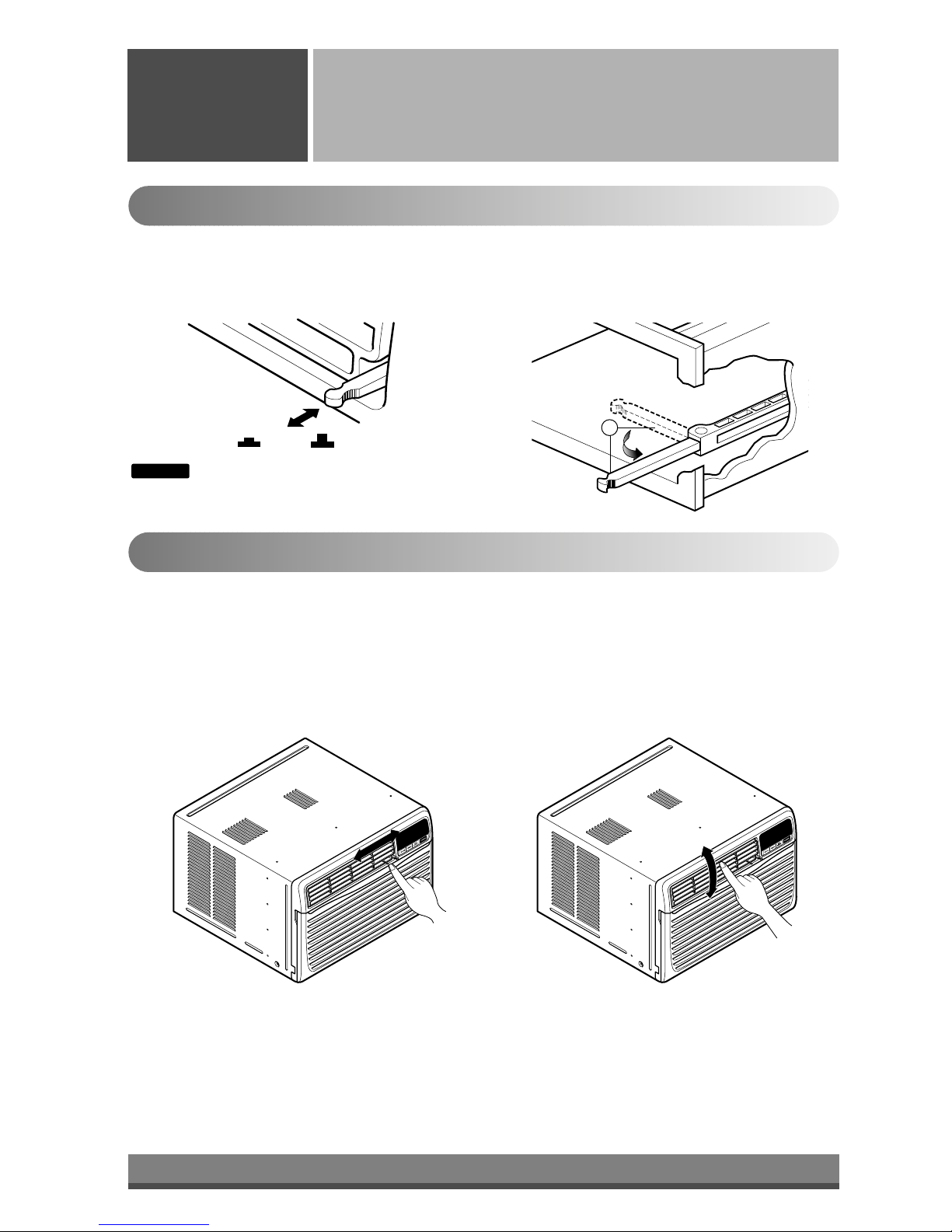

Adjusting the Air Flow Direction
Operating
Instructions
Vent Control
For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.
OPENtheventtodischargestaleair.
Adjusting the Air Flow Direction
•Recommended orientation of louvers
Adjust louvers to face upwards when cooling to maximize cooling efficiency.
Airflow can be adjusted by changing the direction of the air conditioner's louvers. This can also increase the
cooling efficiency of the air conditioner.
: Before using the ventilation feature, position
the vent lever by pulling Part A out straight
and snapping it into place.
NOTICE
Adjusting horizontal air flow Adjusting vertical air flow
•Adjusting Horizontal Air Flow Direction
Adjusting the vertical louvers left and right will
change horizontal airflow.
•Adjusting Vertical Air Flow Direction
Adjusting the horizontal vane up and down will
change vertical airflow. The vane can be adjusted
by nudging the vane backward or forward.
