LG P10RV3 User manual

이 도면은 LG전자의 자산으로 불법유출시 관계법과 회사규정에 의해 처벌됨
Reason
Dimension 결과 Result
항목 Item
CTQ Table은 현재의 수준을 알기 위해서 CTQ 정보를 항상 보완 및 추가해야 한다.
Privileged & Confidential by LG Electronics

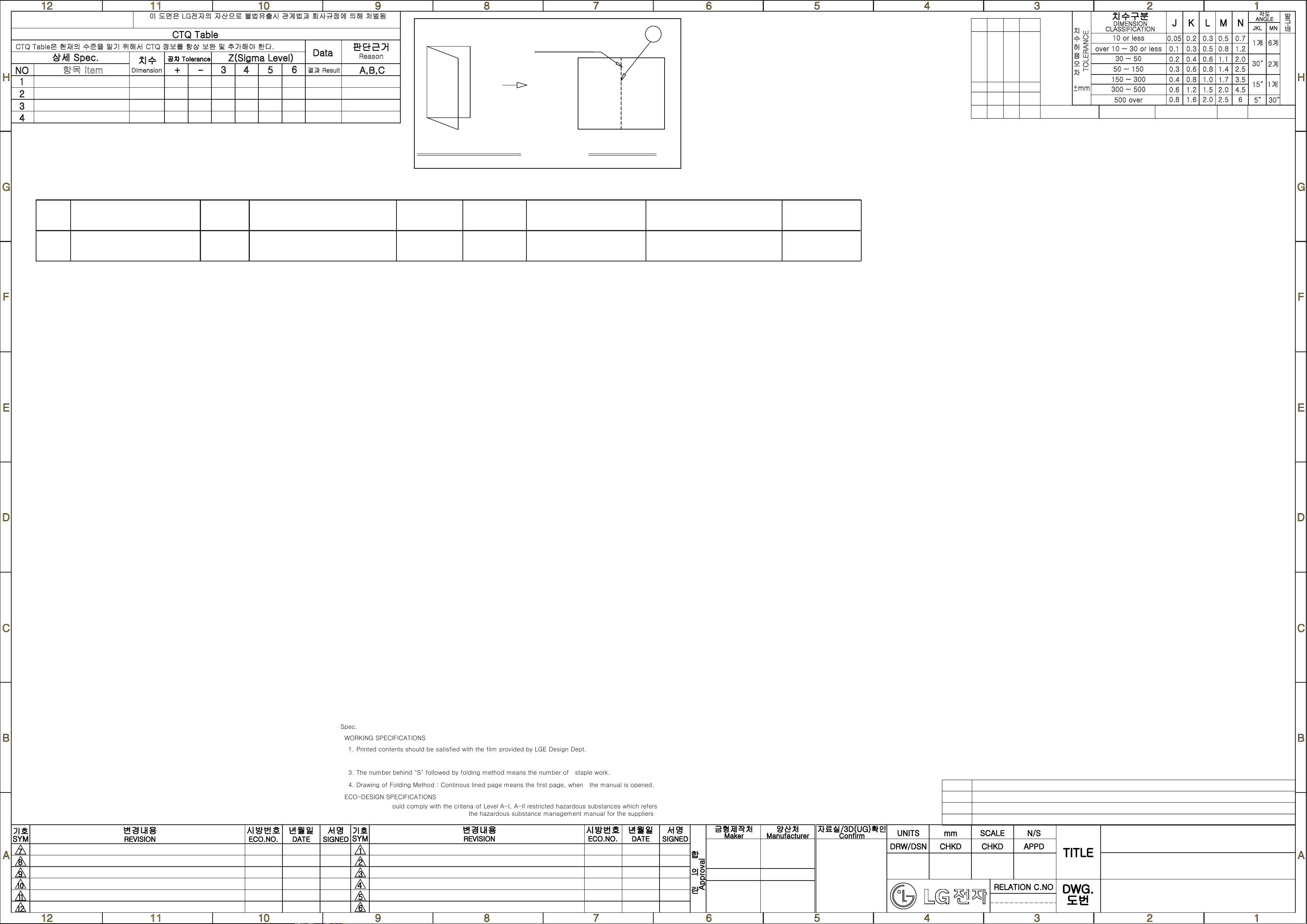

CTQ Table
상세 Spec.
NO
1
3 4 5 6A,B,C
+ -
2
3
4
판단근거
치수 공차 Tolerance Z(Sigma Level) Data
발
DIMENSION
CLASSIFICATION
ANGLE
각도
JKL MN
TOLERANCE
치
0.05 0.2 0.3
0.5
0.6
0.8
1.0
1.5
2.0
0.5
0.8
1.1
1.4
1.7
2.0
2.5
0.7 1계
30”
15”
5”
6계
2계
1계
30”
1.2
2.0
2.5
3.5
4.5
6
0.3
0.4
0.6
0.8
1.2
1.6
0.1
0.2
0.3
0.4
0.6
0.8
10 or less
over 10 ~ 30 or less
30 ~ 50
50 ~ 150
150 ~ 300
300 ~ 500
500 over
수
허
용
오
차
+
-mm
구
배
치수구분 JK L M N
기호
SYM
변경내용
REVISION
시방번호
ECO.NO.
년월일
DATE
서명
SIGNED
기호
1
2
3
4
5
6
SYM
변경내용
REVISION
시방번호
ECO.NO.
년월일
DATE
서명 금형제작처
Maker 양산처
Manufacturer 자료실/3D(UG)확인 UNITS
DRW/DSN
mm
CHKD
SCALE
CHKD APPD
N/S
TITLE
RELATION C.NO DWG.
도번
Confirm
SIGNED
7
8
9
1
1
1
0
1
2
합
Approval
의
란
1
전면기준(Front)
접는 기준선(Folding line)
접는 방법(Folding method)
English + Indonesian Indonesia
Work
(작업) (재질)
Material Color
(색상)
Size: WxH
(치수: 가로x세로)
Language
(언어)
Page
(페이지)
84
Sheet
(매수)
42
Folding method
(접는 방법)
etc.
(비고)
03 BLACK A5 (148 mm x 210 mm) 무선제본(Wireless binding)
Cover : 150 g vellum paper
Internal : 70 g vellum paper
MFL702054
Manual,Owners
PRINTING A-ALL SJ, SK / SB Standard Manual for Indonesia_R32 Air Purify
MFL702054
2019-11-20
정화성
03
R32 Air Purify
CW
Qty
02
-
CW
Qty
01
R32
CW
Qty
Work
Application
Site
No PART NUMBER DESCRIPTION SPECIFICATION MAKER REMARKER
03
02
01
Work
PRINTING A-ALL SJ, SK / SB Standard Manual for Indonesia_R32 Air Purify
PRINTING A-ALL SJ, SK / SB Standard Manual for Indonesia_R32 (Add model on cover page) TH Sub-tributary
PRINTING A-ALL SJ, SK / SB Standard Manual for Indonesia_R32
?Spec
O
Spec.
작업주기
1. 인쇄내용은 연구실 승인FILM에 준 할 것.
2. 인쇄상태 및 외관은 연구실 승인 한도견본에 준 할 것.
3. 접는 방법뒤의 S( )라고 표시한 것은 ( )회수만큼 스테이플 작업하는 것을 말함.
4. 우측 접는 방법의 그림은 실물을 폈을때 실선으로 표시한 면이 제 1면이 되도록 놓은 상태임.
친환경주기
1. LG전자 제품 유해물질 관리기준(LG(10)–A–9023) 및 협력사 유해물질 가이드 기준
Level A-I 및 A-II 유해물질 사용을 금지함
Spec.
WORKING SPECIFICATIONS
1. Printed contents should be satisfied with the film provided by LGE Design Dept.
2. Overall printing condition and appearance satisfied with standard sample provided by LGE for approval.
3. The number behind "S" followed by folding method means the number of staple work.
4. Drawing of Folding Method : Continous lined page means the first page, when the manual is opened.
ECO-DESIGN SPECIFICATIONS
1. This part should comply with the criteria of Level A-I, A-II restricted hazardous substances which refers
to LGE standard LG(10)-A-9023 and the hazardous substance management manual for the suppliers

www.lg.com
OWNER’S MANUAL
AIR CONDITIONER
Copyright © 2019 LG Electronics Inc. All Rights Reserved
TYPE: WALL MOUNTED
MFL70205403
Rev.00_120419
EN ENGLISH ID BAHASA INDONESIA
I.15.LEI14.05017.1019
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
P10RV3 P13RV3
MODEL:

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ..................................................... 3
IMPORTANT SAFETY INSTRUCTIONS................................................4
OPERATION ........................................................................ 11
Notes for Operation .............................................................................. 11

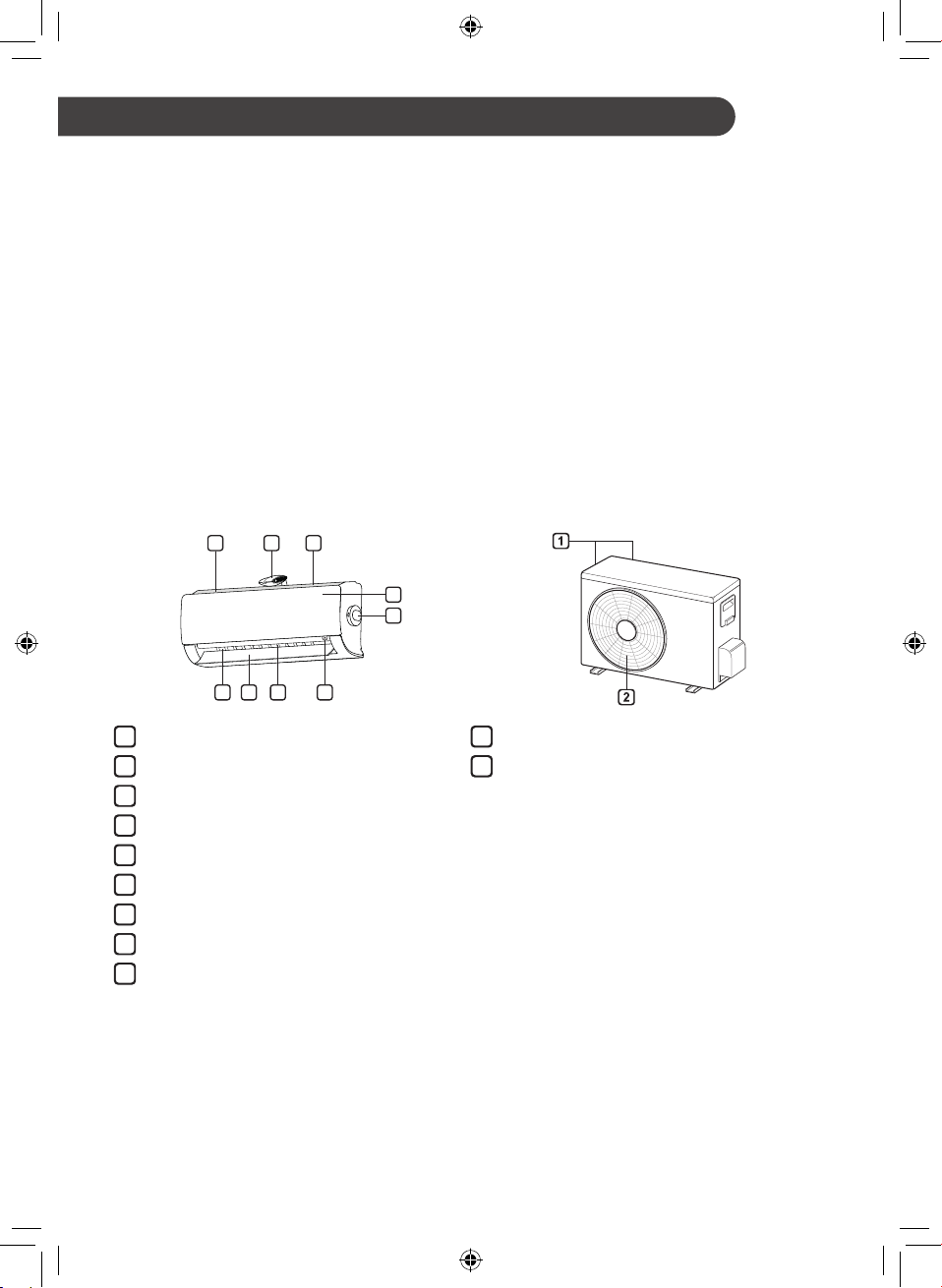

Parts and Functions.............................................................................. 11
Wireless Remote Control......................................................................12
Restarting the Air Conditioner Automatically ........................................17

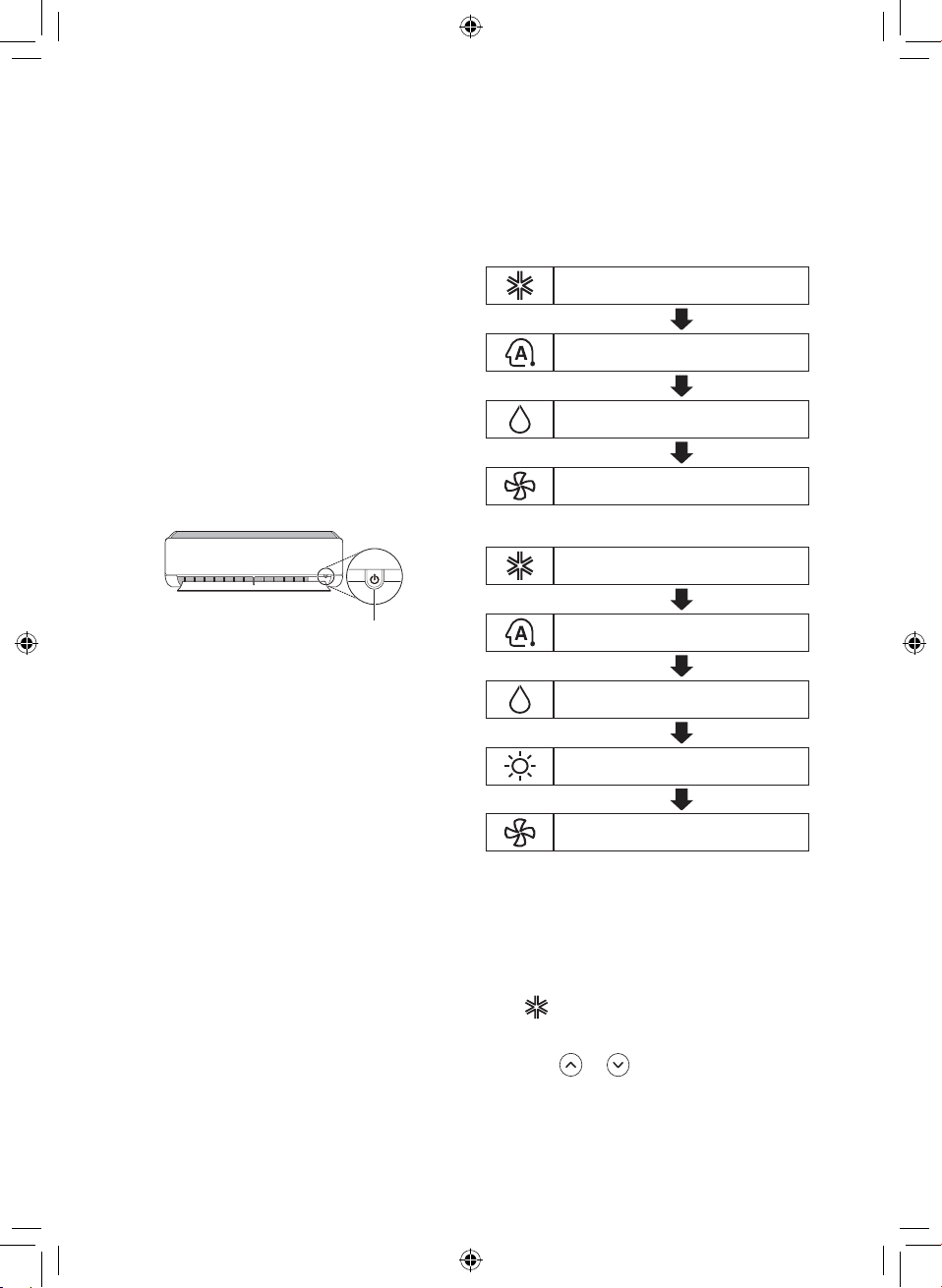

Using the Mode Function......................................................................17
Using the Jet Mode Function................................................................19
Using the Fan Speed Function .............................................................20
Using the Air Flow Direction Function...................................................20
Setting the On/Off Timer....................................................................... 21
Using the Sleep Function (Optional).....................................................22
Using the Simple Timer Function (Optional).........................................22
Using the Energy Display Function (Optional)......................................23
Using the Light Off Function (Optional) ................................................23
Using the Comfort Air Function (Optional)............................................23
Using the Energy Saving Function (Optional) ......................................24
Using the Energy Control Function (Optional)......................................24
How to Use Air Purification ...................................................................25
Checking overall cleanliness ................................................................25
Using Special Functions .......................................................................27
SMART FUNCTIONS........................................................... 29
Using LG ThinQ Application .................................................................29
MAINTENANCE................................................................... 32
Replace and Clean the Micro Dust Filter..............................................34
Replace the Triple Filter (Optional).......................................................35
Clean the PM1.0 Sensor ......................................................................36
TROUBLESHOOTING......................................................... 37
SPECIFICATION .................................................................. 41

3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
The following symbols are displayed on indoor and outdoor
units.
This symbol indicates that this appliance uses a
flammable refrigerant. If the refrigerant is leaked and
exposure to an external ignition source, there is a risk
of fire.
This symbol indicates that the Operation Manual should
be read carefully.
This symbol indicates that a service personnel should
be handling this equipment with reference to the
Installation Manual.
This symbol indicates that information is available such
as the Operating Manual or Installation Manual.

4
EN
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
Installation
•Do not install the air conditioner on an unstable surface or in a
place where there is danger of it falling.
•Contact an authorized service center when installing or relocating
the air conditioner.
•Install the panel and the cover of the control box safely.

5
EN
•Do not install the air conditioner in a place where flammable
liquids or gases such as gasoline, propane, paint thinner, etc., are
stored.
•Make sure that the pipe and the power cable connecting the
indoor and outdoor units are not pulled too tight when installing
the air conditioner.
•Use standard circuit breaker and fuse that conform to the rating of
the air conditioner.
•Do not input air or gas into the system except with the specific
refrigerant.
•Use non-flammable gas (nitrogen) to check for leak and to purge
air; using compressed air or flammable gas may cause fire or
explosion.
•The indoor/outdoor wiring connections must be secured tightly,
and the cable should be routed properly so that there is no force
pulling the cable from the connection terminals. Improper or loose
connections can cause heat generation or fire.
•Install dedicated electric outlet and circuit breaker before using the
air conditioner.
•Do not connect the ground wire to a gas pipe, a lightning rod, or a
telephone ground wire.
•Keep any required ventilation openings clear of obstruction.
•Means for disconnection must be incorporated in the fixed wiring
in accordance with the wiring rules.
Operation
•Be sure to use only those parts listed in the service parts list.
Never attempt to modify the equipment.
•Make sure that children do not climb on or hit the outdoor unit.
•Dispose of the batteries in a place where there is no danger of
fire.
•Use only the refrigerant specified on the air conditioner label.

6
EN
•Cut off the power supply if there is any noise, smell, or smoke
coming from the air conditioner.
•Do not leave flammable substances such as gasoline, benzene, or
thinner near the air conditioner.
•Contact an authorized service center when the air conditioner is
submerged by flood waters.
•Do not use the air conditioner for an extended period of time in a
small place without proper ventilation.
•In the event of a gas leak (such as Freon, propane gas, LP gas,
etc.) ventilate sufficiently before using the air conditioner again.
•To clean the interior, contact an authorized service center or
dealer. Using harsh detergents may cause corrosion or damage to
the unit.
•Be sure to ventilate sufficiently when the air conditioner and a
heating appliance such as a heater are used simultaneously.
•Do not block the inlet or outlet of air flow.
•Do not insert hands or other objects through the air inlet or outlet
while the air conditioner is operating.
•Make sure that the power cable is neither dirty, loose, nor broken.
•Never touch, operate, or repair the air conditioner with wet hands.
•Do not place any objects on the power cable.
•Do not place a heater or other heating appliances near the power
cable.
•Do not modify or extend the power cable. Scratches or peeling
insulation on the power cables may result in fire or electric shock,
and should be replaced.
•Cut off the power supply immediately in the event of a blackout or
a thunderstorm.

7
EN
•Take care to ensure that power cable could not be pulled out or
damaged during operation.
•Do not touch refrigerant pipe, water pipe and any internal parts
while the unit is operating or immediately after operation.
Maintenance
•Do not clean the appliance by spraying water directly onto the
product.
•Before cleaning or performing maintenance, disconnect the power
supply and wait until the fan stops.
Technical Safety
•Installation or repairs made by unauthorized persons can pose
hazards to you and others.
•Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes their
competence to handle refrigerants safely in accordance with an
industry recognized assessment specification.
•Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under the
supervision of the person competent in the use of flammable
refrigerants.
•The information contained in the manual is intended for use by a
qualified service technician who is familiar with the safety
procedures and equipped with the proper tools and test
instruments.
•Failure to read and follow all instructions in this manual can result
in equipment malfunction, property damage, personal injury and/or
death.

8
EN
•The appliance shall be installed in accordance with national wiring
regulations.
•When the power cord is to be replaced, the replacement work
shall be performed by authorized personnel using only genuine
replacement parts.
•This appliance must be properly grounded to minimize risk of
electric shock.
•Do not cut or remove the grounding prong from the power plug.
•Attaching the earth wire to the power outlet cover screw does not
ground the appliance unless the cover screw is metal, uninsulated,
and the power outlet is grounded through house wiring.
•If you have any doubt whether the air conditioner is properly
grounded, have the power outlet and circuit checked by a qualified
electrician.
•The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult a service agent or a
similarly qualified person before disposing of them.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified person in
order to avoid a hazard.
•The appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for
operation.
•The appliance shall be stored in a room without continuously
operating open flames (for example an operating gas appliance)
and ignition sources (for example an operating electric heater).
•The appliance shall be stored so as to prevent mechanical
damage from occurring.

9
EN
CAUTION
To reduce the risk of minor injury to persons, malfunction,
or damage to the product or property when using this
product, follow basic precautions, including the following:
Installation
•Do not install the air conditioner in an area where it is directly
exposed to sea wind (salt spray).
•Install the drain hose properly for the smooth drainage of water
condensation.
•Exercise caution when unpacking or installing the air conditioner.
•Do not touch the leaking refrigerant during installation or repair.
•Transport the air conditioner with two or more people or use a
forklift.
•Install the outdoor unit such that it is protected from direct
sunlight. Do not place the indoor unit in a place where it is directly
exposed to sunlight via the windows.
•Safely dispose of packing materials such as screws, nails or
batteries using proper packaging after installation or repair.
•Install the air conditioner in a place where the noise from the
outdoor unit or the exhaust fumes will not inconvenience the
neighbors. Failure to do so may result in conflict with the
neighbors.
Operation
•Remove the batteries if the remote control is not to be used for an
extended period of time.
