LG PPWRDB000 Installation instructions

INSTALLATION/
OWNER'S MANUAL
PDI STANDARD
PPWRDB000
AIR
CONDITIONER
www.lg.com
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
P/NO : MFL67982907
ENGLISH ITALIANO ESPAÑOL
FRANÇAIS
DEUTSCH
PORTUGUÊS
TÜRKÇE
РУССКИЙ ЯЗЫК
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 1

2TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con-
ditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block
the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 2

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and
ensure peak performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you
and others.
• Installation work must be performed in accordance with the National Electric
Code by qualified and authorized personnel only.
• The information contained in the manual is intended for use by a qualified
service technician familiar with safety procedures and equipped with the
proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in
equipment malfunction, property damage, personal injury and/or death.
WARNING
Installation
• Be sure to request to the service center or installation specialty store when
installing products. It will cause fire or electric shock or explosion or injury.
• Request to the service center or installation specialty store when reinstalling
the installed product. It will cause fire or electric shock or explosion or injury.
• Do not disassemble, fix, and modify products randomly.
It will cause fire or electric shock.
In-use
• Do not place flammable stuffs close to the product. It will cause fire.
• Do not allow water to run into the product.
It will cause electric shock or breakdown.
• Do not give the shock to the product.
It will cause breakdown when giving the shock to the product.
!
!
!
!
3
ENGLISH
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 3

4IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Request to the service center or installation specialty store when the product
becomes wet. It will cause fire or electric shock.
• Do not give the shock using sharp and pointed objects.
It will cause breakdown by damaging parts.
CAUTION
In-use
• Do not clean using the powerful detergent like solvent but use soft cloths. It
will cause fire or product deformation.
• Do not press the screen using powerful pressure or select two buttons. It will
cause product breakdown or malfunction.
• Do not touch or pull the lead wire with wet hands.
It will cause product breakdown or electric shock.
!
According to IEC 60335-1
This appliance is not intended for use by person (including children) with reduced
physical, or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
According to EN 60335-1
This appliance can be used by children aged from 8 years and above and person
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Disposal of your old appliance
1When this crossed-out wheeled bin symbol is attached to a product it means the product
is covered by the European Directive 2002/96/EC.
2All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
3The correct disposal of your old appliance will help prevent potential negative conse-
quences for the environment and human health.
4For more detailed information about disposal of your old appliance, please contact your
city office, waste disposal service or the shop where you purchased the product.
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 4

TABLE OF CONTENTS 5
TABLE OF CONTENTS
2TIPS FOR SAVING EN-
ERGY
3IMPORTANT SAFETY IN-
STRUCTIONS
6NAME OF EACH PART
7COMPONENTS
8INSTALLATION METHOD
8Diagram of overall product configura-
tion

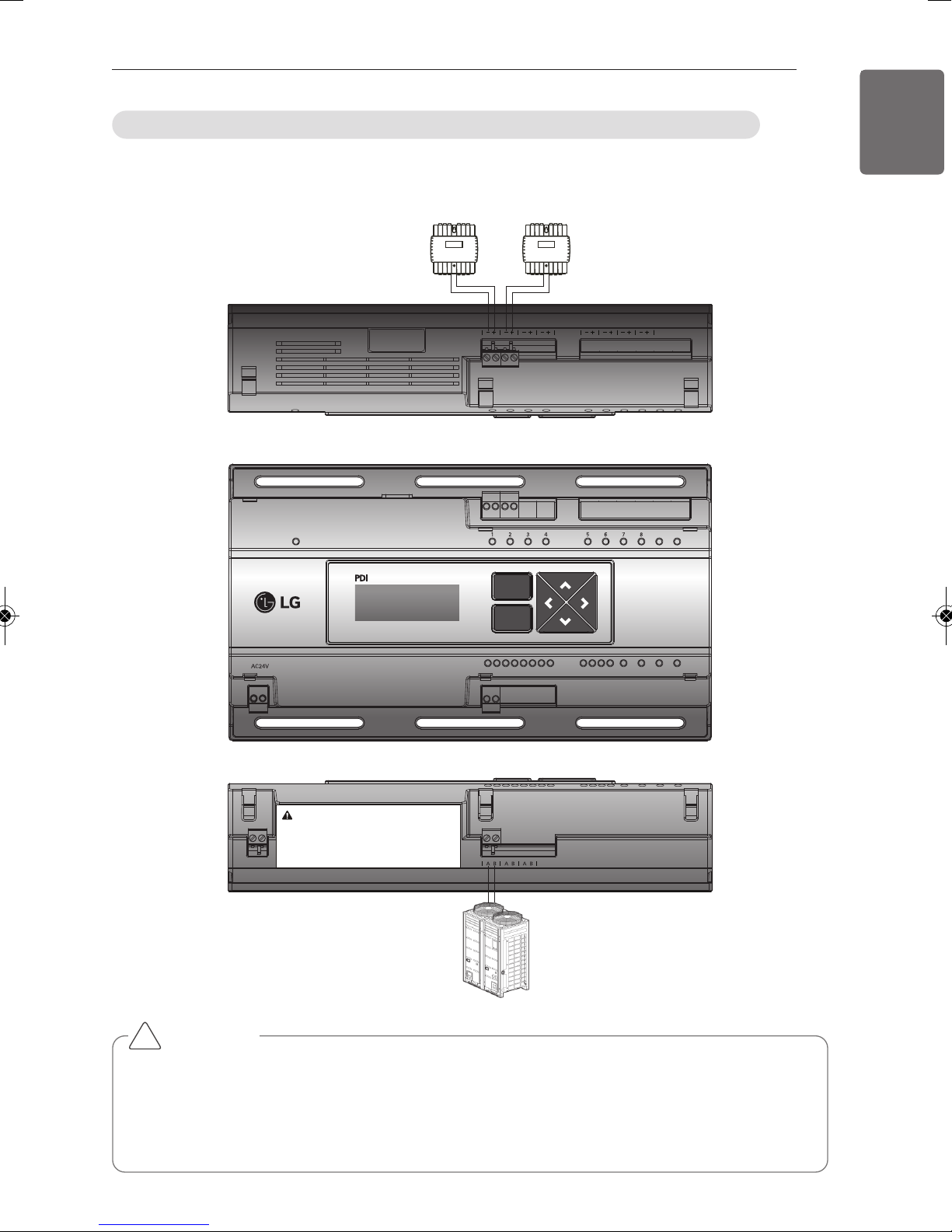

12 How to wire the product (when EHP
product is connected)

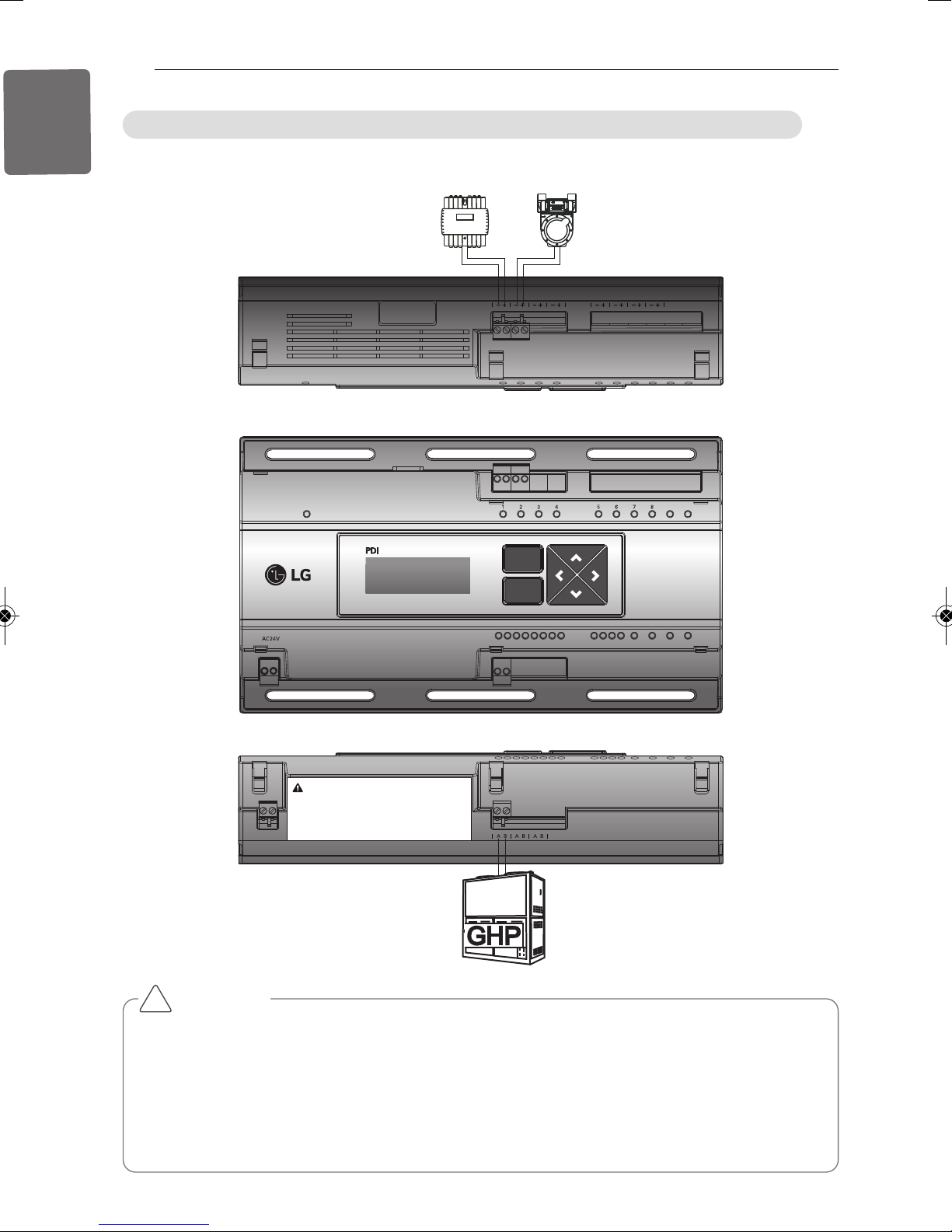

13 How to wire the product (when GHP
product is connected)

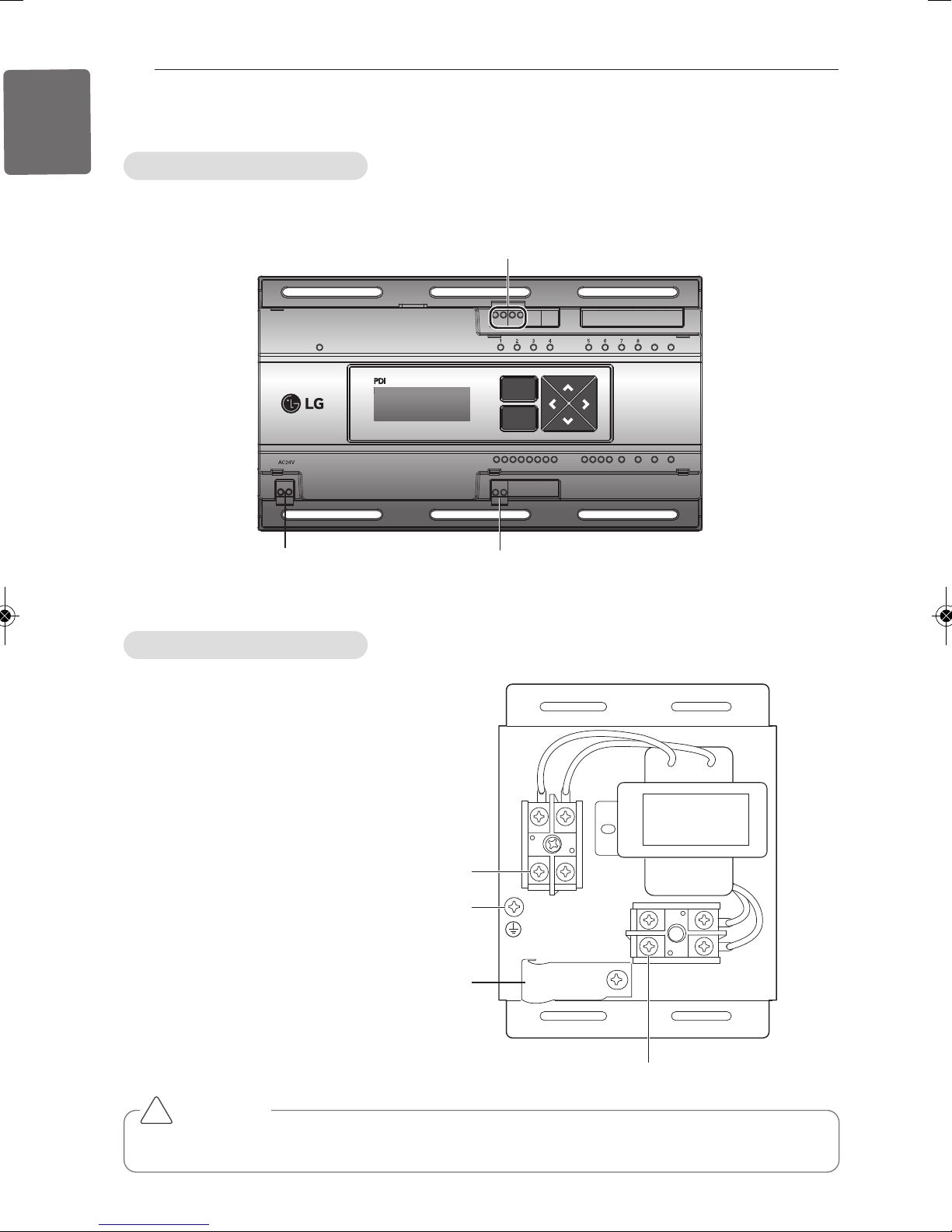

14 Wiring

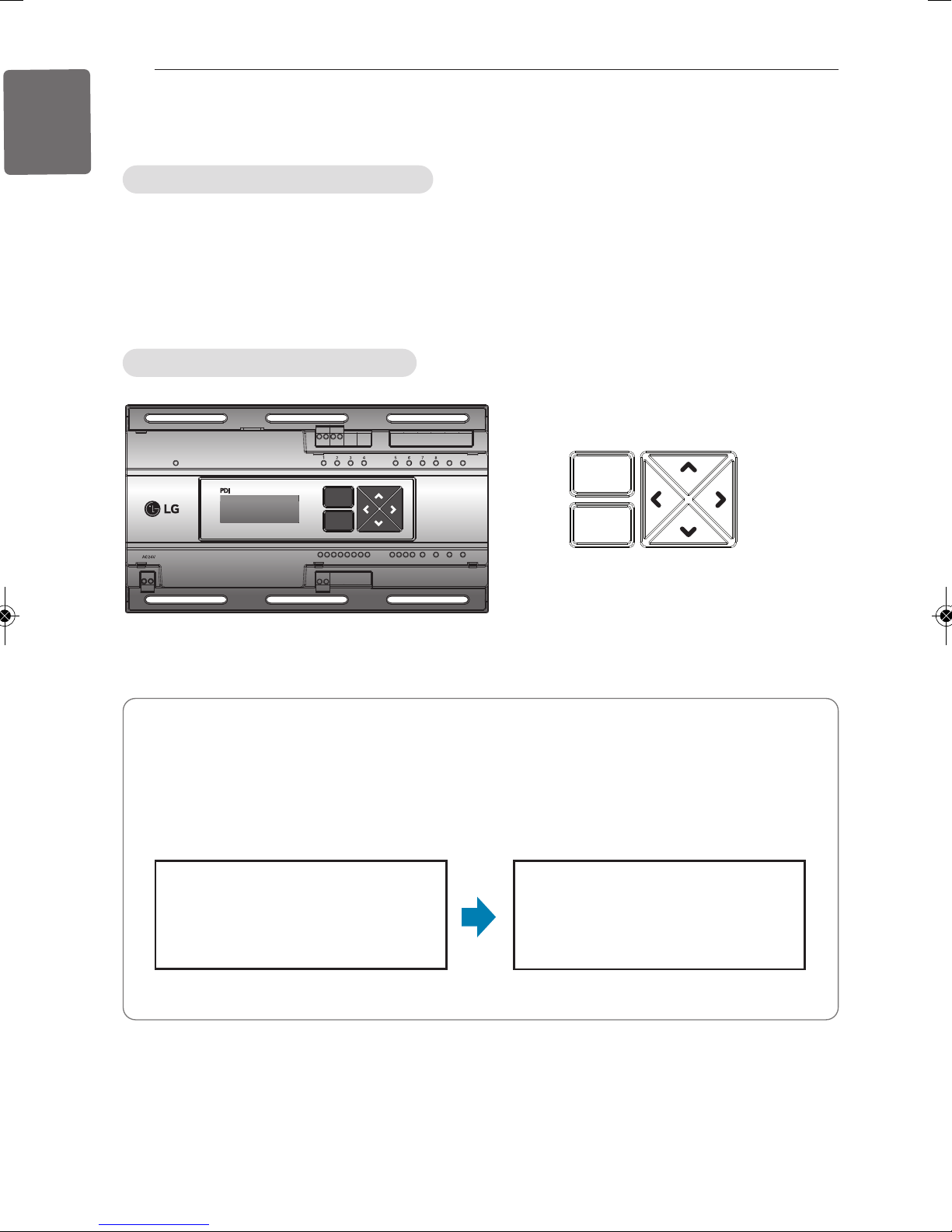

17 SETTING AND USING
METHOD
17 Glossary
18 Setting
20 Setting up detailed functions (EHP
products)
26 Setting detailed functions (GHP prod-
ucts)
32 How to Use Power Indicator (EHP
products)
35 How to Use the Power Indicator (GHP
products)
39 Operating condition display
ENGLISH
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 5

6NAME OF EACH PART
ENGLISH
NAME OF EACH PART
①Front cover
②LED display Displays current status of power indicator
③Menu button Use for checking initial setting and electric power
④LCD display Displays setting information and power usage
⑤SELECT button Use for initial setting
⑥Navigation button Use for checking initial setting and electric power
⑦Power supply Supply power for power indicator
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
⑦Power supply
①Front cover
②LED display
③Menu button
④LCD display
⑤SELECT button
②LED display
⑥Navigation button
POWER WHM
MENU
SELECT
ODU
WHM
CHECK
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 6

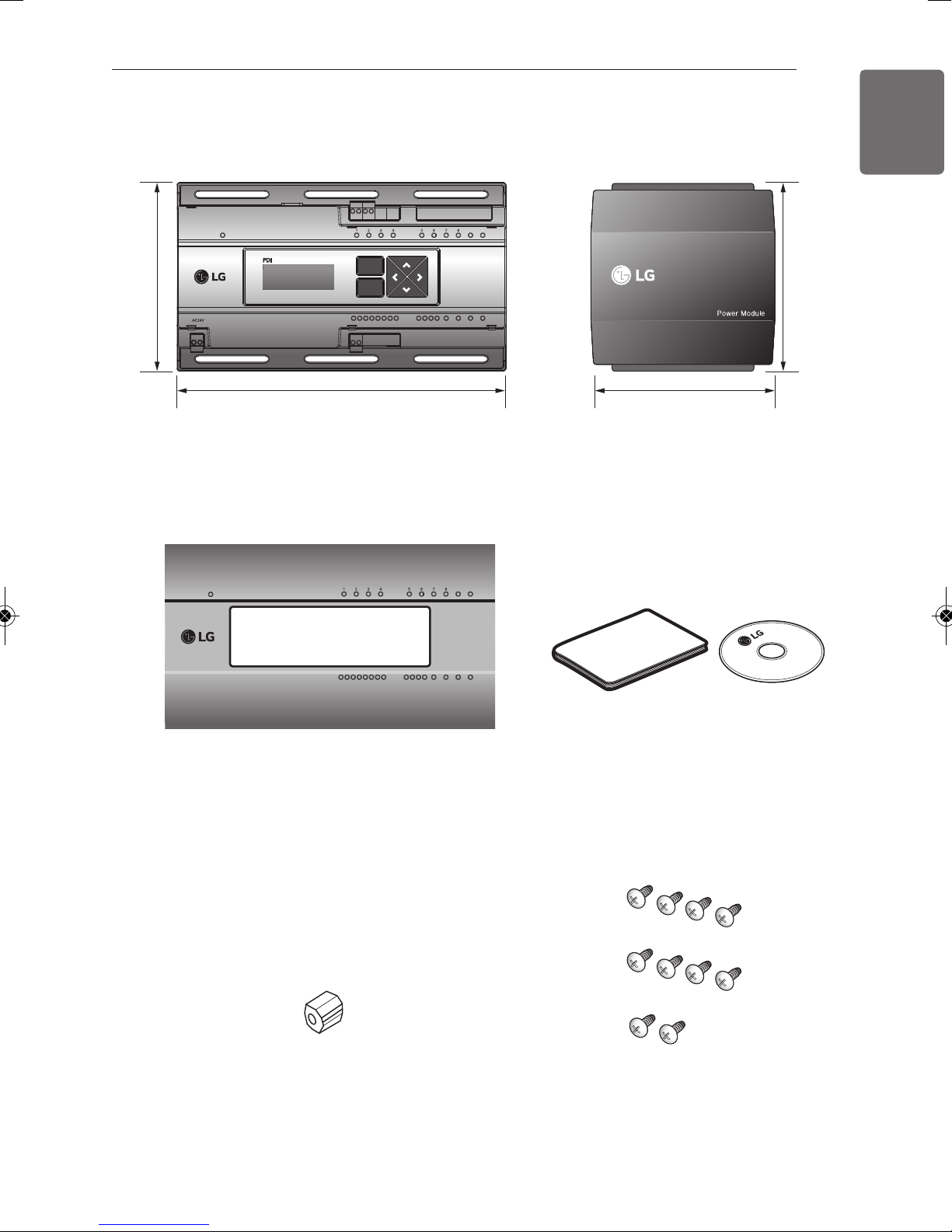

COMPONENTS 7
ENGLISH
COMPONENTS
155 mm
270 mm 120 mm
155 mm
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Power distribution indicator Power supply
Front cover
1 core Screws
POWER WHM
ODU
WHM
CHECK
Manual
1,MFL67982907,영영 2017. 7. 13. 영영 1:16 Page 7

8INSTALLATION METHOD
ENGLISH
INSTALLATION METHOD
Diagram of overall product configuration
When interlocked to pulse type wattmeter
• When interlocked to EHP product
- Independent Operation of Power Indicator (interlocked to EHP products)
Power cable for 3 phase 4 wire
Power cable for single phase
Communication cable (2 wire shielded cable): Between outdoor unit and central controller
Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit
Pulse signal wire
Refrigerant pipe
Power In
single phase
220-240 V~,
50/60 Hz
Wattmeter
Wattmeter
Power In 3
phase 4 wire
380-415 V 3N~,
50/60 Hz
Pulse signal
(00) (01) (02) (03)
Power cable of indoor unit
Pulse signal
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Power In
single phase
220-240 V~,
50/60 Hz
Wattmeter
Power In 3
phase 4 wire
380-415 V 3N~,
50/60 Hz
(00) (01) (02) (03)
(10) (11) (12) (13)
Power cable of indoor unit
RS-485
Pulse signal
Pulse signal
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
RS-485
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 8

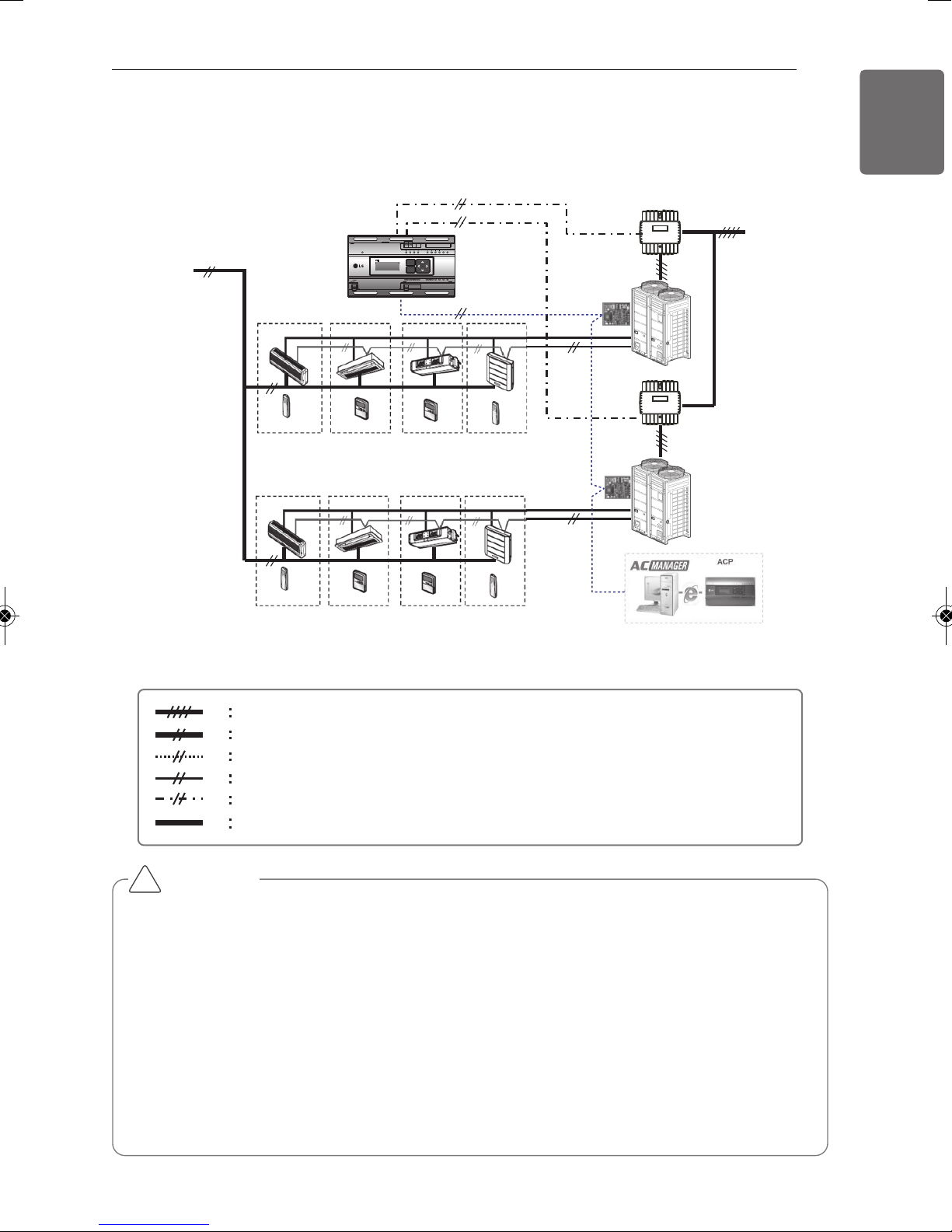

INSTALLATION METHOD 9
ENGLISH
• Interlocked Operation with Central Controller (interlocked to EHP product)
(00) (01) (02) (03)
(10) (11) (12) (13)
Power cable of indoor unit
Power In
single phase
220-240 V~,
50/60 Hz
Wattmeter
Power In 3
phase 4 wire
380-415 V 3N~,
50/60 Hz
Pulse signal
RS-485
RS-485
(LGAP)
Pulse signal
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Power cable for 3 phase 4 wire
Power cable for single phase
Communication cable (2 wire shielded cable): Between outdoor unit and central controller
Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit
Pulse signal wire
Refrigerant pipe
CAUTION
• Depending on the electric power, use the wattmeter for remote reading by sending the
pulse signal.
• Use the wattmeter with the pulse width of 50 ms ~ 400 ms.
• The wattmeter pulse must be able to sink at least 3 mA or more of current in the power
indicator.
• Use the wattmeter of 1 W/Pulse, 2 W/Pulse, 4 W/Pulse, 6 W/Pulse, 8 W/Pulse, 10
W/Pulse, 100 W/Pulse, PT/CT (1 ~ 50 000).
• When setting the wattmeter, set it to Slave Mode.
• Maximum of 2 wattmeters can be installed.
• The distance between power indicator and wattmeter should be shorter than 10 m in
normal circumstance.
• When electrical or mechanical noise is expected, more shorter wiring is needed.
• For watt-hour meter setting, inquire to the corresponding vendor
!
hEHP (Electric Heat Pump): It is an electric air conditioner to drive the compressor by electric power.
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 9

10 INSTALLATION METHOD
ENGLISH
• When interlocked to GHP product
- Independent Operation of Power Indicator (interlocked to GHP product)
Wattmeter
Pulse signal(Power)
Pulse signal(Gas)
Power In 3
phase 4 wire
380-415 V 3N~,
50/60 Hz
Gas meter
(00) (01) (02) (03)
RS-485
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Power cable for 3 phase 4 wire
Power cable for single phase
Communication cable (2 wire shielded cable): Between outdoor unit and central controller
Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit
Pulse signal wire
Refrigerant pipe
Gas pipe
Pulse signal wire(Gas)
CAUTION
• Use the wattmeter for remote reading to send pulse signal depending on wattage.
• Use the wattmeter with the pulse width of 50 ms ~ 400 ms.
• The wattmeter pulse must be able to sink at least 3 mA or more of current in the power indicator.
• Use the wattmeter of 1 W/Pulse, 2 W/Pulse, 4 W/Pulse, 6 W/Pulse, 8 W/Pulse, 10 W/Pulse,
100 W/Pulse, PT/CT(1 ~ 50 000).
• Use the gas meter for remote reading to send pulse signal depending on gas consumption.
• Use the gas meter with the pulse width of 50 ms or more.
• Use the gas meter containing the max. gas pressure of 0.2 m3/h ~ 10 m3/h.
• Gas meter pulse must be able to sink at least 3 mA of current or more in the power indicator.
• Use the gas meters for 1 ℓ /Pulse, 2 ℓ /Pulse, 4 ℓ /Pulse, 6 ℓ /Pulse, 8 ℓ /Pulse, 10 ℓ /Pulse,
100 ℓ /Pulse, VT&Pr(1 ~ 50 000).
• Set to Master Mode when setting the wattmeter or gas meter.
• Wattmeter or gas meter can be installed up to 1.
• Connection cable for the power indicator and wattmeter (gas meter) must not exceed 10 m
in normal circumstance.
• Reduce the length of connection cable if there is any electrical or mechanical noise on the site.
• For watt-hour meter and gas meter setting, inquire to the corresponding vendor
hGHP (Gas engine Heat Pump): It is a gas air-conditioner to drive the compressor with LNG or LPG as
a heat source and the gas engine electric power.
!
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 10

INSTALLATION METHOD 11
ENGLISH
- When linked with the GHP product, the central controller is linked only possible model of
ACS IV series or later.
Wattmeter
Pulse signal(Power)
Pulse signal(Gas)
Power In 3
phase 4 wire
380-415 V 3N~,
50/60 Hz
Gas meter
(00) (01) (02) (03)
RS-485
(LGAP)
RS-485
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Power cable for 3 phase 4 wire
Power cable for single phase
Communication cable (2 wire shielded cable): Between outdoor unit and central controller
Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit
Pulse signal wire
Refrigerant pipe
Gas pipe
Pulse signal wire(Gas)
CAUTION
• Use the wattmeter for remote reading to send pulse signal depending on wattage.
• Use the wattmeter with the pulse width of 50 ms ~ 400 ms.
• The wattmeter pulse must be able to sink at least 3 mA or more of current in the power indicator.
• Use the wattmeter for 1 W/Pulse, 2 W/Pulse, 4 W/Pulse, 6 W/Pulse, 8 W/Pulse, 10 W/Pulse,
100 W/Pulse, PT/CT(1 ~ 50 000).
• Use the gas meter for remote reading to send pulse signal depending on gas consumption.
• Use the gas meter with the pulse width of 50 ms or more.
• Use the gas meter containing the max. gas pressure of 0.2 m3/h ~ 10 m3/h.
• Gas meter pulse must be able to sink at least 3 mA of current or more in the power indicator.
• Use the gas meters for 1 ℓ /Pulse, 2 ℓ /Pulse, 4 ℓ /Pulse, 6 ℓ /Pulse, 8 ℓ /Pulse, 10 ℓ /Pulse,
100 ℓ /Pulse, VT&Pr(1 ~ 50 000).
• Set to Slave Mode when setting the wattmeter or gas meter.
• Wattmeter or gas meter can be installed up to 1.
• Connection cable for the power indicator and wattmeter (gas meter) must not exceed 10 m in
normal circumstance.
• Reduce the length of connection cable if there is any electrical or mechanical noise on the site.
• For watt-hour meter and gas meter setting, inquire to the corresponding vendor
!
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 11

12 INSTALLATION METHOD
ENGLISH
How to wire the product (when EHP product is connected)
Connect to central control (outdoor unit)
RS-485 communication line
24 V~ power is supplied
for power supply device
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
MENU
SELECT
Connection of pulse type
wattmeter (Port 1~2)
Wiring Power Indicator
220-240 V~
LN
24 V~
220-240 V~ power cable connection terminal
Grounding cable connection terminal
Fixing clamp
24 V~ power cable connection terminal
Wiring Power Supply
CAUTION
• Power must be turned on after the product is wired completely.
!
1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 12

INSTALLATION METHOD 13
ENGLISH
How to wire the product (when GHP product is connected)
Connected to pulse-type
wattmeter (Port 1)
Connected to pulse-type
gas meter (Port 2)
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Connect to central control (outdoor unit)
RS-485 communication line
24 V~ power is supplied
for power supply device
Wiring Power Indicator
220-240 V~
LN
24 V~
220-240 V~ power cable connection terminal
Grounding cable connection terminal
Fixing clamp
24 V~ power cable connection terminal
Wiring Power Supply
CAUTION
• Power supply must be applied after wiring the product is completed, if applicable.
!
1,MFL67982907,영영 2017. 7. 13. 영영 1:14 Page 13

14 INSTALLATION METHOD
ENGLISH
Wiring
• Separate the power supply case.
• Loosen the clamp fixating the power supply.
• Connect the 220-240 V~ power cable to the black and grounding terminal.
• Connect the 24 V~ power cable to the yellow terminal.
• Use the clamp to fixate the 220-240 V~ and 24 V~ power cable.
• Use the screw to assemble the case.
• Use the included screws to fixate the power indicator and power supply at appropriate loca-
tions within the electric panel.
• Connect the 24 V~ power cable connected to the power supply to the power terminal of the
power indicator.
• Wire wattmeter, gas meter, central controlled communication cable, and the repeater for re-
mote reading.
• Install the included core to the 24 V~ power cable.
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
220-240 V~
Install core
Power connection
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Mounting on wall
CAUTION
• Power must be turned on after the product is wired completely.
!
WARNING
• Always tighten the terminal screws so that they do not be-
come loose.
• When connecting the power and communication cable,
always use the terminal (O-Ring, Y-Ring).
• For 220-240 V~ power cable, use (CV) 1.5 mm2x 3 and for
24 V~.
power cable, use the CV wire.
!
1,MFL67982907,영영 2017. 7. 13. 영영 1:14 Page 14

INSTALLATION METHOD 15
ENGLISH
Connect the wattmeter and communication cable (EHP products)
CAUTION
1. Please read the manual carefully, before using the product.
2. The installation requires expert skills, and it should be installed by the
service or other shops specialized in the installation and recognized by
our company.
3. For all the problems arising after installation by someone who has no
relevant qualifications, our company will not provide free service
Outdoor Unit
(Central controller)
Pulse type
wattmeter Pulse type wattmeter
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
CAUTION
• The color and polarity of the signal wire may be different from the details indicated on the
case depending on the manufacturer of wattmeter. [Black: (-), white: (+)]
• When connecting the 485 communication cable, make sure to check the A, B polarity.
• After connecting the wattmeter, check whether the signal is connected through the LED.
• Power indicator and Pulse Type wattmeter must be installed in same panel.
!
When connecting the pulse-type wattmeter
• Independent Operation of Power Indicator (interlocked to EHP product)
1,MFL67982907,영영 2017. 7. 14. 영영 1:13 Page 15

16 INSTALLATION METHOD
ENGLISH
CAUTION
1. Please read the manual carefully, before using the product.
2. The installation requires expert skills, and it should be installed by the
service or other shops specialized in the installation and recognized by
our company.
3. For all the problems arising after installation by someone who has no
relevant qualifications, our company will not provide free service
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
Pulse type
wattmeter Pulse type
gas meter
Outdoor Unit
(Central controller)
CAUTION
• The color and polarity of the signal wire may be different from the details indicated on the
case depending on the manufacturer of wattmeter. [Black: (-), white: (+)]
• When connecting the 485 communication cable, make sure to check the A, B polarity.
• After connecting the wattmeter, check whether the signal is connected through the LED.
• Install the power indicator and the pulse-type wattmeter on the same panel.
• Make sure that the pulse lines of the wattmeter and gas meter are connected to the
correct positions (wattmeter : port 1, gas meter : port 2)
!
When connecting the pulse-type wattmeter / gas meter
Connection of wattmeter, gas meter and communication cable (GHP products)
1,MFL67982907,영영 2017. 7. 14. 영영 1:13 Page 16

SETTING AND USING METHOD 17
ENGLISH
SETTING AND USING METHOD
Glossary
• EHP (Electric Heat Pump)
It is an electric air conditioner to drive the compressor by electric power.
• GHP (Gas engine Heat Pump)
GHP is a gas air conditioner to drive the compressor with LNG and LPG gas as a heat source
and power supply for gas engine.
• WHM: wattmeter
• LHM: gas meter
• ODU: Outdoor Unit
• IDU: Indoor Unit
• STANDBY P: Standby Power
• NOT USE: setting as disabled
• CT: deflector device
• PT: transforming equipment
• VT: volume adjustment device
• Pr: gauge integer
1,MFL67982907,영영 2017. 7. 13. 영영 1:14 Page 17

18 SETTING AND USING METHOD
ENGLISH
• If entering the setting screen for the first time.
- After turning power on, press the ‘MENU’ button and the ‘SELECT’ button at the same
time and the screen will change to the screen where you can select the product connec-
tion type. Select the product type to connect, and then press the ‘SELECT’ button.
Then, the selection of the product will be saved and the screen will be switched to the
main standby screen.
According to the product ship-out date, standby screen version may be different
Setting
Description of button function
Enter function setting mode
- MENU button: Move to standby screen after setting is completed. Use for reading wattmeter
- Direction button: Move to item to set
- SELECT button: Enter applicable setting window and set changed information
POWER WHM
PPWRDB000
ODU
MENU
SELECT
WHM
CHECK
<Main standby screen> <Connection Product Type Setting Screen>
P R O D U C T T Y P E
1 . E H P
2 . G H P
C H A N G E S E T T I N G I N F O !
O#G##H#O#H#F#W#U#R#Q#L#F#V
V#W#D#Q#G#D#U#G##Y##413
SELECT
MENU
1,MFL67982907,영영 2017. 7. 13. 영영 1:14 Page 18

SETTING AND USING METHOD 19
ENGLISH
• If after selecting the connection product type at least once, you are entering the setting
screen.
- After turning power on, press the ‘MENU’ button and the ‘SELECT’ button at the same
time and then will be switched to the function setting screen.
• The item with letters blinking is the current setting location on the function setting screen.
hIf you want to change the connection type of product
- On the function setting screen, press the (▲) button and (▼) button simultaneously, and then
you can enter the connected product type setting screen.
• After selecting GHP product
• After selecting EHP product
<Main standby screen> <Function setting screen>
E L E C T R I C P O W E R
D I S T R I B U T O R
C O N N E C T I O N : M A S T E R
S T A N D B Y P : A U T O
W H M 1 : 1 W , I D U , 0 0 - 0 1
W H M 2 : 1 W , O D U , 0 0 - 0 1
<Main standby screen> <Function setting screen>
P O W E R & G A S
D I S T R I B U T O R
C O N N E C T I O N : M A S T E R
S T A N D B Y P : A U T O
W H M 1 : 1 W , O D U , 0 0 - 0 1
L H M 1 : 1 0 L , O D U , 0 0 - 0 1
CAUTION
• Power indicator setting only can be changed during the 20 minutes after turning on the
power. 20 minutes later, if you need to change settings, turn the power indicator on again.
!
1,MFL67982907,영영 2017. 7. 13. 영영 1:14 Page 19

20 SETTING AND USING METHOD
ENGLISH
Setting up detailed functions (EHP products)
Flowchart for how to set up functions (EHP products)
While EHP product is selected, set the detailed functions of the power indicator with reference
to the flowchart below
E L E C T R I C P O W E R
D I S T R I B U T O R
‘MENU’ button + ‘SELECT’ button
<Select connection type>
<Set power consumption per pulse>
<Set standby power distribution method>
▼ Button
▼ Button
▼ Button
‘SELECT’
button
‘SELECT’
button
‘SELECT’
button
C O N N E C T I O N T Y P E
1 . M A S T E R
2 . S L A V E
3 . S L A V E - R C
S T A N D B Y P O W E R
1 . A U T O
2 . M A N U A L
* W H M W / P U L S E S E L E C T *
1 . N O T U S E
2 . 1 W / P U L S E
3 . 2 W / P U L S E
4 . 4 W / P U L S E
5 . 6 W / P U L S E
6 . 8 W / P U L S E
7 . 10 W / P U L S E
8 . 100 W / P U L S E
9 . C T / P T
‘SELECT’
button
C O N N E C T I O N : M A S T E R
S T A N D B Y P : A U T O
W H M 1 : N O T U S E
W H M 2 : N O T U S E
C O N N E C T I O N : M A S T E R
S T A N D B Y P : A U T O
W H M 1 : N O T U S E
W H M 2 : N O T U S E
C O N N E C T I O N : M A S T E R
S T A N D B Y P : A U T O
W H M 1 : N O T U S E
W H M 2 : N O T U S E
C O N N E C T I O N : M A S T E R
S T A N D B Y P : A U T O
W H M 1 : N O T U S E
W H M 2 : N O T U S E
1,MFL67982907,영영 2017. 7. 13. 영영 1:14 Page 20
