LG LSP-2000 User manual

CDMA Fixed Wireless Telephone
User Manual
Model: LSP-2000

i
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The design of this
phone complies with the FCC guidelines and these international standards.
To comply with FCC RF exposure requirements, a minimum separation distance of 2
cm (0.8 inches) must be maintained between the user/bystander and the back of the
phone,including the antenna.
For more information about RF exposure, please visit the FCC website at www.fcc.gov
WARNING! Read this information before using your phone

LGIC CDMA Fixed Wireless Telephone
LSP-2000
2
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
1999/07 ISSUE 1 Initial Release
Blank Page

LGIC CDMA Fixed Wireless Telephone
LSP-2000
3
CONTENTS
Highlights.........................................................................................................................................5
1. Important Information...........................................................................................................6
1.1 Safety Information............................................................................................................6
1.2 Optimal Phone Performance...........................................................................................6
1.3 Care and Service..............................................................................................................7
2. Introduction............................................................................................................................ 8
2.1 Front View of the Telephone............................................................................................8
2.2 LCD Display......................................................................................................................9
2.3 Installation.......................................................................................................................10
2.4 Installation Steps............................................................................................................12
3. Basic Operation....................................................................................................................13
3.1 Making a Call..................................................................................................................13
3.2 Redialing Last Outgoing Number..................................................................................13
3.3 Receiving a Call..............................................................................................................14
3.4 Signal Strength...............................................................................................................14
3.5 Missed Call Message.....................................................................................................14
4. List of Menu State................................................................................................................15
4.1 Select Volume................................................................................................................15
4.1.1 Ring Volume.......................................................................................................15
4.1.2 Key Volume ........................................................................................................16
4.1.3 Ear Volume.........................................................................................................16
4.2 Ring Type Selection.......................................................................................................16
4.3 Wake-up Time................................................................................................................16
4.4Security...........................................................................................................................17
4.4.1 Lock Mode Set....................................................................................................17
4.4.2 Clear Calls..........................................................................................................17
4.4.3Clear Memory.....................................................................................................18
4.4.4Emergency Call..................................................................................................18
4.4.5Changing Lock Code.........................................................................................18
4.5Convenient Features......................................................................................................18
4.5.1 Hot Line..............................................................................................................18
4.5.2 Hot Line Time.....................................................................................................19
4.5.3 Speed Dial(enable/disable)...............................................................................19

LGIC CDMA Fixed Wireless Telephone
LSP-2000
4
4.6 Additional Feature ..........................................................................................................19
4.6.1 Key-tone Length.................................................................................................19
4.6.2 Auto Time-out.....................................................................................................20
4.6.3 3 Minute Alert.....................................................................................................20
5. Function while in a Call......................................................................................................20
5.1 Ear Volume.....................................................................................................................20
5.2 MIC Volume....................................................................................................................20
5.3 Mute................................................................................................................................21
5.4 Memo..............................................................................................................................21
5.5 Transmitting your own number......................................................................................21
6. Searching, Editing & Dialing.............................................................................. 22
6.1 Retrieving Last Call History............................................................................................22
6.2 Retrieving Phone Number by Address..........................................................................23
6.3 Retrieving Phone Number by Name.............................................................................24
7. SMS(Short Message Service)...........................................................................................25
7.1 Check & Deleting Received Message...........................................................................25
7.1.1 Text Message.........................................................................................................25
7.1.2 Voice Message.......................................................................................................26
7.2Erasing all Message.......................................................................................................26
7.3Setting alert tone count..................................................................................................26
8. Beside Functions .................................................................................................................27
8.1 Redial..............................................................................................................................27
8.2 Viewing your own number..............................................................................................27
9. Storing Phone Number ......................................................................................27
9.1 Storing / Editing Phone Numbers..................................................................................27
9.1.1 Storing Phone Numbers ........................................................................................27
9.1.2 Erasing Stored Phone Numbers.............................................................................28
9.2Finding Stored Phone Numbers....................................................................................29
10. General Information...........................................................................................................31

LGIC CDMA Fixed Wireless Telephone
LSP-2000
5
Highlights
Congratulations on your purchase of the LSP-200 Fixed Wireless Telephone. This
telephone has been designed to operate on the latest digital mobile communications
technology. This technology has greatly enhanced voice clarity and can provide various
advanced features.
The telephone provides:
l3-line LCD Display with status indicator
lA choice of 10 ring sounds
lA menu driven interface with prompts for easy operation
lLast Number Redial
lSpeed Dialing with a 99-number memory
lDial tone
lROH (Receiver Off-Hook) tone
lStep Ring Volume Level Switch
lInternal Back-up Battery Pack
lAC Power Supply
lDipole Antenna
lDB9 Data Port for service and repair

LGIC CDMA Fixed Wireless Telephone
LSP-2000
6
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product, read this information before using your
telephone.
1.2 Optimal Phone Performance
lDo not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may
cause the telephone to operate at a higher power level than needed.
lFor the best call quality, keep the antenna free from obstructions and point the antenna
straight up.
lDo not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved
antennas, modifications, or attachments could impair call quality, damage the phone.
lRF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitor. Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in the
areas instruct you to do so. Hospitals or health care facilities may be using equipment that
could be sensitive to external RF energy.
lIf this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the radio or television and the telephone.
-Connect the equipment into an outlet on a circuit different from that to which
the terminal is connected.
-Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
lUse only the battery, antenna and AC power supply provided by LGIC. Using any other
type will invalidate the warranty.
lOnly authorized personnel should service the phone and its accessories. Faulty
installation or service any be dangerous and may invalidate the warranty.
lDo not use the unit in designated “no cellular phone use” area.
lAvoid exposure to high temperature or humidity.
lAvoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately
and remove the backup battery and AC power supply. If the unit is inoperable, then return
to the service agent for service.
lAvoid shock or impact.
lWe recommend you to charge the backup battery before initial use. Backup battery may
be discharged during delivery.

LGIC CDMA Fixed Wireless Telephone
LSP-2000
7
1.3 Care and Service
lUnplug the telephone from the wall outlet and remove antenna (or disconnect antenna
cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
lIf the unit fails for any reason, do not attempt to disassemble; contact the telephone
service provider for assistance.
lIf any of the following conditions exist; unplug the unit at the wall plug, remove battery, and
call the service provider.
-The power supply cord is damaged or frayed.
-Liquid has been spilled into the unit.
-The unit has been exposed to rain or water.
-The unit has been dropped or damaged.
-The unit does not work normally by following the operating instructions.

LGIC CDMA Fixed Wireless Telephone
LSP-2000
8
2. Introduction

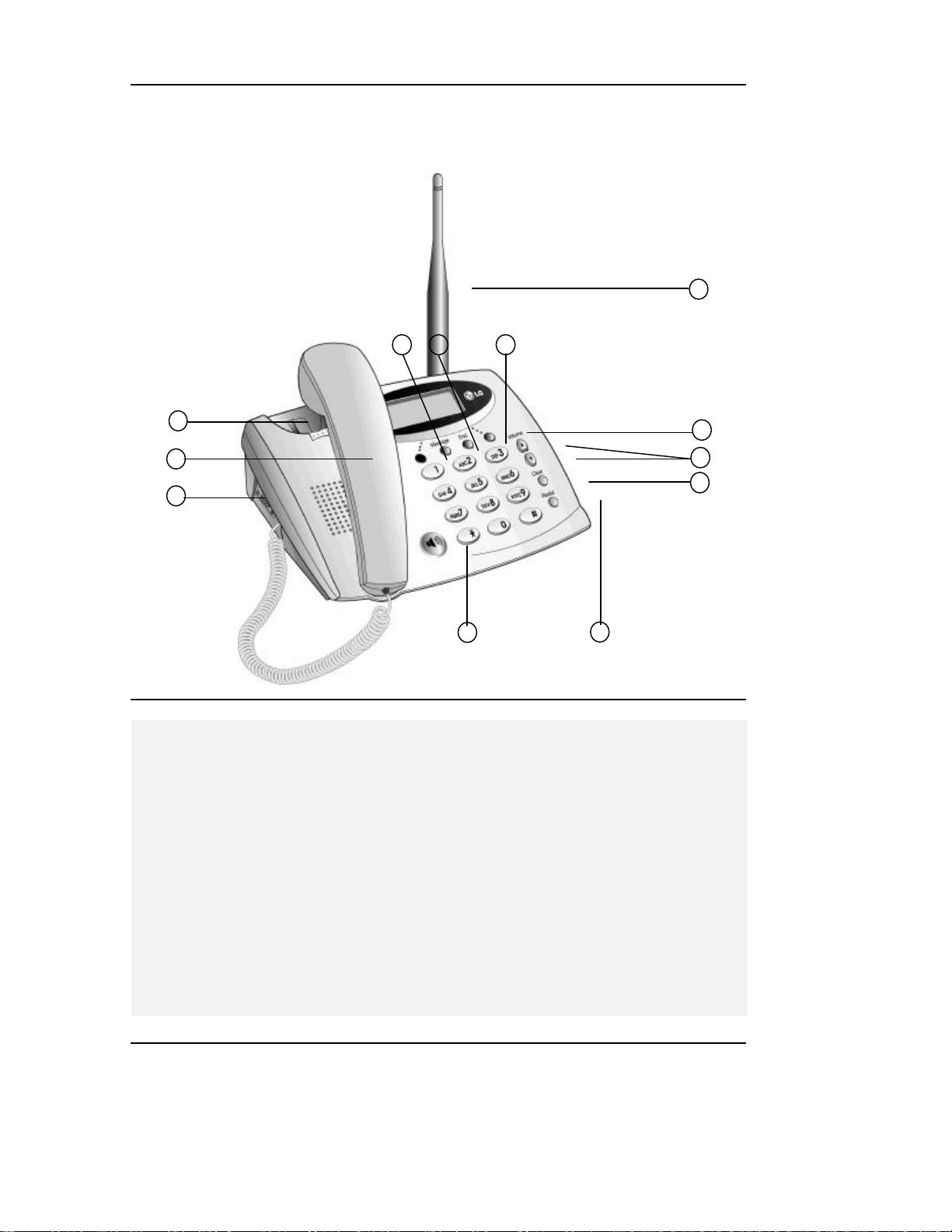

2.1 Front View of the Telephone
Hook Switch
Base Handset
DB-9 Port
Used for data communication or service.
personnel.
Soft Key 1
Displays main menu features and also
used as soft key while setting menu items
in sub-field.
Message Button
Press to view text or voice message.
End Button
Exit all the way out of a menu back to the
phone's standby display without changing
any setting.
Soft Key 2
Displays recall menu feature and also
used as soft key while setting menu items
in sub-field.
Volume Up/Down Button
Used for volume control and scroll
through menu.
Clear Button
Press to erase displayed letters, numbers
or returns to the previous menu option.
Redial Button
Press to dial the last dialed number or
display its own number.
OHD Button : On Hook Dialing
Dipole Antenna
1
3
2
4 5 6
7
8
9
10
11
12

LGIC CDMA Fixed Wireless Telephone
LSP-2000
9
2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
1) RSSI indicator : Indicates the signal strength in the service area.
2) No service : The phone is not receiving system signal.
3) In use : Call is in progress.
: No service : In use
4) Text message : Displayed when a text message is received.
5) Voice message : Displayed when a voice message is received.
6) Alarm : Displayed when wake up alarm time was setting.
7) Caller ID : Displayed when caller ID is received.
8) OUT : Not used
9) Battery charge level : Indicates battery charge level.

LGIC CDMA Fixed Wireless Telephone
LSP-2000
10

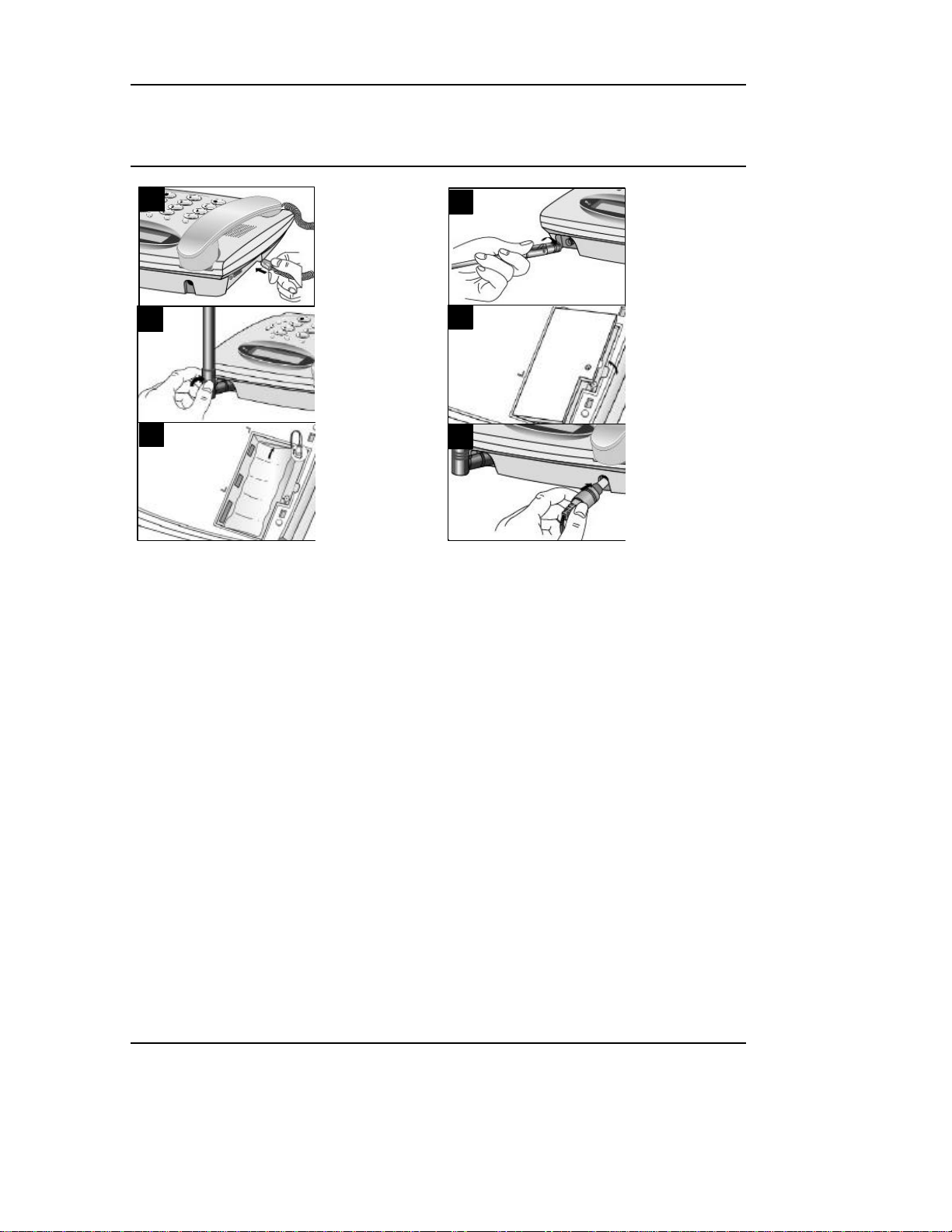

2.3 Installation
You should follow each step carefully as shown below in order to guarantee proper
operation of CDMA Fixed Wireless Telephone.
STEP I. Check Components
lFixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSP-200 Main Unit with Handset -1EA-
2. Dipole Antenna -1EA-
3. Backup Battery -1EA-
4. User Guide .-1EA-
5. AC/DC Power Adapter -1EA-
6. Power Cord(Only SMPS Adapter) -1EA-
lPlease make sure that these components are present before you begin the unit
installation. And then compare the following figures and components. If components
are missing or damage is found, contact the store where you purchased the unit
immediately.
STEP II. Place the Terminal
lPlace the terminal on the stable flat secure surface area (desk, table, etc.). Serious
damage may result if the unit falls. Do not place the unit on, or within 1 meter of
heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to
the sun lights and damp area.
lRead the SAFETY INFORMATION located at the first part of this document before you
place the terminal
STEP III. Connect Components (See the figures in “Installation Steps”.)
lConnect the antenna to the TNC antenna connector located at the top side of the
terminal. If you placed the terminal on the flat surface, bend the antenna up right.
lConnect curl cord of handset assembly to the RJ-11C port located at the left side of the
terminal.
lOpen the battery case, securely connect the battery cord, place the backup battery
pack and close the case.
lConnect the AC/DC Adapter cable to the DC input port located at the topside of the
terminal.
lPlease follow the below to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions, such as metal
walls.
3. Raise the integral antenna of terminal to get maximum strength of receive signal
as shown figure at the next page.

LGIC CDMA Fixed Wireless Telephone
LSP-2000
11
STEP IV. Check the LCD Display
lAfter you follow the installation instruction step I to step III, please check the LCD for
normal operation.
lIf you may not see status of service, please repeat the 5th instruction of step III. And
conform Fixed Wireless Telephone to get the proper signal strength from service
operator system.
Antenna TNC
Connector
AC Power Supply
Connector
Handset Connector

LGIC CDMA Fixed Wireless Telephone
LSP-2000
12
P2.4 Installation Steps
lease follow the below procedure to install the unit properly.
Connect Base-
handset to the
handset connector.
Connect the
antenna to the
TNC connector
(Turn right).
Bend the antenna
up right.
Open the
battery cover
at the bottom
of the unit.
Insert back-up
battery in the
bottom of the unit.
Connect the AC
power supply.
1
11
1
2
2
1
3
3
1
55
1
4
4
1
6
6

LGIC CDMA Fixed Wireless Telephone
LSP-2000
13
1234567
1234567

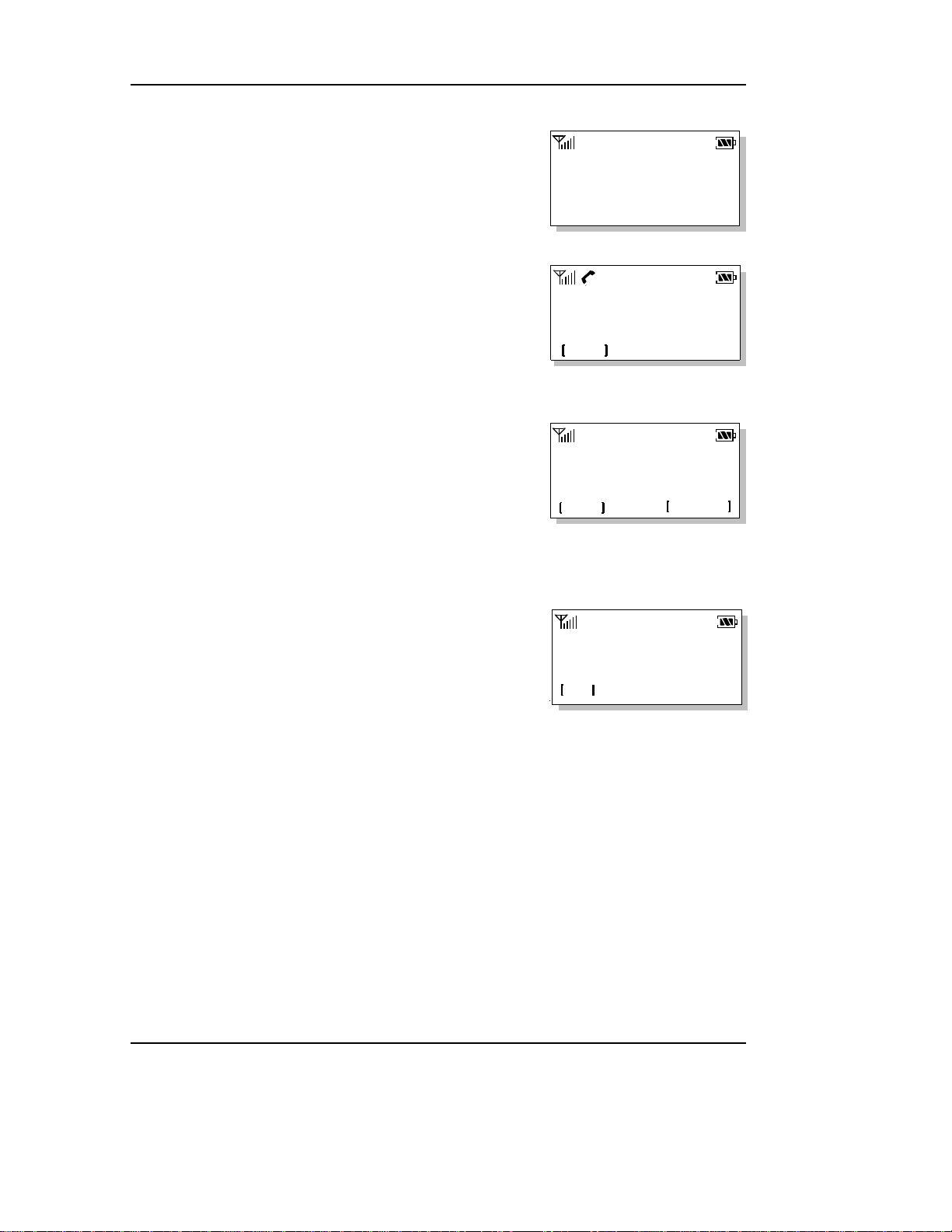

Calling...
3 Basic Operation
3.1 Making a Call
1. Pick up the handset or press button.
2. Listen for dial tone
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, replace the handset or press button.
3.2 Redialing Last Outgoing Number
Pick up the handset or press button.
Listen for dial tone.
Press Redial button. The last number that you called will be re-dialed.
lCorrecting dialing mistakes
1. Press Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
lIf the phone is locked ,enter the Lock Code
lIf the call did not go through, press the hook switch and dial again.
lFlashing / Hook Switch
1.
While in the middle of a call, pressing the hook switch for less than 1 second will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
lBattery icon is displayed only when the terminal is battery operating without AC power.

LGIC CDMA Fixed Wireless Telephone
LSP-2000
14
10:51 AM
Missed 1 call
ok
Incoming Call!
10:23 AM
08 May, Sat
menu recall
3.3 Receiving a Call
1. When bell rings, pick up the handset.
2. Start conversation.
3. To disconnect the call, replace the handset.
3.4 Signal Strength
The quality of calls depends on the signal strength in your
area. The stronger the signal, the better the call quality.
The signal strength icon indicates the current strength as a
number of bars. You can see the antenna and bars
according to the strength of received signal in the upper-
left part.
3.5 Missed Call Message
If a call is received and not answered for user’s absence,
You are informed that you have missed a call. The latest
missed call time and number of missed call is displayed.
Press [ok] to erase “Missed call” message.
Time: 0:23
menu

LGIC CDMA Fixed Wireless Telephone
LSP-2000
15

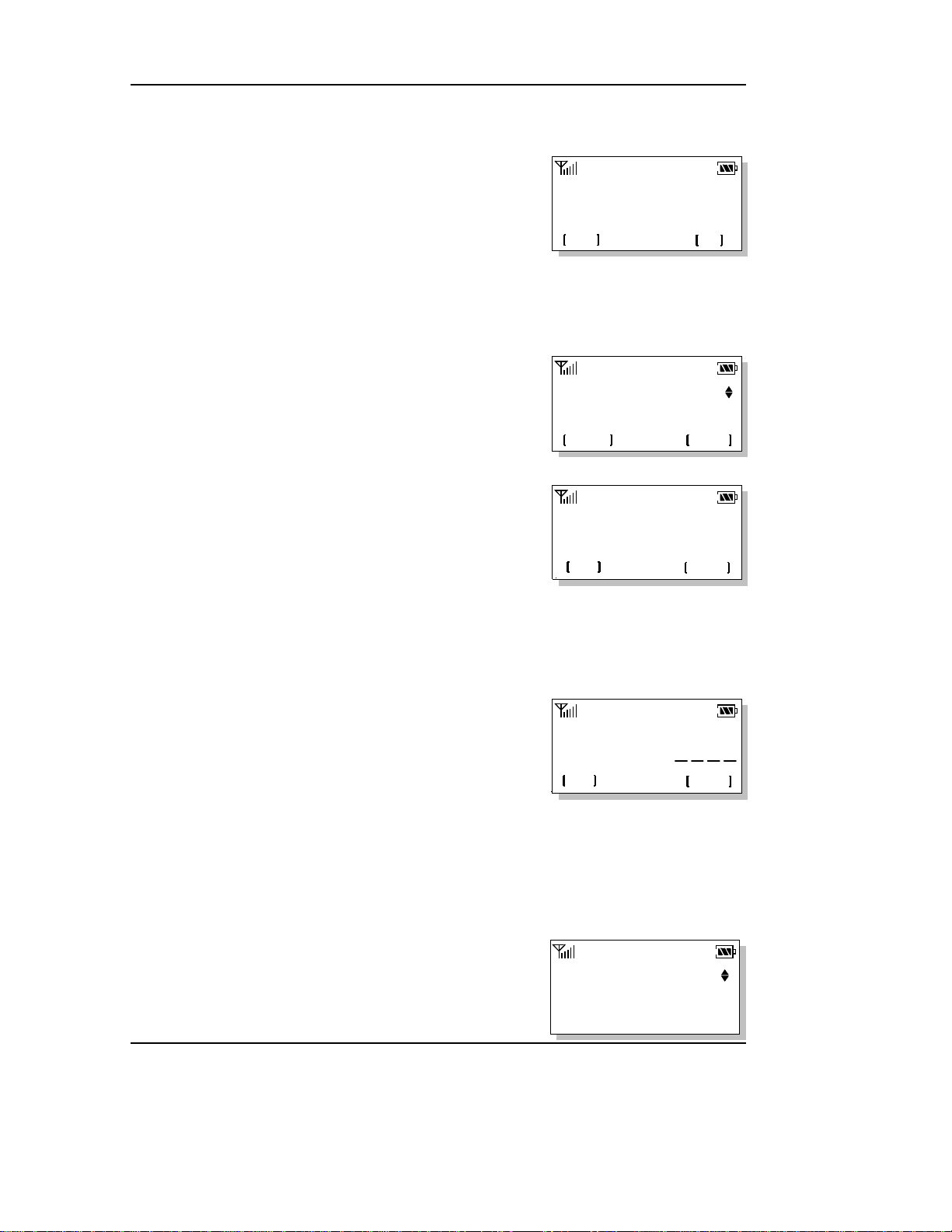

MAIN MENU
2:Select Ring
1:Select Volume
Ring Level
ok next
Ring Level
4. List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 3 steps
2. Key Volume 3 steps +silent
1. Select Volume
3. Ear Volume 3 steps
2. Ring Select -10 types
3. Wake-up Time -12 hour (AM/PM)
1. Lock Mode Set
2. Clear Calls 10 ea.
3. Clear Memory 99ea
4. Emergency Call Local (3 ea.)
4. Security
5. Lock Code 4 digit
1. Hot Line Enable/Disable
2. Hot Line Time 2-9 Sec.
5.Convenient
3. Speed Dial Enable/Disable
1. Key Tone Length
2. Auto Time-out 2-9 Sec.
6. Additional
3. 3 Min. Alert Enable/Disable
4.1 Select Volume
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
lFrom the MENU
1. Press [menu] + 1(Select Volume)+ 1(Ring Volume) in
on-hook state.
2. Press Volume button or [next] to adjust ring volume.
3. Press [ok]
lBy the Volume button
1. Press Volume button to adjust ring volume in on-hook
state

LGIC CDMA Fixed Wireless Telephone
LSP-2000
16

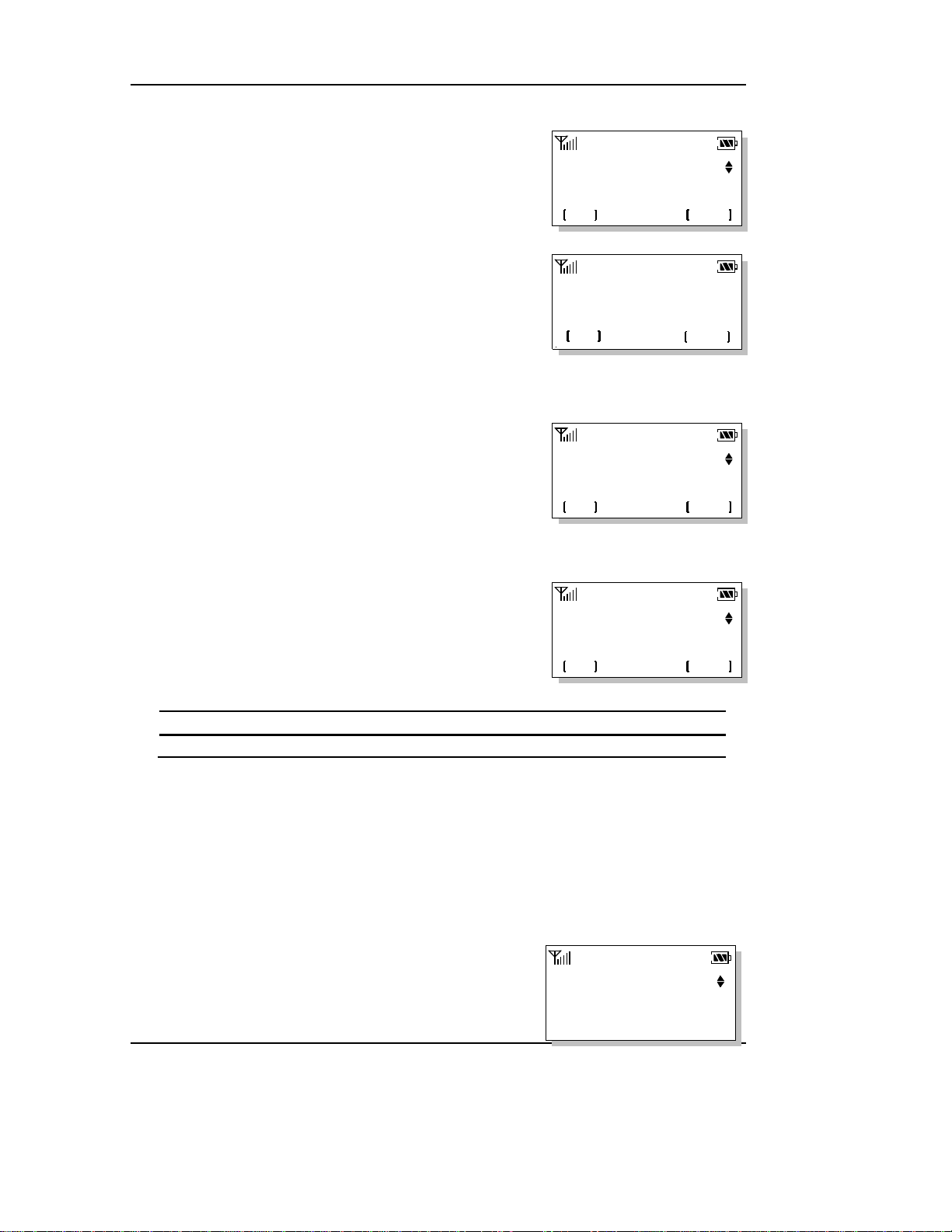

Key Level
nextok
Ear Level
nextok
Select Ring
nextok
General
MAIN MENU
4:Security
3:Wake-up Time
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press [menu] + 1(Select Volume) + 2(Key Volume) in
on-hook state.
2. Press Volume button or [next]to adjust key volume.
3. Press [ok]
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook
state.
1. Press [menu] + 1(Select Volume) + 3(Ear Volume) in
on-hook state.
2. Press Volume button or [next] to adjust ear piece volume
3. Press [ok]
üPress Volume button to adjust volume during conversation
4.2 Ring Type Selection
You can select the various ring types
1. Press [menu] + 2(Select Ring) in on-hook state.
2. Select a desired ring type with Volume button or
[next].
üThere are 10 different ring types.
üThose are General, Chime, Cord, Escalate, Jewel, Pathetique, Bolero,
Edelweiss, Csikos Post, Sweet Home.
3. Press [ok] to save and exit.
4.3 Wake-up Time
This function allows you to adjust Wake-up Time.
1.Press [menu] + 3(Wake-up Time)

LGIC CDMA Fixed Wireless Telephone
LSP-2000
17
Enter
Lock Code!
SECURITY
1:Lock Mode Set
2:Clear Calls
Alarm Time
nextok
Always
Wake-up Time
_1:23 AM
okAM/PM
Auto Lock
nextok
Off
Clear Calls?
noyes
Select Always, once or off by [next] and press [ok].
2.Press [edit] and set the time.
3.Select A.M. or P.M. by [AM/PM].
4.If you want to modify the wrong time, press Clear button
and set again.
5.Press [ok] to save and exit
4.4 Security
4.4.1 Lock Mode Set
This function prevents your phone from being used without permission. Typical default
value is 0000. Possible settings are off, power on and always. The off means that the
phone is not locked. Power on locks the phone when the phone is turned on. Always
sets the phone locked immediately.
Press [menu] + 4(Security)
Enter your own 4 digit lock code
Press 1(Lock Mode Set)
Select off, power on or always by [next] or Volume
button.
Press [ok] to save and exit.
4.4.2 Clear Calls
When a previous outgoing or incoming call history is stored in a memory location, you
can erase the all call history.
1. Do the above 1 and 2 steps of 4.4.1.
2. Press 2(Clear Calls)
3. Press [yes] to erase all call history

LGIC CDMA Fixed Wireless Telephone
LSP-2000
18
CONVENIENT
2:Hot Line Time
1:Hot Line
Emergency 1
next
edit
Empty!
119
ok quit
New Code
ok quit
Clear Memory?
noyes
4.4.3 Clear Memory
When you want to delete phonebook memory, you can erase all phonebook memory.
1. Do the above step1 and 2 of 4.4.1.
2. Press 3(Clear Memory).
3. Press [yes] to erase all phone memory.
4.4.4 Emergency Call
Even if your phone is locked you can make calls to 3 emergency numbers.
1. Do the above step1 and 2 of 4.4.1.
2. Press 4(Emergency Call)
3. Press [next] or Volume button to choose the number
from 1 to 3
4. Press [edit].
5. Enter the emergency phone number
6. Press [ok] to save the number
7. Press [next] to edit others or Press End button to exit emergency call process
4.4.5 Changing Lock Code
You can change a new lock code(4digits).
1. Do the above step1 and 2 of 4.4.1.
2. Press 5.(Lock Code)
3. Enter new lock code and press [ok] to save.
4. Enter new lock code again to confirm and press [ok] to save.
4.5 Convenient Features
While the Hot line function is enabled, the programmed number will be automatically
dialed when you pick up the handset and wait for the programmed hot line time (2~9
sec) without any key press.
4.5.1 Hot Line
1. Press [menu] + 5(Convenient)
2. Press 1(Hot Line)

LGIC CDMA Fixed Wireless Telephone
LSP-2000
19
ADDITIONAL
2:Auto Time-out
1:KeyTone Length
Hot Line
nextok
On
ok quit
119
Hot Line Time
nextok
5 sec
Speed Dial
nextok
Yes
3. Select on or off by [next] or Volume button and press
[ok] to select.
4. Press [edit] to input Hot Line phone number.
5. Enter the Hot Line phone number
6. Press [ok]to save and exit.
4.5.2 Hot Line Time
1. Press [menu] + 5(Convenient)
2. Press 2(Hot Line Time).
3. Select hot line connection time(2~9 sec.) by [next] or
Volume button.
4. Press [ok] to select.
4.5.3 Speed Dial (enable / disable)
1. Press [menu] + 5(Convenient)
2. Press 3(Speed Dial)
3. Select Yes or No by [next] or Volume button and press
[ok] to save and exit.
This function can be used when the Speed Dial is set to Yes.
lSpeed Dial Function
1. You can store phone numbers in memory locations (1~99) and place a call.
2. Press the memory number (1 through 99) corresponding to the appropriate memory
location,and hold for a few seconds.
4.6 Additional feature
4.6.1 Key-tone Length
Setting key beep playback length. Possible settings are Short and Long.
1. Press [menu] + 6(Additional).
2. Press 1(KeyTone Length).
