LG LD-12AS1 User manual

DISHWASHER
OWNER'S MANUAL
Please read this manual
carefully
before
operating your
dishwasher. Retain it for future reference.
MODEL
:
LD-12AS1 /
LD-12AW2

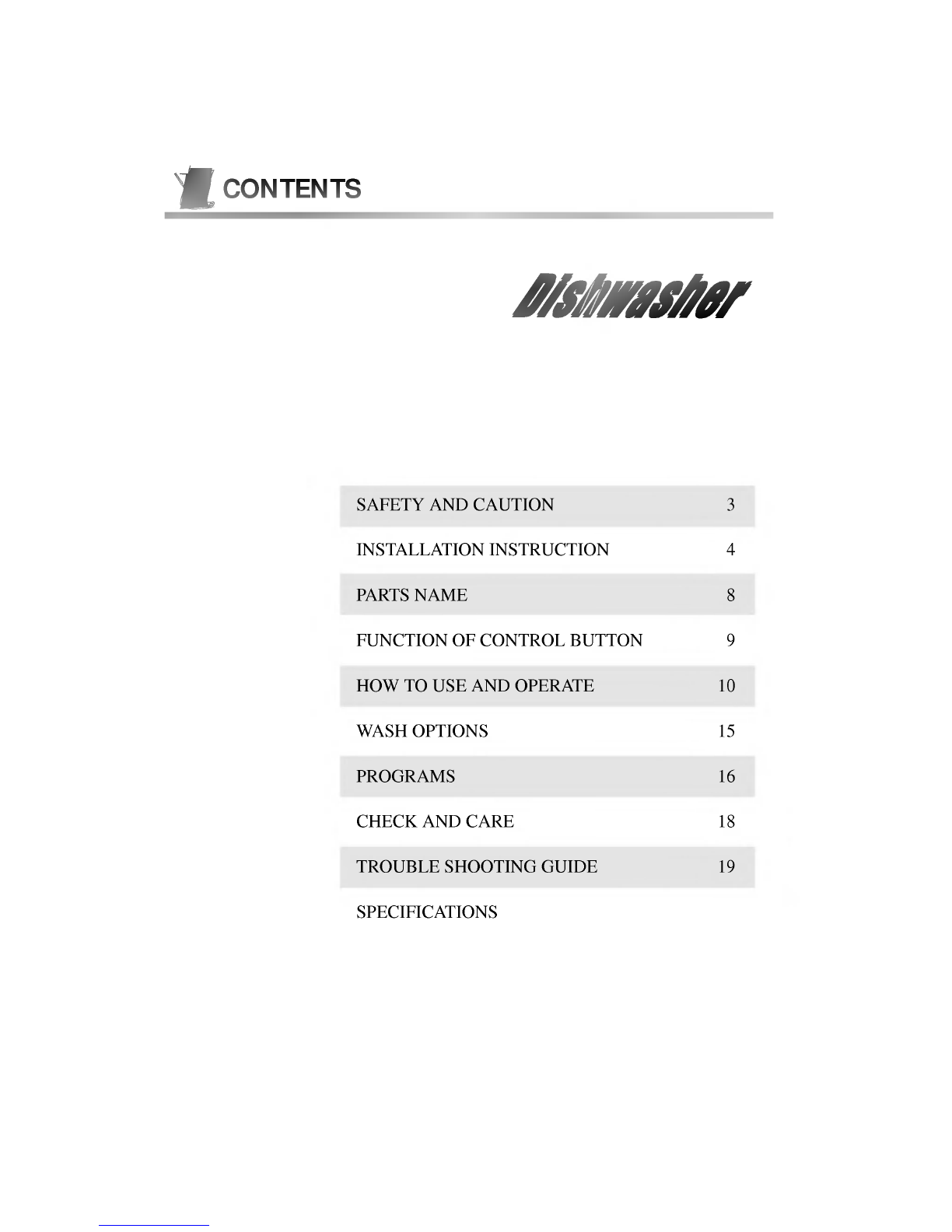

CONTENTS
SAFETY AND CAUTION 3
INSTALLATION INSTRUCTION
4
PARTS NAME 8
FUNCTION OF CONTROLBUTTON 9
HOW TO USE AND OPERATE 10
WASH OPTIONS 15
PROGRAMS 16
CHECK AND CARE 18
TROUBLE SHOOTING GUIDE 19
SPECIFICATIONS

3

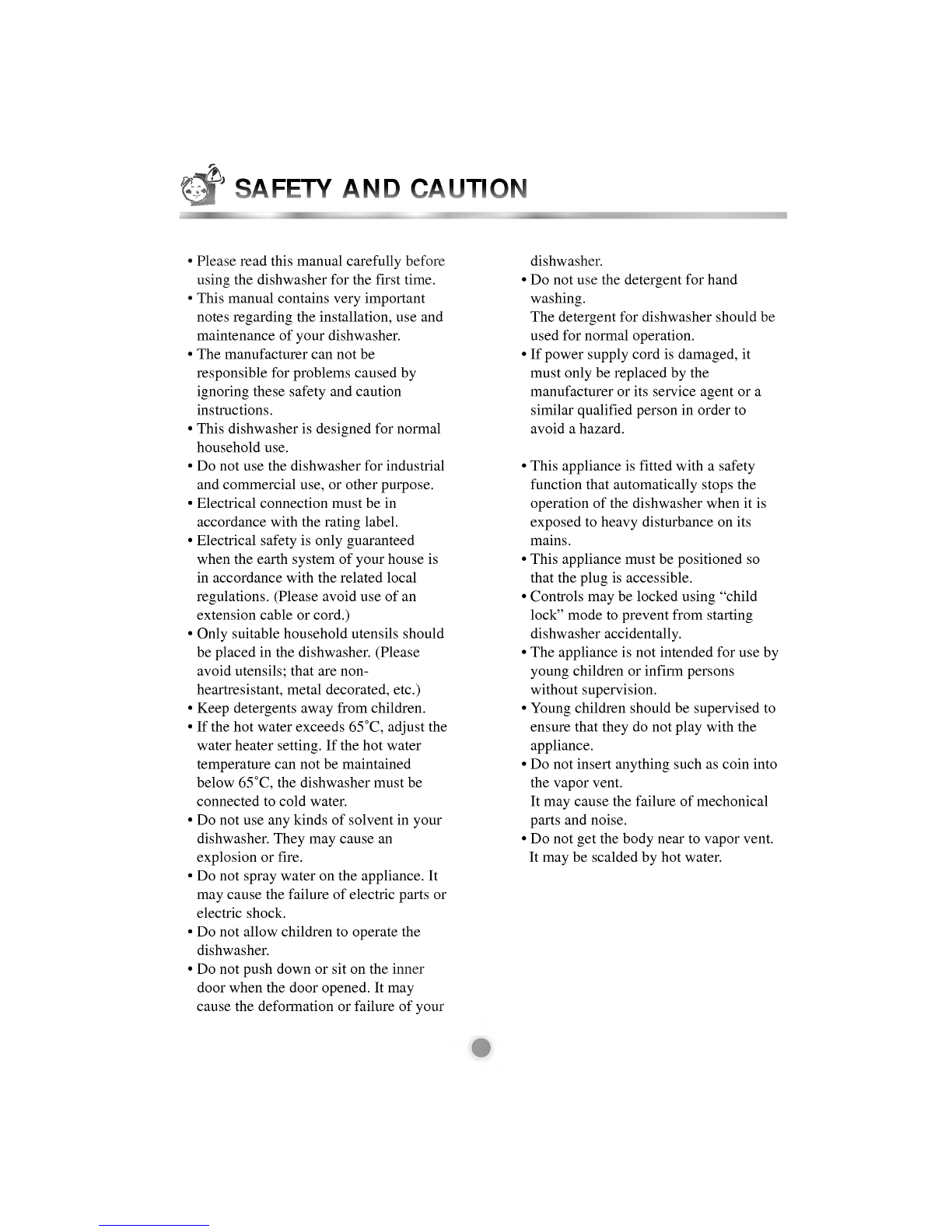

SAFETY
AND
CAUTION
?
Please read this manual
carefully
before
using
the
dishwasher
for the first
time.
?
This manual contains
very important
notes
regarding
the
installation,
use and
maintenance of
your
dishwasher.
?
The manufacturer can not be
responsible
for
problems
caused
by
ignoring
these
safety
and caution
instructions.
?
This
dishwasher
is
designed
for normal
household
use.
?
Do not use the
dishwasher
for industrial
and commercial
use,
or other
purpose.
?
Electrical connection must be in
accordance
with
the
rating
label.
?
Electrical
safety
is
only guaranteed
when
the earth
system
of
your
house is
in accordance
with
the related local
regulations.
(Please
avoid
use of an
extension cable or
cord.)
?
Only
suitable household utensils should
be
placed
in the
dishwasher.
(Please
avoid
utensils;
that are non-
heartresistant,
metal
decorated,
etc.)
?
Keep detergents away
from
children.
?
If the hot
water
exceeds
65˚C,
adjust
the
water
heater
setting.
If the hot
water
temperature
can not be maintained
below
65˚C,
the
dishwasher
must be
connected to cold
water.
?
Do not use
any
kinds of
solvent
in
your
dishwasher.
They may
cause an
explosion
or
fire.
?
Do not
spray
water
on the
appliance.
It
may
cause the failure of electric
parts
or
electric
shock.
?
Do not
allow
children to
operate
the
dishwasher.
?
Do not
push
down
or sit on the inner
door
when
the door
opened.
It
may
cause the deformation or failure of
your
dishwasher.
?
Do not use the
detergent
for hand
washing.
The
detergent
for
dishwasher
should be
used for normal
operation.
?
If
power supply
cord is
damaged,
it
must
only
be
replaced by
the
manufacturer or its
service
agent
or a
similar
qualified person
in order to
avoid
a
hazard.
?
This
appliance
is fitted
with
a
safety
function that
automatically stops
the
operation
of the
dishwasher when
it is
exposed
to
heavy
disturbance on its
mains.
?
This
appliance
must be
positioned
so
that the
plug
is
accessible.
?
Controls
may
be locked
using
"child
lock" mode to
prevent
from
starting
dishwasher
accidentally.
?
The
appliance
is not intended for use
by
young
children or infirm
persons
without
supervision.
?
Young
children should be
supervised
to
ensure that
they
do not
play
with
the
appliance.
?
Do not insert
anything
such as coin into
the
vapor
vent.
It
may
cause the failure of mechonical
parts
and
noise.
?
Do not
get
the
body
near to
vapor
vent.
It
may
be scalded
by
hot
water.

4
Unit:mm
INSTALLATION INSTRUCTION
Step1:
PREPARE
CUPBOARD OPENING
Step2:
PREPARE
ELECTRICAL WIRING
1
2
3
4
This
dishwasher
is
designed
to fit to the
size
shown
as
below.
Select
a location as close to sink as
possible
for
easy
connections to
water
and
drain lines.
The
dishwasher
should not be installed
more than
3
meters from sink for
proper
drainage.
If
dishwasher
is to be installed in a
corner,
a minimum
5cm
of
space
is
required
between
the
washer
and an
adjacent
cabinet or a
wall.
1
2
3
This
appliance
must be
supplied
with
correct
rating voltage
and hertz as
shown
on instruction
manual,
and connected to
an
individual,
properly grounded
branch
circuit,
protected by
minimum
15
amp
circuit breaker or time
delay
fuse.
Wiring
must be 2
wires with
ground.
The
power point
must be in a accessible
location
adjacent
to and not behind the
dishwasher
and
within
1.2 meters of the
dishwasher
side. A
correctly
rated,
wired
and earthed extension cord
may
be used
if
necessary.
(See
Fig.
A)
The
power point
must be
correctly
earthed,
if in
doubt,
have
it checked
by
a
qualified
Electrician.
No
other
appliance
should be connected to the same
plug
outlet
by
a double
adapter
or similar
plug.
820-870
Cut out
for
hoses and
electrical
cables on
either
side.
(appox.
100 x
75)
600-605
600
min
100
75
CAUTION
For
personal
safety,
remove house fuse or
open
circuit breaker before installation. Do not
use an extension cord or
adapter plug
with
this
appliance.
Electrical and
grounding
connections must
comply
with the national
electrical
code/provincial
and
municipal
code
and/or other local codes.
If
bare
chipboard
is
adjacent
to or above the
dishwasher,
it should be sealed with a
waterproofing paint
or sealant to
prevent
swelling
due to steam.

5
INSTALLATION INSTRUCTION

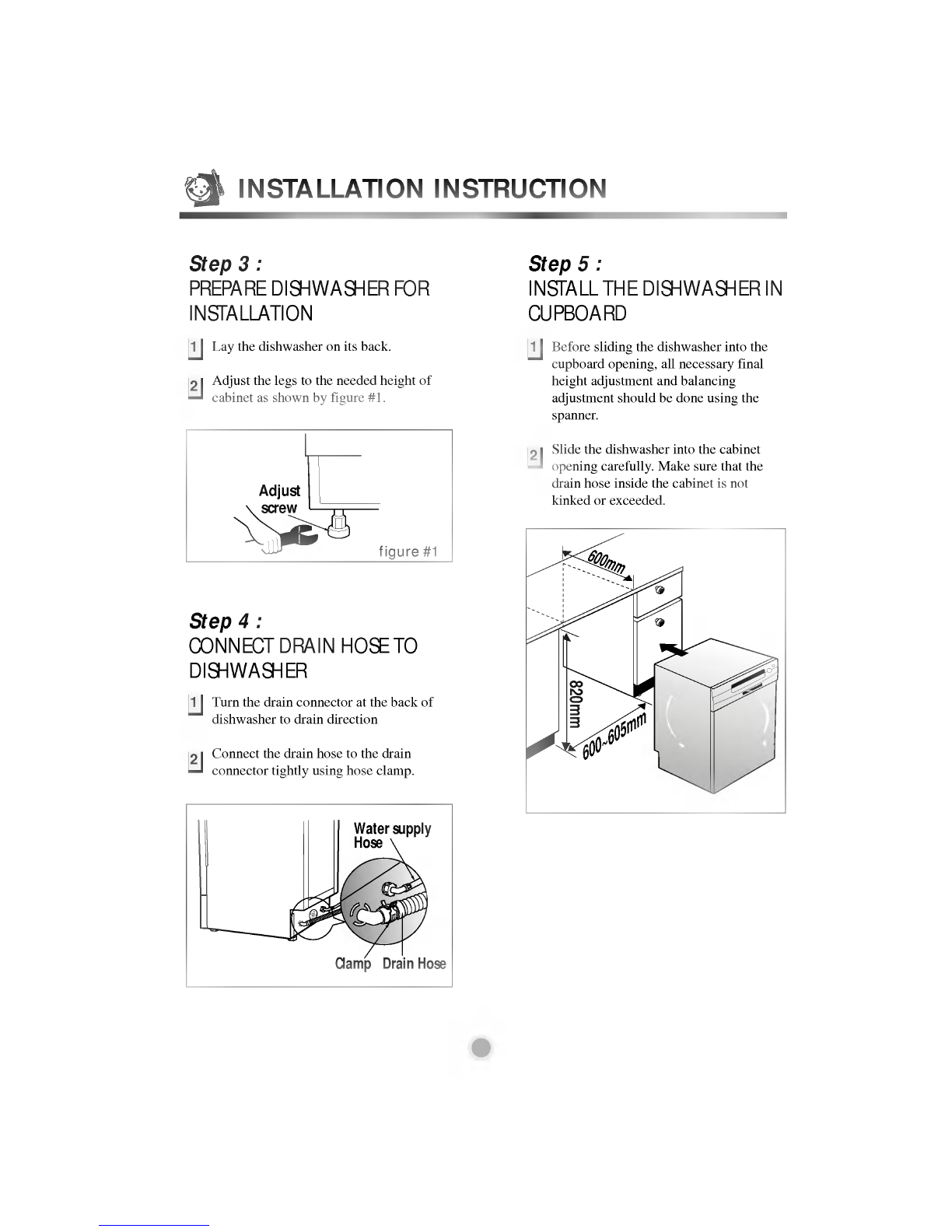

Step3:
PREPARE
DISHWASHER FOR
INSTALLATION
1
2
Lay
the
dishwasher
on its back.
Adjust
the
legs
to the needed
height
of
cabinet as
shown
by figure
#1.
Adjust
screw
Step5:
INSTALL
THE
DISHWASHER
IN
CUPBOARD
1
2
Before
sliding
the
dishwasher
into the
cupboard opening,
all
necessary
final
height adjustment
and
balancing
adjustment
should be done
using
the
spanner.
Slide
the
dishwasher
into the cabinet
opening carefully.
Make sure that the
drain hose inside the cabinet is not
kinked or exceeded.
600mm
820mm
600~605mm
Step4:
CONNECT
DRAIN
HOSETO
DISHWASHER
1
2
Turn the drain connector at the back of
dishwasher
to drain direction
Connect
the drain hose to the drain
connector
tightly using
hose
clamp.
Clamp
Drain Hose
Water
supply
Hose
figure
#1

6
INSTALLATION INSTRUCTION
Step6:
DRAIN LINE
CONNECTION
1
2
If the end of drain hose does not fit to
the drain
line,
use a
piece
ofrubber
connector(not
supplied)
that must be
resistant to heat and
detergent
and
may
be obtained from a
plumbing shop.
There are 2
typical
connections as
shown
in
Figure
A,
B.
The recommended methods of drain hose
connection must be adhered to
within
the
areas of
Water
Board
Authority.
Several
other
options
are
commonly
used outside
this area and local council or
plumbers
should be able to
advise
of these.
The
"S"
trap spigot
must be drilled out
cleanly
and free of obstruction to its
maximum internal
diameter,
if used for
drainage.
To
prevent siphoning,
one of the
following
instruction methods must be
followed:
When
the
drainage
hose is connected to a
sink "s"
trap
or
waste
disposal
unit,
the
hose must be
looped up
to the underside
of the bench
top
and secured.
When
the drain hose is connected to a
separate
stand
pipe,
it is essential that an
air
tight
connection is made.
Refer to
Fig.B
Drain Hose Extension
Extend drain Hose as
shown below.
300 mm Min.
Drain Hose
Water
Hose
Power
Cord
Radius 40mm min
770 mm Min.
1000 mm Max.
770mm Min. / 1000 mm Max. 300 mm Min.
Air
Tight
Connection
Standpipe
40 mm
diametre
min.
Radius
40 mm
Min.
300 mm Min.
770 mm Min. / 1000 mm Max.
Sink
200 mm Max.
Copper pipe
Ø20mm
flared
at
drain hose
and
other
end
if
required
Radius
40 mm
Min.
Drain hose
extension
or 16-20mm inside
Ørubber
hose able
to withstand
90˚C
hot water
Fig.
A
Fig.
B :
Drainage
connection
-
stand
pipe.

7
INSTALLATION INSTRUCTION

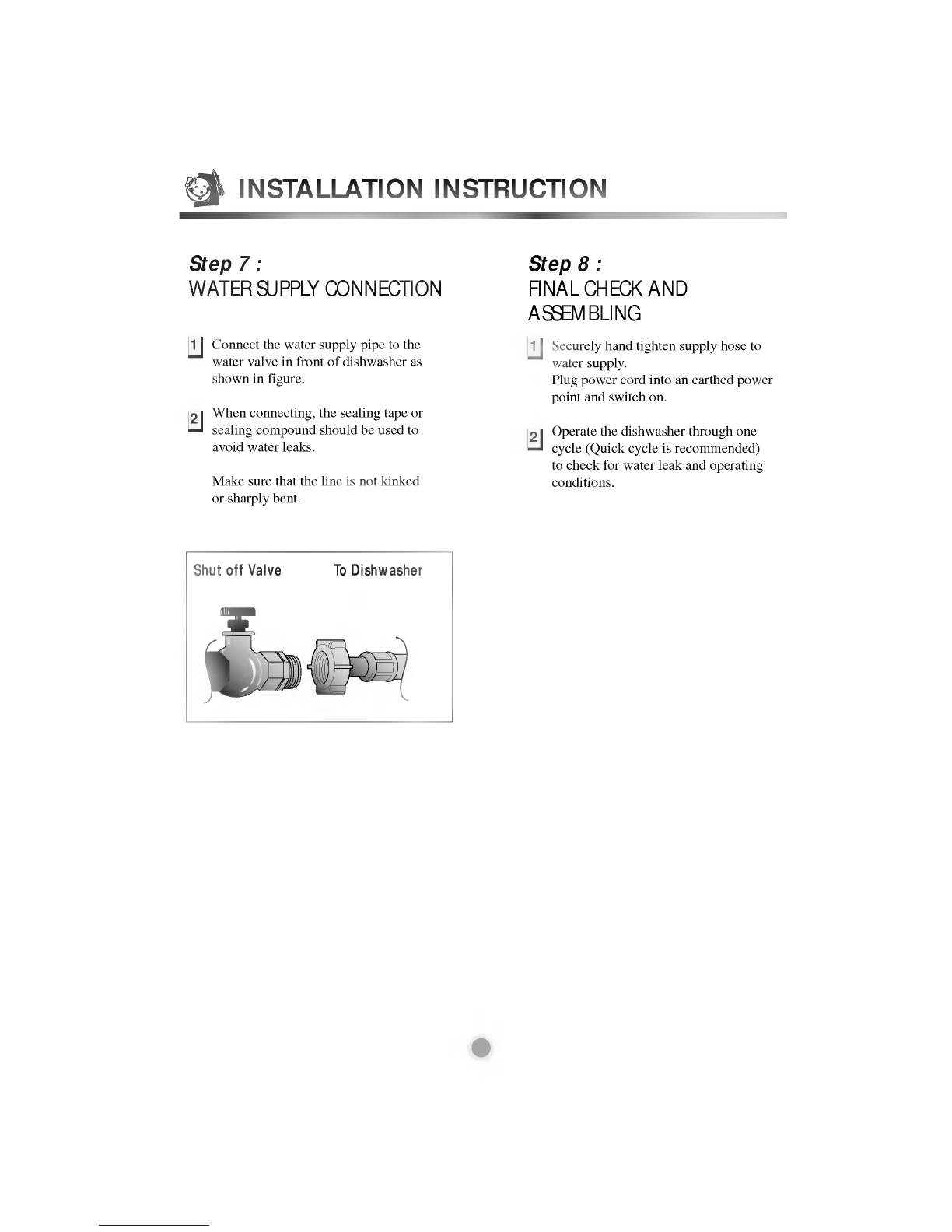

Step7:
WATER
SUPPLY CONNECTION
1
2
Connect
the
water
supply pipe
to the
water valve
in front of
dishwasher
as
shown
in
figure.
When
connecting,
the
sealing tape
or
sealing compound
should be used to
avoid water
leaks.
Make sure that the line is not kinked
or
sharply
bent.
Step8:
FINAL
CHECK
AND
ASSEMBLING
1
2
Securely
hand
tighten supply
hose to
water
supply.
Plug power
cord into an earthed
power
point
and
switch
on.
Operate
the
dishwasher
through
one
cycle
(Quick
cycle
is
recommended)
to check for
water
leak and
operating
conditions.
Shut off Valve To Dishwasher

8
Inlet Hose Drain Hose

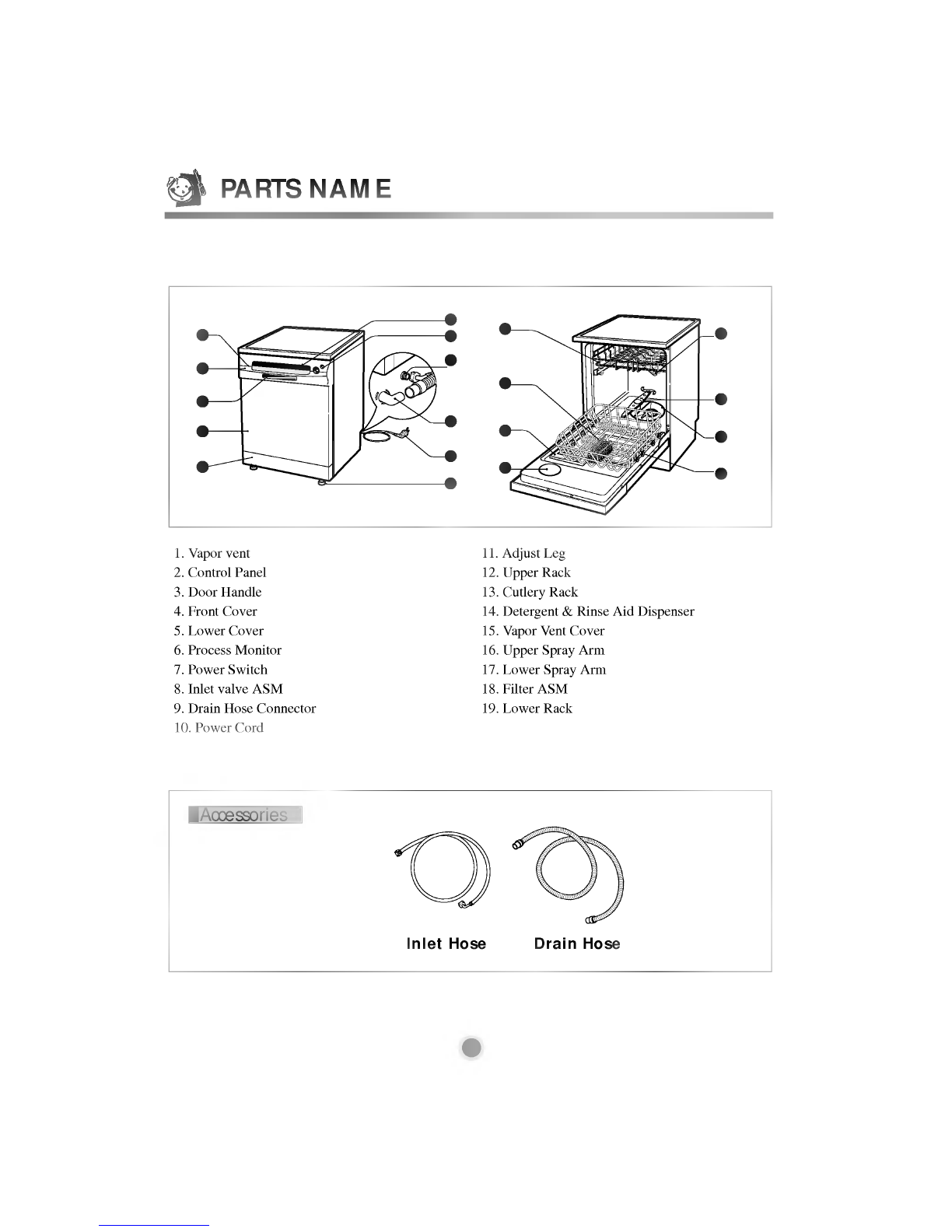

PARTS
NAME
16
12
13
14
15
17
18
19
1
6
7
8
9
10
2
3
5
4
11
1.
Vapor
vent
2.
Control
Panel
3.
Door Handle
4. Front
Cover
5. Lower Cover
6.
Process Monitor
7.
Power Switch
8.
Inlet
valve ASM
9.
Drain Hose
Connector
10. Power Cord
11.
Adjust Leg
12.
Upper
Rack
13.
Cutlery
Rack
14.
Detergent
&
Rinse Aid
Dispenser
15.
Vapor
Vent Cover
16.
Upper Spray
Arm
17.
Lower
Spray
Arm
18.
Filter
ASM
19. Lower
Rack
Accessories

?
If
you
want
to
delay
the
start of selected
program,
press
this button before
pressing
start button.
?
Pressing
the
delay
time
will
increase time
by
1 hour.
?
The
delay
start time can
be
adjusted
from 1 hour to
19
hours.
9
FUNCTION OF CONTROL BUTTON
Auto Power off
Rinse
Delay
Start
Child Lock
?
Special
program
for a
washing
of
special
dishes
like china or
crystal glasses.
?
For
operating, press
this
button first for
power
on.
?
After
operating,
this
button
automatically
switches
off for
safety
and
energy saving.
?
If case of
irregular surge
disturbances to the
machine,
the
power may
be
automatically
turned
off for
safety.
DELAY
START
BUTTON
?
When
power
is
on,
program
is
automatically
set
to normal.
?Ifyouwantto
change
the
program, press
the
button and set the
program you
want
to.
PROGRAM
?
If
you
have
a small
load for
washing,
use this function.
?
Selecting
Half Load
shuts off
flow
to the
lower
spray
arm
and reduces
water
and
energy
consumption
HALF
LOAD
?
With
each
press,
rinse-
plus
is
added.
RINSE-
PLUS
POWER SWITCH
BUTTON
?
Used
to lock or
unlock the control
buttons to
prevent
all
the
setting
from
being
changed by
a child.
?
For
locking/unlocking,
press Delay
Start
and
Turbo Rinse button
simultaneously.
CHILD LOCK
China &
Crystal
?
With
each
press,
Start
and Pause is
repeated during
operation.
?
If the machine
remains in Pause
mode for
10
minutes,
the
power
is
automatically
turned off.
START/PAUSE
BUTTON
?
Indication of
remaining
time
?
Self
diagnosis
and
error
message
display
REMAINING
TIME

10
HOW TO USE
AND
OPERATE

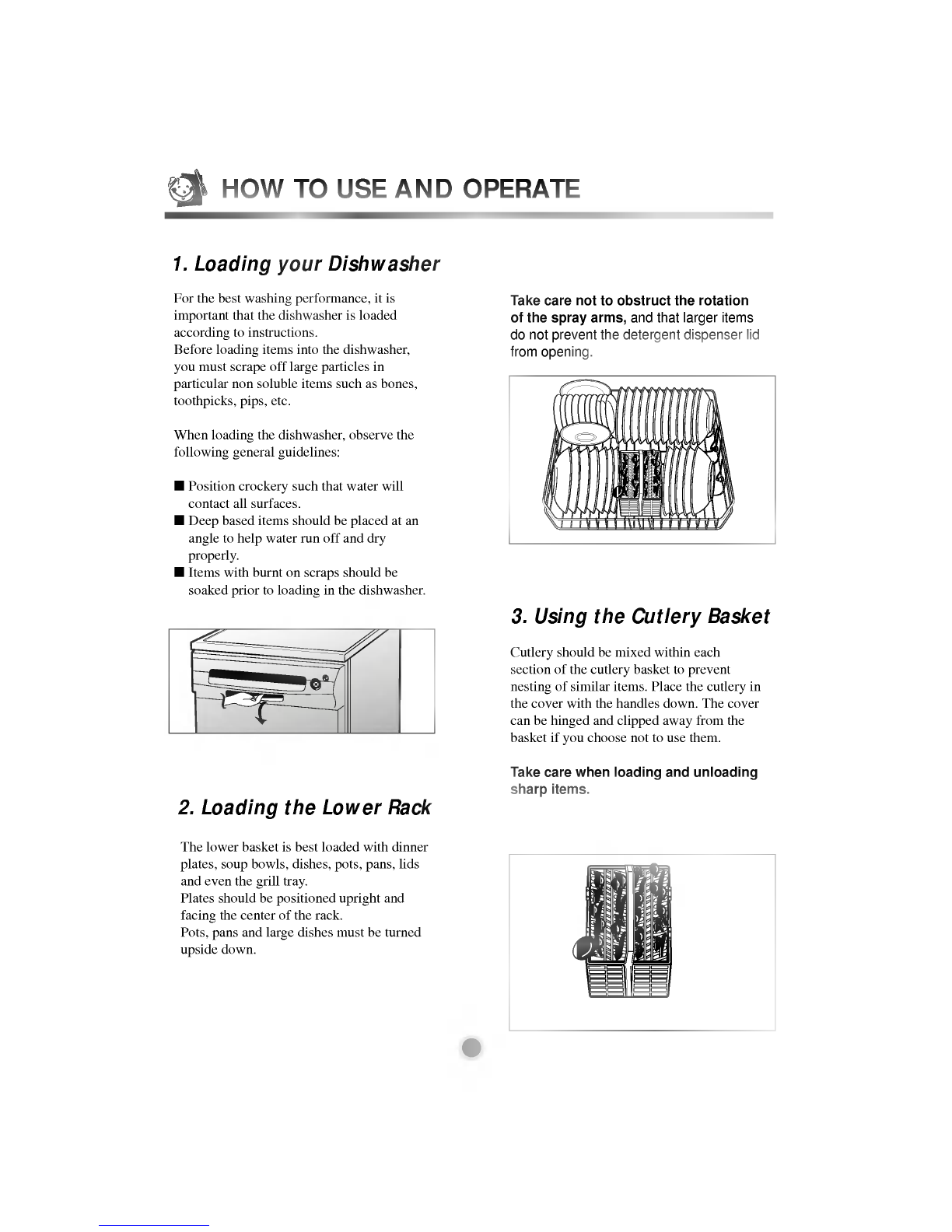

1.
Loading your
Dishwasher
3.
Using
the
Cutlery
Basket
For the best
washing performance,
it is
important
that the
dishwasher
is loaded
according
to instructions.
Before
loading
items into the
dishwasher,
you
must
scrape
off
large particles
in
particular
non soluble items such as
bones,
toothpicks, pips,
etc.
When
loading
the
dishwasher,
observe
the
following general guidelines:
Position
crockery
such that
water will
contact all surfaces.
Deep
based items should be
placed
at an
angle
to
help
water
run off and
dry
properly.
Items
with
burnt on
scraps
should be
soaked
prior
to
loading
in the
dishwasher.
Cutlery
should be mixed
within
each
section of the
cutlery
basket to
prevent
nesting
of similar items. Place the
cutlery
in
the
cover with
the handles
down.
The
cover
can be
hinged
and
clipped away
from the
basket if
you
choose not to use them.
Take care when
loading
and
unloading
sharp
items.
2.
Loading
the Lower Rack
The
lower
basket is best loaded
with
dinner
plates, soup
bowls, dishes,
pots, pans,
lids
and
even
the
grill tray.
Plates should be
positioned upright
and
facing
the center of the rack.
Pots,
pans
and
large
dishes must be turned
upside
down.
Take care not to obstruct the rotation
of the
spray
arms,
and that
larger
items
do not
prevent
the
detergent dispenser
lid
from
opening.

11
HOW TO USE
AND
OPERATE
4.
Loading
the
Upper
Rack
The
upper
rack is best loaded
with
more
delicate
items,
small
plates, long cutlery,
cups, glasses
and
dishwasher
safe
plastic
items. Plates should be
positioned upwards
and
facing
the front of the rack.
Cups, glasses
and
bowls
must be
positioned
upside
down.
Extra
cups
or
cooking
utensils can be laid
on the fold
down
cup
racks
which
may
also
provide support
for
long
stem
glasses.
Take care not to obstruct the rotation of the
spray
arm under the
upper
rack.
5.
Adjusting
the
Upper
Rack
Your
upper
rack can be raised or
lowered
to
cater for different size of
crockery.
Before
adjusting,
ensure rack is
empty
of
all
crockery.
Remove
the rail
pegs
in front
of the rack runners
by pulling
back,
then
slide the rack out. Re insert the rack in the
chosen
position
and
replace
the
pegs.
Fitting
the rack back into the standard
position
reduces the
space
between
the
upper
and
lower
rack.
After
adjusting,
check that the
spray
arm is free to rotate.
Non Dishwasher Safe Items
The combination of
high
water
temperatures
and
dishwasher
detergent may damage particular
items,
therefore
we
do not recommend
using
the
dishwasher
to
wash
the
following:
Copper
or anodized aluminum
Hand
painted
silver
or
gold
leaf
crockery
Wood
or bone handled utensils
Iron or non rust
proof
utensils
Plastic items
which
are not
dishwasher
safe.

12
HOW TO USE
AND
OPERATE
6.
Adding Detergent
Dispenser
?
Detergent
must be
put
into the
detergent
chamber before
starting every program
except
the Rinse
&
Hold.
?
Use
only
the
detergent
intended for
household
dishwashers.
(Ordinary
hand-
washing detergent
should not be
used,
because the foam can interfere
with
proper
operation.)
?
Chambers
hold
15g
and
25g.
?
The amount of
detergent depends
on the
program.
Refer to the
guide
table.
?
After the
detergent
is
supplied,
the
chamber lid should be closed.
?
The
detergent
is
dispensed automatically
during
the
operation.
?
The chamber lid remains
open
after
operation.
Detergent
Information
Use
only
the
detergent
intended for
household
dishwashers.
(Ordinary
hand-
washing detergent
should not be
used,
because the foam can interfere
with
proper
operation.)
The
detergent
used is a
special
Dishwasher
detergent
and like all household chemicals
should be treated as a
poison
and
kept
out
of reach of children. At
completion
of each
wash
program,
the
detergent compartment
should be checked and
any remaining
detergent
removed.
WARNING
Push latch to
open
Place
proper
detergent
into this
compartment
PROGRAM AMOUNT OF DETERGENT
Soak
25g
Heavy 25g
Normal
20g
Eco
15g
Quick
10g
Rinse/Hold No
detergent

13
HOW TO USE
AND
OPERATE

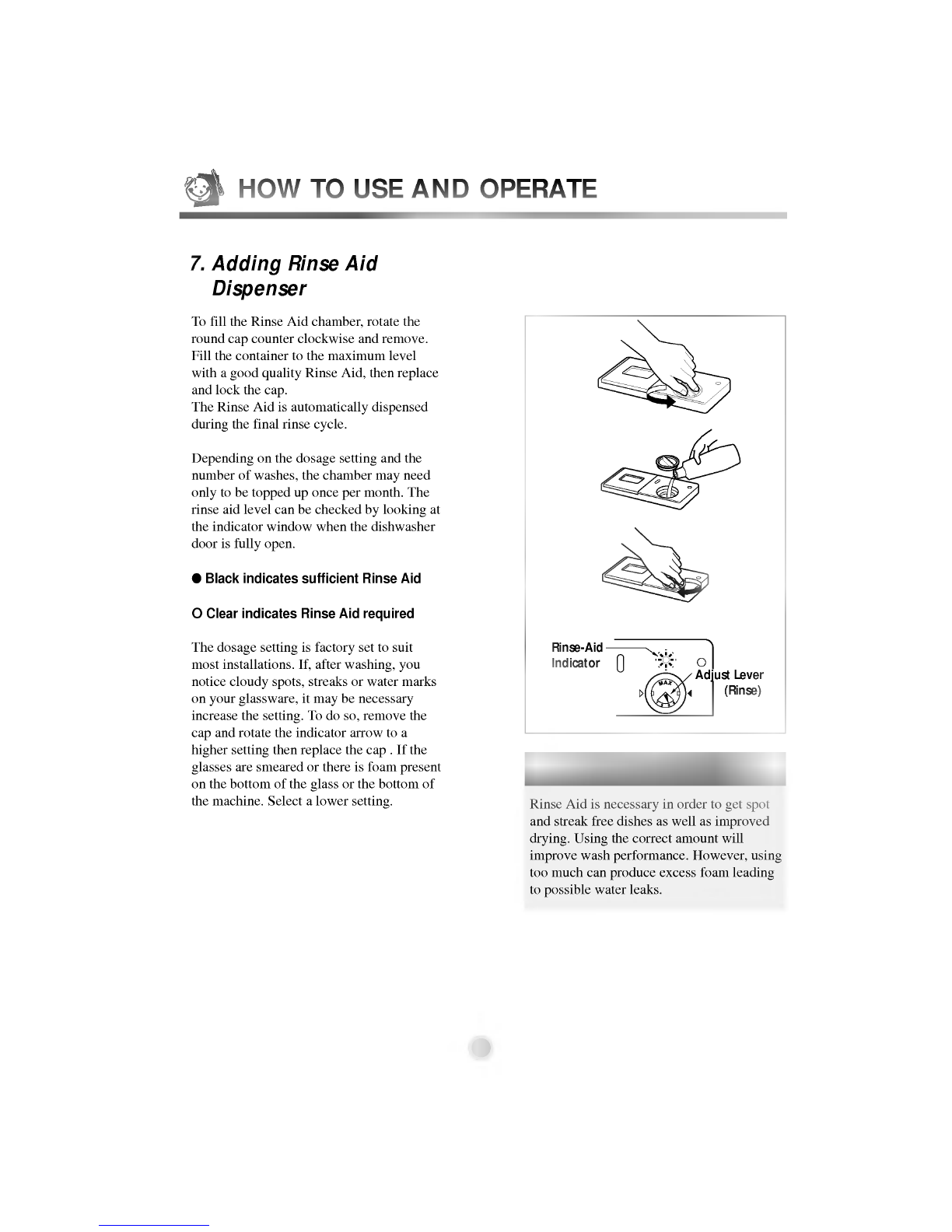

7.
Adding
Rinse Aid
Dispenser
To fill the Rinse Aid
chamber,
rotate the
round
cap
counter
clockwise
and
remove.
Fill the container to the maximum
level
with
a
good quality
Rinse
Aid,
then
replace
and lock the
cap.
The Rinse Aid is
automatically dispensed
during
the final rinse
cycle.
Depending
on the
dosage setting
and the
number of
washes,
the chamber
may
need
only
to be
topped up
once
per
month. The
rinse aid
level
can be checked
by looking
at
the indicator
window when
the
dishwasher
door is
fully open.
Black indicates sufficient Rinse Aid
O Clear indicates Rinse Aid
required
The
dosage setting
is
factory
set to suit
most installations.
If,
after
washing, you
notice
cloudy spots,
streaks or
water
marks
on
your glassware,
it
may
be
necessary
increase the
setting.
To do
so,
remove
the
cap
and rotate the indicator
arrow
to a
higher setting
then
replace
the
cap
. If the
glasses
are smeared or there is foam
present
on the bottom of the
glass
or the bottom of
the machine.
Select
a
lower
setting.
Rinse-Aid
Indicator
Adjust
Lever
(Rinse)
Rinse Aid Information
Rinse Aid is
necessary
in order to
get spot
and streak free dishes as
well
as
improved
drying. Using
the correct amount
will
improve
wash
performance.
However,
using
too much can
produce
excess foam
leading
to
possible
water
leaks.

14
HOW TO USE
AND
OPERATE
8. Fold down dividers.
Fold-down dividers
at the back of the rack can
be
lowered
to
improve stacking
of
pots
and
pans.

15
WASH OPTIONS
Start or Pause Button
After
selecting
a
wash
program, press
the
Start
or Pause button to start the
wash
cycle.
If at
any
time
you
want
to
interrupt
the
washing cycle, press
the
Start
or Pause button.
Your
dishwasher will
then
pause.
Press the
Start
or Pause button
again
to re-start
dishwasher.
Progress
Indicators
Once
you
select a
program,
the
progress
indicators
light(Wash,
Rinse,
Dry).
When
press
the
Start
or Pause button to start the
program,
the current
stage light
will
blink.
Delay
Start
This function enables the
wash
cycle
to start
anywhere
between
1 to
19
hours later.
Select
the
program
that
you
want
by using
the
program
button.
Set
the
delay
time
you
want
by pressing
the
"Delay
Start"
button. The
delay
start time is
increased
by
1 hour for each
pressing.
Press the start button. Then the
program
will
be started
automatically
after the
delayed
time
shown
in the
display
has
expired.
Rinse Plus
Normally
when
you
select
any program,
the
Rinse
process
is done
only
two
(
1 normal
rinse +1
heating
rinse)
or three
(2
normal rinse
+ 1
heating
rinse)
times
according
to selected
program.
But if
you
want
to rinse
more,
you
can use this function. As
you
select
+1,
+2 the
normal rinse
will
be done one or
two
times
more.
Child Lock
To reduce the
possibility
of children
starting
the
dishwasher when
unattended,
the child
lock feature can be selected.
For
locking
or
unlocking, press "Delay
Start"
and "Turbo Rinse" buttons
simultaneously.
Turbo-Rinse
When
you
want
to rinse dishes
with
higher
temperature
for
sanitation,
use this function
at
any program.
If
you
choose this
function,
the
water
temperature goes up
to
77˚C when
rinsing.
Half
Load(LD-12AS1 Model)
If
you
have
small load for
washing,
use this
function.
Selecting
Half Load shuts off
flow
to the
lower
spray
arm and reduces
water
and
energy consumption.
Before select the wash
program, press
the
power
button. Then Normal
program
will
be selected with
remaining
time on
display
window. To
change
the
program,
press
the button of the
program
as
you
want.

16
PROGRAMS
Model
:
LD-12AS1
P
rogram
Rinse
Dry
Wash
Drain
Pre
wash
Main
wash
70C C 70
70C
40C 45C
45C 70C
60C 65C
50C 50C
SOAK Rinse
1
Rinse
2
Rinse3
20(min)
Rinse & Hold
Quick
Soak
Eco
Normal
Heavy
Heavy
Wash
This
program
is for
heavily
soiled loads
including pots, pans
and casserole dishes.
Normal Wash
This
program
is for
normally
soiled
everyday
loads.
Soak Wash
This
program
is for
very heavily
soiled
loads
including pots, pans
and casserole
dishes
which
may
have
dry
food residue.
Quick
Wash
This
program
is for that
quick
wash
of
lightly
soiled
recently
used dishes and
cutlery.
Eco Wash
This
program
is for
light
soiled
everyday
loads.

17
PROGRAMS
Model
: LD-12AW2
P
rogram
Rinse & Hold
Quick
Soak
Eco
Normal
Heavy
China &
Crystal
Drain
70C C 70
70C
40C 45C
40C 45C
45C 70C
60C 65C
50C 50C
SOAK Rinse
1
Rinse
2
Rinse3
20(min)
Rinse
Dry
Wash
Pre
wash
Main
wash
Heavy
Wash
This
program
is for
heavily
soiled loads
including pots, pans
and casserole dishes.
Soak Wash
This
program
is for
very heavily
soiled
loads
including pots, pans
and casserole
dishes
which
may
have
dry
food residue.
Normal Wash
This
program
is for
normally
soiled
everyday
loads.
Eco Wash
This
program
is for
light
soiled
everyday
loads.
Quick
Wash
This
program
is for that
quick
wash
of
lightly
soiled
recently
used dishes and
cutlery.
China &
Crystal
This
program
is for that
wash
of
special
dishes like china or
crystal glasses.

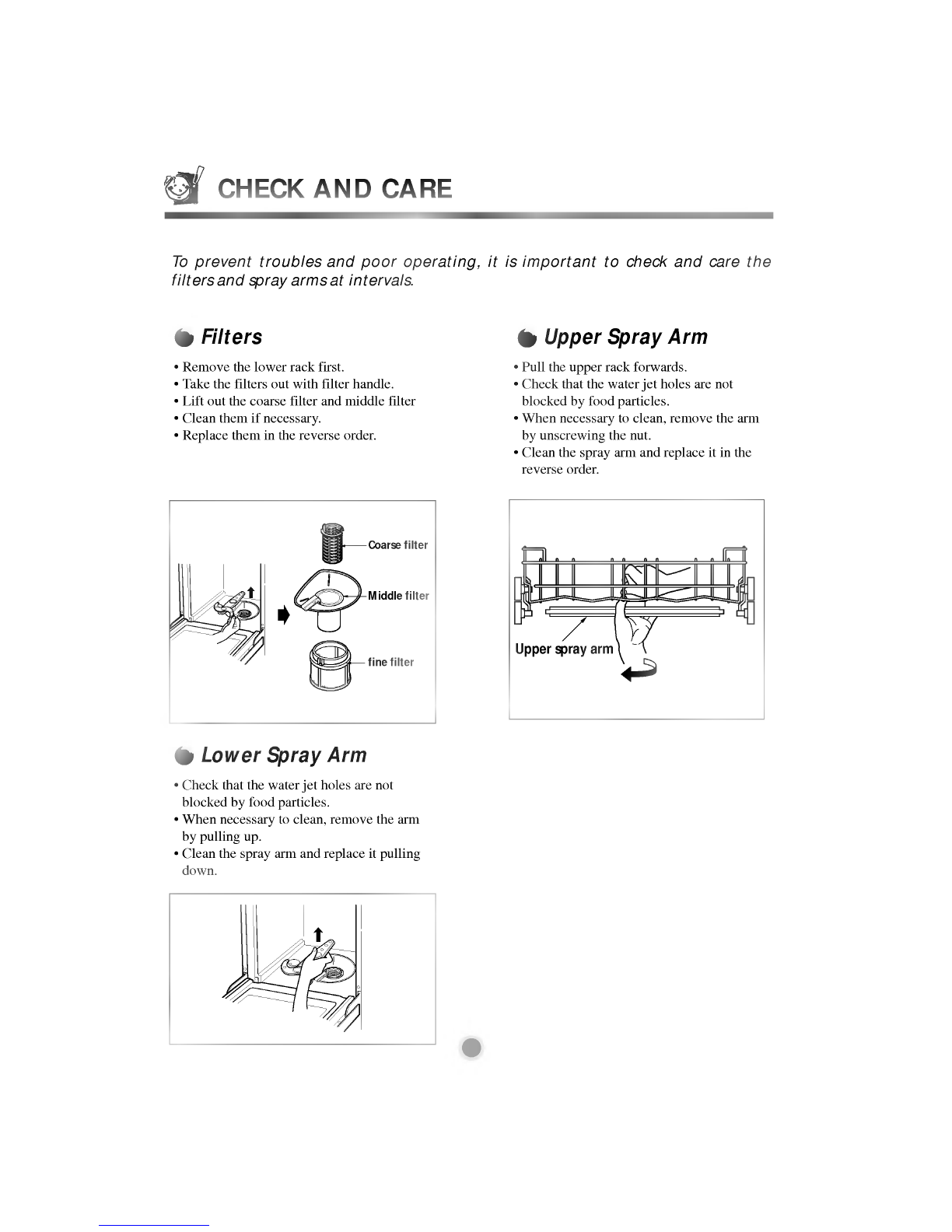

18
CHECK
AND
CARE
To
prevent
troubles and
poor operating,
it is
important
to check and care the
filters and
spray
arms at intervals.
Filters
?
Remove
the
lower
rack first.
?
Take the filters out
with
filter handle.
?
Lift out the coarse filter and middle filter
?
Clean
them if
necessary.
?
Replace
them in the
reverse
order.
Coarse
filter
Middle
filter
fine
filter
Upper Spray
Arm
?
Pull the
upper
rack
forwards.
?
Check
that the
water
jet
holes are not
blocked
by
food
particles.
?
When
necessary
to
clean,
remove
the arm
by unscrewing
the nut.
?
Clean
the
spray
arm and
replace
it in the
reverse
order.
Upper spray
arm
Lower
Spray
Arm
?
Check
that the
water
jet
holes are not
blocked
by
food
particles.
?
When
necessary
to
clean,
remove
the arm
by pulling up.
?
Clean
the
spray
arm and
replace
it
pulling
down.

19
TROUBLE SHOOTING GUIDE
If
a
problem
occurs
in
your
machine,
call for service.
Before
you
call for
service,
check the below instructions to see whether the
problem
can be solved
by yourself
first.
Possible Causes
?
Plug
is not
properly
inserted in the
socket.
?
Fuse
blown
or circuit breaker
tripped.
?
The
electricity
of the house
was
cut
off.
?
Door is not
fully
closed.
?
The start button is not
pressed.
?
The drain hose is
kinked.
?
The filter is
clogged.
(Clean
the
filter)
?The machine is
inclined.
?
Water
is not
supplied.
(Water
tap
is not
opened)
?
The
mounting
of
spray
arms is blocked
by
food
particles.
(Clean
the holes of the
spray
arm)
?
The amount of
detergent
or rinse-aid set
incorrectly.
?
Salt
is exhausted in the salt
container.
?
The salt container
cap
is not
securely
screwed on.
?
Too much Rinse-aid
dispensed.
?
Too little Rinse-aid
dispensed.
?
Incorrect amount of
detergent.
?
Utensils
incorrectly arranged
or
overloaded.
?
Filters are
clogged.
?
Water
jet
holes of
spray
arms
blocked.
?
Spray
arms' rotation obstructed
by
utensils.
?
Unsuitable
program
selected.
Problem
The
lamps
do not come
on
when
the
power
switch on.
The machine does not
start.
Water
is not
pumped away.
(The
display
show
" "
code)
The
display
shows
" "
code
The
display
shows
" "
code
The
spray
arms does not rotate
smoothly
White
deposits
are left on the
dish
washer
after
washing.
Streaks
are left on
glassware
Dry
results are not
satisfactory.
Washing
results are not
satisfactory.

P/No.: 3828ED7001A
Capacity
Dimension
Weight
Power
Supply
Power
Consumption
Water
Consumption
Water
Feed Pressure
12 Place
settings
600x600x850mm(WxDxH)
52
kg
See
rating
label
See
rating
label
See
rating
label
30~800kPa
850mm
600mm
600mm
