LG LDF6920WW User manual

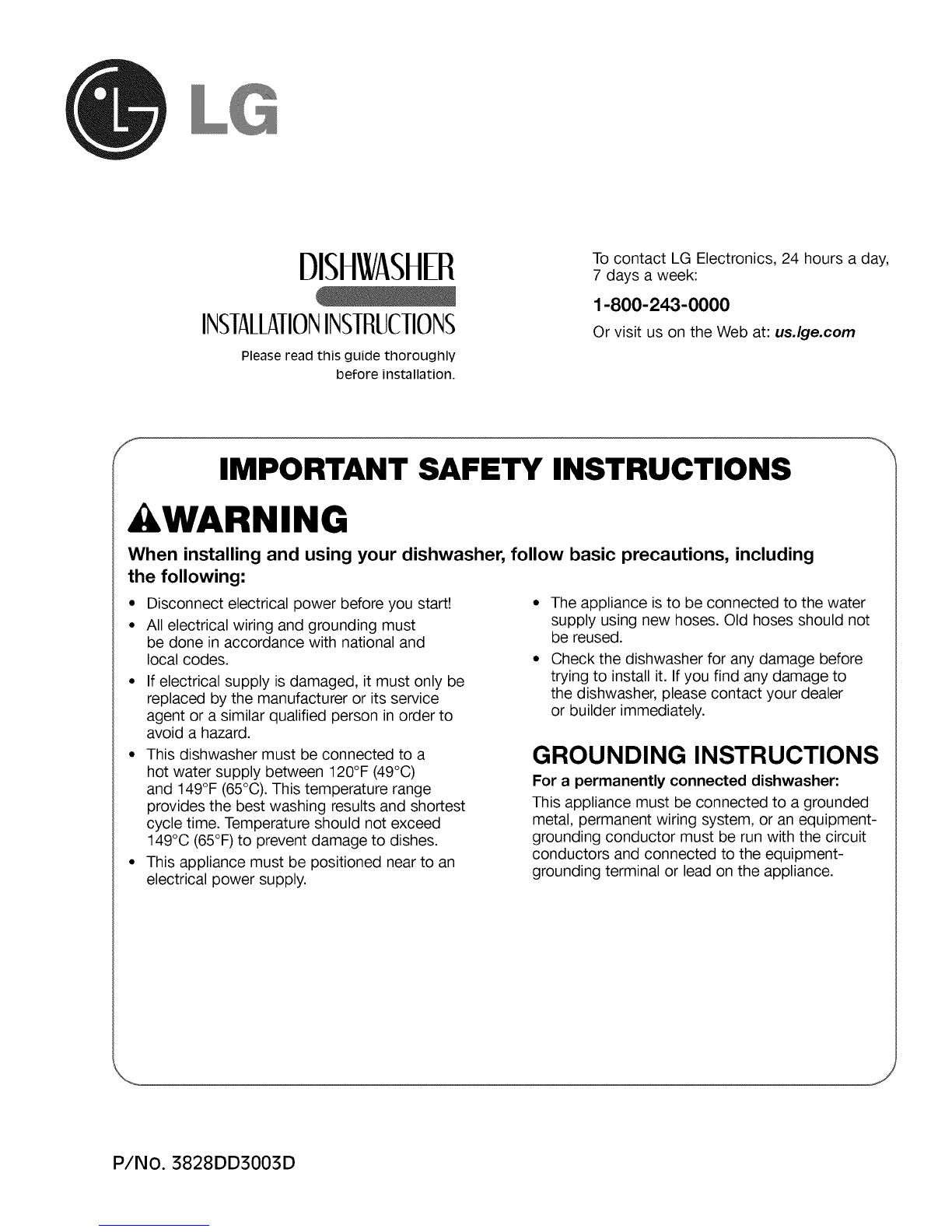

DISHWASHER
INSTAllATIONINSTRUCTIONS
Please read this guide thoroughly
before installation.
To contact LG Electronics, 24 hours a day,
7 days a week:
1-800-243-0000
Or visit us on the Web at: us.lge.com

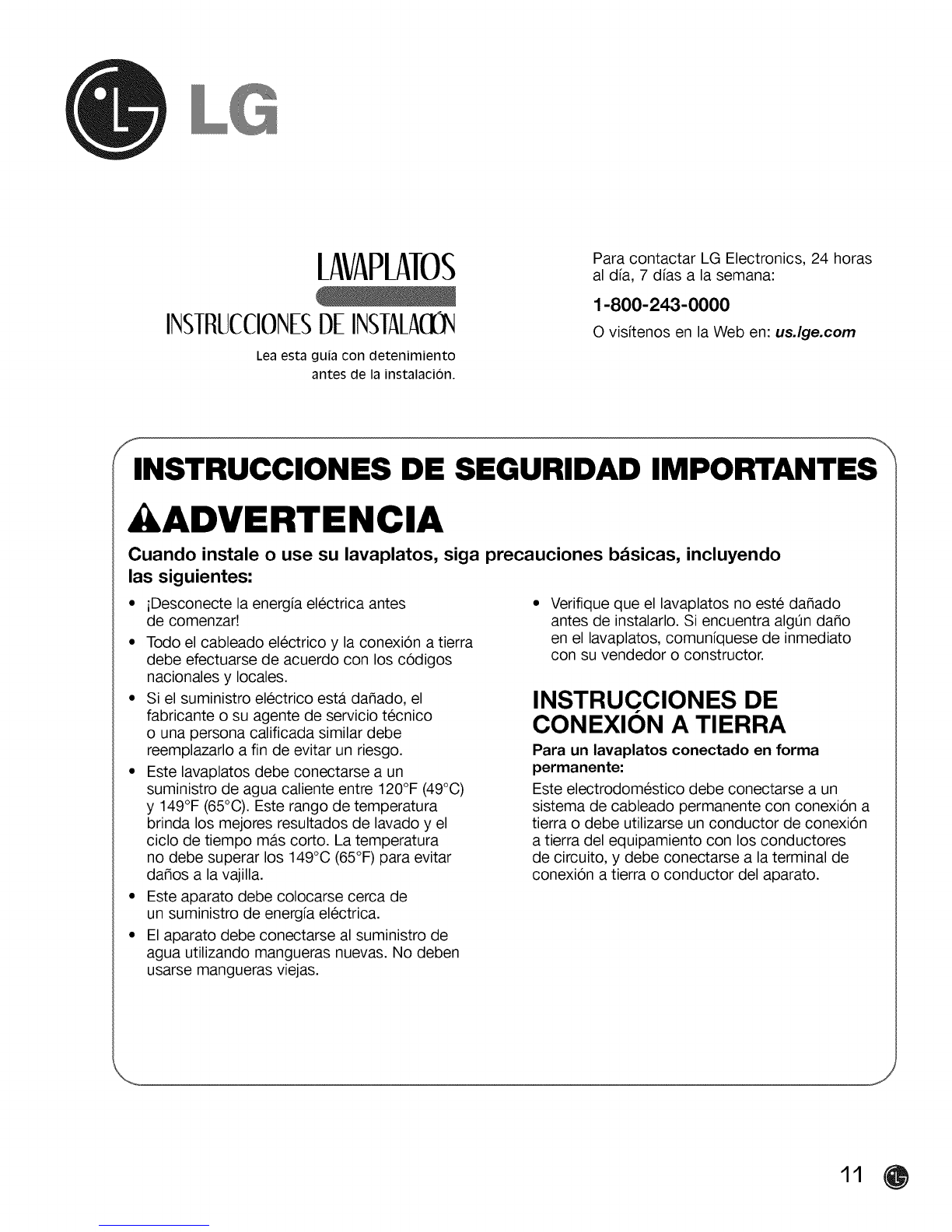

IMPORTANT SAFETY INSTRUCTIONS
&WARNING
When installing and using your dishwasher, follow basic precautions, including
the following:
•Disconnect electrical power before you start[
• All electrical wiring and grounding must
be done in accordance with national and
local codes.
• If electrical supply is damaged, it must only be
replaced by the manufacturer or its service
agent or a similar qualified person in order to
avoid a hazard.
• This dishwasher must be connected to a
hot water supply between 120°F (49°C)
and 149°F (65°C). This temperature range
provides the best washing results and shortest
cycle time. Temperature should not exceed
149°C (65°F) to prevent damage to dishes.
• This appliance must be positioned near to an
electrical power supply.
• The appliance is to be connected to the water
supply using new hoses. Old hoses should not
be reused.
• Check the dishwasher for any damage before
trying to install it. If you find any damage to
the dishwasher, please contact your dealer
or builder immediately.
GROUNDING INSTRUCTIONS
For a permanently connected dishwasher:
This appliance must be connected to a grounded
metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
P/NO. 3828DD3003D

INSTAllATION INSTRUCTIONS

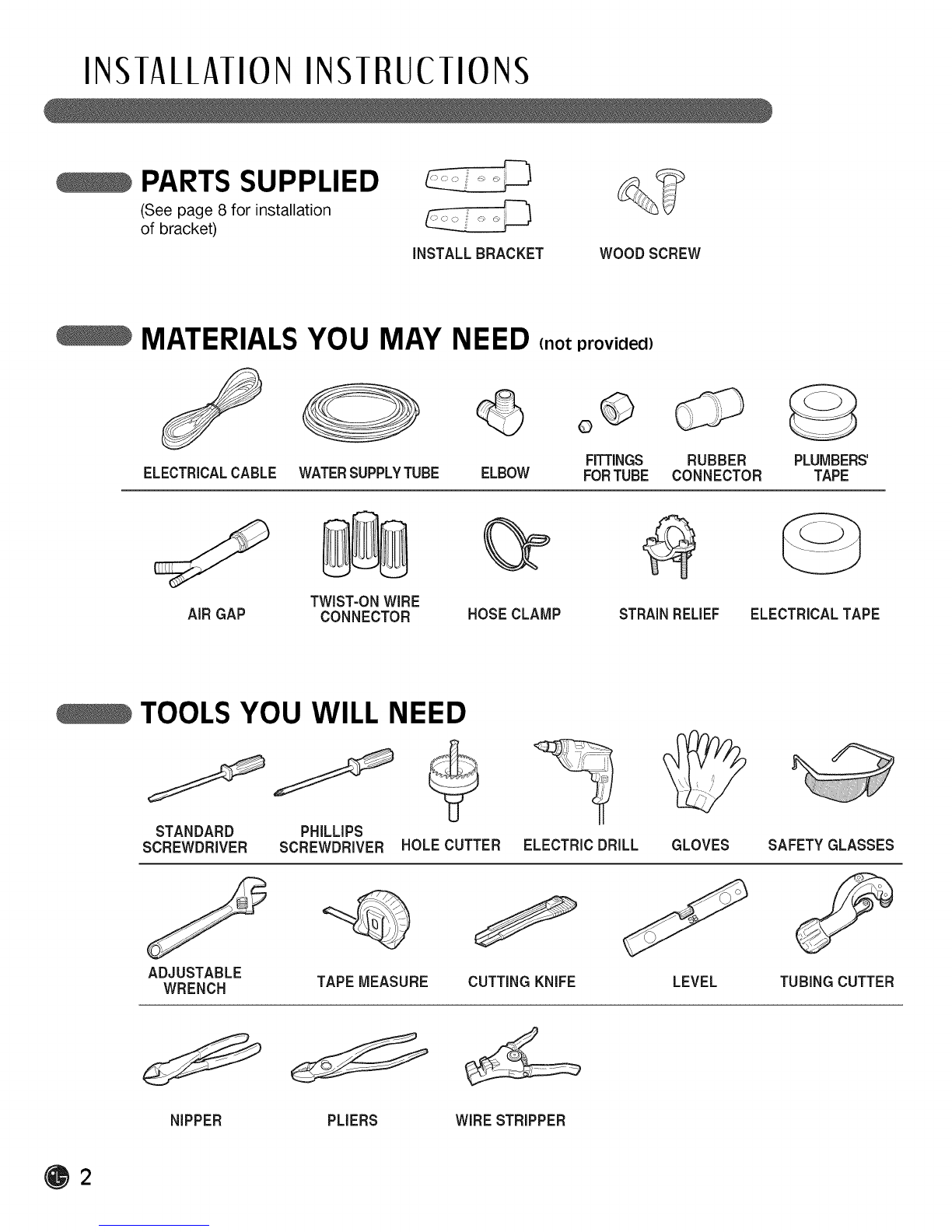

PARTS SUPPLIED
(See page 8 for installation
of bracket) INSTALL BRACKET WOOD SCREW
MATERIALS YOU MAY NEED (.otprovided)
ELECTRICALCABLE WATERSUPPLYTUBE ELBOW
o©
FITTINGS
FORTUBE RUBBER CONNECTOR PLUMBERS' TAPE
TWIST-ON WIRE
AIR GAP CONNECTOR HOSE CLAMP STRAIN RELIEF ELECTRICAL TAPE
TOOLS YOU WILL NEED
STANDARD PHILLIPS
SCREWDRIVER SCREWDRIVER HOLE CUTTER ELECTRIC DRILL
ADJUSTABLE
WRENCH TAPE MEASURE CUTTING KNIFE
GLOVES
LEVEL
SAFETY GLASSES
TUBING CUTTER
NIPPER PLIERS WIRE STRIPPER

INSTAllATION INSTRUCTIONS

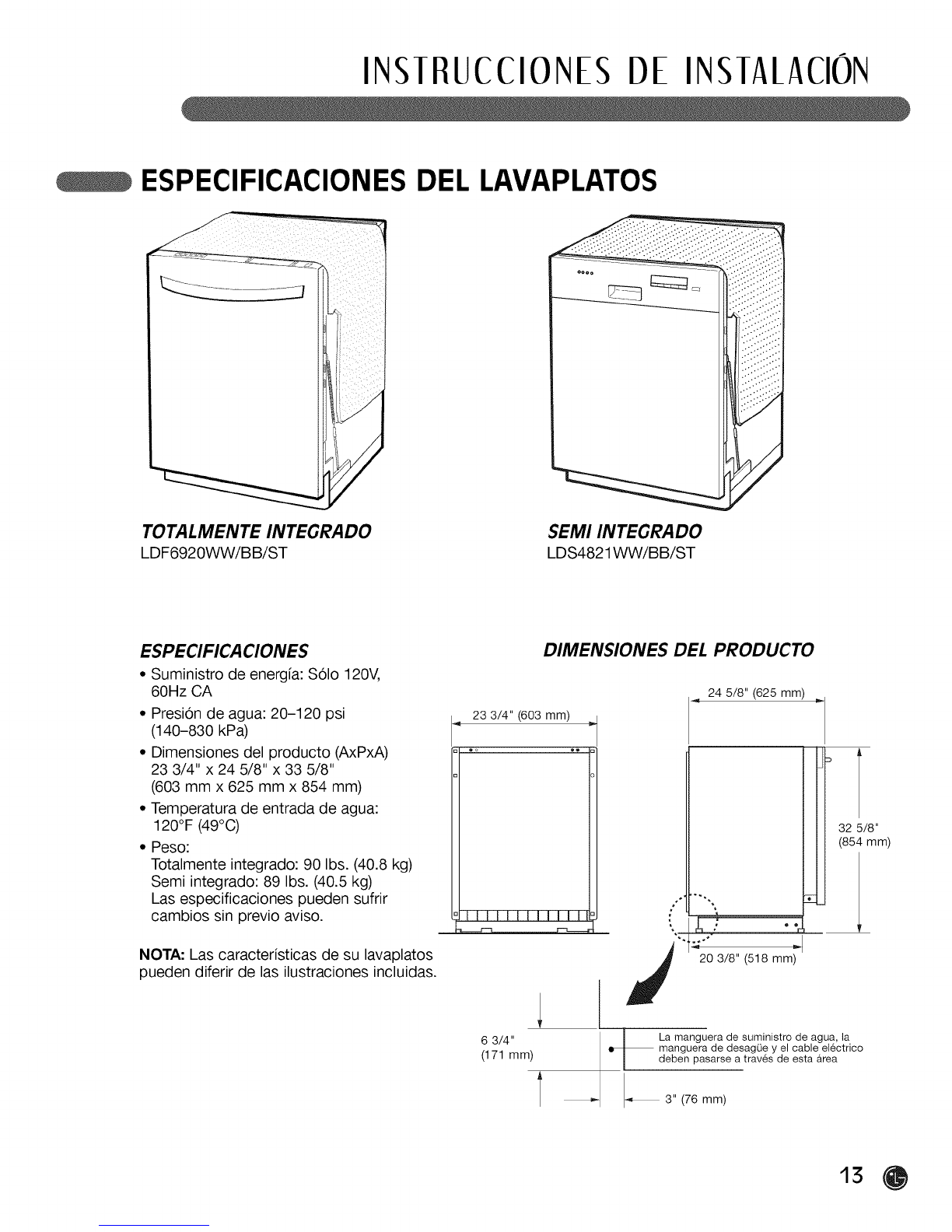

DISHWASHER SPECIFICATIONS
FULL Y INTEGRA TED
LDF6920WW/BB/ST SEMI-INTEGRATED LDS4821 WW/BB/ST
SPECIFICATIONS
•Power supply: 120V, 60Hz AC only
• Water Pressure: 20-120 psi
(140-830 kPa)
• Product Dimension (WxDxH):
23 3/4" x 24 5/8" x 33 5/8"
(603 mm x 625 mm x 854 mm)
• Inlet Water Temperature: 120°F (49°C)
• Weight:
Fully Integrated: 90 Ibs. (40.8 kg)
Semi-Integrated: 89 Ibs. (40.5 kg)
Specifications are subject to change
without notice.
NOTE: The features on your dishwasher
may vary from the illustrations shown.
PRODUCT DIMENSIONS
23 3/4" (603 mm)
24 5/8" (625 mm)
%
® •
20 3/8" (518 mm)
32 5/8"
(854 mm)
6 3/4"
(171 mm) Water supply hose, drain hose
• and electric cable should be
passed through this area
_3" (76 mm)

INSTAllATION INSTRUCTIONS
These installation instructions are intended for use by Qualified Installers.

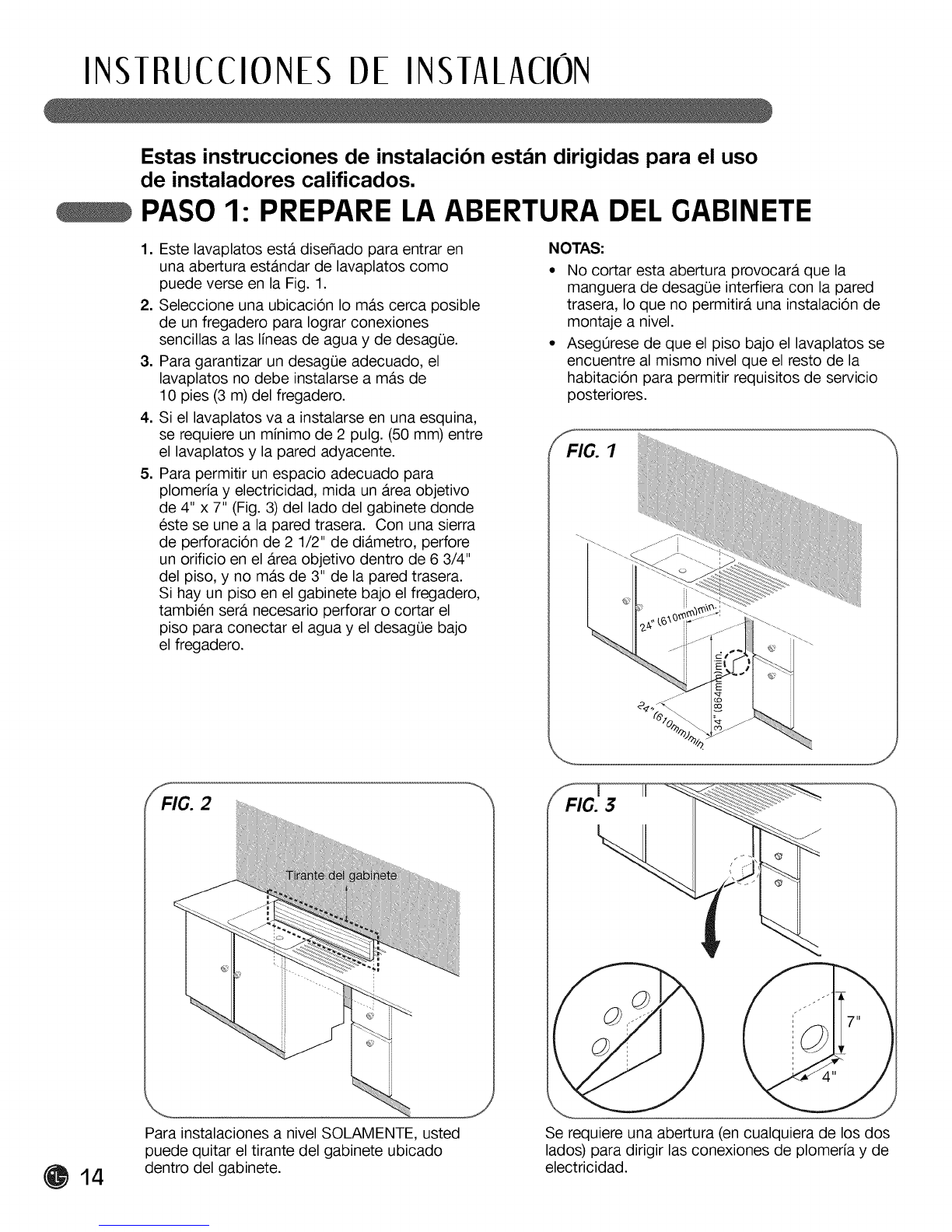

STEP 1: PREPARE CABINET OPENING
1. This dishwasher is designed to fit a standard
dishwasher opening as shown in Fig. 1.
2. Select a location as close to sink as possible for
easy connections to water and drain lines.
3. To ensure proper drainage, the dishwasher
should not be installed more than 10 ft. (3 m)
from the sink.
,
,
If dishwasher is to be installed in a corner, a
minimum of 2 in. (50 mm) is required between
the dishwasher and an adjacent wall.
To allow for proper clearance of plumbing and
electrical, measure a 4" x 7" target area
(Fig. 3) on the side of the cabinet where the
cabinet meets the back wall. Using a 21/2"
diameter hole saw, drill a hole in the target area
within 63/4"of the floor, and no more than 3"
from the back wall. If there is a floor in the
cabinet under the sink, it will also be necessary
to drill or cut through the floor to connect the
water and drain under the sink.
NOTES:
• Failure to cut this opening will result in the drain
hose interfering with the rear wall, preventing
flush mount installation.
• Ensure that the floor under the dishwasher is at
the same level as the rest of the room to allow
for any service requirements.
FIG. 3i
,Z
_J
For flush installations ONLY, you may remove the
cabinet brace inside the cabinet. An opening (on either side) is required to route
plumbing and electrical connections.

INSTAllATION INSTRUCTIONS
These installation instructions are intended for use by Qualified Installers.
WARNING
For personal safety, remove house fuse or open circuit breaker before installation.
Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding
connections must comply with the National Electrical Code/provincial and municipal code and/or other
local codes.
STEP 2: PREPARE THE ELECTRICAL WIRING
1. This appliance must be operated with correct
voltage as shown in this manual and on the
rating plate, and connected to a dedicated
properly grounded branch circuit, protected
by a time-delay fuse. Wiring must be 3 wires
including ground.
2. The wiring or cord should be in an accessible
location adjacent to and not behind the
dishwasher and within 4 ft. (1.2 m) of the
dishwasher side.
3. The wiring or cord must be grounded properly.
If in doubt, have it checked by a qualified
electrician. Do NOT connect any other
appliance to the same outlet.
4. The wiring or cord must be routed as shown in
Fig. 4 below.
5. Make sure electrical cable is oriented in the
bottom channels as shown in the figure below.
If you find any damage to the dishwasher,
please contact your dealer or builder
immediately.
NOTE: If you find any damage to the dishwasher, Please contact your dealer or builder immediately.
/
Electrical Cable
\
4 1/2" - 6"
(115 mm - 152 mm)
J

INSTAllATION INSTRUCTIONS
These installation instructions are intended for use by Qualified Installers.

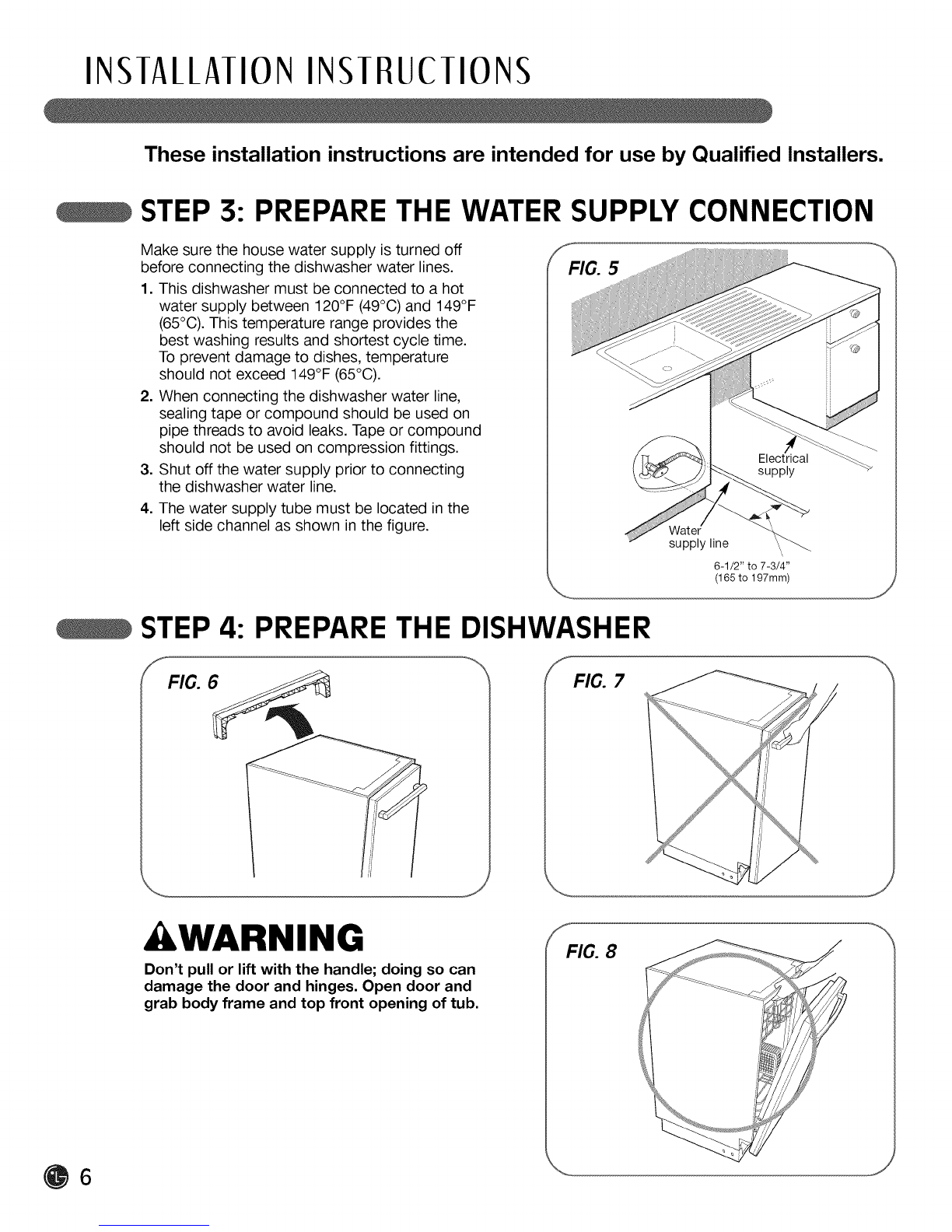

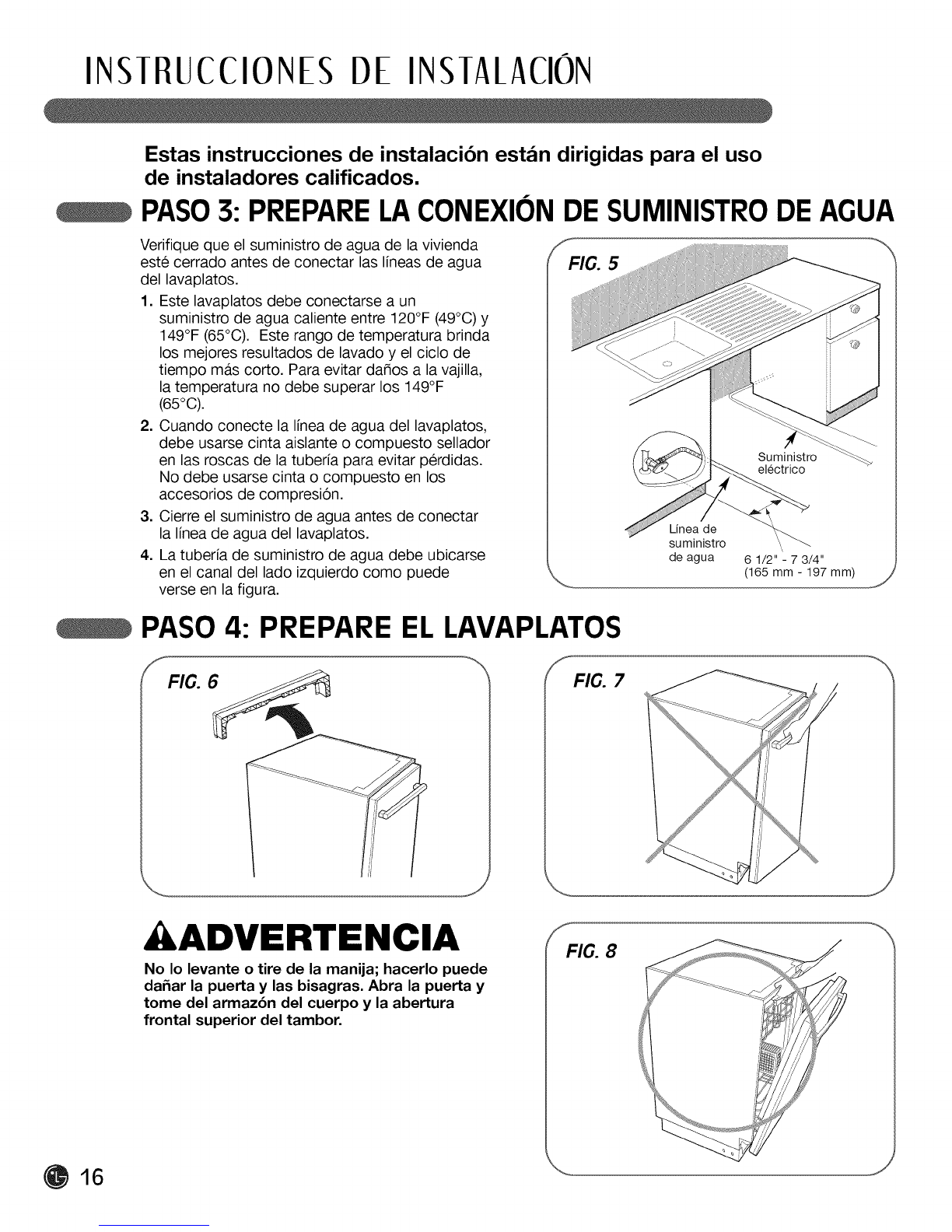

STEP 3: PREPARE THE WATER SUPPLY CONNECTION
Make sure the house water supply is turned off
before connecting the dishwasher water lines.
1. This dishwasher must be connected to a hot
water supply between 120°F (49°C) and 149°F
(65°C). This temperature range provides the
best washing results and shortest cycle time.
To prevent damage to dishes, temperature
should not exceed 149°F (65°C).
2. When connecting the dishwasher water line,
sealing tape or compound should be used on
pipe threads to avoid leaks. Tape or compound
should not be used on compression fittings.
3. Shut off the water supply prior to connecting
the dishwasher water line.
4. The water supply tube must be located in the
left side channel as shown in the figure. supply line
6-1/2" to 7-3/4"
(165 to 197mm)
STEP 4: PREPARE THE DISHWASHER
FIG. 6 FIG. 7
WARNING
Don't pull or lift with the handle; doing so can
damage the door and hinges. Open door and
grab body frame and top front opening of tub.

INSTAllATION INSTRUCTIONS
These installation instructions are intended for use by Qualified Installers.

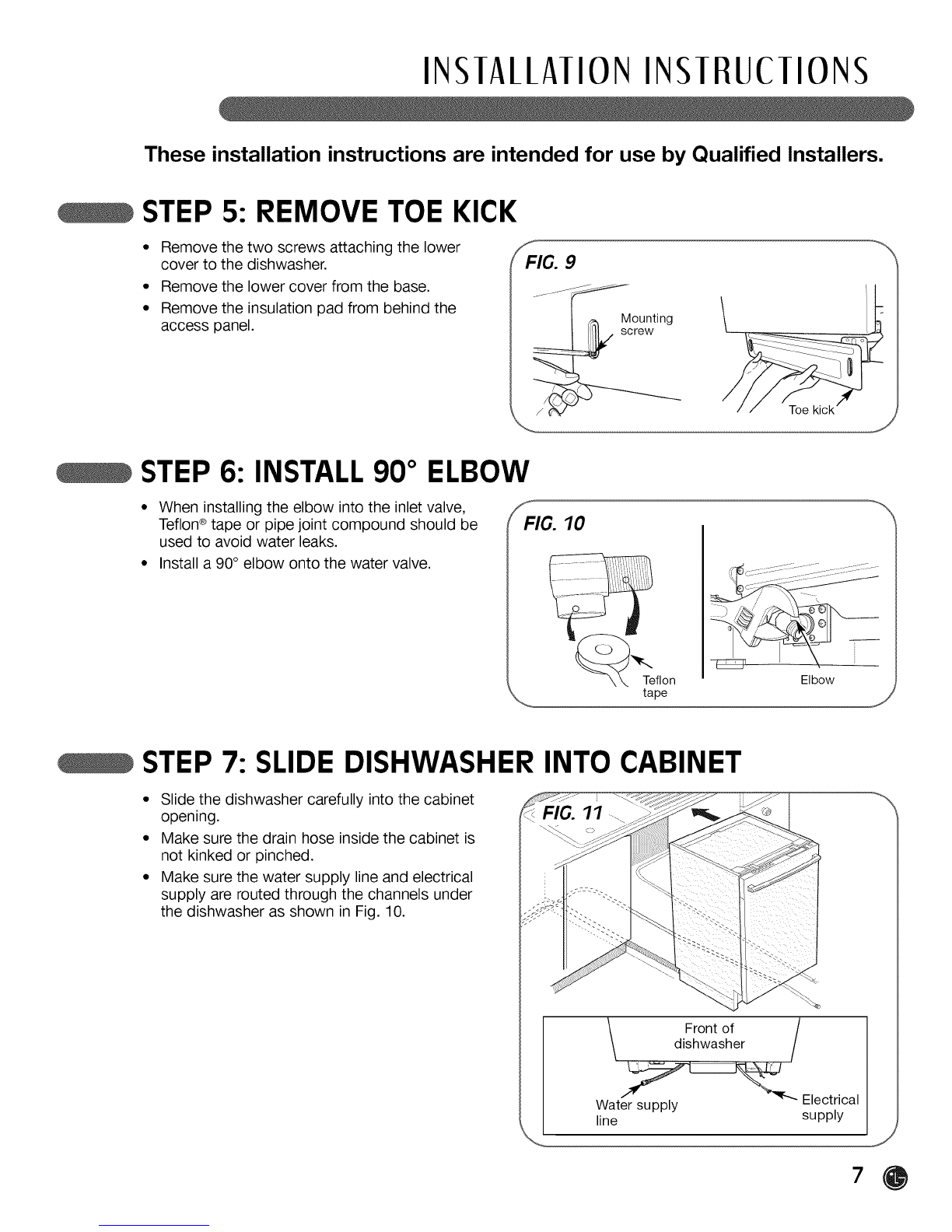

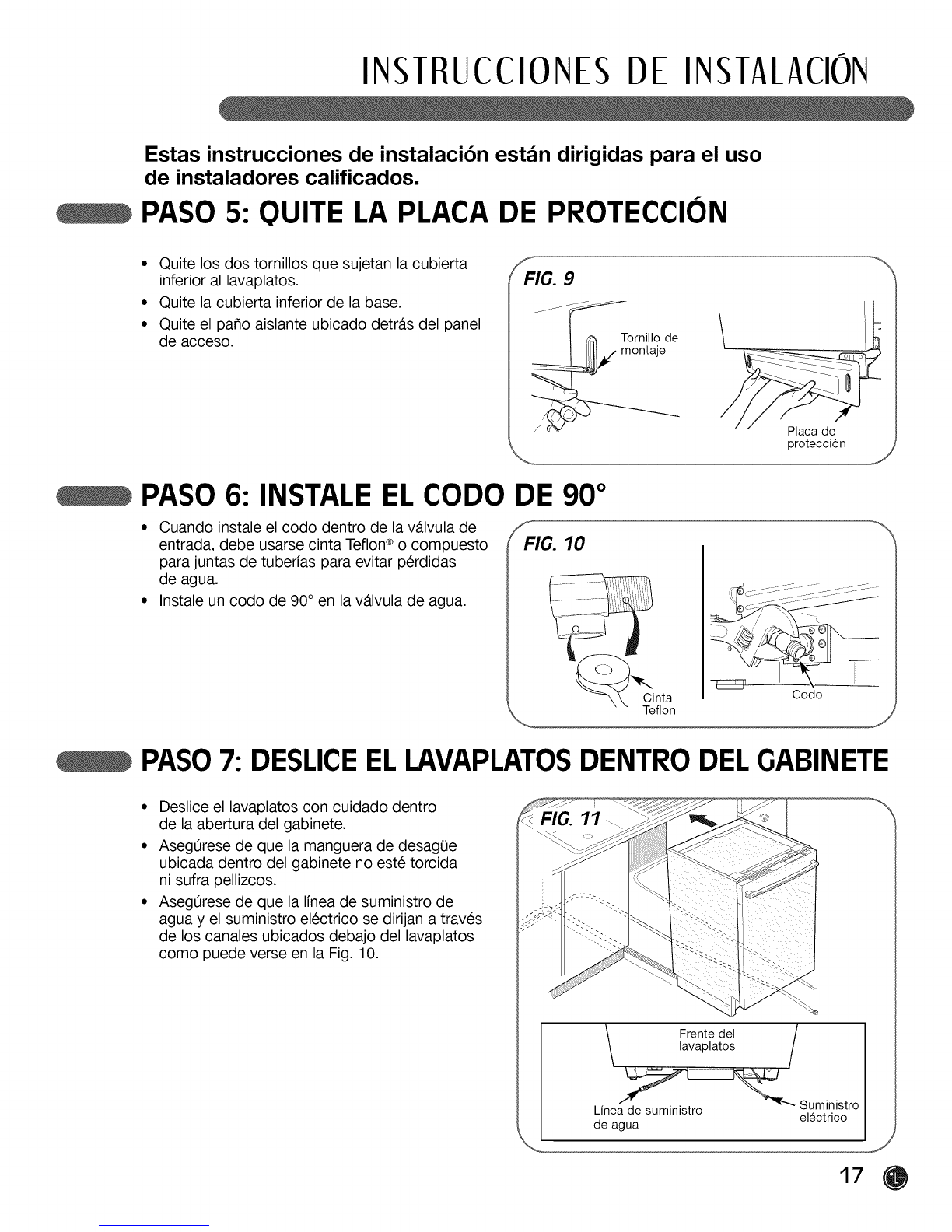

STEP 5: REMOVE TOE KICK
.Remove the two screws attaching the lower
cover to the dishwasher.
* Remove the lower cover from the base.
* Remove the insulation pad from behind the
access panel.
fFIG. 9
,J
STEP 6: INSTALL 90° ELBOW
When installing the elbow into the inlet valve,
Teflon®tape or pipe joint compound should be
used to avoid water leaks.
Install a 90° elbow onto the water valve.
FFIG. 10
tape
STEP 7: SLIDE DISHWASHER INTO CABINET
• Slide the dishwasher carefully into the cabinet
opening.
• Make sure the drain hose inside the cabinet is
not kinked or pinched.
• Make sure the water supply line and electrical
supply are routed through the channels under
the dishwasher as shown in Fig. 10.
Front of /
dishwasher
_'_"-- Electrical
Water supply
line supply

INSTAllATION INSTF UCTIONS

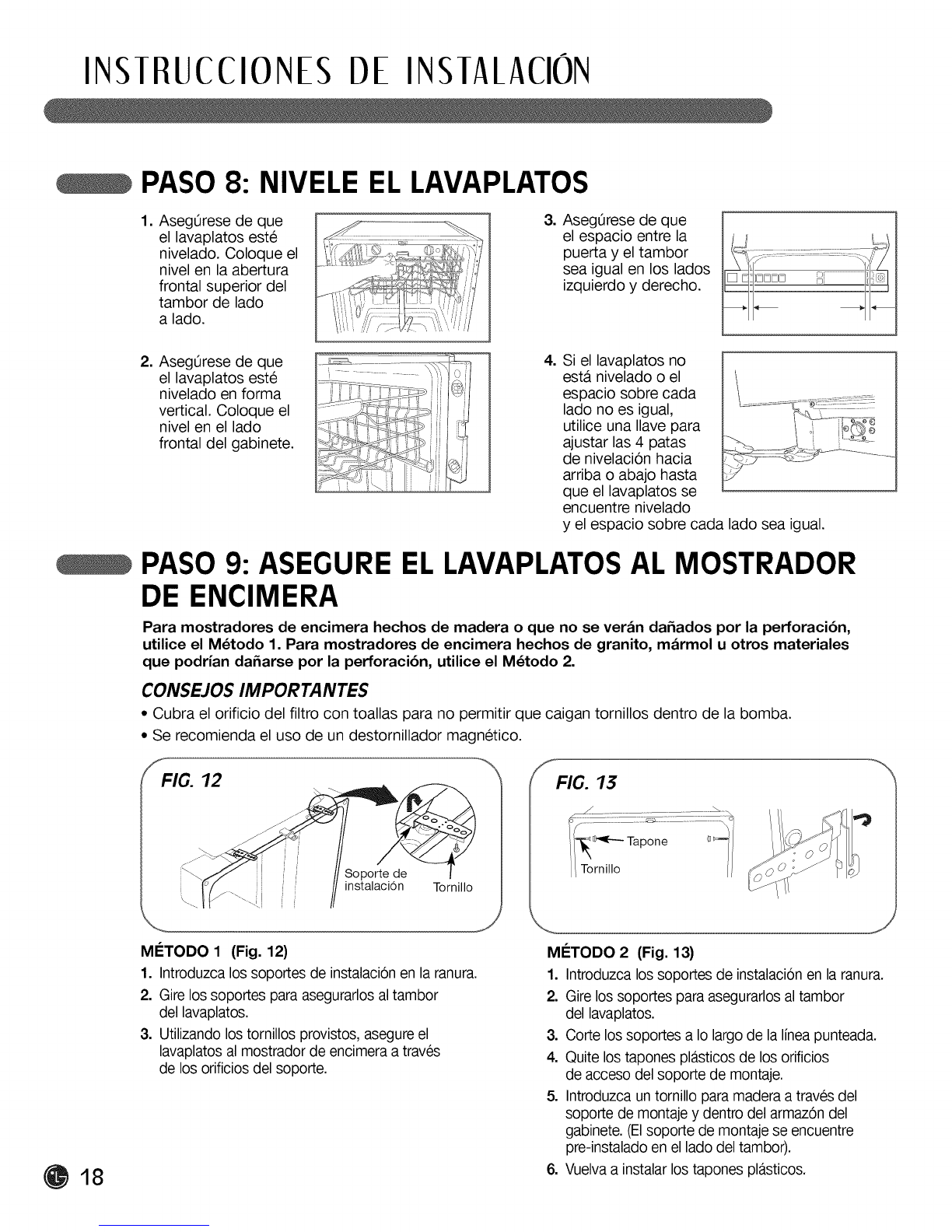

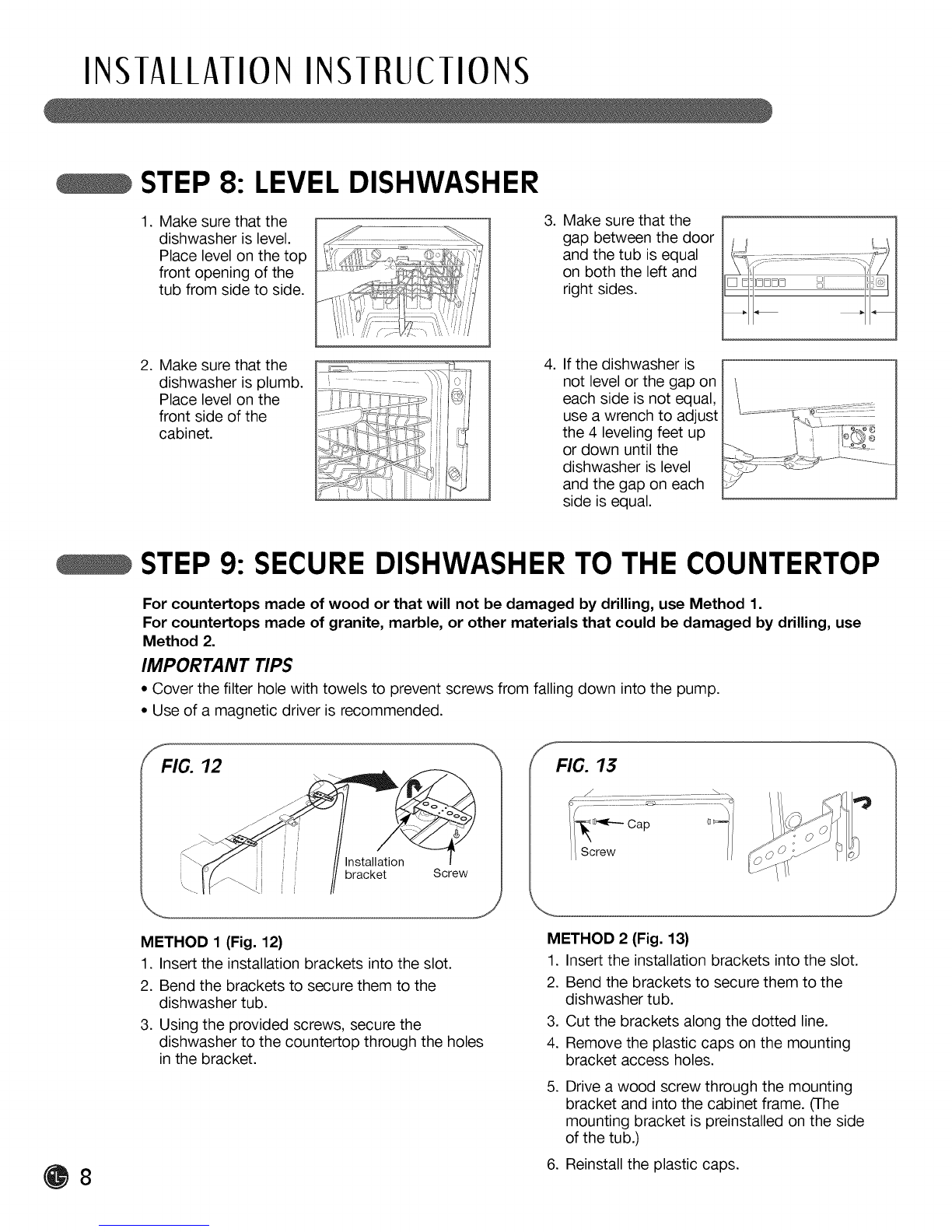

STEP 8: LEVEL DISHWASHER
1. Make sure that the
dishwasher is level.
Place level on the top
front opening of the
tub from side to side.
3. Make sure that the
gap between the door
and the tub is equal
on both the left and
right sides.
2. Make sure that the
dishwasher is plumb.
Place level on the
front side of the
cabinet.
.If the dishwasher is
not level or the gap on
each side is not equal,
use a wrench to adjust
the 4 leveling feet up
or down until the
dishwasher is level
and the gap on each
side is equal.
STEP 9: SECURE DISHWASHER TO THE COUNTERTOP
For countertops made of wood or that will not be damaged by drilling, use Method 1.
For countertops made of granite, marble, or other materials that could be damaged by drilling, use
Method 2.
IMPORTANT TIPS
•Cover the filter hole with towels to prevent screws from falling down into the pump.
° Use of a magnetic driver is recommended.
FIG. 13
Installation
bracket Screw
METHOD 1 (Fig. 12)
1. Insert the installation brackets into the slot.
2. Bend the brackets to secure them to the
dishwasher tub.
3. Using the provided screws, secure the
dishwasher to the countertop through the holes
in the bracket.
METHOD 2 (Fig. 13)
1. Insert the installation brackets into the slot.
2. Bend the brackets to secure them to the
dishwasher tub.
3. Cut the brackets along the dotted line.
4. Remove the plastic caps on the mounting
bracket access holes.
.Drive a wood screw through the mounting
bracket and into the cabinet frame. (The
mounting bracket is preinstalled on the side
of the tub.)
6. Reinstall the plastic caps.
J

INSTAllATION INSTRUCTIONS

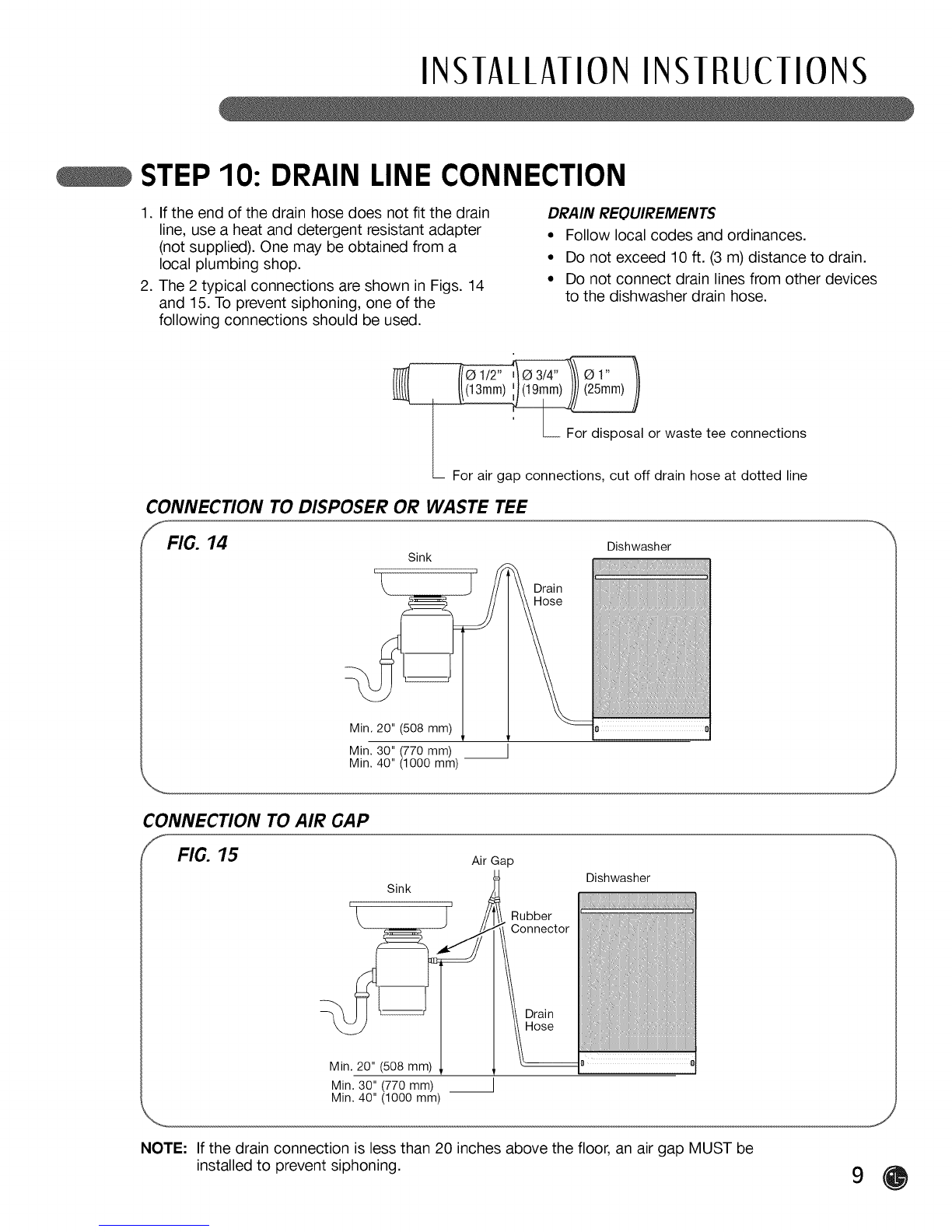

STEP 10: DRAIN LINE CONNECTION
1. If the end of the drain hose does not fit the drain
line, use a heat and detergent resistant adapter
(not supplied). One may be obtained from a
local plumbing shop.
2. The 2 typical connections are shown in Figs. 14
and 15. To prevent siphoning, one of the
following connections should be used.
DRAIN REOUIREMENTS
* Follow local codes and ordinances.
° Do not exceed 10 ft. (3 m) distance to drain.
o Do not connect drain lines from other devices
to the dishwasher drain hose.
For disposal or waste tee connections
Forair gap connections, cut off drain hose at dotted line
CONNECTION TO DISPOSER OR WASTE TEE
fFIG. 14 Dishwasher
Sink
Drain
Hose
Min. 20" (508 mm)
Min. 30" (770 mm)
Min. 40" (1000 mm) --
CONNECTION TO AIR GAP
FIG. 15
Sink
Air Gap
i
_. Rubber
-- Connector
Dishwasher
J
Min. 20" (508 mm)
Min. 30" (770 mm)
Min. 40" (1000 mm)
NOTE: If the drain connection is less than 20 inches above the floor, an air gap MUST be
installed to prevent siphoning.

INSTAllATION INSTRUCTIONS
STEP 11: WATER SUPPLY CONNECTION
1. Before connecting, turn off the water supply.
2. After fitting the elbow into the inlet valve, slide
the flexible stainless-steel water line or copper
tube into the elbow.
3. Tighten the compression nut and make sure
that the line is not kinked or pinched.
FIG. 16
Elbow Water
STEP 12: ELECTRICAL POWER CONNECTION
1. Before beginning, turn off electrical power to the
unit at the circuit breaker.
2. Remove the junction box cover and then install
the strain relief.
3. Twist wire connectors tightly onto the wires;
then wrap each connection with electrical tape.
4. Check again and make sure that all wires are
connected correctly: black to black, white to
white, green ground wire to green ground wire.
5. Replace the junction box cover.
CAUTION
Verify that the black wire is hot (120V). If not, or
if you are unsure of the power supply, have it
checked by a licensed electrician.
fFIG. 17
Junction box cover
Strain if
relief _ jk:;_ ',) ._.__> \
___ "_:::-:::- Junction
:, _ box
i i
STEP 13: FINAL CHECK
1. Turn on electrical power.
2. Turn on house water supply.
3. Run the dishwasher on a normal cycle to verify
proper operation and check for leaks.
4. Replace the toekick panel.
