LG DLE0332W User manual

Website:http://www.LGservice.com [For U.S.A]
www.lg.ca [For Canada]
ELECTRIC & GAS DRYER
SERVICE MANUAL
CAUTION
READ THIS MANUAL CAREFULLY TO DIAGNOSE
TROUBLES CORRECTLY BEFORE OFFERING SERVICE.
MODEL : DLE5911W
DLE2511W
DLE5932W
DLE5932S
DLE2532W
DLE0332W
DLG5911W
DLG2511W
DLG5932W
DLG5932S
DLG2532W
DLG0332W

MAR. 2003 PRINTED IN KOREA P/No.:3828EL3001B

2
To avoid personal injury, disconnect power before servicing this product. If electrical power is required
for diagnosis or test purposes, disconnect the power immediately after performing the necessary checks.
!
WARNING !
WHAT TO DO IF YOU SMELL GAS:
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by individuals possessing adequate backgrounds
of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in
personal injury and property damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in connection with its use.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to complete a path to ground are
removed for service, they must be returned to their original position and properly fastened.
IMPORTANT
Electrostatic Discharge (ESD)
Sensitive Electronics
ESD problems are present everywhere. ESD may damage or weaken the electronic
control assembly. The new control assembly may appear to work well after repair is
finished, but failure may occur at a later date due to ESD stress.
Use an anti-static wrist strap. Connect wrist strap to green ground connection point or unpainted
metal in the appliance.
- OR -
Touch your finger repeatedly to a green ground connection point or unpainted metal
in the appliance.
Before removing the part from its package, touch the anti-static bag to a green ground connection
point or unpainted metal in the appliance.
Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only.
When repackaging failed electronic control assembly in anti-static bag, observe above instructions.
Do not try to light a match, or cigarette, or turn on
any gas or electrical appliance.
Do not touch any electrical switches. Do not use any
phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions
carefully.
If you cannot reach your gas supplier, call the fire
department.

3
1. SPECIFICATIONS ..................................................................................................................4
2. FEATURES AND BENEFITS .................................................................................................... 5
3. INSTALLATION INSTRUCTIONS ........................................................................................... 6
4. COLUMBUS DRYER CYCLE PROCESS .................................................................................... 9
5. COMPONENT TESTING INFORMATION ..............................................................................10
6. MOTOR DIAGRAM AND SCHEMATIC..................................................................................13
7. CONTROL LAY - OUT .........................................................................................................14
8. WIRING DIAGRAM ............................................................................................................15
9. DIAGNOSTIC TEST .............................................................................................................16
9-1. TEST 1 120VAC ELECTRICAL SUPPLY..........................................................................17
9-2. TEST 2 THERMISTOR TEST --- MEASURE WITH POWER OFF .......................................18
9-3. TEST 3 MOTOR TEST ................................................................................................19
9-4. TEST 4 MOISTURE SENSOR ....................................................................................20
9-5. TEST 5 DOOR SWITCH TEST ...................................................................................21
9-6. TEST 6 HEATER SWITCH TEST - ELECTRIC TYPE...........................................................22
9-7. TEST 7 GAS VALVE TEST - GAS TYPE .........................................................................23
10. CHANGE GAS SETTING (NATURAL GAS, PROPANE GAS) ...............................................24
11. DISASSEMBLY INSTRUCTIONS .........................................................................................26
12. EXPLODED VIEW ..............................................................................................................32
12-1. CONTROL PANEL & PLATE ASSEMBLY .......................................................................32
12-2. CABINET & DOOR ASSEMBLY...................................................................................33
12-3-1. DRUM & MOTOR ASSEMBLY : ELECTRIC TYPE ........................................................34
12-3-2. DRUM & MOTOR ASSEMBLY : GAS TYPE ...............................................................35
13. REPLACEMENT PARTS LIST ................................................................................................36
CONTENTS

Equipped
Temperature
Moisture
Equipped
Adopted
Equipped
27" x 42
3/4" x 28 1/3"
29 1/2" x 44 3/4" x 30 3/4"
On / Off High / Low / OffHigh / Low / Off
Equipped
Stainless Steel
Equipped
Sensor
35
5
126 / 144
Door Trim
Top Plate
Color
WhiteChromeSilver
Painted
PorcelainPorcelain
White
Titanium
120V / 240V 60Hz (26A)POWER SUPPLY
LAMP
HEATER
MOTOR
55
5
599
7.3 cu.ft.
Electronic
15W (125mA)
GAS VALVE 13W (110mA) X 2
5400W (22.5A)
555
250W (4.5A)
ELECTRICITY
CONSUMPTION
White
Material &
Finishes
DLE2532WDLE5932SDLE5932W
DLG2532W
DLG5932SDLG5932W
ITEM
Child lock
Reversible Door
Interior Light
Product (WXHXD)
Packing (WXHXD)
Audible End of Cycle Beeper
Dryer Rack
Drum
No. of Dry Levels
No. of Dry Option
No. of Programs
DRUM CAPACITY
CONTROL TYPE
No. of Temperature Controls
Weight (lbs): Net / Gross
AC 120V ( GAS TYPE)
AC 240V ( ELECTRIC TYPE)
Thermistor
Electro sensor
AC 120V
AC 120V
REMARK
4
SPECIFICATIONS
1

5
FEATURES AND BENEFITS
2
DLE5911W / DLG5911W
DLE2511W / DLG2511W
DLE5932W / DLG5932W / DLE5932S / DLG5932S
DLE2532W / DLG2532W

6
3-1. POWER CORD
INSTALLATION INSTRUCTIONS
3
1) 4-wire connection
1. External ground connector - Dotted line shows
position of NEUTRAL ground wire before being
moved to center terminal block screw
2. Center silver-colored terminal block screw
3. Green wire of harness
1. External ground connector
2. Green or bare copper wire of power supply cord
3. 3/4 in. (1.9 cm) UL-listed strain relief
4. Center silver-colored terminal block screw
5. Neutral grounding wire (green)
6. Neutral wire (white)
5. Connect the other wires to outer terminal block
screws. Tighten screws.
6. Tighten strain relief screws.
7. Insert tab of terminal block cover into slot of dryer
rear panel Secure cover with hold-down screw.
3. Connect ground wire (green or bare) of power
supply cable to external ground conductor screw.
Tighten screw.
4. Connect neutral wire (white or center wire) of
power supply cord to the center, silver colored
terminal screw of the terminal block.
1. 4-wire receptacle (NEMA type 14-30R)
2. 4-prong plug
3. Ground prong
4. Neutral prong
5. Spade terminals with upturned ends
6. 3/4 in. (1.9 cm) UL approved strain relief
7. Ring terminals
1. Remove center terminal block screw.
2. Remove appliance ground wire (green) from
external ground connector screw. Fasten it under
center, silver colored terminal block screw.
IMPORTANT: A 4-wire connection is
required for mobile
homes and where local
codes do not permit the
use of 3 wire connections.
12
3 4 5 7
6
6
5
3
2
14
3
12

7
2) 3-wire connection
Use where local codes permit connecting
cabinet-ground conductor to neutral wire.
1. Remove center terminal block screw.
2. Remove appliance ground wire (green) from
external ground connector screw. Connect
appliance ground wire and the neutral wire (white
or center wire) of power supply cord/cable under
center, silver colored terminal block screw.
Tighten screw.
3. Connect the other wires to outer terminal block
screws. Tighten screws.
Use where local codes permit connecting
cabinet-ground conductor to neutral wire.
3) Optional 3-wire connection
1. Loosen or remove center terminal block screw.
2.
Connect neutral wire (white or center wire) of
power supply cord to the center, silver colored
terminal screw of the terminal block. Tighten screw.
1. External ground connector
2. Neutral grounding wire (green)
3. Center silver-colored terminal block screw
4. Neutral wire (white or center wire)
5. 3/4 in. (1.9 cm) UL-listed strain relief
3. Connect the other wires to outer terminal block
screws. Tighten screws.
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer
rear panel. Secure cover with hold-down screw.
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer
rear panel. Secure cover with hold-down screw.
6. Connect a separate copper ground wire from the
external ground connector screw to an adequate
ground.
1. External ground connector
2. Neutral grounding wire (green)
3. Neutral wire (white or center wire)
4.
Grounding path determined by a qualified electrician
1. 3-wire receptacle (NEMA type 10-30R)
2. 3-wire plug
3. Neutral prong
4. Spade terminals with up turned ends
5. 3/4 in. (1.9 cm) UL approved strain relief
6. Ring terminals
7. Neutral (white or center wire)
3
12
4
4
2
5
13
4
76
5
2
3
1

8
3-2. Connect Gas Supply Pipe (Gas Dryer ONLY)
2
3
5
1
4
1. Make certain your dryer is equipped for use with the
type of gas in your laundry room. Dryer is equipped
at the factory for Natural Gas with a 3/8” N.P.T. gas
connection.
2. Remove the shipping cap from the gas connection
at the rear of the dryer. Make sure you do not
damage the pipe thread when removing the cap.
3. Connect to gas supply pipe using a new flexible
stainless steel connector.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external) for
gas leaks with a non-corrosive leak detection fluid.
5. For L.P. (Liquefied Petroleum) gas connection, refer
to section on Gas Requirements.
For further assistance, refer to section on Gas Requirements.
1 New Stainless Steel Flexible Connector - Use
only if allowed by local codes (Use Design
A.G.A. Certified Connector)
2 1/8” N.P.T. Pipe Plug
(for checking inlet gas pressure)
3 Equipment Shut-Off Valve-Installed within 6’
(1.8 m) of dryer
4 Black Iron Pipe
Shorter than 20’ (6.1 m) - Use 3/8” pipe
Longer than 20’ (6.1 m) - Use 1/2” pipe
5 3/8” N.P.T. Gas Connection

9
Time

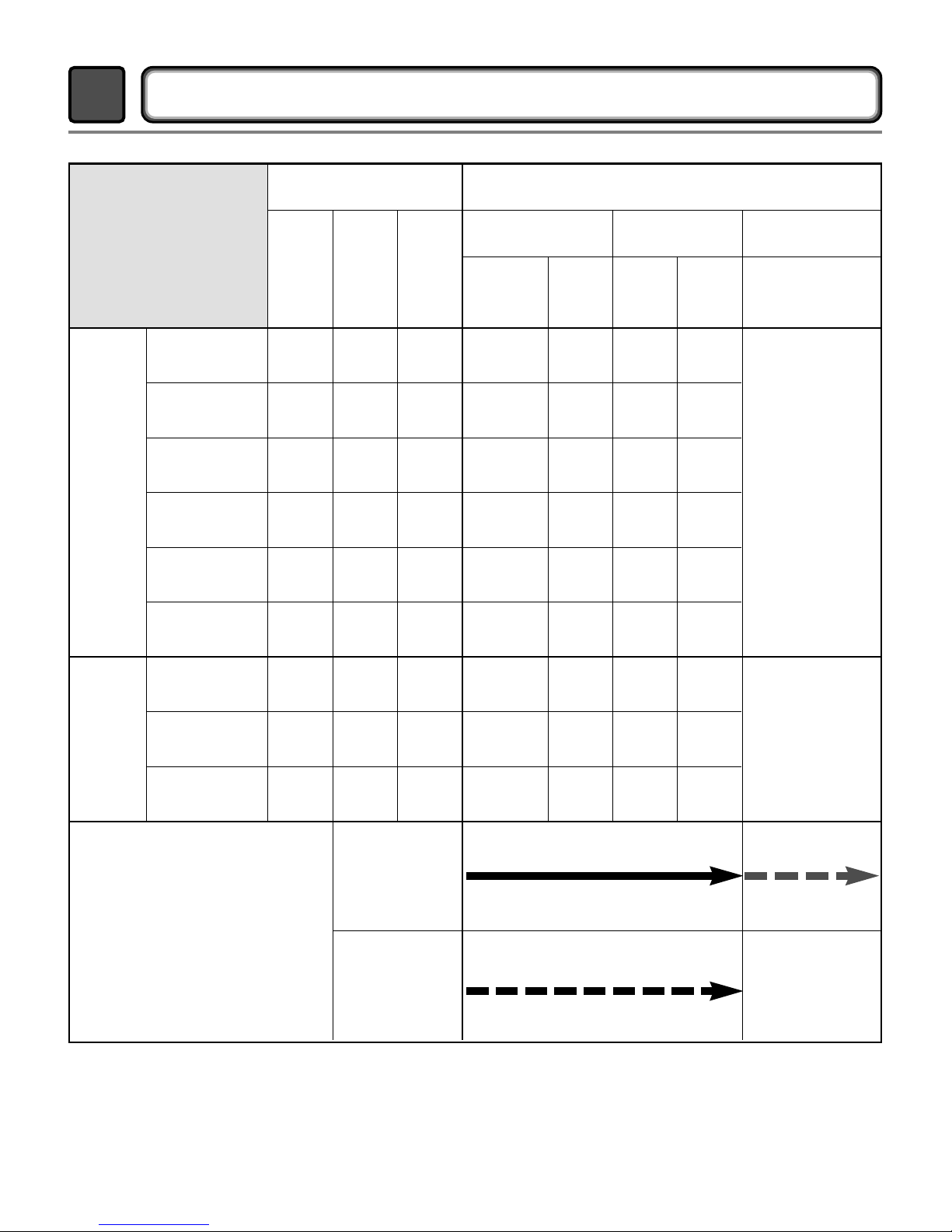

COLUMBUS DRYER CYCLE PROCESS
4
Cycle
Heavy Duty
3Hr
3Hr
Off Time: 6min
On Time: 10sec
Temperature Control for each cycle
High
Medium
High
Medium
Low
Low
Extra
low
(High)
(Medium
High)
Cotton/
Towel
Normal
Perm.
Permanent
Press
Delicate
Ultra
Delicate
Speed dry
Freshen Up
Air dry
-
(Normal)
(Normal)
(Normal)
(Normal)
(Normal)
(Normal)
-
-
-
54min Saturation
Saturation
Saturation
Saturation
Saturation
Saturation
Saturation
Saturation
55min
41min
36min
32min
34min
25min
20
min
30 min
(5min)
(5min)
(5min)
(5min)
(5min)
(5min)
(5min)
(5min)
N/A
70±5°C
66±5°C
62±5°C
55±5°C
55±5°C
45±5°C
(70±5°C)
(66±5°C)
No
heater
47±5°C
47±5°C
47±5°C
47±5°C
38±5°C
38±5°C
(47±5°C)
(47±5°C)
N/A Saturation
Load
Sense
Dry *
Manual
Dry **
Default
Drying
Electro-
sensor
Temp-
Control
Default
time
Temp-
Control **
Cooling Wrinkle care
Conditions of operation and termination
Temp-
erature
Dry
Level
Display
time
Motor
Heater
* Sense dry : “Dry Level” is set by users.
** Manual dry : “Temperature control” is set by users.
Default settings can be adjusted by users.

10

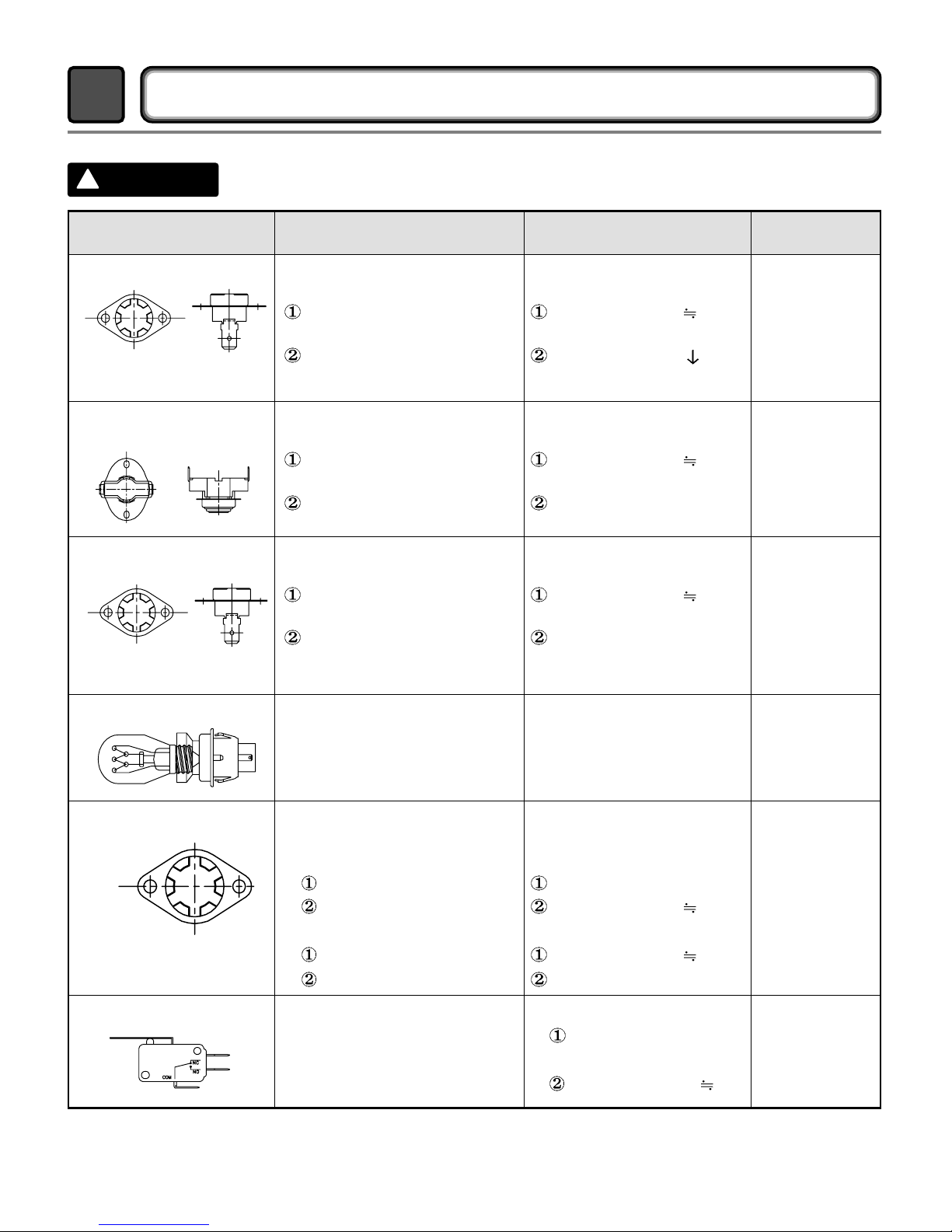

When checking the Component, be sure to turn the power off, and do voltage discharge sufficiently.
COMPONENT TESTING INFORMATION
5
!
CAUTION
Component Test Procedure Check result Remark
1. Thermal cut off
• Check Top Marking :
N130
Measure resistance of terminal
to terminal
Open at 266 ±12°F
(130 ±7°C)
Auto reset -31°F (-35°C)
Same shape as Outlet Thermostat.
If thermal fuse is open must
be replaced
Resistance value ∞
Continuity (250°F ) < 1Ω
• Heater case-
Safety
• Electric type
2. Hi limit Thermostat
(Auto reset)
Measure resistance of terminal
to terminal
Open at 257 ±9°F
(125 ±5°C)
Close at 221 ±9°F
(105 ±5°C)
Resistance value ∞
Resistance value < 5Ω
• Heater case -
Hi limit
• Electric type
3. Outlet Thermostat
( Auto reset)
• Check Top Marking :
N85
Measure resistance of terminal
to terminal
Open at 185 ±9°F
(85 ±5°C)
Close at 149 ±9°F
(65 ±5°C)
Same shape as Thermal cut off.
Resistance value ∞
Resistance value < 5Ω
• Blow housing -
Safety
• Electric type
4. Lamp holder Measure resistance of terminal
to terminal
Resistance value :
80Ω ~ 100Ω
6. Idler switch Measure resistance of the
following terminal :
“COM - NC”
1. lever open
Resistance value < 1Ω
2. Lever push (close)
Resistance value ∞
5. Door switch Measure resistance of the
following terminal
1) Door switch knob : open
Terminal : “COM” - “NC” (1-3)
Terminal : “COM” - “NO” (1-2)
2) Door switch push : push
Terminal : “COM” - “NC” (1-3)
Terminal : “COM” - “NO” (1-2)
Resistance value < 1Ω
Resistance value ∞
Resistance value ∞
Resistance value < 1Ω
The state that
Knob is
pressed is
opposite to
Open
condition.

11
Component Test Procedure Check result Remark
7. Heater Measure resistance of the
following terminal
Terminal : 1 (COM) - 2
Terminal : 1 (COM) - 3
Terminal : 2 - 3
Resistance value : 10Ω
Resistance value : 10Ω
Resistance value : 20Ω
• Electric type
8. Thermistor Measure resistance of terminal
to terminal
Temperature condition :
58°F ~ (10~40°C)
58°F ~ 104F (10~40°C)
Resistance value : 10Ω • Heater case -
Hi limit
• Electric type
9. Motor • See Page 13
10. Gas valve valve 1
valve 2
Measure resistance of the
following terminal
Valve 1 terminal
Valve 2 terminal
Resistance value : > 1.5kg ~
Resistance value :
> 1.5~2.5kg
• Gas type
11. Igniter Measure resistance of terminal
to terminal
Resistance value : 100~800Ω • Gas type
12. Frame Detect Measure resistance of terminal
to terminal
Open at 370°F ((Maximum)
Close at 320°F
Resistance value ∞
Resistance value < 1Ω
• Gas type

12
Component Test Procedure Check result Remark
13. Outlet Thermostat
(Auto reset)
• Check Top Marking :
N95
Measure resistance of terminal
to terminal
Open at 203 ±7°F (95 ±5°C)
Close at 158 ±9°F (70 ±5°C)
Resistance value ∞
Continuity < 1Ω
• Gas type
• Gas funnel
13. Outlet Thermostat
(Manual reset)
• Check Top Marking :
N100
Measure resistance of terminal
to terminal
Open at 212 ±12°F
(100 ±7°C)
Manual reset
If thermal fuse is open must
be replaced
Resistance value ∞
Continuity < 1Ω
• Gas type
• Gas funnel

13

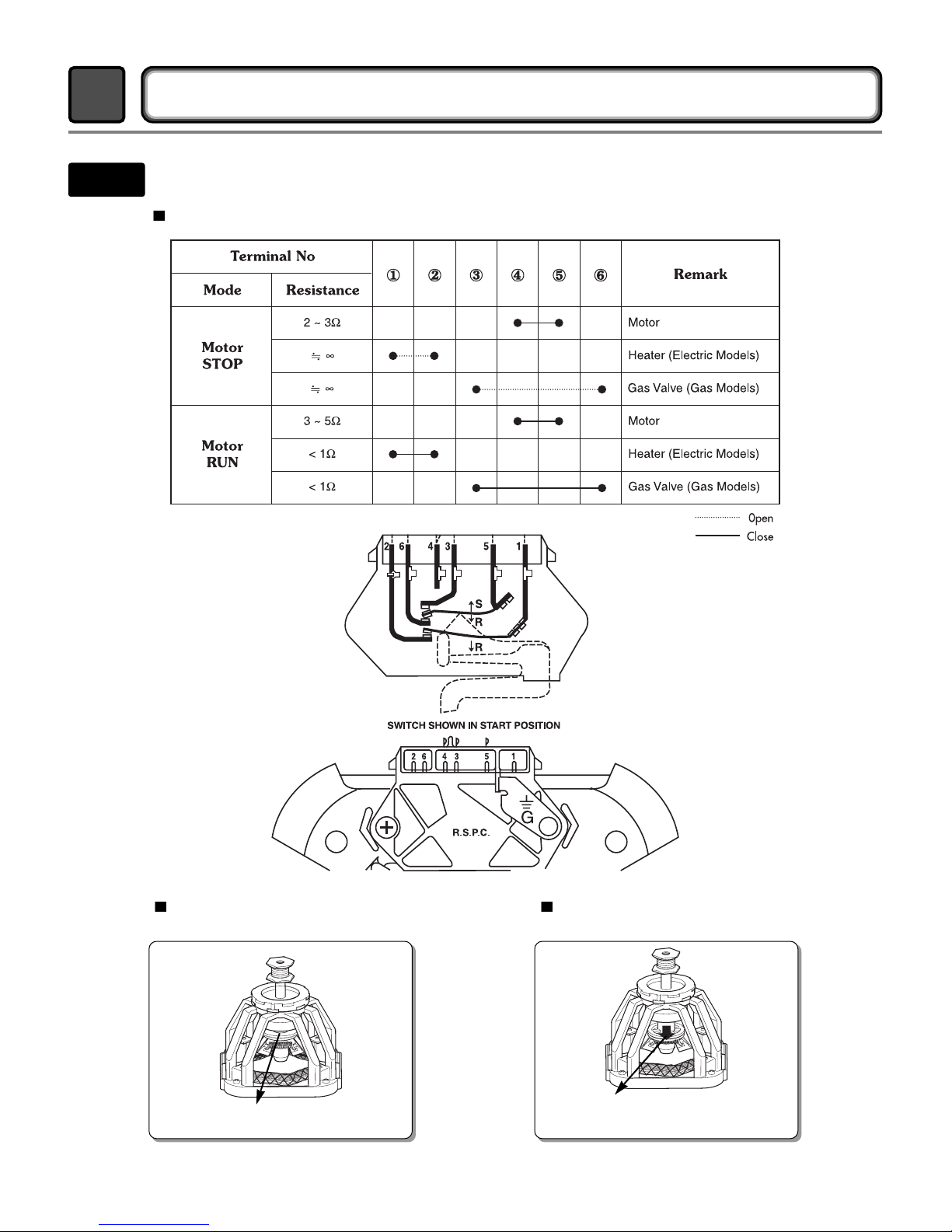

MOTOR DIAGRAM AND SCHEMATIC
6
Contact On / Off by Centrifugal Switch
STOP MODE
(When Motor does not operate)
RUN MODE
(Motor operates)
When checking Component, be sure to turn Power off, then do voltage discharge sufficiently.
NOTE
Centrifugal switch Centrifugal switch
(Pull Drive forward)

14
CONTROL LAY - OUT
7
PWB ASSEMBLY DISPLAY LAY-OUT
PWB ASSEMBLY LAY-OUT
MODEL DISPLAY AS DIAGNOSTIC TEST
MODEL
DLE5932W/S
DLG5932W
DLE5911W
DLG5911W
OP 1
X
X
X
X
OP 2
X
X
O
O
OP 3
X
O
X
O
OP 4
X
X
X
X
OP 5
X
X
X
X
OP 6
X
X
X
X
6871EC2025F
6871EC2025G
6871EC2025H
6871EC2025J
18:20
19:20
18:21
19:21
OPTION PART LED
DISPLAY P/No

15
ELECTRIC DRYER WIRING DIAGAM
WIRING DIAGRAM
8
GAS DRYER WIRING DIAGAM

16
ACTIVATING THE DIAGNOSTIC TEST MODE
1. Unit must be in Standby (unit plugged in, display off)
2. Press “POWER” while pressing “MORE TIME”, and “LESS TIME” simultaneously.
DIAGNOSTIC TEST
9
Pressing the
“START/PAUSE”
button
CHECKING
ACTION DISPLAY CHECKING POINT REMARK
None
Once
Electric control
&
Temperature
sensor
Motor
Won’t power up
Defective LED
Thermistor open
Thermistor close
Motor runs
Displays Moisture Sensor Operation:
If moisture sensor is contacted with
damp cloth. The display number is
below 180, in normal condition.
70 ~ 237
Measured
Moisture Value.
Twice
ELECTRIC TYPE
Motor + Heater 1 (1250W)
GAS TYPE
Motor + Valve
Current Temp.
ELECTRIC TYPE : Heater runs
GAS TYPE :
GAS Valve runs
(Display the Temperature of
Inside drum.)
During check,
If the door is closed.
Motor & Heater Off
+ Lamp Off 70 ~ 237 Return once “1time”
(See test 4) state.
4 times Control Off Auto Off
3 times
ELECTRIC TYPE
Motor + Heater 1
+ Heater 2
(5400W)
GAS TYPE
Motor Type
Current Temp.
(5 ~ 70)
See test 5
Off
automatically
after 5
minutes
In normal state if displayed
temp. is increasing.
Temperature in 4min : 113°F (45°C)
• Above : 1” on , 1” off beep sound
• Under : 0.5” on, 0.5”
off beep sound
During check,
If the door is open.
Motor & Heater Off
+ Lamp On +
Buzzer beeps five
times
Door switch See test 6
Lamp
See test 1
Display : See page
See test 2
See test 3
See test 4
Gas valve
See test 7
1. This TEST should be used for Factory test /Service test. Do not use this DIAGNOSTIC TEST other than
specified.
2. Activating the Heater manually with the Door open may trip the Thermostat attached to the Heater, therefore do
not activate it manually. (Do not press the door switch to operate the heater while the door is open )

17
Test 1 120VAC Electrical supply
Caution
Trouble Symptom
Measurement Condition
When measuring power, be sure to wear insulated gloves, to and avoid an
electric shock.
No power was applied to Controller. (LED, Display off)
With Dryer Power On; Connector linked to Controller.
Check the outlet, is the voltage
110V ~ 125V AC?
YES
NO • Check the fuse
or circuit breaker.
Check if the voltage measured between
Connector “RD3- ” (Black) linked to the
Controller and “WH3- ”(White) is
110V ~ 125V?
YES
NO
• Check if Power
Cord is properly
connected.
• Reconnect the
controller.
Replace controIler.
Check if the Controller wire is
disconnected.
Check if Terminal Block and Power Cord
are connected (Check Plug ).
- Does Power Cord N( Natural) line match
to Terminal Center N(Natural) line?
YES
NO
L (Black) L (Led)
N(White)

18
Test 2
Thermistor Test --- Measure with Power Off
Caution
Trouble Symptom
Measurement Condition
Before measuring resistance, be sure to turn Power off, and do voltage discharge.
(When discharging, contact the metal plug of Power cord with the Ground.)
During Diagnostic Test, tE1 and tE2 Error occur.
During operation, Heater would not turn off, or remains on.
Difference between actual and sensed temperature is significant.
After turning Power off, measure the resistance.
Check if resistance is in the range of Table 1
when measuring 6pin connector Pin
(Blue wire) and Pin (Red wire) connected
to Controller.
NO
YES
• Check if Control
and 6Pin
connector is
properly
connected.
• Replace
Controller.
Check Harness-linking connector.
Take 6pin Connector from
the Controller.
Table 1. Resistance for Thermistor Temperature.
Check if resistance is in the range of Table 1
when measuring resistance between
terminals after separating Harness
From Thermistor assembly Connector.
YES
NO • Replace
Thermistor.
Air TEMP.[°F (°C)]
50°F (10°C)
60°F (16°C)
70°F (21°C)
80°F (27°C)
18.0
14.2
11.7
9.3
90°F (32°C)
100°F (38°C)
110°F (43°C)
120°F (49°C)
7.7
6.2
5.2
4.3
130°F (54°C)
140°F (60°C)
150°F (66°C)
160°F (71°C)
2.9
3.0
2.5
2.2
RES. [kΩ] Air TEMP.[°F (°C)] RES. [kΩ] Air TEMP.[°F (°C)] RES. [kΩ]

19
Test 3 Motor test
Caution
Trouble Symptom
Measurement Condition
Before measuring resistance, be sure to turn Power off, and do voltage discharge.
(When discharging, contact the metal plug of Power cord with earth line.)
Drum will not rotate; No fan will function; No Heater will work.
Turn the Dryer’s Power Off, then measure resistance.
Is resistance below 1Ω between Idler Switch
terminals?
YES
NO
Does Idle Switch attached to Motor Bracket
operate Level by drum belt?
(Not operating Lever is normal.)
YES
• Replace Idler
Switch.
• Check Idler Assembly.
• Drum Belt cuts off
• Drum Belt takes off
from
• Motor Pulley.
Is resistance below 3Ω between Connector
“WH3- ” (White wire) and “BL2- ” (Yellow wire)?
Measure while door is closed.
YES
NO
• Check if Door flame
presses door switch
knob.
• Check Door Switch.
• Check Harness
connection.
Is resistance below 3Ω between Connector
“BL2- ” (Yellow wire) and “BL2- ” (Brown wire)?
NO
YES
• Replace Control.
(Relay check)
• Check Controller
connector.
Is resistance below 1Ω between terminals
of Outlet Thermostat attached to blower housing?
YES
NO
• Replace Outlet
• Thermostat.
(Refer to
‘Component’)
Is resistance below 3Ω between Connector
“WH3- ”(White wire) and “BL2- ” (Brown wire)?
Measure while door is closed.
NO
YES
• Replace Control.
(Relay check)
• Check Controller
connector.
• Check Motor.
(Refer to ‘Motor Diagram & Check’)
•
Check if Control Connector is contacted.
Idler Switch Lever
Idler Switch
