LG DLE3500 series User manual

2
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
5 IMPORTANT SAFETY INSTRUCTIONS
9 PRODUCT OVERVIEW
9 Parts
9 Accessories
10 INSTALLATION
10 Installation Overview
10 Product Specifications
11 Installation Location Requirements
12 Clearances
14 Leveling the Dryer
15 Reversing the Door
16 Installing the Side Vent Kit
17 Stacking the Dryer
18 Venting the Dryer
20 Connecting the Inlet Hose
(Steam Models)
21 Connecting Gas Dryers
23 Connecting Electric Dryers
24 Special Electrical Requirements
24 Final Installation Check
25 Installation Test (Duct Check)
28 OPERATION
28 Using the Dryer
29 Check the Lint Filter Before Every Load
29 Sorting Laundry
29 Loading the Dryer
30 Control Panel
33 Cycle Guide
37 Cycle Modifier Buttons
37 Option Buttons
38 Special Functions
39 Steam Functions
(Steam Models)
41 SMART FUNCTIONS
41 LG SmartThinQ Application
44 Smart Diagnosis™ Function
45 MAINTENANCE
45 Regular Cleaning
46 TROUBLESHOOTING
46 FAQs: Frequently Asked Questions
47 Before Calling for Service
53 WARRANTY
4SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.
WARNING- Risk of Fire
Install the clothes dryer according to the manufacturer’s instructions and local codes.
•Clothes dryer installation must be performed by a qualified installer.
•Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed,
it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
•To reduce the risk of severe injury or death, follow all installation instructions.
•Save these instructions.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death or property damage.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
•WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building or area of all occupants.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
•Installation and service must be performed by a qualified installer, service agency or your gas supplier.
6SAFETY INSTRUCTIONS
•Place the dryer at least 18 inches above the floor for a garage installation.
•Do not use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce
the efficiency of the exhaust system. Secure all joints with duct tape.
•Use only rigid, semi-rigid or flexible metal 4-inch diameter duct inside the dryer cabinet or for exhausting to
the outside. Use of plastic or other combustible ductwork may cause a fire. Punctured ductwork may cause
a fire if it collapses or becomes otherwise restricted in use or during installation.
•The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be
kept as short as possible. Make sure to clean any old ducts before installing your new dryer.
•Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non-
rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying
time.
•Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap
should have hinged dampers to prevent backdraft when the dryer is not in use.
•Gas dryers MUST be exhausted to the outside.
•The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted
outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An
accumulation of lint in any area of the home may create a health and fire hazard.
•Do not install near another heat source such as a stove, oven or heater.
•Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint,
dust, and dirt.
•The appliance must not be supplied through an external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
OPERATION
•Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length or at either end.
•If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it
immediately, and contact an LG Electronics customer information center.
•Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out
from the outlet.
•Do not use an extension cord or adapter with this appliance.
•Do not grasp the power cord or touch the appliance controls with wet hands.
•Do not modify or extend the power cord.
•If the product has been submerged, contact an LG Electronics customer information center for instructions
before resuming use.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
•Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.),
gasoline, chemicals and other flammable vapors and liquids.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
8SAFETY INSTRUCTIONS
MAINTENANCE
•Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified
service personnel unless specifically recommended in this Owner’s Manual. Use only authorized factory
parts.
•Do not disassemble or repair the appliance by yourself.
•Remove any dust or foreign matter from the power plug pins.
•Disconnect this appliance from the power supply before cleaning and attempting any user maintenance.
Turning the controls to the OFF position does not disconnect this appliance from the power supply.
•Remove the door before the appliance is removed from service or discarded to avoid the danger of children
or small animals getting trapped inside.
•Unplug the appliance before cleaning to avoid the risk of electric shock.
•Clean the lint filter before or after each load.
•The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
GROUNDING INSTRUCTIONS
•Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service personnel if you are in doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
•The appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. The appliance is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
•This dryer must be plugged into a properly grounded outlet. Electrical shock may result if the dryer is not
properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet
is properly grounded. Failure to follow these instructions may create an electric shock hazard and/or a fire
hazard.
WARNING
Fire Hazard
Failure to follow safety warnings exactly could result in serious injury, death or
property damage.
•Do not install a booster fan in the exhaust duct.
•Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.
SAVE THESE INSTRUCTIONS

Other manuals for DLE3500 series

2

This manual suits for next models

7

Other LG Dryer manuals

LG Tromm DLG5966G Instruction Manual

LG

LG Tromm DLG5966G Instruction Manual

LG TD-C70212E User manual

LG

LG TD-C70212E User manual

LG DLE2140 Series User manual

LG

LG DLE2140 Series User manual

LG Tromm DLE5955W Instruction Manual

LG

LG Tromm DLE5955W Instruction Manual

LG DLE8377CM User manual

LG

LG DLE8377CM User manual

LG DLGX3851 Series User manual

LG

LG DLGX3851 Series User manual

LG RV09VHP4W1 User manual

LG

LG RV09VHP4W1 User manual

LG DLE7050 Series User manual

LG

LG DLE7050 Series User manual

LG CDE3379WD User manual

LG

LG CDE3379WD User manual

LG TD-V10155G User manual

LG

LG TD-V10155G User manual

LG RC90V9JV2W User manual

LG

LG RC90V9JV2W User manual

LG DLE8377WM User manual

LG

LG DLE8377WM User manual

LG DLE2301W Instruction Manual

LG

LG DLE2301W Instruction Manual

LG DLEX3370 series User manual

LG

LG DLEX3370 series User manual

LG DLGX89 1 Series User manual

LG

LG DLGX89 1 Series User manual

LG TD-V10247G User manual

LG

LG TD-V10247G User manual

LG DLHX4072W User manual

LG

LG DLHX4072W User manual

LG DLE2301W User manual

LG

LG DLE2301W User manual

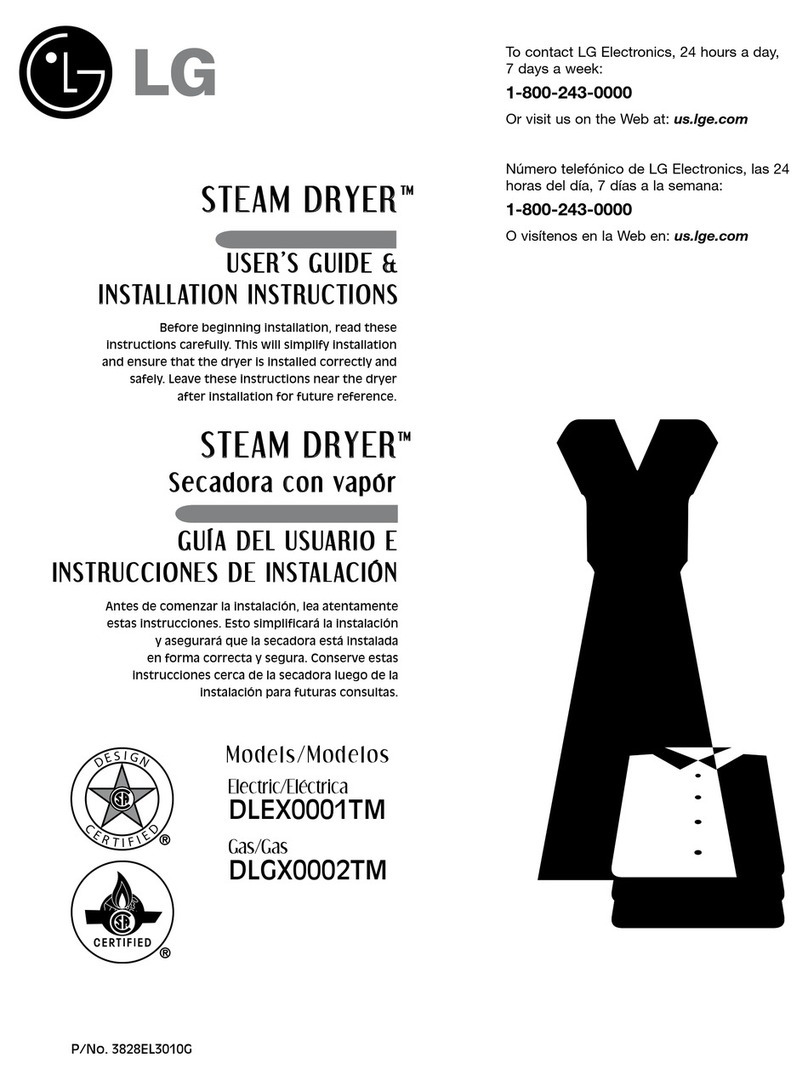

LG DLGX0002TM Instruction Manual
