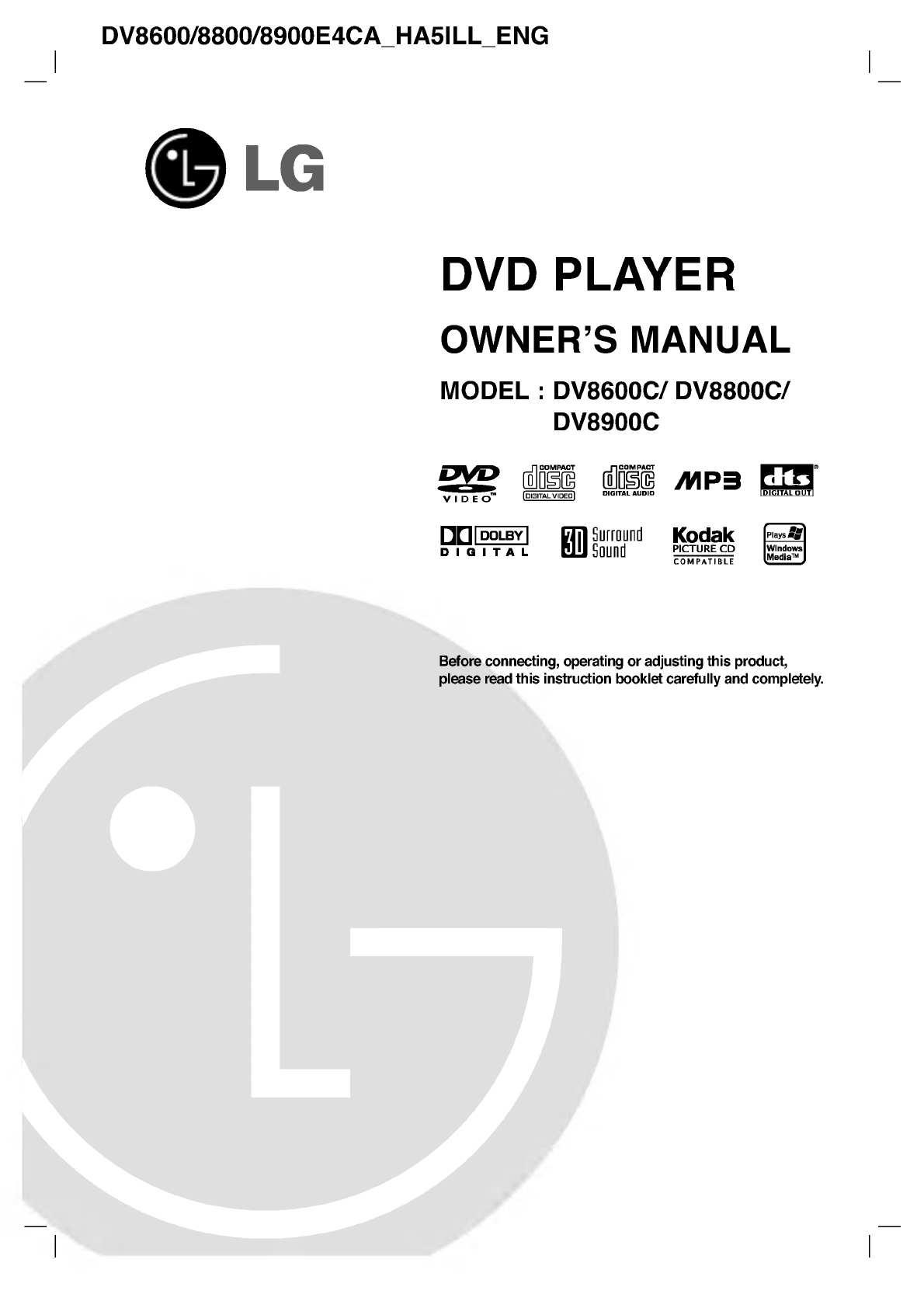

LG DV8600C User manual

DVD PLAYER
OWNER'S MANUAL
MODEL
:
DV8600C/ DV8800C/
DV8900C
Before
connecting, operating
or
adjusting
this
product,
please
read this instruction booklet
carefully
and
completely.
DV8600/8800/8900E4CA_HA5ILL_ENG

2
Warning:
To reduce the risk of electric
shock,
do not remove the cover or back
of this
product.
There are no user-
serviceable
parts
inside. Refer
servicing
to
qualified
service
personnel.
Warning:
To reduce the risk of fire or
electric
shock,
do not
expose
this
product
to
dripping
or
splashing
water,
rain,
or moisture. Do not
place objects
filled
with
water such as
vases,
on the
product.
Warning:
This
digital
video disc
player
employs
a laser
system.
Use of
controls,
adjustments,
or the
performance
of
procedures
other than those
specified
herein
may
result
in
hazardous radiation
exposure.
Warning:
To
prevent
direct
exposure
to
laser
beam,
do not
open
the enclosure.
Visible laser radiation when
open.
Warning:
Never stare
directly
into the
laser beam.
Caution: Do not install this
product
in
a
confined
space
such as a book case or
similar
unit.
This
product
is manufactured to
comply
with
the radio interference
requirements
of EEC DIRECTIVE
89/336/EEC,
93/68/EEC and 73/23/EEC.
Notes on
Copyrights:
It
is forbidden
by
law to
copy,
broadcast, show,
broadcast via
cable,
play
in
public,
or rent
copyrighted
material without
permission.
This
product
features the
copy protection
function
developed by
Macrovision.
Copy protection signals
are recorded on some discs.
When
recording
and
playing
the
pictures
of these
discs
noise
will
appear.
This
product
incorporates copyright protection technology
that is
protected by
method claims of certain U.S.
patents
and other intellectual
property rights
owned
by
Macrovision
Corporation
and other
rights
owners. Use
of this
copyright protection technology
must be
authorized
by
Macrovision
Corporation,
and is
intended for home and other limited
viewing
uses
only
unless otherwise authorized
by
Macrovision
Corporation.
Reverse
engineering
or
disassembly
is
prohibited.
SERIAL NUMBER:
You can find the serial number on the back of the unit.
This number is
unique
to this unit and not available to
others. You should record
requested
information here
and retain this
guide
as a
permanent
record of
your
purchase.
Model No.
______________________________
Serial No.
______________________________
Date of
Purchase_________________________
CAUTION

3

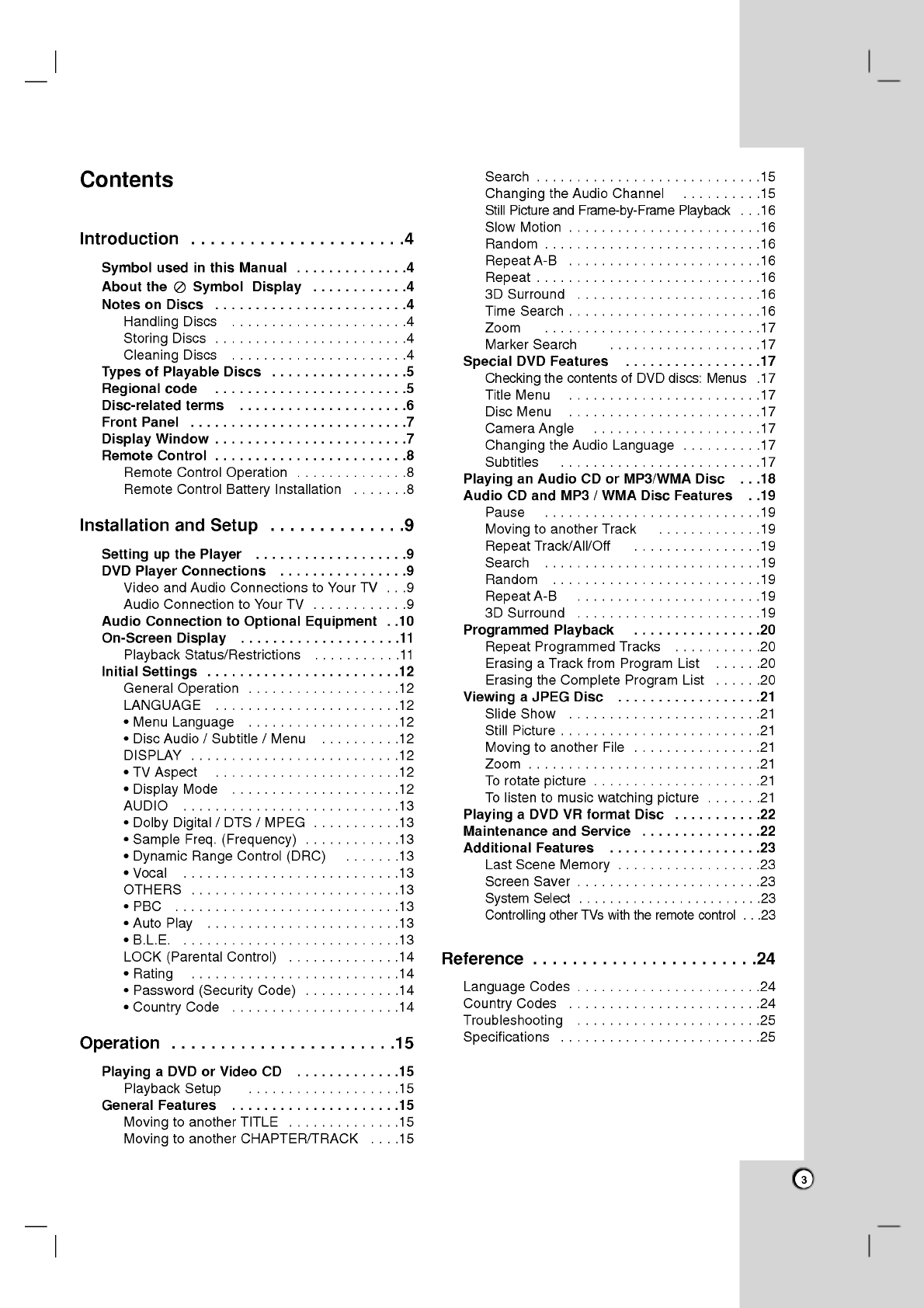

Contents
Introduction......................4
SymbolusedinthisManual..............4
AbouttheSymbolDisplay............4
NotesonDiscs........................4
HandlingDiscs......................4
StoringDiscs........................4
CleaningDiscs......................4
TypesofPlayableDiscs.................5
Regionalcode........................5
Disc-relatedterms.....................6

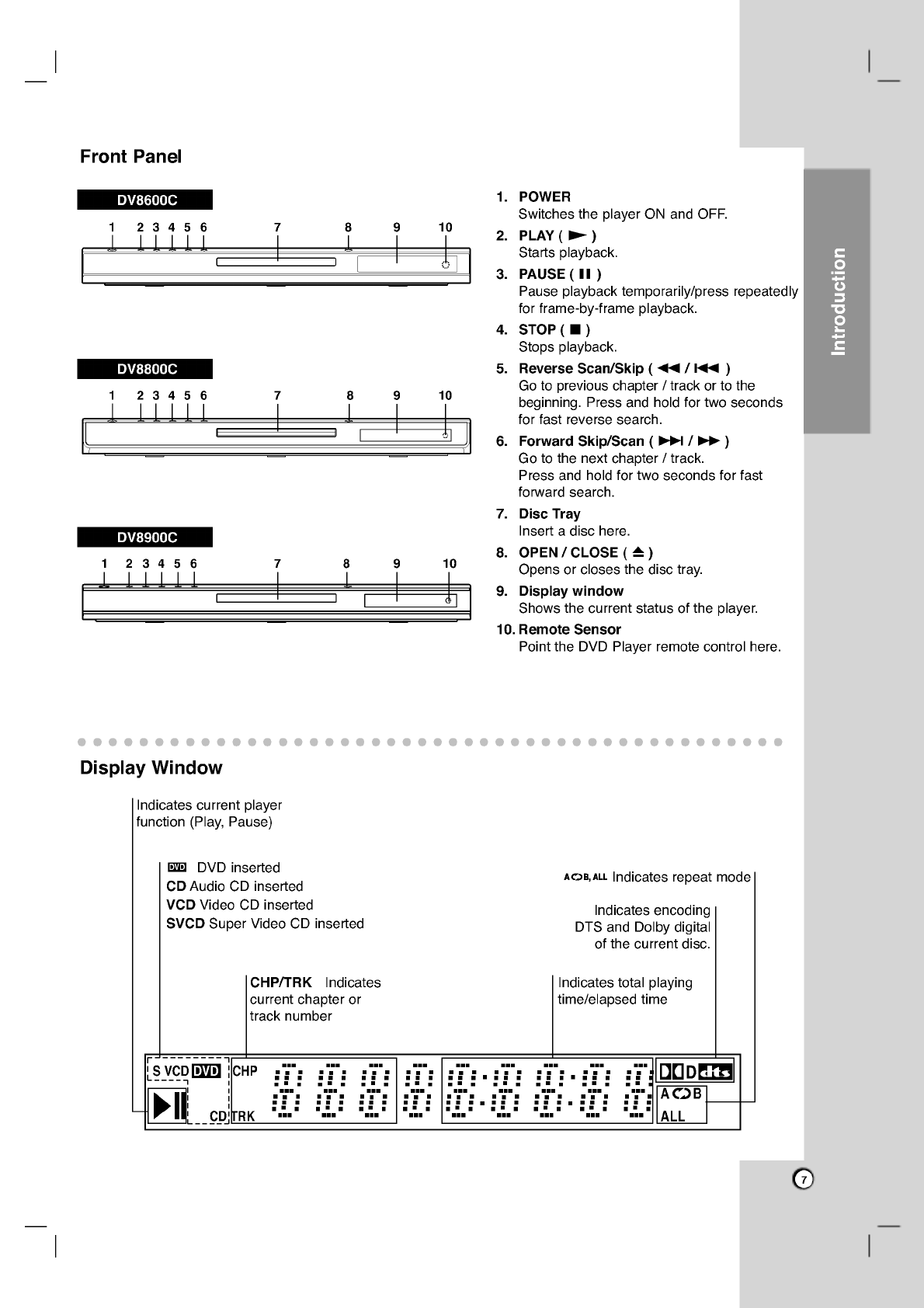

FrontPanel...........................7
DisplayWindow........................7
RemoteControl........................8
RemoteControlOperation..............8
Remote Control
Battery
Installation ...... .8
InstallationandSetup..............9
SettingupthePlayer...................9
DVDPlayerConnections................9
Video and Audio Connections to Your TV . . .9
AudioConnectiontoYourTV. .......... .9

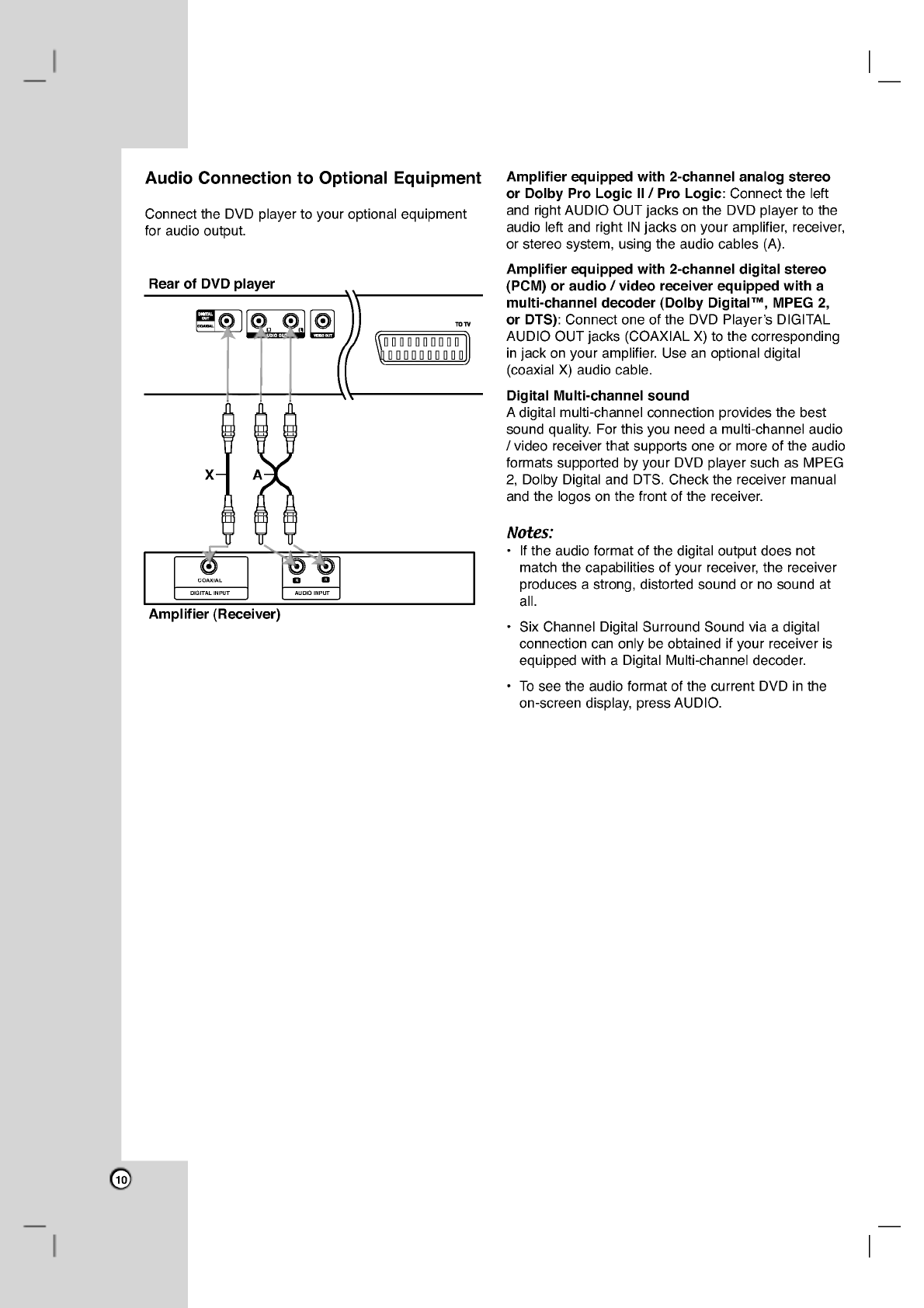

Audio Connection to
Optional Equipment
. .10
On-ScreenDisplay....................11
Playback
Status/Restrictions .......... .11
InitialSettings........................12
GeneralOperation...................12
LANGUAGE.......................12
?MenuLanguage...................12
?DiscAudio/Subtitle/Menu ......... .12
DISPLAY..........................12
?TVAspect.......................12
?DisplayMode.....................12
AUDIO...........................13
?DolbyDigital/DTS/MPEG.
......... .13
?SampleFreq.(Frequency).
.......... .13
?
Dynamic Range
Control
(DRC)
...... .13
?Vocal...........................13
OTHERS..........................13
?PBC............................13
?AutoPlay........................13
?
B.L.E. ...........................13
LOCK(ParentalControl)..............14
?Rating..........................14
?Password(SecurityCode).
.......... .14
?CountryCode.....................14
Operation.......................15
PlayingaDVDorVideoCD.............15
PlaybackSetup...................15
GeneralFeatures.....................15
MovingtoanotherTITLE..............15
Moving
to another CHAPTER/TRACK ... .15
Search............................15
ChangingtheAudioChannel
......... .15

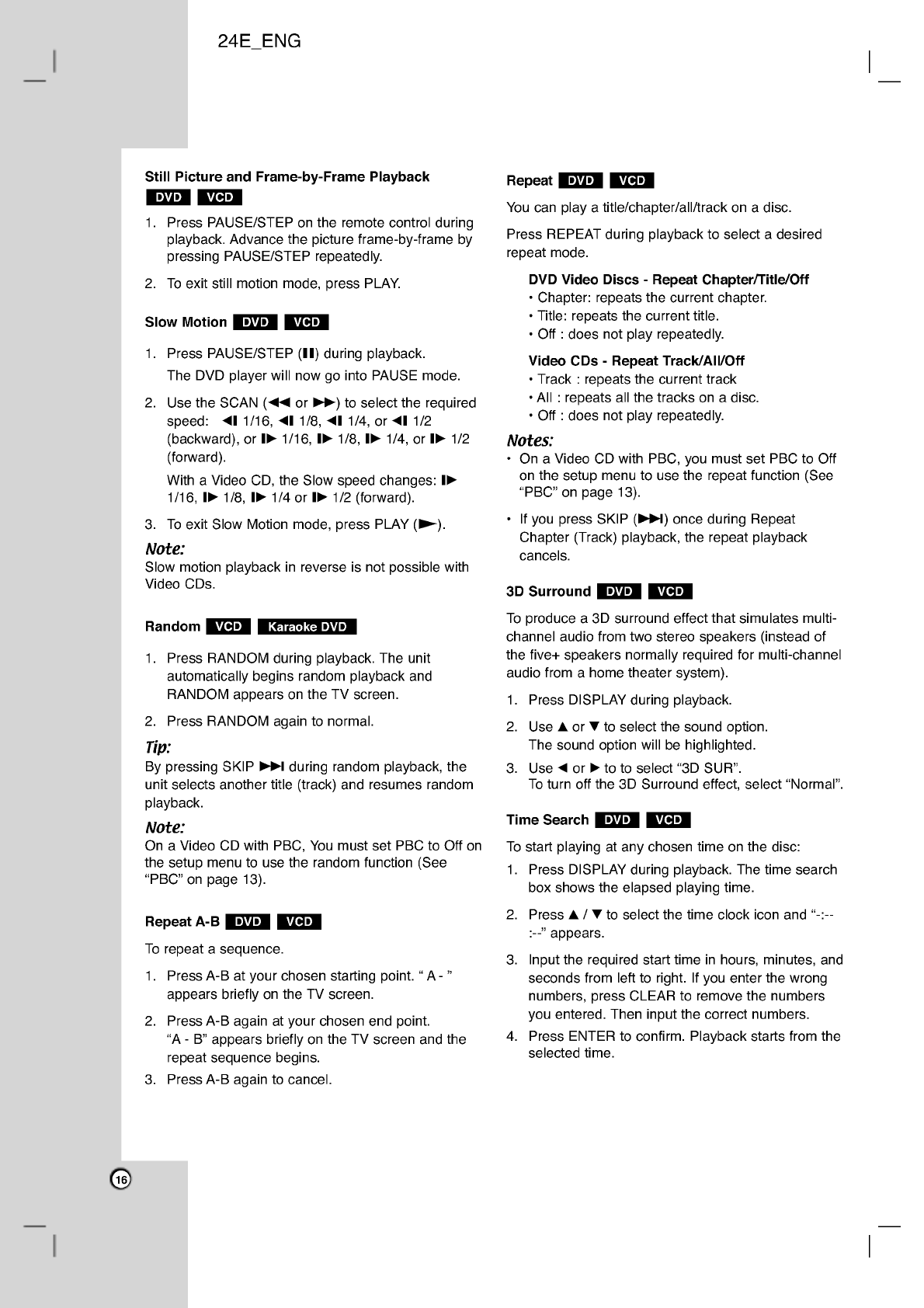

Still Picture and
Frame-by-Frame Playback
. . .16
SlowMotion........................16
Random...........................16
RepeatA-B........................16
Repeat............................16
3DSurround.......................16
TimeSearch........................16
Zoom...........................17
MarkerSearch...................17
SpecialDVDFeatures.................17
Checking
the contents of DVD discs: Menus .17
TitleMenu........................17
DiscMenu........................17
CameraAngle.....................17
ChangingtheAudioLanguage
......... .17
Subtitles.........................17

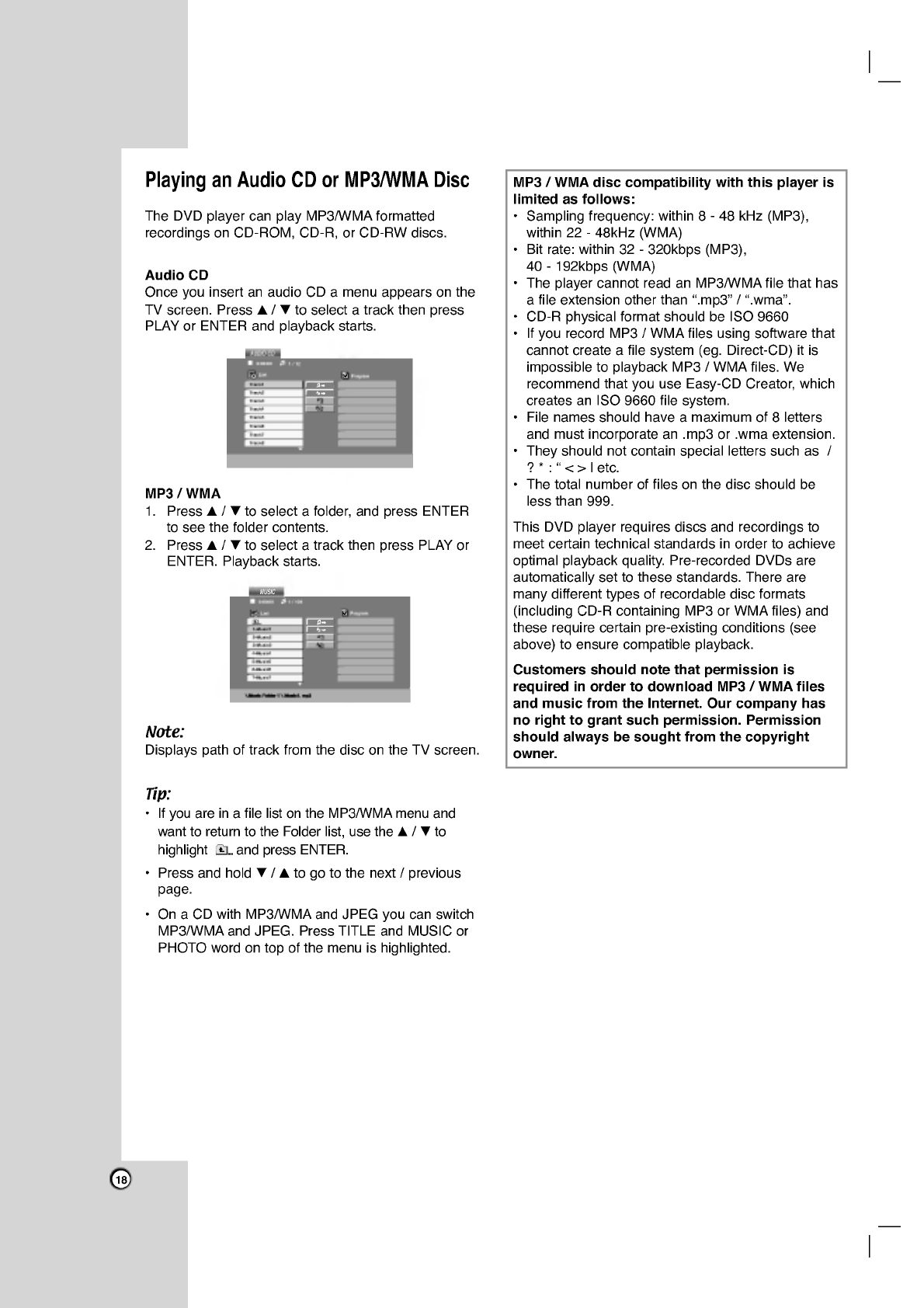

Playing
an
Audio
CD or MP3/WMA
Disc
. . .18

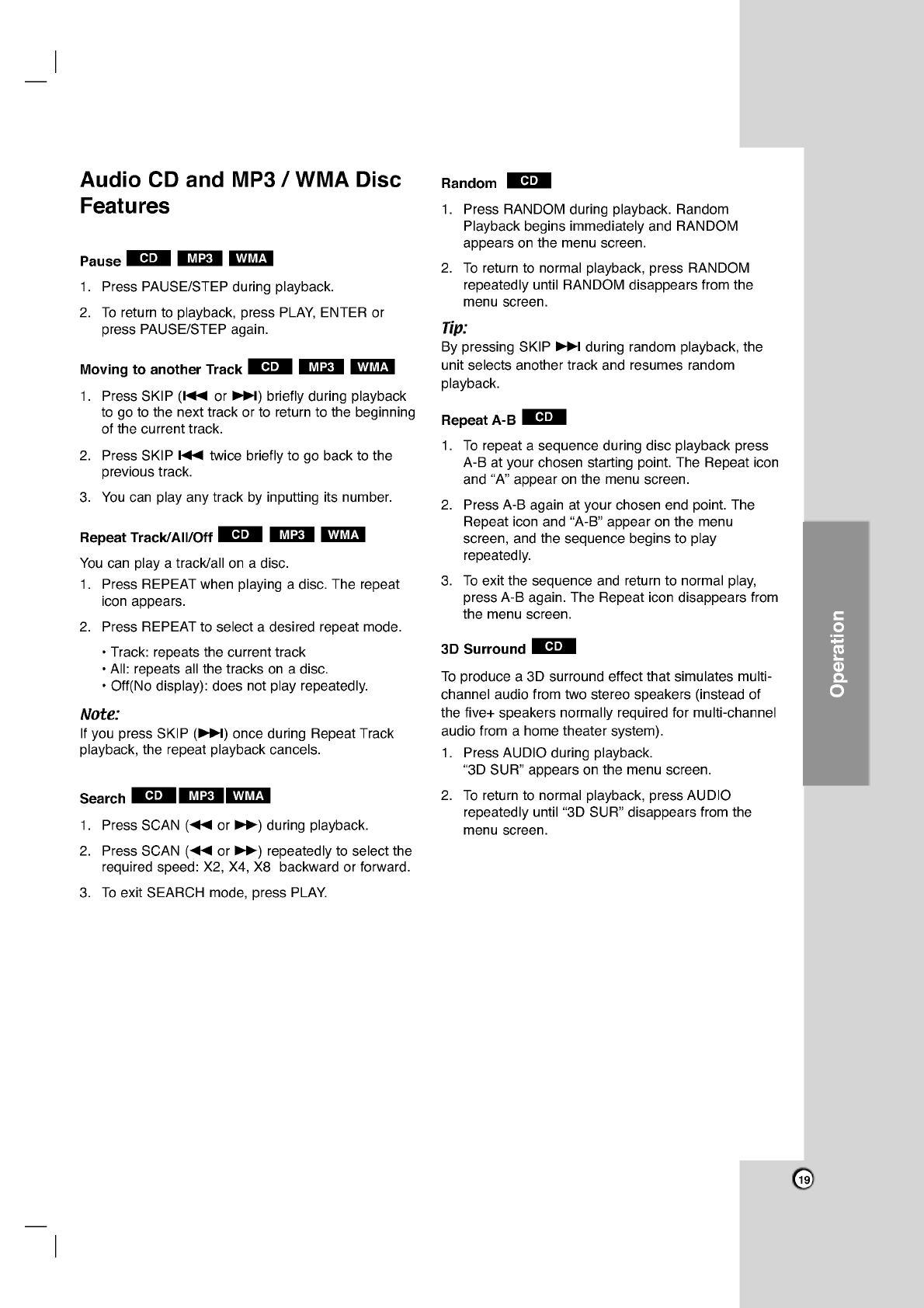

Audio
CD
and
MP3 / WMA
Disc Features
. .19
Pause...........................19
MovingtoanotherTrack.............19
RepeatTrack/All/Off................19
Search...........................19
Random..........................19
RepeatA-B.......................19
3DSurround.......................19
ProgrammedPlayback................20
RepeatProgrammedTracks
.......... .20
Erasing
a Track from
Program
List ..... .20
Erasing
the
Complete Program
List ..... .20
ViewingaJPEGDisc..................21
SlideShow........................21
StillPicture.........................21
MovingtoanotherFile................21
Zoom.............................21
Torotatepicture.....................21
To listen to music
watching picture
...... .21
PlayingaDVDVRformatDisc
.......... .22
MaintenanceandService...............22
AdditionalFeatures...................23
LastSceneMemory..................23
ScreenSaver.......................23
SystemSelect........................23
Controlling
other TVs with the remote control . . .23
Reference.......................24
LanguageCodes.......................24
CountryCodes........................24
Troubleshooting.......................25
Specifications.........................25

4
To ensure
proper
use of this
product, please
read this
owner's manual
carefully
and retain for future
reference.
This manual
provides
information on the
operation
and maintenance of
your
DVD
player.
Should the unit
require
service,
contact an authorized service location.
Symbol
Used
in
this Manual
The
lightning
flash
symbol
alerts
you
to the
presence
of
dangerous voltage
within
the
product
enclosure that
may
constitute a risk of
electric shock.
The exclamation
point
alerts
you
to the
presence
of
important operating
and
maintenance
/
servicing
instructions.
Indicates hazards
likely
to cause harm to the
unit itself or other material
damage.
Note:
Indicates
special
notes and
operating
features.
Tip:
Indicates
tips
and hints for
making
the task easier.
A
section whose title has one of the
following symbols
is
applicable only
to the disc
represented by
the
symbol.
DVD
and finalized
DVD±R/RW
Video CDs
Audio CDs
MP3 Discs
WMA
Discs
JPEG Discs
About the
Symbol Display
"
"
may appear
on
your
TV
display during
operation
and indicates that the function
explained
in
this owner's manual is not available on that
specific
DVD
video disc.
Notes on Discs
Handling
Discs
Do not touch the
playback
side of the disc. Hold the
disc
by
the
edges
so that
fingerprints
do not
get
on
the surface. Never stick
paper
or
tape
on the disc.
Storing
Discs
After
playing,
store the disc
in
its case. Do not
expose
the disc to direct
sunlight
or sources of heat and never
leave
it in
a
parked
car
exposed
to direct
sunlight.
Cleaning
Discs
Fingerprints
and dust on the disc can cause
poor
picture quality
and sound distortion. Before
playing,
clean the disc
with
a clean cloth.
Wipe
the disc from
the center out.
Do not use
strong
solvents such as
alcohol, benzine,
thinner,
commercially
available
cleaners,
or anti-static
spray
intended for older
vinyl
records.
JPEG
WMA
MP3
CD
VCD
DVD
Introduction

5

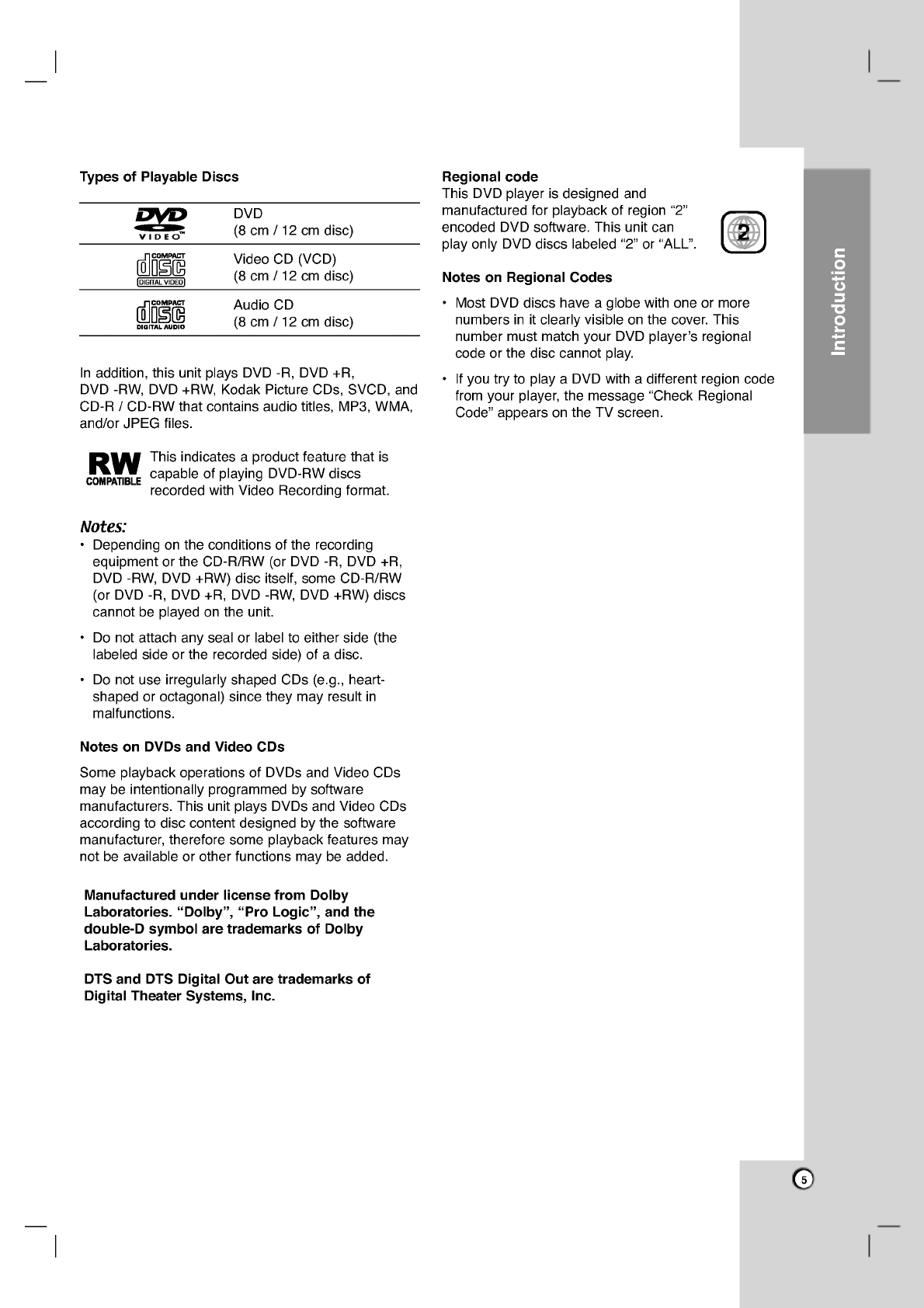

Types
of
Playable
Discs
DVD
(8cm/12cmdisc)
Video CD
(VCD)
(8cm/12cmdisc)
Audio CD
(8cm/12cmdisc)
In
addition,
this unit
plays
DVD
-R,
DVD
+R,
DVD
-RW,
DVD
+RW,
Kodak Picture
CDs, SVCD,
and
CD-R
/
CD-RW that contains audio
titles, MP3, WMA,
and/or JPEG files.
This indicates a
product
feature that is
capable
of
playing
DVD-RW
discs
recorded
with
Video
Recording
format.
Notes:
?
Depending
on the conditions of the
recording
equipment
or the CD-R/RW
(or
DVD
-R,
DVD
+R,
DVD
-RW,
DVD
+RW)
disc
itself,
some CD-R/RW
(or
DVD
-R,
DVD
+R,
DVD
-RW,
DVD
+RW)
discs
cannot be
played
on the unit.
?
Do not attach
any
seal or label to either side
(the
labeled side or the recorded
side)
of a disc.
?
Do not use
irregularly shaped
CDs
(e.g.,
heart-
shaped
or
octagonal)
since
they may
result
in
malfunctions.
Notes on DVDs and Video CDs
Some
playback operations
of DVDs and Video CDs
may
be
intentionally programmed by
software
manufacturers. This unit
plays
DVDs and Video CDs
according
to disc content
designed by
the software
manufacturer,
therefore some
playback
features
may
not be available or other functions
may
be added.
Manufactured under license from
Dolby
Laboratories.
"Dolby",
"Pro
Logic",
and the
double-D
symbol
are trademarks of
Dolby
Laboratories.
DTS and DTS
Digital
Out are trademarks of
Digital
Theater
Systems,
Inc.
Regional
code
This
DVD
player
is
designed
and
manufactured for
playback
of
region
"2"
encoded
DVD
software. This unit can
play only
DVD
discs labeled
"2"
or
"ALL".
Notes on
Regional
Codes
?
Most
DVD
discs have a
globe
with
one or more
numbers
in it
clearly
visible on the cover. This
number must match
your
DVD
player's regional
code or the disc cannot
play.
?
If
you try
to
play
a
DVD with
a different
region
code
from
your player,
the
message
"Check
Regional
Code"
appears
on the
TV
screen.
2

6
Disc-related terms
DVD±R/DVD±RW
DVD -R
and
DVD +R
are two different standards for
recordable
DVD
drives and discs. This format allows
information to be recorded onto the
DVD
disc
only
once.
DVD +RW
and
DVD -RW
are two standards for
re-writable
media,
meaning
the
DVD
content can be
erased and re-recorded.
Single-sided
discs can hold
4.38
Gigabytes
and double-sided discs hold twice as
much. There are no dual
layer single
sided recordable
discs.
VCD
(Video CD)
A
VCD holds
up
to
74
minutes
(650
MB
disc)
or 80
minutes
(700
MB
disc)
of MPEG-1 full-motion video
along
with
quality
stereo sound.
MPEG
MPEG is an international standard for video and audio
compression.
MPEG-1 is used
in
encoding
video for
VCD and
provides
for multichannel surround sound
coding
such as
PCM,
Dolby Digital,
DTS and MPEG
audio.
MP3
MP3 is a
popular compression
format used for
digital
audio files that
yields very high
near-CD
quality.
WMA
Windows media audio file.
A
type
of
coding
/
decoding
developed by
Microsoft
Corp.
JPEG
Joint Pictures
Expert Group.
JPEG is a
compressed
file format that allows
you
to save
images
with
no
limit
on the number of colors.
PBC:
Playback
Control
(Video
CD
only)
Playback
control is available for Video CD
(VCD)
version 2.0 disc formats. PBC allows
you
to interact
with
the
system
via
menus,
search
functions,
or other
typical computer-like operations.
Moreover,
still
pictures
of
high
resolution can be
played
if
they
are
included
in
the disc. Video CDs not
equipped
with
PBC
(Version 1.1) operate
in
the same
way
as audio
CDs.
Title
(DVD only)
A
title is
generally
a distinct section of a
DVD
disc. For
example
the main feature could be title
1,
a
documentary describing
how the
film
was made could
be title
2,
and cast interviews could be title 3. Each
title is
assigned
a reference number
enabling you
to
locate
it
easily.
Chapter (DVD only)
A
chapter
is a
segment
of a title such as a scene
in
a
film
or one interview
in
a series. Each
chapter
is
assigned
a
chapter
number,
enabling you
to locate the
chapter you
want.
Depending
on the
disc,
chapters
may
not be recorded.
Scene
(VCD)
On a video CD
with
PBC
(playback control)
functions,
moving pictures
and still
pictures
are divided into
sections called "scenes". Each scene is
displayed
in
the menu screen and
assigned
a scene
number,
enabling you
to locate the scene
you
want.
A
scene is
composed
of one or several tracks.
Track
A
distinct element of audiovisual
information,
such as
the
or sound track for a
specific language
(DVD),
or a musical
piece
on a video or audio CD.
Each track is
assigned
a track
number,
enabling you
to locate the track
you
want.
DVD
discs allow one
track of video
(with multiple angles)
and several tracks
of audio.

7
AD
ALL
B
S VCD CHP
CD
TRK
Indicates current
player
function
(Play, Pause)
DVD
inserted
CD Audio CD inserted
VCD Video CD inserted
SVCD
Super
Video CD inserted
CHP/TRK Indicates
current
chapter
or
track number
Indicates total
playing
time/elapsed
time
Indicates
encoding
DTS and
Dolby digital
of the current disc.
Display
Window
Front Panel
Indicates
repeat
mode
1.
POWER
Switches the
player
ON and OFF.
2.
PLAY(N)
Starts
playback.
3.
PAUSE(X)
Pause
playback temporarily/press repeatedly
for
frame-by-frame playback.
4.
STOP(x)
Stops playback.
5. Reverse
Scan/Skip (
m / .
)
Go to
previous chapter
/
track or to the
beginning.
Press and hold for two seconds
for fast reverse search.
6. Forward
Skip/Scan (
> / M
)
Go to the next
chapter
/
track.
Press and hold for two seconds for fast
forward search.
7.
Disc
Tray
Insert a disc here.
8.
OPEN/CLOSE(Z)
Opens
or closes the disc
tray.
9.
Display
window
Shows the current status of the
player.
10. Remote Sensor
Point the
DVD
Player
remote control here.
12
3
4
5 6
7
891 0
12
3
4
5 6
7
891 0
12
3
4
5 6
7
891 0

8
Remote Control
Operation
Point the remote control at the remote sensor and
press
the buttons.
Do not
mix
old and new batteries and never
mix
different
types
of batteries such as
standard, alkaline,
etc.
Remote Control
Battery
installation
Detach the
battery
cover on the rear of the
remote
control,
and insert two batteries
(size AAA)
with
and
aligned
correctly.
AAA AAA
Remote Control
TV
Control Buttons
TV
POWER:
Turns the
TV
on or off.
TV
PR/CH
+/--:
Selects TV's channel.
TV
VOL
+/--:
Adjusts
TV's volume.
AV:
Selects the TV's source.
SKIP(./>)
Go to next
chapter
or track.
Returns to
beginning
of current
chapter
or track or
go
to
previous chapter
or track.
STOP(x)
Stops playback.
TITLE
Displays
title
menu,
if
available.
RETURN
Removes the
setup
menu,
displays
the video CD
with
PBC.
?
MARKER
Marks
any point during
playback.
?
SEARCH
Displays
MARKER
SEARCH
menu.
?
PROGRAM
Places a track on the
program
list.
?
ZOOM
Enlarges
video
image.
?
REPEAT
Repeat chapter,
track,
title all.
?
A-B
Repeat sequence.
?
RANDOM
Plays
tracks
in
random order.
?
*
This button is not available.
OPEN
/
CLOSE
Opens
and closes the disc
tray.
POWER
Switches
DVD
Player
ON and OFF.
0-9 number buttons
Selects numbered items
in
a menu.
CLEAR
Removes a track number on the
program
list or a mark on the
MARKER
SEARCH menu.
SCAN(m/M)
Search backward or forward.
PAUSE/STEP(X)
Pauses
playback temporarily/ press
repeatedly
for
frame-by-frame
playback.
PLAY(N)
Starts
playback.
DVD
MENU
Accesses menu on a
DVD
disc.
bBvV(left/right/up/down)
?
Selects an item
in
the menu.
ENTER
?
Confirms menu selection.
DISPLAY
Accesses On-Screen
display.
AUDIO
?
Selects an audio
language (DVD).
SUBTITLE
?
Selects a subtitle
language.
ANGLE
?
Selects a
DVD
camera
angle
if
available
SETUP
?
Accesses or removes
setup
menu.

9
Installation and Setup
Setting up
the
Player
The
and sound of a
nearby
TV, VCR,
or radio
may
be distorted
during playback.
If
this
occurs,
position
the
player away
from the
TV, VCR,
or
radio,
or turn off the unit after
removing
the disc.
DVD
Player
Connections
Depending
on
your
TV
and other
equipment
there are
various
ways you
can connect the
player.
Please refer
to the manuals of
your
TV,
stereo
system
or other
devices as
necessary
for additional connection
information.
Video and Audio Connections to Your
TV
Make sure the
DVD
player
is connected
directly
to the
TV
and not to a
VCR,
otherwise the
DVD
could
be distorted
by
the
copy protection system.
Video: Connect the VIDEO OUT
jack
on the
DVD
player
to the video
in
jack
on the
TV
using
the
video cable
(V).
SCART connection: Connect the TO
TV
scart
jack
on the
DVD
Player
to the
corresponding
in
jacks
on the
TV
using
the scart cable
(T).
Audio Connection to Your
TV:
Connect the left and
right
AUDIO OUT
jacks
of the
DVD
Player
to the audio left and
right
IN
jacks
on the
TV
(A) using
the audio cables. Do not connect the
DVD
Player's
AUDIO OUT
jack
to the
phono
in
jack
(record deck)
of
your
audio
system.
VIDEO
INPUT
SCART INPUT
Rear of
TV
Rear of
DVD
player
V T
R
L
AUDIO INPUT
A
Installation and
Setup

10
Audio Connection to
Optional Equipment
Connect the
DVD
player
to
your optional equipment
for audio
output.
Amplifier equipped
with
2-channel
analog
stereo
or
Dolby
Pro
Logic
ll /
Pro
Logic:
Connect the left
and
right
AUDIO OUT
jacks
on the
DVD
player
to the
audio left and
right
IN
jacks
on
your amplifier,
receiver,
or stereo
system, using
the audio cables
(A).
Amplifier equipped
with
2-channel
digital
stereo
(PCM)
or audio
/
video receiver
equipped
with
a
multi-channel decoder
(Dolby DigitalTM,
MPEG
2,
or
DTS):
Connect one of the
DVD
Player's
DIGITAL
AUDIO OUT
jacks (COAXIAL X)
to the
corresponding
in
jack
on
your amplifier.
Use an
optional digital
(coaxial X)
audio cable.
Digital
Multi-channel sound
A
digital
multi-channel connection
provides
the best
sound
quality.
For this
you
need a multi-channel audio
/
video receiver that
supports
one or more of the audio
formats
supported by your
DVD
player
such as MPEG
2,
Dolby Digital
and DTS. Check the receiver manual
and the
logos
on the front of the receiver.
Notes:
?
If
the audio format of the
digital output
does not
match the
capabilities
of
your
receiver,
the receiver
produces
a
strong,
distorted sound or no sound at
all.
?
Six Channel
Digital
Surround Sound via a
digital
connection can
only
be obtained
if
your
receiver is
equipped
with
a
Digital
Multi-channel decoder.
?T
o see the audio format of the current
DVD in
the
on-screen
display, press
AUDIO.
AUDIO INPUT DIGITAL INPUT
COAXIAL
Amplifier (Receiver)
Rear of
DVD
player
A X
