LG Multi V CRNN-SP Series User manual

LG
Models: CRNN-SP Series
Type: Art Cool
IMPORTANT
• Please read this installation manual completely before
installing the product.
• Installation work must be performed in accordance with
the national wiring standards by authorized personnel
only.
• Please retain this installation manual for future reference
after reading it thoroughly.
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
PORTUGUESE

2Indoor Unit
Art Cool Type Indoor Unit Installation Manual
TABLE OF CONTENTS
Installation Requirements Required Parts Required Tools
❏Pipes: Gas side
Liquid side
(Refer to Product
Data)
❏Insulation materials
❏Additional drain pipe
❏ Installation guide map
❏Four type "A" screws & plastic
anchors
❏Connecting cable
❏Level gauge
❏Screw driver
❏Electric drill
❏Hole core drill
❏Horizontal meter
❏Flaring tool set
❏Specified torque wrenches
(different depending on model No.)
❏Spanner.......Half union
❏A glass of water
❏Screw driver
❏Hexagonal wrench
❏Gas-leak detector
❏Vacuum pump
❏Gauge manifold
❏Owner's manual
❏Thermometer
❏Holder Remote Controller
Installation Parts ....................3
Safety Precautions.................4
Installation
Selection the best location ....7
Preparing Work for
Installation..............................8
Sticking the Installation Guide
Mapand Fixing indoor Unit....9
Connection of Piping...........10
Drain Piping .........................11
Front Panel Assembly .........12
Wiring Connection...............13
Installation of Remote
Controller..............................14 ❏Two type "B" screws

Installation Manual 3
Installation Parts
ENGLISH
Installation Parts
Air
Intake
Air Outlet
Name
Quantity
Shape
Securing screws
2 EA
M4 x 12L
Installation guide map
1 EA (Other)
• Owner's manual
• Installation manual

4Indoor Unit

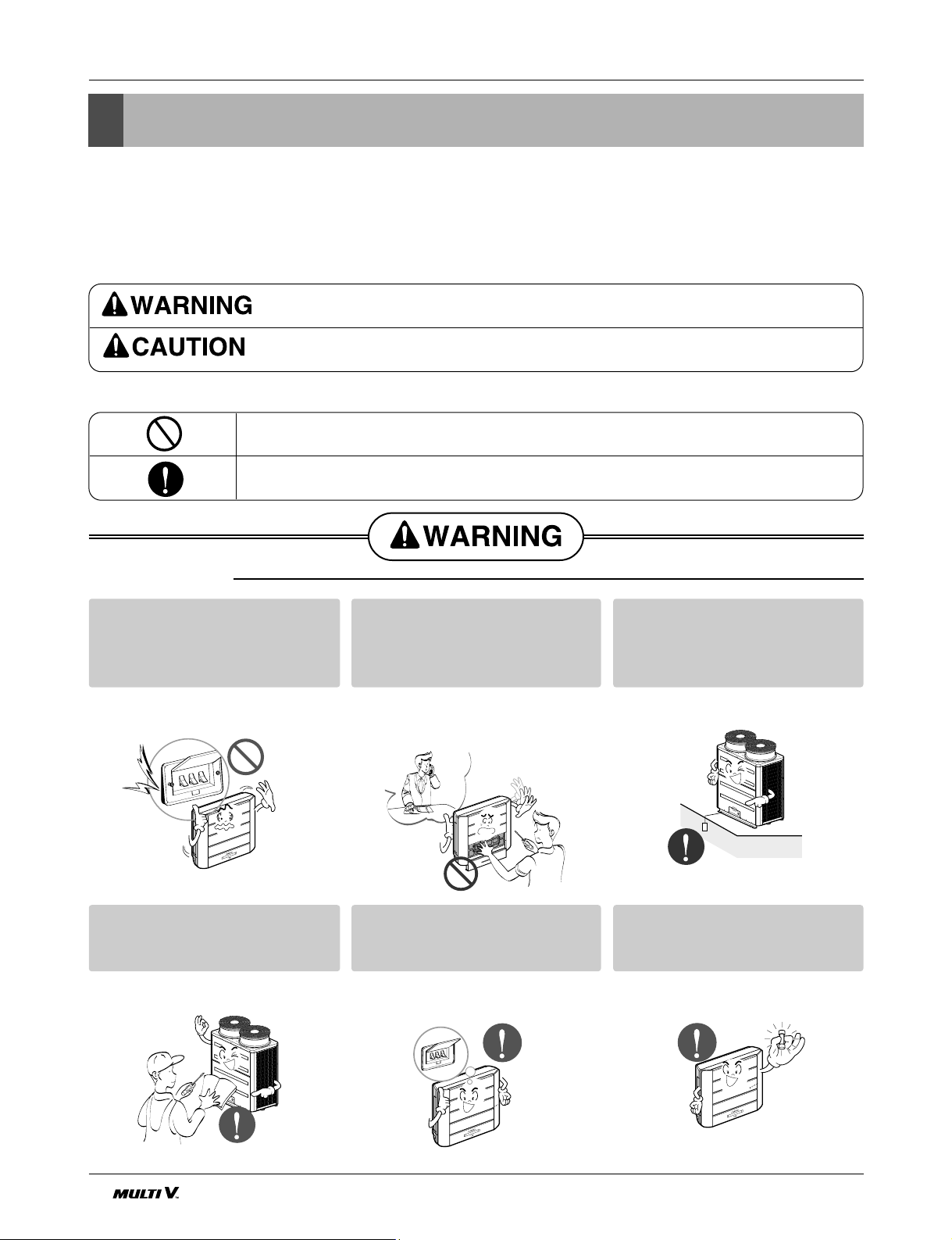

Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
■Be sure to read before installing the air conditioner.
■Be sure to observe the cautions specified here as they include important items related to safety.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the
following indications.
■Meanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
■Installation
Do not use a defective or under-
rated circuit breaker. Use this
appliance on a dedicated circuit.
• There is risk of fire or electric shock.
For electrical work, contact the
dealer, seller, a qualified electri-
cian, or an Authorized Service
Center.
• Do not disassemble or repair the
product. There is risk of fire or elec-
tric shock.
Always ground the product.
• There is risk of fire or electric shock.
Install the panel and the cover
of control box securely.
• There is risk of fire or electric shock.
Always install a dedicated cir-
cuit and breaker.
• Improper wiring or installation may
cause fire or electric shock.
Use the correctly rated breaker
or fuse.
• There is risk of fire or electric shock.

Installation Manual 5

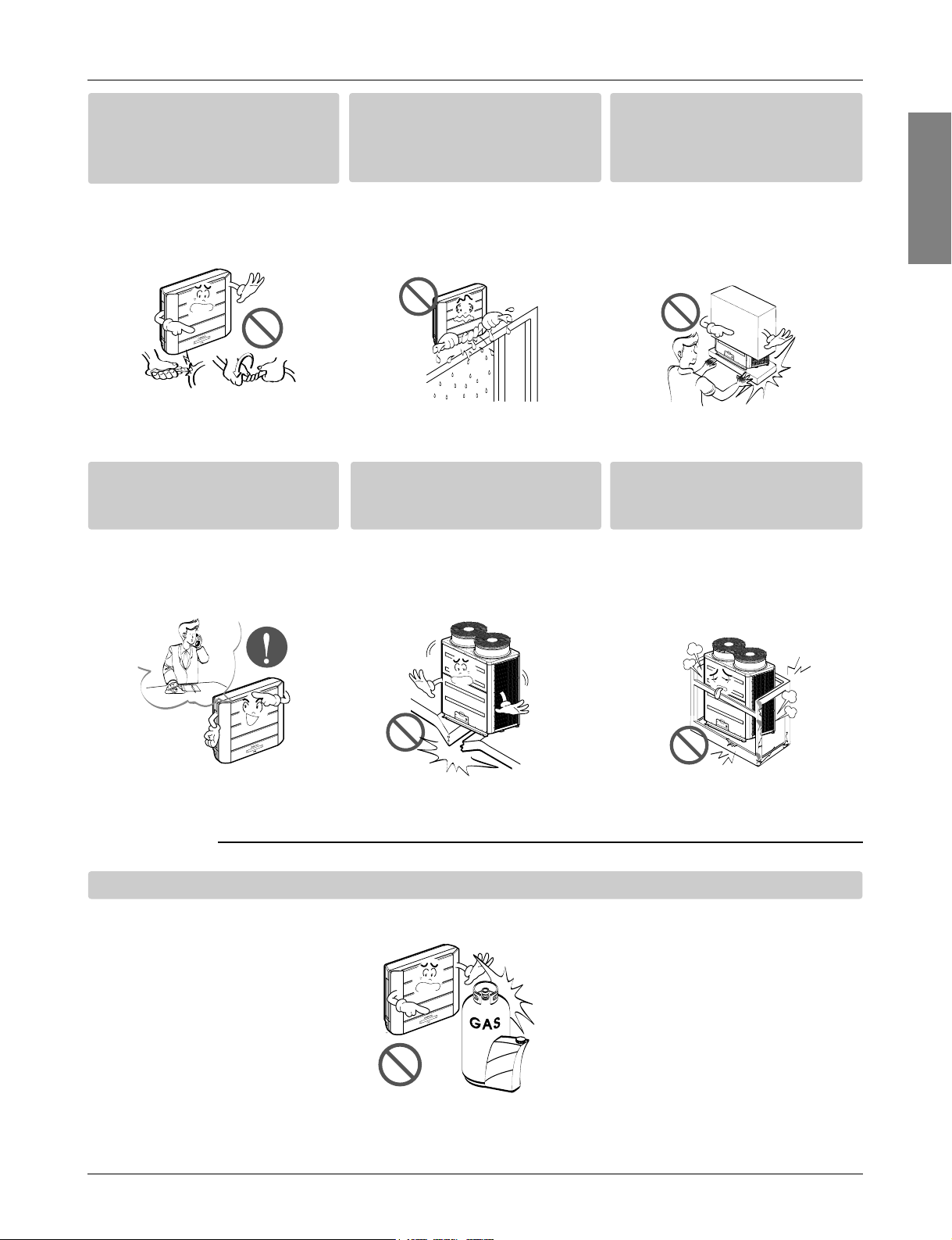

Safety Precautions
ENGLISH
■Operation
Do not modify or extend the
power cable.
• There is risk of fire or electric shock.
Do not let the air conditioner
run for a long time when the
humidity is very high and a door
or a window is left open.
• Moisture may condense and wet or
damage furniture.
Be cautious when unpacking
and installing the product.
• Sharp edges could cause injury. Be
especially careful of the case edges
and the fins on the condenser and
evaporator.
For installation, always contact
the dealer or an Authorized
Service Center.
• There is risk of fire, electric shock,
explosion, or injury.
Do not install the product on a
defective installation stand.
• It may cause injury, accident, or
damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air condi-
tioner could fall with it, causing prop-
erty damage, product failure, and
personal injury.
Do not store or use flammable gas or combustibles near the product.
• There is risk of fire or failure of product.
Gasolin

6Indoor Unit
Safety Precautions
Always check for gas (refriger-
ant) leakage after installation or
repair of product.
• Low refrigerant levels may cause
failure of product.
Install the drain hose to ensure
that water is drained away prop-
erly.
• A bad connection may cause water
leakage.
Keep level even when installing
the product.
• To avoid vibration or water leakage.
Do not install the product where
the noise or hot air from the out-
door unit could damage the
neighborhoods.
• It may cause a problem for your
neighbors.
Use two or more people to lift
and transport the product.
• Avoid personal injury.
Do not install the product where
it will be exposed to sea wind
(salt spray) directly.
• It may cause corrosion on the product.
Corrosion, particularly on the con-
denser and evaporator fins, could
cause product malfunction or inefficient
operation.
90˚
■Installation

Installation Manual 7
Installation
ENGLISH
Read completely, then follow step by step.
Installation
Selection of the best location
CAUTION : In case that the unit is installed near the sea, the installation parts
may be corroded by salt. The installation parts (and the unit) should be taken
appropriate anti-corrosion measures.
•Do not have any heat or steam near the unit.
•Select a place where there are no obstacles in front of the unit.
•Make sure that condensation drainage can be conveniently routed away.
Do not install near a doorway.
•Ensure that the space around the left and right of the unit is more than 50cm. The unit should be installed as high on the
wall as possible, allowing a minimum of 10cm from ceiling.
•Use a stud finder to locate studs to prevent unnecessary damage to the wall.
More than 10cm
Lower than 2.3m
More than 50cm
More than 2m
Higher than eye-level
More than 50cm

8Indoor Unit
Installation
Preparing Work for Installation
The wall you select should be strong and solid enough
to prevent vibration
1) Open panel front
•First pull down the grille bottom, then remove
screws(2 pieces), and close grille bottom again.
•The moment of lifting the both lower parts of panel
front, you can hear sound this panel came out. In
this time panel front is separated
•After pulling down this panel a bit, separate con-
necting wire with product.
2) Cover pipe and cover side remove
•Remove two screws.(for fixing cover pipe)
•Pull up the cover side of desired connecting direc-
tion, then cover side is separated.
•In case connecting direction is left or right, path
through the hole of cover side.
(When path through the hole, take care of burr.)
When connecting pipe path through rear
wall, don’t remove the hole.
3) Drain hose junction
•Remove the rubber stopple of desired drain direc-
tion.
•As the following picture, insert drain hose in the han-
dle of drain pan, and join drain hose and connecting
hose.
NOTICE
Pipe hole
Side cover
rubber cap
Only one
desiring direction
Connecting
part
Adhesive
Drain
hose
Panel Front
Connector

Installation Manual 9
Installation
ENGLISH
Sticking the Installation Guide Map and Fixing Indoor Unit
4) Drill the piercing part for connecting pipe as
diameter 50mm. (In case of piercing rear surface)
10mm
INSTALLATION GU
6) First, drive the two points of the upper parts by
screws. (Leave 10mm for hanging product)
INSTALLATION GUIDE MAP
INSTAIIATIONGUIDEMAP
INSTALLATION GUIDE MAP
1) Put an Installation Guide Map on the desired
surface.
3) Make a hole with diameter of 6mm and depth of
5) Drive the plastic anchors into drilled points.
7) Hang the hole of product at the upper screws.
(In this time, remove the map)
(Falling attention)
9) Check the fixed product with light power.
2) Look at suited horizon by horizontal meter on
the horizontal setting line, and fix lightly the
map by adhesive tape. 8) Drive the lower parts after facing the hole of
product with plastic anchors, and fix completely
the upper screws.
10) Drive the lower parts after facing the hole of
product with plastic anchors, and fix completely
the upper screws.
Horizontal meter
INSTALLATIONGUIDEMAP
Plastic anchors
INSTALLATIONGUIDEMAP
Hanger hole
(Rear side of
product)
Plastic anchors

•Preparing the indoor unit's piping and drain hose for
installation through the wall.
1) Route the indoor tubing and the drain hose in the
direction of rear left or right.
2) Tape the tubing, drain hose, and the connecting
cable. Be sure that the drain hose is located at the
lowest side of the bundle. Locating at the upper side
can cause drain pan to overflow inside the unit.
If the drain hose is routed inside the room,
insulate the hose with an insulation material*
so that dripping from "sweating"(condensa-
tion) will not damage furniture or floors.
*Foamed polyethylene or equivalent is recommended.
3) Connecting the pipings to the indoor unit and
drain hose to drain pipe.
•Align the center of the pipes and sufficiently tighten
the flare nut by hand.
•Tighten the flare nut with a wrench.
•When extending the drain hose at the indoor unit,
install the drain pipe.
4) Wrap the insulation material around the connect-
ing portion.
•Overlap the connection pipe insulation material and
the indoor unit pipe insulation material. Bind them
together with vinyl tape so that there is no gap.
NOTICE
10 Indoor Unit
Installation
Connection of Piping
GAS LIQUID
Ø12.7[5.5kg.m] Ø6.35[1.8kg.m]
Ø15.88[6.6kg.m] Ø9.52[4.2kg.m]
Pipe Size[Torque]
Drain hose
Connecting
cable
Gas side piping
Liquid side piping
Drain hose
Loop
Indoor unit tubing Flare nut Pipes
Wrench
Indoor unit tubing
Open-end wrench (fixed)
Connection pipe
Flare nut
Vinyl tape(narrow)
Adhesive
Drain pipe
Indoor unit drain hose
Plastic bands Insulation material

Installation Manual 11
ENGLISH
Installation
Drain Piping
•Wrap the area which accommodates the rear piping
housing section with vinyl tape. •Bundle the piping and drain hose together by wrap- ping them with vinyl tape for enough to cover where
they fit into the rear piping housing section.
Vinyl tape(narrow)
Connection
pipe
Connecting cable
Vinyl tape
(wide) Wrap with vinyl tape
Indoor
unit pipe
Pipe
Wrap with vinyl tape
Drain hose
Pipe
Vinyl tape(wide)
Downward slope
Do not raise Accumulated
drain water Tip of drain hose
dipped in water
Air
Waving
Water
leakage Water
leakage Ditch
Less than
50mm gap
Water
leakage
1) To check the drainage.
•Pour a glass of water on the evaporator.
•Ensure the water flows through the drain hose of
the indoor unit without any leakage and goes out
the drain exit.
2) Drain piping
•The drain hose should point downward for easy
drain flow.
•Do not make drain piping.

12 Indoor Unit
Installation
Front Panel Assembly
1) First, check the side cover assembly exactly.
2) Assemble connecting lead wire with control and
first fix the upper part of panel front, then match
the lower part of panel front
3) Drive two screws.
Panel Front
Connector

Installation Manual 13
ENGLISH
Installation
Circuit Breaker
Use a circuit
breaker or time
delay fuse.
•Connect the cable to the indoor unit by connecting the wires to the terminals on the control board in-
dividually according to the outdoor unit connection. (Ensure that the color of the wires of the outdoor unit
and the terminal No. are the same as those of the indoor unit.)
The earth wire should be longer than the common wires.
•When installing, refer to the circuit diagram
on the Control Box of Indoor Unit.
•When installing, refer to the wiring diagram
on the Control Cover Inside Outdoor Unit.
Terminal Block Indoor
1(L) 2(N) 3 4
INDOOR POWER INPUT
Terminal Block in Outdoor
ABC D Vcc
Air
Conditioner
Main power source
CAUTION
•The above circuit diagram is subject to change without notice.
•Be sure to connect wires according to the wiring diagram.
•Connect the wires firmly, so that not to be pulled out easily.
•Connect the wires according to color codes by referring the wiring diagram.
CAUTION After the confirmation of the above conditions,
prepare the wiring as follows:
1) Never fail to have an individual power circuit specifically for the air conditioner. As for the method of
wiring, be guided by the circuit diagram posted on the inside of control cover.
2) The screws which fasten the wiring in the casing of electrical fittings are liable to come loose from vibra-
tions to which the unit is subjected during the course of transportation. Check them and make sure that
they are all tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3) Specification of power source.
4) Confirm that electrical capacity is sufficient.
5) See to that the starting voltage is maintained at more than 90 percent of the rated voltage marked on the
name plate.
6) Confirm that the cable thickness is as specified in the power source specification.
(Particularly note the relation between cable length and thickness.)
7) Always install an earth leakage circuit breaker where it is wet or moist.
8) The following would be caused by voltage drop.
•Vibration of a magnetic switch, which will damage the contact point, fuse breaking, disturbance of the normal
function of the overload protection device.
9) The means for disconnection from a power
supply shall be incorporated in the fixed wiring and have an air gap contact separation of at least 3mm in
each active(phase) conductors.
CAUTION If a power plug is not to be used,
provide a circuit breaker between power
source and the unit as shown below.
Wiring Connection

14 Indoor Unit14 Indoor Unit
Installation
1. Remove the battery cover from the remote controller.
•Slide the cover according to the arrow direction.
2. Insert the two batteries.
•Be sure that the (+) and (-) directions are correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Slide it back into position.
HOW TO MOUNT ONTO A WALL
HOW TO INSERT BATTERIES
•Do not use rechargeable batteries,
such batteries differ from standard dry
cells in shape, dimensions, and per-
formance.
•Romove the batteries from the remote
controller if the air conditioner is not
going to be used for some long time.
Installation of Remote Controller
