LG Hydro Kit User manual

ENGLISH
РУССКИЙ ЯЗЫК
ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
ΕΛΛΗΝΙΚΆ
ČEŠTINA
NEDERLANDS
POLSKI
LIMBA ROMÂNĂ
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it thoroughly.
[ Representative ] LG Electronics Inc. EU Representative : LG Electronics European Shared
Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands
[Manufacturer] LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro, Seongsan-gu,
Changwon-si, Gyeongsangnam-do, KOREA
INSTALLATION MANUAL
AIR-TO-WATER
HEAT PUMP
Hydro Kit
Original instruction
www.lg.com
Copyright © 2018 - 2019 LG Electronics Inc. All Rights Reserved.
MFL67086712
Rev.03_082119

Table of contents
2 Hydro Kit
3 SAFETY PRECAUTIONS
7 INSTALLATION PARTS
8 GENERAL INFORMATION
8 Model Information
10 General Information
11 INSTALLATION

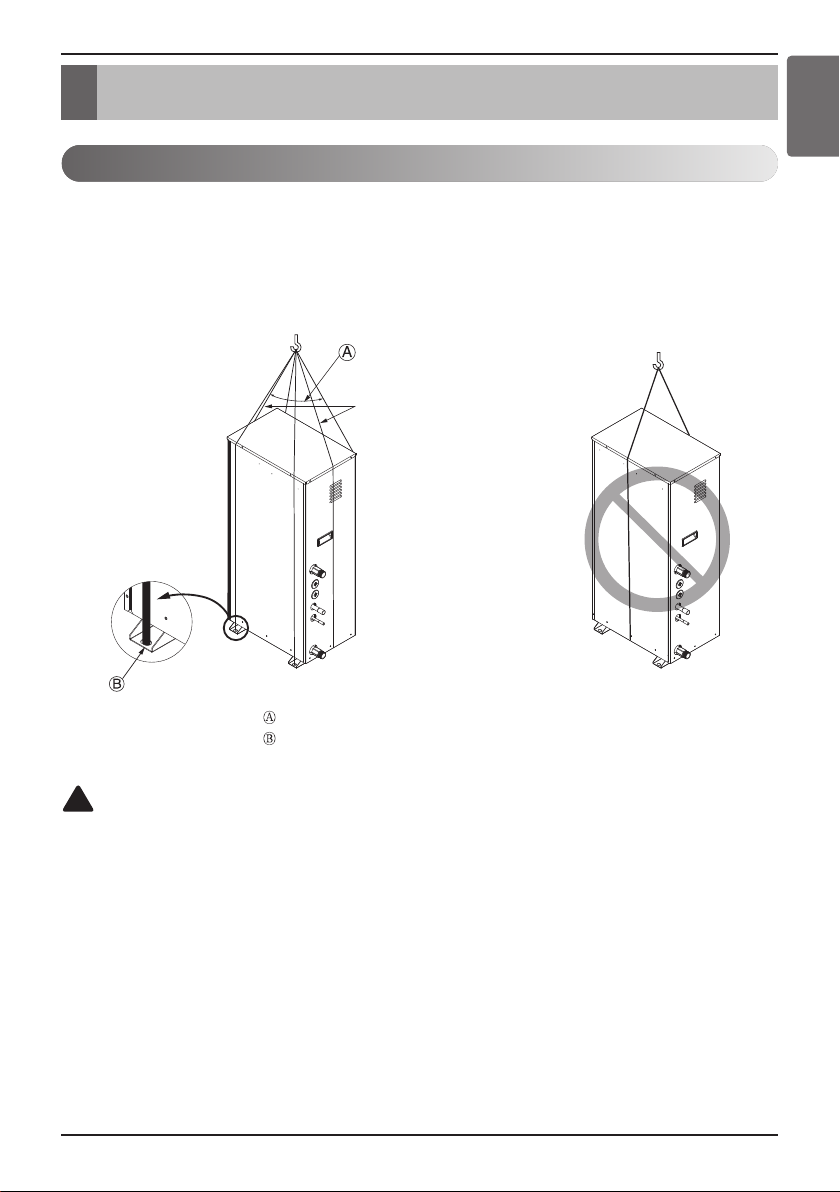

11 Transporting the Unit
12 Selection of the best location
12 Installation Space
14 Foundation for Installation
15 Water Piping and Water Circuit Connection
18 Installation Scenes
25 Refrigerant Piping
28 How to connect wirings
29 Wiring Connection
31 Connecting Cables
34 Independent Power Module
36 ACCESSORIES INSTALLATION
36 Location of Accessories and External Parts Connection
38 Main Pump Connection
38 Water tank temperature sensor Connection
39 Thermostat
43 Remote Temperature Sensor
44 3Way Valve
46 2Way Valve
47 Dry Contact
49 External Controller
50 External pump
51 Wi-fi Modem
52 Smart Grid
53 SYSTEM SET-UP
53 DIP Switch Setting
56 Group Control Setting
60 Installer Setting
73 TEST RUN
73 Caution before Operation Test
73 Operation Test of Water Pipe
74 Troubleshooting
76 Airborne Noise Emission
76 Limiting concentration
76 Model Designation
TABLE OF CONTENTS

Safety Precautions
Hydro Kit Installation Manual 3
ENGLISH
To prevent injury to the user or other people and property damage, the following
instructions must be followed.
n Be sure to read before installing the unit.
n Be sure to observe the cautions specified here as they include important items related
to safety.
n Incorrect operation due to ignoring instruction will cause harm or damage.
The seriousness is classified by the following indications.
nMeanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions
Installation
• Do not use a defective or underrated circuit breaker. Use this
appliance on a dedicated circuit.
- There is risk of fire or electric shock.
• For electrical work, contact the dealer, seller, a qualified electrician,
or an Authorized Service Center.
- There is risk of fire or electric shock.
• Always ground the unit.
- There is risk of fire or electric shock.
• Install the panel and the cover of control box securely.
- There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric shock.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric.
• Do not modify or extend the power cable.
- There is risk of fire or electric shock.
• Do not install, remove, or reinstall the unit by yourself (customer).
- There is risk of fire, electric shock, explosion, or injury.
WARNING
CAUTION
!
!
WARNING
!

Safety Precautions
4 Hydro Kit
• For antifreeze, always contact the dealer or an authorized service
center.
- Almost the antifreeze is a toxic product.
• The refrigerant of this product is R410A.
- The installation tool such as manifold gauge should be complied
with R410A.
• For installation, always contact the dealer or an Authorized Service
Center.
- There is risk of fire, electric shock, explosion, or injury.
• Do not install the unit on a defective installation stand.
- It may cause injury, accident, or damage to the unit.
• Be sure the installation area does not deteriorate with age.
- If the base collapses, the unit could fall with it, causing property
damage, unit failure, and personal injury.
• Do not install the unit outdoor.
- It may cause damage to the unit.
• Use a vacuum pump or inert (nitrogen) gas when doing leakage
test or purging air. Do not compress air or oxygen and do not use
flammable gases.
- There is the risk of death, injury, fire or explosion.
• Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
• This equipment shall be provided with a supply conductor
complying with the national regulation.
Operation
• Take care to ensure that power cable could not be pulled out or
damaged during operation.
- There is risk of fire or electric shock.
• Do not place anything on the power cable.
- There is risk of fire or electric shock.
• Do not plug or unplug the power supply plug during operation.
- There is risk of fire or electric shock.
• Do not touch (operate) the unit with wet hands.
- There is risk of fire or electric shock.
• Do not place a heater or other appliances near the power cable.
- There is risk of fire or electric shock.

Safety Precautions
Hydro Kit Installation Manual 5
ENGLISH
• Do not allow water to run into electric parts.
- There is risk of fire, failure of the unit, or electric shock.
• Do not store or use flammable gas or combustibles near the unit.
- There is risk of fire or failure of unit.
• Do not use the unit in a tightly closed space for a long time.
- It may cause damage to the unit.
• When flammable gas leaks, turn off the gas and open a window for
ventilation before turning the unit on.
- There is risk of explosion or fire.
• If strange sounds, or smell or smoke comes from unit, turn the
breaker off or disconnect the power supply cable.
- There is risk of electric shock or fire.
• Stop operation and close the window in storm or hurricane. If
possible, remove the unit from the window before the hurricane
arrives.
- There is risk of property damage, failure of unit, or electric shock.
• Do not open the front cover of the unit while operation. (Do not
touch the electrostatic filter, if the unit is so equipped.)
- There is risk of physical injury, electric shock, or unit failure.
• When the unit is soaked (flooded or submerged), contact an
Authorized Service Center.
- There is risk of fire or electric shock.
• Be cautious that water could not be poured to the unit directly.
- There is risk of fire, electric shock, or unit damage.
• Ventilate the unit from time to time when operating it together with
a stove, etc.
- There is risk of fire or electric shock.
• Turn the main power off when cleaning or maintaining the unit.
- There is risk of electric shock.
• Take care to ensure that nobody could step on or fall onto the unit.
- This could result in personal injury and unit damage.
• For installation, always contact the dealer or an Authorized Service
Center.
- There is risk of fire, electric shock, explosion, or injury.
• If the unit is not used for long time, we strongly recommend not to
switch off the power supply to the unit.
- There is risk of water freezing.

Safety Precautions
6 Hydro Kit
Installation
• Always check for gas (refrigerant) leakage after installation or
repair of unit.
- Low refrigerant levels may cause failure of unit.
• Keep level even when installing the unit.
- To avoid vibration or water leakage.
• Use two or more people to lift and transport the unit.
- Avoid personal injury.
Operation
• Do not lay on the cooled floor for long time when the unit is in
cooling operation.
- This could harm to your health.
• Do not use the unit for special purposes, such as preserving foods,
works of art, etc.
- There is risk of damage or loss of property.
• Use a soft cloth to clean. Do not use harsh detergents, solvents,
etc.
- There is risk of fire, electric shock, or damage to the plastic parts
of the unit.
• Do not step on or put anything on the unit.
- There is risk of personal injury and failure of unit.
• Use a firm stool or ladder when cleaning or maintaining the unit.
- Be careful and avoid personal injury.
• Do not unplug the power supply plug of Hydro Kit when stopping
Hydro Kit operation. Always turn Hydro Kit off, using the wired
remote controller.
- A plate heat exchanger burst may happen because of
disconnection of communication between Hydro Kit and the
outdoor unit.
CAUTION
!

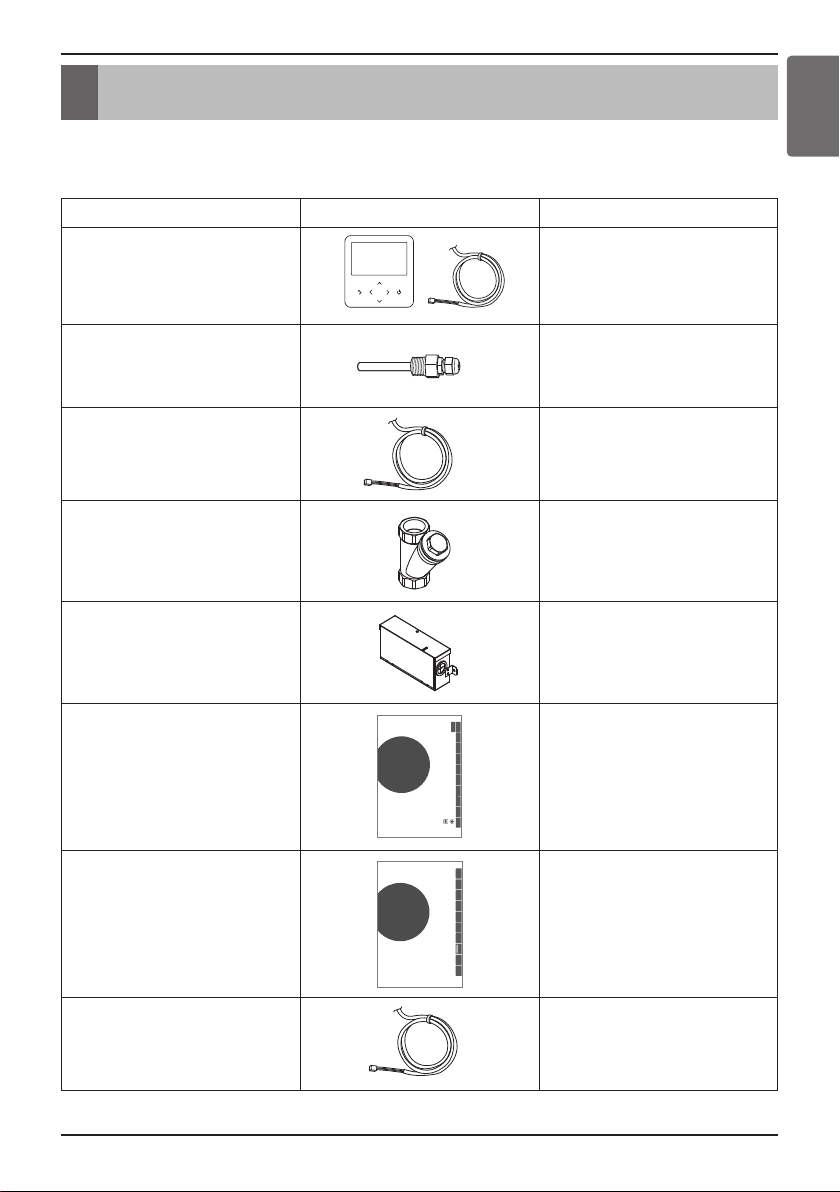

Installation Parts
Hydro Kit Installation Manual 7
ENGLISH
Item Image Quantity
Remote Cotroller
/ Cable
OK
1
Sensor Holder 1
Water Tank Temperature
Sensor 1
Strainer 1
Independent
Power Module
(For Medium Temperature)
1
Installation Manual 1
Owner's Manual 1
CN_EXT Cable 1
Installation Parts
Thank you for choosing LG Electronics Hydro Kit .
Before starting installation, please make it sure that all parts are found inside the unit box.
Please readthis install ation manual completelybefore installing the product.
Installation work must be performed in accordancewith the national wiring
standardsby authorized personnel only.
Please retainthis install ation manual for futurereference after reading it thoroughly
[ Representative ]LG Electronics Inc. EU Representative : LG Electronics EuropeanShared
ServiceCenter B.V. Krijgsman 1, 1186 DM Amstelveen,The Netherlands
[Manufacturer]LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro, Seongsan-gu,
Changwon-si,Gyeongsangnam-do, KOREA
INSTALLATIONMANUAL
AIR-TO-WATER
HEAT PUMP
Hydro Kit
Originalinstruction
www.lg.com
Copyright© 2018 LG Electronics Inc. All Rights Reserved.
MFL67086712
Rev.00_101118
001
ENGLISH
ɊɍɋɋɄɂɃəɁɕɄ
ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
ǼȁȁǾȃǿȀDZ
ČEŠTINA
NEDERLANDS
POLSKI
LIMBAROMÂNĂ
www.lg.com
P/NO:MFL67870215
Pleaseread thismanual carefully beforeoperating your set and retainitfor future
reference.
HydroKit(ForHigh Temperature)
Originalinstruction
OWNER’SMANUAL
AIR
CONDITIONER
[ Representative ] LGElectronicsInc. EURepresentative:LGElectronics European Shared
ServiceCenter B.V. K rijgsman 1, 1186 DM Amstelveen, The Netherlands
[Manufacturer]LGElectronics Inc. Changwon 2nd factory 84, Wanam-ro, Seongsan-
gu,Changwon-si, Gyeongsangnam-do, KOREA
ITALIANO ESPAÑOL
FRANÇAIS
DEUTSCH
фъъцьшщُ
ČEŠTINA
NEDERLANDS
POLSKI
LIMBA ROMÂNĂ
ENGLISH

General Information
8 Hydro Kit
Model Information
With advanced inverter technology, Hydro Kit is suitable for applications like under floor heating,
and hot water generation. By Interfacing to various accessories user can customize the range of the
application.
Model name and related information
• For Medium Temperature
*1 : Tested under Eurovent Heating condition
(water temperature 30 °C → 35 °C at outdoor ambient temperature 7 °C / 6 °C)
*2 : Tested under Eurovent Cooling condition
(water temperature 23 °C → 18 °C at outdoor ambient temperature 35 °C / 24 °C)
- Max Allowable pressure
High side : 4.2 MPa / Low Side : 2.4 MPa
- Max Allowable water temperature
High side : 50 °C / Low side : 10 °C
- Max Allowable water pressure 0.98 MPa (0.3~10 kgf/cm2)
Type Hydro Kit
HP
Power Supply Ø, V, Hz
Capacity
Cooling
kW
kcal/h
Btu/h
Heating
kW
kcal/h
Btu/h
General Information
10 4
1, 220-240, 50
28 12.3
24 100 10 580
95 900 42 000
31.5 13.8
27 100 11 870
107 500 47 000

General Information
Hydro Kit Installation Manual 9
ENGLISH
• For High Temperature
*1 : Tested under Eurovent Heating condition
(Water temperature 55 ℃ → 65 ℃ at outdoor ambient temperature 7 ℃ / 6 ℃)
- Max Allowable pressure
High side : 4.2 MPa / Low Side : 2.4 MPa
- Max Allowable water temperature
High side : 80 °C / Low side : 10 °C
- Max Allowable water pressure 0.98 MPa (0.3~10 kgf/cm2)
Type
Hydro Kit
HP
Power Supply Ø, V, Hz
Capacity Heating
kW
kcal/h
Btu/h
Refrigerant Type
Quantity kg(lbs)
84
1, 220-240, 50
25.2 13.8
21 700 11 870
85 900 47 000
R134a
3(6.6) 2.3(5.04)

General Information
10 Hydro Kit
General Information
Accessories supported by LG Electronics
To extend the functionality of Hydro Kit , there are various external auxiliary apparatus called as
"accessories".
They are classified by "accessories" and "3rd party accessories" according to the manufacturer.
Accessories are presented LG Electronics, and 3rd party accessories are presented by related
manufacturers.
Accessories supported by 3rd party Companies
Item Purpose Specification
Solar
Thermal System
To generate auxiliary
heating energy for water tank
Thermostat To control the unit by air
temperature
Heating-Only type
(230 V AC or 24 V AC)
Cooling/Heating type
(230 V AC or 24 V AC
with Mode selection switch)
3way valve
and actuator
To control water flow for hot
water heating or floor heating
3 wire, SPDT (Single Pole Double
Throw) type, 230 V AC
2way valve
and actuator
To control water flow for
Fan Coil Unit
2 wire, NO(Normal Open) or NC
(Normal Closed) type, 230 V AC
Item Purpose Model
(Medium Temperature)
Model
(High Temperature)
Remote Air
Sensor
To control the unit by air
temperature PQRSTA0 PQRSTA0
Dry Contact To receive on & off external
signal
PDRYCB000 /
PDRYCB100 /
PDRYCB300
PDRYCB000 /
PDRYCB100 /
PDRYCB300
Solar Thermal Kit To operate with sanitary
water tank PHLLA

Installation
Hydro Kit Installation Manual 11
ENGLISH
Transporting the Unit
• When carrying the suspended unit, pass the ropes between legs of base panel under the unit.
• Always lift the unit with ropes attached at 6 points so that impact is not applied to the unit.
• Attach the ropes to the unit at an angle Ⓐof 40° or less.
• Use only accessories and parts which are of the designated specification when installing.
Sub line
40º or less
Line supporter
CAUTION
Be very careful while carrying the unit.
- Do not have only one person carry the unit if it is more than 20 kg (44.1 lbs).
- PP bands are used to pack some products. Do not use them as a mean for transportation
because they are dangerous.
- Tear plastic packaging bag and scrap it so that children cannot play with it. Otherwise
plastic packaging bag may suffocate children to death.
- When carrying the unit, be sure to support it at 6-points. Carrying and lifting the unit with 4-
point support may make it unstable, resulting in a fall.
!
Installation
• For High Temperature

Installation
12 Hydro Kit
Select space for installing the unit, which will meet the following conditions:
The place where the unit shall be installed inside.
The place shall easily bear a load exceeding four times of the unit weight.
The place where the unit shall be leveled.
The place shall allow easy water drainage.
The place where the unit shall be connected to the outdoor unit.
The place where the unit is not affected by an electrical noise.
The place where there should not be any heat source or steam near the unit.
Installation Space
• The following values are the least space for installation.
If any service area is needed for service according to field circumstance, obtain enough service
space.
• The unit of values is mm(inch).
<For Medium Temperature>
(Unit: mm(inch))
100(3-15/16)
100(3-15/16)
100(3-15/16)
100(3-15/16)
200(7-7/8)
631(24-16/19)631(24-16/19)
H-Beam supporter
space
space
(Unit: mm(inch))
Service space
(front side)
Piping space
(front side)
Product
520(20-15/32) 400(15-3/4)
330(13)
600(23-5/8)
Selection of the best location

Installation
Hydro Kit Installation Manual 13
ENGLISH
<For High Temperature>
(Unit : mm(inch))
400(15-3/4)520(20-15/32) 300(11-13/16)
Service space
(front side)
Service space
(left side)
1 080(42-17/32)1 080(42-17/32)
H-Beam supporter
Concrete supporter
space
space
Anti Vibration
material
(Unit : mm(inch))
350(13-25/32)
600(23-5/8)
100(3-15/16)
100(3-15/16)
100(3-15/16)
200(7-7/8)
100(3-15/16)
Piping space
(front side)

Installation
14 Hydro Kit
Foundation for Installation
• Fix the unit tightly with bolts as shown below so that the unit will not fall down due to earthquake.
• Noise and vibration may occur from the floor or wall since vibration is transferred through the
installation part depending on installation status. Thus, use anti-vibration materials (cushion pad)
fully (The base pad shall be more than 200 mm (7-7/8 inch)).
<For Medium Temperature>
<For High Temperature>
Flat washer Anchor bolt
Spring washer
Nut
Anti-vibration material
Concrete base
Support
75(2-15/16)
3 or more screw threads of
the 2 bolts must be shown
(Unit: mm(inch))
392(15-7/16)
340(13-3/8)
354(13-31/32)
(Unit: mm(inch))
392(15-7/16)
Drain pipe connection (For Medium Temperature)
- Hydro Kit does not use the drain pump.
- Do not install in upward direction.
- Install the drain pipe in downward direction (1/50-1/100).
-
Hydro Kit drain connection pipe is PT 1.
Hydro kit Hydro kit

Installation
Hydro Kit Installation Manual 15
ENGLISH
General Considerations
Followings should be considered before beginning water circuit connection.
• Service space should be secured.
• Water pipes and connections should be cleaned using water.
• Space for installing external water pump should be provided.
• Never connect electric power while proceeding water charging.
Water Piping and Water Circuit Connection
While installing water pipes, followings should be considered :
•
While inserting or putting water pipes, close the end of the pipe with pipe cap to avoid dust entering.
• When cutting or welding the pipe, always be careful that inner section of the pipe should not be
defective. For example, no weldments or no burrs are found inside the pipe.
• Pipe fittings (e.g. L-shape elbow, T-shape tee, diameter reducer, etc) should be tightened strongly
to be free from water leakage.
• Connected sections should be leakage-proof treatment by applying tefron tape, rubber bushing,
sealant solution, etc.
•
Appropriate tools and tooling methods should be applied to prevent mechanical breakage of the connections.
• Operation time of flow valve(e.g. 3way valve or 2way valve) should be less than 90 seconds.
• Pipe is insulated to prevent heat loss to external environment.
Strainer
- Use the 30 mesh strainer. (Exclude scale diameter of 0.8 mm or less and other net)
- Check the strainer direction and assemble on the inlet hole (Refer to picture)
- Wrap the Teflon tape on the screw thread of the water pipe for more than 15 times for assembly.
- Install the service port facing downward. (Within left/right 45 degrees)
- Check if there is any leakage on the connecting part.
- Clean the strainer periodically. (Once a year or more frequent)
Water In
Strainer
Side
Front
45°
Water Piping and Water Circuit Connection

Installation
16 Hydro Kit
Water cycle minimum requirements
1. For selecting the components of the hydraulic system, be sure they are above the design water
pressure.
2. For the water pipe, diffusely tight water pipes are recommended instead of steel pipes.
3. For the drain pipe size, use the same diameter as the product connected or larger. Always install a
natural drainage so that the drained water does not flows back
4. Install insulated material across the total hydraulic piping to prevent condensation and to prevent
low cooling or heating capacity during heat transfer losses. If the temperature is higher than 30 °C
and the humidity is higher than 80 % the insulation material must be minimum 20 mm thick to
prevent condensation.
5. Install the shut-off valve (1) to block the water by closing the valve when replacing the component
or cleaning.
6. Install an expansion tank (2) based on the water volume of the hydraulic system.
7. Install the drain valve (3) that can be used for draining the water inside when replacing the
component or providing service.
8. Install a magnetic dirt separator (4) at the inlet water pipe If the air separator is not installed there
can be formed air bubbles inside the hydraulic system. Flow error will be showed first on remote
controller, however finally a plate heat exchanger may burst during combined circumstances.
9. Install a circulation pump (5) which meets the water flow specifications mentioned inside product
data book.
10. Install the strainer (6) at the inlet water pipe connection to protect the PHE. Do not charge water
into the water pipe directly during Hydro Kit operation. If the strainer is not installed, component
malfunction of Hydro Kit may occur.
- For the strainer, use one with 30 mesh or above with measurement diameter of 0.8 mm or less.
- Always install the strainer on the horizontal pipe.
11. Install a balancing valve (with flow meter) (8)
12. Install an automatic air separator in the outlet water pipe (9)
13. Install pressure safety relief valve (10) in vertical upright position that meets the design water
pressure to prevent unit or water pipe damage during pressure increase inside the water pipe
system.
14. Install a pressure meter (11) in the outlet water pipe.
15. Install in case of cascade hydraulic systems or bivalent systems a flow-check valve (12) at each
outlet water pipe.
16. Install a buffer tank (13) of at least 10L/kW heating capacity in order to have a correct defrost
cycle, if there is no knowledge about the type and dimensions of the heating system. If there is
no buffer tank installed, the product can be damaged during normal operation or defrost
operation.
17. After product operation for 2 weeks in case of new installation, clean the water filter. In the
beginning of operation small particular dirt from installing process can block the filter which can
lead to damage of the product.

Installation
Hydro Kit Installation Manual 17
ENGLISH

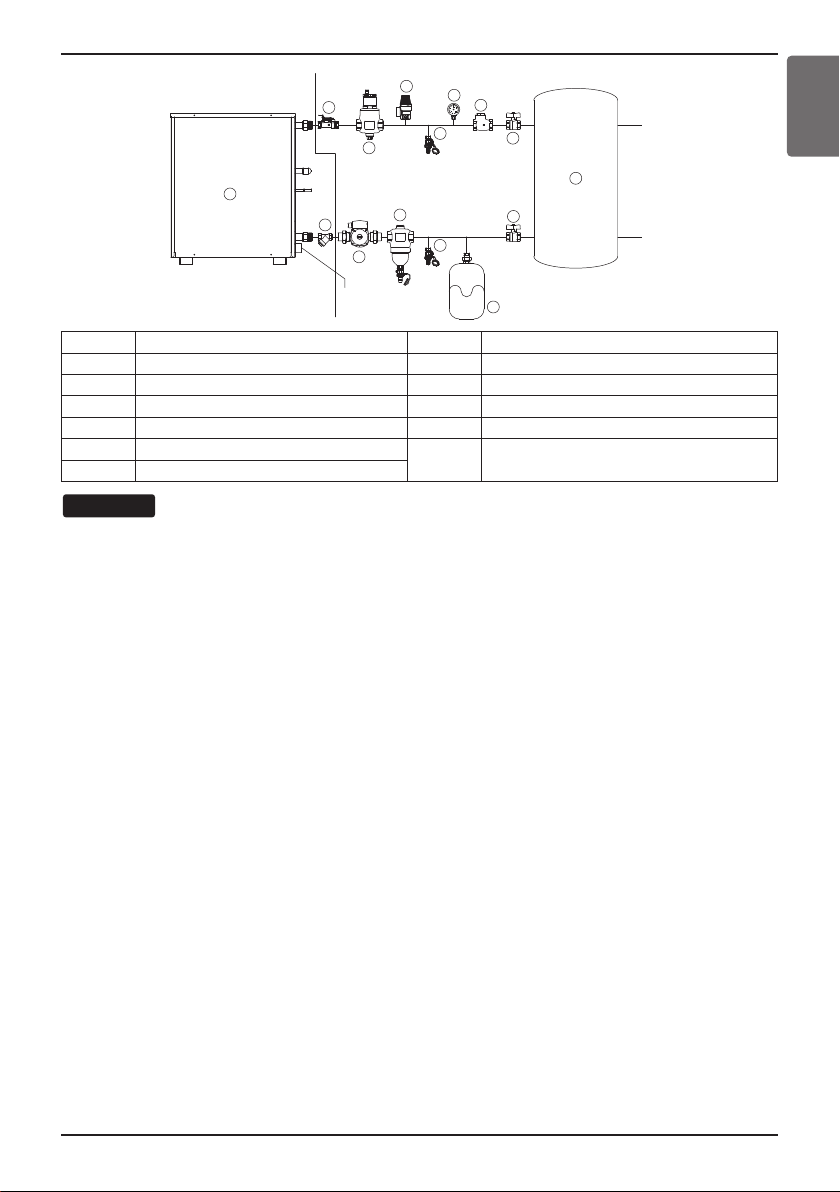

13
12
Heating
/
Cooling
1
1
Field SupplyLG Supply
3
3
11
10
9
8
6
5
4
2
7
Drainage
1 Shut-Off valve 8 Balancing valve with flow meter
2 Expansion tank 9 Automatic air separator
3 Service port(Drain valve) 10 Pressure safety relief valve
4 Magnetic filter(Recommended) 11 Pressure meter
5 Water Pump 12 Check valve
6 Strainer 13 Buffer tank /
DHW1) (Sanitary Water) Tank
7 Flow switch (included in product)
Install the closed loop type water pipe system.
Balancing valve with flow meter is recommended to ensure 100 % of the nominal flow.
1) DHW : Domestic Hot Water.
NOTICE

Installation
18 Hydro Kit

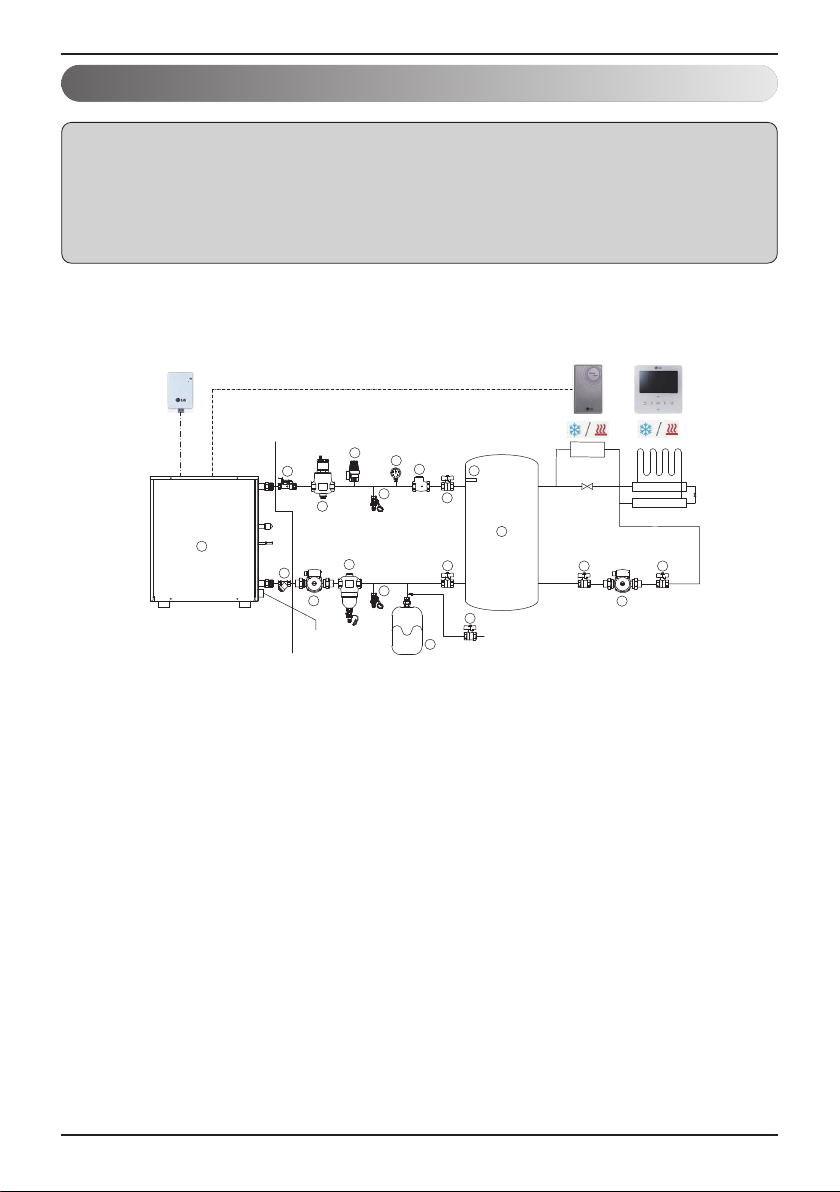

1) Space Heating/Cooling1) Installation
Installation scenes are presented for example.
Installer should optimize the installation scene according to the installation conditions and
local/national regulation.
i.e. Shut-off valves position for spare water pump and water pump service, Flexible joint
installation to prevent noise and vibration.
13
12
1
1
Field SupplyLG Supply
3
3
11
10
9
8
6
5
4
2
7
Drainage
1
Water Supply
5
11
FCU
14
(Cooling → Close)
PQRSTA0
Wired Remote
Controller
Wi-fi Module
(PWFMDD200)
Installation Scenes

Installation
Hydro Kit Installation Manual 19
ENGLISH
- For space heating / cooling, ‘Dip switch #2’ should be set correctly.
- For sensing air temperature at specific area, remote temperature sensor(PQRSTA0) or wired
remote controller could be choose, depending on the ‘Dip switch #3’ setting.
*please refer the “System Set-Up, Dip Switch Setting”
- Wi-Fi module(PWFMDD200/105 cm) connected to ‘CN-WF’ on Hydro kit PCB. To increase the
length between Wi-Fi modem and Hydro Kit, please purchase USB Extension Cable(PWYREW000,
10 m)
- In case of floor cooling, please make sure to set cooling cut off temperature for preventing
condensation on the floor
- For 2 way valve control, please refer the “Accessories Installation, 2 Way valve”
- Balancing valve with flow meter is recommended to ensure 100 % of the nominal flow.
If the water flow rate is too low or High, PHEX could be frozen and burst or capacity could be
reduced.
1) Cooling operation is only available for Medium temperature Hydro Kit.
NOTICE
Mode Condition 2-way valve
Cooling FCU – ‘Not use’ Open
FCU – ‘Use’ Close
Heating None No control
1 Shut-Off valve 8 Balancing valve with flow meter
2 Expansion tank 9 Automatic air separator
3 Service port(Drain valve) 10 Pressure safety relief valve
4Magnetic filter (Mandatory with
Corrosive material of pipe) 11 Pressure meter
5 Water Pump 12 Check valve
6 Strainer 13 Buffer Tank
7 Flow switch (included in product) 14 Water Tank temperature Sensor (12 m)

Installation
20 Hydro Kit

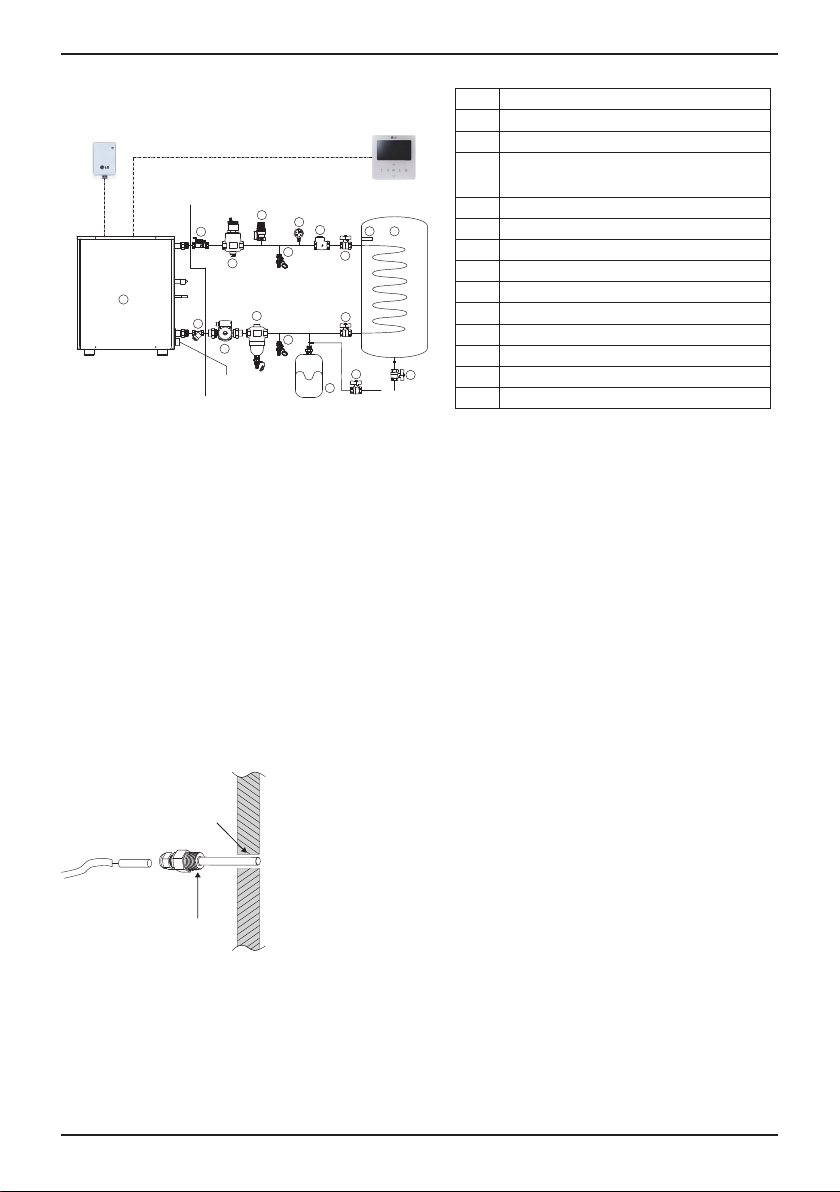

2) Water Tank(DHW) Installation
- For water tank(DHW) operation, dip switch #2 in Hydro Kit PCB should be set correctly, please refer
the “System Set-Up, Dip Switch Setting”
- Wi-Fi module(PWFMDD200, 105 cm) is connected to ‘CN-WF” on Hydro Kit PCB.
To increase the length between Wi-Fi modem and Hydro Kit, please purchase USB Extension
Cable(PWYREW000, 10 m)
- DHW(Sanitary water) tank should be located at the flat place.
- Water quality should comply with EN 98/83 EC Directives.
- DHW(Sanitary water) tank (indirect heat exchange), do not use anti water-freezing treatment like
ethylene glycol.
- It is highly recommend to wash out inside of the DHW(Sanitary water) tank after installation for
clean hot water.
- Near the DHW(Sanitary water) tank , there should be water supply and water drain for easy access
and maintenance.
Water tank temperature sensor(14) connection
13
12
1
1
Field SupplyLG Supply
3
3
11
10
9
8
6
5
4
2
7
Drainage
1
Water Supply
14
Wired Remote
Controller
Wi-fi Module
(PWFMDD200)
1
1 Shut-Off valve
2 Expansion tank
3 Service port(Drain valve)
4Magnetic filter (Mandatory with
Corrosive material of pipe)
5 Water Pump
6 Strainer
7 Flow switch (included in product)
8 Balancing valve with flow meter
9 Automatic air separator
10 Pressure safety relief valve
11 Pressure meter
12 Check valve
13 Buffer Tank
14 Water Tank temperature Sensor (12 m)
If hot water mode is used, make sure to install sensor to
water tank.
• Make PT 1/2inch female bolt hole in the water tank and
install sensor in the water tank.
• Push the sensor into the hole of the sensor holder cap.
• Lock the sensor holder cap.
• Maximum length of water tank temperature sensor is 12 m.
PT 1/2 inch male
Process PT 1/2 inch
female bolt
Inside
water tank
Water tank outer wall
Water Tank
Temperature Sensor
Sensor
holder
