Air-to-Water Heat Pump
LG
Models : AH Series
IMPORTANT
• Please read this owner's manual carefully and
thoroughly before installing and operating your
Air-to-Water Heat Pump.
• Please retain this owner's manual for future
reference after reading it thoroughly.
Owner's Manual
Dear Owner
Thank you for installing LG Air-to-Water Heat Pump.
Your best choice guarantees you a great
performance and service to make your life
comfortable & pleasant.
FRANÇAIS

2Air-to-Water Heat Pump Owner’s Manual
Air-to-Water Heat Pump Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each
unit.
Installer's Name
Purchased Date
■
Staple your receipt to this page in the event you
need it to prove date of purchase or for warranty
issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your AWHP properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your product.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact the authorized service technician for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• AWHP is not intended for use by young children or
invalids without supervision.
• Young children should be supervised to ensure that
they do not play with AWHP.
• When the power cable is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance
A. Safety Precautions.........................3
B. Product Introduction......................6
C. Owner's instruction........................8
D. Using Thermostat.........................33
E. Maintenance and Service ............37
F. Disposal Requirements................39

Safety Precaution
Owner’s Manual 3
ENGLISH
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by
the following indications.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
WARNING
Always ground the product.
• There is a risk of electric shock.
Do not use a defective or underrated
circuit breaker. Use the correctly rated
breaker and fuse.
• There is risk of fire or electric shock .
Do not use a multi outlet. Always use
this appliance on a dedicated circuit and
breaker.
• Otherwise it can cause electric shock or fire.
For electrical work, contact the dealer, seller,
a qualified electrician, or an Authorized
Service Center. Do not disassemble or repair
the product by yourself.
• There is risk of fire or electric shock.
Always ground the product as per the
wiring diagram. Do not connect the
ground wire to gas or water pipes
lightening rod or telephone ground wire.
• There is risk of fire or electric shock.
Install the panel and the cover of control
box securely.
• There is risk of fire or electric shock due to
dust , water etc.
Use the correctly rated breaker or fuse.
• There is risk of fire or electric shock.
Do not modify or extend the power
cable. If the power cable or cord has
scratches or skin peeled off or
deteriorated then it must be replaced.
• There is risk of fire or electric shock.
For installation, removal or reinstall ,
always contact the dealer or an
Authorized Service Center.
• There is risk of fire, electric shock, explosion,
or injury.
Do not install the product on a defective
installation stand. Be sure that the
installation area does not deteriorate with
age.
• It may cause product to fall.
Never install the outdoor unit on a
moving base or a place from where it
can fall down.
• The falling outdoor unit can cause damage
or injury or even death of a person.
When the product is soaked (flooded or
submerged) in water , contact an
Authorized Service Center for repair
before using it again.
• There is risk of fire or electric shock.
Be sure to check the refrigerant to
be used. Please read the label on the
product.
• Incorrect refrigerant can prevent the normal
operation of the unit.
Don't use a power cord, a plug or a
loose socket which is damaged.
• Otherwise it may cause a fire or electrical
shock.
Do not touch , operate, or repair
the product with wet hands.
• There is risk of electric shock or fire.
Do not place a heater or other heating
appliances near the power cable.
• There is risk of fire and electric shock.
Do not allow water to run into electric
parts. Install the unit away from water
sources.
• There is risk of fire, failure of the product, or
electric shock.
Do not store or use or even allow
flammable gas or combustibles near the
product.
• There is risk of fire.

Safety Precaution
4Air-to-Water Heat Pump Owner’s Manual
Indoor/outdoor wiring connections must
be secured tightly and the cable should
be routed properly so that there is no
force pulling the cable from the
connection terminals.
• Improper or loose connections can cause
heat generation or fire.
Safely dispose off the packing materials.
Like screws, nails, batteries, broken
things etc after installation or service
and then tear away and throw away the
plastic packaging bags.
• Children may play with them and cause
injury.
Make sure to check that the power
device is not dirty, loose or broken and
then Turn on the power.
• Dirty, loose or broken power device can
cause electric shock or fire.
Do not use the product in a tightly
closed space for a long time. Perform
ventilation regularly.
• Oxygen deficiency could occur and hence
harm your health.
Do not open the front cover or grille of the
product during operation. (Do not touch the
electrostatic filter, if the unit is so equipped.)
• There is risk of physical injury, electric
shock, or product failure.
If strange sounds, smell or smoke comes
from product, immediately turn the breaker
off or disconnect the power supply cable.
• There is risk of electric shock or fire.
Ventilate the product room from time to
time when operating it together with a
stove, or heating element etc.
• Oxygen deficiency can occur and hence
harm your health.
Turn the main power off when cleaning
or repairing the product.
• There is risk of electric shock.
Take care to ensure that nobody
especially kids could step on or fall onto
the outdoor unit.
• This could result in personal injury and
product damage.
Take care to ensure that power cable
could not be pulled out or damaged
during operation.
• There is risk of fire or electric shock.
Do not place ANYTHING on the power
cable.
• There is risk of fire or electric shock.
When flammable gas leaks, turn off the
gas and open a window for ventilation
before turn the product on.
• Do not use the telephone or turn switches on
or off. There is risk of explosion or fire.
In outdoor unit the step-up capacitor
supplies high voltage electricity to the
electrical components. Be sure to
discharge the capacitor completely
before conducting the repair work.
• An charged capacitor can cause electrical
shock.
When installing the unit, use the
installation kit provided with the product.
• Otherwise the unit may fall and cause severe
injury.
Be sure to use only those parts which
are listed in the service parts list. Never
attempt to modify the equipment.
• The use of inappropriate parts can cause an
electrical shock, excessive heat generation
or fire.

Safety Precaution
Owner’s Manual 5
ENGLISH
CAUTION
Two or more people must lift and
transport the product.
• Avoid personal injury.
Do not install the product where it will be
exposed to sea wind (salt spray) directly.
• It may cause corrosion on the product.
Keep level even when installing the
product.
• To avoid vibration or noise.
Do not install the product where the noise
or hot air from the outdoor unit could
damage or disturb the neighborhoods.
• It may cause a problem for your neighbors
and hence dispute.
Always check for gas (refrigerant)
leakage after installation or repair of
product.
• Low refrigerant levels may cause failure of
product.
Do not use the product for special
purposes, such as preserving foods,
works of art, etc. It is a consumer AWHP,
not a precision refrigeration system.
• There is risk of damage or loss of property.
Do not block the inlet or outlet of air
flow.
• It may cause product failure.
Use a soft cloth to clean. Do not use
harsh detergents, solvents or splashing
water etc .
• There is risk of fire, electric shock, or
damage to the plastic parts of the product.
Do not step on or put anyting on the
product. (outdoor units)
• There is risk of personal injury and failure of product.
Do not insert hands or other objects
through the air inlet or outlet while the
product is operating.
• There are sharp and moving parts that could
cause personal injury.
Be cautious when unpacking and
installing the product.
• Sharp edges could cause injury.
If the refrigerant gas leaks during the
repair, do not touch the leakaing
refrigerant gas.
• The refrigernat gas can cause frostbite (cold
burn)
Do not tilt the unit when removing or
uninstalling it.
• The condensed water inside can spill .
Do not mix air or gas other than the
specified refrigerant used in the system .
• If air enters the refrigerant system, an
excessively high pressure results, causing
equipment damage or injury.
If the refrigerant gas leaks during the
installation, ventilate the area immediately.
• Otherwise it can be harmfull for your health.
Dismantling the unit, treatment of the
refrigerant oil and eventual parts should
be done in accordance with local and
national standards.
Do not expose your skin or kids or
plants to the cool or hot air draft.
• This could harm to your health.
Use a firm stool or ladder when cleaning,
maintaining or repairing the product at
an height.
• Be careful and avoid personal injury.

6Air-to-Water Heat Pump Owner’s Manual
Product Introduction
Product Introduction
1. Indoor unit
2. Outdoor unit
3. Refrigerant pipe and connecting cable
4. Water pipe
5. Ground wire to ground outdoor unit to prevent electrical shocks.
*
The shape of products can be chaged according to the model capacity and type.
1
2
5
4
3
Water
Inlet
Water
Outlet
Typical Installation Scene

Product Introduction
Owner’s Manual 7
ENGLISH
❊Some functions may not be operated and displayed depending on the model.
Control Panel
1
2
3
4
5
6
7
8
9
10
11
12
13
1. Display panel
2. Change temperature button
3. Silent mode On/Off button
4. Operation mode selection button
5. Water heating Enable/Disable
button
6. ESC button
7. Direction button
(Up, Down, Left, Right)
8. Power button
9. Function setting button
10. Temperature setting mode
button
11. Temperature view mode button
12. Programming button
13. Set/Clear button

8Air-to-Water Heat Pump Owner’s Manual
Owner's instruction
AUXILIARY SOLAR THERMAL PUMP
This icon indicates that auxiliary solar thermal
pump is active.
NOTE : As installation of auxiliary solar thermal
pump is not compulsory but recommendation
according to field condition, this icon can be seen
although no auxiliary solar thermal pump is
installed.
Water Pump
This icon indicates that the water pump inside
the indoor unit is active.
Sanitary Water Tank heater
This icon indicates that sanitary water tank
electric heater which is located inside sanitary
water tank is active.
The icon is not used when sanitary water tank is
not installed.
Electric Heater STEP ONE
Electric Heater STEP TWO
These icons indicate that the backup electric
heater which is located inside the indoor unit is
operating.
Monitoring Information
Owner's instruction

Owner’s Manual 9
ENGLISH
Owner's instruction
Monitoring Information
NO FUNCTION
Child Lock
Outdoor
This icon indicates that the outdoor unit is active.
Disinfection
This icon indicates disinfecting operation is
ongoing in sanitary water tank.
Maintain lowest temperature
The purpose of this mode is maintaining the
temperature to prevent damage by freezing of
water pipe.
Defrosting
This icon indicates that the defrost mode is
active.
In space heating operation or sanitary water tank
heating operation, freezing of the outdoor heat
exchanger may be occured due to low outdoor
temperature and humidity. If this risk occurs, the
product goes into defrost operation. It reverses
the cycle and takes heat from the indoor system
to prevent freezing of the outdoor system. This
mode is automatically operating.

10 Air-to-Water Heat Pump Owner’s Manual
Owner's instruction
Monitoring Information
Heavy trouble
This icon indicates that heavy trouble is
occurred.
Slight trouble
This icon indicates that slight trouble is occurred.
Thermostat
This icon indicates connection with thermostat.
Central Controller
This icon indicates that the product is controlled
by the central controller.

Owner’s Manual 11
ENGLISH
Owner's instruction
Mode Change
Press Power Button to turn on the
product.
1
Press OPER MODE Button to select
each operation mode.
: Cooling operation
: Heating operation
: Weather dependent
operation
2
Turn on the product and select operation mode.
Operation Mode
•Cooling Operation - The product yields cool water to use in under floor cooling or FCU cooling.
•Heating Operation - The product yields hot water to use in under floor heating or FCU heating.
•Weather dependent Heating Operation - In this mode, heating setpoint is automatically determined
by pre-defined temperature profile. For more detail, please
refer description on Function Code 24 and 25.

12 Air-to-Water Heat Pump Owner’s Manual
Owner's instruction
Selecting Target Temperature
Press Power Button to turn on the
product.
1
Adjust desired temperature by pressing
Change Temperature buttons on each mode.
Ex1) Setting Temperature as 45°C on Leaving
Water Temperature.
Ex2) Setting Temperature as 27°C on Leaving
Water Temperature.
3
Press SET TEMP Button to select
each operation mode.
<Room Temperature and Sanitary Water Tank
Temperature mode could be selected when Remote
Air Sensor and Sanitary Water Tank Kit are installed.>
2
: Room Temperature
:
Leaving Water Temperature
: Sanitary Water Tank
Temperature
You can set the proper temperature each mode.
❊Note
: Decrease 1°C or 2°F per one time pressing
: Increase 1°C or 2°F per one time pressing
•We can change the temperature range of each mode on installation setting mode. Please refer
Function Code 11 to 15.
•Room Temperature setting is available when Remote Room Air Sensor (sold separately) is
installed. Please refer Function Code 03.

Owner’s Manual 13
ENGLISH
Owner's instruction
Cooling Mode
Press Power Button to turn on the
product.
1
Adjust desired temperature by pressing
Change Temperature buttons on each mode.
3
Press Mode Selection Button to select
Cooling operation mode.
2
: Cooling operation icon
Ex1) Setting Temperature as 18°C on
Leaving Water Temperature
Ex1) Setting Temperature as 20°C on Room
Temperature.
Please refer to the manual of product.
In this mode, cooling operation is activated to achieve the temperature set point.
❊Note
: Decrease 1°C or 2°F per one time pressing
: Increase 1°C or 2°F per one time pressing
We can change the temperature range of each mode on installation setting mode.
Please refer function code from 11 to 15.

14 Air-to-Water Heat Pump Owner’s Manual
Owner's instruction

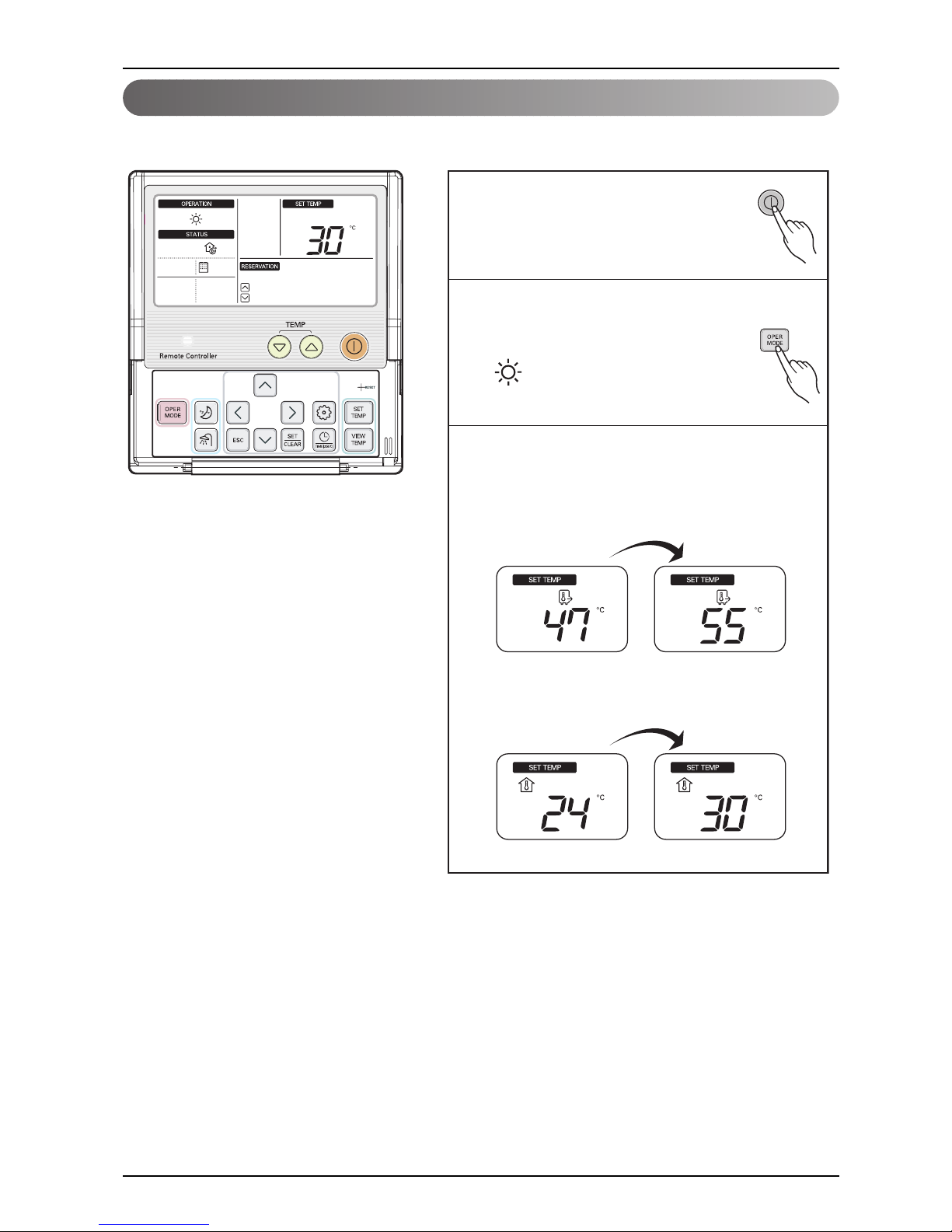

Heating Mode
Press Power Button to turn on
the product.
1
Adjust desired temperature by pressing
Change Temperature buttons.
3
Press Mode Selection Button to select
Heating operation mode.
2
: Heating operation icon
Ex) Setting Temperature as 30°C on Room
Temperature.
Ex) Setting Temperature as 55°C on
Leaving Water Temperature.
In this mode, heating operation is activated to achieve the temperature set point.

Owner’s Manual 15
ENGLISH
Owner's instruction
Weather-dependent Operation
Press Power Button to turn on
the product.
1
Adjust the desired temperature level by
pressing Change Temperature buttons.
3
Press Mode Selection Button to select
External Control operation mode.
2
: Weather Dependent
operation icon
Ex) Decreasing temperature profile by 3°C
(based on room air temperature)
<Temperature adjust step (unit : °C)>
-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5
Cold Hot
This mode is only applied to heating.
In order to save energy and to give highest comfort, setting temperature will follow outside
temperature. If outdoor temperature decreases, heating capacity for the house will increase
automatically in order to keep same room temperature. All parameters will be set by installer during
start-up procedure and will be adapted to the site characteristic.
Value #1 of
Function Code 23
Auto-Adjustable
Target Temperature
Outdoor
air temperature
Temperature profile
of Weather-dependent
operation
Value #2 of
Function Code 23
Value #1 of
Function Code
24 or 25
Value #2 of
Function Code
24 or 25

16 Air-to-Water Heat Pump Owner’s Manual
Owner's instruction

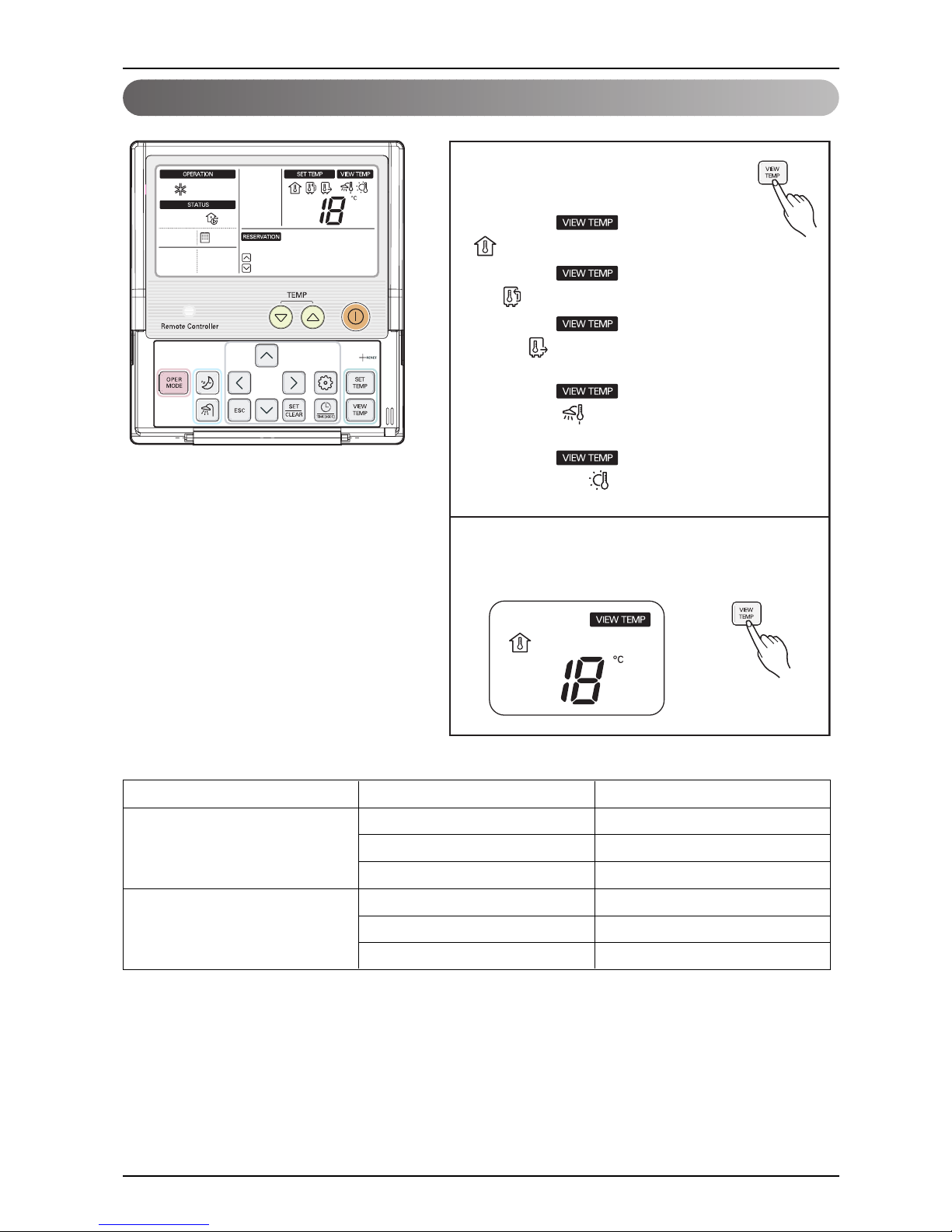

View Temperature
Press repeatedly View Temperature
Button to select each Temperature.
1
Whenever press View Temperature button,
the room temperature will be displayed
during 5seconds.
2
: View Room Temperature
: View Inlet Temperature
: View Outlet Temperature
: View Sanitary Water Temperature
(ONLY displayed when sanitary
water heating mode)
: View Solar Power Temperature
(ONLY displayed when sanitary
water heating mode)
Temperature Temperature Range Displayed as
below 11 Lo
Air 11 ~ 39 actual temperature
above 39 Hi
below 0 Lo
Water 0 ~ 92 actual temperature
above 92 Hi
(unit:°C)

Owner’s Manual 17
ENGLISH
Owner's instruction
Sanitary Water Heating Operation
Press repeatedly View Button to enable
sanitary tank heating.
<Sanitary Water Heating Disable>
<Sanitary Water Heating enable>
<Sanitary Water Heating ON>
1
Sanitary water heating operation is operating
only on enable condition.
During operation, segment will be on.
2
<Note>
•This function is not used when the sanitary water tank is not installed.
•If you want to know more information, refer function code [15, 26~29] on installation
information section

18 Air-to-Water Heat Pump Owner’s Manual
Owner's instruction

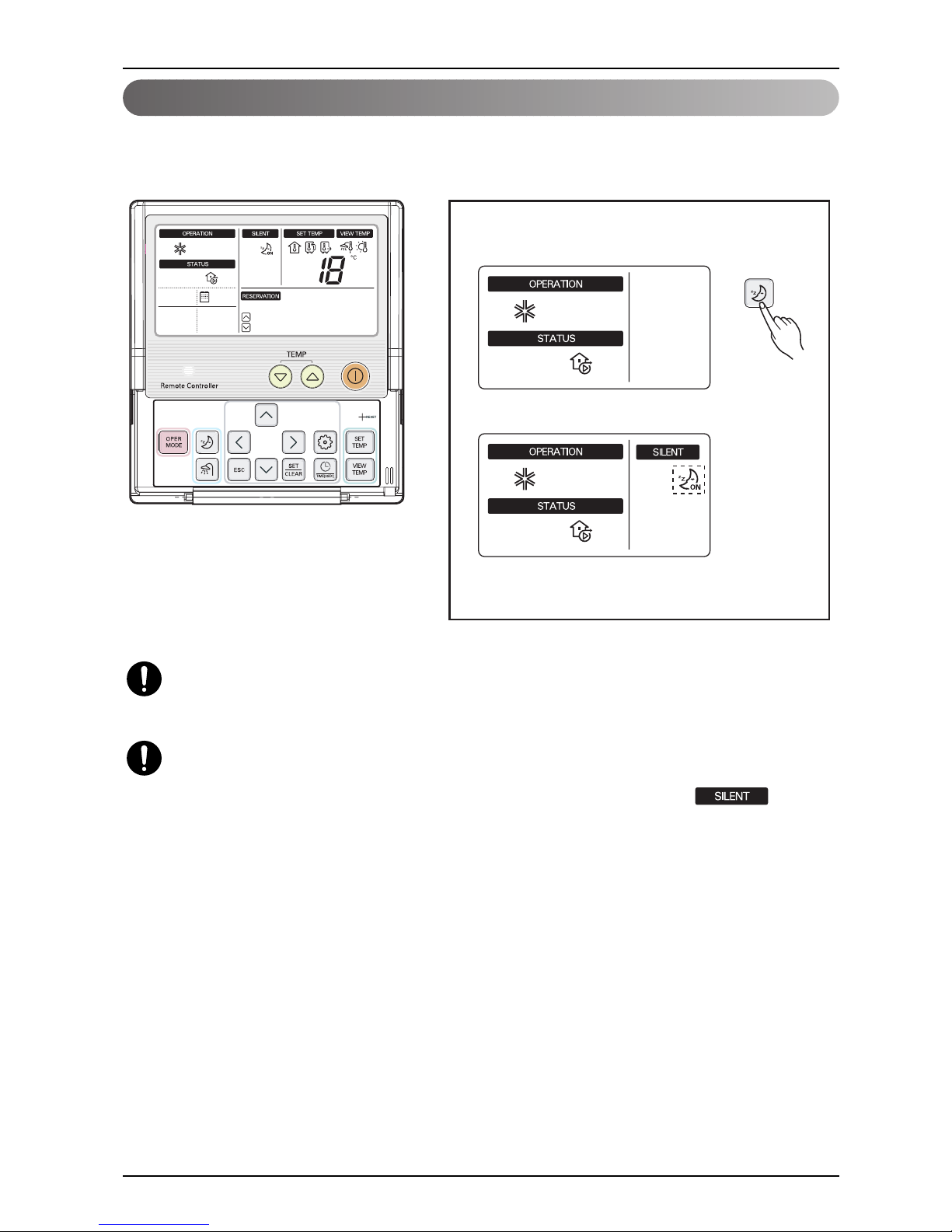

Silent Mode Operation
Press Silent Mode Button.
This button ON or OFF silent mode.
<Silent Mode OFF>
<Silent Mode ON>
1
Silent mode operation is that the outdoor unit works at reduced capacity so that the noise produced
by the outdoor unit drops.
This implies that the indoor heating and cooling capacity will also drop. Beware of this
when a certain level of heating or cooling is required indoors.
Silent mode operation may not work while the product is proceeding higher priority
operation such as defrost operation, anti-freezing operation, and etc.
((When this mode is not operated by the priority order, ONLY display .)

Owner’s Manual 19
ENGLISH
Owner's instruction

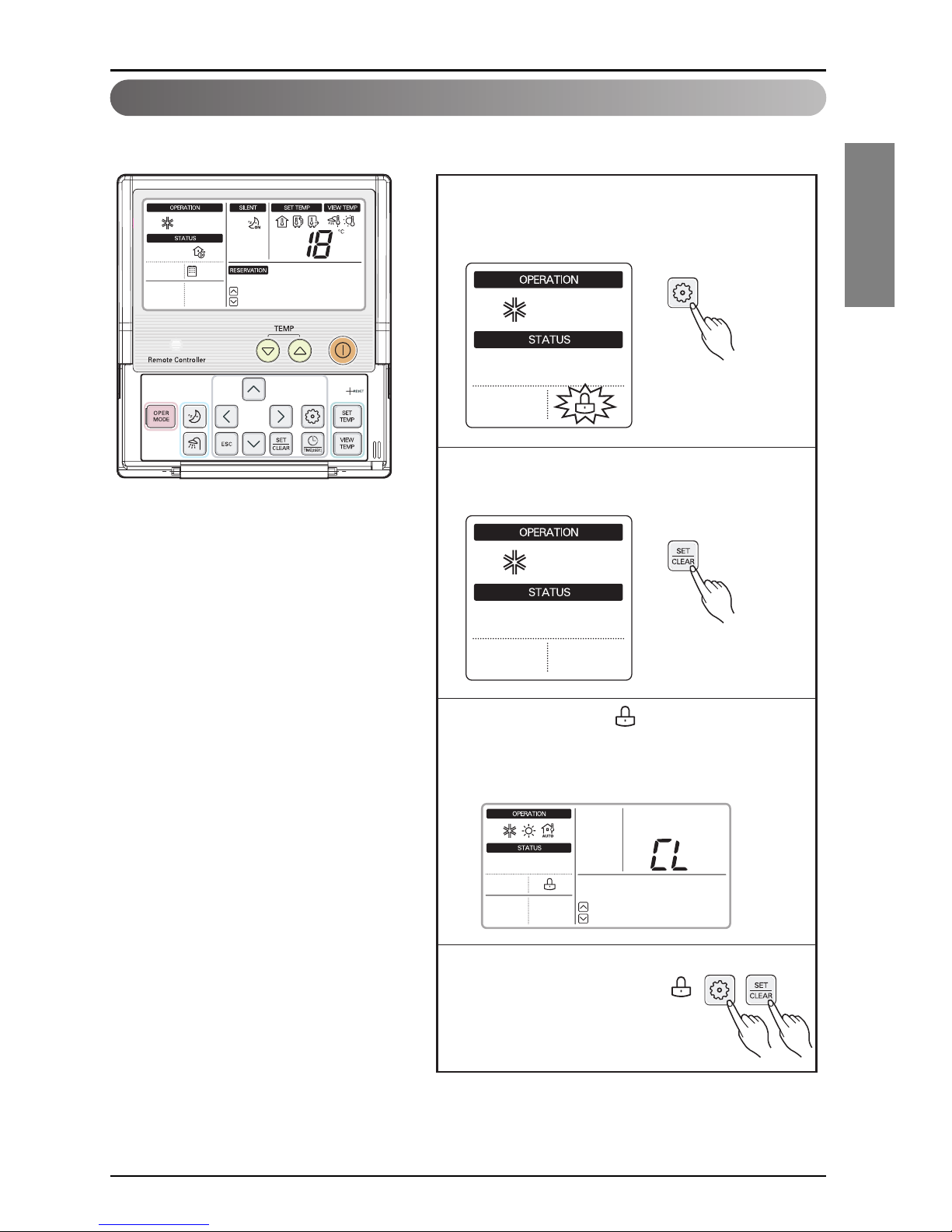

Press Function Setting Button to enter
user setting mode.
(The segment will be flashed)
1
Press set / clear button to finish the selection.
The segment will be disappear.
2
During Child Lock, icon and 'CL' will be
displayed during 3 seconds whenever
entering any kind of buttons except for view
temperature button and setting/clear button .
3
To release this setting, pressing
function Setting button until
icon flash and then enter
setting/clear button.
4
This function is to prevent children or other people from using controller.
Child Lock

20 Air-to-Water Heat Pump Owner’s Manual
Owner's instruction
On critical error, the product will be unconditional stop.
At this time, CH' and error code No. keep display by turns.
Critical error
<Display>
a problem is found inside the outdoor unit. As the outdoor unit has problem, the
emergency mode operation is performed by electric heater located in the indoor unit.
Heavy trouble
A problem is found inside the indoor unit. In most case, this trouble is concerned with
sensor problems. The outdoor unit is operating under emergency mode operation
condition which is configured by DIP switch No. 4 of the indoor unit PCB.
<Display>
Slight trouble
<Display>
When the error is occurred on indoor unit, the error code will be displayed on control panel.
Error code display
