LG STYLER User manual

OWNER'S MANUAL
STYLER
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
S3CW
MFL66101298
Rev.01_051821
www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 READ ALL INSTRUCTIONS BEFORE USE
3 WARNING STATEMENTS
7 PRODUCT OVERVIEW
7 Product Features
10 INSTALLATION
10 Before Installing
11 Installation Location Requirements
13 Unpacking the Appliance
13 Leveling the Appliance
17 OPERATION
17 Operation Overview
17 Preparing Loads
18 Checking Items before Every Load
20 Loading the Appliance
23 Control Panel
25 Cycle Table
28 Options and Extra Functions
29 SMART FUNCTIONS
29 LG ThinQ Application
31 Smart Diagnosis™ Function
33 MAINTENANCE
33 Regular Cleaning
35 TROUBLESHOOTING
35 FAQs
35 Before Calling for Service
39 LIMITED WARRANTY
39 USA
43 CANADA

3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
WARNING STATEMENTS
WARNING
• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when when using
this appliance, follow basic precautions, including the following:
Installation
• Contact an authorized service center before installing or relocating the appliance to avoid injury or
product damage when moving the appliance.
• When moving the appliance away from the wall, be careful not to roll over or damage the power cord.
• The appliance is heavy. Two or more people are necessary to move and install the appliance to prevent
damage or injury.
• Prior to use, ensure that you are connecting the appliance to a dedicated grounded electrical outlet
rated for use with this appliance. It is the user’s responsibility to replace a standard 2-prong wall outlet
with a standard 3-prong wall outlet.
• Before use, the appliance must be properly installed as described in this manual. Electric shock can
result if the appliance is not properly grounded.
• Do not install the appliance where there may be a danger of the unit falling. The appliance is not
designed for use on ships or airplanes. Check with an authorized LG service center for use under other
special circumstances.
• Do not tamper with controls.
• Install the appliance where the floor is firm and level. The appliance may vibrate excessively and
eventually fall if installed on an unstable surface, causing damage or injury.
• Keep the front side protected when transporting the appliance. Do not truck from the front. The
tempered glass panel on the front of the appliance may break, causing damage or injury.
• Properly ground the appliance to conform to all governing codes and ordinances. Follow the details in
the installation instructions. Electric shock can result if the appliance is not properly grounded.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.

4IMPORTANT SAFETY INSTRUCTIONS
• Install and store the appliance where it will not be exposed to temperatures below freezing or exposed
to the weather. Allow the appliance to warm to room temperature before use if it was delivered in winter
or at sub-sero temperature.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions that you
understand and have the skills to carry out. Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
• To reduce the risk of electric shock, do not install the appliance in humid spaces such as a bathroom.
Failure to follow this warning can cause death, serious injury, fire, electric shock, or product deformation
or malfunction.
• Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in
burns, fire, explosion, or death.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper
power circuits can melt, creating electric shock and/or fire hazard.
• Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of
suffocation.
• Do not install near another heat source such as a stove, oven or heater. Failure to follow this warning can
cause product deformation,smoke, or fire.
• Do not place candles, smoking materials, or other flammables on top of the appliance. Dripping wax,
smoke, or fire can result.
• Remove all protective vinyl film from the appliance. Failure to do so can cause product damage, smoke,
or fire.
• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during
servicing, Service personnel - Do not contact the following parts while the appliance is energized: pump,
valve, motor, control board.
Operation
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the
appliance is used near children.
• Do not climb, stand, or hang on the door or on the shelf or anywhere inside the appliance. The appliance
could fall over or be damaged, or other damage or injury could occur.
• Do not step on the doors to the water tanks. The appliance could fall and cause damage and injury.
• Do not place heavy or dangerous objects on top of the appliance.
• Do not put live animals inside the appliance.
• Do not allow children to climb into the appliance.
• In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service
center before resuming use. Do not touch or disassemble the electrical outlet of the appliance.
• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the appliance or
store them inside the appliance. Do not place the appliance in the vicinity of flammable gas.
• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke
coming from the appliance.
• In the event of a flood: Do not go near the appliance when its base is submerged under water. Contact
the service center. There is a risk of electric shock or fire.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of
the fabric softener or product.
• Do not place hands or body near steam nozzle during operation. The steam is hot and could cause an
injury.
• Do not insert objects into the steam nozzle. Excessive noise and fire could result.
• Do not drink the water from the water supply or drain tanks.

5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Do not disassemble or modify the appliance.
• Do not put hands, feet, or metal objects below the appliance.
• Do not operate the appliance or touch the power cord with wet hands.
• Keep fingers out of pinch point areas; clearances between the door and cabinet are necessarily small. Be
careful closing door when children are nearby.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• Do not place items exposed to cooking oils in the appliance. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load to catch fire.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could
ignite or explode.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
• Do not open door during operation. The performance of the product may be adversely affected. If the
product is installed on or near carpet, condensation from escaping hot air or steam may stain or damage
the carpet.
• Do not use the product for other than the intended purposes. Damage incurred by using the product for
purposes other than those specified in this user manual are not covered by the warranty.
Connecting Electricity
• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent
personal injury or damage to the appliance, the electrical power cord must be plugged into a properly
grounded outlet.
• This appliance must be plugged into a 120-VAC, 60-Hz grounded outlet protected by a 15-ampere fuse or
circuit breaker. Failure to follow these instructions can result in fire, explosion, or death.
• This appliance must be plugged into a properly grounded outlet. Electrical shock can result if the
appliance is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to
make sure the outlet is properly grounded. Failure to follow these instructions can create an electric
shock hazard and/or a fire hazard.
• Install the appliance where the plug is easily accessible. Unplug the appliance when not in use to avoid
risk of fire or electric shock.
• Unplug the appliance before disassembly or repair to avoid risk of electric shock.
• The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating plate. This provides the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard from overheated wires.
• Do not use an extension cord to connect to an outlet. Doing so could result in a fire or electric shock.
• Never unplug your appliance by pulling on the power cord. Always grip the plug firmly and pull straight
out from the outlet. The power cord can be damaged, resulting in a risk of fire and electric shock.
• Contact LG or a qualified repair person immediately to repair or replace all power cords that have
become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along
its length or at either end. The power cord can melt, creating electric shock and/or fire hazard.
• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord. This
will prevent injury and damage to the appliance from fire and electric shock.
• Do not use a portable multi-socket outlet which is not properly grounded. If needed, use only a multi-
socket outlet which is properly grounded and has a rating of 15 A or higher. Failure to do so may result in
electric shock or fire caused by the device overheating. If the circuit breaker on the device trips, it could
turn off power to the appliance.

6IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Maintenance and Disposal
• Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact areas
regularly. Do not use a wet or damp cloth when cleaning the plug.
• Do not use an appliance to dry the interior. Do not light a candle to remove interior odors.
• Do not spray water onto the appliance directly when cleaning. A fire or electric shock may occur.
• Wipe the interior with a dry cloth after use.
• Clean the lint filter before or after each load.
Grounding Instructions
• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current.
• This appliance must be equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
• Do not modify the plug. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• Do not use a bleaching agent such as oxygen- or chlorine-based bleaches on the exterior of the
appliance. They may cause discoloration when applied to the surface of the product.
• Do not use sharp objects when cleaning or operating the controls. An electric shock may occur.
• Avoid hitting the front glass panel with heavy objects. Although it is made of tempered glass, the panel
may break in the event of a strong impact and cause injury.
• Keep the appliance free from rodents, insects, and other foreign objects. They may damage wires,
causing fire or electric shock.
• Before the appliance is removed from service or discarded, remove the door to the drying compartment.
Cut off the power plug and destroy the button section to prevent reuse.
• This appliance must be connected to a grounded metal, permanent wiring system or an equipment-
grounding conductor must be run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the appliance. Electric shock can result if the appliance is not properly
grounded.
• Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are in doubt that the appliance is properly grounded.

7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purpose.
Interior
aInterior light
bMoving hanger
cShelf holder
dAroma filter
eHot air circulation vent
fWater drain tank
gDrip tray
hDoor†
iSteam nozzle
jWater supply tank
† The door swing can be reversed by the installer
to fit the installation location.

8PRODUCT OVERVIEW
Specifications
Asterisks indicate model variants and can vary (0-9)
or (A-Z).
Dimensions
Model S3CW
Electrical Requirements 120 V~, 60 Hz
Net Weight 162.5 lb (73.7 kg)
Rated Power 1500 W
Maximum Capacity 3 items
Dimensions (inch / mm)
inch mm
A 15 5/32 385
B 56 1/2 1435
C 16 5/16 415
D 72 13/16 1850
E 17 1/2 445
F 23 585
G 39 3/4 1010

9PRODUCT OVERVIEW
ENGLISH
Accessories
NOTE
• The included accessories vary depending on the model you purchased.
• Contact the store where the appliance was purchased or LG customer service if any accessories are
damaged or missing.
• For your safety and for extended product life, use only authorized components. The manufacturer is not
responsible for product malfunction or accidents caused by the use of separately purchased
unauthorized components or parts.
4 Carpet Install Spikes Drip tray 2 Regular Hangers Anti-tip kit
2 Non-skid Pads Wrench 2 Hinge Covers 2 Rear Leveling Feet
2 Rear cap covers Shelf
(sold seperately)

10 INSTALLATION
INSTALLATION
Before Installing
Installation Overview
Please read the following installation instructions first after purchasing this appliance or transporting it to
another location.
aUnpack and remove shipping material
bCheck and choose the proper location
cLevel the appliance
dInstall carpet spikes†
eReverse the door swing†
fConnect to grounded outlet
† If needed.

11INSTALLATION
ENGLISH
Installation Location
Requirements
Before installing the appliance, check the following
requirements for the installation location.
Installation Location
• A grounded electrical outlet should be located
within 2 ft. (61 cm) of either side of the
appliance.
• Install the appliance on a level floor. (Allowable
slope under the appliance: 1°)
• The floor must be level, with a maximum slope
of 1 inch (2.5 cm) under the appliance. If the
slope is greater than 1 inch (2.5 cm), the
appliance cannot be levelled properly.
• The appliance should be easily accessible if it
needs to be serviced.
• Do not install the appliance in an area where it
will be exposed to water and/or weather. Failure
to follow this warning could result in risk of
electric shock, injury, or product damage or
malfunction.
• Do not install the appliance on a hollow or
flexible platform. Doing so may cause excessive
noise and vibration and result in damage or
injury if the appliance tips over.
NOTE
• A sturdy floor should support the total appliance
weight of 162.5 lb (73.7 kg). The combined
weight of any other laundry appliances should
also be considered.
Recommended Installation Spacing
The following clearances are recommended for
the appliance. Although the appliance has been
tested for clearances of 1 3/16 in. (3 cm) on the
sides and rear, recommended clearances should
be considered for the following reasons:
aAllow at least 18 in. (46 cm) in front to open the
door.
bAllow at least 2 in. (5 cm) on both sides and
between the back of the appliance and the wall.
cAllow at least 7 3/4 in. (20 cm) between the top
of the appliance and any overhanging shelves
or cabinets.
NOTE
• If the appliance is too close to adjacent items,
performance may decrease and electricity
consumption may increase.
• Additional space should be considered on all
sides of the appliance to reduce noise transfer.
Installation Spacing for Recessed
Area or Closet Installation
There should be at least a little space around the
appliance (or any other appliance) to avoid contact
with walls, furniture, or other appliances during
operation. Allow a minimum of 1 3/16 in. (3 cm) on
all sides of the appliance to avoid increased noise
or damage.
115˚
B
A
C

12 INSTALLATION
NOTE
• For closet installation, with a door, minimum
ventilation openings in the top and bottom of
the door are required. Louvered doors with
equivalent ventilation openings are acceptable.
• Minimum vent opening for built-in installation is
31.5 sq. in. (200 cm2.)
Closet Ventilation Requirements
Closets with doors must have both an upper and
lower vent to prevent heat and moisture build-up
in the closet.
One example shown uses vent grilles in the door.
aUpper vent opening with a minimum opening
of 48 sq. in. (310 cm2)must be installed no
lower than 6 ft. (185 cm) above the floor.
bLower vent opening with a minimum opening
of 24 sq. in. (155 cm2)must be installed no
more than one foot above the floor.
Ambient Temperature
• Temperature must be between 50 ℉(10 °C) and
95 ℉(35 °C).
• If the ambient temperature is too low or high,
performance may be affected.
• Do not install in direct sunlight or where the
temperature may fall below 32 ℉(0 °C).
Electrical Connection
• Do not use an extension cord or 2-outlet
adapter.
• Do not overload the outlet with more than one
appliance.
• Connect the appliance to an earthed socket in
accordance with current wiring regulations.
• The appliance must be positioned close to
outlets and the plug should be easily accessible.
WARNING
• The power cord must be plugged into an
appropriate outlet that is installed and
grounded/earthed in accordance with all local
codes and ordinances.
Dimensions
inch mm
A225 1/2 2650
B218 2455
C210 2250
D274 3/8 21889
E274 1/8 21875
F215 3/4 2400
G22 250
H224 7/8 2630
I219 2485
J22 250
K21 225
L21 3/16 230
B
I H
E
D
F
GJ
K
L
L
7.6 cm7.6 cm
7.6 cm7.6 cm

13INSTALLATION
ENGLISH
Unpacking the Appliance
WARNING
• Use two or more people to unpack and move the
appliance. Failure to do so can result in serious
injury if the appliance tips or falls.
Removing Carton and Shipping
Materials
Unpack the appliance from carton and remove any
tape and temporary labels from the appliance.
• Do not remove any warning labels, the model
and serial number label, or the technical sheet
label that is located under the front of the
appliance.
CAUTION
• Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of the appliance.
NOTE
• Tape or glue residue can also be easily removed
by rubbing a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with
warm water and dry.
Moving the Appliance
Use the wheels aat the bottom of the appliance
to move the appliance. Push the appliance slowly
from about halfway down the front side.
CAUTION
• Keep the appliance upright when moving it. If
you lay the appliance on its side, refrigerant may
leak and cause the appliance to malfunction.
Leveling the Appliance
Checking the Level
Leveling the appliance prevents unnecessary
noise, vibration and movement. Check whether
the appliance is perfectly level after installation.
WARNING
• The appliance is heavy. Two or more people are
required when leveling the appliance. Failure to
follow this warning can cause serious injury or
death.
1 Position the appliance in the final location and
check to make sure it is level.
• All leveling feet must rest solidly on the
floor. Gently push on the corners of the
appliance to make sure that it does not rock
from corner to corner. Make sure there are
no gaps between the front leveling feet and
the floor.
2 Use the wrench (packaged with the appliance)
to turn the leveling feet.
• Extend the front feet to raise the appliance
or retract the feet to lower it. If unable to
level the appliance using only the front feet,
tip the appliance forward and intstall the
two rear leveling feet. Do not lay the
appliance down to install the leveling feet.
• Raise or lower the appliance using the
leveling feet until the appliance is level from
side to side and front to back.
CAUTION
• Make sure that all leveling feet are in firm
contact with the floor. If the appliance is used
without leveling, it may fall, causing injury,
damage, or product malfunction.
• Adjust the leveling feet only as far as necessary
to level the appliance. Extending the leveling feet
more than necessary can cause the appliance to
vibrate.

14 INSTALLATION
3 When the appliance is completely stable and
all leveling feet are resting solidly on the floor,
tighten the locking nuts a.
Installing on Carpeting
Follow these instructions when installing the
appliance on carpeting.
WARNING
• The appliance is heavy. Two or more people are
necessary to install the rear leveling feet and
carpet spikes. Failure to do so can result in back
injury or other injury.
• Keep the appliance upright when moving and
installing it. If you lay the appliance on its side,
refrigerant may leak and cause the appliance to
malfunction.
1 Move the appliance into its final location
using the wheels at the bottom of the
appliance.
2 Install the two rear leveling feet at the rear
bottom of the appliance.
• Tip the appliance, do not lay it down, to
install the leveling feet.
3 Level the unit following the instructions in
Leveling the Appliance.
4 Install the four carpet spikes on the ends of
the leveling feet, with the shorter, octagonal
faces toward the front.
WARNING
• Take care when handling the carpet spikes. They
are designed to pierce through the carpet
backing and pad and are very sharp.
• Keep fingers and hands out from under the
spikes when setting the unit in place to avoid
personal injury or product damage.
5 Level the appliance once more after installing
the spikes.
• If the carpet has very deep pile or padding,
the front feet may need to be extended
slightly to install the drip tray.
If installing the appliance on carpeting:
• Be sure to check and empty the drip tray
often.
• Do not open the unit during operation to
avoid condensation forming on carpet
surface, which may result in surface mold or
mildew.
• Keep the bottom of the cabinet dry when
filling or emptying water tanks. Keep the
outside of the water tanks clean and dry to
discourage growth of mold or mildew.
Reversing the Door
It is possible to reverse the direction of the door
swing. This should be done by the installer at the
time of installation, if desired.
NOTE
• If the direction of the door swing needs to be
changed after installation, contact the LG
Customer Information Center.

15INSTALLATION
ENGLISH
Using Non-skid Pads
Non-skid pads prevent the appliance from shaking
or shifting when opening or closing the door.
1 Clean the floor to attach the non-skid pads.
• Use a dry rag to remove foreign objects or
moisture. If moisture remains, the non-skid
pads may slip.
2 Adjust the level after placing the appliance in
the installation area.
3 Place the adhesive side aof the non-skid
pads on the floor.
4 Move the appliance feet onto the non-skid
pads.
• Do not attach the adhesive side aof the
non-skid pads to the feet of the appliance.
5 Recheck the appliance’s levelness.
• Push or rock the edges of the appliance
gently to make sure that the appliance does
not rock. If the appliance rocks, level the
appliance again.
NOTE
• The pads may leave a sticky residue when they
are removed. The residue can be removed with
alcohol.
Installing the Anti-tip Device
Install the anti-tip device packed with the
appliance to reduce the risk of tipping.
• Refer to the instructions provided with the anti-
tip kit for proper anti-tip device installation.
• Do not operate the appliance without the anti-tip
device in place and engaged.
• Check that the anti-tip device is properly
installed. With the appliance in its final location,
make sure that the slide adjuster on the cord is
adjusted until there is about 1 inch (2.5 cm) of
slack in the cord.
• If an anti-tip device is not properly installed, the
appliance could be unexpectedly tipped by a
child or adult standing, sitting, leaning, or
placing excessive weight on the open door or
the interior parts of the appliance.
• The use of the anti-tip device does not preclude
tipping of the appliance when it is not properly
installed.
Assembling the Drip Tray
Before using the appliance, insert the drip tray
onto the bottom of the cabinet.
1 Hold the tray so the arrow and letter on the
front of the tray face up.
2 Insert one side of the tray first, then the other.
Push the tray until it slides completely in.
3 To detach, pull one side out then the other.
• If the tray collects water, detach it and
empty the water. After emptying it,
reassemble the tray.
CAUTION
• Do not operate the appliance without installing
the drip tray. Doing so could lead to water
damage caused by leaking.

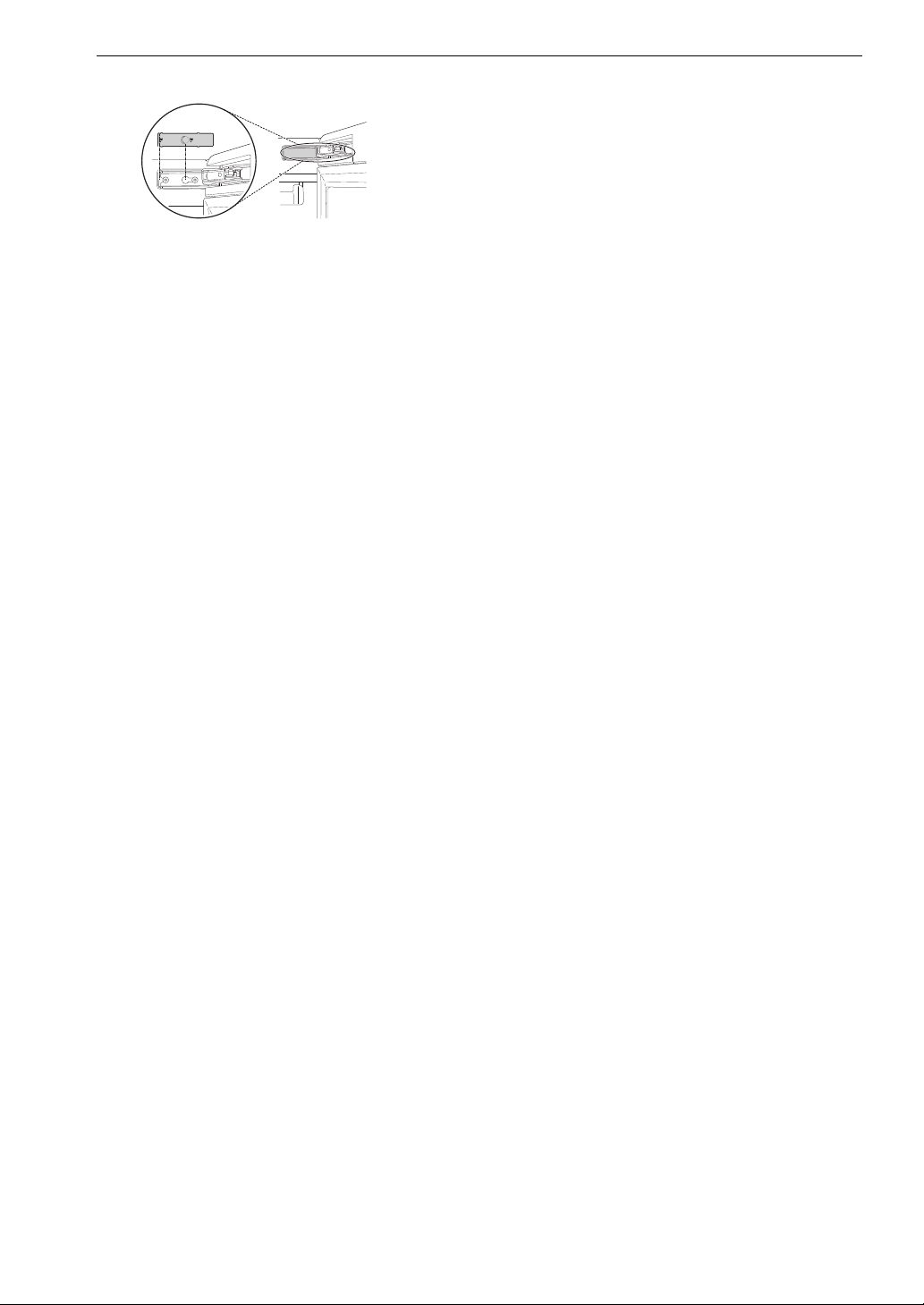

Installing Hinge Covers
1 Open the appliance door.
2 Snap a hinge cover onto the upper hinge
assembly with the bent edge on the far side
from the hinge.

16 INSTALLATION
3 Repeat with the remaining hinge cover on the
lower hinge assembly.

17OPERATION
ENGLISH
OPERATION
Operation Overview
Using the Appliance
1 Prepare items.
• Wash clothes first, if needed.
• Exclude heat-sensitive items or items that
can be damaged by exposure to water.
• Place items on hangers or the shelf.
• Fasten buttons and close zippers to keep
items on moving hangers and prevent
damage.
2 Clean the lint filter and change the sheet in
the aroma filter.
• Lift out filter and remove lint from last load
for faster and more efficient performance.
Reinstall filter, checking alignment when
closing grille. Do not operate the appliance
without the lint filter in place. If using a
fabric softener sheet in the aroma filter,
change it after every use.
3 Check the water tanks.
• Fill water supply tank if needed. Empty
water drain tank if needed. Use clean tap
water in the supply tank for better product
performance and lifespan. Do not use
distilled water or reuse water from the drain
tank.
4 Load the appliance.
• Pay attention to fabric care labels and cycle
choice. If clothing is not appropriate for the
cycle selected, it may shrink or be seriously
damaged.
• Remove all empty hangers to avoid noise,
friction, and damage to clothing.
5 Turn on the appliance.
• Touch Power button to turn on the
appliance.
6 Choose a desired cycle.
• Touch a cycle selector button. Press the
button repeatedly to toggle through the
selections.
7 Begin a cycle.
• Touch and hold the Start/Pause button to
begin a cycle. Pause a cycle at any time by
touching Start/Pause again. If you do not
press the Start/Pause button to resume a
cycle within a certain time, the appliance
turns off automatically and all cycle settings
are lost.
• Do not open the door during a cycle. If
steam or hot air escapes, condensation may
collect on the floor or walls, resulting in
damage or mold.
CAUTION
• Do not open the door during operation. There is
a risk of burns or injury from escaping hot air or
steam.
• Do not allow steam or hot air to escape the
cabinet during operation. Opening the door
during operation affects performance,
lengthens styling time, and results in water
condensing and collecting on the floor.
8 End of cycle.
• Remove items when the cycle finishes.
Leave the door open to let hot air escape.
The interior light shuts off after 1.5 minutes
if the door is left open.
Preparing Loads
Checking Fabric Care Labels
Most articles of clothing feature fabric care labels
that include instructions for proper care. Below are
some of the symbols that are relevant to choosing
appropriate items for the appliance.
Symbols on Care Labels
Label Meaning Check
Hand Wash OK
Machine Wash, Normal cycle OK
Perm press/wrinkle resistant OK
Gentle/delicate OK

18 OPERATION
† Some fabrics marked with a "do not wash" label,
such as fur and leather, can be used with the
appliance.
Sorting Items
• For best fabric care results, always treat fabrics
with similar care requirements together.
• Different fabrics have different care
requirements, and some fabrics cannot be
treated using certain cycles or should be treated
separately.
Checking Items before Loading
Some items are not appropriate for use with the
appliance. Using the wrong cycle for items can
result in damage to fabrics.
• Check all pockets to make sure that they are
empty. Items such as clips, pens, coins, and keys
can damage both the appliance and your
clothes.
• Do not put items that are sensitive to heat or are
not suitable for washing with water in Styler
cycles that use steam. Use the Gentle Dry cycle
only.
• Fur and leather (only 100% real leather) should
only be treated with the Air Fresh cycle. This
cycle is a downloadable cycle.
• Wash heavily soiled or stained clothes before
putting them in the appliance. The appliance
does not have a washing function. Loose soil or
stains can be transferred between garments
during cycles.
• Treat items with an unpleasant odor in a
separate load. Odors can be transferred
between items during cycles.
• Clothing should be securely fastened, with
zippers and buttons closed, so that it does not
fall off the moving hanger during the cycle.
• Do not put very wet items in the appliance to
dry. Shake off or wring out excess water before
putting items in the cabinet to dry. If a large
amount of water pools in the cabinet, styling
performance may suffer or the appliance may be
damaged.
Checking Items before Every
Load
Checking the Lint Filter
Always make sure the lint filter is clean before
starting a new load; a clogged lint filter will
increase styling times.
1 Open the front grille aand take out the lint
filter b.
2 Brush the lint filter with a soft brush or clean it
with a vacuum cleaner.
• If the lint filter is torn or damaged, replace it
with a new one.
Do not wash OK†
Normal OK
Permanent press/wrinkle
resistant OK
Gentle/delicate OK
Do not tumble dry OK
Do not dry NO
Line/hang dry OK
Drip dry OK
Dry flat OK
High OK
Medium OK
Low OK
No heat/air dry NO
Label Meaning Check

19OPERATION
ENGLISH
3 Reinstall the filter.
CAUTION
• After cleaning the filter, be sure to install it in
place. If you operate the product without a filter,
the product will not work.
Checking the Aroma Sheet
Use a dryer fabric softener sheet to add a
refreshing aroma to items. Replace the fabric
softener sheet after every use.
1 Remove the aroma filter from the appliance.
2 Open the aroma filter and insert a dryer fabric
softener sheet ainto it.
3 Close the aroma filter and insert it back in the
appliance.
• Insert the aroma filter in the direction of the
arrow. You can adjust the opening of the
aroma filter using the adjustment lever. The
more open the aroma filter is, the richer the
aroma gets.
4 When the cycle is complete, remove the
aroma filter and discard the fabric softener
sheet.
5 Reinsert the aroma filter.
NOTE
• Instead of using a fabric softener sheet, you can
spray perfume 4–5 times on a cotton pad and
then place it in the aroma filter to use. (However,
the fragrance strength can vary depending on
the scent.)
Checking the Water Tanks
Check the water in the water tanks before use. The
water supply tank must be filled with water before
using the appliance. The appliance does not work
without water. The water drain tank should be
emptied before each use.
1 Pull the handle of the tank forward and
remove the tanks from the appliance. Check
the water level of the tanks.
2 Make sure the water supply tank is filled with
water.
• The full water supply tank can be used
approximately four times, depending on the
cycles used.
• Use clean tap water or bottled water for
best performance and longer product life.
Do not use distilled water or reuse the
water from the drain tank.
• The first time the appliance is used, 2/3 of
the water in the fully filled water supply tank
is used. Less water is used in following
cycles.
CAUTION
• Only use water when filling the water supply
tank. Any other substance, such as detergent or
fabric softener, may damage the appliance.

20 OPERATION
CAUTION
• Use only clean tap water or bottled water.
Foreign materials in the water may shorten the
lifespan of the appliance.
• Do not use distilled water. The water sensor may
not work.
• Do not reuse the water in the drain tank to fill
the water supply tank.
3 Make sure the water drain tank is empty.
4 The drain tank will be filled after about three
uses. The tank fills more quickly during styling
cycles. The appliance does not work if the
drain tank is full.
• Some discoloration of the water drain tank
may occur over time. This is normal and will
not affect product performance.
Loading the Appliance
WARNING
• Flammable objects such as lighters or matches
could ignite, causing a fire. Remove them from
pockets to avoid fire, explosion, or death.
• Never style clothes that have been exposed to
oil, gasoline, or other flammable substances.
Failure to obey this warning can result in fire,
explosion, or death.
Choosing a Styling Method
† The shelf is sold separately.
The Moving Hanger
Hang clothes on the moving hanger using the
hangers provided with the appliance, or use any
plastic or metal hanger that hooks snugly into the
indentations in the moving hanger.
• Use the moving hanger for suits, coats, jackets,
blouses, dresses, skirts, and pants that don’t
require a crease.
• Anything that can be securely placed on a
hanger and steamed or dried without retaining
Item How to style it
Suit coat, blazer
Moving hangerCoat, jacket (short)
Coat (long)
Dress (short) Moving hanger after
removing shelf
Dress (long)
Skirt
Moving hanger
Lightweight blanket,
throw
Baby blanket
Pants (not creased)
Shorts
Children’s clothes
Scarf
Moving hanger or shelf†
Tie
Shawl
Lingerie Moving hanger or
shelf†(if delicate)
Shirt, blouse
Cap, hat
Shelf†
Stuffed toys
Pillow
Sweater
Knitwear
Baby clothes
Item How to style it
