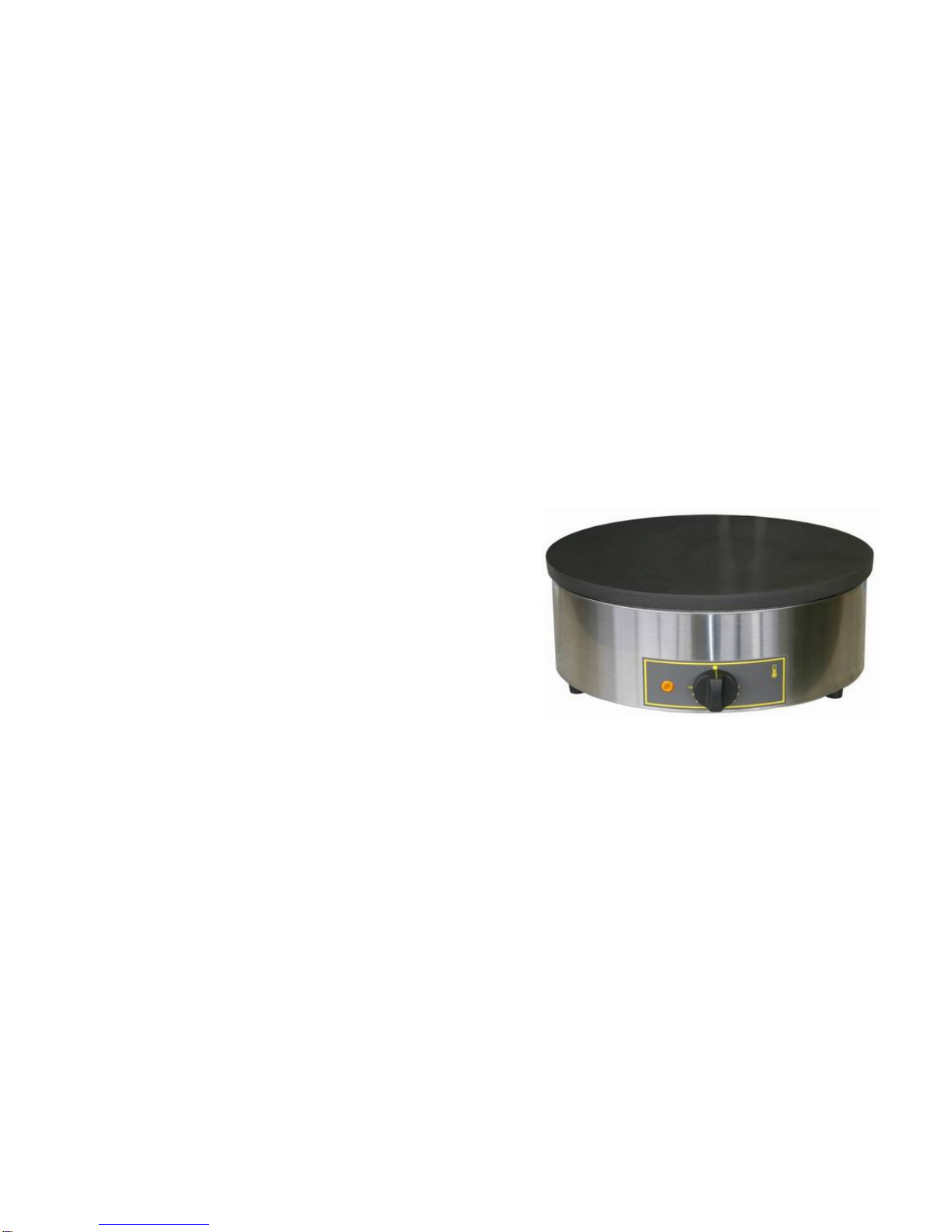

Roller Grill CFE 400 Operation manual

INSTRUCTIONS FOR USE AND INSTALLATION
ELECTRIC CREPE MACHINE
CFE 400
Made in France
December 2011

211

10
Nomenclature CFE 400
Spare parts CFE 400
Rep Code Qty Pièce Spare part
1B02049 1Disque émaillé 400 Enamelled cast iron plate 400
2D02163 1Résistance Heating element
367049 1Serre résistance Heating element holder
4H02055 1Isolant Insulation
567048 1Tôle protection Protecting S/steel
667052SE 1Ceinture Casing
7A08003 1Voyant orange Orange pilot light
8A14078 1Bouton Knob
9A06042 1Thermostat Thermostat
10 A13018 3Pied Foot
11 C03013 1Cordon avec prise Cord with plug
12 67055 1Fond socle Bottom casing
13 A10001 1Serre cable Cord closer
14 A16021 1Domino 2 plots Two holes domino
15 F05017 1Râteau en bois Wooden scraper
3
ELECTRIC CREPE MACHINE
CFE 400
Congratulations for the acquisition of this upmarket appliance made in France. You
chose an appliance which alloys the best technical qualities with a big user-friendliness.
We wish you the biggest contentment
1. SECURITY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire, electric shock,
scald or other wounds and damage. During the use of this appliance, fundamental cir-
cumspection of security must always be noticed, such as:
-Take into account the instructions to be systematically kept with the appliance.
-Install the appliance always in instructions respect. A 10 cm distance minimum
with the partition or the wall is necessary.
-This appliance is marked out for outside use or inside use in a well ventilated
room or under a cooker hood
-Protect the appliance from direct light of the sun, frost and humidity.
-Never leave the appliance within the reach of children or disabled persons with-
out surveillance.
-Never move the appliance when it is working or when the cooking surface is still
hot.
-Check that the appliance is definitely off before connecting it up or disconnect-
ing it.
-Do not touch the hot surfaces of the appliance. The temperature of the hot sur-
faces can be very important when the appliance is working. Always use handles
and control knobs.
-Do not use the appliance for other functions than determined use.
-Do not leave the cord of electrical feeding in the contact of hot surfaces.
-The appliance should not be used close to combustible materials.
-During use, look after not to obstruct hearings of aeration of the appliance
-To avoid any electric shock, never plunge the appliance, the cord or plug in wa-
ter or quite other liquid.
-If the cord is harmed, it must be replaced by the producer, his after sale service
or persons of similar skills to avoid any risk.
-Entrust compensations only to a skilled person.
-Use only spare parts of origin.
-At the end of cooking, before cleaning the appliance, do not forget to disconnect
it.
2. CONTENTS OF CARDBOARD PACKAGING
Device: a crepe machine
Accessories: - A wooden crepe rake
-The present note

4
See exploded vow of CFE 400 at the end of the document
3. CONFORMITY OF USE
Use the device only to cook crepes, pancakes, buckwheat cakes...
4. WAY OF FUNCTIONING
This crepe machine is a strong cooktop in enamelled cast iron. The strong thickness
of the plate ensures an excellent homogeneity and a stability of the temperature.
The plate’s smooth surface provides direct heat transfer to the food being cooked,
without heat loss at the centre as in the periphery thanks to spiral heating element
integrated under the cast iron plate that cover the entire cooking surface.
To turn on and preheat the plate, just turn the thermostat control knob (n°2 on pic-
ture) on the wished position. The orange pilot light ignites (n°1 on picture), the crepe
machine is heating. When orange pilot light switches off, the device is ready for the
cooking.
During cooking, the temperature can be regulated thanks to thermostat control knob
(n°2 on picture) to avoid phenomenon of overheating. Orange pilot light (n°1 on pic-
ture) indicates heating periods.
A crepe is cooked at a temperature around 200-220°C (position 5-6)
12
1
2
Thermostatic pilot light
Thermostat control knob 9

10. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the distributor
or the retailer. Please contact the store where you bought your device to know the
precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect cur-
rent regulations or instructions appearing in this user guide.
Cannot benefit from the guarantee the repairs required as a result of false operations,
of inappropriate use, of carelessness or of excess loads of the device, as well as
those resulting from variations of the power supply, over tension or from defective in-
stallations.
The damage due to shocks, bad weather is not flatware by the guarantee. The mate-
rial travels at the risks of the user; in case of delivery by carrier, the consignee has to
have reservations towards the carrier before any delivery of the device.
The guarantee comes to an end in case of intervention, of repair, of modification by no
qualified persons, or of use in inappropriate purposes.
85
5. FUNCTIONING / MANIPULATION
a) Installation / assembly:
-Unpack carefully the device of its packaging.
-Place it on a plane and heatproof surface.
-Never place the device near a wall or near a partition makes of combustible materials
even if it is very well isolated.
-A distance of minimum 10 cm with the partition or the wall is necessary.
b) First starting:
Before the first use, remove the anti-corrosion protection fat with a cleaner and a wet
sponge.
During the first use, grease your plate with oil and preheat the crepe machine during
about 15 min. Once preheating is finished, set the thermostat on the wished tempera-
ture.
First cleaning
Clean the device before the first use. (See 6. Cleaning)
Connection of the device
-Check that the tension and the frequency of the electricity network suit to the values
indicated on the descriptive plate.
-Make sure that every control knob is positioned on 0.
-Check that neither the cord nor the plug are damaged
-Unwind completely the electric power cable and connect it in a plug connected with the
earth.
-The device is connected.
NB: in case of connection of the device in a plug without earth protection or directly on
the electricity network, confide its connection to a qualified person .
c) Use of device :
Elements of command and display
Command/Display Function
Thermostat (n°2 on picture) On/off + Temperature setting
Orange pilot light
(n°1 on picture) Machine is heating (pilot light on) Temperature reached (pilot light off)
