22LG30
LCD HDTV
22” Class (22.0” diagonal)
• 720p HD Resolution
• 5,000:1 Dynamic Contrast Ratio
• HDMI™ 1.3
• AV Mode (Cinema, Sports, Game)
• Invisible Speaker System
• PC Input
HD RESOLUTION
High denition television is the highest performance segment of the DTV system used in the US. It’s a wide screen, high-resolution video
image, coupled with multi-channel, compact-disc-quality sound.
AV MODE
LG HDTVs include 3 AV Modes, preset to optimize picture and sound settings based on “Cinema”, “Sports” or “Game” content. AV
Modes can be easily set with a convenient button on the remote control.
INVISIBLE SPEAKER SYSTEM
LG’s 2008 line of TVs include a unique invisible speaker system, tuned by renowned audio expert, Mr. Mark Levinson. Speakers are
embedded in strategic spots behind the front cabinet and use minute vibrations to turn the entire front bezel into the speaker system.
The result is a clean, polished look, and enhanced audio by increasing the “sweet spot”, giving a wider and richer sound eld.

L C D P A N E L
Native Display Resolution 1680 x 1050p
Brightness (cd/m2) 300
Dynamic Contrast Ratio 5,000:1
Viewing Angle 160º x 160º
Response Time (Grey to Grey) 5ms
Wide Color Control •
Life Span (Typical) 60,000 hours
B R O A D C A S T I N G S Y S T E M
Analog •
ATSC/NTSC/Clear QAM •
VIDEO
XD Engine™ •
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes
Just Scan (1:1 Pixel Matching)
- HDMI 1080p/1080i/720p
- Component 1080p/1080i/720p
- RF 1080i/720p
Enhanced Line Doubler •
Enhanced Noise Reduction (Video Noise Filter) • (3D & MPEG)
Color Temperature Control 4 Modes
Black Stretcher (Black Level Enhancer) •
Picture Reset •
AV Mode (Picture & Sound) 3 Modes
Picture Selection Mode 7 Modes
DTV Signal Strength Indicator •
AUDIO
Mono/Stereo/Dual (MTS/SAP) •
Audio Outout Power (Watts - THD 10%) 3W + 3W
Speaker System Details 2 Way 4 System (Invisible Speaker)
Dolby® Digital Decoder •
Bass/Treble/Balance Controls •
Sound Mode 5 Modes
Mute •
SPECIAL FEATURES
1080P Source Input
- HDMI™ 60p/30p/24p
- Component 60p/30p/24p
- RGB WSXGA
A/V Input Navigation •
Auto Navigation •
Quick View (Previous Channel) •
Quick Setup Guide •
Parental Control w/V-Chip •
Key Lock •
Closed Caption •
Trilingual Menus English/French/Spanish
EZ Menus (High Performance Interface) •
Channel Add/Delete •
Favorite Channel •
Auto Clock •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
REAR AUDIO/VIDEO INPUTS/OUTPUTS
RF In (Antenna/Cable) 1
L/R Audio/Component Video In 1
S-Video In 1
HD Component Video In (Y,Pb,Pr) + L/R Audio 1
HDMI/HDCP Input 1 (V.1.3)
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
RS-232c In (Control/Service) 1
USB (Service Only) 1
CABINET/ACCESSORIES
Cabinet Style Table Top
Cabinet Color Glossy Piano-black
Remote Control Type Universal
Stand Fixed
VESA® Compatible (W x H) 100mm x 100mm
POWER
Consumption (Typical) n/a
Stand-by Consumption >1W
SPECIFICATIONS
Dimensions w/out stand (W x H x D) 20.6” x 15.1” x 2.7”
Weight w/out stand 11.8 lbs
Dimensions w/stand (W x H x D) 20.6” x 17.0” x 7.4”
Weight w/stand 12.5 lbs
Dimensions w/packaging (W x H x D) 23.4” x 18.5” x 6.8”
Weight in package 15.2 lbs
UPC 719192173071
Limited Warranty 1 Year Parts/Labor
22LG30 LCD HDTV
22” Class (22.0” diagonal)
LG Electronics U.S.A., Inc. • 1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: [phone] •LGusa.com
© 2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
All other trademarks are the property of their respective owners. Design, features and specifications subject to change without notice. 11/05/08

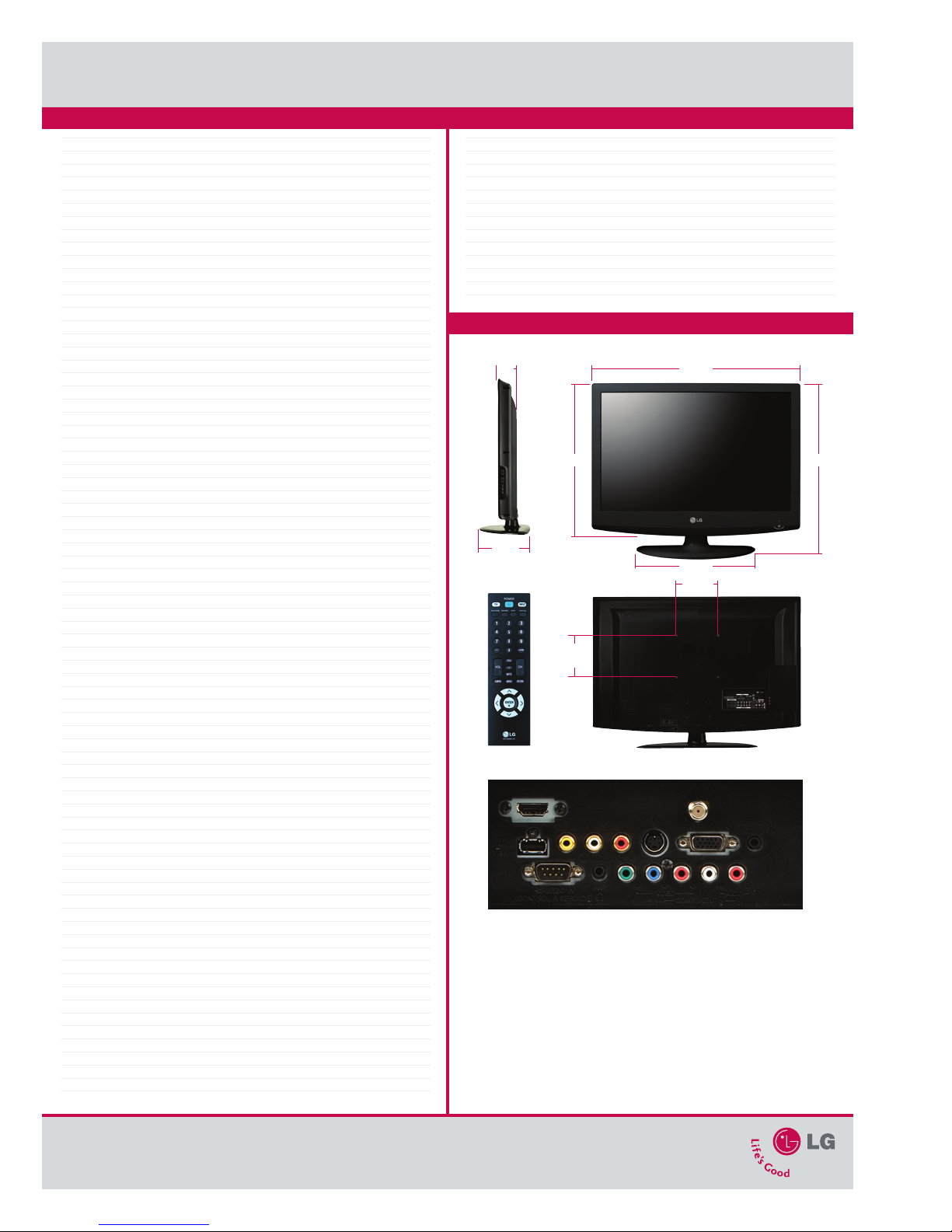

DIMENSIONS/REMOTE/INPUTS/OUTPUTS
TECHNICAL SPECIFICATIONS
20.6”
15.1” 17.0”
12.6”
2.7”
7.4”
3.9”
(100mm)
3.9”
(100mm)
