LG 26LD350C User manual

32LD350C
26LD350C
22LD350C
32" class (31.5" diagonal)
26" class (26.0" diagonal)
22" class (21.6" diagonal)
lcd tv
LCD Commercial Widescreen
w w w. LG s o l u t i o n s . c o m
PUBLIC DISPLAY SETTINGS - CLONING CAPABLE
EcoSmart™
Energy Saving Levels
ENE GY STA ®4.1 AND oHS COMPLIANT
DYNAMIC CONT AST ATIO
15,000:1 (26”/32”)
8,000:1 (22”)
NATIVE DISPLAY ESOLUTION
1366 X 768
BUILT-IN ATSC/NTSC/QAM CLEA TUNE
INVISIBLE SPEAKE SYSTEM
Hidden speaker grilles
LG'S EXCLUSIVE XD ENGINE®
USB 2.0 MEDIA HOST FO PHOTOS AND MUSIC
USB CLONING
CLEA VOICE II
EAL CINEMA™
2 HDMI™ INPUTS WITH HDCP
V.1.3 with deep color (26”/32”)
AUTO SENSING EMOTE JACK PACK ( JP) COMPATIBLE*
2-YEA LIMITED WA ANTY
(parts/labor)
*NOTE: Contact your LG Sales representative on the JPs that are
compatible with the LD350C series.
Integrated HDTV

•EcoSmart
Energy Saving Levels - Manually select your choice for the brightness level for the
television.
•RoHS Compliant
Meets directive on restriction of hazardous substances.
•Energy Star 4.1 Qualified - Meets current reduction requirements of energy
consumption.
L F E ’ S G O O D . . .
WHEN T’sGREEN.
LG is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products. Our
LD350C televisions have technologies to reduce
power consumption and in return increase cost
savings per room. We’ve also placed limits in the
amounts of harmful materials used in these
televisions.
LG’s newest core technology, Picture Wizard, enables easy self-
calibration by providing on-screen reference points for key picture quality
elements such as black level, color, tint, sharpness and backlight levels. By
using this easy-to-use calibration process, the picture setting can be set to
better fit the type of room application.
BALANCED SO ND TO EMPHASIZE DIALOG E
Clear Voice technology automatically enhances dialogue when
background sounds such as those in an action sequence swell.
Enhancements made to the Clear Voice technology now allow users to
customize their personal preferences based on their home environment
through a 12-step adjustment process. This calibration process is based
on distinct voice zoom levels so as to minimize interference with
surrounding sounds.

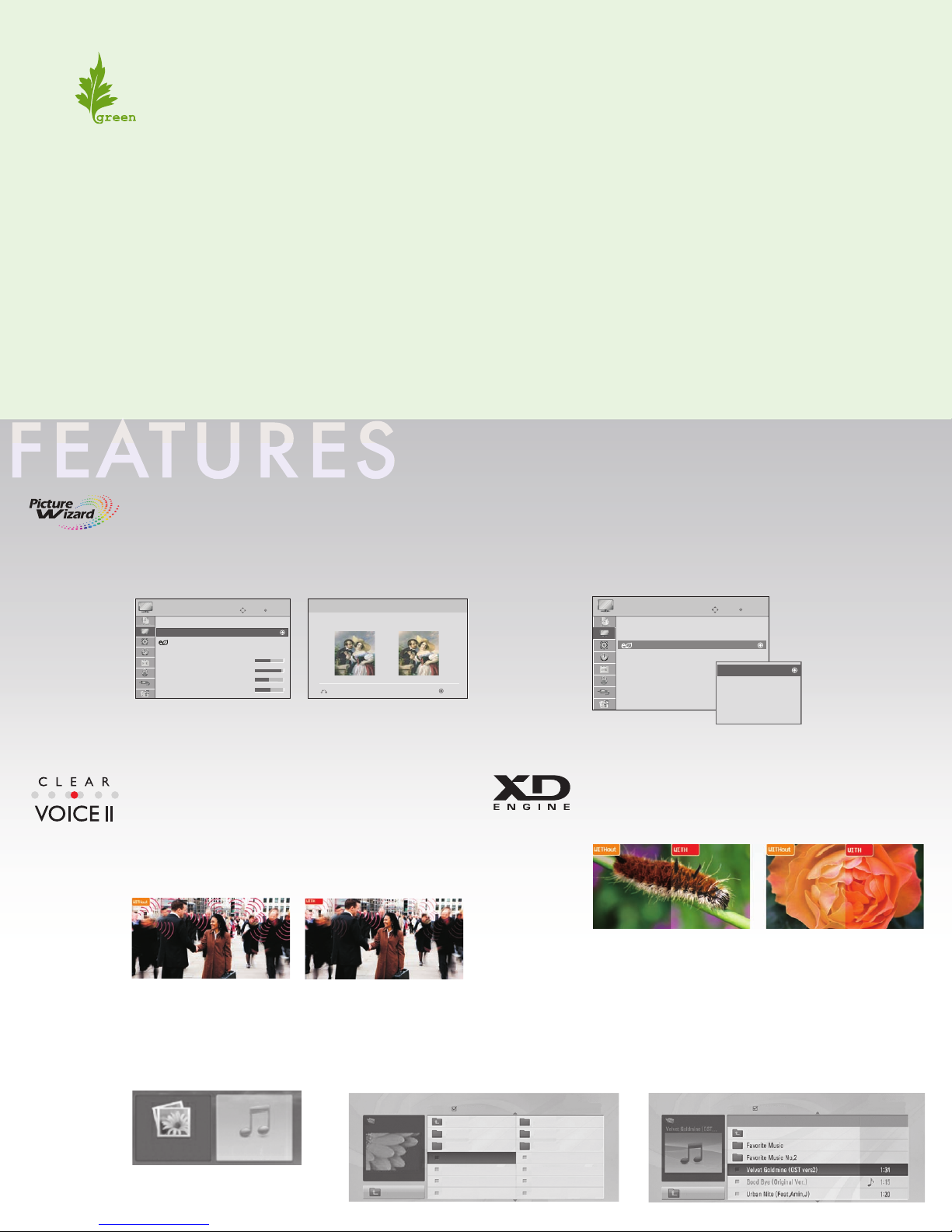

Picture Wizard
With Picture Wizard, you can adjust the picture quality of the
original image.
G
NextPrevious
PHOTO LIST MUSIC LIST
Enter
Move

Aspect Ratio : 16:9
Picture Wizard
Energy Saving :Off
Picture Mode:Standard
• Backlight 70
•Contrast90
• Brightness50
• Sharpness70
Manually select your choice for the brightness level for the television. By
selecting Minimum, Medium, or Maximum, the power consumption will
be reduced and an increase in energy savings can be achieved. (Note:
Selecting minimum level may slightly increase power consumption on some models)
Enter
Move
▼
Aspect Ratio:16:9
Picture Wizard
Energy Saving :Off
Picture Mode:Standard
• Backlight 70
• Contrast90
• Brightness50
• Sharpness70
Off
Minimum
Medium
Maximum
Screen off
USB 2.0 will support JPG and MP3 files from a USB storage device.
Page 2/3 No Marked
Photo List
Up Folder
1366x768, 125KB
KY101 06/10/2008
KY102 04/03/2008
JMJ001 01/01/2000
JMJ002 06/15/2008
JMJ003 04/03/2008
JMJ004 02/18/2008
KY103 03/30/2008
KY104 06/19/2008
KY105 01/31/2008
JMJ005 05/13/2008
JMJ006 05/26/2008
JMJ007 02/18/2008
JMJ008 02/18/2008
Up Folder
Drive1
JMJ001
Music List
Up Folder
noitaruDeltiT
Page 2/3 No Marked
Drive1
AA00:00 / 04:16
Up Folder
SB 2.0
M E D I A H O S T
26”CLASS
32” CLASS
Dramatization
Six distinct processes contribute to picture improvement. LG’s XD Engine® takes
the low resolution of analog signals to near HD levels by improving brightness,
contrast, detail and enhancing color as well as reducing signal noise.
®
ENERGY SAVING LEVELS
Dramatization
Dramatization

RGB(PC)
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
RJP
SPEAKER OUT
VIDEO
YPBLR
LR
PR
L(MONO)-AUDIO-R
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
ANTENNA/
CABLE IN
HDMI/DVI IN
AV IN1
COMPONENT IN
2
1
AV IN 2
L/MONO
RR
AUDIO
VIDEO
USB IN
32LD350C
26LD350C
22LD350C
15.7”
31.4”
8.1”
20.0”
22.2”
100mm
11.8
9.9”
2.9
200mm
6.2”
26.1”
15.7”
16.6”
19.0”
8.1”
3.1”
4.2”
8.5”
9.1”
200mm
100mm
STAND BODY
COVER BASE
4-Screws
(provided)
MO NTING HOLES ON STAND
ATTACH NG THE TV TO A DESK
11.3”
20.7”
6.4”
13.0”
14.8”
100mm
100mm
8.4”
3.1”
5.9”
2.5”
1.9”
SB CLONING
26” CLASS/ 32” CLASS
USB cloning will allow for easy transfer of Public
Display Settings from the “Master TV” to an unlimited
number of same type televisions.
AVIN2
L/MONO
R
AUDIO
VIDEO
USBIN
SO ND IS HEARD, NOT SEEN
Enjoy a combination of smart technology
and stylish design with the invisible
speaker system custom tuned by audio
expert Mr. Mark Levinson. This unique
system provides a clean, polished look
and an enhanced auditory experience
by increasing the sweet spot and
providing a wider sound field.
P BLIC DISPLAY SETTINGS
When used in public areas, these HDTVs can be
easily programmed by the installer to have the
TV turn on at a specified channel/volume level,
set the minimum/ maximum volume, lock out the
control panel/remote, set the aspect ratio, and
return to a factory reset. By using Power
Management, these displays can be
programmed to turn off if there has been no
activity (remote or control panel buttons) for a
preset time (1-7) hours.
Public Display Mode No
Start Channel No
Ch. Type TV
Major 2
Minor 0
Minimum Volume 0
Maximum Volume 100
Start Volume No
Level 20
Power Management No
Setting 1
Key Management 0
Factory Reset 0
Aspect Ratio 0
PDM Plus
Public Display Setting
32LD350C
26LD350C REAR SIDE
RS-232C IN
( CONTROL&SERVICE)
ANTENNA/
CABLE IN
VIDEO
YP
BPRL R
AUDIO
RGB IN (PC)
/DVI IN
AV IN
VIDEO AUDIO R
L(MONO)
COMPONENT IN
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
22LD350C REAR
USB IN
SERVICE ONLY
H/P
SIDE

All screen images are simulated. Dimensions and weights are approximate.
Design, features and specifications subject to change without notice.
© Copyright 2010 LG Electronics USA, nc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp. XD Engine is a registered trademark of LG Electronics,
nc. HealthView and EcoSmart are trademarks of LG Corp.
Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories. SRS and the SRS symbol,
TruSurround XT and WOW are trademarks or registered trademarks of SRS Labs, nc.
VESA is a trademark of Video Electronics Standards Association. All other product and
brand names are trademarks or registered trademarks of their respective companies.
Printed in the USA. December 2010
XT
specifications
www.LG s o l u t i o n s .com
lcd tv
LCD SPECIFICATION
Screen Size (Class) 32” class (31.5” diagonal)
26” class (26.0” diagonal)
22” class (21.6” diagonal)
Native Display Resolution 1366 x 768
Dynamic Contrast Ratio 15,000:1 (26”, 32”), 8:000:1 (22”)
Contrast Ratio 1,200:1
Viewing Angle 178°/178°
Color Reproduction 8 Bit
Response Time 5ms
True Viewing Angle Yes
Life Span (Typical) 60,000 hrs
BROADCASTING SYSTEM
Analog Yes
ATSC/NTSC/Clear QAM Yes
VIDEO
XD Engine Yes
Aspect Ratio 16:9
Aspect Ratio Correction 6 Mode
Just Scan (1:1 Pixel Matching)
HDM 1080p/1080i/720p
Component 1080p/1080i/720p
RF/DTV 1080i/720p
EnhancedNoise Reduction (Video Noise Filter) Yes, 3D NR/MPEG NR
Digital Comb Filter Yes (3D)
Color Temperature Control 3 Modes (Norm,Warm, Cool)
Black Stretcher Yes
24p Real Cinema Yes
Cinema 3:2/2:2Mode Yes
Picture Reset Yes
AV Mode (Picture & Sound) 3 Modes (Cinema, Sport, Game)
EZ Picture/PSM Yes (8 modes)
SFccc Ready Yes
DTV Signal Strength ndicator Yes
Video Reset/ nitializing Yes
A DIO
Mono/Stereo/Dual (MTS/SAP) Yes
Audio Output Power (Watts - THD 10%) 14W/7W x 2 (22”, 26”)
10Wx2W(32”)
nvisible Speaker System Details 1 Way 2 Speaker
Dolby Digital 5.1 Decoder Yes
Surround System Type SRS TruSurround XT, SRS WOW
Bass/Treble/Balance Controls Yes
Clear Voice Yes
Auto Volume Leveler Yes
EZ Sound Mode/SSM 5 Modes
SPECIAL FEAT RES
Public Display Settings Yes , V2.5
Energy Saving Modes Yes (Minimum, Medium, Maxiumum)
Brightness Optimization Yes (Available in Standard, Natural, Sport,
Game modes)
Auto-Sensing RJP compatible Yes (with select RJP versions)
PictureWizard Yes
Backlight Control Yes
USB Cloning Yes
Mechanical Power Off Yes
1080p Source nput
HDM 60p/30p/24p
Component 60p/30p/24p
RGB WXGA
A/V nput Navigation Yes
nput Labeling/Sub-title Yes
Quick View (Previous Channel) Yes
Quick Setup Guide Yes
e-Manual Yes
Parental Control w/V-Chip Yes
Key Lock/Child Lock Yes
Customizable Closed Caption/Sub-title Yes
LG S MPL NK™ (HDM CEC) Yes
CONVENIENCE FEAT RES
Language English/Spanish/French/Korean
Alvin U Yes
Auto Tuning/Programming Yes
Channel Add/Delete Yes
Favorite Channel Programming Yes
Auto/Manual Clock Yes
On/Off Timer Yes
Sleep Timer Yes
Auto Off/Auto Sleep (When no video is present) Yes
A DIO/VIDEOINP TS/O TP TS
RF n (Antenna/Cable) 1
L/R Audio/Composite Video n 1 (rear), 1(side except 22”)
HD Component Video n (Y, Pb, Pr) + L/R Audio1
Variable Auido (External Speaker) Out 1 (L/R 2W each)
Digital Audio Out (Optical) 1
HDM /HDCP nput (V1.3 with Deep Color) 2 (26”, 32”) 1 (22”)
RGB n (D-Sub 15pin) - PC 1 (1360 x 768)
PC Audio nput 1
RS-232c n (Control/Service) 1
USB 2.0 nput 1 (Side) Media Host (JPEG, MP3),
Cloning, and Service (26”, 32”)
Service only (22”)
Remote Control Port n 1
RJ45 (for RJP interface - non P P) Yes (26”, 32” only)
CABINET/ACCESSORIES
Cabinet Color Glossy Black
Swivel Stand (degrees) +20°/-20°
Fire Retardant Cabinet Material Yes
Kensington Security System Slot Yes
VESA® Mount Compliant (WxH) 200mm x 100mm, M4 screw (26”, 32”)
100mm x 100mm, M4 screw (22”)
Remote Control Yes
POWER
Voltage, Hz 100V - 240V, 50/60 Hz
Stand-by Mode (typ.) 0.21W
Power Consumption (typ.) 78W (32”) , 60W (26”) , 44W (22”)
Dynamic Power Savings Yes
Static Power Savings Yes
REQ IRED APPROVALS
ENERGY STAR® 4.1 Qualified Yes
RoHS Compliant Yes
UL, cUL, NOM Yes
DIMENSIONS & WEIGHT
TV without stand (WxHxD) 20.7" x 13.0" x 2.5" (22”)
26.1" x 16.6" x 3.1" (26”)
31.4" x 20.0" x 2.9" (32”)
TV with stand (WxHxD) 20.7" x 14.8" x 6.4" (22”)
26.1" x 19.0" x 8.1" (26”)
31.4" x 22.2" x 8.1" (32”)
Shipping Dimensions (WxHxD) 25.9" x 16.2" x 5.4" (22”)
30.3" x 20.7" x 7.5" (26”)
37.9" x 23.6" x 7.5" (32”)
TV without stand weight 8.8 lbs (22”)
13.6 lbs (26”)
18.0 lbs (32”)
TV with stand weight 9.4 lbs (22”)
16.0 lbs (26”)
20.2 lbs (32”)
ShippingWeight 12.3 lbs (22”)
20.0 lbs (26”)
25.3 lbs (32”)
SERVICE/LIMITED WARRANTY 2 Years (Parts/Labor)
PC CODE
32LD350C 7 1919290046 2
26LD350C 7 1919290047 9
22LD350C 7 1919290048 6
32LD350C
26LD350C
22LD350C
32" class (31.5" diagonal)
26" class (26.0" diagonal)
22" class (21.6" diagonal)
LG Electronics U.S.A., nc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, L 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative
Vertical Markets: 800.897.8788
Channel: 800.897.8871
Hospitality: 800.228.1236
E-mail: [e-mail]
SPEC_LD350C_121023_PR
