LG 32HIZ22 User manual

R
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LP62F
MODEL : 32HIZ22 32LC2RHA-ZH
website:http://biz.LGservice.com

- 2 -
CONTENTS
CONTENTS............................................................................................... 2
SAFETY PRECAUTIONS ..........................................................................3
SPECIFICATION ........................................................................................6
ADJUSTMENT INSTRUCTION................................................................11
TROUBLE SHOOTING ............................................................................16
BLOCK DIAGRAM...................................................................................22
EXPLODED VIEW....................................................................................24
EXPLODED VIEW PARTS LIST..............................................................25
REPLACEMENT PARTS LIST ................................................................26
SVC. SHEET ................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 -
1. Application range
This specification is applied to LP62F chassis.
2. Requirement for Test
Testing for standard of each part must be followed in below
condition.
1) Temperature : 25°C±5°C(77±9°F), CST : 40±5
2) Humidity : 65%±10%
3) Power : Standard input voltage (100-240V~, 50/60Hz)
*Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance : LGE TV test method followed
2) Demanded other specification
Safety : CE, IEC Specification
EMC : CE, IEC
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
4. General TV Specification
No Item Specification Remark
1. Video input applicable system PAL-D/K, B/G, I, NTSC-M, SECAM,
NTSC 4.43
2. Receivable Broadcasting System 1) PAL/SECAM BG
2) PAL/SECAM DK
3) PAL I/I
4) SECAM L/L' only ZH
5) PAL-N/M
6) NTSC M only TH
3. RF Input Channel VHF : E2 ~ E12 PAL
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21~ S47
L/L' : B, C, D FRANCE
VHF : 2~13 NTSC
UHF : 14~69
CATV : 1~125
4. Input Voltage 100-240V~ /50Hz, 60Hz
5. Market Worldwide
6. Active Screen Size 800.4 mm(diagonal) 31.51 inches
940.3 mm(diagonal) 37.02 inches
1067.308 mm (diagonal) 42.02 inches
7. Tuning System FVS 100 program
FS
8. Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : 10 ~ 90 %RH
9. Storage Environment 1) Temp : -20 ~ 50 deg
2) Humidity : 10 ~ 90 %RH
10. Display LCD Module 32"/42" : LPL
37" : AUO, LPL

- 7 -
5. General Specification
No Item Specification Remark
1 Panel 32”, 37", 42" TFT WXGA LCD
2 Frequency range H : 31 ~ 61Khz, V : 56 ~ 75Hz PC Input
3 Control Function 1) Contrast/Brightness
2) H-Position / V-Position
3) Tracking : Clock / Phase
4) Auto Configure
5) Reset
4 Component Jack Y/Pb/Pr : 1EA ZH
(480i/576i/480p/576p/720p/1080i) Y/Pb/Pr : 2EA TH
5 Power ON LED Power consumption
White ≤140W(32”)
≤190W(37")
≤250W(42")
Stand by BRAND RED ≤1W
COMMERCIAL RED ≤2W
6 LCD Module Outline 32" 760.0 x450.0 x 48.0
Dimension 37" 877.0 x 516.8 x 55.5 (H)mmx(V)mmx(D)mm
42" 1006 x 610 x 56
Pixel Pitch 32” 0.1702 x0.5107 x RGB
37" 0.200 x 0.600 x RGB
42" 0.227 x 0.681 x RGB
Pixel Format 1366 x 768 Pixels RGB strip arrangement
Coating
Hard coating(3H), Anti-glare treatment of the front polarizer
Back Light 32" 20EEFL
37" 20EEFL
40” 20CCFL

- 8 -
6. Model Specification
No Item Specification Remark
1. Market EU
2. Broadcasting system PAL BG/I/DK, SECAM
3. Available Channel BAND PAL
VHF/UHF C1 ~ C69
CATV S1 ~ S47
4. Receiving system Upper Heterodyne
5. SCART Jack(2EA) PAL, SECAM, NTSC 4 System :
PAL, SECAM, NTSC, PAL60
6. Video Input (2EA) PAL, SECAM, NTSC 4 System :
PAL, SECAM, NTSC, PAL60
7. S-Video Input (2EA) PAL, SECAM, NTSC 4 System :
PAL, SECAM, NTSC, PAL60
8. Component Input (1EA) Y/Cb/Cr, Y/ Pb/Pr
9. RGB Input (1EA) RGB-PC/DTV
10. HDMI Input (2EA) HDMI-PC/DTV
11. Audio Input (4 EA) PC Audio, Component (1EA),
AV (2EA) L/R Input
12. Wired Control (1EA)
13. Speaker out (1EA) Stereo Phone Jack
14. RJP Interface (1EA) RJ-45 jack interface for RJP RJP : Remote Jack Pack
7. Component Video Input (Y, PB, PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks
1. 720 x 480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2. 720 x 480 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3. 720 x 576 15.625 50.00 13.500 SDTV, DVD 576I(625I)
4. 720 x 480 31.47 59.94 27.000 SDTV 480P
5. 720 x 480 31.50 60.00 27.027 SDTV 480P
6. 720 x 576 31.25 50.00 27.000 SDTV 576P
7. 1280 x 720 44.96 59.94 74.176 HDTV 720P
8. 1280 x 720 45.00 60.00 74.250 HDTV 720P
9. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz
10. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I
11. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I
12. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

- 9 -
8. RGB Input ( PC )
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks
1. 720 x 400 31.469 70.08 28.32 DOS
2. 640 x 480 31.469 59.94 25.17 VESA(VGA)
3. 640 x 480 37.500 75.00 31.50 VESA(VGA)
4. 800 x 600 37.879 60.31 40.00 VESA(SVGA)
5. 800 x 600 46.875 75.00 49.50 VESA(SVGA)
6. 832 x 624 49.725 74.55 57.28 Macintosh
7. 1024 x 768 48.363 60.00 65.00 VESA(XGA)
8. 1024 x 768 56.476 70.06 75.00 VESA(XGA)
9. 1024 x 768 60.023 75.02 78.75 VESA(XGA)
10. 1280 x 768 47.693 59.99 80.125 WXGA(42XGA,50", 60")
11. 1360 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")
12. 1366 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")
9. RGB input ( DTV )
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks
1. 720 x 480 31.47 59.94 27.000 SDTV 480P
2. 720 x 480 31.50 60.00 27.027 SDTV 480P
3. 720 x 576 31.25 50.00 27.000 SDTV 576P
4. 1280 x 720 44.96 59.94 74.176 HDTV 720P
5. 1280 x 720 45.00 60.00 74.250 HDTV 720P
6. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz
7. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I
8. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I
9. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz
10. HDMI Input ( PC )
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks
1. 720 x 400 31.469 70.08 28.32 DOS
2. 640 x 480 31.469 59.94 25.17 VESA(VGA)
3. 640 x 480 37.500 75.00 31.50 VESA(VGA)
4. 800 x 600 37.879 60.31 40.00 VESA(SVGA)
5. 800 x 600 46.875 75.00 49.50 VESA(SVGA)
6. 832 x 624 49.725 74.55 57.28 Macintosh
7. 1024 x 768 48.363 60.00 65.00 VESA(XGA)
8. 1024 x 768 56.476 70.06 75.00 VESA(XGA)
9. 1024 x 768 60.023 75.02 78.75 VESA(XGA)
10. 1280 x 768 47.693 59.99 80.125 WXGA(42XGA,50", 60")
11. 1360 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")
12. 1366 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

- 10 -
11. HDMI input ( DTV )
12. Mechanical Specification
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks
1. 720 x 480 31.47 59.94 27.000 SDTV 480P
2. 720 x 480 31.50 60.00 27.027 SDTV 480P
3. 720 x 576 31.25 50.00 27.000 SDTV 576P
4. 1280 x 720 44.96 59.94 74.176 HDTV 720P
5. 1280 x 720 45.00 60.00 74.250 HDTV 720P
6. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz
7. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I
8. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I
9. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz
No Item Content Remark
1. Product Width Length Height Unit
Dimension Before Packing 811 235 630 mm SET(With Stand)
After Packing 912 316 695 mm
2. Product Weight Only SET 21.9 Kg
With BOX 26.3 Kg
3. Container Loading Individual or 20ft 40ft
Quantity Palletizing Indi Wooden Indi Wooden
126 120 273 264
4. Stand Assy Type Attached ( detachable )
Size( W x D x H ) 488.2 235 183 mm
Tilt Degree - Without Tilt function
Tilt force -
Swivel Degree -
Swivel Force -
5. Appearance General Refer to Standard of LG(55)G1-1020

1. Application Range
This spec. sheet is applied to all of the LP62F chassis(H3-
High) manufactured at LG TV Plant all over the world.
2. Specification
1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help to protect test instruments.
2) Adjustment must be done in the correct sequence.
3) The adjustment must be performed at 25±5°C temperature
and 65±10% relative humidity if there is no specified
designation.
4) The input voltage of the receiver must be kept between
100-220V, 50/60Hz.
5) Before adjustment, execute Heat-Run for 30 minutes at RF
no signal
3. Adjustment items
3.1. PCB assembly adjustment items
1) Channel memory
- Download the channel data from BOM to EEPROM by
using LGIDS.
2) Option adjustment following BOM
- Tool Option1
- Tool Option2
- Area Option
3.2. SET assembly adjustment items
1) Auto AV(ZH-AV3, TH-AV1) Color Balance
2) Aging (by Power on key)
3) Adjustment of White Balance
4) Auto Component Color Balance adjustment
- Standard equipment : MSPG925FA
5) Auto RGB Color Balance adjustment
- Standard equipment : MSPG925FA
4. EDID
[Caution]
* Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
* Never connect HDMI & DVI-D & DVI-A cable at the same time.
* Use the proper cables below for EDID Writing.
4.1. EDID Data
(1) ANALOG(256 Bytes )
- BLOCK1 (128BYTE)
(2) HDMI(256 Bytes )
- BLOCK1 (128BYTE)
- BLOCK2 (128BYTE)
=> Detail EDID Options are below (a, b, c, d, e)
a. Product ID
b. Serial No : Controlled on production line
c. Month, Year : Controlled on production line:
ex) Monthly : '03' => '03'
Year : '2005' => '0F'
d. Model Name/Monitor Name
e. Checksum: Changeable by total EDID data
- 11 -
ADJUSTMENT INSTRUCTION
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 00 FF FF FF FF FF FF FF 1E 6D
10 01 03 80 46 27 78 EA D9 B0 A3 57 49 9C 25
20 11 49 4B A5 6E 80 31 40 01 01 01 01 45 40 01 01
30 61 40 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88
40 35 00 BC 88 21 00 00 1C 4E 1F 00 80 51 00 1E 30
50 40 80 37 00 BC 88 21 00 00 18
60 00 00 00
FD
70 00 38 4B 1F 3D 09 00 0A 20 20 20 20 20 20 01 14
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 02 03 24 F1 49 85 04 02 01 03 11 12 13 14 23 09
10 07 07 23 09 07 07 23 09 07 07 83 01 00 00 65 03
20 0C 00 10 00 01 1D 00 80 51 D0 1C 20 40 80 35 00
30 BC 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E
40 96 00 13 8E 21 00 00 18 2A 12 00 10 41 43 17 20
50 28 60 35 00 00 00 32 00 00 1C 01 1D 80 18 71 1C
60 16 20 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6B
For Analog EDID
D-sub to DVI-I
For Digital EDID
DVI-D to DVI-D
For HDMI EDID
DV-D to HDMI or HDMI to HDMI
No.
1
2
3
Item
Manufacturer ID
Version
Revision
Condition
GSM
Digital : 1
Digital : 3
Data
1E6D
01
03
a b
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00 00 FF FF FF FF FF FF FF 1E 6D
10 01 03 01 46 27 78 EA D9 B0 A3 57 49 9C 25
20 11 49 4B A5 6E 80 31 40 01 01 01 01 45 40 01 01
30 61 40 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88
40 35 00 BC 88 21 00 00 1C 4E 1F 00 80 51 00 1E 30
50 40 80 37 00 BC 88 21 00 00 18 00 00 00 FD 00 38
60 4B 1F 3D 09 00 0A 20 20 20 20 20 20
70 00 99
c
ab
d
d
d
d
Model Name Product ID Product ID
Dec Hex EDID table
32LC2RHA 30109(A) 30109 759D 9D75
30110(D) 30110 759E 9E75
Model Name
32LC2RHA-ZH 00 00 00 FC 00 33 32 4C 42 32 52 48 41 2D 4D 48 0A 20

- 12 -
5. ADC Calibration
* Caution : System control RS-232C Host should be “PC” for
adjustment
- Press the FRONT-AV KEY on remote control for converting
input mode
(Change RS-232C Host : pc, Band Rate : 115200bps)
5.1. Adjustment of RF/AV/S-VIDEO
(1) Required Equipments
1) Remote controller for adjustment
2) 802F Pattern Generator, Master (MSPG-925FA), etc.
3) MSPG-925FA Pattern Generator
(Which has Video Signal: 100% Color Bar Pattern
shown in Fig. 1)
=> Model : 202 / Pattern: 33 (PAL : ZH, TH)
Model : 201 / Pattern : 33 (NTSC : MH)
(2) Method of Auto RF/AV/S-VIDEO Color Balance
1) Press the FRONT-AV KEY on remote control for
converting input mode.
2) Input the Video Signal: 100% Color Bar signal into
AV3(ZH), AV1(TH), VIDEO1(MH).
3) Set the PSM to Standard mode in the Picture menu.
4) Press INSTART key on remote control for adjustment.
5) Press the G(Vol.+) key to operate the set, then it
becomes automatically.
6) Auto-RGB OK means the adjustment is completed.
(3) Requirement
1) This AV color balance adjustment should be performed
before White Balance Adjustment.
2) After AV color balance adjustment, Change the mode
from AV to RF. (Cancel Heat-run mode.)
5.2. Adjustment of Component.
(1) Required Equipments
1) Remote controller for adjustment
2) 802F Pattern Generator, Master (MSPG-925FA), etc.
3) MSPG-925FA Pattern Generator
(Which has 720p YPbPr signal : 100% Color Bar Pattern
shown in Fig. 2 )
=> Model: 217 / Pattern: 33
4) It is very import to use correct adjustment pattern like Fig.1.
- Within the pattern, color sequence should be aligned
: White-Yellow-Cyan-Green-Magenta-Red-Blue-Black
(If color sequence is reversed (Black -> ... -> White),
reverse the pattern with REV key, when using Master
pattern generator like MSPG-925)
- If Minimum Black Level and/or Maximum White Level
is not correct, select 100% Color Bar Pattern.
(2) Method of Auto Component Color Balance
1) Input the Component 720p 100% Color Bar(MSPG-
925FA model:217, pattern:33) signal into Component.
(ZH : component , TH/MH : component 1 or 2)
2) Set the PSM to Standard mode in the Picture menu.
3) Press the INSTART key on remote control for
adjustment.
4) Press the G(Vol. +) key to operate the set , then it
becomes automatically.
5) Auto-RGB OK means the adjustment is completed.
5.3 Adjustment of RGB
(1) Required Equipments
1) Remote controller for adjustment
2) 802F Pattern Generator, Master (MSPG-925FA), etc.
3) MSPG-925FA Pattern Generator
(Which has XGA [1024x768] 60Hz PC Format output
signal : 100% Color Bar Pattern shown in Fig. 1)
4) It is very import to use correct adjustment pattern like Fig.1.
- Within the pattern, color sequence should be aligned.
: White-Yellow-Cyan-Green-Magenta-Red-Blue-Black
(If color sequence is reversed (Black ->...-> White),
reverse the pattern with REV key, when using Master
pattern generator like MSPG-925).
- If Minimum Black Level and/or Maximum White Level
is not correct, Do select 100% Color Bar Pattern.
(2) Method of Auto RGB Color Balance
1) Input the PC 1024x768 @ 60Hz 1/2 Black & White
Pattern (MSPG-925FA model : 3, patter : 3) into RGB.
2) Set the PSM to Standard mode in Picture menu.
3) Press the INSTART key on remote control for adjustment.
4) Press the G(Vol. +) key operate To set , then it becomes
automatically.
5) Auto-RGB OK means adjustment is completed.
* Before White-balance, the AV ADC should be done.
(ZH:AV3, TH:AV1, MH:VIDEO1)
Notice : Before White-balance, change input mode.
Move to AV3(ZH) or AV1(TH) or VIDEO1(MH) by using
the FRONT-AV KEY on Remote controller.
6. White Balance
<Caution>
- System control RS-232 Host should be "PC" for
adjustment.
- AV ADC(ZH: AV3, TH : AV1, MH: VIDEO1) should be
done before White-balance.
MSPG-
925FA
AV ADC Condition
PAL NTSC
Input ZH model:AV3 MH model
-select TH model:AV1 :VIDEO1
Model:202(PAL-BGDHI) Model:201(NTSC)
Pattern :33 *100% Color Bar
Component
Model : 217
DVI(RGB)
Model : 3
(1024x768@6
0Hz)
<Fig. 1>
White balance ZH(AV3), TH(AV1) MH(VIDEO1)
MSPG925FA 216 Level (85IRE) Model : 202 Model : 201
Full screen pattern * Pal Video * NTSC Video

* Test Equipment
Color Analyzer (CA-110)
PC(For communication through RS-232C)
=>UART Baud rate : 115200
Pattern Generator (MSPG-925FA etc.)
*Target Value [ PSM: Standard(ZH/TH), CSM: Normal]
- Normal(9300K±1000K) x:283±0.015, y: 298±0.015
- Luminance(Y)
AV/COPM : Min. 250 Cd/m2(Typ : 300 Cd/m2)
PC : Min. 300 Cd/m2(Typ : 350 Cd/m2)
=> Reference Value(Automatically fixed)
- Cool (11000K ± 1000K)
- Warm (7200K ± 1000K)
6.1. Manual white Balance (AV)
1) Execute CA-110 Zero Calibration.
2) Execute the SET Heat Run for 30minutes.
3) As below Fig.2, Supply 216Level (85 IRE) full screen
pattern to Video input. AV3/ AV4 (Input 50Hz)
4) Press the FRONT-AV KEY on remote control for converting
input mode.
5) Set the PSM to Standard mode in Picture menu.
6) Enter the White Balance adjustment mode by pressing the
INSTART key twice (White Balance) on remote control.
7) Stick sensor to center of the screen and select each items
(Red/Green/Blue Gain and Offset) using D/E(CH+/-) key
on remote control.
8) Adjust Only High Light with R Gain/B Gain using F/G(VOL
+/-) key on remote control.
9) Adjust it until color coordination becomes as below.
(Initially, R/G/B gain and R/G/B offset values are fixed as
below.
Red Gain : 82, Green Gain : 80, Blue Gain : 86
Red Offset : 80, Green Offset : 80, Blue Offset : 8C)
10) Adjust High light with R/B Gain.
6.2 Auto white Balance (AV)
1) LPL Module
2) AUO Module
* Input Select Data
RF(10), AV1~4(20,21,22,23), SAV(30), COMP(40), DVI
(50or60), HDMI(90)
* Command Set (SET ID : 0-> ALL , 1~99 -> each SET)
- 13 -
<Fig. 2>
216 Level(85IRE)
Command1 Command2 Set ID Data
Min Max
Input Select XB B 00 00h 90h
R-Gain J A 00 00h E0h
G-Gain J B 00 00h E0h
B-Gain J C 00 00h E0h
R-Offset J D 00 00h 90h
G-Offset J E 00 00h 90h
B-Offset J F 00 00h 90h
Command1 Command2 Set ID Data
Min Max
Input Select XB B 00 00h 90h
R-Gain J A 00 00h E0h
G-Gain J B 00 00h E0h
B-Gain J C 00 00h E0h
R-Offset J D 00 00h 90h
G-Offset J E 00 00h 90h
B-Offset J F 00 00h 90h
POWER ON/OFF
MAIN INPUT
ARC
SCREEN MUTE
AUDIO MUTE
VOLUME
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
OSD ON/OFF
CHILD LOCK
PIP MODE
PIP ARC
PIP POSITION
TREBLE
BASS
BALANCE
COLOR TEMP.
RED LEVEL
GREEN LEVEL
BLUE LEVEL
PIP INPUT
CURRENT STATE
Adjustment CMD SET ID VAL Remark
KA(ka)
XB(xb)
KC(kc)
KD(kd)
KE(ke)
KF(kf)
KG(kg)
KH(kh)
KI(ki)
KJ(kj)
KK(kk)
KL(kl)
KM(km)
KN(kn)
KO(ko)
KQ(kq)
KR(kr)
KS(ks)
KT(kt)
KU(ku)
KV(kv)
KW(kw)
K$(k$)
XY(xy)
KZ(kz)
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~1
10~90
0~6
0~1
0~1
0~64
0~64
0~64
0~64
0~64
0~64
0~1
0~1
0~3
0~64
0~64
0~64
0~3
0~60
0~60
0~60
10~90
FF
0: OFF, 1:ON
RF(10), AV1~4(20,21,22,23),
SAV(30), COMP(40),
RGB(50 or 60), HDMI(90)
SPECTACLE, FULL, ORIGINAL
4:3, 16:9, 14:9, ZOOM
0: MUTE, 1: MUTE OFF
0: MUTE, 1: MUTE OFF
0:0, 64:100 (Hexadecimal)
0:0, 64:100 (Hexadecimal)
0:0, 64:100 (Hexadecimal)
0:0, 64:100 (Hexadecimal)
0:R50, 64:G50 (Hexadecimal)
0: 0, 64:100 (Hexadecimal)
0: OFF, 1: ON
0: LOCK, 1: OFF
PIP_OFF, PIP, DW1, DW2
NOT USED
NOT USED
0:0, 64:100
0:0, 64:100
0:L50, 64:R50
COOL, NORMAL, WARM, USER
0:-30, 60:30
0:-30, 60:30
0:-30, 60:30
RF(10), AV1~4(20,21,22,23),
SAV(30), COMP(41),
DVI(50 or 60), ,HDMI(61)
ACK : 0 - With signal
ACK : 1 -> Without signal
ACK : 2 -> Power Off

7. Shipped Condition
7.1. Input the Shipping Option Data
(1) Push the ADJ key in the Adjust Remote control
(2) Input the Option Number that was specified in the BOM,
into the Shipping area.
1) Select “OPTION1” by using D/E(CH +/-) key, and press
the number key(0~9) consecutively.
ex) If the value of OPTION1 is 74, input the data using
number key “7” & “4”.(Fig. 3)
2) Select “OPTION2” by using D/E(CH +/-) key, and press
the number key (0~9).
3) Option3,4,5 are same as option1,2.
7.2. Detail list of SVC option data
- 14 -
RED GAIN
GREEN GAIN
BLUE GAIN
RED OFFSET
GREEN OFFSET
BLUE OFFSET
AUTO CONFIG.
TUNER CONTROL
SELECT PR.
SELECT SUB PR.
FACTORY IR
IR CODE
ADC Calriblation
Red,Blue,Green
Gain
Red,Blue,Green
offset
Adjustment
WHITE BALANCE “J”(A~F)
CMD SET ID VAL Remark
JA
JB
JC
JD
JE
JF
JU
MA
MB
MC
Ja,Jb,Jc
Jd,Je,Jf
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
0~99
direction
:00<E0
00<90
0~3F
0~3F
0~3F
0~3F
0~3F
0~3F
01
0~C7
0~C7
-F0
Min:00
Max:fe
Min:00
Max:fe
0:0, 3F:3F, FF : the state marking
0:0, 3F:3F, FF :the state marking
0:0, 3F:3F, FF : the state marking
0:0, 3F:3F, FF : the state marking
0:0, 3F:3, FF : the state marking
0:0, 3F:3F, FF : the state marking
If Auto Adjust Condition is not,
send the NACK.
0: Pr. 0, C7: Pr.199
0: Pr. 0, C7: Pr.199
IR CODE 0, BITMASK = 0X01
Initial data : red -0x79
blue -0x6f
green -0x80
Initial data : red -0x80
blue -0x82
green -0x80
LP62x
Cortez Version X.
.
XX
Panel Used XX hr
Tool Option1 50404
Tool Option2 50404
Area Option 50
Option1 102
Option2 3
Option3 0
Option4 192
Option5 20
System Control1
System Control2
System Control3
BlkLine Detector
Powwer- Off Hist ory
Panel Control
Fan Control
XSTUDIO Contorl
SYS.
Option 1 Option 2 Option 3 Option 4 Option 5
200PR(1Bit) SYS(1Bit) Scart(1Bit) Default Lan. SplitZoom Key(1Bit)
ACMS(1Bit) A2 ST(1Bit) CSM(1Bit) LANG Save Split Zoom(1Bit)
TEXT(2Bit) I II SAVE(1Bit) T LANG 2 Hour Off Opt.(1Bit)
CH+AU(1Bit) HDEV(1Bit) OSD Rotate(1Bit)
BOOST(1Bit) V-Curve(1Bit) Favorite Key(1Bit)
B-DEF(1Bit) MONO(1Bit) Exit Key(1Bit)
Navigation Key(1Bit)

- 15 -
8. Shipping Conditions
No Item Condition Remark
1 Power Off
2 Volume Level 30
3 Main Picture Input TV
4 Main Last Channel Pr 01
5 Mute Off
6 ARC 16 : 9
7 Station Auto Programme
Manual Programme
Programme Edit
Favorite Programme None
8 Picture PSM Dynamic
Dynamic Contrast 100
Brightness 50
Colour 50
Sharpness 50
CSM Normal
XD Auto
Advanced
Reset
9 Sound SSM Flat
Off
AVL Off
Balance 0
50
50
Speaker On
10 Time Clock --:-- User control
Off time Off
On time Off
Auto sleep Off
11 Special Language English Area management
Child Lock Off
Set ID 1
XD Demo To start
12 Screen Auto config.
Manual config.
XGA/VGA mode Variable by each mode
ARC
PFP Transparency
Reset

- 16 -
TROUBLESHOOTING

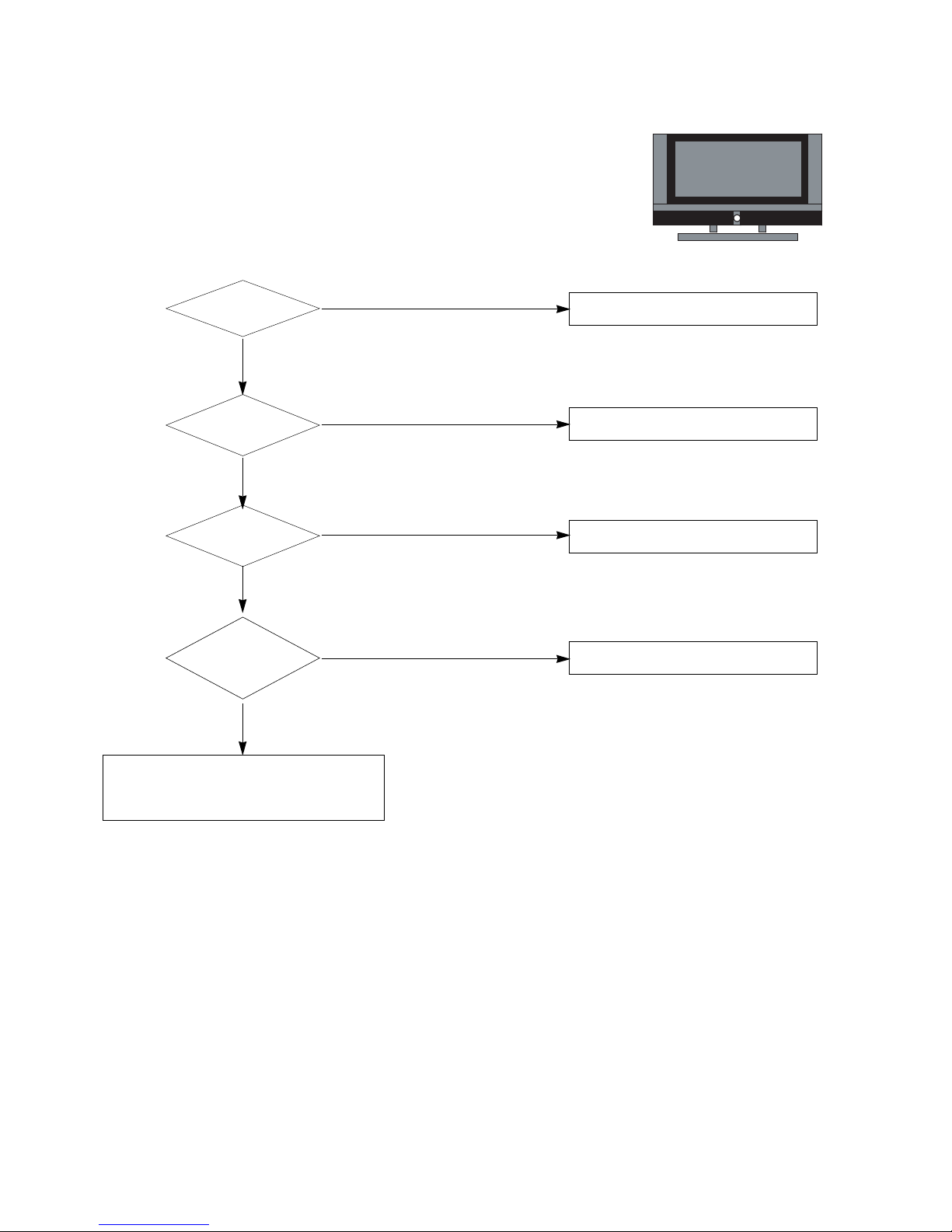

1. No power
Start check
Manufacture enterprise
meaning of a passage
1. Check the Power off condition
No
No
No
Yes
2. Check the Interface signal
condition
No
3. Check the St_by 5V signal
circuit
Yes Yes Yes
4. Check the 5V Monitor signal
circuit 5. Check the VSC RL_ON signal
Yes
6. Check the VSC low pressure
output
Yes No
7. Check the VSC Vs_ON signal
Yes
8. Check the Vs, Va voltage
output circuit
Yes
9. Check the power board output
high tension circuit
Yes
10. Check the Z B/D Module
output circuit
Yes
Yes
No
No
No
Yes No
11. Check the Y B/D Module
output circuit
Yes
No
Yes No No
No
Doesn’t
the screen whole
come out?
It is
identical with power
off condition?
Is the Interface
signal operated?
Doesn’t the
5V monitor signal
come out?
Doesn’t the
VSC signal RL_ON
come out?
Doesn’t the VSC
Low pressure output
come out?
Doesn’t the
Vs,Va voltage output
come out?
Doesn’t the
St-by 5V signal
come out?
Doesn’t
the VSC signal Vs-ON
come out?
When
remove,the
Y, Z B/D Module Input
connector, Power Board high
tension output voltage
drop it occurs?
When remove
the Y B/D Module
Input connector, output
voltage drop
is occurs?
When remove
the Z B/D Module
Input connector, output
voltage drop
is occurs?
Doesn’t the
low pressure output
come out?
Doesn’t the
high tension output
come out?
High tension
output Voltage drop
it occurs?

- 17 -
2. VSC Board
2-1. No Power
(1) Symptom
1) Minute discharge doesn’t occur at module.
2) Front LED doesn’t come into action
(2) Check follow
Is the
Power Cord
plug in ?
Plug in Power Cord
No
No
No
No
Yes
Is the
Line Filter and PSU
connected?
Connect Cable (SC100)
Yes
Is the
Fuse(F100) of PSU
is normal?
Replace Fuse
Yes
Is it
connect that
PSU and 13Pin
cable in VSC
board?
After remove the cable connect to Power Board(except the
CN101 connection cable), authorizes the AC voltage
marking on manual.
When ST-BY 5V does not operate, replace Power Board.
Connect Cable
Yes

- 18 -
2-2. No Raster - LCD
(1) Symptom
1) Does’t minute discharge at module.
2) It maintains the condition where the front LED is normal.
(2) Check follow
Is the Inverter
On or Off Check the Power board.
Off
No
Is the inverter
24V on power board
normal?
No
No No
No
Is output
the normality Low/High
voltage except stand-by
5V?
No
'Inverter_On'
Signal is High of 5th pin
in P1000 on Main
board Yes
On
Yes
Is the link cable
normal?
1. Check the Inverter connector.
2. Check the LCD Module.
Yes
1. Check the Main Board.
1. Reconnect the link cable in P804
No
1. Check the Main board.
1. Change the Power Board.
1. Change the Main Board.ß
Yes
Is the Power
Board normal?
Yes
Is the VSC
Board normal?
Is the P804's
output normal?

- 19 -
Is the LVDS
cable normal?
Is the VSC
Board normal? IC800' operation
is normal?
Is the
Ctrl Board of Module
normal?
Is the LVDS cable
connected well? Replace cable.
Replace VSC B/D
No
No Yes
Replace Ctrl Board in Plasma panel.
No
Replace LCD Module
No
Yes
Yes
Is the LCD
Module normal?
Yes
Plasma
LCD TV
No
Cable inserts well.
No
Replace FIL8668 IC(IC800).
2-3. In case of occur strange screen into specific mode
2-3-1. In case of doesn’t display the OSD
(1) Symptom
1) LED is White
2) The minute discharge work continuously
(2) Check follow

- 20 -
2-3-2. In the case of doesn't work normally at specific input mode
(1) Symptom
- The screen doesn't work normally at specific input mode (RF, AV, Component, RGB,
HDMI)
(2) Check follow
1) Check the all input model if all input display normally.
2) Check the PIP and Double Window if it display normally.(Re-Check it Swap)
(3) In case of unusual situation from RF mode
Is the Tuner normal?
No
Yes
Yes
Cable inserts well. Replace Tuner.
Replace IC300.
No
No
No
No No
Is the IC300
normal?
Replace IC800.
No No
Is the IC800
normal?
Is the Tuner Cable
connected well?
Is normal
the Input voltage, IIC
Communication and
CVBS output?
Is the
Input voltage, IIC
Communication and HV
sync normal?
Is the
Input voltage, IIC
Communication and HV
sync normal?
Yes
Replace IC300.
No No
Is the IC300
normal?
Replace IC800.
No No
Is the IC800
normal?
Is the
Input voltage, IIC
Communication and HV
sync normal?
Is the
Input voltage, IIC
Communication and HV
sync normal?
(4) When set doesn’t display normally at RF , AV mode
This manual suits for next models
1
Table of contents
Other LG LCD TV manuals
