LG 42LK530 User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LT03B
MODEL : 42LK530 42LK530-UC
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL66980414 (1101-REV00)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ......................................................................... 3
SPECIFICATION....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 10
EXPLODED VIEW .................................................................................. 19
SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
1. Application range
This spec sheet is applied all of the 32”, 37”, 42” LCD TV with
LA06A chassis and 26” LCD TV with LA06B chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 ºC ± 5 ºC
2) Relative Humidity: 65 ± 10 %
3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : UL, CSA, IEC specification
- EMC: FCC, ICES, IEC specification
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
4. General Specification(TV)
No Item Specification Remark
1 Receivable System 1) ATSC / NTSC-M
2 Available Channel 1) VHF : 02 ~ 13
2) UHF : 14 ~ 69
3) DTV : 02 ~ 69
4) CATV : 01 ~ 135
5) CADTV : 01 ~ 135
3 Input Voltage 1) AC 100 - 240V~ 50/60Hz Mark : 110V, 60Hz (N.Ame
4 Market North America
5 Screen Size 42 inch Wide(1920x1080) FHD + 60Hz 42LV3700-UD
47 inch Wide(1920x1080) FHD + 60Hz 47LV3700-UD
42 inch Wide(1920x1080) FHD + 120Hz 42LK550-UA, 42LK530-UC
47 inch Wide(1920x1080) FHD + 120Hz 47LK550-UA, 47LK530-UC
55 inch Wide(1920x1080) FHD + 120Hz 55LV3700-UD, 55LK530-UC
6 Aspect Ratio 16:9
7 Tuning System FS
8 LCD Module T420HW08-V1 (Edge LED) AUO 42LV3700-UD
LC470EUE-SDV1 (Edge LED) LGD 47LV3700-UD
LC550EUF-SDA1 (Edge LED) LGD 55LV3700-UD
V420H2-LH5 (CCFL) CMI 42LK550-UA
LC420WUF-SCA2 (EEFL) LGD 42LK550-UA, 42LK530-UC
LC470WUF-SCA2 (EEFL) LGD 47LK550-UA, 47LK530-UC
LC550WUD-SCA2 (EEFL) LGD 55LK530-UC
9 Operating Environment Temp : 0 ~ 40 deg
Humidity : ~ 80 %
10 Storage Environment Temp : -20 ~ 60 deg
Humidity : -85 %

- 7 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. Chrominance & Luminance
No Item Min Typ Max Unit Remark
280
cd/m†42LV3700-UD
230
cd/m†47LV3700-UD
320 400 cd/m†55LV3700-UD
360 450 cd/m†42LK550-UA, 42LK530-UC CU-035KL74,AU-055KL74054063
1 Max Luminance
(Center 1-point /
Full White Pattern)
360 450 cd/m†55LK530-UC
1.3 All Modules(except 42LV3700-UD)
2 Luminance uniformity 1.33 42LV3700-UD
036.0XRED 033.0Y 023.0XGREEN 0
26.0Y 051.0XBLUE 040.0Y 082.0X
Color coordinate
(42 Edge LED)
WHITE Y
Typ.
-0.03
0.290
Typ.
+0.03 42LV3700-UD
DB
T
XDER
DBTY DB
TXNEERG DBT
Y DB
TXEU
LB DBTY 972.0XET
IHW
Color coordinate
(47 Edge LED)
Y
Typ.
-0.03
0.292
Typ.
+0.03 47LV3700-UD
DBT XDER DBTY DBTXNEERG
3
Color coordinate
(55 Edge LED)
Y
Typ.
-0.03
TBD
Typ.
+0.03 55LV3700-UD
DBTX
EU
LB
DBTY 972.0XETIHW 292.0
Y
536.0X
RED 323.0Y 882.0XGREEN 006.0Y 841.0XBLUE 050.0Y 082.0X Color coordinate
(42 CCFL)
WHITE Y
Typ.
-0.03
0.290
Typ.
+0.03 42LK550-UA(CMI)
636.0XRED 5
33.0Y 192.0XGREEN
3
06.0Y 6
41.0
XBLUE 160.0Y 972.0
X
Color coordinate
(42 CCFL)
WHITE Y
Typ.
-0.03
0.292
Typ.
+0.03 42LK550-UA(LGD) 42LK530-UC(LGD)
936.0XRED
4
33.0
Y0
92.0
XGREEN 606.0Y 641.0
X
BLUE 850.0Y 972.0X
Color coordinate
(47 CCFL)
WHITE Y
Typ.
-0.03
0.292
Typ.
+0.03 47LK550-UA
47LK530-UC

- 8 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
7
36.0
X
RED 333.0Y Color coordinate
(55 CCFL)
GREEN X
Typ.
-0.03
0.287
Typ.
+0.03 55LK530-UC
506.0Y 541.0XBLUE 4
60.0Y 972.0XWHITE 292.0Y
A
/
N
yti
m
rofinue
ta
n
id
rooc roloC4 3200:1 4000:1 42LV3700-UD
1000:1 1400:1 47LV3700-UD
1100:1 1600:1 55LV3700-UD
1100:1 3000:1 42LK550-UA(CMI)
1100:1 1500:1 42LK530-UC
1100:1 1450:1 47LK530-UC
Contrast ratio (Module)
1100:1 1450:1 55LK530-UC
40,000 50,000 42LV3700-UD
40,000 50,000 47LV3700-UD
40,000 50,000 55LV3700-UD
5
Contrast ratio (DCR)
40,000 50,000 42/47LK550-UA, 42/47/55LK530-UC
COOL 0.254
0.258 0.269 0.273 0.284 0.288 13000K
MEDIUM 0.270
0.278 0.285 0.293 0.300 0.308 9300K
6 Color
Temperature
WARM 0.298
0.314 0.313 0.329 0.324 0.344 6500K
** The W/B Tolerance is –0.015 for
picture quality by DQA.
(1) Video input: 204 Gray (85% of full
white pattern)
(1) Backlight UI setting
- Cool (100), Medium (100), Warm (30)
(2) Color temp UI setting
- Warm (W50), Medium (0), Cool (C50)

- 9 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
6. Component Video Input (Y, CB/PB, CR/PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I
2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I
3. 720*480 31.50 60 27.027 SDTV 480P
4. 720*480 31.47 59.94 27.0 SDTV 480P
5. 1280*720 45.00 60.00 74.25 HDTV 720P
6. 1280*720 44.96 59.94 74.176 HDTV 720P
7. 1920*1080 33.75 60.00 74.25 HDTV 1080I
8. 1920*1080 33.72 59.94 74.176 HDTV 1080I
9. 1920*1080 67.500 60 148.50 HDTV 1080P
10. 1920*1080 67.432 59.94 148.352 HDTV 1080P
11. 1920*1080 27.000 24.000 74.25 HDTV 1080P
12. 1920*1080 26.97 23.976 74.176 HDTV 1080P
13. 1920*1080 33.75 30.000 74.25 HDTV 1080P
14. 1920*1080 33.71 29.97 740176 HDTV 1080P
7. RGB Input (PC)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
PC DDC
1. 640*350 31.468 70.09 25.17 EGA X
2. 720*400 31.469 70.08 28.32 DOS O
3. 640*480 31.469 59.94 25.17 VESA(VGA) O
4. 800*600 37.879 60.31 40.00 VESA(SVGA) O
5. 1024*768 48.363 60.00 65.00 VESA(XGA) O
6. 1360*768 47.712 60.015 85.50 VESA(WXGA) X
7. 1920*1080 66.587 59.934 138.50 WUXGA O

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 10 -
8. HDMI input (PC/DTV)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
PC DDC
1. 640*350 31.468 70.09 25.17 EGA X
2. 720*400 31.469 70.08 28.32 DOS O
3. 640*480 31.469 59.94 25.17 VESA(VGA) X
4. 800*600 37.879 60.31 40.00 VESA(SVGA) O
5. 1024*768 48.363 60.00 65.00 VESA(XGA) O
6. 1280*768 47.776 59.870 79.5 CVT(WXGA) O
7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O
8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O
9. 1920*1080 67.500 60.000 148.50 HDTV 1080P O
DTV
1 720*480 31.47 60 27.027 SDTV 480P O
2 720*480 31.47 59.94 27.00 SDTV 480P O
3 1280*720 45.00 60.00 74.25 HDTV 720P O
4 1280*720 44.96 59.94 74.176 HDTV 720P O
5 1920*1080 33.75 60.00 74.25 HDTV 1080I O
6 1920*1080 33.72 59.94 74.176 HDTV 1080I O
7 1920*1080 67.500 60 148.50 HDTV 1080P O
8 1920*1080 67.432 59.939 148.352 HDTV 1080P O
9 1920*1080 27.000 24.000 74.25 HDTV 1080P O
10 1920*1080 26.97 23.976 74.176 HDTV 1080P O
11 1920*1080 33.75 30.000 74.25 HDTV 1080P O
12 1920*1080 33.71 29.97 74.176 HDTV 1080P O

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 11 -
ADJUSTMENT INSTRUCTION
1. Application range
This spec. sheet applies to LA12B Chassis applied LCD TV all
models manufactured in TV factory
2. Specification
2.1 Because this is not a hot chassis, it is not necessary
to use an isolation transformer. However, the use of
isolation transformer will help protect test instrument.
2.2 Adjustment must be done in the correct order.
2.3 The adjustment must be performed in the
circumstance of 25±5°C of temperature and 65±10%
of relative humidity
2.4 The input voltage of the receiver must keep
100~240V~, 50/60Hz.
2.5 The receiver must be operated for about 5 minutes
prior to the adjustment when module is in the
circumstance of over 15.
In case of keeping module is in the circumstance
of 0°C, it should be placed in the circumstance of
above 15°C for 2 hours
In case of keeping module is in the circumstance
of below -20°C, it should be placed in the
circumstance of above 15°C for 3 hours.
Caution) When still image is displayed for a period of 20
minutes or longer (especially where W/B scale is
strong. Digital pattern 13ch and/or Cross hatch
pattern 09ch), there can some afterimage in the
black level area.
3. Adjustment items
3.1 Main PCBA Adjustments
•EDID downloads for HDMI and RGB-PC
Remark
Above adjustment items can be also performed in Final
Assembly if needed. Adjustment items in both PCBA and final
assembly stages can be checked by using the INSTART
Menu 1.ADJUST CHECK.
3.2 Final assembly adjustment
•White Balance adjustment
•RS-232C functionality check
•Factory Option setting per destination
•Shipment mode setting (IN-STOP)
•GND and HI-POT test
3.3. Appendix
•Tool option menu, USB Download (S/W Update, Option and
Service only)
•Manual adjustment for ADC calibration and White balance.
•Shipment conditions, Channel pre-set
Chassis Model Name Module
type Local dimming THX Remark
42/47/55LV3700-UA Edge LED XX1 point W/B adjustment
42/47LK550-UA,
42/47/55LK530-UA Lamp
LA12B

- 12 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. MAIN PCBA Adjustments

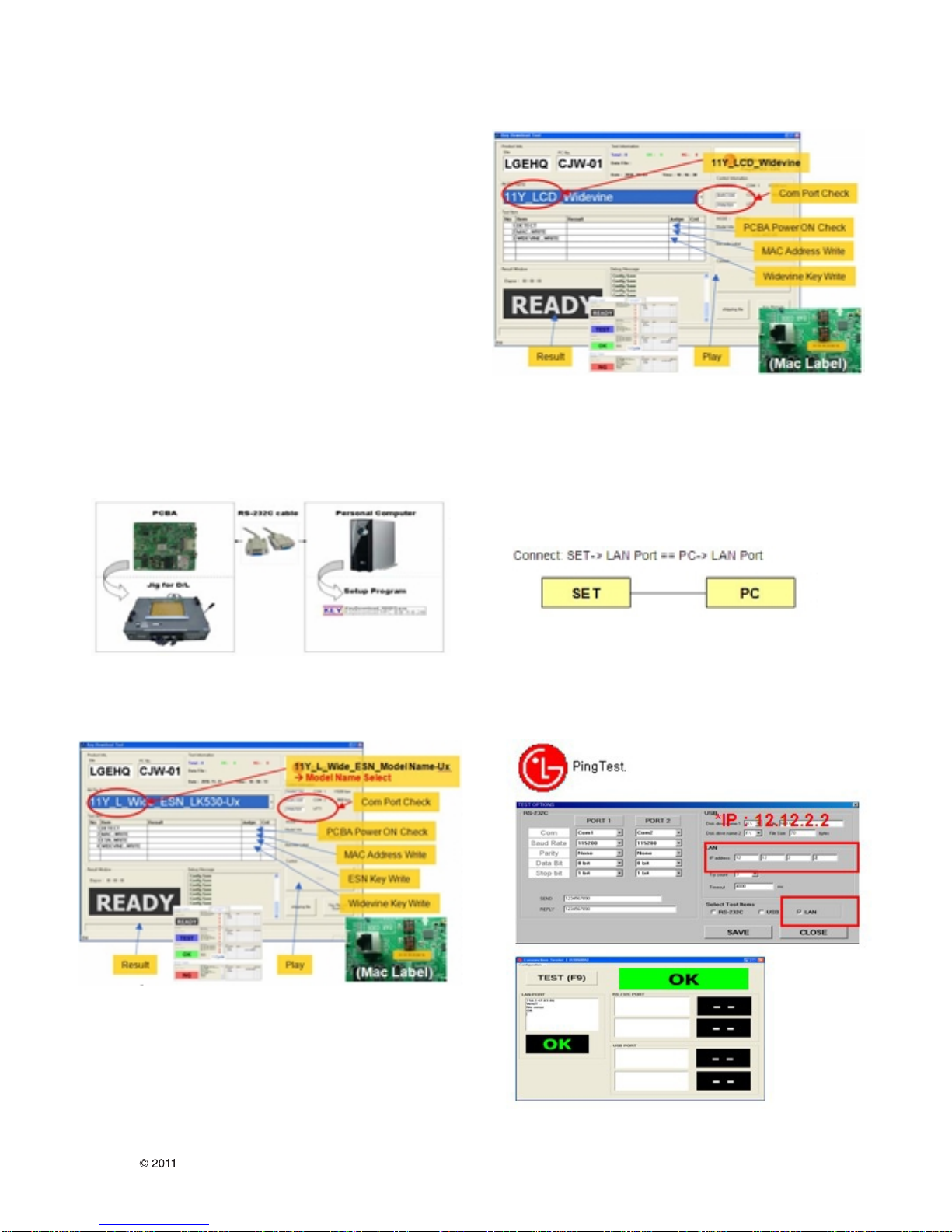

4.1. MAC Address, ESN Key and Widevine
Key download
4.1.1. Equipment & Condition
1) Play file: keydownload.exe
4.1.2. Communication Port connection
1) Key Write: Com 1,2,3,4 and 115200(Baudrate)
2) Barcode: Com 1,2,3,4 and 9600(Baudrate)
4.1.3. Download process
1) Select the download items
2) Mode check: Online Only
3) Check the test process
-US, Canada models: DETECT MAC_WRITE
WIDEVINE_WRITE
-Korea, Mexico models: DETECT MAC_WRITE
WIDEVINE_WRITE
4) Play: START
5) Check of result: Ready, Test, OK or NG
6) Printer out (MAC Address Label)
4.1.4. Communication Port connection
1) Connect: PCBA Jig RS-232C Port == PC RS-232C Port
4.1.5. Download
1) US, Canada models (11Y LCD TV + MAC + Widevine +
ESN Key)
2) Korea, Mexico models (11Y LCD TV + MAC + Widevine
Only)
4.1.6. Inspection
- In INSTART menu, check these keys.
4.2. LAN port Inspection (Ping Test)
4.2.1. Equipment setting
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test Program.
- IP number: 12.12.2.2
4.2.2. LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) remove LAN CABLE

- 13 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4.3 EDID Download
4.3.1 Overview
•It is a VESA regulation. A PC or a MNT will display an
optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.
4.3.2 Equipment
(1) Since EDID data is embedded, EDID download JIG, HDMI
cable and D-sub cable are not need.
(2) Adjust by using remote controller.
4.3.3 Download method
(1) Press Adj. key on the Adj. R/C,
(2) Select 11. PCM EDID D/L menu.
(3) By pressing Enter key, EDID download will begin
(4) If Download is successful, OK is display, but If Download
is failure, NG is displayed.
(5) If Download is failure, Re-try downloads.
* Caution) When EDID Download, must remove RGB/HDMI
Cable.
4.3.4 EDID DATA
# HDMI 1(C/S : 7FC9)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 2(C/S : 7FB9)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 3(C/S : 7FA9)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# RGB(C/S : 89)
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07
10 | 07 67 03 0C 00 10 00 B8 2D E3 05 03 01 02 3A 80
20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01
30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00
40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00
50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0
60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25
70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 C9
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07
10 | 07 67 03 0C 00 20 00 B8 2D E3 05 03 01 02 3A 80
20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01
30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00
40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00
50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0
60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25
70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 B9
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 02 03 1D F1 48 10 22 20 05 84 03 02 01 23 09 07
10 | 07 67 03 0C 00 30 00 B8 2D E3 05 03 01 02 3A 80
20 | 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00 00 1E 01
30 | 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00
40 | 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00
50 | 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0
60 | 5A 00 00 00 18 26 36 80 A0 70 38 1B 40 30 20 25
70 | 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 00 00 A9
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 4F 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 89

- 14 -
- AC3 EDID Data
# HDMI 1(C/S : 7F58)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 2(C/S : 7F48)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 3(C/S : 7F38)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# RGB(C/S : 98)
EDID Block 0, Bytes 0-127 [00H-7FH]
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 67 03 0C 00 10 00 B8 2D E3 05 03 01
20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00
30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A
40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E
60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40
70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 58
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 67 03 0C 00 20 00 B8 2D E3 05 03 01
20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00
30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A
40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E
60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40
70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 48
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 02 03 1F F1 48 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 67 03 0C 00 30 00 B8 2D E3 05 03 01
20 | 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00 00
30 | 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A
40 | 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
50 | A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E
60 | 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40
70 | 30 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 38
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00
30 | 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 98

- 15 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. Final Assembly Adjustment
5.1. White Balance Adjustment
5.1.1. Overview
5.1.1.1. W/B adj. Objective & How-it-works
- Objective: To reduce each Panel’s W/B deviation
- How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic
Range. In order to prevent saturation of
Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is
lowered to find the desired value.
- Adj. condition : normal temperature
1) Surrounding Temperature: 25±5ºC
2) Warm-up time: About 5 Min
3) Surrounding Humidity: 20% ~ 80%
4) Before White balance adjustment, Keep power on
status, don’t power off
5.1.1.2. Adj. condition and cautionary items
•Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
•Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
•Aging time
1) After Aging Start, Keep the Power ON status during 5
Minutes.
2) In case of LCD, Back-light on should be checked
using no signal or Full-white pattern.
5.1.2. Equipment
1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 /
LED : CH14)
2) Adj. Computer (During auto adj., RS-232C protocol is
needed)
3) Adjust Remocon
4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model:217, Pattern:78)
-> Only when internal pattern is not available
5.1.3. Equipment connection

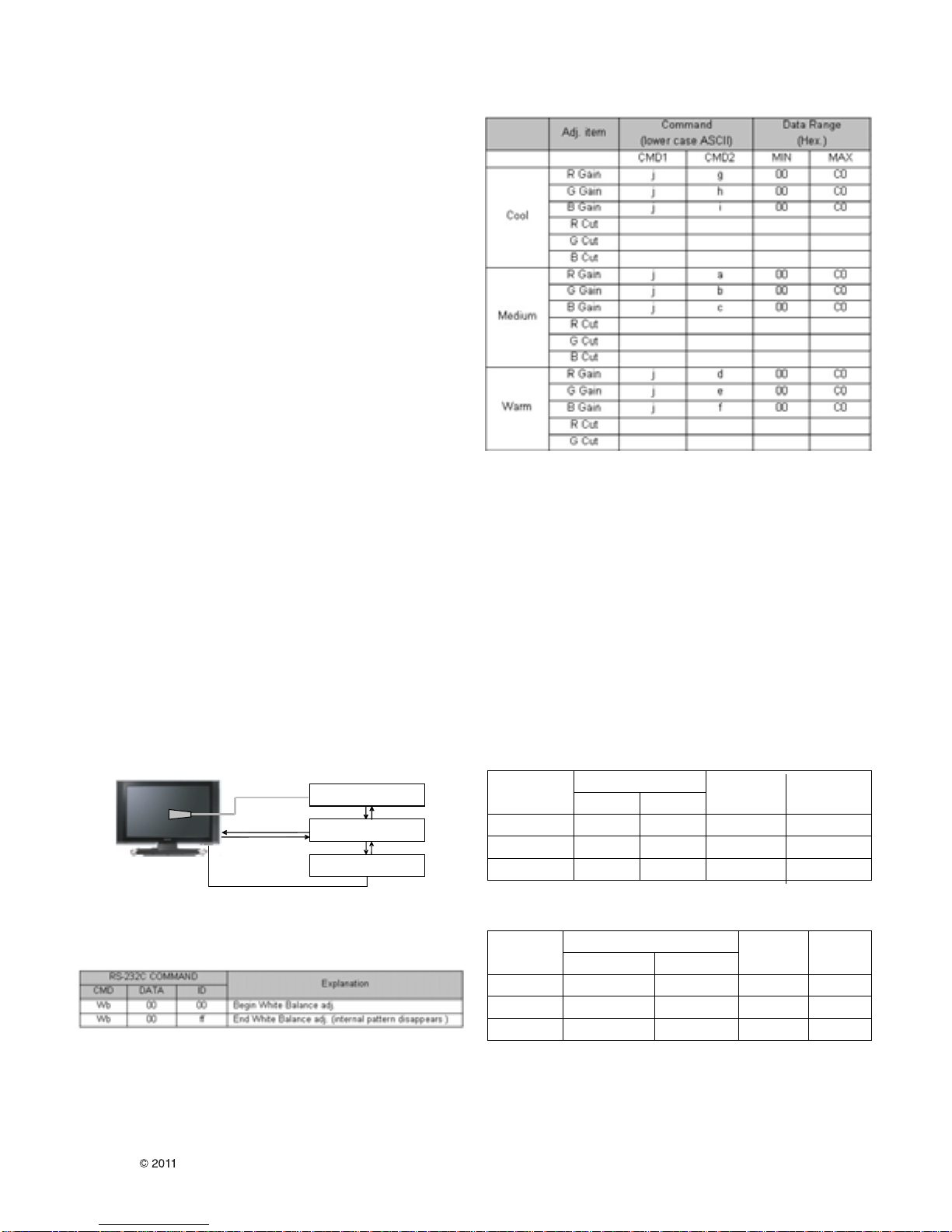

5.1.4. Adjustment Command (Protocol)
(1) RS-232C Command used during auto-adj.
2) Adjustment Map
5.1.5. Adjustment method
•Auto adj. method
1) Set TV in adj. mode using POWER ON key
2) Zero calibrate probe then place it on the center of the
Display
3) Connect Cable(RS-232C)
4) Select mode in adj. Program and begin adj.
5) When adj. is complete (OK Sing), check adj. status pre
mode (Warm, Medium, Cool)
6) Remove probe and RS-232C cable to complete adj.
•W/B Adj. must begin as start command “wb 00 00”, and
finish as end command “wb 00 ff”, and Adj. offset if need
5.1.6 Reference (White Balance Adj. coordinate and color
temperature)
•Luminance: 216 Gray
•Standard color coordinate and temperature using CS-
1000
•Standard color coordinate and temperature using CA-210
(CH 14)
Color Analyzer
Computer
Pattern Generator
RS-232C
RS-232C
RS-232C
Probe
Signal Source
* If TV internal pattern is used, not needed
Mode Color Coordination Temp ∆UV
xy
COOL 0.269 0.273 13000K 0.0000
MEDIUM 0.285 0.293 9300K 0.0000
WARM 0.313 0.329 6500K 0.0000
Mode Color Coordination Temp ∆UV
xy
COOL 0.269±0.002 0.273±0.002 13000K 0.0000
MEDIUM 0.285±0.002 0.293±0.002 9300K 0.0000
WARM 0.313+0.002 0.329±0.002 6500K 0.0000

- 16 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
•Standard color coordinate and temperature using CA-
210(CH-14) –by aging time
Only for LGD Edge LED (47LV3700-UD / 55LV3700-UD)
- 42LV3700-UD : AUO Module , This model doesn’t use
this table.
5.2 Tool Option setting & Inspection per
countries
5.2.1. Overview
•Tool option selection is only done for models in Non-USA
North America due to rating
•Applied model: LA12B Chassis applied to CANADA and
MEXICO
5.2.2. Country Group selection
•Press ADJ key on the Adj. R/C, and then select Country
Group Menu
•Depending on destination, select KR or US, then on the
lower Country option, select US, CA, MX. Selection is
done using +, - KEY
5.2.3. Tool Option Inspection
•Press Adj. key on the Adj. R/C, and then check Tool
option.
5.3 Check the EYE-Q function
Step 1) Turn on the TV.
Step 2) Press EYE button in adjust remote control.
Step 3) Stay 6 seconds with Eye Q sensor hidden located on
the front of the set.
Step 4) Check the “Sensor Data”on the screen and check
whether the value is lower thanafter 6 seconds, the
value does not go below 10, Eye Q sensor is not
working properly. Then, change the sensor.
Step 5) Remove hand from the Eye Q II sensor and stay for 6
seconds.
Step 6) Check whether the “Back Light (xxx)”value has risen
on the screen. If after 6 seconds and the value still
does not go high, the eye Q II sensor is not working
properly. Replace the sensor.
Cool Medium Warm
x y x y x y
GP3 Aging time
(Min) 269 273 285 293 313 329
1 0-2 279 288 295 308 319 338
2 3-5 278 286 294 306 318 336
3 6-9 277 285 293 305 317 335
4 10-19 276 283 292 303 316 333
5 20-35 274 280 290 300 314 330
6 36-49 272 277 288 297 312 327
7 50-79 271 275 287 295 311 325
8 80-149 270 274 286 294 310 324
Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6
42LV3700-UD 4534 66 7295 21642 8917 667
47LV3700-UD 440 66 7295 21640 8789 667
55LV3700-UD 33211 66 7295 21640 8789 665
42LK550-UA(CMI) 34918 258 5258 5770 25173 5318
42LK550-UA(LGD)
32870 258 5256 5770 25173 7366
47LK550-UA 32872 258 5256 5770 25173 7366
42LK530-UC 32854 258 5256 5770 25173 7366
47LK530-UC 32856 258 5256 5770 25173 7366
55LK530-UC 32859 258 5258 5770 25173 5318
<Step1> <Step2> <Step3>
<Step4> <Step5>

- 17 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
6. HDMI ARC Function Inspection
6.1 Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
6.2 Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI1)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
* Remark: Inspect in Power Only Mode and check SW version
in a master equipment
6.3 Ship-out mode check (In-stop)
•After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
7. AUDIO output check
7.1 Audio input condition
(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
(2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
(3) RGB PC: 1KHz sine wave signal (0.7Vrms)
7.2 Specification
8. GND and Hi-pot Test
8.1. Method
8.1.1. GND & HI-POT auto-check preparation
(1) Check the POWER CABLE and SIGNAL CABE
insertion condition
8.1.2. GND & HI-POT auto-check
(1) Pallet moves in the station. (POWER CORD / AV
CORD is tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, GOOD Lamp on and move to next
process automatically.
8.2. Checkpoint
•TEST voltage
- GND: 1.5KV/min at 100mA
- SIGNAL: 3KV/min at 100mA
•TEST time: 1 second
•TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
•LEAKAGE CURRENT: At 0.5mArms
Item Min Typ Max Unit Remark
Audio practical max Output, L/R
(Distortion=10% max Output)
9.0
8.5
10.0
8.9
12.0
9.9
W
Vrms
(1) Measurement condition
- EQ/AVL/Clear Voice: Off
(2) Speaker (8ü Impedance)

- 18 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
9.USB S/W Download (Option,
Service only)
1. Put the USB Stick to the USB socket
2. Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is Low, it
didn’t work. But your downloaded version is High, USB data
is automatically detecting
3. Show the message “Copying files from memory”
4. Updating is starting.
5. Updating Completed, The TV will restart automatically
6. If your TV is turned on, check your updated version and
Tool option. (Explain the Tool option, next stage)
* If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a
DTV/ATV test on production line.
* After downloading, have to adjust TOOL OPTION again.
1. Push "IN-START" key in service remote controller.
2. Select "Tool Option 1" and Push “OK”button.
3. Punch in the number. (Each model has their number.)
10. Optional adjustments
10.1 Manual White balance Adjustment
10.1.1. Adj. condition and cautionary items
(1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
1) After Aging Start, Keep the Power ON status during 5
Minutes.
2) In case of LCD, Back-light on should be checked using no
signal or Full-white pattern.
10.1.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is
needed)
(3) Adjust Remocon
(4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 217, Pattern: 78)
10.1.3. Adjustment
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface.
(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-
Balance then press the cursor to the right (KEYG). When
KEY(G) is pressed 216 Gray internal pattern will be
displayed.
(4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.
•If internal pattern is not available, use RF input. In EZ Adj.
menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 19 -
300
200 400
540
530 521
800
LV1 LV2
900
910
810
120
500
A10
A7
A21
A2
510
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
NAND_DATA[0]
NAND_DATA[1]
CI_ADDR[12]
NAND_DATA[2]
CI_ADDR[2]
NAND_DATA[1]
NAND_DATA[3]
CI_ADDR[7]
CI_ADDR[13]
CI_ADDR[14]
NAND_DATA[4]
NAND_DATA[2]
NAND_DATA[3]
NAND_DATA[7]
NAND_DATA[5]
CI_ADDR[8]
NAND_DATA[7]
NAND_DATA[0]
NAND_DATA[6]
CI_ADDR[4]
CI_ADDR[9]
NAND_DATA[4]
CI_ADDR[3]
NAND_DATA[6]
NAND_DATA[5]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[5]
CI_ADDR[6]
R185 0
TXA0N
SOC_RESET
TXBCLKP
R151 0
16Gbit
R147
1K
JTAG
TXD0P
R170
10K
SDA2_3.3V
HDMI_ARC
R172
4.7K
OPT
TXD1P
C103
0.1uF
54MHz_XTAL_P
R183
10K
C101
0.1uF
TXA1P
DTV/MNT_V_OUT
TXC0P
TXC1P
R180
10K
TXDCLKN
TXA3N
R115
10K
R132 4.7K
R120
10K
SCL0_3.3V
TXACLKN
+3.3V_Normal
R116
10K
OPT
NAND_DATA[6]
+3.3V_Normal
HDMI_CLK+
R118
10K
R150
1K
JTAG
NAND_WEb
+3.3V_Normal
P101
TJC2508-4A
1VCC
2SCL
3SDA
4GND
TXD2P
NAND_DATA[5]
C106
4.7uF
CI_ADDR[8]
SC_ID
JTAG_RESET
NAND_CEb2
+3.3V_Normal
R145 22
OPT
R157
10K
OPT
CI_ADDR[12]
R169
0
CI_ADDR[7]
C112 0.1uF
TXB4P
R107 2.7K
C107
33pF
50V
DVB_S
TXD1N
NAND_CEb
NAND_RBb
R101
4.7K
R124
1K
OPT
C119
0.1uF
16V
NAND_CLE
TXB2N
+3.3V_Normal
TXD4P
5V_HDMI_2
NAND_CEb2
C104 10uF
10V
TXA1N
TXB3N
BSS83
Q101
S B D
G
NAND_DATA[3]
HDMI_CLK-
R176
10K
SDA0_3.3V
JTAG_RESET
R111
10K
OPT
R191 33
TXD3P
TXB0P
R154
10K
OPT
BCM_RX
HDMI_RX2+
TXC2P
R103 4.7K
OPT
+3.3V_Normal
TXD2N
TXCCLKP
C113
10pF
C102
4700pF
R198
10K
C111 0.01uF
NAND_ALE
TXBCLKN
NAND_DATA[0-7]
TXCCLKN
R179
10K
OPT
HDMI_RX1+
R117
10K
OPT
R135 33
C108
33pF
50V
DVB_S
R177
10K
FLASH_WP
TXA4N
R165
10K
R195
4.7K
IC103
M24M01-HRMN6TP
3
E2
2
E1
4
VSS
1
NC
5SDA
6SCL
7WP
8VCC
NAND_DATA[7]
R173
4.7K
TXB4N
R190 33
NAND_DATA[0-7]
NAND_WEb
R196
10K
NAND_CEb
R108 10K
CI_ADDR[4]
+3.3V_Normal
NAND_REb
R156
1K
JTAG
C114
10pF
/CI_CE1
R155
10K
A_DIM
R153
1K
JTAG
TXA3P
HDMI_RX1-
NAND_DATA[0]
5V_HDMI_1
R194
2.7K
R127
10K
OPT
NAND_CLE
R125
1K
R178
10K
OPT
C105
2.2uF
10V
CI_ADDR[13]
C109
33pF
50V
54MHz_XTAL_N
R159
1K
JTAG
5V_HDMI_4
R128
10K
/PCM_WAIT
+3.3V_Normal
HDMI_RX0-
CI_ADDR[3]
BCM_TX
C110
33pF
50V
TXB1P
+3.3V_Normal
R184
10K
OPT
NAND_ALE
R144 22
OPT
TXA0P
R122
10K
SCL2_3.3V
NAND_DATA[1]
+3.3V_Normal
R106
3K
R119
10K
OPT
TXC3N
R175
10K
OPT
SCL3_3.3V
HDMI_RX0+
R123
10K
OPT
R167
10K
OPT
CI_ADDR[2]
R130
2K
OPT
R110
1.5K
R113
10K
R193
10K
R181
10K
OPT
R112
10K
TXACLKP
R148 0
16Gbit
TXB3P
R182
10K
TXC4N
R163
1K
JTAG
+3.3V_Normal
LNB_INT
R114
10K
OPT
P102
12505WS-10A00
JTAG
1
/TRST
2
TDI
3
TDO
4
TMS
5
TCK
6
/RST
7
DINT
8
VIO
9
GND
10
GND
11
GND
R140
560
1%
R158
10K
R162
1K
JTAG
TXA2P
TXA2N
NAND_RBb
NAND_DATA[4]
R136 33
R149 0
16Gbit
R143 22
OPT
TXC4P
R186 0
BSS83
Q102
S B D
G
NAND_DATA[2]
R139 0
JTAG
TXB1N
CI_ADDR[11]
CI_ADDR[9]
5V_HDMI_3
+3.3V_Normal
R166
1K
JTAG
RGB_DDC_SCL
+3.3V_Normal
TXD4N
TXC1N
54MHz_XTAL_P
TXDCLKP
R171
10K
OPT
TXC2N
TXC0N
R160
10K
OPT
TXB0N
NAND_REb
TXC3P
CI_ADDR[6]
R168
10K
PCM_5V_CTL
R189
1M
OPT
+3.3V_Normal
R141 4.7K
TXD0N
54MHz_XTAL_N
R192
10K
OPT
R146 10K
C118
0.1uF
16V
+3.3V_Normal
+3.3V_Normal
/CI_CE2
TXA4P
R164
10K
OPT
+3.3V_Normal
R161
10K
R142 22
OPT
R188
10K
R187
10K
OPT
SDA3_3.3V
NAND_CLE
R109
1.5K
FLASH_WP
TXB2P
+3.3V_Normal
TXD3N
+3.3V_Normal
CI_ADDR[2-14]
HDMI_RX2-
R174
4.7K
OPT
RGB_DDC_SDA
NAND_ALE
R126
1.2K R129 1.2K
R121
1.2K R131 1.2K
R199 22
R197 22
R105
4.7K R104 4.7K
IC102
TC58DVG3S0ETA00
NAND_8Gbit
26 NC_17
27 NC_18
28 NC_19
29 I/O1
30 I/O2
31 I/O3
32 I/O4
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 PSL
40 NC_24
41 I/O5
42 I/O6
43 I/O7
44 I/O8
45 NC_25
46 NC_26
47 NC_27
48 NC_28
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
RY/BY
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
IC102-*1
TH58DVG4S0ETA20
DEV_NAND_16Gbit
26 NC_15
27 NC_16
28 NC_17
29 I/O1
30 I/O2
31 I/O3
32 I/O4
33 NC_18
34 NC_19
35 NC_20
36 VSS_2
37 VCC_2
38 NC_21
39 PSL
40 NC_22
41 I/O5
42 I/O6
43 I/O7
44 I/O8
45 NC_23
46 NC_24
47 NC_25
48 NC_26
17
ALE
3
NC_3
6
RY/BY2
16
CLE
15
NC_8
14
NC_7
13
VSS_1
12
VCC_1
11
NC_6
10
CE2
9
CE1
8
RE
7
RY/BY1
4
NC_4
5
NC_5
25 NC_14 24
NC_13
23
NC_12
2
NC_2
22
NC_11
21
NC_10
1
NC_1
20
NC_9
19
WP
18
WE
LGE35230(BCM35230KFSBG)
IC101
HDMI0_CLKN
B5
HDMI0_CLKP
C5
HDMI0_D0N
A4
HDMI0_D0P
B4
HDMI0_D1N
A3
HDMI0_D1P
B3
HDMI0_D2N
A2
HDMI0_D2P
B2
CEC
W2
DDC0_SCL
V4
DDC0_SDA
W4
HDMI0_HTPLG_IN
V3
HDMI0_HTPLG_OUT
V2
HDMI0_ARC
D13
HDMI0_RESREF
E6
TXOUT0_L0N AE27
TXOUT0_L0P AE28
TXOUT0_L1N AF27
TXOUT0_L1P AF28
TXOUT0_L2N AG27
TXOUT0_L2P AG28
TXCLK_LN AE26
TXCLK_LP AF26
TXOUT0_L3N AH27
TXOUT0_L3P AG26
TXOUT0_L4N AF25
TXOUT0_L4P AE25
TXOUT0_U0N AH26
TXOUT0_U0P AG25
TXOUT0_U1N AE24
TXOUT0_U1P AD24
TXOUT0_U2N AH25
TXOUT0_U2P AF24
TXCLK_UN AE23
TXCLK_UP AD23
TXOUT0_U3N AG24
TXOUT0_U3P AF23
TXOUT0_U4N AC22
TXOUT0_U4P AD22
TXOUT1_L0N AG23
TXOUT1_L0P AH23
TXOUT1_L1N AE22
TXOUT1_L1P AE21
TXOUT1_L2N AF22
TXOUT1_L2P AH22
TXCLK1_LN AG22
TXCLK1_LP AF21
TXOUT1_L3N AG21
TXOUT1_L3P AF20
TXOUT1_L4N AD21
TXOUT1_L4P AC21
TXOUT1_U0N AG20
TXOUT1_U0P AH20
TXOUT1_U1N AD19
TXOUT1_U1P AE19
TXOUT1_U2N AF19
TXOUT1_U2P AH19
TXCLK1_UN AE18
TXCLK1_UP AD18
TXOUT1_U3N AG19
TXOUT1_U3P AF18
TXOUT1_U4N AG18
TXOUT1_U4P AF17
LT0VCAL_MONITOR AC18
GPIO_BL_ON AH16
BL_PWM/GPIO AG16
LGE35230(BCM35230KFSBG)
IC101
TVM_XTALIN
AG6
TVM_XTALOUT
AF6
IRRXDA
V5
FP_IN0
AB4
FP_IN1
Y4
SPARE_ADC1
AA4
SPARE_ADC2
Y5
FS_IN1
AB2
FS_IN2
AB5
VGA_SDA
U3
VGA_SCL
U2
RDA
Y2
TDA
Y1
BSCDATAA
AA3
BSCCLKA
AA2
RDB/GPIO
H3
TDB/GPIO
H2
BSC_S_SCL
H4
BSC_S_SDA
H5
NMIB
F25
POWER_CTRL
W5
AON_HSYNC
U5
AON_VSYNC
U4
AON_GPIO_36
W3
AON_GPIO_37
W1
AON_RESETOUTB
AB6
TVM_BYPASS
Y6
RESETB
Y3
RESETOUTB
G24
TMODE
J6
TESTEN
W6
VDAC_VREG
F7
VDAC_RBIAS
E7
FAD_7 AB1
FAD_6 AB3
FAD_5 AC1
FAD_4 AC2
FAD_3 AC3
FAD_2 AD2
FAD_1 AD3
FAD_0 AE2
FALE AG1
FCEB_0 AF1
FCEB_1 AC5
FCEB_2 AE6
FCEB_3 AG5
NFWPB AF3
FWE AG2
FRD AE3
FRDYB AA5
FA_0 AF2
FA_1 AE1
FA_2 AC4
FA_3 AD5
FA_4 AD4
FA_5 AE4
FA_6 AE5
FA_7 AD6
FA_8 AH3
FA_9 AF4
FA_10 AH4
FA_11 AG4
FA_12 AF5
FA_13 AG3
FA_14 AH2
FA_15 AH5
TRSTB AD15
TDI/GPIO AF14
TDO AH14
TMS/GPIO AD14
TCK/GPIO AG14
DINT/GPIO AC16
AVS_VFB AH7
AVS_VSENSE AG7
AVS_RESETB AD7
AVS_NDRIVE_1 AF7
AVS_PDRIVE_1 AH8
VDAC_1 C6
VDAC_2 D7
X101
54MHz
EAW58812611
SUNNY ELECTRONICS CORPORATION
CRYSTAL_BCM_Sunny
4
GND_2 1X-TAL_1
2GND_1 3
X-TAL_2
X101-*2
54MHz
CRYSTAL_BCM_Lihom
EAW60763703
LIHOM CO., LTD.
4GND_2 1
X-TAL_1
2
GND_1 3X-TAL_2
MAIN & NAND FLASH
BBS CONNECT
Write Protection
- High : Normal Operation
- Low : Write Protection
NAND_DATA[0]:
0: System is LITTLE endian (O)
1: System is BIG endian
CI_ADDR[7]:
0: Disable EDID automatic Downloading from Flash (O)
1: Enable EDID automatic Downloading from Flash
NAND_DATA[6] :
0: Disable OSC clock output on chip Pin (O)
1: Enable OSC clock output on chip pin.
CI_ADDR[6]:
0: Host MIPS run at 500 MHz (O)
1: Host MIPS run at 250 MHz
NAND_CLE:
0: Differential Oscillators TVM not bypassed (O)
1: Differential Oscillators TVM bypassed
NAND_DATA[4]:
0: 27MHz TVM Crystal Frequency
1: 54MHz TVM Crystal Frequency (O)
Write Protection
- Low : Normal Operation
- High : Write Protection
000 = ECC disabled
001 = ECC 1-bit repair
010 = ECC 4-bit BCH (O)
011 = ECC 8-bit BCH, 27 byte spare
100 = ECC 12-bit BCH, 27 byte spare
101 = ECC 8-bit BCH, 16 byte spare
110, 111 = Reservedd
NAND ECC (FA3, FA2, FALE)
BCM REFRENCE is 562ohm
A8’h
FOR HDMI STANDARD
APPLY ONLY WHEN CONNECT TO PULL-UP GPIO
BCM35230
1
CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13]
TVM Crystal oscillator bias/gain control
0000: 210uA
0001: 390uA
0010: 570uA
0011: 730uA
0100: 890uA (O)
0111: 1290uA
1000: 1416uA
1111: 2196uA
0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved
CI_ADDR[8]:
0: RESETOUTb (in On/Off only) stay asserted until software releases them.
1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only)
at end of RESETb pulse (O)
NAND_DATA[3]:
0: MIPS will boot from external flash (O)
1: MIPS will boot from ROM
NAND_DATA[5]:
0: FLASH MODE (O)
1: BSC_SLAVE(BBS) MODE
Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)
0000: ST Micro M25P or compatible Serial Flash
0010: 8-bit 512Mbit 512B page SLC NAND Flash devices
0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices
0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices
1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices
1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O)
0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices
0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices
0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices
0111: 3B dual IO Serial Flash
1001: BB dual IO Serial Flash
1011: fast Serail Flash > 50Mhz
1100: OneNAND Flash (always 16-bit)
1110: Reserved
1101, 1111: Reserved
NAND FLASH MEMORY 8Gbit
57
Strap Setting
54MHz X-TAL
NVRAM
IC102 1ST : EAN60999801 2ND : T-TC58DVG3S0ETA00
DUAL COMPONENT
IC102-*1
DVB_S Option: apply EU Satellite model
2010.09.18
16Gbit
