Lg 32ld450 User manual

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LB01B

MODEL : 32LD450/460 32LD450/460-TA

MODEL : 32LD461C 32LD461C-TA

North/Latin America http://aic.lgservice.com

Europe/Africa http://eic.lgservice.com

Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL62865305 (1007-REV01)

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................... 9

BLOCK DIAGRAM ................................................................................. 15

EXPLODED VIEW .................................................................................. 16

SVC. SHEET ...............................................................................................

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the

Schematic Diagram and Exploded View.

It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent

Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the

servicing of a receiver whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this

protects the technician from accidents resulting in personal injury

from electrical shocks.

It will also protect the receiver and it's components from being

damaged by accidental shorts of the circuitry that may be

inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,

replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,

over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed

metallic parts of the cabinet, such as antennas, terminals, etc., to

be sure the set is safe to operate without damage of electrical

shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an

electrical jumper across the two AC plug prongs. Place the AC

switch in the on position, connect one lead of ohm-meter to the AC

plug prongs tied together and touch other ohm-meter lead in turn to

each exposed metallic parts such as antenna terminals, phone

jacks, etc.

If the exposed metallic part has a return path to the chassis, the

measured resistance should be between 1 MΩ and 5.2 MΩ.

When the exposed metal has no return path to the chassis the

reading must be infinite.

An other abnormality exists that must be corrected before the

receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor

between a known good earth ground (Water Pipe, Conduit, etc.)

and the exposed metallic parts.

Measure the AC voltage across the resistor using AC voltmeter

with 1000 ohms/volt or more sensitivity.

Reverse plug the AC cord into the AC outlet and repeat AC voltage

measurements for each exposed metallic part. Any voltage

measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.

In case any measurement is out of the limits specified, there is

possibility of shock hazard and the set must be checked and

repaired before it is returned to the customer.

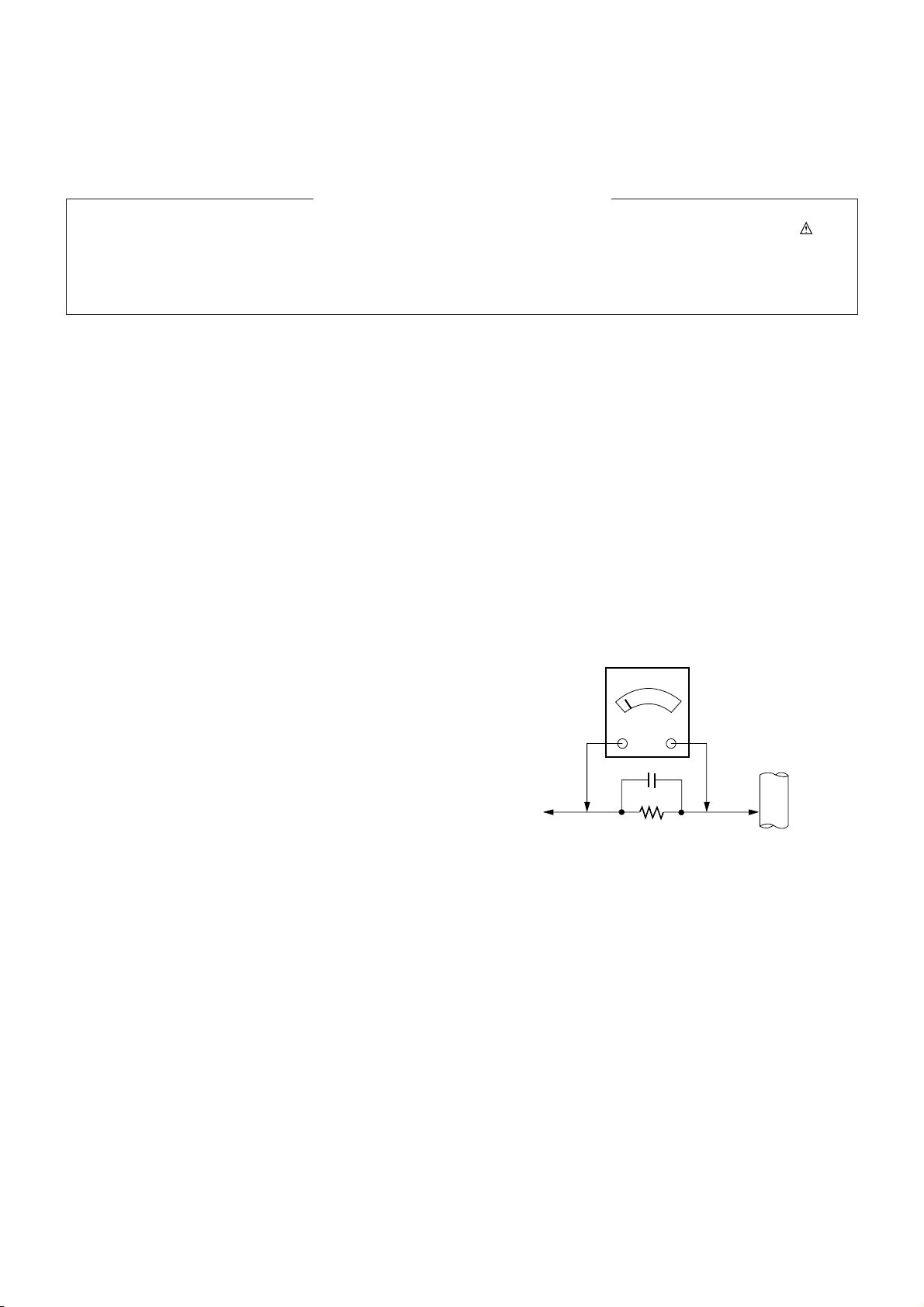

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's

exposed

METALLIC PARTS

Good Earth Ground

such as WATER PIPE,

CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground

for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15 uF

Ω

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service

manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.

NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on

page 3 of this publication, always follow the safety precautions.

Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power

source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an

explosion hazard.

2. Test high voltage only by measuring it with an appropriate high

voltage meter or other voltage measuring device (DVM,

FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its

assemblies.

4. Unless specified otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the

contacts with a pipe cleaner, cotton-tipped stick or comparable

non-abrasive applicator; 10 % (by volume) Acetone and 90 %

(by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a flammable mixture.

Unless specified otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which

receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks are

correctly installed.

7. Always connect the test receiver ground lead to the receiver

chassis ground before connecting the test receiver positive

lead.

Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily

by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques

should be used to help reduce the incidence of component

damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any electrostatic

charge on your body by touching a known earth ground.

Alternatively, obtain and wear a commercially available

discharging wrist strap device, which should be removed to

prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classified as "anti-static" can generate

electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective

package until immediately before you are ready to install it.

(Most replacement ES devices are packaged with leads

electrically shorted together by conductive foam, aluminum foil

or comparable conductive material).

7. Immediately before removing the protective material from the

leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be

installed.

CAUTION: Be sure no power is applied to the chassis or circuit,

and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Otherwise harmless motion such as

the brushing together of your clothes fabric or the lifting of your

foot from a carpeted floor can generate static electricity

sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate

tip size and shape that will maintain tip temperature within the

range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed

of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire-

bristle (0.5 inch, or 1.25 cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)

b. Heat the component lead until the solder melts.

c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.

a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there

only until the solder flows onto and around both the

component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through

which the IC leads are inserted and then bent flat against the

circuit foil. When holes are the slotted type, the following technique

should be used to remove and replace the IC. When working with

boards using the familiar round hole, use the standard technique

as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently

prying up on the lead with the soldering iron tip as the solder

melts.

2. Draw away the melted solder with an anti-static suction-type

solder removal device (or with solder braid) before removing the

IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and

solder it.

3. Clean the soldered areas with a small wire-bristle brush.

(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor

Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as

possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining

on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding

leads extending from the circuit board and crimp the "U" with

long nose pliers to insure metal to metal contact then solder

each connection.

Power Output, Transistor Device

Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit

board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as

possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit

board.

3. Observing diode polarity, wrap each lead of the new diode

around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of

the two "original" leads. If they are not shiny, reheat them and if

necessary, apply additional solder.

Fuse and Conventional Resistor

Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow

stake.

2. Securely crimp the leads of replacement component around

notch at stake top.

3. Solder the connections.

CAUTION: Maintain original spacing between the replaced

component and adjacent components and the circuit board to

prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit

board will weaken the adhesive that bonds the foil to the circuit

board causing the foil to separate from or "lift-off" the board. The

following guidelines and procedures should be followed whenever

this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the

following procedure to install a jumper wire on the copper pattern

side of the circuit board. (Use this technique only on IC

connections).

1. Carefully remove the damaged copper pattern with a sharp

knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if

used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and

carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper

pattern and let it overlap the previously scraped end of the good

copper pattern. Solder the overlapped area and clip off any

excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern

at connections other than IC Pins. This technique involves the

installation of a jumper wire on the component side of the circuit

board.

1. Remove the defective copper pattern with a sharp knife.

Remove at least 1/4 inch of copper, to ensure that a hazardous

condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern

break and locate the nearest component that is directly

connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the

nearest component on one side of the pattern break to the lead

of the nearest component on the other side.

Carefully crimp and solder the connections.

CAUTION: Be sure the insulated jumper wire is dressed so the

it does not touch components or sharp edges.

Only for training and service purposes

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This specification is applied to the LCD TV used LB01B

chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature

: 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC ± 5 ºC

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage

: Standard input voltage (AC 100-240 V~ 50 / 60 Hz)

* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in

accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety: CE, IEC specification

- EMC:CE, IEC

4. Module optical specifications

(1) AUO Module

1) Standard Test Condition (The unit has been ‘ON’)

2) Stable for approximately 30 minutes in a dark environment at 25 ºC ± 2 ºC.

3) The values specified are at approximate distance 50 cm from the LCD surface.

4) Ta = 25 ºC ± 2 °C, VLCD = 12.0 V, fv = 60 Hz, Dclk = 74.25 MHz, VBR_A = 1.65 V, EXTVBR-B = 100 %

No. Item Specification Min. Typ. Max. Remark

1. Viewing Angle (CR > 10) Right/Left(Up/Down) Degree

2. Luminance Luminance (cd/m2) 360 450

Variation - 1.29 MAX / MIN

3. Contrast Ratio CR 4000 5000

4. CIE Color Coordinates White Wx 0.280

Wy 0.290

RED Rx 0.64

Ry Typ. 0.33 Typ.

Green Gx -0.03 0.29 +0.03

Gy 0.60

Blue Bx 0.15

By 0.06

Only for training and service purposes

5. Component Video Input (Y, CB/PB, CR/PR)

No. Specification Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 45.00 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 31.25 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.5 60 HDTV 1080p

No. Specification Proposed Remark

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz

-> 640*480 60 Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 79.5 WXGA

6. 1360*768 47.72 59.8 84.75 WXGA

7. 1280*1024 63.981 60.02 108.875 SXGA FHD Model

8. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

6. RGB (PC)

Only for training and service purposes

7. HDMI Input

(1) DTV Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1280*768 47.78 59.87 79.5 WXGA HDCP

6. 1360*768 47.72 59.8 84.75 WXGA HDCP

7. 1280*1024 63.981 60.02 108.875 SXGA HDCP/FHD model

8. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model

(2) PC Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LCD TV with

LB01B chassis.

2. Designation

1) The adjustment is according to the order which is

designated and which must be followed, according to the

plan which can be changed only on agreeing.

2) Power Adjustment: Free Voltage

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specification Standard

5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 ºC ± 5 ºC

Relative humidity : 65 % ± 10 %

Input voltage : 220 V, 60 Hz

6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),

DDC Adjustment Jig equipment, Service remote control.

7) Push the “IN STOP” key - For memory initialization.

3. Main PCB check process

* APC - After Manual-Insult, executing APC

* Boot file Download

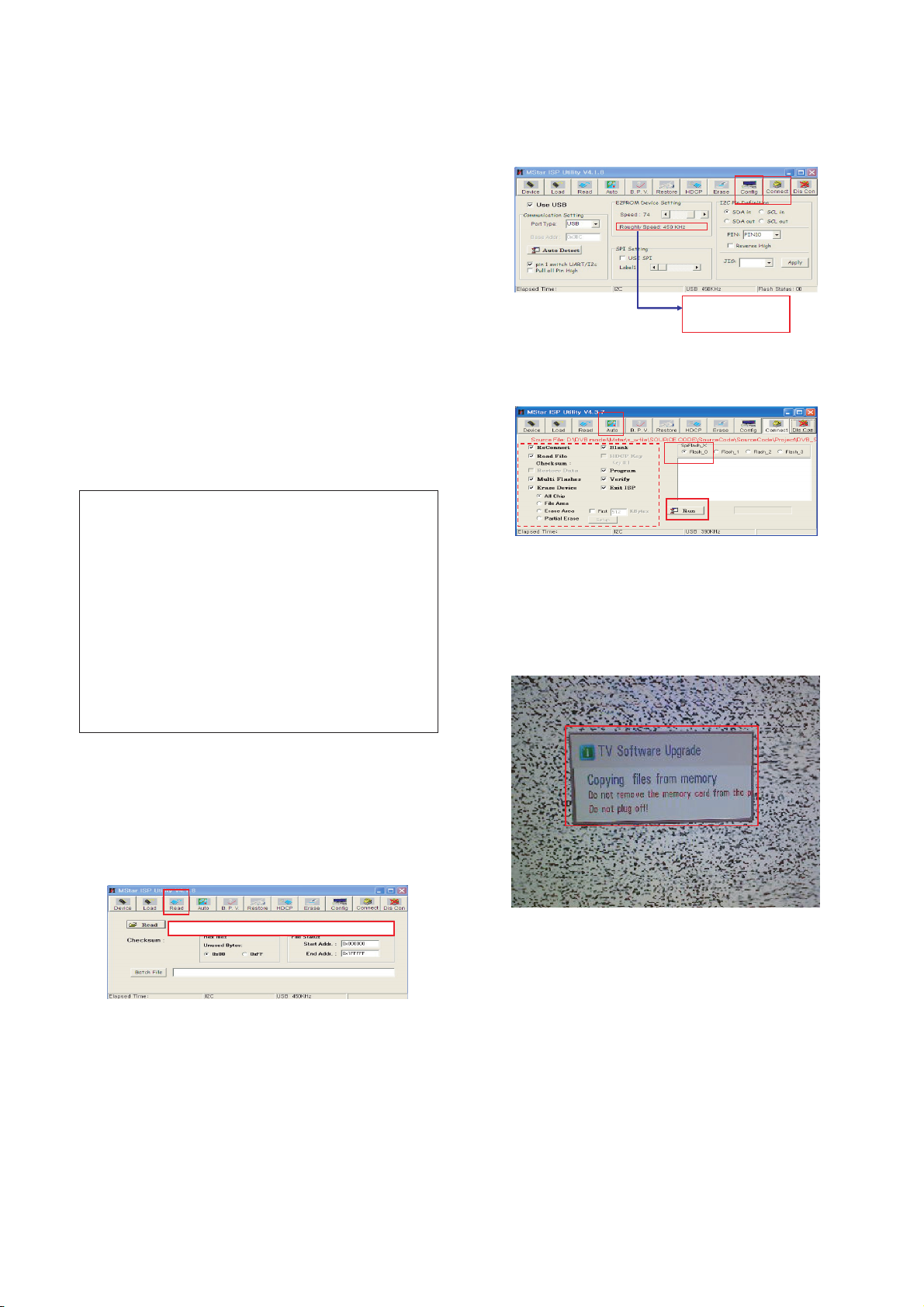

1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

2) Set as below, and then click “Auto Detect” and check “OK”

message

If “Error” is displayed, Check connection between

computer, jig, and set.

3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”

4) Click “Connect” tab. If “Can’t” is displayed, check

connection between computer, jig, and set.

5) Click “Auto” tab and set as below

6) Click “Run”.

7) After downloading, check “OK” message.

* USB DOWNLOAD

1) Put the USB Stick to the USB socket

2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low,

it didn’t work. But your downloaded version is High, USB

data is automatically detecting

3) Show the message “Copying files from memory”

filexxx.bin

(4)

(7) ……….OK

(5)

(6)

(1)

filexxx.bin

(2) (3)

Please Check the Speed :

To use speed between

from 200KHz to 400KHz

Case1 : Software version up

1. After downloading S/W by USB, TV set will reboot

automatically

2. Push “In-stop” key

3. Push “Power on” key

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop” key at first.

2. Push “Power on” key for turning it on.

-> If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

4) Updating is staring.

5) Uploading completed, The TV will restart automatically.

6) If your TV is turned on, check your updated version and

Tool option.(explain the Tool option, next stage)

* If downloading version is more high than your TV have,

TV can lost all channel data. In this case, you have to

channel recover. if all channel data is cleared, you didn’t

have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

1) Push "IN-START" key in service remote control.

2) Select “Tool Option 1” and Push “OK” button.

3) Punch in the number. (Each model has their number)

4) Completed selecting Tool option.

3.1. ADC Process

(1) ADC

- Enter Service Mode by pushing “ADJ” key,

- Enter Internal ADC mode by pushing “G” key at “5. ADC

Calibration”

<Caution> Using ‘power on’ button of the Adjustment R/C,

power on TV.

* ADC Calibration Protocol (RS232)

Adjust Sequence

• aa 00 00 [Enter Adjust Mode]

• xb 00 40 [Component1 Input (480i)]

• ad 00 10 [Adjust 480i Comp1]

• xb 00 60 [RGB Input (1024*768)]

• ad 00 10 [Adjust 1024*768 RGB]

• aa 00 90 End Adjust mode

* Required equipment : Adjustment R/C.

3.2. Function Check

* Check display and sound

- Check Input and Signal items. (cf. work instructions)

1) TV

2) AV (SCART1/SCART2/ CVBS)

3) COMPONENT (480i)

4) RGB (PC : 1024 x 768 @ 60 Hz)

5) HDMI

6) PC Audio In

* Display and Sound check is executed by Remote control.

Only for training and service purposes

Module Tool option1 Tool option2 Tool option3 Tool option4 Tool option5

IPS 17137 10770 52228 26892 33

AUO 217129 10770 52228 26892 33

No Item CMD1 CMD2 Data0

Enter Adjust Adjust A A 0 0 When transfer the ‘Mode In’,

Mode ‘Mode In’ Carry the command.

ADC adjust ADC Adjust A D 1 0 Automatically adjustment

(The use of a internal pattern)

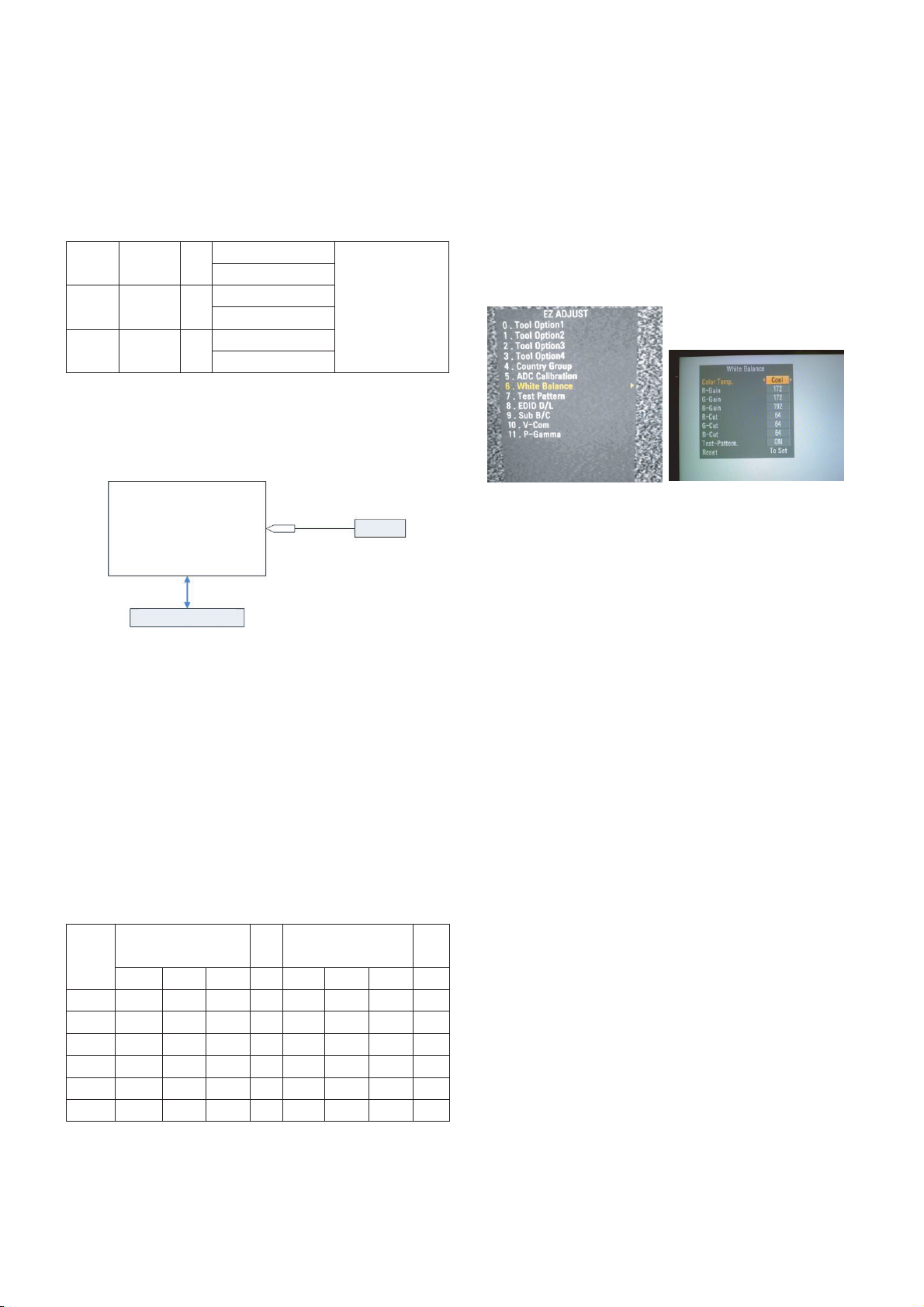

4. Total Assembly line process

4.1. Adjustment Preparation

· W/B Equipment condition

CA210 : CH 9, Test signal : Inner pattern (85IRE)

· Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

* Connecting picture of the measuring instrument

(On Automatic control)

Inside PATTERN is used when W/B is controlled. Connect to

auto controller or push Adjustment R/C POWER ON ->

Enter the mode of White-Balance, the pattern will come out.

* Auto-control interface and directions

1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10 lux).

2) Adhere closely the Color Analyzer (CA210) to the module

less than 10 cm distance, keep it with the surface of the

Module and Color Analyzer’s prove vertically.(80° ~ 100°).

3) Aging time

- After aging start, keep the power on (no suspension of

power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others,

check the back light on.

• Auto adjustment Map(RS-232C)

RS-232C COMMAND

[CMD ID DATA]

Wb 00 00 White Balance Start

Wb 00 ff White Balance End

Color Temperature : COOL, Medium, Warm.

One of R Gain/G Gain/ B Gain should be kept on 0xC0, and

adjust other two lower than C0.

(when R/G/B Gain are all C0, it is the FULL Dynamic Range

of Module)

* Manual W/B process using adjusts Remote control.

• After enter Service Mode by pushing “ADJ” key,

• Enter White Balance by pushing “G” key at “6. White

Balance”.

* After done all adjustments, Press “In-start” button and

compare Tool option and Area option value with its BOM, if

it is correctly same then unplug the AC cable. If it is not

same, then correct it same with BOM and unplug AC cable.

For correct it to the model’s module from factory Jig model.

* Push the “IN STOP” key after completing the function

inspection. And Mechanical Power Switch must be set

“ON”.

4.2. DDC EDID Write (RGB 128Byte )

• Connect D-sub Signal Cable to D-sub Jack.

• Write EDID Data to EEPROM(24C02) by using DDC2B

protocol.

• Check whether written EDID data is correct or not.

* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.3. DDC EDID Write (HDMI 256Byte)

• Connect HDMI Signal Cable to HDMI Jack.

• Write EDID Data to EEPROM(24C02) by using DDC2B

protocol.

• Check whether written EDID data is correct or not.

* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.4. EDID DATA

1) All Data : HEXA Value

2) Changeable Data :

*: Serial No : Controlled / Data:01

**: Month : Controlled / Data:00

***:Year : Controlled

****:Check sum

Only for training and service purposes

Cool 13,000 K X=0.269(±0.002)

Y=0.273(±0.002) <Test Signal>

Medium 9,300 K X=0.285(±0.002) Inner pattern

Y=0.293(±0.002) (216gray,85IRE)

Warm 6,500 K X=0.313(±0.002)

Y=0.329(±0.002)

Full White Pattern

COLOR

ANALYZER

TYPE: CA-210

RS-232C Communication

CA-210

RS-232C COMMAND MIN CENTER MAX

[CMD ID DATA] (DEFAULT)

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

4.5. Auto Download

1) Press Adj. key on the Adj. Remote control.

2) Select EDID D/L menu.

3) By pressing Enter key, EDID download will begin

4) If Download is successful, OK is display, but If Download if

failure, NG is displayed.

5) If Download is failure, Re-try downloads.

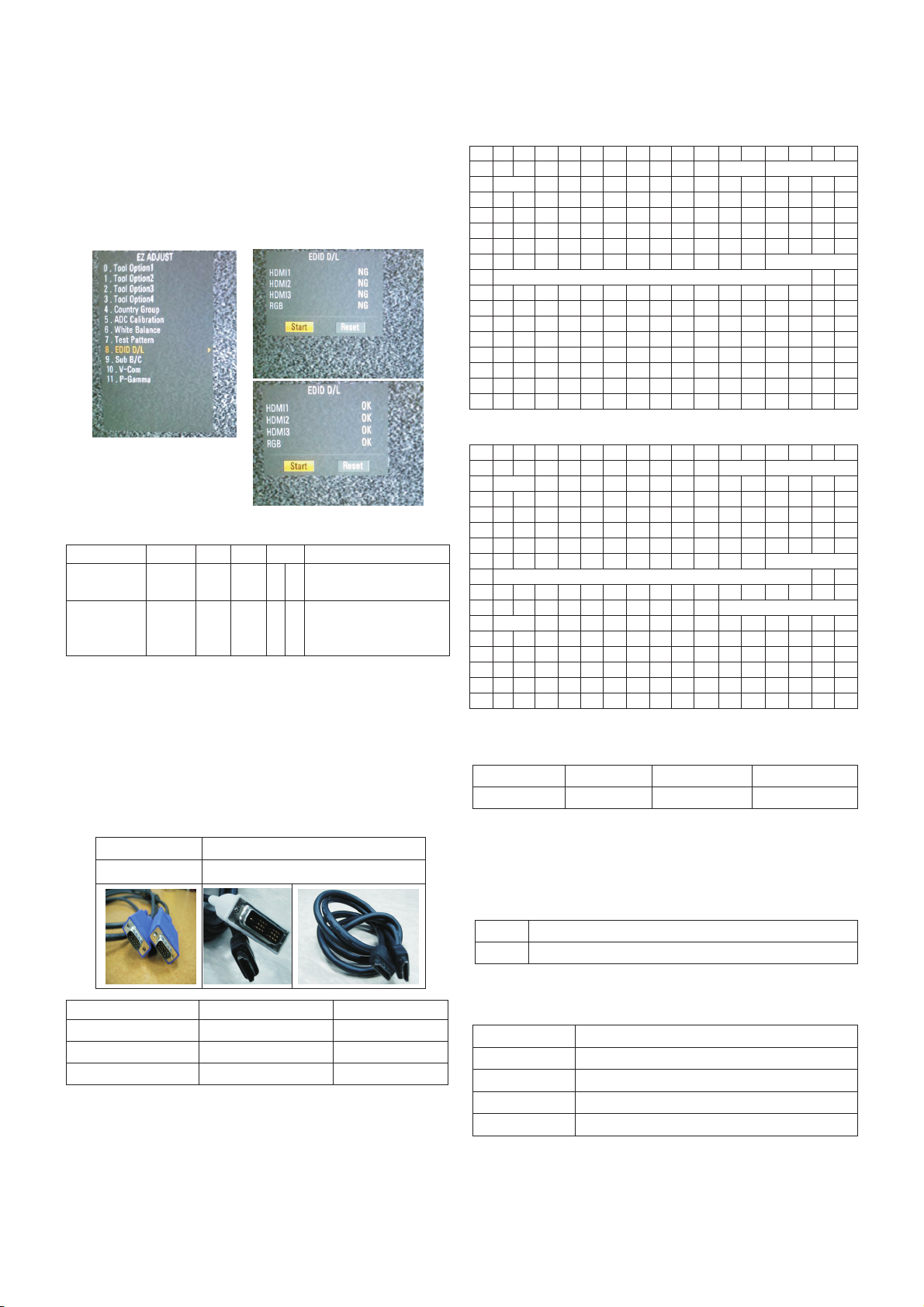

* Edid data and Model option download (RS232)

- Manual Download

* Caution

1) Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

2) Never connect HDMI & D-sub Cable at the same time.

3) Use the proper cables below for EDID Writing

4) Download HDMI1, HDMI2, separately because HDMI1 is

different from HDMI2

1) FHD RGB EDID data

2) FHD HDMI EDID data

* Detail EDID Options are below

ⓐProduct ID

ⓑSerial No: Controlled on production line.

ⓒMonth, Year: Controlled on production line:

ex) Monthly : ‘02’ -> ‘01’

Year : ‘2010’ -> ‘14’

ⓓModel Name(Hex):

ⓔChecksum: Changeable by total EDID data.

ⓕVendor Specific(HDMI)

Model Name HEX EDID Table DDC Function

FHD Model 0001 01 00 Analog/Digital

Only for training and service purposes

- 12 -

MODEL MODEL NAME(HEX)

all 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

Item

Manufacturer ID

Version

Revision

Condition

GSM

Digital : 1

Digital : 3

Data(Hex)

1E6D

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

INPUT MODEL NAME(HEX)

HDMI1 67030C001000B82D

HDMI2 67030C002000B82D

HDMI3 67030C003000B82D

HDMI4 67030C004000B82D

012 3 4 5 67 8 9 ABCD EF

00 00 FF FF FF FF FF FF 00 1E 6D a b

10 c 0103681009780AEE91A3544C9926

20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d

70 d 00 e

80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

E0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

012 3 4 5 67 8 9 ABCD EF

00 00 FF FF FF FF FF FF 00 1E 6D a b

10 c 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 71 4F 81 01 01 01 01 01 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d

70 d 01 e

80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 f

A0 f E3050301011D8018711C1620582C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 0C 20

C0 40 80 35 00 A0 5A 00 00 00 1E 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F9

NO Item CMD1 CMD2 Data0

Enter Download A A 0 0 When transfer the ‘Mode In’,

download Mode ‘Mode In’ Carry the command.

EDID data Download A E 00 10 Automatically Download

and Model (The use of a internal pattern)

option download

Only for training and service purposes

4.5. V-COM Adjust(Only LGD(M+S) Module)

- Why need Vcom adjustment?

AThe Vcom (Common Voltage) is a Reference Voltage of

Liquid Crystal Driving.

-> Liquid Crystal need for Polarity Change with every frame.

- Adjust sequence

· Press the PIP key of th ADJ remote control.(This PIP key is

hot key to enter the VCOM adjusting mode)

(Or After enter Service Mode by pushing “ADJ” key, then

Enter V-Com Adjust mode by pushing “G” key at “10. V-

Com”

· As pushing the right or the left key on the remote control,

and find the V-COM value which is no or minimized the

Flicker. (If there is no flicker at default value, Press the exit

key and finish the VCOM adjustment.)

· Push the “OK” key to store value. Then the message

“Saving OK” is pop.

· Press the exit key to finish VCOM adjustment.

(Visual Adjust and control the Voltage level)

4.6. Outgoing condition Configuration

- When pressing IN-STOP key by SVC remocon, Red LED are

blinked alternatively. And then Automatically turn off.

(Must not AC power OFF during blinking)

4.7. Internal pressure

Confirm whether is normal or not when between power

board’s ac block and GND is impacted on 1.5 kV(dc) or 2.2

kV(dc) for one second.

5. Model name & Serial number D/L

• Press “Power on” key of service remocon.

(Baud rate : 115200 bps)

• Connect RS232 Signal Cable to RS-232 Jack.

• Write Serial number by use RS-232.

• Must check the serial number at the Diagnostics of SET UP

menu. (Refer to below).

5.1. Signal TABLE

CMD : A0h

LENGTH : 85~94h (1~16 bytes)

ADH : EEPROM Sub Address high (00~1F)

ADL : EEPROM Sub Address low (00~FF)

Data : Write data

CS : CMD + LENGTH + ADH + ADL + Data_1 +…+ Data_n

Delay : 20ms

5.2. Command Set

* Description

FOS Default write : <7mode data> write

Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,

Phase

Data write : Model Name and Serial Number write in

EEPROM,.

5.3. Method & notice

A. Serial number D/L is using of scan equipment.

B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory

by D-book 4.0.

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or Service man, Sometimes

model name or serial number is initialized.(Not always)

There is impossible to download by bar code scan, so It need

Manual download.

1) Press the ‘instart’ key of ADJ remote controller.

2) Go to the menu ‘5.Model Number D/L’ like below photo.

3) Input the Factory model name(ex 42LD450-ZA) or Serial

number like photo.

CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY

No. Adjust mode CMD(hex) LENGTH(hex) Description

1 EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)

Row Line

Column Line

CLC CST

Pane l

Gat e Driv e IC

So urce D r i v e I C

Circuit Block

Ti m i n g

Co nt r o ll e r

Po w e r

Blo ck

VCOM

Ga mma

Re f e r e nce V o ltage

Gamm a R eference

Volta ge

Data (R,G ,B ) & C on t ro l s ignal

Con tr ol si g nal

Data (R ,G,B ) &

Con tr ol si g nal

In t e r f a c e

TFT

Po w e r I n p u t

Power Input

Da t a I n p u t

VCOM

Liquid

Crys tal

VCOM

4) Check the model name Instart menu -> Factory name

displayed (ex 42LD450-ZA)

5) Check the Diagnostics (DTV country only) -> Buyer model

displayed (ex 42LD450)

6. CI+ key download(Only for CI model)

6-1. Download Procedure

(1) Press "Power on" button of a service R/C.(Baud rate :

115200 bps)

(2) Connect RS232-C Signal Cable.

(3) Write CI+ Key through RS-232-C.

(4) Check whether the key was downloaded or not at ‘In Start’

menu. (Refer to below).

=> Check the Download to CI+ Key value in LGset.

6-2. check the method of CI+ Key value

(1) Check the method on Instart menu

(2) check the method of RS232C Command

1) into the main ass’y mode (RS232 : aa 00 00)

2) check the key download for transmitted command

(RS232 : ci 00 10)

3) result value

- normally status for download : OKx

- abnormally status for download : NGx

6-3. Check the method of CI+ key value (RS232)

(1) into the main ass’y mode (RS232 : aa 00 00)

(2) Check the method of CI+ key by command

(RS232 : ci 00 20)

(3) Result value

i 01 OK 1d1852d21c1ed5dcx

Only for training and service purposes

CMD 1 CMD 2 Data 0

AA00

CMD 1 CMD 2 Data 0

CI10

CMD 1 CMD 2 Data 0

AA00

CMD 1 CMD 2 Data 0

CI20

CI+ key Value

Only for training and service purposes

BLOCK DIAGRAM

Only for training and service purposes

300

200

530

810

400

510

120

500

A2 A5 A10

A21

900

910

800

540

521

LV1 LV2

Option

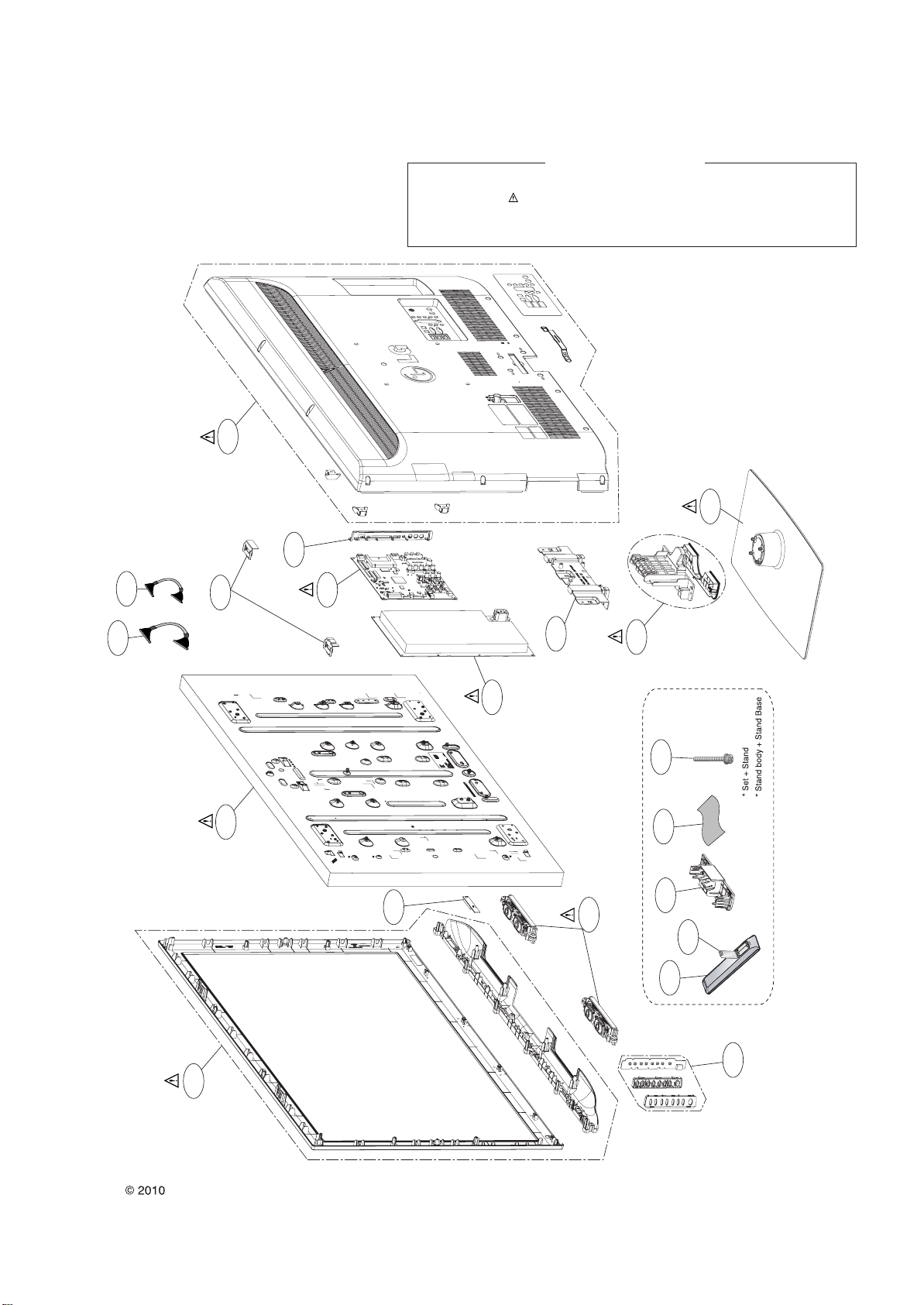

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These

parts are identified by in the Schematic Diagram and EXPLODED VIEW.

It is essential that these special safety parts should be replaced with the same components as

recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.

Do not modify the original design without permission of manufacturer.

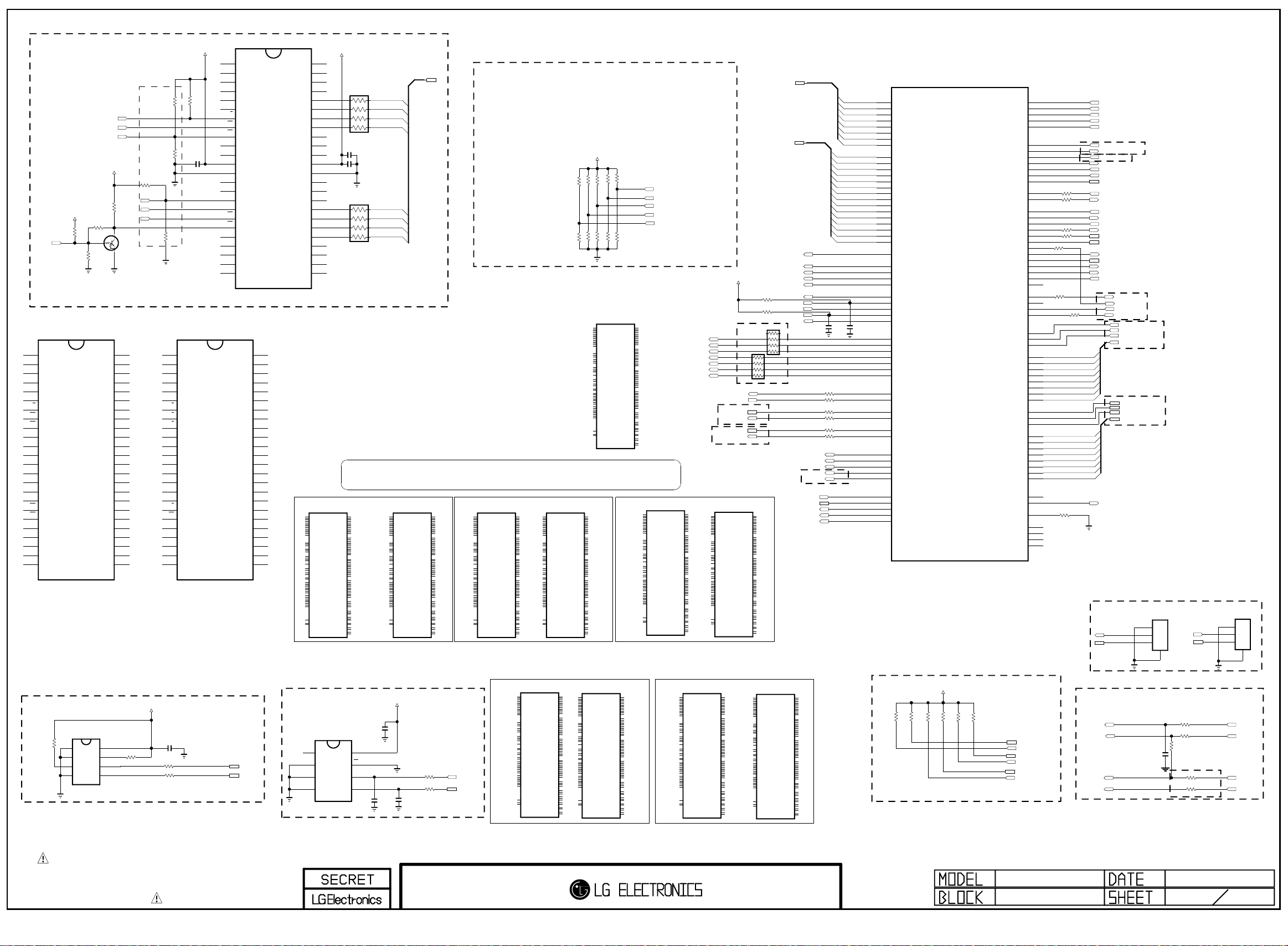

IMPORTANT SAFETY NOTICE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

PCM_A[8]

CI_TS_DATA[6]

PCM_A[3]

PCM_A[10]

FE_TS_DATA[5]

PCM_A[0]

PCM_D[6]

CI_TS_DATA[0]

PCM_D[2]

PCM_A[7]

PCM_A[9]

FE_TS_DATA[3]

PCM_A[12]

PCM_A[4]

PCM_D[5]

CI_TS_DATA[3]

PCM_A[5]

FE_TS_DATA[0]

CI_TS_DATA[5]

PCM_A[2]

PCM_A[13]

FE_TS_DATA[4]

PCM_A[1]

PCM_A[3]

PCM_A[2]

CI_TS_DATA[4]

PCM_D[1]

PCM_A[11]

FE_TS_DATA[2]

PCM_D[4]

PCM_A[7]

PCM_A[6]

PCM_A[0]

CI_TS_DATA[7]

PCM_A[4]

PCM_D[0]

FE_TS_DATA[6]

CI_TS_DATA[1]

CI_TS_DATA[2]

PCM_A[6]

PCM_A[14]

PCM_D[3]

PCM_D[7]

FE_TS_DATA[1]

FE_TS_DATA[7]

PCM_A[5]

PCM_A[1]

MODEL_OPT_2

/PCM_WE

R104

10K

OPT

HP_DET

S7_RXD

I2C_SDA

SPI_SDI

FRC_RESET

+3.3V_Normal

I2C_SDA

/PF_OE

PCM_A[0-7]

+3.5V_ST

C104

8pF

OPT

C108

0.1uF

OPT

IC103

CAT24WC08W-T

VSS

5SDA

6SCL

7WP

8VCC

TUNER_RESET

FRC_PWM1

CI_TS_DATA[0-7]

R158 100

SCAN

M_REMOTE_RX

R105

OPT

UART_FRC_TX

R1081K

OPT

DEMOD_RESET

PCM_D[0-7]

R126

PF_ALE

SPI_SCK

IC102

HY27UF082G2B-TPCB

2GBIT

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VCC_2

38 NC_23

39 NC_24

40 NC_25

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_26

46 NC_27

47 NC_28

48 NC_29

ALE

NC_3

NC_6

CLE

NC_10

NC_9

VSS_1

VCC_1

NC_8

NC_7

R/B

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

/PCM_WAIT

R125

OPT

DSUB_DET

R113

4.7K

M_REMOTE_TX

USB1_OCD

/PF_WE

FE_TS_VAL_ERR

R115

ERROR_OUT

R134 22

R159 100

SCAN

CI_TS_SYNC

SC1/COMP1_DET

A_DIM

/PCM_REG

FE_TS_SYNC

PCM_5V_CTL

S7_TXD

5V_DET_HDMI_4

R128 22

+3.3V_Normal

/PCM_IRQA

+5V_Normal

/PF_OE

C111

2.2uF

FRC_SCL

R118

1K OPT

SC_RE1

/PCM_IOWR

R103

SCAN_BLK1/OPC_OUT

/PF_CE1

SPI_SDO

C107

0.1uF

R14922

M_REMOTE

/PCM_IORD

5V_DET_HDMI_3

PWM2

C105

0.1uF

C103

0.1uF

/PF_WE

R135 22

I2C_SDA

5V_DET_HDMI_2

ET_RXER

R124

MODEL_OPT_3

R120

OPT

C106

8pF

OPT

FRC_PWM0

R123

OPT

R14633

/PF_CE1

/PF_CE0

R101

3.3K

OPT

AV_CVBS_DET

RGB_DDC_SDA

PWM0

MODEL_OPT_1

I2C_SCL

R14822

M_REMOTE

CI_TS_VAL

PCM_A[0-14]

R133

10K

I2C_SCL

/F_RB

/RST_PHY

R155

SCAN_CCFL_55"

PWM_DIM

/PCM_OE

UART_FRC_RX

Q101

KRC103S

OPT

R106

R138 22

FE_TS_DATA[0-7]

PCM_RST

R117

/PF_WP

I2C_SCL

SCAN_BLK2

SC_RE2

R116

1K OPT

+3.3V_Normal

R107 1K

R157 100

NON_SCAN_CCFL_55"

R132

10K

R137 22

CI_TS_CLK

SIDEAV_DET

/PF_CE0

IC102-*1

HY27US08121B-TPCB

512MBIT

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VCC_2

38 PRE

39 NC_23

40 NC_24

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_25

46 NC_26

47 NC_27

48 NC_28

ALE

NC_3

NC_6

CLE

NC_10

NC_9

VSS_1

VCC_1

NC_8

NC_7

R/B

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

/PCM_CD

/F_RB

C101

0.1uF

R139 22

5V_DET_HDMI_1

/SPI_CS

/PCM_CE

/PF_WP

R109 3.9K

C109

0.1uF

R127 4.7K

+3.3V_Normal

USB1_CTL

MODEL_OPT_0

PWM0

FRC_SDA

R129 22

PWM1

+3.3V_Normal

PWM2

WIRELESS_DL_RX

R136 22

RGB_DDC_SCL

WIRELESS_DL_TX

R121

FE_TS_CLK

R102

3.3K

R14733

R15133

PWM0

PWM1

AUD_LRCH

AUD_MASTER_CLK

AUD_SCK

+3.3V_Normal

R111 22

R112 22

R156 10K

/FLASH_WP

/RST_HUB

C102

10uF

P3903

12505WS-03A00

URSA_DEBUG

P3904

12505WS-03A00

URSA_DEBUG

NEC_SDA

I2C_SDA

I2C_SCL

AMP_SCL

R142

3.3K

R145

2.2K

R143

3.3K

R144

2.2K

AMP_SDA

+3.3V_Normal

NEC_SCL

CONTROL_ATTEN

R160

/PIF_SPI_CS

IC104

M24M01-HRMN6TP

VSS

5SDA

6SCL

7WP

8VCC

AR104

AR103

AR101

AR102

R141

R140

R1100

R1500

MODEL_OPT_6

IC102-*2

NAND01GW3B2CN6E

1GBIT

26 NC_17

27 NC_18

28 NC_19

29 I/O0

30 I/O1

31 I/O2

32 I/O3

33 NC_20

34 NC_21

35 NC_22

36 VSS_2

37 VDD_2

38 NC_23

39 NC_24

40 NC_25

41 I/O4

42 I/O5

43 I/O6

44 I/O7

45 NC_26

46 NC_27

47 NC_28

48 NC_29

NC_3

NC_6

NC_10

NC_9

VSS_1

VDD_1

NC_8

NC_7

NC_4

NC_5

25 NC_16

NC_15

NC_14

NC_2

NC_13

NC_12

NC_1

NC_11

LGE107D (S7M Divx_Non RM)

IC101

S7M_DIVX & MS10

PCM_D0

U22

PCM_D1

T21

PCM_D2

T22

PCM_D3

AB18

PCM_D4

AC18

PCM_D5

AC19

PCM_D6

AC20

PCM_D7

AC21

PCM_A0

U21

PCM_A1

V21

PCM_A2

Y22

PCM_A3

AA22

PCM_A4

R22

PCM_A5

R21

PCM_A6

T23

PCM_A7

T24

PCM_A8

AA23

PCM_A9

Y20

PCM_A10

AB17

PCM_A11

AA21

PCM_A12

U23

PCM_A13

Y23

PCM_A14

W23

PCM_REG_N

W22

PCM_OE_N

AA17

PCM_WE_N

V22

PCM_IORD_N

W21

PCM_IOWR_N

Y21

PCM_CE_N

AA20

PCM_IRQA_N

V23

PCM_CD_N

P23

PCM_WAIT_N

R23

PCM_RESET

P22

PCM_PF_CE0Z

AC17

PCM_PF_CE1Z

AB20

PCM_PF_OEZ

AA18

PCM_PF_WEZ

AB21

PCM_PF_ALE

AB19

PCM_PF_AD[15]

AD17

PCM_PF_RBZ

AA19

UART_TX2/GPIO65

M23

UART_RX2/GPIO64

N23

DDCR_DA/GPIO71

M22

DDCR_CK/GPIO72

N22

DDCA_DA/UART0_TX

DDCA_CK/UART0_RX

PWM0/GPIO66

K23

PWM1/GPIO67

K22

PWM2/GPIO68

G23

PWM3/GPIO69

G22

PWM4/GPIO70

G21

SAR0/GPIO31

SAR1/GPIO32

SAR2/GPIO33

SAR3/GPIO34

SAR4/GPIO35

GPIO143/TCON0 N21

GPIO145/TCON2 M21

GPIO147/TCON4 L22

GPIO149/TCON6 L21

GPIO151/TCON8 P21

GPIO36/UART3_RX K21

GPIO37/UART3_TX L23

GPIO38 K20

GPIO39 L20

GPIO40 M20

GPIO41 G20

GPIO42 G19

GPIO50/UART1_RX F20

GPIO51/UART1_TX F19

GPIO6/PM0/INT0 E7

GPIO7/PM1/PM_UART_TX D7

GPIO8/PM2 E11

GPIO9/PM3 G9

GPIO10/PM4 F9

GPIO11/PM5/PM_UART_RX/INT1 C5

PM_SPI_CS1/GPIO12/PM6 E8

PM_SPI_WP1/GPIO13/PM7 E9

PM_SPI_WP2/GPIO14/PM8/INT2 F7

GPIO15/PM9 F6

PM_SPI_CS2/GPIO16/PM10 D8

GPIO17/PM11/INT3 G12

GPIO18/PM12/INT4 F10

PM_SPI_CK/GPIO1 D9

GPIO0/PM_SPI_CZ D11

PM_SPI_DI/GPIO2 E10

PM_SPI_DO/GPIO3 D10

TS0_CLK AA9

TS0_VLD AA5

TS0_SYNC AA10

TS0_D0 AB5

TS0_D1 AC4

TS0_D2 Y6

TS0_D3 AA6

TS0_D4 W6

TS0_D5 AA7

TS0_D6 Y9

TS0_D7 AA8

TS1_CLK AC5

TS1_VLD AC6

TS1_SYNC AB6

TS1_D0 AC10

TS1_D1 AB10

TS1_D2 AC9

TS1_D3 AB9

TS1_D4 AC8

TS1_D5 AB8

TS1_D6 AC7

TS1_D7 AB7

MPIF_CLK D12

MPIF_CS_N D14

MPIF_BUSY E14

MPIF_D0 E12

MPIF_D1 F12

MPIF_D2 D13

MPIF_D3 E13

LGE101D (S7 Non_Tcon/RM)

IC101-*8

S7_DIVX & MS10

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE105D(S7-Tcon Divx_ Non_RM)

IC101-*4

S7T_DIVX & MS10

NC_43

AE1

NC_73

AF16

NC_59

AF1

NC_45

AE3

NC_40

AD14

NC_29

AD3

NC_72

AF15

NC_60

AF2

NC_57

AE15

NC_28

AD2

NC_42

AD16

NC_41

AD15

NC_58

AE16

NC_61

AF3

NC_71

AF14

NC_27

AD1

NC_39

AD13

NC_56

AE14

NC_55

AE13

NC_46

AE4

NC_31

AD5

NC_62

AF4

NC_30

AD4

NC_44

AE2

NC_66

AF8

NC_35

AD9

NC_51

AE9

NC_67

AF9

NC_53

AE11

NC_64

AF6

NC_48

AE6

NC_69

AF11

NC_32

AD6

NC_38

AD12

NC_47

AE5

NC_70

AF12

NC_63

AF5

NC_54

AE12

NC_52

AE10

NC_65

AF7

NC_37

AD11

NC_33

AD7

NC_36

AD10

NC_49

AE7

NC_68

AF10

NC_34

AD8

NC_50

AE8

NC_12

Y11

GND_105

Y19

RLV3P W26

RLV3N W25

RLV0P U26

RLV0N U25

RLV1P U24

RLV1N V26

RLV2P V25

RLV2N V24

RLVCKP W24

RLVCKN Y26

RLV4P Y25

RLV4N Y24

WPWM AC26

OPTP/FLK2 AC25

RLV5P AA26

RLV5N AA25

RLV6P AA24

RLV6N AB26

RLV7P AB25

RLV7N AB24

OPTN/FLK3 AC24

FLK AD26

GCLK6 AD25

GCLK5 AD24

LLV3P AD23

LLV3N AE23

LLV0P AE26

LLV0N AE25

LLV1P AF26

LLV1N AF25

LLV2P AE24

LLV2N AF24

LLVCKP AF23

LLVCKN AD22

LLV4P AE22

LLV4N AF22

GOE/GCLK1 AD19

GSC/GCLK3 AE19

LLV5P AD21

LLV5N AE21

LLV6P AF21

LLV6N AD20

LLV7P AE20

LLV7N AF20

GSPR AF19

GSP/VST AD18

SOE AE18

POL AF18

VDD_ODD AB22

VDD_EVEN AB23

GCLK4 AC23

GCLK2 AC22

NC_23 AB16

DPM AA14

HCON AC15

NC_15 Y16

NC_26 AC16

LEDON AC14

NC_20 AA16

NC_19 AA15

NC_11 Y10

NC_17 AA11

SCAN_BLK AB15

SCAN_BLK1 AB14

LGE101 (S7 NON_TON/DiX/RM)

IC101-*10

S7_NON_DIVX & MS10

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE105 (S7-Tcon Non_Divx/RM)

IC101-*6

S7T_NON_DIVX & MS10

NC_43

AE1

NC_73

AF16

NC_59

AF1

NC_45

AE3

NC_40

AD14

NC_29

AD3

NC_72

AF15

NC_60

AF2

NC_57

AE15

NC_28

AD2

NC_42

AD16

NC_41

AD15

NC_58

AE16

NC_61

AF3

NC_71

AF14

NC_27

AD1

NC_39

AD13

NC_56

AE14

NC_55

AE13

NC_46

AE4

NC_31

AD5

NC_62

AF4

NC_30

AD4

NC_44

AE2

NC_66

AF8

NC_35

AD9

NC_51

AE9

NC_67

AF9

NC_53

AE11

NC_64

AF6

NC_48

AE6

NC_69

AF11

NC_32

AD6

NC_38

AD12

NC_47

AE5

NC_70

AF12

NC_63

AF5

NC_54

AE12

NC_52

AE10

NC_65

AF7

NC_37

AD11

NC_33

AD7

NC_36

AD10

NC_49

AE7

NC_68

AF10

NC_34

AD8

NC_50

AE8

NC_12

Y11

GND_105

Y19

RLV3P W26

RLV3N W25

RLV0P U26

RLV0N U25

RLV1P U24

RLV1N V26

RLV2P V25

RLV2N V24

RLVCKP W24

RLVCKN Y26

RLV4P Y25

RLV4N Y24

WPWM AC26

OPTP/FLK2 AC25

RLV5P AA26

RLV5N AA25

RLV6P AA24

RLV6N AB26

RLV7P AB25

RLV7N AB24

OPTN/FLK3 AC24

FLK AD26

GCLK6 AD25

GCLK5 AD24

LLV3P AD23

LLV3N AE23

LLV0P AE26

LLV0N AE25

LLV1P AF26

LLV1N AF25

LLV2P AE24

LLV2N AF24

LLVCKP AF23

LLVCKN AD22

LLV4P AE22

LLV4N AF22

GOE/GCLK1 AD19

GSC/GCLK3 AE19

LLV5P AD21

LLV5N AE21

LLV6P AF21

LLV6N AD20

LLV7P AE20

LLV7N AF20

GSPR AF19

GSP/VST AD18

SOE AE18

POL AF18

VDD_ODD AB22

VDD_EVEN AB23

GCLK4 AC23

GCLK2 AC22

NC_23 AB16

DPM AA14

HCON AC15

NC_15 Y16

NC_26 AC16

LEDON AC14

NC_20 AA16

NC_19 AA15

NC_11 Y10

NC_17 AA11

SCAN_BLK AB15

SCAN_BLK1 AB14

LGE107 (S7M Non Divx/RM)

IC101-*2

S7M_NON_DIVX & MS10

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107DB-LF-1 (S7M Divx_Non RM/MS10)

IC101-*1

S7M_DIVX & DD

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE107B-LF-1 (S7M Non Divx/RM/MS10)

IC101-*3

S7M_NON_DIVX & DD

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

LGE105DB-LF-1 (S7-Tcon Divx_ Non_RM/MS10)

IC101-*5

S7T_DIVX & DD

NC_43

AE1

NC_73

AF16

NC_59

AF1

NC_45

AE3

NC_40

AD14

NC_29

AD3

NC_72

AF15

NC_60

AF2

NC_57

AE15

NC_28

AD2

NC_42

AD16

NC_41

AD15

NC_58

AE16

NC_61

AF3

NC_71

AF14

NC_27

AD1

NC_39

AD13

NC_56

AE14

NC_55

AE13

NC_46

AE4

NC_31

AD5

NC_62

AF4

NC_30

AD4

NC_44

AE2

NC_66

AF8

NC_35

AD9

NC_51

AE9

NC_67

AF9

NC_53

AE11

NC_64

AF6

NC_48

AE6

NC_69

AF11

NC_32

AD6

NC_38

AD12

NC_47

AE5

NC_70

AF12

NC_63

AF5

NC_54

AE12

NC_52

AE10

NC_65

AF7

NC_37

AD11

NC_33

AD7

NC_36

AD10

NC_49

AE7

NC_68

AF10

NC_34

AD8

NC_50

AE8

NC_12

Y11

GND_105

Y19

RLV3P W26

RLV3N W25

RLV0P U26

RLV0N U25

RLV1P U24

RLV1N V26

RLV2P V25

RLV2N V24

RLVCKP W24

RLVCKN Y26

RLV4P Y25

RLV4N Y24

WPWM AC26

OPTP/FLK2 AC25

RLV5P AA26

RLV5N AA25

RLV6P AA24

RLV6N AB26

RLV7P AB25

RLV7N AB24

OPTN/FLK3 AC24

FLK AD26

GCLK6 AD25

GCLK5 AD24

LLV3P AD23

LLV3N AE23

LLV0P AE26

LLV0N AE25

LLV1P AF26

LLV1N AF25

LLV2P AE24

LLV2N AF24

LLVCKP AF23

LLVCKN AD22

LLV4P AE22

LLV4N AF22

GOE/GCLK1 AD19

GSC/GCLK3 AE19

LLV5P AD21

LLV5N AE21

LLV6P AF21

LLV6N AD20

LLV7P AE20

LLV7N AF20

GSPR AF19

GSP/VST AD18

SOE AE18

POL AF18

VDD_ODD AB22

VDD_EVEN AB23

GCLK4 AC23

GCLK2 AC22

NC_23 AB16

DPM AA14

HCON AC15

NC_15 Y16

NC_26 AC16

LEDON AC14

NC_20 AA16

NC_19 AA15

NC_11 Y10

NC_17 AA11

SCAN_BLK AB15

SCAN_BLK1 AB14

LGE105B-LF-1 (S7-Tcon Non_Divx/RM/MS10)

IC101-*7

S7T_NON_DIVX & DD

NC_43

AE1

NC_73

AF16

NC_59

AF1

NC_45

AE3

NC_40

AD14

NC_29

AD3

NC_72

AF15

NC_60

AF2

NC_57

AE15

NC_28

AD2

NC_42

AD16

NC_41

AD15

NC_58

AE16

NC_61

AF3

NC_71

AF14

NC_27

AD1

NC_39

AD13

NC_56

AE14

NC_55

AE13

NC_46

AE4

NC_31

AD5

NC_62

AF4

NC_30

AD4

NC_44

AE2

NC_66

AF8

NC_35

AD9

NC_51

AE9

NC_67

AF9

NC_53

AE11

NC_64

AF6

NC_48

AE6

NC_69

AF11

NC_32

AD6

NC_38

AD12

NC_47

AE5

NC_70

AF12

NC_63

AF5

NC_54

AE12

NC_52

AE10

NC_65

AF7

NC_37

AD11

NC_33

AD7

NC_36

AD10

NC_49

AE7

NC_68

AF10

NC_34

AD8

NC_50

AE8

NC_12

Y11

GND_105

Y19

RLV3P W26

RLV3N W25

RLV0P U26

RLV0N U25

RLV1P U24

RLV1N V26

RLV2P V25

RLV2N V24

RLVCKP W24

RLVCKN Y26

RLV4P Y25

RLV4N Y24

WPWM AC26

OPTP/FLK2 AC25

RLV5P AA26

RLV5N AA25

RLV6P AA24

RLV6N AB26

RLV7P AB25

RLV7N AB24

OPTN/FLK3 AC24

FLK AD26

GCLK6 AD25

GCLK5 AD24

LLV3P AD23

LLV3N AE23

LLV0P AE26

LLV0N AE25

LLV1P AF26

LLV1N AF25

LLV2P AE24

LLV2N AF24

LLVCKP AF23

LLVCKN AD22

LLV4P AE22

LLV4N AF22

GOE/GCLK1 AD19

GSC/GCLK3 AE19

LLV5P AD21

LLV5N AE21

LLV6P AF21

LLV6N AD20

LLV7P AE20

LLV7N AF20

GSPR AF19

GSP/VST AD18

SOE AE18

POL AF18

VDD_ODD AB22

VDD_EVEN AB23

GCLK4 AC23

GCLK2 AC22

NC_23 AB16

DPM AA14

HCON AC15

NC_15 Y16

NC_26 AC16

LEDON AC14

NC_20 AA16

NC_19 AA15

NC_11 Y10

NC_17 AA11

SCAN_BLK AB15

SCAN_BLK1 AB14

LGE101DB-LF-1 (S7 Non_Tcon/RM/MS10)

IC101-*9

S7_DIVX & DD

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

LGE101B-LF-1(S7 Non_Tcon/Divx/RM/MS10)

IC101-*11

S7_NON_DIVX & DD

NC_48

AE1

NC_78

AF16

NC_64

AF1

NC_50

AE3

NC_45

AD14

NC_34

AD3

NC_77

AF15

NC_65

AF2

NC_62

AE15

NC_33

AD2

NC_47

AD16

NC_46

AD15

NC_63

AE16

NC_66

AF3

NC_76

AF14

NC_32

AD1

NC_44

AD13

NC_61

AE14

NC_60

AE13

NC_51

AE4

NC_36

AD5

NC_67

AF4

NC_35

AD4

NC_49

AE2

NC_71

AF8

NC_40

AD9

NC_56

AE9

NC_72

AF9

NC_58

AE11

NC_69

AF6

NC_53

AE6

NC_74

AF11

NC_37

AD6

NC_43

AD12

NC_52

AE5

NC_75

AF12

NC_68

AF5

NC_59

AE12

NC_57

AE10

NC_70

AF7

NC_42

AD11

NC_38

AD7

NC_41

AD10

NC_54

AE7

NC_73

AF10

NC_39

AD8

NC_55

AE8

NC_12

Y11

GND_105

Y19

LVACLKP/LLV6P/BLUE[3] W26

LVACLKN/LLV6N/BLUE[2] W25

LVA0P/LLV3P/BLUE[9] U26

LVA0N/LLV3N/BLUE[8] U25

LVA1P/LLV4P/BLUE[7] U24

LVA1N/LLV4N/BLUE[6] V26

LVA2P/LLV5P/BLUE[5] V25

LVA2N/LLV5N/BLUE[4] V24

LVA3P/LLV7P/BLUE[1] W24

LVA3N/LLV7N/BLUE[0] Y26

LVA4P/LLV8P Y25

LVA4N/LLV8N Y24

LVBCLKP/LLV0P/GREEN[5] AC26

LVBCLKN/LLV0N/GREEN[4] AC25

LVB0P/RLV6P/RED[1] AA26

LVB0N/RLV6N/RED[0] AA25

LVB1P/RLV7P/GREEN[9] AA24

LVB1N/RLV7N/GREEN[8] AB26

LVB2P/RLV8P/GREEN[7] AB25

LVB2N/RLV8N/GREEN[6] AB24

LVB3P/LLV1P/GREEN[3] AC24

LVB3N/LLV1N/GREEN[2] AD26

LVB4P/LLV0P/GREEN[1] AD25

LVB4N/LLV0N/GREEN[0] AD24

RLV3P/RED[7] AD23

RLV3N/RED[6] AE23

RLV0P/LVSYNC AE26

RLV0N/LHSYNC AE25

RLV1N/LCK AF26

RLV2P/RED[9] AF25

RLV1P/LDE AE24

RLV2N/RED[8] AF24

RLV4P/RED[5] AF23

RLV4N/RED[4] AD22

RLV5P/RED[3] AE22

RLV5N/RED[2] AF22

TCON3/OE/GOE/GCLK2 AD19

TCON15/SCAN_BLK1 AE19

TCON18/CS7/GCLK5 AD21

TCON19/CS8/GCLK6 AE21

TCON11/CS5/HCON AF21

TCON10/CS4/OPT_N AD20

TCON9/CS3/OPT_P AE20

TCON16/WPWM AF20

TCON12/DPM AF19

TCON1/STV/GSP/VST AD18

TCON5/TP/SOE AE18

TCON14/SACN_BLK AF18

TCON21/CS10/VGH_ODD AB22

TCON20/CS9/VGH_EVEN AB23

TCON13/LEDON AC23

TCON17/CS6/GCLK4 AC22

NC_26 AB16

NC_19 AA14

NC_30 AC15

NC_15 Y16

NC_31 AC16

NC_29 AC14

NC_21 AA16

NC_20 AA15

NC_11 Y10

NC_17 AA11

NC_25 AB15

NC_24 AB14

FLASH/EEPROM/GPIO

GP2_Saturn7M

DIMMING

URSA degug port

for WIRELESS READY

for SERIAL FLASH

/PF_CE0

H : Serial Flash

L : NAND Flash

/PF_CE1

H : 16 bit

L : 8 bit

Boot from SPI flash : 1’b0

Boot from NOR flash : 1’b1

Addr:10101--

I2C

A0’h

(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)

EEPROM

for ETHERNET PHY

HDCP EEPROM

NAND FLASH MEMORY

from CI SLOT

TO SCART1

MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)

MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)

MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)

B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)

B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)

for SYSTEM/HDCP

EEPROM&URSA3

Internal demod out

/External demod in

$0.199

Ver. 1.3

LD650 Scan

& MS10 :Region that support MS10(ex:DTV Country)

& DD :Region that support only Dolby Digital(ex:AISA Analog/KOREA)

Only for training and service purposes

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

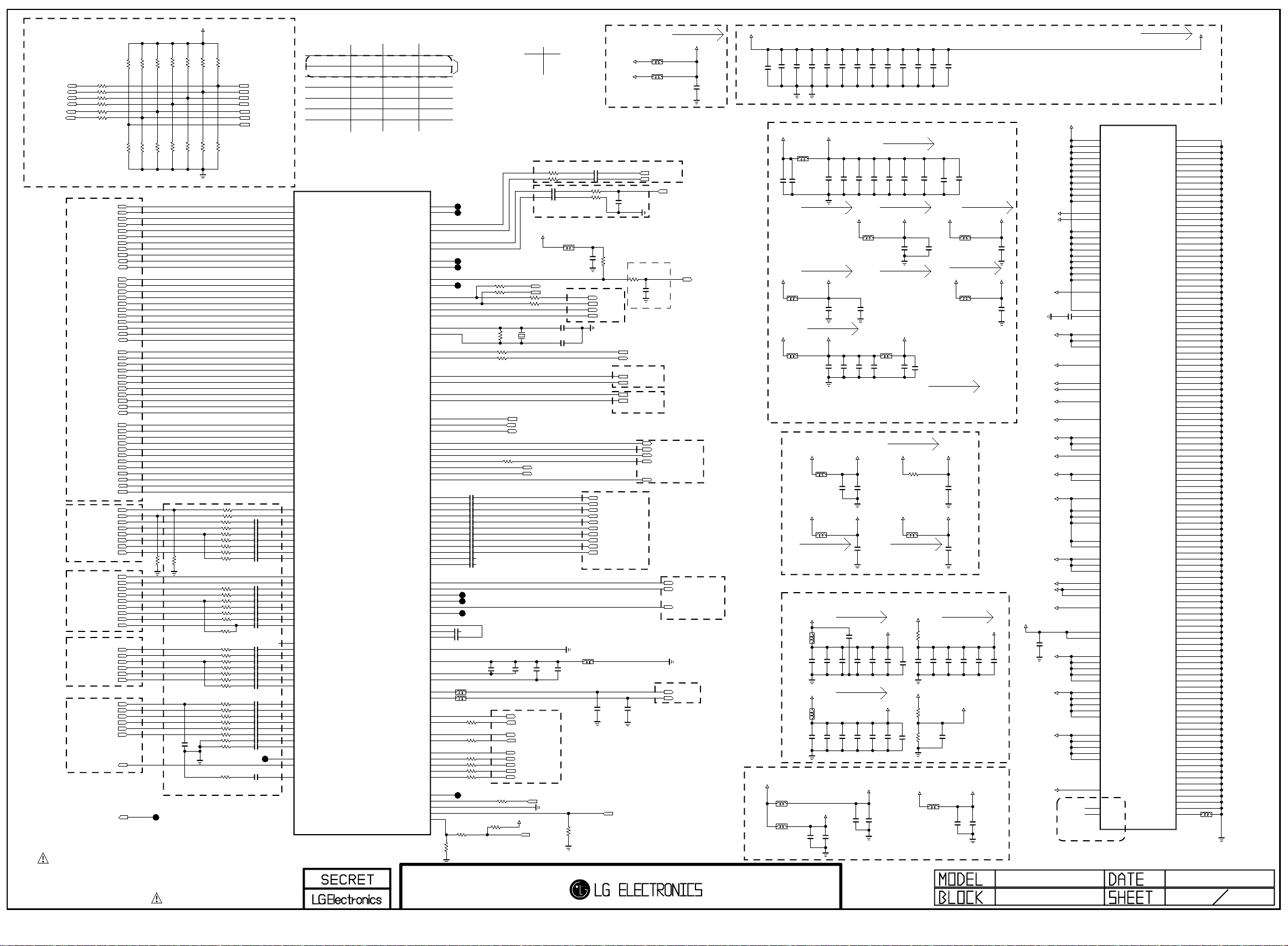

C4058 0.1uF

FRC_LPLL

C219 0.047uF

C227 0.047uF

FRCVDDC

VDD33

L212

BLM18PG121SN1D

+1.5V_DDR

DDC_SDA_1

SIDEAV_L_IN

C4019 0.1uF

C4056 0.1uF

C4027 0.1uF

VDD33

C291

0.1uF

FRC

C4032

0.1uF

C263

10uF

LNA2_CTL

DDC_SCL_2

D2-_HDMI1

R257 33

SCART1_Lout

R203 100

DSUB_B-

C218 0.047uF

COMP2_R_IN

C4011 0.1uF

C236 2.2uF

AVDD_DDR0

SC1_R-/COMP1_Pr-

VDD33_DVI

L227

BLM18PG121SN1D

R230 33

TU_SDA

IF_AGC_SEL

D1-_HDMI1

R4016 33

DEMOD_SDA

EPHY_MDIO

SC1_B-/COMP1_Pb-

R239 33

R282 33

ETHERNET

R255 33

+3.3V_Normal

SC1/COMP1_L_IN

COMP2_Y-

IF_P_MSTAR

R289 100

C4038

0.1uF

TU_CVBS

AVDD_DDR0

+3.3V_Normal

COMP2_Pb-

R252 68

COMP2_L_IN

C264

1000pF

OPT

MODEL_OPT_0

R231 68

+1.26V_VDDC

MVREFAVDD_DDR_FRC

L219

BLM18PG121SN1D

AMP_SDA

R285 33

ETHERNET

C222 0.047uF

MODEL_OPT_1

R237 33

R4014

1/16W

AUD_SCK

L226

BLM18SG700TN1D

HPD1

X201

24MHz

C283 0.1uF

C4009

0.1uF

C4002

0.1uF

R232 33

C204 0.047uF

PC_R_IN

C225 0.047uF

SC1_B+/COMP1_Pb+ C215 0.047uF

C233 0.047uF

AU25

+1.5V_FRC_DDR

VDD_RSDS

COMP2_Y+

R228 33

AVDD2P5

AVDD25_PGA

AVDD_DDR0

R256 68

R253 33

DDC_SCL_1

DSUB_B+

BT_LOUT

R244 33

R4024 22

HP_LOUT

ADC2P5

BT_DP

L225

BLM18SG700TN1D

AVDD_DMPLL

D0-_HDMI2

MODEL_OPT_5

C4059 2.2uF

SIDE_USB_DM

R4018

FRC

DEMOD_SCL

R4023

10K

C244 2.2uF

L213

BLM18PG121SN1D

OPT

C4012 0.1uF

C205 0.047uF

AVDD_DDR0

C238 2.2uF

EPHY_RXD1

SOC_RESET

+3.3V_Normal

AVDD_DMPLL

C295 0.1uF

C4017

0.1uF

MVREF

C4062 0.1uF

C211 0.047uF

C285 0.1uF

R236 0

NON_EU

D1+_HDMI1

COMP2_Pr-

CEC_REMOTE_S7

EPHY_TXD0

C4023 0.1uF

EPHY_TXD1

AV_L_IN

+3.3V_Normal

C203

1000pF

OPT

SC1_CVBS_IN

R238 68

L207

BLM18PG121SN1D

R4027

1/10W

R201 100

DSUB_VSYNC

AVDD_DMPLL

C207 0.047uF

AVDD25_PGA

FRC_RESET

R278 33

ETHERNET

C230 0.047uF

DSUB_HSYNC

AVDD_DDR1

D0-_HDMI1

FRC_VDD33_DDR

C245 2.2uF

DSUB_G-

C286 0.1uF

C237 2.2uF

C210 1000pF

COMP2_Pr+

C4015

0.1uF

C258 0.1uF

VDD33

AVDD2P5

R249 33

L209

BLM18PG121SN1D

R4020

10K

C292 0.1uF

C294

0.1uF

C226 0.047uF

EPHY_REFCLK

AVDD2P5

C243 2.2uF

C253

1uF

CK+_HDMI1

SC1_G-/COMP1_Y-

R288 100

R4019

C221 0.047uF

VDD33

RF_SWITCH_CTL

C4007 0.1uF

PC_L_IN

C208 0.047uF

TP204

R204 100

AU33

+2.5V_Normal

CK-_HDMI1

+2.5V_Normal

D2+_HDMI1

D0+_HDMI2

C213 0.047uF

C4003

0.1uF

R254 68

C229 0.047uF AVDD_DDR_FRC

+2.5V_Normal

MODEL_OPT_3

SC1_FB

C212 0.047uF

COMP2_Pb+

SIDEAV_CVBS_IN

C247 2.2uF OPT

AMP_SCL

C4006 0.1uF

C217 1000pF

AU33

L222

BLM18PG121SN1D

R4002 47

C280 0.1uF

R245 33

CK-_HDMI2

SPDIF_OUT

EPHY_RXD0

R4006

10K

C4013 0.1uF

R4026

10K

SC1_ID

BT_ON/OFF

L214

BLM18PG121SN1D

FRC

+1.26V_VDDC

R202 100

SC1_SOG_IN

L217

BLM18PG121SN1D

FRC_AVDD

D2-_HDMI2

R258 68

R283 33

ETHERNET

L210

BLM18PG121SN1D

FRC

C206 0.047uF

C232 0.047uF

DTV/MNT_VOUT

C290

0.1uF

C4026 0.1uF

COMP2_DET

TU_SIF

C231 0.047uF

CK+_HDMI2

C4057 0.047uF

TU_SCL

TP206

C4036

0.1uF

R233 68

AUD_LRCH

L221

BLM18PG121SN1D

FRC

VDD33

MIU1VDDC

C4004

0.1uF

FRC

D2+_HDMI2

+1.26V_VDDC

ADC2P5

AUD_LRCK

C4008

0.1uF

C298

0.1uF

FRC

R243 0

R4015

1/16W

EPHY_CRS_DV

AV_R_IN

BT_DM

D1+_HDMI2

C216 0.047uF

C4041 0.1uF

C297

0.1uF

DSUB_R-

R287

SC1_G+/COMP1_Y+

DSUB_G+

R296 100

D0+_HDMI1

C256

0.1uF

R242 68

C214 0.047uF

R284 33

ETHERNET

EPHY_EN

C4024 0.1uF

C235 2.2uF

OPT

R4022

1/10W

L215

BLM18PG121SN1D

HPD2

C4028

0.1uF

C234 2.2uF

OPT

C4065

0.022uF

16V

IF_AGC_MAIN

C257 0.1uF

AUD_MASTER_CLK

C296 0.1uF

C239 2.2uF

FRC_AVDD

R246 33

TP205

VDD33_DVI

R241 33

R4003 47

SCART1_Rout

R298 100

OPT

FRC_VDD33_DDR

C4064

0.1uF

IF_N_MSTAR

C4014 0.1uF

R248 33

DSUB_R+

HP_ROUT

AVDD_DDR1

R251 33

R234 0

C242 2.2uF

+2.5V_Normal

C224 1000pF

C209 0.047uF

C251 0.1uF

AVDD2P5

SIDEAV_R_IN

C4016 0.1uF

R280 33

ETHERNET

C246 2.2uF OPT

C223 0.047uF

SIDE_USB_DP

MODEL_OPT_2

C4060 2.2uF

SC1_R+/COMP1_Pr+

TP201

R250 33

R4025 22

L211

BLM18PG121SN1D

R240 68

FRC_LPLL

AV_CVBS_IN

DDC_SDA_2

C250 0.1uF

C220 0.047uF

R229 68

+1.26V_VDDC

TP202

AU25

VDD_RSDS

R4017

10K

OPT

C277 0.1uF

L206

BLM18PG121SN1D

C299 0.1uF

L204

BLM18PG121SN1D

FRCVDDC

EPHY_MDC

C4040 0.1uF

TP203

D1-_HDMI2

C288

0.1uF

VDD33

SC1/COMP1_R_IN

C4010

0.1uF

FRC

L202

BLM18SG121TN1D

L223

BLM18SG121TN1D

C4005

0.1uF

TP207

TP208

TP209

TP210

D1+_HDMI3

D0-_HDMI3

HPD3

CK+_HDMI3

CK-_HDMI3

D1-_HDMI3

DDC_SCL_3

D2+_HDMI3

D0+_HDMI3

DDC_SDA_3

D2-_HDMI3

D1-_HDMI4

D2+_HDMI4

HPD4

DDC_SCL_4

D0+_HDMI4

D0-_HDMI4

DDC_SDA_4

D2-_HDMI4

CK+_HDMI4

D1+_HDMI4

CK-_HDMI4

10uFC275

10uFC276

C279

10uF

FRC C278

10uF

C282

10uF

FRC C281

10uF

10uFC284

C287

10uF

C289 10uF 10uFC293

10uFC4001

C4018

10uF

C4022

10uF

C4061 10uF

C4063 10uF

C249

4.7uF

C4045 1uF

C4020 0.1uF

C4025 0.1uF

C4031 0.1uF

MIU1VDDC

VDD33

NEC_SCL

NEC_SDA

R4029 0OPT

R4028 0OPT

AMP_SCL

AMP_SDA

CHB_CVBS_IN

R4032 0

R4033 0

R292 22

DEMOD_OPT

R291 22

DEMOD_OPT

AV_CVBS_IN2

AV_CVBS_IN2 TP211

R227 1K

NO_FRC

R212 1K

LVDS

R226 1K

FRC

R209 1K

DDR_256MB

R211 1K

MINI_LVDS

R207 1K

HD R206 1K

FHD

R208 1K

DDR_512MB

MODEL_OPT_4

C4066 10uF

L228

BLM18SG700TN1D

MODEL_OPT_5

MODEL_OPT_4

R294 1K

100/120Hz LVDS

R297 1K

50/60Hz LVDS

R295 1K

GIP

R293 1K

NON_GIP

MIU0VDDC

+1.26V_VDDC

10uFC228

C240

0.1uF

FRC

C241

0.1uF

C4042

0.1uF

C4046

0.1uF

C4043 0.1uF

C4044 0.1uF

C261 27pF

C262 27pF

+3.3V_Normal

R205

10K

FRC

3D_POWER_EN R210 100

/3D_FPGA_RESET R213 100

C268

4.7uF

C272

4.7uF

L205 5.6uH

CM2012F5R6KT

L203 5.6uH

CM2012F5R6KT

MODEL_OPT_6

R215 1K

LCD R214 1K

OLED

LGE107D (S7M Divx_Non RM)

IC101

S7M_DIVX & MS10

A_RXCP

A_RXCN

A_RX0P

A_RX0N

A_RX1P

A_RX1N

A_RX2P

A_RX2N

DDCDA_DA/GPIO24

DDCDA_CK/GPIO23

HOTPLUGA/GPIO19

B_RXCP

B_RXCN

B_RX0P

B_RX0N

B_RX1P

B_RX1N

B_RX2P

B_RX2N

DDCDB_DA/GPIO26

DDCDB_CK/GPIO25

HOTPLUGB/GPIO20

C_RXCP

AA2

C_RXCN

AA1

C_RX0P

AB1

C_RX0N

AA3

C_RX1P

AB3

C_RX1N

AB2

C_RX2P

AC2

C_RX2N

AC1

DDCDC_DA/GPIO28

AB4

DDCDC_CK/GPIO27

AA4

HOTPLUGC/GPIO21

AC3

D_RXCP

D_RXCN

D_RX0P

D_RX0N

D_RX1P

D_RX1N

D_RX2P

D_RX2N

DDCDD_DA/GPIO30

DDCDD_CK/GPIO29

HOTPLUGD/GPIO22

CEC/GPIO5

HSYNC0

VSYNC0

RIN0P

RIN0M

GIN0P

GIN0M

BIN0P

BIN0M

SOGIN0

HSYNC1

VSYNC1

RIN1P

RIN1M

GIN1P

GIN1M

BIN1P

BIN1M

SOGIN1

HSYNC2

RIN2P

RIN2M

GIN2P

GIN2M

BIN2P

BIN2M

SOGIN2

CVBS0P

CVBS1P

CVBS2P

CVBS3P

CVBS4P

CVBS5P

CVBS6P

CVBS7P

CVBS_OUT1

CVBS_OUT2

VCOM0

VIFP W2

VIFM W1

IP V2

IM V1

SSIF/SIFP Y2

SSIF/SIFM Y1

QP U3

QM V3

IFAGC Y5

RF_TAGC Y4

TGPIO0/UPGAIN U1

TGPIO1/DNGAIN U2

TGPIO2/I2C_CLK R3

TGPIO3/I2C_SDA T3

XTALIN T2

XTALOUT T1

SPDIF_IN/GPIO177 G14

SPDIF_OUT/GPIO178 G13

DM_P0 B7

DP_P0 A7

DM_P1 AF17

DP_P1 AE17

I2S_IN_BCK/GPIO175 F14

I2S_IN_SD/GPIO176 F13

I2S_IN_WS/GPIO174 F15

I2S_OUT_BCK/GPIO181 D20

I2S_OUT_MCK/GPIO179 E20

I2S_OUT_SD/GPIO182 D19

I2S_OUT_SD1/GPIO183 F18

I2S_OUT_SD2/GPIO184 E18

I2S_OUT_SD3/GPIO185 D18

I2S_OUT_WS/GPIO180 E19

LINE_IN_0L N1

LINE_IN_0R P3

LINE_IN_1L P1

LINE_IN_1R P2

LINE_IN_2L P4

LINE_IN_2R P5

LINE_IN_3L R6

LINE_IN_3R T6

LINE_IN_4L U5

LINE_IN_4R V5

LINE_IN_5L U6

LINE_IN_5R V6

LINE_OUT_0L U4

LINE_OUT_2L W3

LINE_OUT_3L W4

LINE_OUT_0R V4

LINE_OUT_2R Y3

LINE_OUT_3R W5

MIC_DET_IN R4

MICCM T5

MICIN R5

AUCOM T4

VRM P7

VAG R7

VRP P6

HP_OUT_1L R1

HP_OUT_1R R2

ET_RXD0 E21

ET_TXD0 E22

ET_RXD1 D21

ET_TXD1 F21

ET_REFCLK E23

ET_TX_EN D22

ET_MDC F22

ET_MDIO D23

ET_CRS F23

AVLINK F8

IRINT G8

TESTPIN K8

RESET A4

U3_RESET Y17

LGE107D (S7M Divx_Non RM)

IC101

S7M_DIVX & MS10

VDDC_1

H11

VDDC_2

H12

VDDC_3

H13

VDDC_4

H14

VDDC_5

H15

VDDC_6

J12

VDDC_7

J13

VDDC_8

J14

VDDC_9

J15

VDDC_10

J16

VDDC_11

L18

A_DVDD

H16

B_DVDD

K19

FRC_VDDC_0

L19

FRC_VDDC_1

M18

FRC_VDDC_2

M19

FRC_VDDC_3

N18

FRC_VDDC_4

N19

FRC_VDDC_5

N20

FRC_VDDC_6

P18

FRC_VDDC_7

P19

FRC_VDDC_8

P20

U3_DVDD_DDR

Y12

AVDD1P2

J11

DVDD_NODIE

AVDD2P5_ADC_1

AVDD2P5_ADC_2

AVDD25_REF

AVDD_AU25

PVDD_1

W15

PVDD_2

Y15

AVDD25_PGA

AVDD_NODIE

AVDD_DVI_1

AVDD_DVI_2

AVDD3P3_CVBS

AVDD_DMPLL

AVDD_AU33

AVDD_EAR33

AVDD33_T

VDDP_1

VDDP_2

VDDP_3

FRC_VD33_2_1

V20

FRC_VD33_2_2

W20

FRC_AVDD_RSDS_1

U19

FRC_AVDD_RSDS_2

U20

FRC_AVDD_RSDS_3

V19

FRC_AVDD

W19

FRC_AVDD_LPLL

U18

FRC_AVDD_MPLL

T20

FRC_VDD33_DDR

Y14

AVDD_MEMPLL

R19

FRC_AVDD_MEMPLL

W14

AVDD_DDR0_D_1

D15

AVDD_DDR0_D_2

D16

AVDD_DDR0_D_3

E15

AVDD_DDR0_D_4

E16

AVDD_DDR0_C

E17

AVDD_DDR1_D_1

F16

AVDD_DDR1_D_2

F17

AVDD_DDR1_D_3

G16

AVDD_DDR1_D_4

G17

AVDD_DDR1_C

H17

FRC_AVDD_DDR_D_1

AB11

FRC_AVDD_DDR_D_2

AB12

FRC_AVDD_DDR_D_3

AC11

FRC_AVDD_DDR_D_4

AC12

FRC_AVDD_DDR_C

AA12

MVREF

G15

NC_1

NC_2

GND_1 G18

GND_2 H9

GND_3 H10

GND_4 H18

GND_5 H19

GND_6 J10

GND_7 J17

GND_8 J18

GND_9 J19

GND_10 K9

GND_11 K10

GND_12 K11

GND_13 K12

GND_14 K13

GND_15 K14

GND_16 K15

GND_17 K16

GND_18 K17

GND_19 K18

GND_20 L9

GND_21 L10

GND_22 L11

GND_23 L12

GND_24 L13

GND_25 L14

GND_26 L15

GND_27 L16

GND_28 L17

GND_29 M9

GND_30 M10

GND_31 M11

GND_32 M12

GND_33 M13

GND_34 M14

GND_35 M15

GND_36 M16

GND_37 M17

GND_38 N10

GND_39 N11

GND_40 N12

GND_41 N13

GND_42 N14

GND_43 N15

GND_44 N16

GND_45 N17

GND_46 P10

GND_47 P11

GND_48 P12

GND_49 P13

GND_50 P14

GND_51 P15

GND_52 P16

GND_53 P17

GND_54 R10

GND_55 R11

GND_56 R12

GND_57 R13

GND_58 R14

GND_59 R15

GND_60 R16

GND_61 R17

GND_62 R18

GND_63 T10

GND_64 T11

GND_65 T12

GND_66 T13

GND_67 T14

GND_68 T15

GND_69 T16

GND_70 T17

GND_71 T18

GND_72 T19

GND_73 U10

GND_74 U11

GND_75 U12

GND_76 U13

GND_77 U14

GND_78 U15

GND_79 U16

GND_80 U17

GND_81 V7

GND_82 V8

GND_83 V9

GND_84 V10

GND_85 V11

GND_86 V12

GND_87 V13

GND_88 V14

GND_89 V15

GND_90 V16

GND_91 V17

GND_92 V18

GND_93 W7

GND_94 W8

GND_95 W9

GND_96 W10

GND_97 W11

GND_98 W12

GND_99 W13

GND_100 W16

GND_101 W17

GND_102 W18

GND_103 Y13

GND_104 Y18

GND_105 AA13

GND_106 AB13

GND_107 AC13

GND_FU J9

PGA_VCOM U9

GND_108 D17

GND_109 H23

GND_110 AF13

GP2_Saturn7M

MAIN_2

ANALOG SIF

RMII For Ethernet

RSDS Power OPT

FRC

I2S_I/F

PIN NAME

DSUB

Normal 2.5V

Close to MSTAR

MODEL OPTION

FRC_LPLL:13mA

Normal Power 3.3V

DTV_IF

AVDD_DMPLL/AVDD_NODIE:7.362mA

FRC_MPLL:4mA

AU25:10mA

Close to MSTAR

AVDD_MEMPLL:24mA

VDD33_DVI:163mA

FHD

SCART1_RGB/COMP1

G19

AVDD2P5/ADC2P5:162mA

MODEL_OPT_3

AVDD25_PGA:13mA

VDDC : 2026mA

AVDD_DDR0:55mA

H/P OUT

VDDC 1.26V

PIN NO.

NO FRC

MODEL_OPT_0

CVBS In/OUT

AUDIO OUT

TU/DEMOD_I2C

FRC_AVDD:60mA

AUDIO IN

VDD_RSDS:88mA

MODEL_OPT_1

FRC_VDD33_DDR:50mA

COMP2

DDR_512MB

Close to MSTAR

SIDE USB

DDR3 1.5V

VDD33_T/VDDP/U3_VD33_2:47mA

MODEL OPTION

HDMI

AVDD_DDR_FRC:55mA

LOW

AU33:31mA

DDR_256MB

HIGH

MODEL_OPT_2

B/T USB

Close to MSTAR

RSDS Power OPT

AVDD_DDR1:55mA

Ver. 1.4

MINI LVDS LVDS

MODEL_OPT_4

MODEL_OPT_5

100/120Hz LVDS

E18

GIP NON_GIPD18

50/60Hz LVDS

MODEL_OPT_6 F9 LCDOLED

NO_FRC : LOW LOW

U3_INTERNAL : HIGH LOW

U3_EXTERNAL : HIGH HIGH

PWIZ TCON with LG FRC : HIGH HIGH

OPT_0 OPT_4

Only for training and service purposes

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

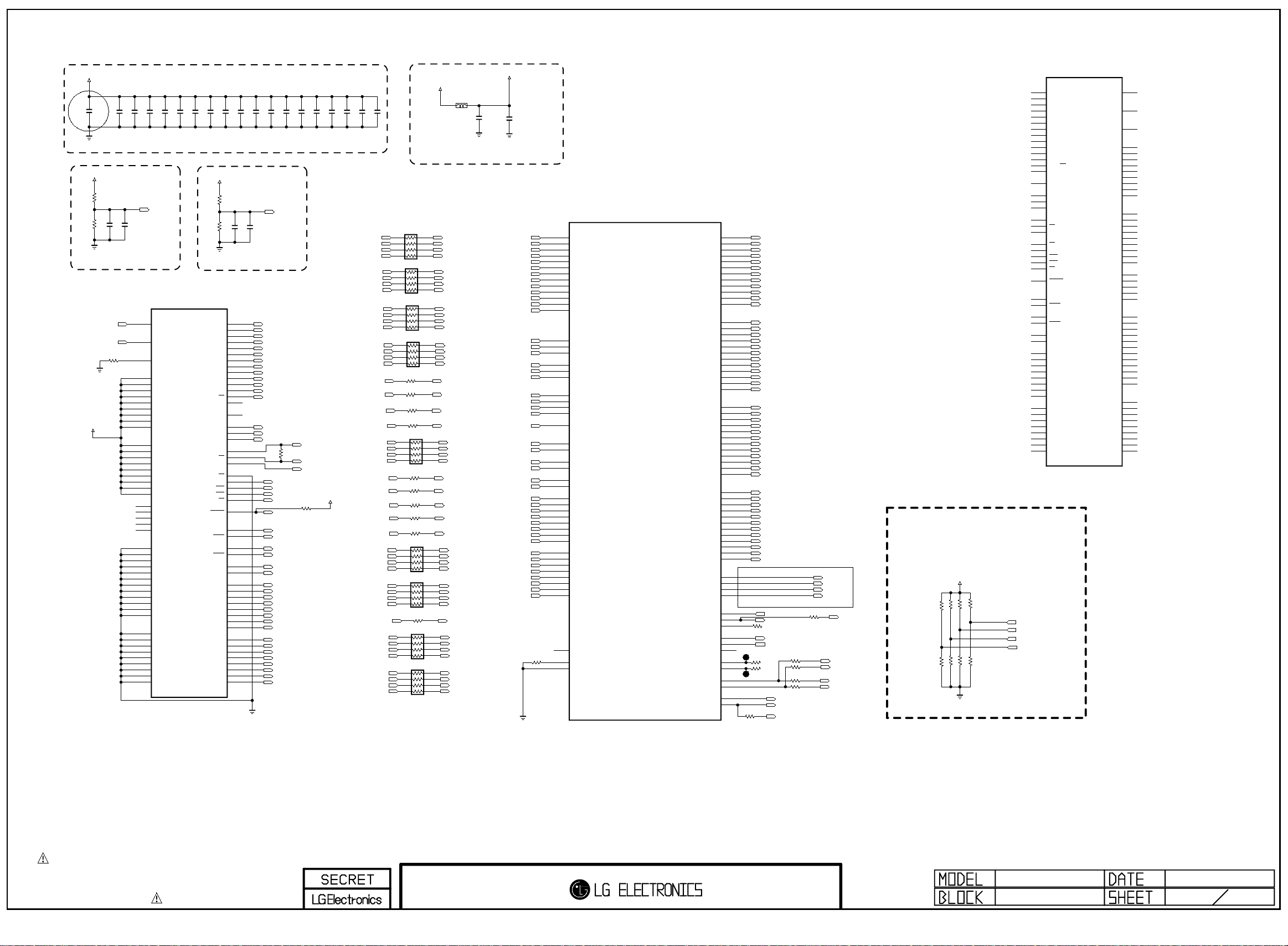

RXD3-

RXA4+

C-MODT

RXB4+

C-TMA12

C-TMBA2

RXC4+

C-TMODT

C-TMDQU7

C319

0.1uF

C-MA6

C-MDQU5

C-TMCK

C-MA9

C-MA3

C-MDQSU

R317

820

C322

0.1uF

C313

0.1uF

C-MDQU1

C-TMA4

C-MA12

C-TMA3

C-MDQSUB

C-TMA6

FRC_CONF1

C324

10uF

10V

C-TMDQU4

C-TMA1

VCC1.5V_U3_DDR

RXA0-

TP301

C323

0.1uF

C-TMDQL4

RXACK+

C-MA1

C-MA12

RXA0+

C-MCK

UART_FRC_RX

C-TMBA2

RXCCK-

R323

C310

0.1uF

C-MDQL1

UART_FRC_TX

C306

0.1uF

C-TMDQL7

C317

0.1uF

C-MDQU4

C-TMCKB

C-MDMU

C-MCKE

C320

0.1uF

RXB0+

C-MA8

C-TMA6

RXB1+

R306

150

OPT

C-TMA4

C302

0.1uF

C-MDQL1

C-TMCKE

C-MDQSL

C-MA10

RXC3+

FRC_PWM0

C-TMODT

C-TMDML

C-MDQSLB

C-TMDQSLB

C-MA11

C-TMDMU

R303

240

C-TMCASB

FRC_CONF0

RXD2-

C-TMA12

C-TMA7

C-TMCKB

C-MA6

VCC1.5V_U3_DDR

C-TMDQSLB

C-TMA1

C318

0.1uF

RXD1+

RXBCK-

GVDD_EVEN

R300 0

OPT

C-TMBA1

FRC_PWM1

C-TMDQU3

C-TMDQL4

RXCCK+

TP302

C316

0.1uF

RXC1-

C-TMA0

C-MDQL7

RXB2-

C-TMDQU3

C-MRASB

+3.3V_Normal

C-MDMU

C-MBA0

C-MDQU7

C-TMWEB

C-MDQU2

GCLK2

C-MCKB

C-TMA11

R305

1K 1%

R301

1K 1%

C-TMA2

C-TMDQU7

C-TMDQL2 GCLK4

I2C_SDA

C-MDQU2

RXA3-

C-TMDQU6

C-TMA5

C-MA10

C325

0.1uF

16V

RXC3-

RXA1+

RXB1-

C-TMCKE

C-MDQSU

C-MA7

C-TMRESETB

C-MBA0

C-MVREFDQ

C-MCKB

RXB4-

C-MDQL0

C-TMDQU2

C-TMDQL3

R322

OPT

C-TMBA1

C-TMDQSUB

R318

C-MDQU3

C-MA3

C-MA0

C-TMDQSU

C-TMA0

C-MRESETB

C-MDQU4

C-MDQL5

C314

1000pF

C-TMDML

RXC2+

RXC1+

C-TMDQL1

C-MRASB

C-TMDQL7

RXD3+

RXD4+

C-TMA2

R302

1K 1%

C-TMRASB

C-MDQL3

C305

0.1uF

C-TMCASB

C-MDQU6

C-MDQSUB

C-TMDQU5

C-MCASB

C-MDQU1

C-MA5

RXB3+

RXDCK-

RXD0+

C-TMA7

RXC4-

C-TMDQL1

C-MVREFCA

R319

OPT

RXC2-

C-MDQSL

C-TMCK

C-MDQL6 C-TMDQL6

RXBCK+

RXB2+

C-MDQL4

C-TMDQL0

C-MDQU6

C-TMRASB

C-MA0

VCC1.5V_U3_DDR

C-TMA9

C-MA2

C-MVREFCA

C-TMDQU5

C-MA11

C-TMDQU4

C-TMRESETB

RXD0-

VCC1.5V_U3_DDR

C311

0.1uF

C-MODT

C-MDQU5

C315

0.1uF

C-MA4

C-MDQL5

C-TMDQL2

RXA2-

C-TMDQL5

C-MBA1

C-TMDQU0

C-TMA9

R304

1K 1%

C-TMDQU2

C-MDQU0

RXDCK+

C-MDQU3

DPM_A

C-MDQSLB

C-TMA10

C-MA1

C-MBA2

C-MDQL2

C-MDQL6

C309

0.1uF

RXB0-

RXA4-

C-MA4

C-TMDQL3

C-MA2

C321

0.1uF

C-MBA2

C-TMBA0

RXA2+

C-TMA11

C-TMA8

+1.5V_FRC_DDR

RXD2+

RXD4-

C-MA7

C303

0.1uF

C-MA8

FRC_CONF0

C-MDQL3

C-MWEB

RXC0+

C-TMWEB

C312

0.1uF

RXA1-

RXC0-

C-MCASB

C-MDQU7

FRC_CONF1

C-TMA8

C301

10uF

C304

1000pF

C-MDQL0

C-TMA10

C-MVREFDQ

RXA3+

C-MDQL2

L301

C-MA5

C-TMDQU0

C-MCK

C-MDQU0

C-TMDQL0

R320

C-MA9

RXD1-

RXB3-

C-MCKE

C-TMDQU1

R321

OPT

C-TMDQL6

FRC_PWM1

C-TMBA0

RXACK-

C-MDML

GVDD_ODD

I2C_SCL

C-TMA3

C-MRESETB

C307

0.1uF

C-TMDQSL

C-TMDQU1

C-TMDQL5

C-TMA5

C-TMDQU6

C-TMDMU

R324

OPT

R325

C-TMDQSL

C-MBA1

C-TMDQSUB

VCC1.5V_U3_DDR

FRC_PWM0

C-MWEB

C-MDML

C-MDQL7

C308

0.1uF

V_SYNC

R332 0

VCC1.5V_U3_DDR

R333

10K

R314

R313

R310

R308

R315

R311

R316

R307

R312

R309

AR302

AR309

AR303

AR306

AR305

AR301

AR307

AR308

AR304

FRC_SDA

R335 22

OPT

R334 22

OPT

FRC_SCL

R336 0

MINI_LVDS

R326 22 FRC

R331 22 FRC

H5TQ1G63BFR-12C

IC301

FRC_DDR_1600

A0 N3

A1 P7

A2 P3

A3 N2

A4 P8

A5 P2

A6 R8

A7 R2

A8 T8

A9 R3

A10/AP L7

A11 R7

A12/BC N7

A13 T3

A15 M7

BA0 M2

BA1 N8

BA2 M3

CK J7

CK K7

CKE K9

CS L2

ODT K1

RAS J3

CAS K3

WE L3

RESET T2

DQSL F3

DQSL G3

DQSU C7

DQSU B7

DML E7

DMU D3

DQL0 E3

DQL1 F7

DQL2 F2

DQL3 F8

DQL4 H3

DQL5 H8

DQL6 G2

DQL7 H7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

VREFCA

VREFDQ

VDD_1

VDD_2

VDD_3

VDD_4

VDD_5

VDD_6

VDD_7

VDD_8

VDD_9

VDDQ_1

VDDQ_2

VDDQ_3

VDDQ_4

VDDQ_5

VDDQ_6

VDDQ_7

VDDQ_8

VDDQ_9

NC_1

NC_2

NC_3

NC_4

NC_6

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9

VSS_10

VSS_11

VSS_12

VSSQ_1

VSSQ_2

VSSQ_3

VSSQ_4

VSSQ_5

VSSQ_6

VSSQ_7

VSSQ_8

VSSQ_9

R327

R328

H5TQ1G63BFR-H9C

IC301-*1

FRC_DDR_1333

A10/AP

A11

A12/BC

A13

A15

BA0

BA1

BA2

CKE

ODT

RAS

CAS

RESET

DQSL

DQSU

DML

DMU

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

VREFCA M8

VREFDQ H1

ZQ L8

VDD_1 B2

VDD_2 D9

VDD_3 G7

VDD_4 K2

VDD_5 K8

VDD_6 N1

VDD_7 N9

VDD_8 R1

VDD_9 R9

VDDQ_1 A1

VDDQ_2 A8

VDDQ_3 C1

VDDQ_4 C9

VDDQ_5 D2

VDDQ_6 E9

VDDQ_7 F1

VDDQ_8 H2

VDDQ_9 H9

NC_1 J1

NC_2 J9

NC_3 L1

NC_4 L9

NC_6 T7

VSS_1 A9

VSS_2 B3

VSS_3 E1

VSS_4 G8

VSS_5 J2

VSS_6 J8

VSS_7 M1

VSS_8 M9

VSS_9 P1

VSS_10 P9

VSS_11 T1

VSS_12 T9

VSSQ_1 B1

VSSQ_2 B9

VSSQ_3 D1

VSSQ_4 D8

VSSQ_5 E2

VSSQ_6 E8

VSSQ_7 F9

VSSQ_8 G1

VSSQ_9 G9

LGE107D (S7M Divx_Non RM)

IC101

S7M_DIVX & MS10

FRC_DDR3_A0/DDR2_NC

AE1

FRC_DDR3_A1/DDR2_A6

AF16

FRC_DDR3_A2/DDR2_A7

AF1

FRC_DDR3_A3/DDR2_A1

AE3

FRC_DDR3_A4/DDR2_CASZ

AD14

FRC_DDR3_A5/DDR2_A10

AD3

FRC_DDR3_A6/DDR2_A0

AF15

FRC_DDR3_A7/DDR2_A5

AF2

FRC_DDR3_A8/DDR2_A2

AE15

FRC_DDR3_A9/DDR2_A9

AD2

FRC_DDR3_A10/DDR2_A11

AD16

FRC_DDR3_A11/DDR2_A4

AD15

FRC_DDR3_A12/DDR2_A8

AE16

FRC_DDR3_BA0/DDR2_BA2

AF3

FRC_DDR3_BA1/DDR2_ODT

AF14

FRC_DDR3_BA2/DDR2_A12

AD1

FRC_DDR3_MCLK/DDR2_MCLK

AD13

FRC_DDR3_CKE/DDR2_RASZ

AE14

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE13

FRC_DDR3_ODT/DDR2_BA1

AE4

FRC_DDR3_RASZ/DDR2_WEZ

AD5

FRC_DDR3_CASZ/DDR2_CKE

AF4

FRC_DDR3_WEZ/DDR2_BA0

AD4

FRC_DDR3_RESETB/DDR2_A3

AE2

FRC_DDR3_DQSL/DDR2_DQS0

AF8

FRC_DDR3_DQSLB/DDR2_DQSB0

AD9

FRC_DDR3_DQSU/DDR2_DQS1

AE9

FRC_DDR3_DQSUB/DDR2_DQSB1

AF9

FRC_DDR3_DML/DDR2_DQ7

AE11

FRC_DDR3_DMU/DDR2_DQ11

AF6

FRC_DDR3_DQL0/DDR2_DQ6

AE6

FRC_DDR3_DQL1/DDR2_DQ0

AF11

FRC_DDR3_DQL2/DDR2_DQ1

AD6

FRC_DDR3_DQL3/DDR2_DQ2

AD12

FRC_DDR3_DQL4/DDR2_DQ4

AE5

FRC_DDR3_DQL5/DDR2_NC

AF12

FRC_DDR3_DQL6/DDR2_DQ3

AF5

FRC_DDR3_DQL7/DDR2_DQ5

AE12

FRC_DDR3_DQU0/DDR2_DQ8

AE10

FRC_DDR3_DQU1/DDR2_DQ14

AF7

FRC_DDR3_DQU2/DDR2_DQ13

AD11

FRC_DDR3_DQU3/DDR2_DQ12

AD7

FRC_DDR3_DQU4/DDR2_DQ15

AD10

FRC_DDR3_DQU5/DDR2_DQ9

AE7

FRC_DDR3_DQU6/DDR2_DQ10

AF10

FRC_DDR3_DQU7/DDR2_DQM1

AD8

FRC_DDR3_NC/DDR2_DQM0

AE8

FRC_REXT

Y11

FRC_TESTPIN

Y19

ACKP/RLV3P/RED[3] W26

ACKM/RLV3N/RED[2] W25

A0P/RLV0P/RED[9] U26

A0M/RLV0N/RED[8] U25

A1P/RLV1P/RED[7] U24

A1M/RLV1N/RED[6] V26

A2P/RLV2P/RED[5] V25

A2M/RLV2N/RED[4] V24

A3P/RLV4P/RED[1] W24

A3M/RLV4N/RED[0] Y26

A4P/RLV5P/GREEN[9] Y25

A4M/RLV5N/GREEN[8] Y24

BCKP/TCON13/GREEN[1] AC26

BCKM/TCON12/GREEN[0] AC25

B0P/RLV6P/GREEN[7] AA26

B0M/RLV6N/GREEN[6] AA25

B1P/RLV7P/GREEN[5] AA24

B1M/RLV7N/GREEN[4] AB26

B2P/RLV8P/GREEN[3] AB25

B2M/RLV8N/GREEN[2] AB24

B3P/TCON11/BLUE[9] AC24

B3M/TCON10/BLUE[8] AD26

B4P/TCON9/BLUE[7] AD25

B4M/TCON8/BLUE[6] AD24

CCKP/LLV3P AD23

CCKM/LLV3N AE23

C0P/LLV0P/BLUE[5] AE26

C0M/LLV0N/BLUE[4] AE25

C1P/LLV1P/BLUE[3] AF26

C1M/LLV1N/BLUE[2] AF25

C2P/LLV2P/BLUE[1] AE24

C2M/LLV2N/BLUE[0] AF24

C3P/LLV4P AF23

C3M/LLV4N AD22

C4P/LLV5P AE22

C4M/LLV5N AF22

DCKP/TCON5 AD19

DCKM/TCON4 AE19

D0P/LLV6P AD21

D0M/LLV6N AE21

D1P/LLV7P AF21

D1M/LLV7N AD20

D2P/LLV8P AE20

D2M/LLV8N AF20

D3P/TCON3 AF19

D3M/TCON2 AD18

D4P/TCON1 AE18

D4M/TCON0 AF18

GPIO0/TCON15/HSYNC/VDD_ODD AB22

GPIO1/TCON14/VSYNC/VDD_EVEN AB23

GPIO2/TCON7/LDE/GCLK4 AC23

GPIO3/TCON6/LCK/GCLK2 AC22

FRC_GPIO0/UART_RX AB16

FRC_GPIO1 AA14

FRC_GPIO3 AC15

FRC_GPIO8 Y16

FRC_GPIO9/UART_TX AC16

FRC_GPIO10 AC14

FRC_I2CM_DA AA16

FRC_I2CM_CK AA15

FRC_I2CS_DA Y10

FRC_I2CS_CK AA11

FRC_PWM0 AB15

FRC_PWM1 AB14

DDR3(FRC)

GP2_Saturn7M Ver. 1.4

3’d5 : boot from internal SRAM

3’d6 : boot from EEPROM

3’d7 : boot form SPI flash

CLose to Saturn7M IC

HIGH : I2C ADR = B8

LOW : I2C ADR = B4

(FRC_CONF1,FRC_PWM1, FRC_PWM0)

DDR3 1.5V By CAP - Place these Caps near Memory

CLose to DDR3

Close to DDR Power Pin

(FRC_CONF0)

Only for training and service purposes

LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+5V_USB

+12V/+15V

C467

0.1uF

50V

+24V

R430

10K

OPT

+3.5V_ST

R411

10K

L417

C482

100pF

50V

OPT

C472

22uF

10V

R461

4.7K

C401

100uF

16V

+3.5V_ST

R415

100

POWER_18_INV_CTL

R456

10K

R452

1/10W

+1.5V_DDR

+2.5V_Normal

R421

10K

R447

5.1K

1/16W

PD_+12V

R441 0

IC403

MP2212DN

NON_FRC

GND

5VCC

6SW_1

7SW_2

8EN/SYNC

POWER_ON/OFF2_2

RL_ON

C408

0.1uF

16V

POWER_ON/OFF1

R401

10K

L423

3.6uH

NR8040T3R6N

POWER_ON/OFF2_1

C432

0.1uF

16V

PANEL_VCC

C439

100pF

50V

R443

10K

FRC

R467

10K

R416

33K

C455

0.1uF

16V

R442

22K 1%

C402

100uF

16V

C407

0.1uF

16V

R448

12K

PD_+12V

L421

3.6uH

NR8040T3R6N

A_DIM

+12V/+15V

C406

0.1uF

16V

R457

10K 1%

R444

24K 1%

PWM_DIM

SCAN_BLK1/OPC_OUT

R464

10K

C463

100pF

50V

R406

4.7K

L420

CIC21J501NE

Q406

2SC3052

C442

10uF

16V

OPT

R473

Q401

2SC3052

L404

MLB-201209-0120P-N2

R417

6.2K

ERROR_OUT

R418

6.8K

OPT

+5V_USB

+12V/+15V

C429

100pF

50V

OPT

L412

+12V/+15V

+3.3V_Normal

Q407

2SC3052

R458

12K

C410

0.1uF

C477

0.1uF

16V

R460

27K

C453

22uF

10V

C444

1uF

10V

C435

4.7uF

10V

OPT

R412 0

POWER_16_GND

L416

C418

0.1uF

50V

+3.5V_ST

+12V/+15V

L401

R465

51K

L422

3.6uH

NR8040T3R6N

C436

0.01uF

25V POWER_DET

OPC_OUT

R435

22K

R466

1.5K

IC405

AOZ1073AIL

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

C423

100pF

50V

OPT

C458

10uF

25V

C466

2200pF

+1.5V_FRC_DDR

C427

100pF

50V

OPT

C430

22uF

10V

C451

1uF

25V

OPT

+5V_Normal

C424

0.1uF

16V

+1.26V_VDDC

C473

0.1uF

16V

L407

MLB-201209-0120P-N2

C445

4.7uF

OPT

C457

10uF

25V

C416

0.1uF

16V

OPT

POWER_ON/OFF2_1

+3.3V_Normal

C448

0.1uF

50V

R455 0

C461

22uF

10V

R478

POWER_23_SCAN_BLK2

0.1uF

C456

+3.5V_ST

SCAN_BLK2

0R472

POWER_24_PWM_DIM

0R471

POWER_22_PWM_DIM

POWER_ON/OFF2_2

R463

10K

OPT

C404

0.1uF

16V

+24V

R432

75K

1/8W

+3.3V_Normal

C403

10uF

10V

C405

10uF

25V

C426

68uF

35V

Q405

2SC3052

C459

10uF

25V

C438

0.1uF

16V

INV_CTL

+12V/+15V

L413

C465

1uF

10V

PANEL_CTL

1:AK10

R427

10K

OPT

L402

MLB-201209-0120P-N2

0.1uF

C476

C412

0.1uF

16V

OPT

R436

1/10W

R449

11K

1/10W

C428

0.1uF

16V

+3.5V_ST

C464

2200pF

R434

120K

OPT

C414

1uF

50V

+3.5V_ST

+1.5V_DDR

R454

9.1K

R426

10K OPT

L406

3.6uH

NR8040T3R6N

C460

10uF

25V

POWER_ON/OFF2_1

C440

0.1uF

16V

IC407

MP2212DN

GND

5VCC

6SW_1

7SW_2

8EN/SYNC

R410

10K

R446

30K

OPT

R438

FRC

R462

10K

R431

22K

R425

100

POWER_24_INV_CTL

L415

3.6uH

NR8040T3R6N

Q402

RT1P141C-T112

IC401

MP8706EN-C247-LF-Z

SW_2

SW_1

BST

5EN/SYNC

6FB

7VCC

8GND

C419

1uF

25V

OPT

R445

10K

IC408

NCP803SN293

GND

VCC 2RESET

R459

10K

R480

100

PD_+12V

C443

4.7uF

16V

P403

FW20020-24S

NORMAL_EXPEPT_32

21 22

23 24

R451 0

POWER_18_A_DIM

R453 0

POWER_20_A_DIM

C484

1uF

25V

OPT

V_SYNC

R484

POWER_20_PWM_DIM

L424

CIC21J501NE

C485

0.1uF

16V

R485 0

POWER_22_A_DIM

+3.3V_Normal

R486

4.7K

OPT

R487

R488

100K

R429

47K

OLP

R477

POWER_16_V_SYNC

R475

POWER_24_GND

R476

POWER_23_GND

R419

R422 0

POWER_22_SCAN_BLK1/OPC_OUT

R470 0

OPT

0.1uF

C486

R447-*1

27K

PD_+3.5V

R450

PD_+3.5V

R402

100

+24V

IC406

AOZ1072AI

AGND

VIN

PGND

5COMP

6EN

7LX_1

8LX_2

IC402

AZ2940D-2.5TRE1

GND

3VOUT

VIN

Q408

AO3438

FRC

Q409

AO3407A

R404

100K

PD_+12V

IC409

NCP803SN293

PD_+12V

GND

VCC 2RESET

R482-*1

24K

POWER_+20V

P404

FM20020-24

NORMAL_32

21 22

23 24

P401

SMAW200-H24S2

SLIM_32~52

12V

14 GND

3.5V

424V

18 INV ON

GND

8GND

24V

12V

12 3.5V

GND

224V

16 GND/V-sync

3.5V

6GND

PWR ON

20 A.DIM

GND

10 3.5V

GND

12V 22 P.DIM1

GND/P.DIM2 24 Err OUT

R479

R439

33K

EXCEPT_NON_GIP_CCFL_55"

R440

5.6K

EXCEPT_NON_GIP_CCFL_55"

R482

24K

POWER_+24V

R403

4.3K

POWER_+24V

R403-*1

5.1K

POWER_+20V

C474

0.1uF

R405

2.2K

PANEL_DISCHARGE_RES

R407

2.2K

PANEL_DISCHARGE_RES

C411

22uF

10V

OPT

100R437

POWER_20_ERROR_OUT

100

R420

POWER_24_ERROR_OUT

C409

330uF

OPT

C419-*1

3.9K

PWM_PULL-DOWN

R403-*2

5.6K

POWER_+18.5V

R482-*2

24K

POWER_+18.5V

IC403-*1

MP2212DN(Marking)

FRC

GND

5VCC

6SW_1

7SW_2

8EN/SYNC

R439-*1

10K

NON_GIP_CCFL_55"

R440-*1

1.8K

C420

22uF

16V

C469

22uF

16V

C471

22uF

16V

POWER

GP2_Saturn7M Ver. 1.2

Power_DET

+5V_Normal

INV_ON

PWM_DIM

or LIPS

+2.5V/+1.8V

Placed on SMD-TOP

PIN No

Vout=0.8*(1+R1/R2)

Placed on SMD-TOP

Vout=0.8*(1+R1/R2)

+5V_USB

PANEL_POWER

AUO

VBR-A

C IN

Vd=550mV

1074 mA

S7M DDR 1.5V

26/32/52:PWM

Err_out

1934 mA

Vout=(1+R1/R2)*0.8

ST_3.5V--> 3.375V

+1.5V_DDR_FRC

Placed on SMD-TOP

Err_out

Placed on SMD-TOP

New item

Replaced Part

INV_ON

PWM_DIM

SHARP

INV_ON

300 mA

PWM_DIM

20V-->3.51V

24V-->3.64V

Close to IC

Vout=(1+R1/R2)*0.8

FROM LIPS & POWER B/D

MAX 2000mA

A-DIM

2026 mA

Close to IC

C IN

12V-->3.58V

Vout=0.8*(1+R1/R2)

Replaced Part

S7M core 1.26V volt

+3.3V_Normal

MAX 1A

CMO

INV_ON

IPS-@

+3.5V_ST -> 3.375V

INV_ON

Err_out

GND GND GND GND

52/60:ERROR

26/32HD:NC

GND

PWM_DIM

(PSU) (PSU)(PSU)(PSU)

Only for 32/37LED MODEL

18.5V-->3.5V

60:NC

26/32/52:GND

60:PWM

LGD(PSU)

Only for training and service purposes

LGE Internal Use Only

Other manuals for 32LD450

This manual suits for next models

Table of contents

Popular LCD TV manuals by other brands

Sharp

Sharp TU-X1U Service manual

Emprex

Emprex HD-3202 user guide

Kalley

Kalley K-LED40FHDST2 Service manual

HP LT3200 Illustrated parts & service map

Mitsubishi

Mitsubishi WD-52531 Overall Dimensions

Jensen

Jensen JE1510 operating manual

Haier

Haier HL32XK2 owner's manual

Daewoo

Daewoo DLP-32C2AMSB instruction manual

AOC

AOC L20W451T Service manual

Philips

Philips 32PFL8605H Specifications

Sharp

Sharp AQUOS LC-80LE646E Operation manual

Sony

Sony KDL-40V3000, KDL-46V3000 Specifications

Noblex

Noblex 42LC816F Service manual

Sony

Sony Bravia XR-65X95J manual

Sanyo

Sanyo CES26WSD7-B Specification sheet

Sharp

Sharp AQUOS LC-42SB45U Operation manual

Philips

Philips 32PF7320/93 Handbook

Philips

Philips 46PFL3505D Specifications

LG 32LD450 User manual

Popular LCD TV manuals by other brands
