LG 32LH240H User manual

lcd tv
w w w. L c o m m e r c i a l . c o m
EcoSmart™
Dynamic Power Savings
Static Power Savings
ENERGY STAR®3.0 UALIFIED and RoHS COMPLIANT
HD VOD PPV ENCRYPTION
Integrated Pro:Idiom®
MPEG-2/MPEG-4 H.264 DECODING
DYNAMIC CONTRAST RATIO
20,000:1
NATIVE DISPLAY RESOLUTION
1366 x 768
BUILT-IN ATSC/NTSC/ AM CLEAR TUNER
INVISIBLE SPEAKER SYSTEM
Hidden speaker grilles
180° DETACHABLE SWIVEL STAND
LG'S EXCLUSIVE XD ENGINE®
USB 2.0 MEDIA HOST FOR PHOTOS AND MUSIC
USB CLONING
CLEAR VOICE II
REAL CINEMA™
2 HDMI™ INPUTS WITH HDCP
V.1.3 with deep color
AUTO SENSING REMOTE JACK PACK (RJP) COMPATIBLE*
2 YEAR LIMITED WARRANTY
(parts and labor)
Integrated HDTV with HD-PPV
Capability
*NOTE: Contact your L Sales representative on the RJPs that
are compatible with the 32LH240H.
LCD Commercial Widescreen
32LH240H
32" class (31.5" diagonal)
hi gloss blac

•EcoSmart
Dynamic Power Savings - Using built-in algorithms, TV will automatically reduce
the power consumption based on incoming video, while maximizing picture
performance.
Static Power Savings - Picture brightness level can be set at the preferred power
consumption level to reduce power and increase energy savings.
•ENERGY STAR 3.0 Qualified
Meets current reduction requirements of energy consumption.
•RoHS Compliant
Meets directive on restriction of hazardous substances.
PHOTO LIST MUSIC LIST
ENERGY SAVING LEVELS
By selecting lower levels of backlight settings, a reduction in power consumption is achieved
resulting in energy savings and lower costs.
USB 2.0 will support JP and MP3 files from a USB storage device.
Page 2/3 No Marked
Photo List
Up Folder
1366x768, 125KB
KY101 06/10/2008
KY102 04/03/2008
JMJ001 01/01/2000
JMJ002 06/15/2008
JMJ003 04/03/2008
JMJ004 02/18/2008
KY103 03/30/2008
KY104 06/19/2008
KY105 01/31/2008
JMJ005 05/13/2008
JMJ006 05/26/2008
JMJ007 02/18/2008
JMJ008 02/18/2008
Up Folder
Drive1
JMJ001
Music List
Up Folder
noitaruDeltiT
Page 2/3 No Marked
Drive1
AA00:00 / 04:16
Up Folder
Applied Model Backlight Setting
Value
Brightness/
Static
[cd/m2]
Power
Consumption
[Watts]
Energy savings
[%]
32LH240H
Level 100 260 93 0.0%
90 235 87 6%
80 220 81 13%
70 198 75 19%
60 176 70 25%
50 157 65 30%
40 133 59 37%
30 111 54 42%
20 87 48 48%
10 67 43 54%
1 48 37 60%
TESTING CONDITION IN VIVID/STATIC MODEHOTEL COSTS FOR FREE-TO-GUEST CHANNEL MANAGEMENT(OVER 5 YEARS)
Note: Power consumption was measured with video signal - IEC62087 dynamic broadcast. Energy
Saving percentages listed are percentages off of level 100.
U S B 2 . 0
M E D I A H O S T
FREE-TO- UEST MANA EMENT APPLIANCE
FMA-LG101
HEAD-END SYSTEM
Manages channel line-up changes, channel label changes,
designates a startup channel, and can set the time/date, and
broadcast that information to all the terminals on a regular basis.
This unit will clone the commercial installer menu settings from this
single head-end location. Also, enables Pro:Idiom tuning for
Pro:Idiom encrypted content. Works in conjunction with installed
LMT7Z9 card and TVs with integrated b-LAN™ technology.
LG'S FREE-TO-GUEST COST EFFECTIVE SOLUTION
For Free-To- uest (FT ) hotel installations, when using L ’s MPI Pro:Idiom FT /PPV card
(LMT7Z9) plus L ’s Free-to- uest Management Appliance (FMA-L 101), virtual channel
mapping and commercial installer menu settings, and other adjustments can be made from the
centralized head-end FMA system. This is an added value of time savings and therefore cost
savings in labor charges by not having to go room to room for a change of settings.
Labor Costs FTG Card
Price
*FMA
MAP price Total Savings over other brand
Other brand
$20 (est.) x 2 times per
year (to update channels)
x 100 rooms x 5 years
-- -- $20,000 --
L Pro:Idiom TV with
LMT7Z9 FT card &
FMA-L 101
$20 (est.) x once
(to install card in set)
x 100 rooms
$39 x 100
rooms $1,999 $7,899 $12,101
* FMA MAP price subject to change.
LMT7Z9 MPI CARD FOR Pro:Idiom FT AND PPV
LMT7Z9
FREE-TO-GUEST TECHNOLOGY
Allows viewing of HD secured Pro:Idiom encrypted content from Pro:Idiom
licensed Cable or Satellite providers. Compatible with FMA-L 101 and
FMA-100 head-end systems. Pay-Per-View ready.
L I F E ’ S O O D . . .
WHEN IT’sREEN.
L is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products.
The 32LH240H television has technologies to reduce
power consumption and in return increase cost
savings per room. We’ve also placed limits in the
amounts of harmful materials used in this television.

32LH240H
4-Screws
(not provided)
Stand
Desk
MOUNTING HOLES ON STAND
ATTACHIN THE TV TO A DESK
RS-232C IN
(
SERVICE ONLY)
AUDIO IN
(RGB/DVI)
TV-LINK CFG
VIDEO
AUDIO
RGB IN (PC)
VIDEO AUDIO
L(MONO)
R
2
1
L R
/DVI IN
COMPONENT IN
AV IN 1
RJP
UPDATEUPDATE
RESETRESET
AVIN2
VIDEO
USB IN
AV IN 2
H-AUDIO
M.P.I.
ANTENNA IN
REAR JAC PANEL SIDE JAC PANEL
AVIN2
VIDEO
AV IN 2
H-AUDIO
VIDEO
AV IN 2
H
-AUDIO
-
USB IN

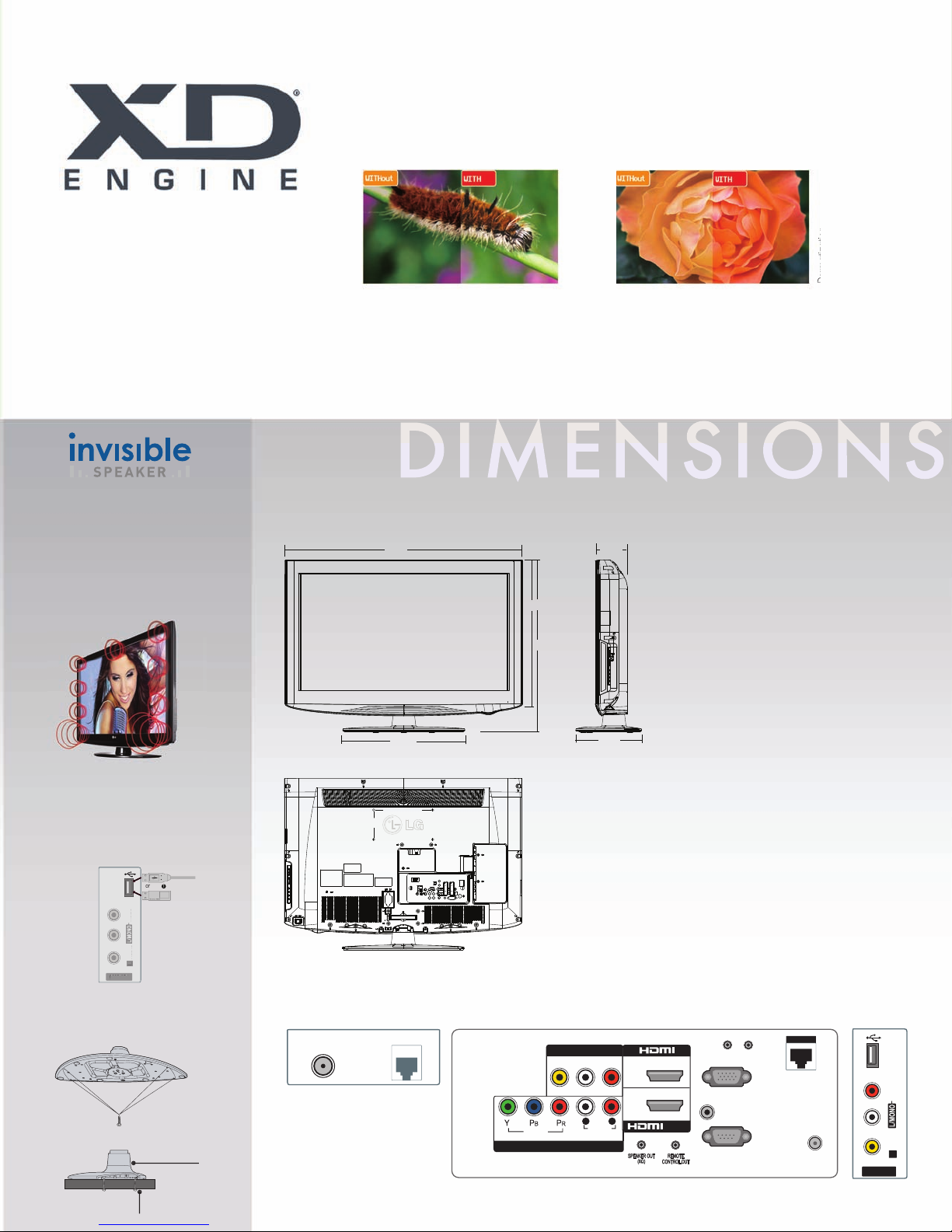

31.6”
16.3”
20.7”
22.9”
4.2”
8.8”
100mm
200mm
SOUND IS HEARD, NOT SEEN
Enjoy a combination of smart technology
and stylish design with the invisible
speaker system custom tuned by audio
expert Mr. Mark Levinson. This unique
system provides a clean, polished look
and an enhanced auditory experience
by increasing the sweet spot and
providing a wider sound field.
SHARPER
BRIGHTER
CLEARER
Dramatization
Six distinct processes contribute to picture improvement. L ’s XD Engine takes
the low resolution of analog signals to near HD levels by improving brightness,
contrast, detail and enhancing color as well as reducing signal noise.
Dramatization
MPI SLOT
USB CLONING
USB cloning will allow for easy transfer
of commercial installer menu settings from
the “Master TV” to an unlimited number
of same type televisions.

All screen images are simulated. Dimensions and weights are approximate.
Design, features and specifications subject to change without notice.
© Copyright 2009 L Electronics USA, Inc. All Rights Reserved. “L Life’s ood” is
a registered trademark of L Corp. XD Engine is a registered trademark of L
Electronics, Inc. EcoSmart is a trademark of L Corp.
Pro:Idiom is a registered
trademark of Zenith Electronics Corp. SRS and the SRS symbol and TruSurround XT are
trademarks or registered trademarks of SRS Labs, Inc.
ENER Y STAR is a registered
trademark of the U.S. Environmental Protection Agency.
b-LAN is a trademark of
LodgeNet Interactive Corporation.
VESA is a trademark of Video Electronics
Standards Association. All other product and brand names are trademarks or
registered trademarks of their respective companies.
Printed in the USA. November 2009
XT
180
specifications
www.L commercial.com
lcd tv
LCD SPECIFICATION
Screen Size (Class) 32” class (31.5” diagonal)
Native Display Resolution 1366 x 768
Brightness 500 cd/m
2
Dynamic Contrast Ratio 20,000:1
Viewing Angle 1
78°/178°
Color Reproduction 8 Bit
Response Time 5ms
Life Span (Typical) 50,000 hrs
BROADCASTING SYSTEM
Analog Yes
ATSC/NTSC/Clear QAM Yes
VIDEO
XD Engine Yes
Video Codec MPE -2/4
Aspect Ratio 16:9
Aspect Ratio Correction 5 Modes
Just Scan 0% over scan
HDMI/Component: HD/DTV
Enhanced Noise Reduction (Video Noise Filter) Yes, 3D NR/MPE NR
Digital Comb Filter Yes (3D)
Color Temperature Control 3 Modes (Medium, Warm, Cool)
Black Stretcher Yes
24p Real Cinema Yes
Cinema 3:2/2:2 Mode Yes
Picture Reset Yes
EZ Picture/PSM Yes (6 mode)
xvYCC (richer color) Yes
DTV Signal Strength Indicator Yes
Video Reset/Initializing Yes
AUDIO
Mono/Stereo/Dual (MTS/SAP) Yes
Audio Output Power 10W x 2
Invisible Speaker System Details 1 Way 2 Speaker
Dolby Digital 5.1 Decoder Yes
Surround System Type SRS TruSurround XT
Bass/Treble/Balance Controls Yes
Clear Voice II Yes
Auto Volume Leveler Yes
EZ Sound Mode/SSM 5 Modes
SPECIAL FEATURES
Integrated Pro:Idiom Yes
Auto-Sensing RJP compatible Yes (with select RJP versions, non - PIP)
Backlight Control Yes
USB Cloning Yes
1080p Source Input
HDMI 60f/30f/24f
Component 60f/30f/29f
Auto Screen Adjust Yes
Fresh White Yes
Flashback (Previous Channel) Yes
Quick Setup uide Yes
Parental Control w/V-Chip Yes
Key Lock/Child Lock Yes
Customizable Closed Caption/Sub-title Yes
CONVENIENCE FEATURES
Language English/Spanish/French
Alvin UI Yes
Commercial Function Menu Yes
Auto Tuning/Programming Yes
Channel Add/Delete Yes
Channel Labeling Yes
Favorite Channel Programming Yes
Auto/Manual Clock Yes
On/Off Timer Yes
Sleep Timer Yes
Auto Off/Auto Sleep (When no video is present) Yes
AUDIO/VIDEO INPUTS/OUTPUTS
RF In (Antenna/Cable) 1
L/R Audio/Composite Video In 1 (rear), 1 (side)
HD Component Video In (Y, Pb, Pr) + L/R Audio1
Speaker Out 1 (1W mono)
HDMI/HDCP Input (V1.3 with Deep Color) 2(1 port PC mode)
R B In (D-Sub 15pin) - PC 1(up to WX A)
PC Audio Input 1
RS-232c In (Service Only) 1
USB 2.0 Input
1 (Side) Media Host (jpeg, mp3) , Cloning,
Service
Remote Control Port out 1
RJ45 (for RJP interface, non PIP) 1
MPI Jack (RJ-12) 1 (dummy card)
CABINET/ACCESSORIES
Cabinet Color Hi loss Black
Swivel Stand (degrees) + 90°/-90°
Fire Retardant Cabinet Material Yes
Kensington Security System Slot Yes
Security Screws (TORX) Yes (optional use)
VESA
®
Mount Standard Compliant (WxH) 200mm x 100mm, M4 screw
Remote Control Yes
Cloning Capable USB input, opt. LT2002, or opt. TLL-1100A
POWER
Voltage, Hz 100V - 240V, 50/60 Hz
Stand-by Mode Less than1W
Dynamic/Static Power Savings Yes
Power Consumption Max 150W
(with Power Saving Modes Disabled) Typical 120W
ENER Y STAR 3.0 Qualified Yes
RoHS Compliant Yes
DIMENSIONS & WEIGHT
TV without stand (WxHxD) 31.6" x 20.7" x 4.2"
TV with stand (WxHxD) 31.6” x 22.9” x 8.8”
Shipping Dimensions (WxHxD) 38.7” x 24.6" x 7.4"
TV without stand weight 25.1 Ibs
TV with stand weight 27.7 Ibs
Shipping Weight 29.1 Ibs
SERVICE/LIMITED WARRANTY 2 Years (Parts/Labor)
UPC CODE
32LH240H 7 19192 17649 2
L Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
Contact your LG Regional Sales Representative
Hospitality: 800.228.1236
Enterprise: 800.897.8788
Channel: 800.897.8871
E-mail: L [email protected]
SPEC_32LH240H_090915_PR
