LG DM2382D User manual

G
Order Number
: GETEC-C1-12-051
FCC Part 15 subpart B
Test Report Number
: GETEC-E3-12-024
Page 1 / 1
EUT Type: LED LCD TV/Monitor
FCC ID.: BEJM2382D
APPENDIX G
: USER’S MANUAL

www.lg.com
OWNER’S MANUAL
CINEMA 3D TV /
LED LCD TV
M2382D
M2482D
DM2382D
Please read this manual carefully before operating the your TV
and retain it for future reference.
LED LCD TV MODELCINEMA 3D TV MODEL
ENGLISH

2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
4LICENSES
5INSALLATION PROCE DURE
6ASSEMBLING AND PREPARING
6 Unpacking
7 - CINEMA 3D TV
8 - LED LCD TV
9 Parts and buttons
10 Lifting and moving the TV
11 Setting up the TV
11 - Attaching the Stand
12 - Mounting on a table
13 - Tidying cables
14 - Detaching the Stand
15 - Mounting on a wall
17 WATCHING TV
17 Turning the TV on for the first time
19 MAKING CONNECTIONS
19 Connecting an antenna
20 Connecting to a HD receiver, DVD, VCR
player or Gaming device
20 - HDMI connection
21 - DVI to HDMI connection
22 - Component connection
23 - Composite connection
24 - Euro Scart connection
25 Connecting to an audio system
25 - Digital optical audio connection
26 - Headphone connection
27 Connecting to a USB
27 Connecting to a CI Module
28 Connecting to a PC
29 - HDMI connection
30 - DVI to HDMI connection
31 - RGB connection
32 REMOTE CONTROL
32 CINEMA 3D TV
34 LED LCD TV
36 CUSTOMIZING SETTINGS
36 Accessing main menus
37 USING THE USER GUIDE
37 Accessing User Guide menu.
37 - Using the TV menu
37 - Using the Remote Control
38 3D IMAGING(ONLY CINEMA 3D
TV)
38 3D Technology
39 MAINTENANCE
39 Cleaning Your TV
39 Screen and frame
39 Cabinet and stand
39 Power cord
40 Preventing “Image burn” or “Burn-in” on
your TV screen
41 TROUBLESHOOTING
41 General
41 Using 3D mode
42 SPECIFICATIONS
48 IR CODE (ONLY APPLIED TO
B2B MODEL USED IN A PLACE
LIKE A HOTEL)

3
ENGLISH
TABLE OF CONTENTS
49 EXTERNAL CONTROL DEVICE
SETUP (ONLY APPLIED TO B2B
MODEL USED IN A PLACE LIKE
A HOTEL)
49 RS-232C Setup
49 Type of connector; D-Sub 9-Pin Male
50 RS-232C configurations
51 Communication Parameters
51 Command reference list
52 Transmission / Receiving protocol

ENGLISH
4LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby “and the
double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274

ENGLISH
5
INSTALLATION PROCE DURE
INSALLATION PROCE DURE
y Image shown may differ from your TV.
y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y The available menus and options may differ from the input source or product model that you are
using.
y New features may be added to this TV in the future.
NOTE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV.
3Connect an external device to the TV.

ENGLISH
6ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
y Do not use any pirated items to ensure the safety and product life span.
y Any damages or injuries by using pirated items are not covered by the warranty.
y In case of some model, the thin film on screen is a part of TV, So don’t take it off.
y The accessories supplied with your product may vary depending on the model.
y Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
CAUTION
NOTE

ENGLISH
7
ASSEMBLING AND PREPARING

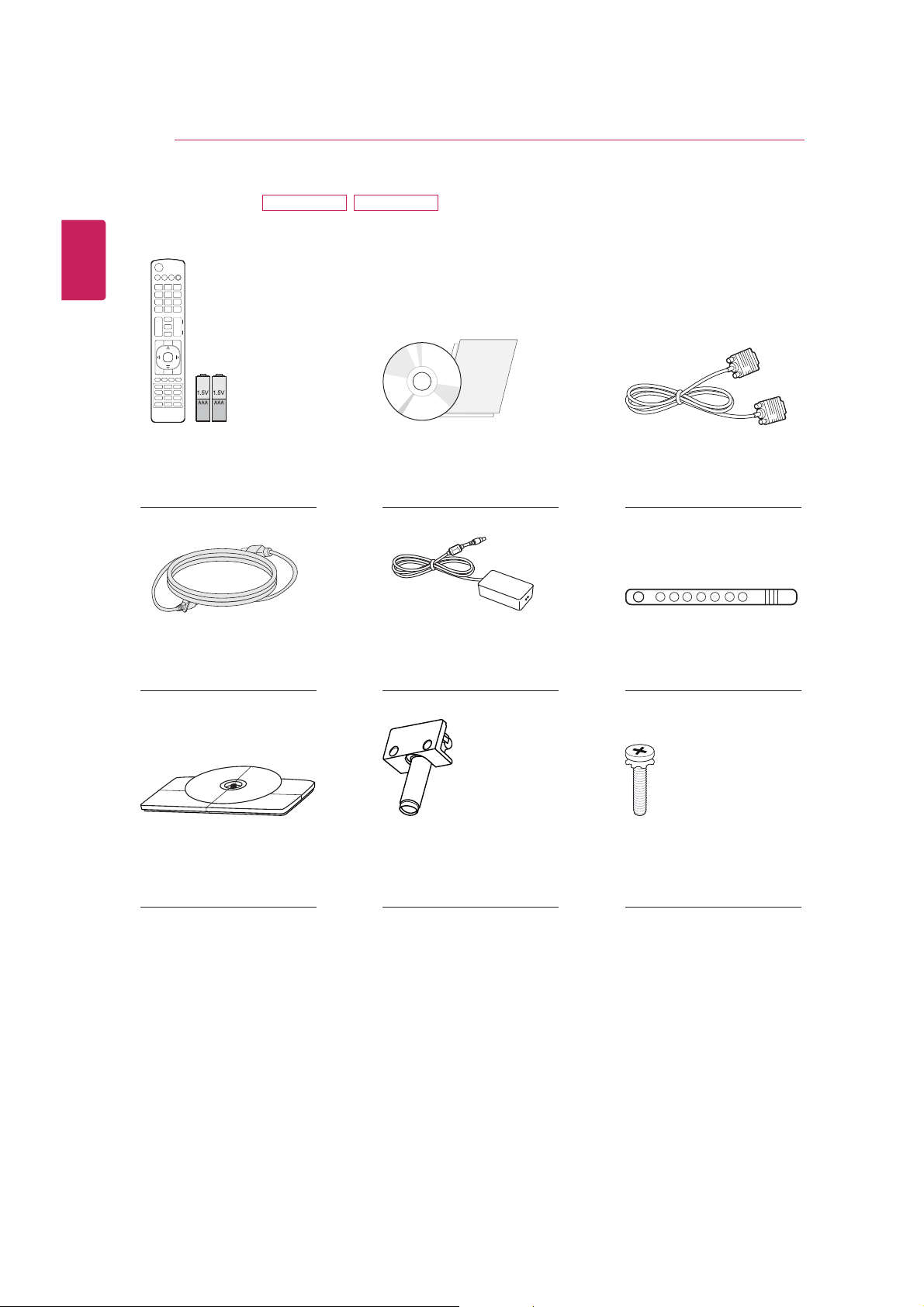

Remote control.
Batteries (AAA).
Power Cord.
Stand Base.
TriDef 3D Game Software CD.
Quick Installation Guide.
CD (Owner's Manual).
Cards.
AC-DC Adapter.
Stand Body.
3D Glasses(Normal type / Clip type).
The number of 3D glasses may differ depending on the model or
country.
RGB Cable.
Cable Tie.
Screws for Assembly.
2 EA
(See p.32)
(See p.12)
(See p.11)
(See p.12)
(See p.11)
(See p.31)
(See p.13)
(See p.11)
CINEMA 3D TV
DM2382D

ENGLISH
8ASSEMBLING AND PREPARING
Remote control.
Batteries (AAA).
Power Cord.
Stand Base.
CD (Owner's Manual).
Cards.
AC-DC Adapter.
Stand Body.
RGB Cable.
Cable Tie.
Screws for Assembly.
2 EA
(See p.34)
(See p.12)
(See p.11)
(See p.12)
(See p.11)
(See p.31)
(See p.13)
(See p.11)
LED LCD TV
M2382D M2482D

ENGLISH
9
ASSEMBLING AND PREPARING
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Parts and buttons
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ITurns the power on or off.
1
2
AV IN 2
AV 1
(MONO)
Remote
Control
Sensor
PCMCIA
Card Slot
Standby Light
y Lighting On: Turned off
y Lighting Off: Turned on
Connection panel (See p.19)
Touch Buttons

ENGLISH
10 ASSEMBLING AND PREPARING
y When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
y When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.

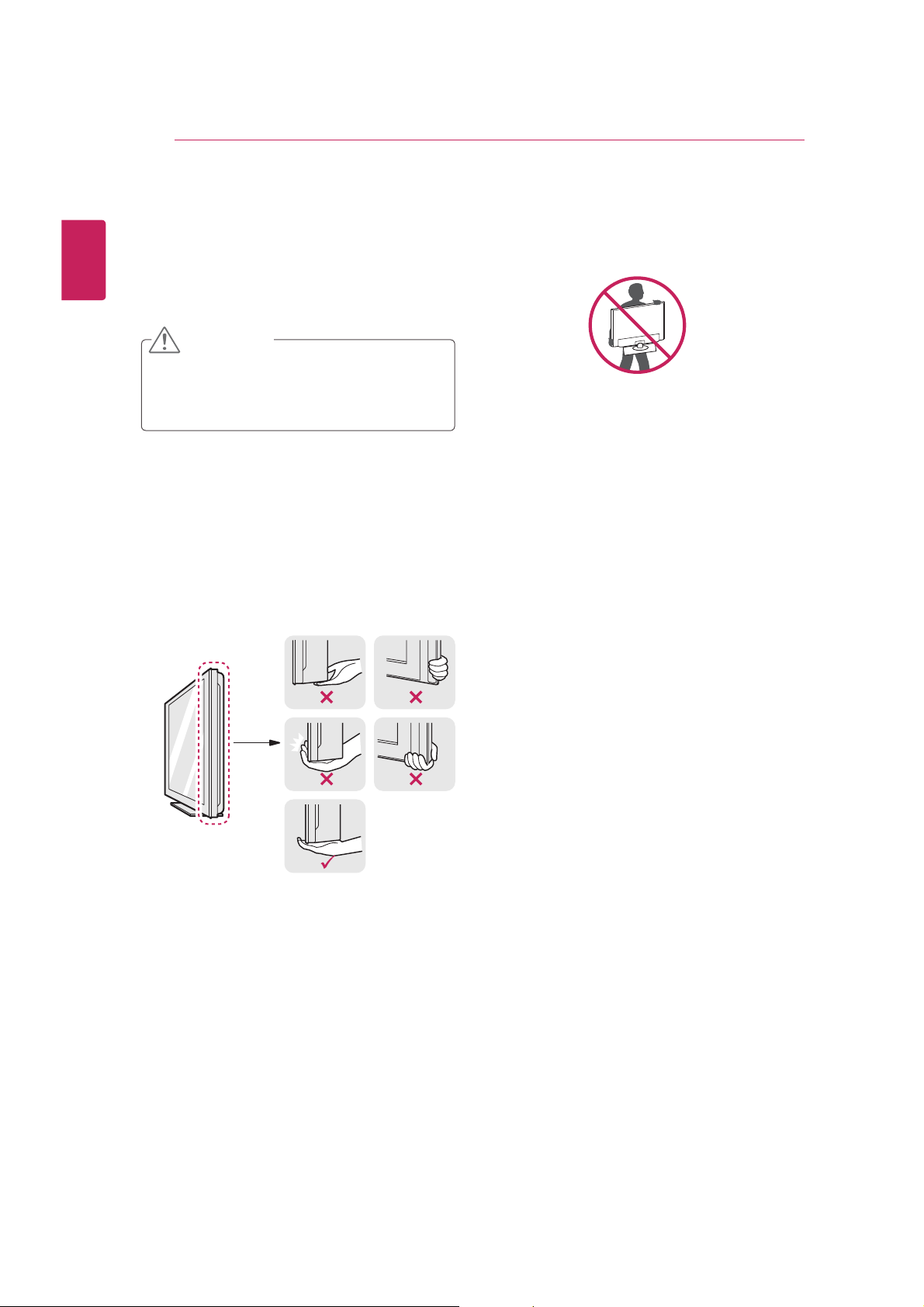

Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as this
may result in damage to the screen or some of
the pixels used to create images.
y It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y Before moving or lifting the TV, disconnect
the power cord and all cables.
y Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
CAUTION

ENGLISH
11
ASSEMBLING AND PREPARING
4Attach the Stand Base from the Stand Body by
turning the screw to the right with a Coin.

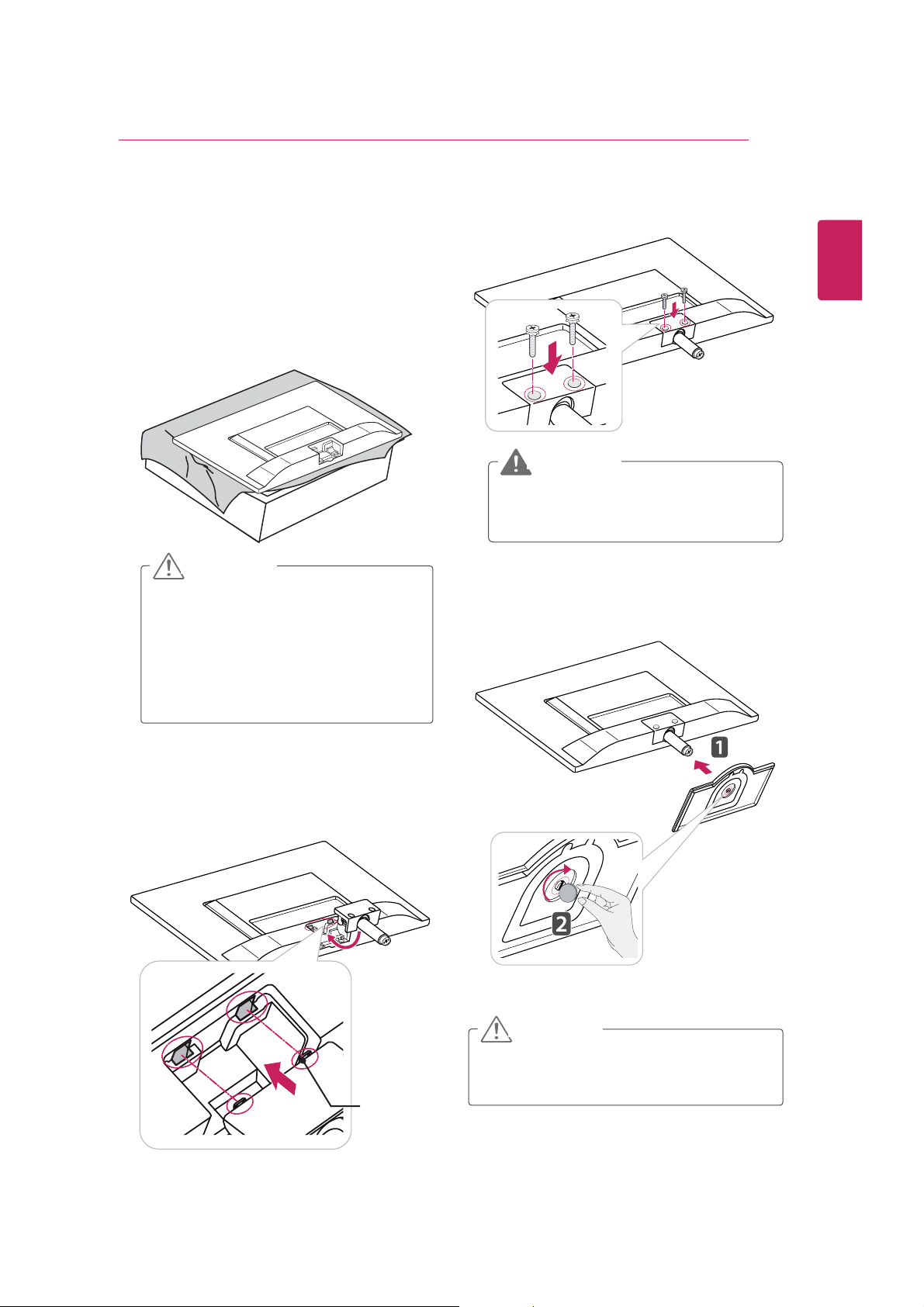

Setting up the TV
Attaching the Stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
1Place the TV with the screen side down on a
flat and cushioned surface.
y Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
y When attaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
2Attach the Stand Body from the TV.
Insert the two Lockers of the Stand Body right
into the groove of the TV head and secure
them by pressing the left and right bottom
sides.
3Secure the TV and the Stand Body with the
2 screws.
CAUTION
CAUTION
If you don`t fasten the screw tightly, TV will
fall down and get damaged.
WARNING
Locker

ENGLISH
12 ASSEMBLING AND PREPARING

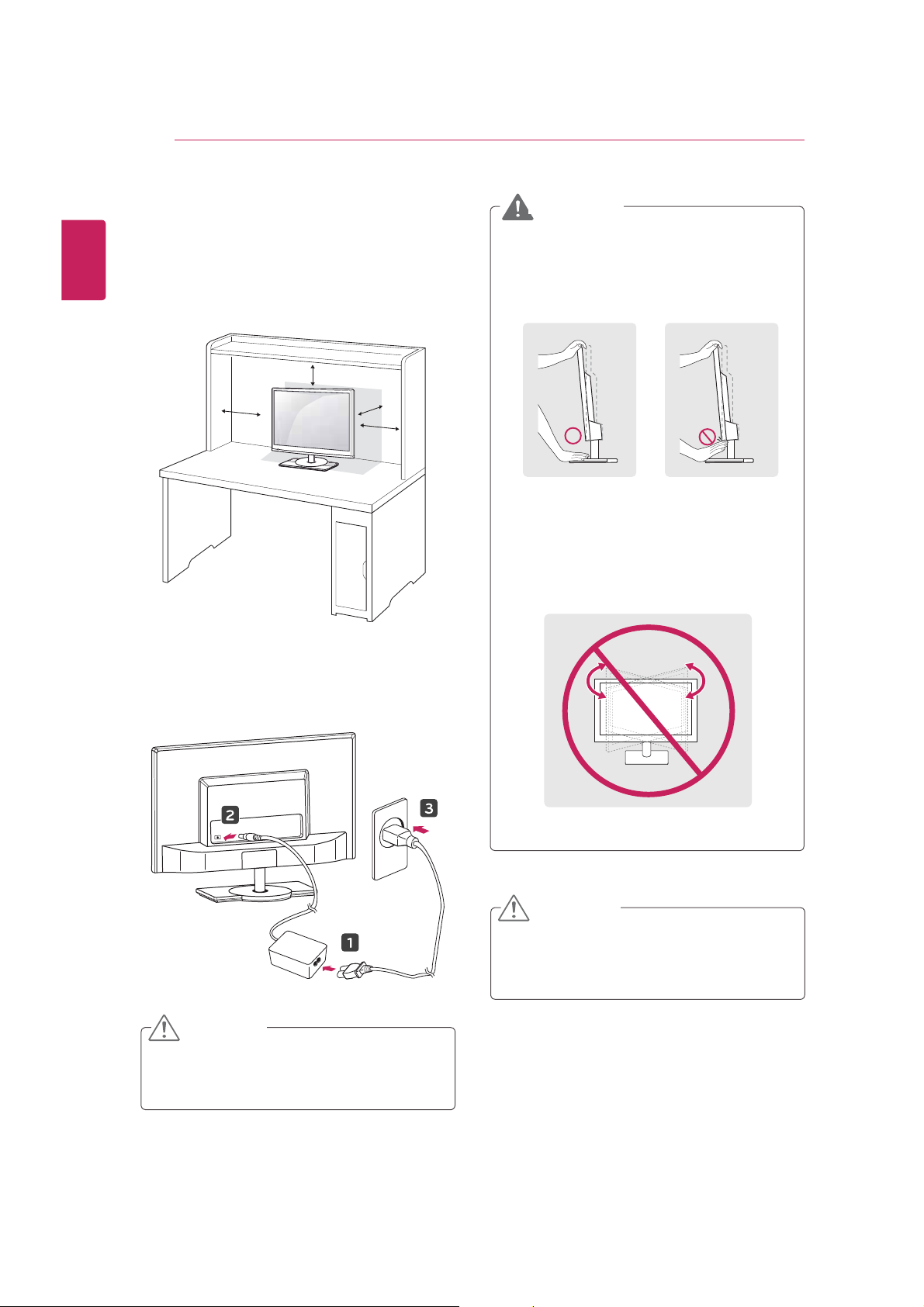

Mounting on a table
1Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
2Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Do not place the TV near or on sources of
heat, as this may result in fire or other damage.
CAUTION
10 cm
10 cm
10 cm
10 cm
y When you adjust the angle, do not hold
the buttom of the TV frame as shown on
the following illustration, as may injure your
fingers.
y This TV does not have a swivel function. Do
not turn the TV screen to the left or right.
Doing so may cause damage.
Disconnect the power cord first, and then move
or install the TV. Otherwise electric shock may
occur.
WARNING
CAUTION

ENGLISH
13
ASSEMBLING AND PREPARING
Tidying cables
Gather and bind the cables with the supplied
cable tie.
Tilt from +20 to -5 degrees up or down to
adjust the angle of the TV to suit your view.
Front Rear
+20-5
NOTE Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com .
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE

ENGLISH
14 ASSEMBLING AND PREPARING
3Remove 2 screws and pull out the Stand Body
from the TV.
Detaching the Stand
1Place the TV with the screen side down on a
flat and cushioned surface.
2Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
y Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
y When detaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION

ENGLISH
15
ASSEMBLING AND PREPARING
Model M2382D
DM2382D
M2482D
VESA (A x B) 75 x 75 200 x 100
Standard screw M4 M4
Number of screws 44
Wall mount bracket
(optional)
RW120 RW240
5Please use VESA standard as below.
y 784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y 787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
y VESA (A x B)
A
B

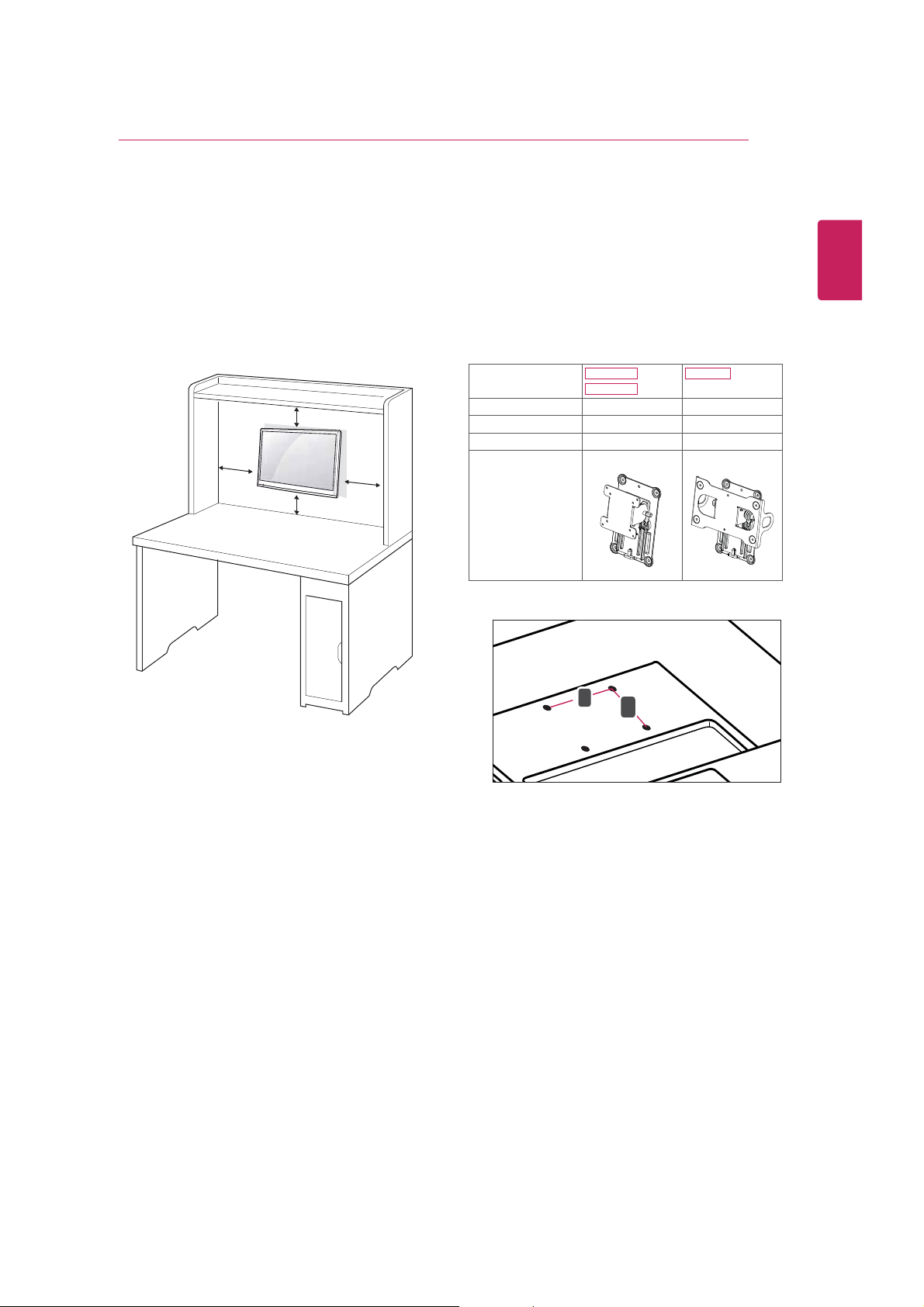

Mounting on a wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
If you intend to mount the TV to a wall, attach Wall
mounting interface (optional parts) to the back of
the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
1Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2If you use screw longer than standard, the TV
might be damaged internally.
3If you use improper screw, the product might
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
4VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
10 cm
10 cm
10 cm
10 cm

ENGLISH
16 ASSEMBLING AND PREPARING
y Disconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
y If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
y Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
y Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
y Use the screws that are listed on the VESA
standard screw specifications.
y The wall mount kit includes an installation
manual and necessary parts.
y The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y For more information, refer to the instructions
supplied with the wall mount.
CAUTION
NOTE

ENGLISH
17
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
1Connect the power cord to a power outlet.
2Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.
y If you do not operate the TV within 40 seconds when the setting menu screen appears, the
setting menus will disappear.
When the TV is in Power saving mode, the Standby Light turns amber.
3The initial setting screen appears if you access the TV for the first time.
4Follow the on-screen instructions to customize your TV according to your preferences.
Language
Ø
Mode Setting
Ø
Power Indicator
Ø
Country
Ø
Time Zone
Ø
Set Password
Ø
3D-On-Start Setting
Ø
Auto Tuning
Selects Home Use for the home environment.
Selects a country to display.
Selects the Standby Light.
If you select On, the TV turns on the Standby Light in the front panel when the
TV is off.
Selects a language for the display.
Selects the time zone and daylight saving.
(When Russia is selected for Country)
Set the password.
(When France/Italy is selected for Country)
Set the 3D automatically mode.
Turning on the TV, automatically converts 2D to 3D and prints images in 3D.
(Only Cinema 3D TV)
Scans and saves available programmes automatically.
NOTE
NOTE
WATCHING TV

ENGLISH
18 WATCHING TV
y You can also switch the TV from PC mode to TV mode, press TV/PC.
y You can also access Factory Reset by accessing OPTION in the main menus.
y For those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
y When France is selected for Country, the initial password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’, ‘2’, ‘3’, ‘4’.
y To display images in the best quality for your home environment, select Home Use mode.
y Store Demo mode is suitable for the retail environment.
y If you select Store Demo mode, the previously customized settings will switch to the default
settings of Store Demo mode in 2 minutes.
NOTE
NOTE
If you do not complete the initial setting, it will appear whenever you access the TV.
5When the basic settings are complete, press OK.
6To turn the TV off, press on the TV.
The Standby Light is turned on.
Disconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
NOTE
CAUTION

ENGLISH
19
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information about an external device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
camcorders or cameras, gaming devices, and other external devices.
NOTE
y If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual supplied with the connected device.
y The external device connection may differ from the model.
y Connect external devices to the TV regardless of the order of the TV port.
MAKING CONNECTIONS

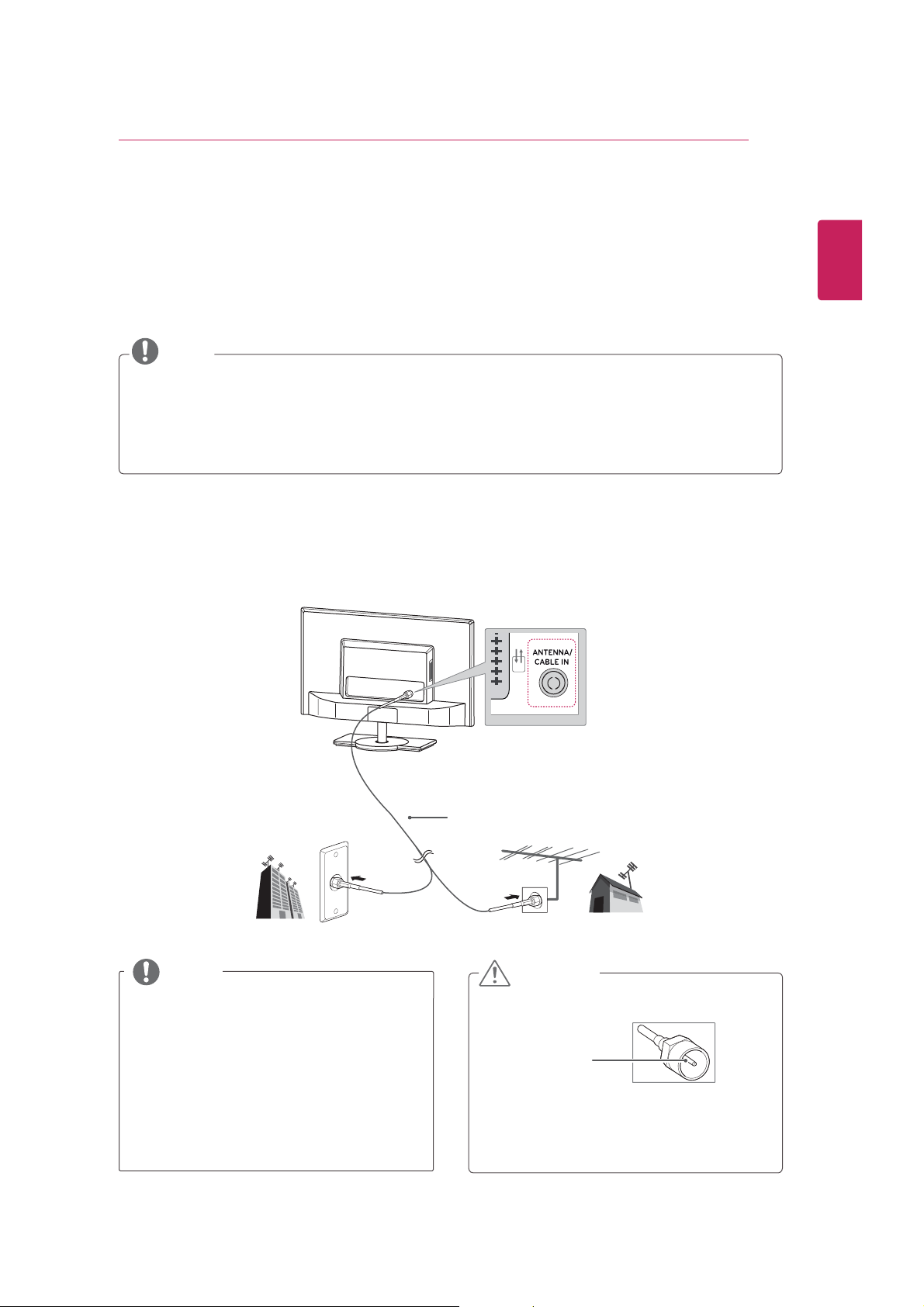

Connecting an antenna
Connect an antenna, cable V or cable box to watch TV referring to the following. The illustrations may differ
from the actual accessories and an RF cable is optional.
Connect the TV to a wall antenna socket with an RF cable (75 ).
AV 1
y Use a signal splitter to use more than 2 TVs.
y If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y If the image quality is poor with an antenna
connected, aim the antenna to the proper
direction.
y Visit
http://AntennaWeb.org for more
information about the antenna and cable
connection.
NOTE
Wall Antenna Socket
Outdoor Antenna
y VHF Antenna
y UHF Antenna
y Make sure not to bend the copper wire of
the RF cable.
y Complete all connections instructions
between devices, and then connect the
power cord to the power outlet to prevent
damages to your TV.
CAUTION
Copper wire
(Not Provided)
