LG 32LM5800 User manual

Printed in KoreaP/NO : MFL67362818 (1204-REV00)
CHASSIS : LT21B
MODEL : 32LM5800 32LM5800-DB
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED LCD TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION ....................................................................................... 4
ADJUSTMENT INSTRUCTION .............................................................. 10
SCREW ASSEMBLY WORKING GUIDE ............................................... 19
TROUBLE SHOOTING............................................................................20
BLOCK DIAGRAM.................................................................................. 26
EXPLODED VIEW .................................................................................. 27
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This spec sheet is applied LCD TV with LT21B/C Chassis
2. Test condition
Each part is tested as below without special notice.
1) Temperature : 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC±5 ºC
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
- Taiwan : 110V 60Hz
- Colombia : 100~240V@50/60Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : UL, CSA, IEC specification
- EMC: FCC, ICES, IEC specification

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. General Specification
No Item Specication Remark
1. Screen Size 31.55 inch LC320EUN-SEM2
31.50 inch T320HVN01.0(60Hz/FHD/AUO)
31.51 inch LC320DXN-SER2(60Hz/HD)
31.55 inch LC320WUN-SCA2(60Hz/FHD/EEFL)
31.51 inch LC320EXN-SEA2(60Hz/HD)
31.50 inch T320XVN01.1(60Hz/HD/AUO)
31.51 inch LC320WXN-SCA2(10 years module)
31.51 inch LC320DXN-SEU2(60Hz/FHD)
31.55inch LC320EUN-SEF2(T120)
42.02 inch LC420DUN_SEU2(60Hz/FHD)
42.92 inch LC420EUE-SEF1(T120)
46.96 inch LC470EUE-SEF1(T120)
42.02 inch LC420WUE-SCA2(60Hz/FHD/EEFL)
42.02 inch T420HVN02.1(60Hz/FHD/EEFL/AUO)
54.64 inch LC550EUE-SEF1(T120)
46.96 inch LC470EUE-SEM1(60Hz/FHD)
42.02 inch LC420EUE-SEM1(60Hz/FHD)
42.02 inch LC420DUN_SER2(60Hz/FHD)
42.00 inch T420HVN01.1(60Hz/FHD/AUO)
2. Aspect Ratio 16:9 All
3. LCD Module 31.55” Color WUXGA TFT-LCD Module LC320EUN-SEM2
31.50” Color WUXGA TFT-LCD Module T320HVN01.0(60Hz/FHD/AUO)
31.55” Color WUXGA TFT-LCD Module LC320WUN-SCA2(60Hz/FHD/EEFL)
31.51” Color WXGA TFT-LCD Module LC320EXN-SEA2(60Hz/HD)
31.51” Color WXGA TFT-LCD Module LC320DXN-SER2(60Hz/HD)
31.51” Color WUXGA TFT-LCD Module LC320DXN-SEU2(60Hz/FHD)
31.50” Color WXGA TFT-LCD Module T320XVN01.1(60Hz/HD/AUO)
31.55” Color WXGA TFT-LCD Module LC320WXN-SCA2(10 years module)
31.55” Color WUXGA TFT-LCD Module LC320EUN-SEF2(T120)
42.02” Color WUXGA TFT-LCD Module LC420DUN_SEU2(60Hz/FHD)
46.96” Color WUXGA TFT-LCD Module LC470EUE-SEF1(T120)
42.02” Color WUXGA TFT-LCD Module LC420EUE-SEF1(T120)
54.64” Color WUXGA TFT-LCD Module LC550EUE-SEF1(T120)
46.96” Color WUXGA TFT-LCD Module LC470EUE-SEM1(60Hz/FHD)
42.02” Color WUXGA TFT-LCD Module LC420DUN_SER2(60Hz/FHD)
42.02” Color WUXGA TFT-LCD Module LC420EUE-SEM1(60Hz/FHD)
42.00” Color WUXGA TFT-LCD Module T420HVN01.1(60Hz/FHD/AUO)
42.02” Color WUXGA TFT-LCD Module LC420WUE-SCA2(60Hz/FHD/EEFL)
42.02” Color WUXGA TFT-LCD Module T420HVN02.1(60Hz/FHD/EEFL/AUO)

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Operating Environment 1) Temp. : 0 ~ 50 deg All
2) Humidity : 10 ~ 90%
5. Storage Environment 1) Temp. : -20 ~ 60 deg All
2) Humidity : 10 ~ 90%
6. Input Voltage AC100 ~ 240V, 50/60Hz All
7. Power Consumption 59W 31.55” FHD(LED) LC320EUN-SEM2
87W 31.51” HD(EEFL) LC320WXN-SCA2(10 years module)
31.55” FHD(LED-T120-FPR) LC320EUN-SEF2(T120)
46.96” FHD(LED-T120-FPR) LC470EUE-SEF1(T120)
42.02” FHD(LED-T120-FPR) LC420EUE-SEF1(T120)
54.64” FHD(LED-T120-FPR) LC550EUE-SEF1(T120)
46.96” FHD(LED 60Hz) LC470EUE-SEM1(60Hz/FHD)
31.55” FHD(EEFL) LC320WUN-SCA2(60Hz/FHD/EEFL)
42.02” FHD(LED 60Hz) LC420DUN_SEU2(60Hz/FHD)
42.02” FHD(LED 60Hz) LC420EUE-SEM1(60Hz/FHD)
42.00” FHD(LED 60Hz) T420HVN01.1(60Hz/FHD/AUO)
31.50” FHD(LED 60Hz) T320HVN01.0(60Hz/FHD/AUO)
43W 31.50” HD(LED 60Hz) T320XVN01.1(60Hz/HD/AUO)
31.50” HD(LED 60Hz) LC320EXN-SEA2(60Hz/HD)
42.02” FHD(LED 60Hz) LC420DUN_SER2(60Hz/FHD)
31.51” FHD(LED 60Hz) LC320DXN-SEU2(60Hz/FHD)
31.51” HD(LED 60Hz) LC320DXN-SER2(60Hz/HD)
42.02” FHD(EEFL 60Hz) LC420WUE-SCA2(60Hz/FHD/EEFL)
42.02” FHD(EEFL 60Hz) T420HVN02.1(60Hz/FHD/EEFL/AUO)
8. LCD Module Maker Inch (H) × (V) × (D)
(Outline Demension) LGD 31.55 727.4 X 429.0 X 22.7 LC320EUN-SEM2
LGD 31.51 760.0 X 450.0 X 43.0 LC320WXN-SCA2(10 years module)
LGD 31.55 727.4 X 429.0 X 22.7 LC320EUN-SEF2(T120)
LGD 42.02 960.4 X 560.4 X 17.4 LC420EUE-SEF1(T120)
LGD 31.51 760.0 X 450.0 X 32.5 LC320DXN-SER2(60Hz/HD)
LGD 46.96 1070.6 X 622.0 X 22.0 LC470EUE-SEF1(T120)
LGD 54.64 1244.6 X 720.9 X 22.0 LC550EUE-SEF1(T120)
LGD 46.96 1070.6 X 622.0 X 22.0 LC470EUE-SEM1(60Hz/FHD)
LGD 42.02 960.4 X 560.4 X 17.4 LC420EUE-SEM1(60Hz/FHD)
AUO 42.00 930.24 X 523.26 T420HVN01.1(60Hz/FHD/AUO)
AUO 31.50 727.4 X 429 X 20 T320HVN01.0(60Hz/FHD/AUO)
AUO 31.50 735.4 X 433.8 X 10.8 T320XVN01.1(60Hz/HD/AUO)
LGD 31.51 735.4 X 433.0 X 10.8 LC320EXN-SEA2(60Hz/HD)
LGD 42.02 983.0 X 576.0 X 35.5 LC420DUN_SEU2(60Hz/FHD)
LGD 31.51 760.0 X 450.0 X 32.5 LC320DXN-SEU2(60Hz/FHD)
LGD 42.02 983.0 X 576.0 X 35.5 LC420DUN_SER2(60Hz/FHD)
LGD 42.02 983.0 X 576.0 X 46.0 LC420WUE-SCA2(60Hz/FHD/EEFL)
LGD 31.55 760.0 X 450.0 X 48.0 LC320WUN-SCA2(60Hz/FHD/EEFL)
AUO 42.02 983.0 X 576.0 X 52.65 T420HVN02.1(60Hz/FHD/EEFL/AUO)

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. External Input Support Format
5.1. Component(Y, Pb, Pr)
5.2. RGB Input (PC) : RGB-PC EDID DATA : Refer to adjust specification.
No. Resolution H-freq(kHz) V-freq(Hz) Remark
1. 720×480 15.73 60.00 SDTV, DVD 480i
2. 720×480 15.63 59.94 SDTV, DVD 480i
3. 720×480 31.47 59.94 480p
4. 720×480 31.50 60.00 480p
5. 720×576 15.625 50.00 SDTV, DVD 625 Line
6. 720×576 31.25 50.00 HDTV 576p
7. 1280×720 37.50 50.00 HDTV 720p
8. 1280×720 44.96 59.94 HDTV 720p
9. 1280×720 45.00 60.00 HDTV 720p
10. 1920×1080 28.125 50.00 HDTV 1080i
11. 1920×1080 33.75 60.00 HDTV 1080i
12. 1920×1080 33.72 59.94 HDTV 1080i
13. 1920×1080 56.250 50 HDTV 1080p
14. 1920×1080 67.43/67.5 59.94/60 HDTV 1080p
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock (MHz) Proposed Remark
1. 640*350 31.468 70.085 25.174 For only DOS mode
2. 720*400 31.468 70.08 28.321 For only DOS mode
3. 640*480 31.469 59.94 25.17 VESA Input 848*480 60Hz, 852*480 60Hz
=> 640*480 60Hz Display
4. 800*600 37.879 60.31 40.00 VESA(SVGA)
5. 800*600 37.879 60.31 40.00 VESA
6. 1024*768 48.363 60.00 65.00 VESA(XGA)
7. 1152*864 54.347 60.052 79.999 XGA Plus
8. 1360*768 47.72 59.8 84.75 WXGA
9. 1280*1024 63.981 60.02 108.00 SXGA FHD model
10. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.3. HDMI EDID DATA : Refer to adjust specification
5.3.1. PC mode
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks
1. 640*350 31.468 70.085 25.174 DOS
2 720*400 31.468 70.08 28.321 DOS
3. 640*480 31.469 59.94 25.17 VESA
4 800*600 37.879 60.31 40.00 VESA
5. 1024*768 48.363 60.00 65.00 VESA(XGA)
6. 1360*768 47.72 59.8 84.75 WXGA
7. 1280*1024 63.981 60.02 108.00 SXGA FHD Model
8. 1920*1080 67.5 60 148.5 WUXGA FHD Model
9. 1280*1024 63.981 60.02 108.00 SXGA FHD model
10. 1920*1080 66.587 59.93 138.625 WUXGA FHD model
5.3.2. DTV mode
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716 / 33.75 29.976 / 30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.3.3. 3D mode
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
*** HDMI 1.4
1 1280*720 75 50 148.5 HDTV 720P Frame packing
2 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom
3. 1280*720 89.9 59.94 148.35 HDTV 720P Frame packing
90 60 148.5
4 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom
5 1920*1080 53.95 23.95 148.35 HDTV 1080P Frame packing
54 24 148.5
6 1920*1080 27 24 74.25 HDTV 108 0P Side by Side(half), Top and Bottom
7 1920*1080 33.7 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom
8 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom
9 1920*1080 56.25 50 148.5 HDTV 1080P Side by Side(half), Top and bottom,
10 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom
11 1920*1080 28.1 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom
*** HDMI 1.3
1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom
2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom
3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom
4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom
5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
Single Frame Sequential
8 1920*1080 56.25 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard
Single Frame Sequential

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application
This spec sheet is applied all of the LCD TV with LT21A/B/C
chassis
2. Designation
(1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan whic al Unit: Product Specification Standard.
(2) Power adjustment : Free Voltage.
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation: Above 5 Minutes (Heat Run).
Temperature : at 25 ºC ±5 ºC
Relative humidity : 65 ± 10%
Input voltage : 220V, 60Hz
The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15°C.
In case of keeping module is in the circumstance of 0°C, it
should be placed in the circumstance of above 15°C for 2
hours
In case of keeping module is in the circumstance of below
-20°C, it should be placed in the circumstance of above
15°C for 3 hours,.
[Caution]
When still image is displayed for a period of 20 minutes or
longer, there can some afterimage in the black level area.
(6) Adjustment equipments : Color Analyzer (CA-210 or
CA-110), DDC Adjustment Jig equipment, SVC remote
controller
(7) Push The “IN STOP KEY” – For memory initialization.
Case1 : Software version up
1) After downloading S/W by USB , TV set will reboot
automatically
2).Push “In-stop” key
3).Push “Power on” key
4).Function inspection
5).After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1).When TV set is entering on the assembly line, Push
“In-stop” key at first.
2).Push “Power on” key for turning it on.
=> If you push “Power on” key, TV set will recover channel
information by itself.
3).After function inspection, Push “In-stop” key.

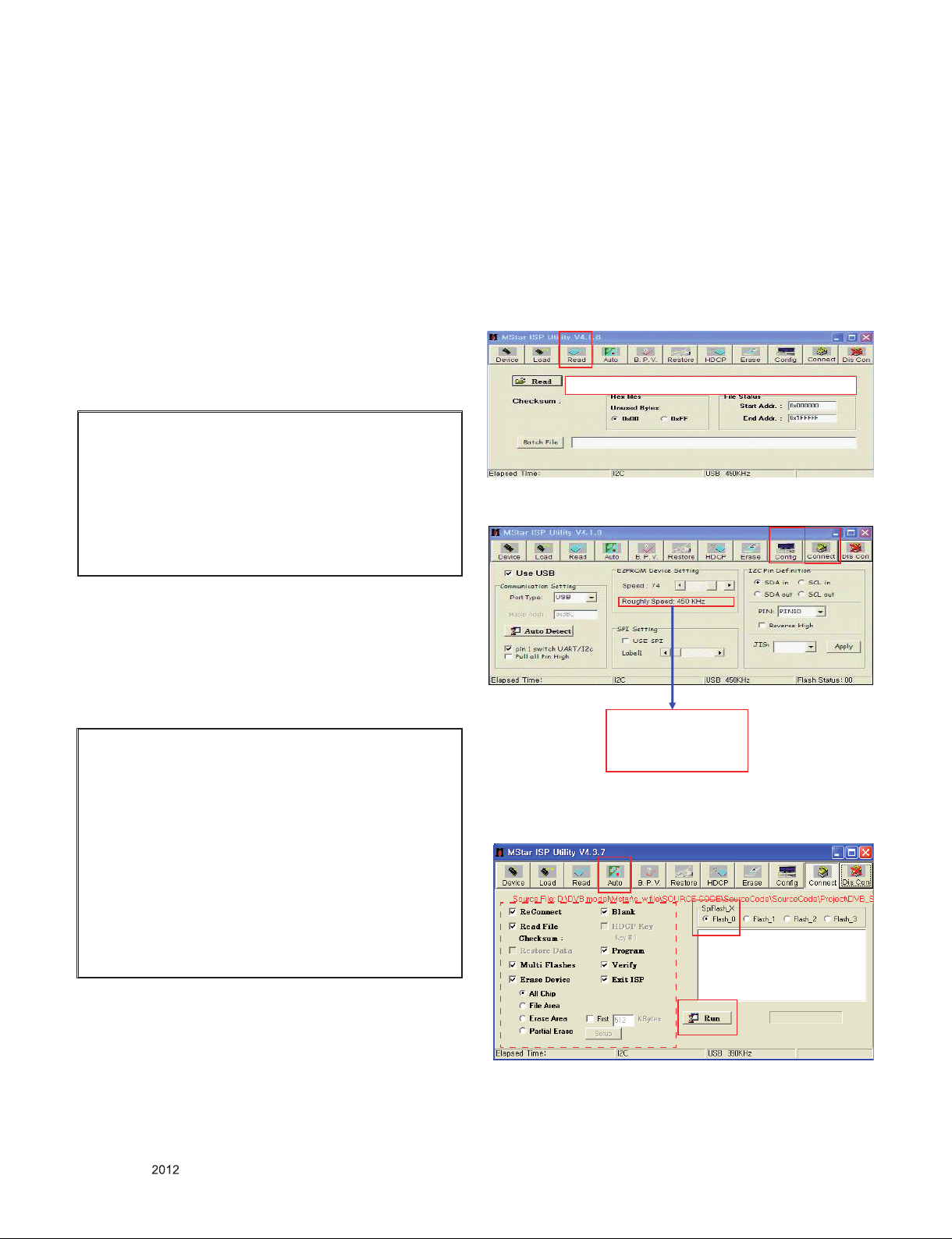

3. Main PCB check process
* APC – After Manual-Insert, executing APC
* Boot file Download
(1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
(2) Set as below, and then click “Auto Detect” and check “OK”
message.
If “Error” is displayed, Check connection between
computer, jig, and set.
(3) Click “Read” tab, and then load download file (XXXX.bin)
by clicking “Read”
(4) Click “Connect” tab. If “Can’t ” is displayed, Check
connection between computer, jig, and set.
(5) Click “Auto” tab and set as below.
(6) Click “Run”.
(7) After downloading, check “OK” message.
(1)
filexxx.bin
(2) (3)
Please Check the Speed
To use speed between
from 200KHz to 400KHz
(4)
(5)
(6)
(7)...........OK
filexxx.bin

- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
* USB DOWNLOAD(*.epk file download)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is Low,
it didn't work. But your downloaded version is High, USB
data is automatically detecting
(3) Show the message "Copying files from memory"
(4) Updating is staring.
(5) After updating is complete, The TV will restart automatically.
(6) If TV turns on, check your updated version and Tool option.
(refer to the next page about tool option)
* If downloading version is higher than your TV have, TV
can lost all channel data. In this case, you have to
channel recover. If all channel data is cleared, you didn't
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool
Option again.
(1) Push "IN-START" key in service remote controller.
(2) Select "Tool Option 1" and Push "OK" button.
(3) Punch in the number. (Each model has their number.)
(4) Completed selecting Tool option.
Model Module Tool
option1
Tool
option2
Tool
option3
Tool
option4
Tool
option5
47LM5800-DB LGD 103 2525 9499 13224 5122
42LM5800-DB LGD 102 2525 9499 13224 7170
32LM5800-DB LGD 100 35293 9499 13224 5154
55LM4600-DB LGD 89 2525 9499 13224 5122
47LM4600-DB LGD 87 2525 9499 13224 5122
42LM3400-DB LGD 2525 9499 13224 5154
32LM3400-DB LGD 2525 9499 13224 5154
32LS5600-DA LGD 340 35293 9499 13224 5154
47LS4600-DA LGD 327 2525 9499 13224 5122
42LS4600-DA LGD 326 2525 9499 13224 5122
32LS4600-DA LGD 324 2525 9499 13224 5154
32LS3500-DA LGD 292 494 9499 13224 736
32LS3500-DA AUO 4388 494 9499 13224 736
42LS3400-DA LGD 494 9499 13224 736
32LS3400-DA LGD 494 9499 13224 736
42CS560-DA AUO 4134 494 9243 13224 736
42CS560-DA LGD 38 494 9243 13224 704
32CS560-DA LGD 36 494 9243 13224 737
42CS460-DA LGD 22 494 9243 13224 704
42CS460-DA AUO 4118 494 9243 13224 736
32CS460-DA LGD 20 494 9243 13224 736

- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

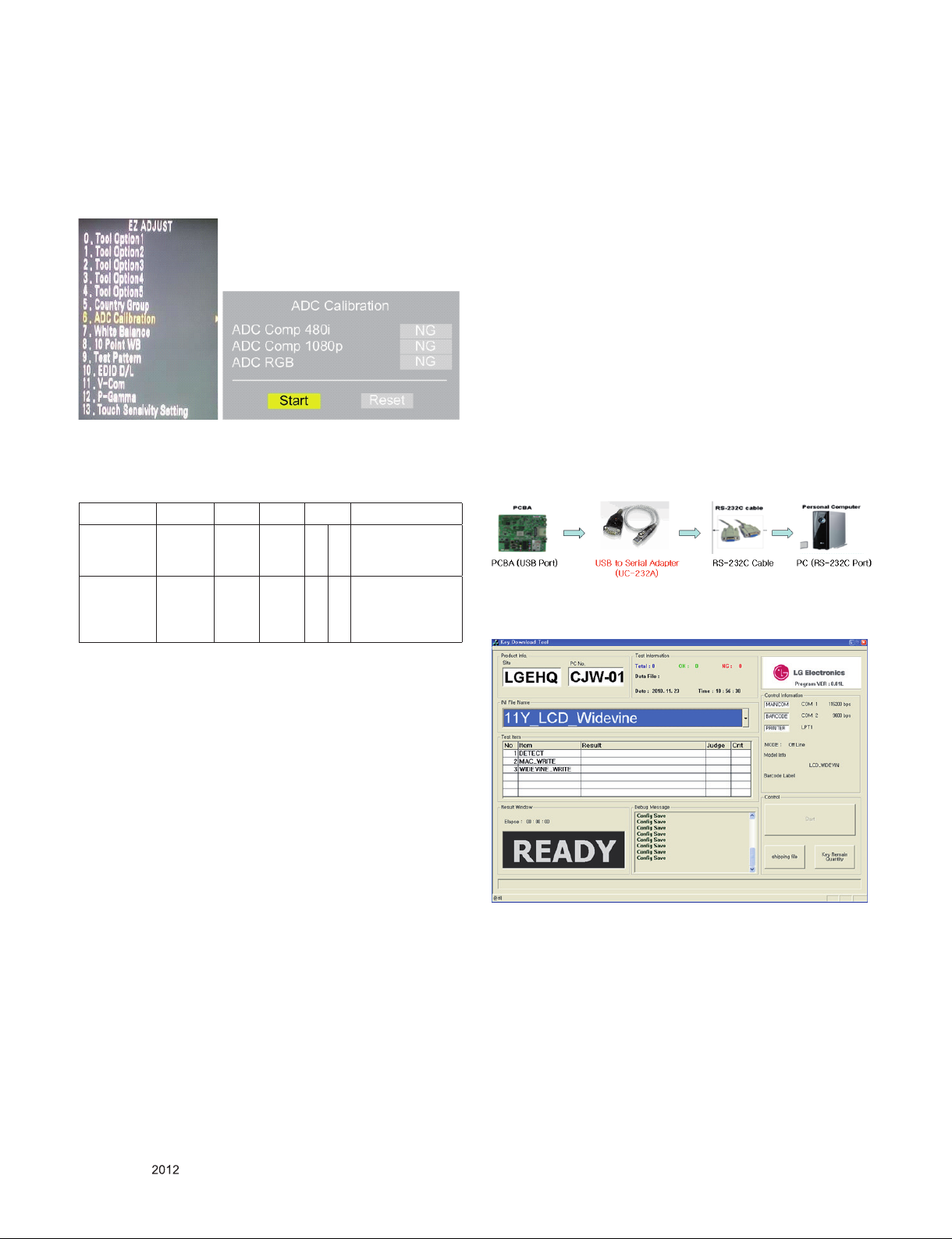

3.1. ADC Process
3.1.1. ADC
■ Enter Service Mode by pushing “ADJ” key,
■ Enter Internal ADC mode by pushing “►” key at “6. ADC
Calibration”
=> Caution : Using ‘power on’ button of the Adjustment R/C,
power on TV.
※ADC Calibration Protocol (RS232C/USB)
NO Item CMD 1 CMD 2 Data 0
Enter
Adjust MODE
Adjust
‘Mode In’
A A 0 0 When transfer the
‘Mode In’,
Carry the command.
ADC adjust ADC
Adjust
A D 1 0 Automatically adjust-
ment
(The use of a inter-
nal pattern)
※Adjust Sequence
▪ aa 00 00 [Enter Adjust Mode]
▪ xb 00 40 [Component1 Input (480i)]
▪ ad 00 10 [Adjust 480i Comp1]
▪ xb 00 60 [RGB Input (1024*768)]
▪ ad 00 10 [Adjust 1024*768 RGB]
▪ aa 00 90 End Adjust mode
* Required equipment : Adjustment R/C.
3.2. Function Check
3.2.1. Check display and sound
■ Check Input and Signal items. (cf. work instructions)
(1) TV
(2) AV (CVBS)
(3) COMPONENT (480i)
(4) RGB (PC : 1024 x 768 @ 60hz)
(5) HDMI
(6) PC Audio In
* Display and Sound check is executed by Remote controller.
3.2.2. MAC Address
3.2.2.1. Equipment & Condition
▪ Play file: Serial.exe
▪ MAC Address edit
▪ Input Start / End MAC address
3.2.2.2 Download method
3.2.2.2.1. Communication Prot connection
Connect:
Connection : PCBA (USB Port) -> USB to Serial Adapter
(UC-232A) -> RS-232C cable -> PC(RS-232C port)
3.2.2.2.2. MAC Address Download
▪ Com 1,2,3,4 and 115200(Baudrate)

- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
3.2.3. LAN Inspection
3.2.3.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
3.2.3.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ setting automatic IP
▪ Setting state confirmation
▪ If automatic setting is finished, you confirm IP and MAC
Address.
3.2.4. LAN PORT INSPECTION(PING TEST)
3.2.4.1. Equipment setting
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test
Program.
*IP Number : 12.12.2.2
3.2.4.2. LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) Remove LAN CABLE
3.2.5. Model name & Serial number Download
3.2.5.1. Model name & Serial number D/L
■ Press “Power on” key of service remocon.(Baud rate :
115200 bps)
■ Connect RS232C/USB cable to Side USB Jack.
■ Write Serial number by use RS-232C to Side USB.
■ Must check the serial number at Instart menu.
3.2.5.2. Method & notice
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0
※Manual Download (Model Name and Serial Number)
If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized.
(Not always) It is impossible to download by bar code scan, so
It need Manual download.
▪ Press the ‘instart’ key of ADJ remote controller.
▪ Go to the menu ‘6.Model Number D/L’ like below photo.
▪ Input the Factory model name(ex 42LD450-TA) or Serial
number like photo
▪ Check the model name Instart menu -> Factory name
displayed (ex 42LE7500-TA)
▪ Check the Diagnostics (DTV country only) -> Buyer model
displayed (ex 42LE7500-TA)
=> Caution : Not to push the INSTOP KEY after completion if
the function inspection.

- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Total Assembly line process
4.1. Adjustment Preparation
■ W/B Equipment condition
CA210 : CH 9, Test signal : Inner pattern (80IRE) – in case of
CCFL back light
CA210 : CH14, Test signal : Inner pattern (80IRE) – in case of
LED back light
■ Above 5 minutes H/run in the inner pattern. (“power on” key of
adjust remote control)
Color
Temperature
Cool 13,000k K
X=0.269
(±0.002)
Y=0.273
(±0.002) 42/32CS560-DA
42/32CS460-DA
42/32LS4600-DA
(except LGD
moduel)
<Test signal>
Inner pattern
(204 Gray
80IRE)
Medium 9,300k K
X=0.285
(±0.002)
Y=0.293
(±0.002)
Warm 6,500k K
X=0.313
(±0.002)
Y=0.329
(±0.002)
■ In case of Edge LED module, the color coordinates is changing
by aging, so you have to use the below table.
H/R Time(Min)
Cool Medium Warm
LED Module(LGD).
x y x x y x
269 273 285 293 313 329
1 0-2 min 280 291 296 311 319 340
2 3-5 min 278 288 294 308 317 338
3 6-9 min 276 285 292 305 315 335
4 10-19 min 274 282 290 302 313 332
5 20-35 min 273 279 289 299 312 329
6 36-49 min 270 276 287 296 310 326
7 50-79 min 269 273 286 293 308 323
8 Over 80 min 269 273 285 293 308 323
※Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER-ON -> Enter
the mode of White-Balance, the pattern will come out.
●Auto-control interface and directions
(1) Adjust in the place where the influx of light like floodlight
around is blocked. (Illumination is less than 10ux).
(2) Adhere closely the Color Analyzer ( CA210 ) to the module
less than 10cm distance, keep it with the surface of the
Module and Color Analyzer’s Prove vertically.(80~100°).
(3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others, check
the back light on.
● Auto adjustment Map(RS-232C)
RS-232C COMMAND
[ CMD ID DATA ]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
RS-232C COMMAND
[CMD ID DATA] MIN
CENTER
(DEFAULT) MAX
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128
** Caution **
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range of
Module)
*Manual W/B process using adjusts Remote control.
■After enter Service Mode by pushing “ADJ” key,
■Enter White Balance by pushing “►” key at “7. White Balance”.
※After You finish all adjustments, Press “In-start” button and
compare Tool option and Area option value with its BOM, if it is
correctly same then unplug the AC cable.
If it is not same, then correct it same with BOM and unplug AC
cable. For correct it to the model’s module from factory JIG
model.
※Push The “IN STOP KEY” after completing the function
inspection. And Mechanical Power Switch must be set “ON”.

- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.2. DDC EDID Write (RGB 128Byte)
■ Connect D-sub Signal Cable to D-Sub Jack.
■ Write EDID DATA to EEPROM (24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Ass’y, EDID have to be downloaded to Insert
Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
■ Connect HDMI Signal Cable to HDMI Jack.
■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Ass’y, EDID have to be downloaded to Insert
Process in advance.
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- Auto Download
■ After enter Service Mode by pushing “ADJ” key,
■ Enter EDID D/L mode.
■ Enter “START” by pushing “OK” key.
HDMI number is dependent on model.
※Edid data and Model option download (RS232C)
NO Item CMD 1 CMD 2 Data 0
Enter
download
MODE
Download
‘Mode In’ A E 0 0
When transfer
the ‘Mode In’,
Carry the com-
mand
Edid data
and Model
option
download
Download A E *Note1 *Note2
Automatically
download
(The use of a
internal Data)
Adjust
‘Mode Out’ A E 9 0
.Adjustment
Conrma-
tion
A E 9 9
To check
Download
on Assembly
line.
- Manual Download
※Caution
* Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
=> Caution : - Never connect HDMI & D-sub Cable at the same
time.
- Use the proper cables below for EDID Writing.
- Download HDMI1, HDMI2 separately because HDMI1 is
different from HDMI2.
For Analog EDID For HDMI EDID
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
No. Item Condition Hex Data
1 Manufacturer ID GSM 1E6D
2 Version Digital : 1 01
3 Revision Digital : 3 03

- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
* EDID data for FHD 3DTV_8bit (Model name = LG TV)
- HDMI EDID table (0x1E : Physical Address)
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43
0 02 03 33 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 26 15 07 50 09 57 07 78 03 0C 00 10 00
20 80 1E 20 C0 0E 01 40 0A 0F 08 10 18 10 98 10 58
30 10 38 10 01 1D 80 18 71 1C 16 20 58 2C 25 00 20
40 C2 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55
50 00 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58
60 2C 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E
70 20 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 23
1) HDMI 1 Check sum : 0x43, 0X23 (CEA Block 0x1E :10)
2) HDMI 2 Check sum : 0x43, 0X13 (CEA Block 0x1E :20)
3) HDMI 3 Check sum : 0x43, 0X03 (CEA Block 0x1E :30)
* EDID data for FHD 2DTV(Support deep color)
10bit (Model name = LG TV)
- HDMI EDID table (0x1E : Physical Address)
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43
0 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 10 00
20 B8 2D 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2
30 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
40 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C
50 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20
60 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 DE
1) HDMI 1 Check sum : 0x43, 0XDE (CEA Block 0x1E :10)
2) HDMI 2 Check sum : 0x43, 0XCE (CEA Block 0x1E :20)
3) HDMI 3 Check sum : 0x43, 0XBE (CEA Block 0x1E :30)
* EDID data for FHD 2DTV(Non-Support deep color)
8bit (Model name = LG TV)
- HDMI EDID table (0x1E : Physical Address)
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 43
0 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 10 00
20 80 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2
30 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
40 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C
50 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20
60 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 25
1) HDMI 1 Check sum : 0x43, 0X25 (CEA Block 0x1E :10)
2) HDMI 2 Check sum : 0x43, 0X15 (CEA Block 0x1E :20)
3) HDMI 3 Check sum : 0x43, 0X05 (CEA Block 0x1E :30)
* EDID data for HD 2DTV ( Model name = LG TV )
- HDMI EDID table (0x1E : Physical Address)
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30
50 18 88 03 06 40 84 63 00 00 18 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A4
0 02 03 22 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
10 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 10 00
20 80 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A
30 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
40 20 C2 31 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E
50 96 00 A0 5A 00 00 00 18 02 3A 80 18 71 38 2D 40
60 58 2C 45 00 A0 5A 00 00 00 1E 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5B
1) HDMI 1 Check sum : 0xA4, 0X5B (CEA Block 0x1E :10)
2) HDMI 2 Check sum : 0xA4, 0X4B (CEA Block 0x1E :20)
3) HDMI 3 Check sum : 0xA4, 0X3B (CEA Block 0x1E :30)

- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- Analog (RGB) EDID table - FHD
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 5C
CheckSum : 5C
- Analog (RGB) EDID table - HD
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 81 C0 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88
40 35 00 A0 5A 00 00 00 1C 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1F 46 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 CD
=> Detail EDID Options are below
HD( 2D TV) FHD(2D TV)
_10bit
FHD(2D TV)
_8bit
HD (3D TV) FHD (3D TV)
32LS3500-DA 47LS4600-DA 32LS5600-DA 32LM3400-DA 47LM5800-DB
32LS3400-DA 42LS4600-DA 42LM5800-DB
32CS460-DA 32LS4600-DA 32LM5800-DB
42LS3400-DA 55LM4600-DB
42CS560-DA 47LM4600-DB
32CS560-DA 42LM3400-DA
42CS460-DA
Support Deep
color
Non-Support
Deep color
ASCII Code
4.5. Outgoing condition Configuration
■ When pressing IN-STOP key by SVC remocon, Red LED
are blinked alternatively. And then automatically turn off.
(Must not AC power OFF during blinking)
4.6 GND & Hi-pot test
Confirm whether is normal or not when between power
board's ac block and GND is impacted on 1.5kV(dc) or
2.2kV(dc) for one second.
■ GND TEST = POWER CORD GND and SIGNAL CABLE
GND
■ Hi-pot TEST = POWER CORD GND and LIVE&NUETRAL
■ Test Process
(1) Check the POWER CABLE and SIGNAL CABLE insertion
condition.
(2) Connect the AV JACK Tester
(3) Controller(GWS103-4) on
(4) GND TEST(Auto)
- If Test is failed, Buzzer operate
- If Test is passed, execute next process(HI-pot test)
- Remove A/V CORD from A/V JACK BOX
(5) HI-POT test(Auto)
- If Test is failed, Buzzer operate
- If Test is passed, GOOD Lamp on and move to next
process automatically.

- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.7. EYE-Q function check
Step 1) Turn on TV
Step 2) Press EYE key of Adj. R/C
Step 3) Cover the Eye Q II sensor on the front of the using
your hand and wait for 6 seconds
Step 4) Confirm that R/G/B value is lower than 10 of the “Raw
Data (Sensor data, Back light )”. If after 6 seconds,
R/G/B value is not lower than 10, replace Eye Q II
sensor
Step 5) Remove your hand from the Eye Q II sensor and wait
for 6 seconds
Step 6) Confirm that “ok” pop up.
If change is not seen, replace Eye Q II sensor
4.8. Local Dimming Function Check
Step 1) Turn on TV
Step 2) At the Local Dimming mode, module Edge Backlight
moving right to left
Back light of IOP module moving
Step 3) confirm the Local Dimming mode
Step 4) Press “exit” Key
4.9. 3D function test
(Pattern Generator MSHG-600, MSPG-6100 [SUPPORT
HDMI1.4])
* HDMI mode NO. 872 , pattern No.83
1) Please input 3D test pattern like below (HDMI mode NO.
872 , pattern No.83)
2) When 3D OSD appear automatically , then select OK button
3) Don’t wear a 3D Glasses, Check the picture like below .

- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SCREW ASSEMBLY WORKING GUIDE
DD
D
D
D
DD
D
D
D
D
D
•FAB31339402
(M3*L4.5, BK, Machine)
•12EA
•FAB31339201
(M3*L10, BK, Taptite)
•9EA •FAB30016122
(M4*L20, BK, Taptite)
•4EA
■Screw specification and application situation
C
AAAA
A
A
A
A
B
CCCCCCC
•FAB30078812
(M6*L10, BK, Machine)
4EA
B
B
B
A
A
C
A
C
C
A
AA
AA
AA
A
A
A
A
A
A
A
A
A
B
B
C
CC
CC
CC
CC
CC
CC
C
•FAB30078812
(M6*L10, BK, Machine)
4EA
B
B
B
B
B
B
A
A
A
A
C
A
A
A
A
AC
※Warning
Check Screw Type When Screw is assembled
at Part. If Screw is used at the part
Module will get damaged
A
AC
※Warning
Check Screw Type When Screw is assembled
at Part. If Screw is used at the part
Module will get damaged
A

- 20 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
TROUBLE SHOOTING
No power
Check 24V, 12V, 3.5V
of Power B/D
Check short of Main B/D
or Change Power B/D
Pass
Check Output of
Q403, IC407, IC401
Check P403 Connector
Change LED Assy
: [A] PROCESS
Fail
Fail
Pass
Pass
Check LED Assy
Check short of
IC402, IC403
Pass
Check short of
Q403, IC407, IC401
Fail
Re-soldering or Change defect
part of Q403, IC407, IC401
Fail
Re-soldering or Change defect
part of Q403, IC407, IC401
Fail
