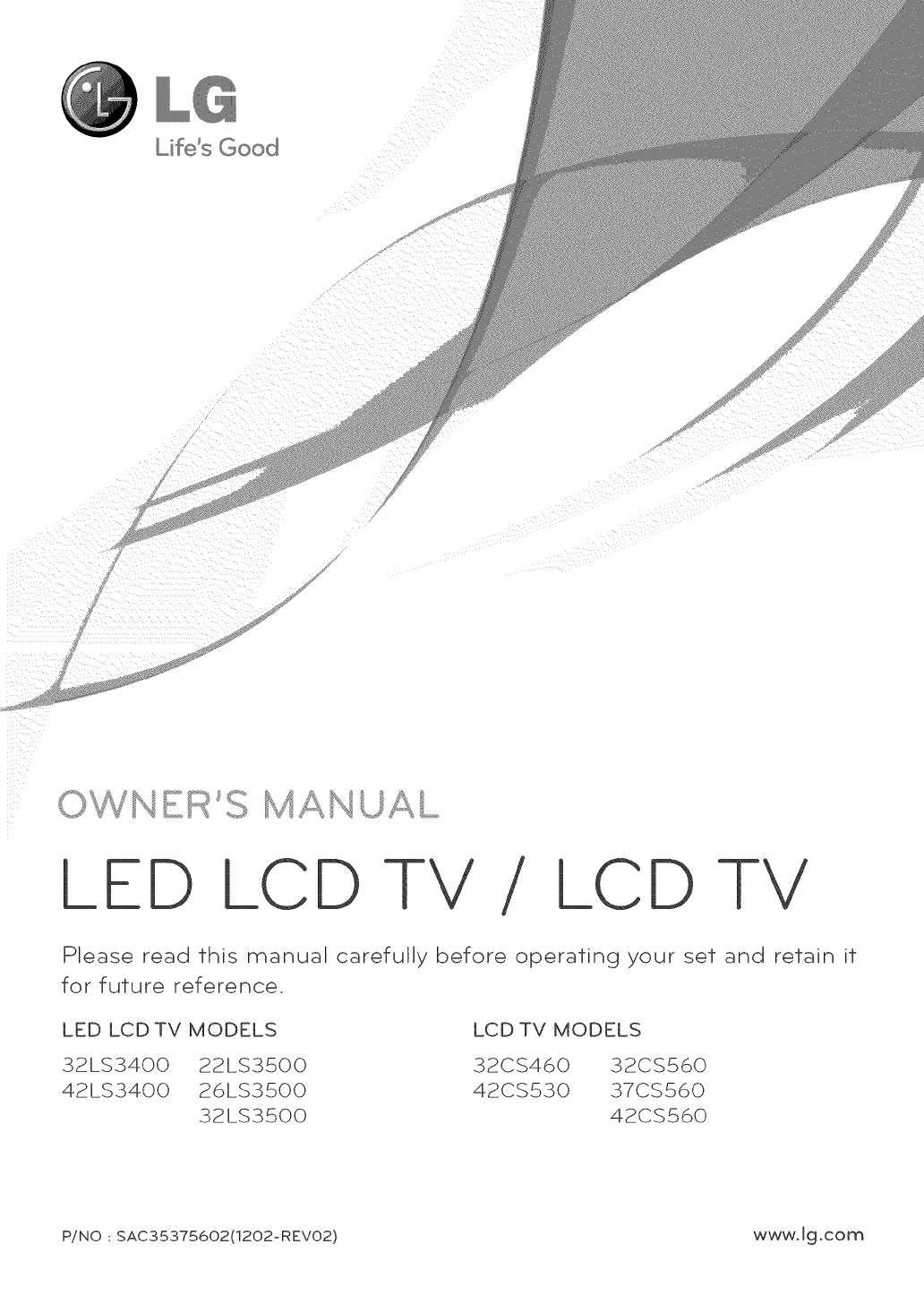

LG 32LS3400 User manual

x
_x r',_VVNER S__'_ A
Is _A_+,_ L
LCD TV LCD TV
Please read this manual carefully before operating your set and retain it
for future reference.
LED LCDTV MODELS
32LS3400
42LS3400
LCD TV MODELS
22LS3500 32CS460
26LS3500 42CS530
32LS3500
32CS560
37CS560
42CS560
P/NO : SAC35375602(1202= REV02) www.lg.com

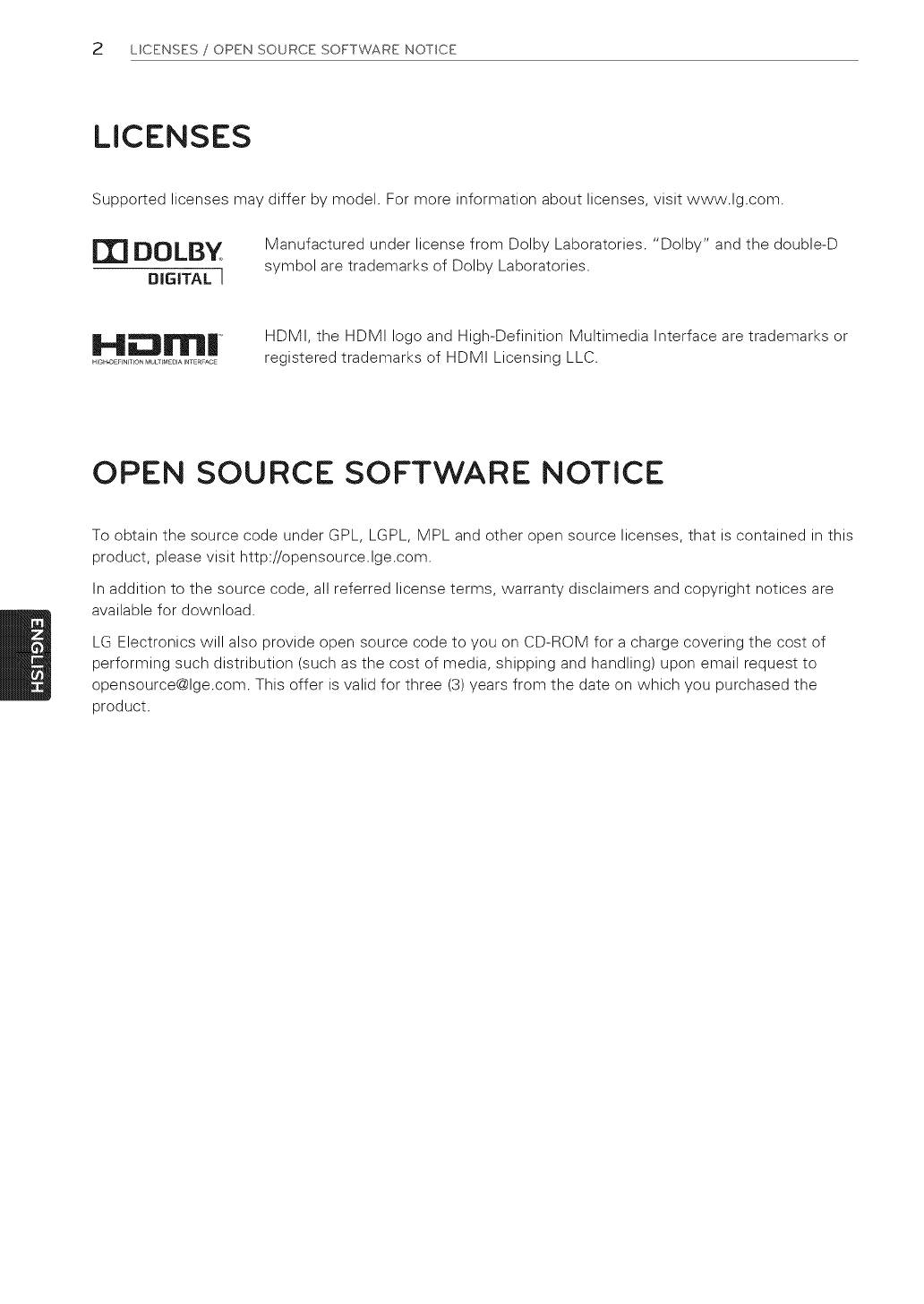

2 LgCENSES /OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
DOLBY
DIGITAL ]
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D
symbol are trademarks of Dolby Laboratories.
HI6H-DEFINITIO_MULTIMEDIAINTERFACE
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the
product.

IMPORTANT SAFETY INSTRUCTIONS 3
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
,_The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
-TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnincj_
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).

4IMPORTANT SAFETY INSTRUCTIONS

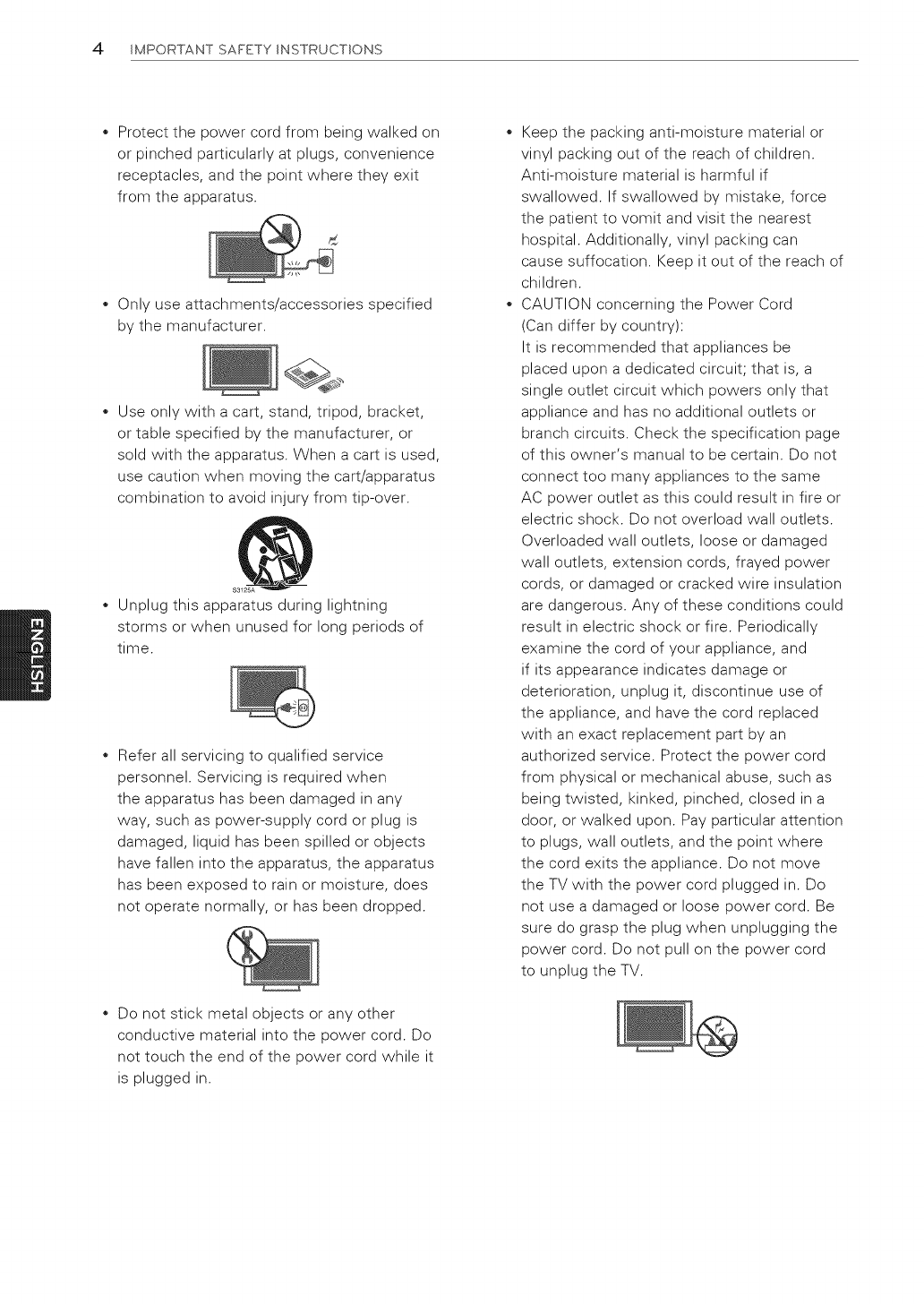

Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
d
Only use attachments/accessories specified
by the manufacturer.
Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.

IMPORTANT SAFETY INSTRUCTIONS .5

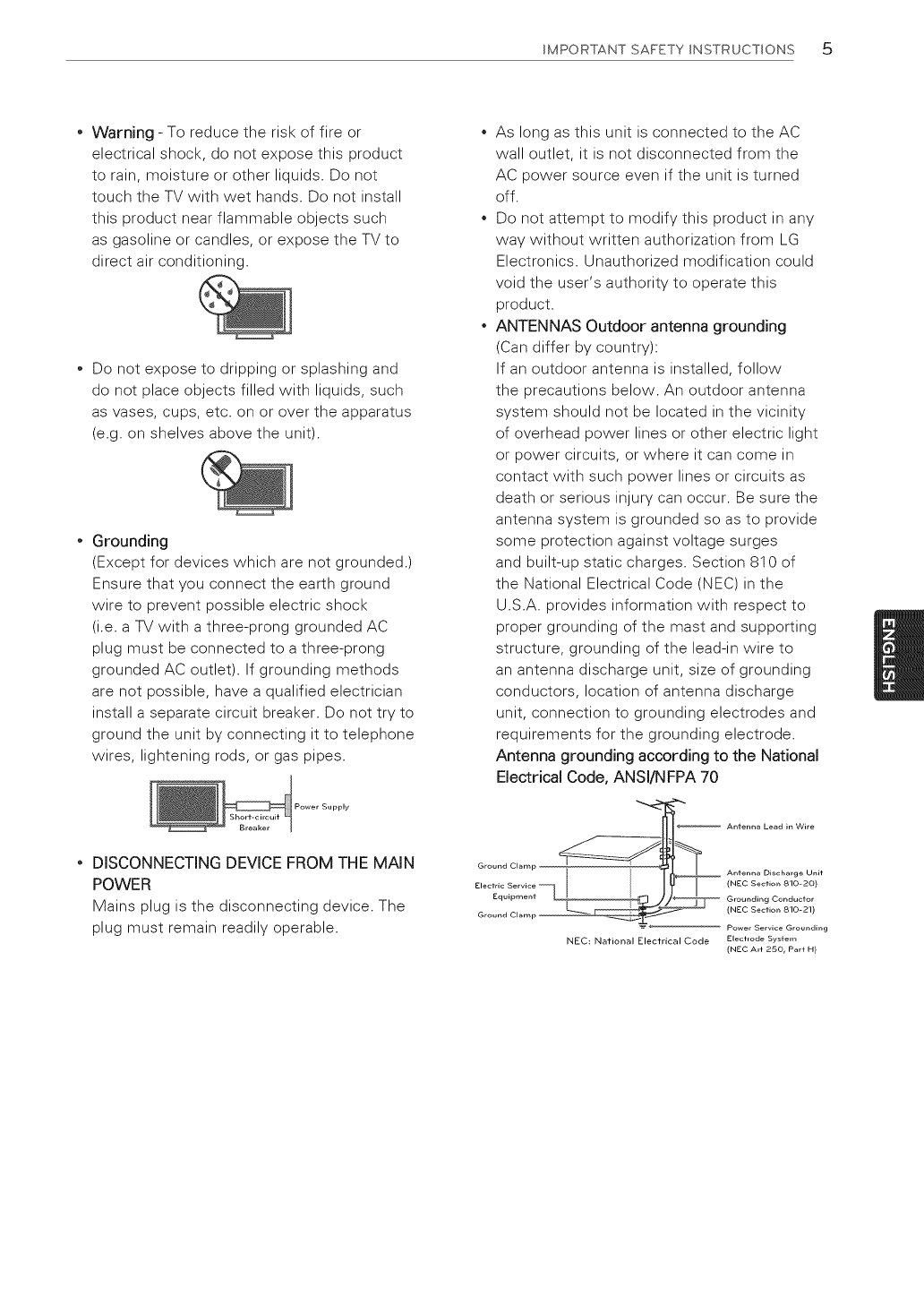

Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
DISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user's authority to operate this
product.
ANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Antenna Lead in Wire
Ground Clamp Antenna Discharge Unit
Electric Service "_ (NEC Section 810-80)
EquipmentL Grounding Conductor
Ground Clamp -- (NEC Section 810-21)
NEC: National Electrical Code
Power Service Grounding
Electrode System
(NEC Art 850 r Part H)

6 IMPORTANT SAFETY INSTRUCTIONS
Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
Moving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.
If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
Keep the product away from direct sunlight.
Never touch this apparatus or antenna during
a thunder or lightning storm.
When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
Dot Defect
The LCD panel is a high technology product
with resolution of two million to six million
pixels. In a very few cases, you could see
fine dots on the screen while you're viewing
the TV. Those dots are deactivated pixels
and do not affect the performance and
reliability of the TV.
Generated Sound
"Cracking" noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
If the TV feels cold to the touch, there may
be a small "flicker" when it is turned on. This
is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV's performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.

IMPORTANT SAFETY INSTRUCTIONS "7
The fluorescent lamp used in this product contains
a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out in accordance to
the regulations of your local authority.
USA and Canada
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on
a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user's authority to operate the equipment.
This reminder is provided to call the CATV
system installer's attention to Article 820-40 of
the National Electric Code (U.S.A.). The code
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall
be connected to the grounding system of the
building, as close to the point of the cable entry
as practical.

8 TABLE OF CONTENTS
TABLE OF CONTENTS
2LICENSES
2
3
8
OPEN SOURCE SOFTWARE
NOTICE
IMPORTANT SAFETY IN-
STRUCTIONS
TABLE OF CONTENTS
10 INSTALLATION PROCEDURE
10 ASSEMBLmNG AND PREPARING
10 Unpacking
15 Parts and buttons
17 Lifting and moving the TV
18 Setting up the TV
18 - Attaching the stand
24 - Mounting on a table
26 - Mounting on a walt
27 - Tidying cables
28 REMOTE CONTROL
30 WATCHING TV
30 Connecting to the AC/DC adapter
30 Turning the TV on for the first time
31 Watching TV
31 Managing channeis
31 - Setting up channeis
32 - Using favorite channels
33 - Checking current program info
34 Using additional options
34 - Adjusting aspect ratio
35 - Changing AV modes
35 - Using the input list
36 Using the quick menu
37 ENTERTAINMENT
37 - Connecting USB storage devices
38 - Browsing files
39 - Viewing Photos
40 - Listening to music
42 CUSTOMIZINGTV SETTINGS
42 The Main Menus
43 Customizing Settings
43 - CHANNEL Settings
44 - PICTURE Settings
46 - AUDIO Settings
47 - TIME Settings
48 - OPTION Settings
50 - LOCK Settings

TABLE OF CONTENTS 9
52 MAKING CONNECTIONS
52 Connecting to an antenna or cable
53 Connection Overview
54 Connecting to a HD receiver, DVD, or
VCR player
54 - HDMI Connection
55 - Component Connection
56 - Composite Connection
57 Connecting to a PC
57 - HDMI Connection
58 Connecting to a USB
59 SIMPLINK Connection
59 - Activating and Using the SIMPLINK
menus
_- @ NOTE
Image shown may differ from your TV.
Your TV's OSD (On Screen Display) may
differ slightly from that shown in this
manual.
The available menus and options may differ
from the input source or product model that
you are using.
New features may be added to this TV in
the future.
60 MAINTENANCE
60 Cteaning Your TV
60 - Screen, frame, cabinet and stand
60 - Power cord
60 Preventing "image burn" or "Burn-in" on
your TV screen
61 TROUBLESHOOTING
63 SPECIFICATIONS
66 IR CODES

10 ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3 Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
F- @ NOTE
•The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
• Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV's USB port.
*A_ 10 mrn (0.39 inches)
*B_ 18 mm (0.7 inches)
-,/_ CAUTION
Do notuse any unapproved itemsto ensure thesafetyand productlifespan.
Any damages orinjuriesby usingunapproveditemsarenotcoveredby thewarranty.
Incase ofsome model, the thinfilmon screenisa partofTV, So don'ttakeitoff.

ASSEMBLING AND PREPARING 11
For CS460, LS3400 series
Remote control,
Batteries (AAA)
(See p.28)
Owner's manual,
CD manual Polishing cloth
(Depending on model)
Gently wipe the spots on the
cabinet with the polishing
cloth.
Stand Body
(See p.18)
..................._
._ _<_.............
Stand Base
(See p.18) Stand Screws 8 EA, M4 x 20
(See p.18)
Protection cover Desk-mount Screw
(See p.19) (See p.24) Power Cord

12 ASSEMBLING AND PREPARING
For CS530, CS560 series
Remote control,
Batteries (AAA)
(See p.28)
Owner's manual,
CD manual Polishing cloth
(Depending on model)
Gently wipe the spots on the
cabinet with the polishing
cloth.
Stand Body
(See p.20)
Protection cover
(See p.21)
(For 37CS560)
Stand Base
(See p.20)
Desk-mount Screw
(See p.24)
Stand Screws
8 EA, M4 x 20
(See p.20)
(For 42CS530, 32/42CS560)
Power Cord
Power Cord

ASSEMBLING AND PREPARING 13
For 22/26LS3500
Remote control,
Batteries (AAA)
(See p.28)
Stand Body
(See p.22)
(For 26LS3500)
Stand Screws
2 EA, M4 x 14
(See p.22)
Owner's manual,
CD manual
Stand Base
(See p.22)
Cable holder
(See p.27)
Polishing cloth
(Depending on model)
Gently wipe the spots on the
cabinet with the polishing
cloth.
(For 22LS3500)
Stand Screws
2 EA, P4 x 20
(See p.22)
Power Cord
AC/DC Adapter

14 ASSEMBLING AND PREPARING
For 32LS3500
Remote control,
Batteries (AAA)
(See p.28)
Owner's manual,
CD manual Polishing cloth
(Depending on model)
Gently wipe the spots on the
cabinet with the polishing
cloth.
Stand Body
(See p.23) Stand Base (See p.23) Stand Screws 4 EA, P4 x 20
4 EA, M4 x 14
(See p.23)
Desk-mount Screw
(See p.24) Cable holder (See p.27) Power Cord

ASSEMBLING AND PREPARING 15
Parts and buttons
For CS460, CS530, CS560, LS3400 series
_Screen
Side Connection panel
USB input_
SERVICE
ONLY
-Remote control and
, 1
Intelhgent sensors
- Power indicator
v A -- 4- OK {*? SETTINGS INPUT (b/I _For CS460,
LS34OO series
_--Touch button s2
1 2
VIDEO L/MONOAUDIO_
Y'_ P_' Pb-_ L_'L 'L_'R ®
_Rear Connection
panel
(See p.52)
4 _J
Touch button 2
¢/I
INPUT
SETTINGS
OK®
+
v/_
DeSCription
Turns the power on or off.
Changes the input source.
Accesses the main menus, or saves your input and exits the menus.
Selects the highlighted menu option or confirms an input.
Adjusts the volume level.
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

16 ASSEMBLING AND PREPARING
For LS3500 series
Side Connection panel
USB input i
SERVICE -
ONLY
V A
,I
Speakers
n + OK,',," SETTINGS INPUT d)/I
'" Remote control and
.1
Intelhgent sensors
Power indicator
_Touch buttons 2
r--AV IN
VIDEO _- AUDIO -_
'- VIDEO _ ' 0 _AUDIO ]
COMPONENT IN
ANTENNN
CABLE IN
®
panel
(See p.52)
--°For 32LS35OO
ToUch bUtton2 Description
(b /I Turns the power on or off,
INPUT Changes the input source,
SETTINGS Accesses the main menus, or saves your input and exits the menus,
OK ® Selects the highlighted menu option or confirms an input,
+ Adjusts the volume level.
v A Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

ASSEMBLING AND PREPARING 17
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
oAuT,oN
* Avoid touching the screen at all times, as
this may result in damage to the screen.
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
When holding the TV, the screen should face
away from you to avoid damage.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
× ×
× ×
When transporting a large TV, there should
be at least 2 people.
When transporting the TV by hand, hold the
TV as shown in the following illustration.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.

18 ASSEMBLING AND PREPARING
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
For CS460, LS3400 series
4 EA
M4 x 20
i
I
I
I
Body
Front
Stand Base ._ CAUTION
When attachingthe standtotheTV
set,placethe screenfacingdown on a
cushioned table or flat surface to protect
the screen from scratches.
4 EA
M4 x 20
J
-@ NOTE
*Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
CAUTION
*Tighten the screws firmly to prevent
the TV from tilting forward. Do not over

Todetachthestand,
Protection cover
ASSEMBLING AND PREPARING 19
_4EA
M4 x 20
'__ CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
'_ @ NOTE
This will protect the opening from
accumulating dust and dirt.
When installing the wall mounting
bracket, use the Protection cover.

20 ASSEMBLING AND PREPARING
For CS530, CS560 series
_4EA
M4 x 20
Stand Body_
il
Front
iiiiiiiiiiiiiiiiiiiiiiiii!i
Stand Base -- _ CAUTION
*When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
J
'. @NOTE
Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
', _ CAUTION
Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
