LG 55LW9800 User manual

LED LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LA12D
MODEL : 55LW9800 55LW9800-UA
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL67002922 (1108-REV00)

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ......................................................................... 3
SPECIFICATION....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 13
EXPLODED VIEW .................................................................................. 23
SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range
This spec sheet is applied LCD TV with LA12D chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 20 ºC ± 5 ºC, CST: 40°C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : UL, CSA, IEC specification
- EMC : FCC, ICES, IEC specification
- Wireless : WirelessHD Specification (Option)
4. General Specification(TV)
No Item Specification Remark
1 Receivable System 1) ATSC / NTSC-M
2 Available Channel 1) VHF : 02 ~ 13
2) UHF : 14 ~ 69
3) DTV : 02 ~ 69
4) CATV : 01 ~ 135
5) CADTV : 01 ~ 135
3 Input Voltage 1) AC 100 - 240V~ 50/60Hz Mark : 110V, 60Hz
4 Market North America
5 Screen Size 47 inch Wide(1920x1080) FHD + 240Hz 47LW9800-UA
55 inch Wide(1920x1080) FHD + 240Hz 55LW9800-NA
6 Aspect Ratio 16:9
7 Tuning System FS
8 Operating Environment Temp : 0 ~ 40 deg
Humidity : ~ 80 %
9 Storage Environment Temp : -20 ~ 60 deg
Humidity : -85 %

- 7 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. Chrominance & Luminance
No Item Min Typ Max Unit Result Remark
2D 360 450 cd/m 42LW7500-NB,42LW7700-NA
2D 30 40
2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
cd/m2
47LW7500-NB,
47LW7700-UA/NA
2D 360 450 55LW7500-NB,
55LW7700-UA/NA
3D 30 40 42LW7500-NB,42LW7700-NA
3D 360 450 47LW7500-NB,
47LW7700-UA/NA
3D 30 40 55LW7500-NB,
55LW7700-UA/NA
2D 330 360 47LW9500-NA/UA
47LW9600-NA, 47LW9800-UA/NA
2D 330 360 55LW9500-NA/UA, 55LV9500-UA
55LW9500-NA/UA, 55LV9500-UA
55LW9600-NA, 55LW9800-UA/NA
2D 360 450 60LW9500-NA/UA
3D 30 40 47LW9500-NA/UA
47LW9600-NA, 47LW9800-UA/NA
3D 30 40 55LW9500-NA/UA
55LW9600-NA,55LW9800-UA/NA
1
MaxLuminance
(Center1-point / FullWhite
Pattern)
3D 60 80 60LW9500-NA/UA
X 0.642
RED Y 0.335
X 0.308
GREEN Y 0.602
X 0.156
BLUE Y 0.061
X 0.279
Colorcoordinate
(42")
WHITE Y
Typ.
-0.03
0.292
Typ.
+0.03
42LW7500-NB,42LW7700-NA
X 0.642
RED Y 0.333
X 0.307
GREEN Y 0.605
X 0.149
BLUE Y 0.058
2
Colorcoordinate
(47")
WHITE X
Typ.
-0.03
0.279
Typ.
+0.03
47LW7500-NB,
47LW7700-UA/NA
Y 0.292
X 0.644
RED Y 0.333
X 0.308
GREEN Y 0.605
X 0.149
BLUE Y 0.059
X 0.279
Colorcoordinate
(55")
WHITE Y
Typ.
-0.03
0.292
Typ.
+0.03
55LW7500-NB,
55LW7700-UA/NA
X 0.640
RED Y 0.330
X 0.300GREEN Y 0.600
X 0.150
BLUE Y 0.060
X 0.280
Colorcoordinate
(47" ALEF)
WHITE Y
Typ.
-0.05
0.290
Typ.
+0.05
47LW9500-NA/UA
47LW9600-NA, 47LW9800-UA/NA
X 0.640RED Y 0.330
X 0.300GREEN Y 0.600
X 0.150
BLUE Y 0.060
X 0.280
Colorcoordinate
(55" ALEF)
WHITE Y
Typ.
-0.05
0.290
Typ.
+0.05
55LW9600-NA, 55LW9800-UA/NA
(V6 & V5 동일)

- 8 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
55LW9500-NA/UA, 55LV9500-UA
55LW9500-NA/UA, 55LV9500-UA
cd/m2
X 0.640
RED Y 0.330
X 0.300GREEN Y 0.600
X 0.150 BLUE Y 0.60
X 0.283
Colorcoordinate
(60" IOP)
WHITE Y
Typ.
-0.03
0.284
Typ.
+0.03
60LW9500-NA/UA
3 Contrast ratio 800 1200
Local Dimming OFF
(except LW7500)
900 1300
LW7500only
2.5 % 47LW9500-NA/UA
47LW9600-NA, 47LW9800-UA/NA
1.8 % (V6)
55LW9600-NA, 55LW9800-UA/NA
4.0 % (V5) 55LW9500-NA
0.8
1.0 % 60LW9600-NA/60LW9500-UA
4 3D Crosstalk
3 %
5 Luminance Uniformity (2D Only) 75 %
Response Time(Gray toGray) 72 ms
Response Time(MPRT) 4 8 ms
Response Time(Uniformity δMPRT) 8
12
6
Response Time(Uniformity
δG to G)
1
2,400,000 3,000,000 47LW9500-NA/UA
47LW9600-NA, 47LW9800-UA/NA
2,400,000 3,000,000 55LW9600-NA, 55LW9800-UA/NA
8,000,000 10,000,000 60LW9600-NA,60LW9500-NA
2,400,000 3,000,000 42/47/55LW7500-NB
2,400,000 3,000,000 47/55LW7700-UA
42/47/55LW7700-NA
7 Dynamic CR
2,400,000 3,000,000
Cool 0.267
0.271 0.269 0.273 0.271 0.275 13000K
Medium 0.283
0.291 0.285
0.293 0.287 0.295 9300K
8 ColorTemperature
Warm 0.311
0.327 0.313
0.329 0.315 0.331 6500K
** TheW/B Toleranceis –0.015
for picturequality by DQA.
** In thecaseof LED Model,
Measure thecolor temperatureat
thewarmmodeafter heat runT.V
more than60minutesat Cinema
mode.
LED모델의 경우 Warm 측정시
Cinema에서 60분 이상
HR후 측정)

- 9 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
6. Component Video Input (Y, CB/PB, CR/PR) - 2D Mode
7. RGB Input (PC) - 2D Mode
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I
2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I
3. 720*480 31.50 60 27.027 SDTV 480P
4. 720*480 31.47 59.94 27.0 SDTV 480P
5. 1280*720 45.00 60.00 74.25 HDTV 720P
6. 1280*720 44.96 59.94 74.176 HDTV 720P
7. 1920*1080 33.75 60.00 74.25 HDTV 1080I
8. 1920*1080 33.72 59.94 74.176 HDTV 1080I
9. 1920*1080 67.500 60 148.50 HDTV 1080P
10. 1920*1080 67.432 59.94 148.352 HDTV 1080P
11. 1920*1080 27.000 24.000 74.25 HDTV 1080P
12. 1920*1080 26.97 23.976 74.176 HDTV 1080P
13. 1920*1080 33.75 30.000 74.25 HDTV 1080P
14. 1920*1080 33.71 29.97 74.176 HDTV 1080P
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
PC DDC
1. 640*350 31.468 70.09 25.17 EGA X
2. 720*400 31.469 70.08 28.32 DOS O
3. 640*480 31.469 59.9 25.17 VESA(VGA) O
4. 800*600 37.879 60.31 40.00 VESA(SVGA) O
5. 1024*768 48.363 60.00 65.00 VESA(XGA) O
6. 1360*768 47.712 60.015 5.50 VESA(WXGA) X
7. 1920*1080 66.587 59.934 138.5 HDTV 1080P O

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 10 -
8. HDMI input (PC/DTV) - 2D Mode
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
PC DDC
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1280*768 47.776 59.870 79.5 CVT(WXGA) O
7 1360*768 47.712 60.015 85.50 VESA (WXGA) O
8 1280*1024 63.981 60.020 108.00 VESA (SXGA) O
9 1920*1080 67.5 60 148.5 HDTV 1080P O
DTV
1 720*480 31.50 60 27.027 SDTV 480P
2 720*480 31.47 59.94 27.00 SDTV 480P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 44.96 59.94 74.176 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I
6 1920*1080 33.72 59.94 74.176 HDTV 1080I
7 1920*1080 67.500 60 148.50 HDTV 1080P
8 1920*1080 67.432 59.939 148.352 HDTV 1080P
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
10 1920*1080 26.97 23.976 74.176 HDTV 1080P
11 1920*1080 33.75 30.000 74.25 HDTV 1080P
12 1920*1080 33.71 29.97 74.176 HDTV 1080P

- 11 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
10. HDMI Input- 3D Mode
11. RGB-PC- 3D Mode
9. RF Input- 3D Mode
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz ) 3D input proposed mode Proposed
1 1920*1080 45.00 60.00 74.25 Side by Side HDTV 1080I
Top & Bottom
2 1280*720 45.00 60.00 74.25 Side by Side HDTV 720P
Top & Bottom
No Resolution H-freq(kHz) V-freq.(Hz)
Pixel clock(MHz ) 3D input proposed mode Proposed
1 1280*720 45.00 60.00 74.25 Side by Side HDTV 720P
Top & Bottom
HDMI 1.4 Frame Packing
HDMI 3D Top & Bottom
2 1920*1080 33.75 60.00 74.25 Side by Side HDTV 1080I
Top & Bottom
HDMI 3D Side by side (Half)
3 1920*1080 67.50 60.00 148.50 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
Single Frame Sequential
4 1920*1080 27.00 24.00 74.25 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
HDMI 3D Frame Packing
HDMI 3D Top & Bottom
5 1920*1080 33.75 30.00 74.25 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
HDMI 3D Frame Packing
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz ) 3D input proposed mode Proposed
1 1920*1080 67.50 60 148.50 Side by Side HDTV 1080P
Top & Bottom

- 12 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
12. USB Input - 3D Mode
13. DLNA - 3D Mode
14. 3D Input - 3D Mode
No
2D to 3D(LW9600-NA only) Side by Side Top & Bottom Checkerboard Single Frame Sequential Frame Packing
No Resolution H-freq(kHz) V-freq.(Hz)
Pixel clock(MHz ) 3D input proposed mode Proposed
1 1920*1080 33.75 30.000 74.25 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
No Resolution H-freq(kHz) V-freq.(Hz)
Pixel clock(MHz ) 3D input proposed mode Proposed
1 1920*1080 33.75 30.000 74.25 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
2D to 3D

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 13 -
ADJUSTMENT INSTRUCTION
1. Application range
This spec. sheet applies to LA12D Chassis applied LCD TV
all models manufactured in TV factory
2. Specification
2.1 Because this is not a hot chassis, it is not necessary
to use an isolation transformer. However, the use of
isolation transformer will help protect test instrument.
2.2 Adjustment must be done in the correct order.
2.3 The adjustment must be performed in the
circumstance of 25±5°C of temperature and 65±10%
of relative humidity
2.4 The input voltage of the receiver must keep
100~240V~, 50/60Hz.
2.5 The receiver must be operated for about 5 minutes
prior to the adjustment when module is in the
circumstance of over 15.
In case of keeping module is in the circumstance
of 0°C, it should be placed in the circumstance of
above 15°C for 2 hours
In case of keeping module is in the circumstance
of below -20°C, it should be placed in the
circumstance of above 15°C for 3 hours.
Caution) When still image is displayed for a period of 20
minutes or longer (especially where W/B scale is
strong. Digital pattern 13ch and/or Cross hatch
pattern 09ch), there can some afterimage in the
black level area.
3. Adjustment items
3.1 Final assembly adjustment
•EDID/DDC download
•White Balance adjustment
•RS-232C functionality check
•Factory Option setting per destination
•Ship-out mode setting (In-Stop)
3.2 Etc
•Ship-out mode
•Tool option menu
•USB Download(S/W Update, Option, Service only)
3.3. Automatic Adjustment
3.3.1 ADC Adjustment (GP3 BCM35230)
3.3.1.1 Overview
•ADC adjustment is needed to find the optimum black level
and gain in Analog-to-Digital device and to compensate RGB
deviation.
3.3.1.2 Equipment & Condition
1) Jig (RS-232C protocol)
2) MSPG-925 Series Pattern Generator(MSPG-925FS)
- Resolution : 480i Comp1 (MSPG-925FS: model-209,
pattern-65)
- Resolution : 1080p Comp1 (MSPG-925FS: model-225,
pattern-65)
- Resolution : 1920*1080 RGB (MSPG-925FS: model-225,
pattern-65)

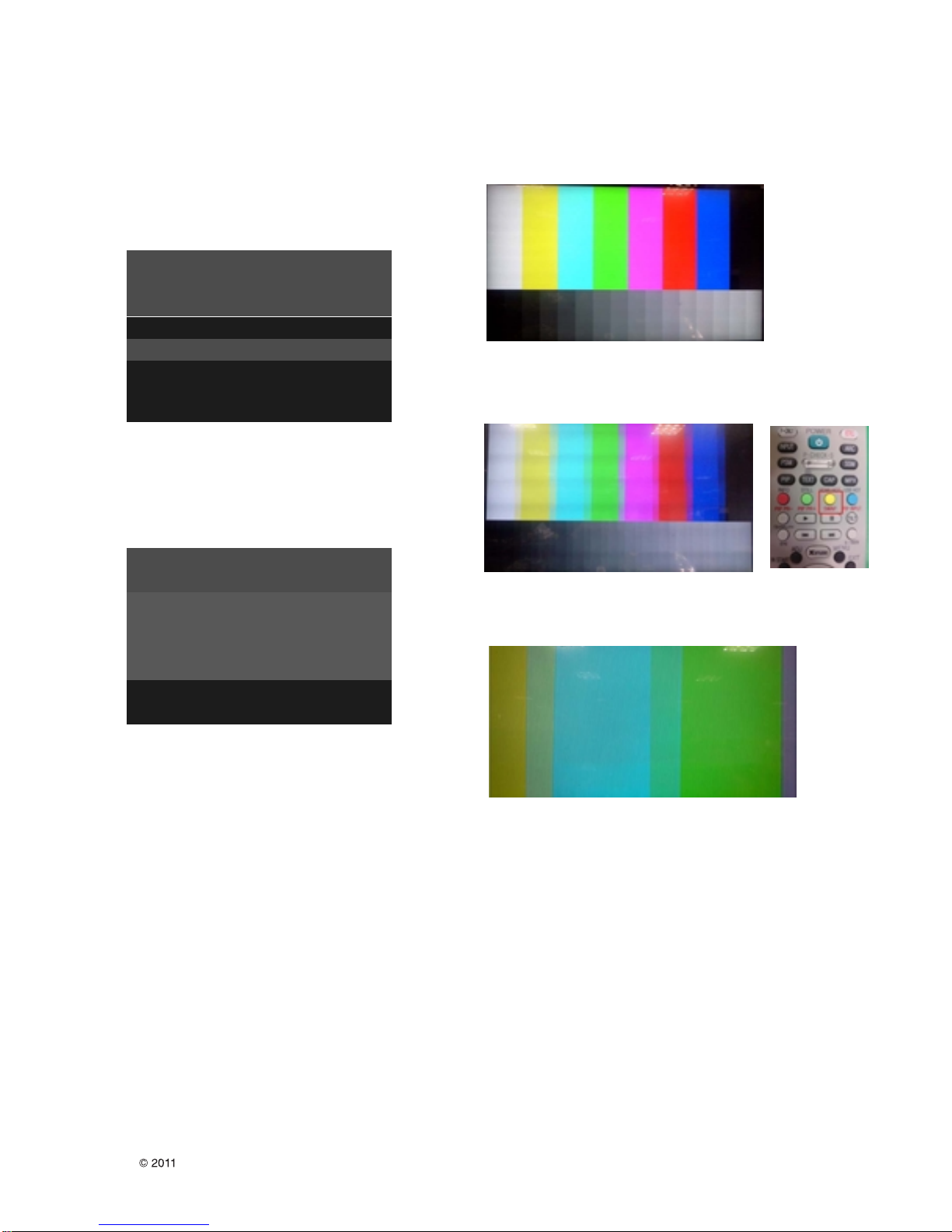

- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level : 0.7±0.1 Vp-p
- Image
3.3.1.3 Adjustment
3.3.1.3.1 Adjustment method
•Using RS-232, adjust items listed in 3.1 in the other
shown in “4.1.3.3”
3.3.1.3.2 Adj. protocol
Ref.) ADC Adj. RS232C Protocol_Ver1.0
3.3.1.3.3 Adj. order
•aa 00 00 [Enter ADC adj. mode]
•xb 00 40 [Change input source to Component1
(480i/1080p)]
•ad 00 10 [Adjust 480i//1080p Comp1]
•xb 00 60 [Change input source to RGB(1920*1080)]
•ad 00 10 [Adjust 1920*1080 RGB]
•ad 00 90 End adj.
Chassis Model Name Module
type Local dimming THX Remark
42/47/55LW7500-NB Edge LED O X1 point W/B adjustment
42/47/55LW7700-NA
47/55LW7700-UA ALEF OTB
O
D TBD
47/55LW9500-NA
47/55LW9600-NA ALEF O X 1 point W/B adjustment
60LW9600-NA IOP LED O X 1 point W/B adjustment
LA12D
47/55/60LW9500-UA ALEF/IOP
LED O 5 point W/B adjustment
Protocol Command SetACK
Enter adj. mode aa 00 00 a 00 OK00x
Source change xb 00 40
xb 00 60 b 00 OK40x (Adjust 480i/1080p Comp1 )
b 00 OK60x (Adjust 1920*1080 RGB)
Begin adj. ad 00 10
Return adj. result OKx (Case of Success)
NGx (Case of Fail)
Read adj. data (main)
ad 00 20
(sub )
ad 00 21
(main)
000000000000000000000000007c007b006dx
(Sub)
000000070000000000000000007c00830077x
Confirm adj. ad 00 99 NG 03 00x (Fail)
NG 03 01x (Fail)
NG 03 02x (Fail)
OK 03 03x (Success)
End adj. aa 00 90 a 00 OK90x

- 14 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4. Manual Adjustment
4.1. MAC Address, ESN Key and Widevine
Key download
4.1.1. Equipment & Condition
1) Play file: keydownload.exe
4.1.2. Communication Port connection
1) Key Write: Com 1,2,3,4 and 115200(Baudrate)
2) Barcode: Com 1,2,3,4 and 9600(Baudrate)
4.1.3. Download process
1) Select the download items
2) Mode check: Online Only
3) Check the test process
-US, Canada models: DETECT MAC_WRITE
WIDEVINE_WRITE
-Korea, Mexico models: DETECT MAC_WRITE
WIDEVINE_WRITE
4) Play: START
5) Check of result: Ready, Test, OK or NG
6) Printer out (MAC Address Label)
4.1.4. Communication Port connection

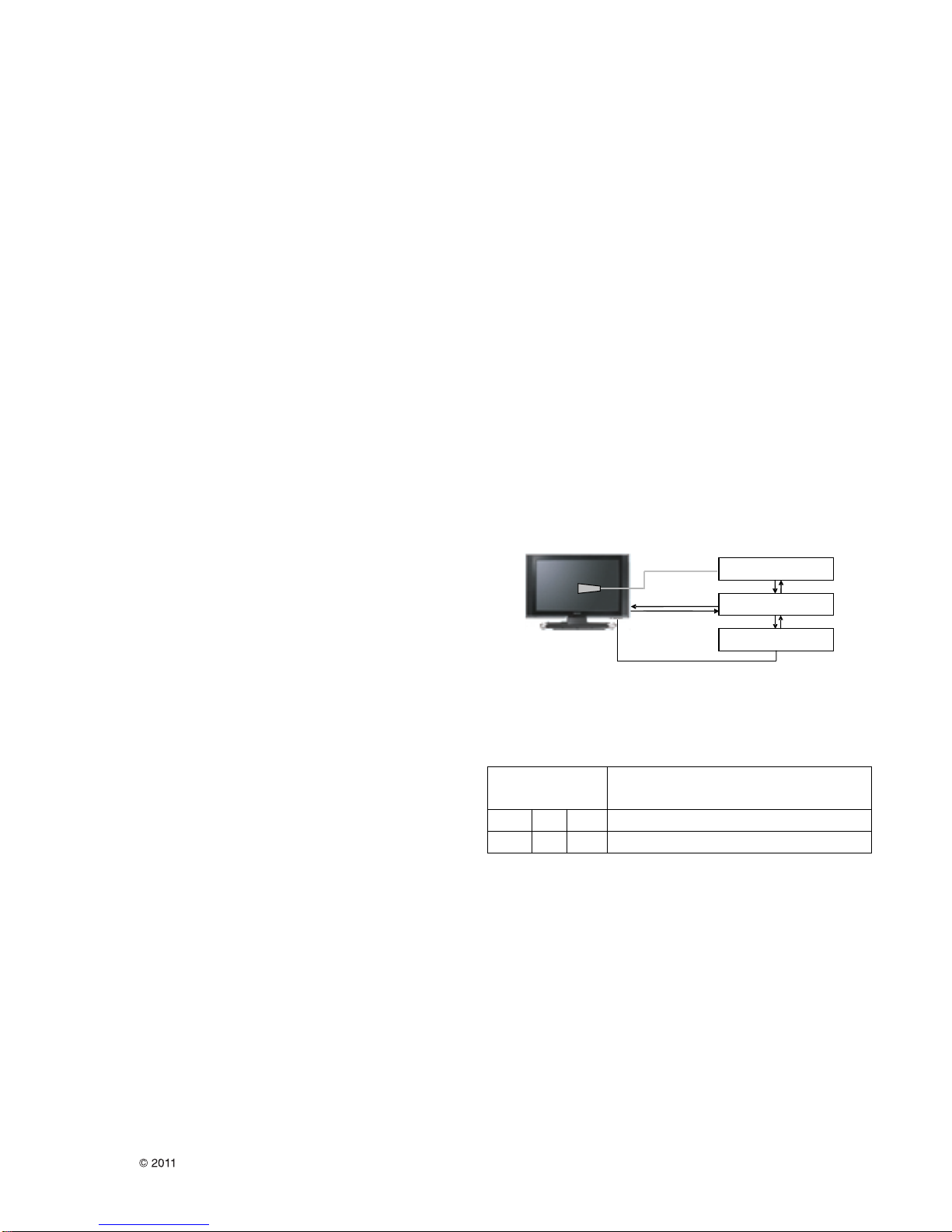

1) Connect: PCBA Jig RS-232C Port == PC RS-232C Port
4.1.5. Download
1) US, Canada models (11Y LCD TV + MAC + Widevine +
ESN Key)
2) Korea, Mexico models (11Y LCD TV + MAC + Widevine
Only)
4.1.6. Inspection
- In INSTART menu, check these keys.
4.2. PING Test
* LAN card can be verified by using PING test
4.2.1 Adjustment Method(Board)
1) Connect LAN to the board and power on.
(Default IP can be set to automatic setting. When power
ON, IP can be automatically be achieved from the router)
2) Press ADJ key in the adjustment remote control.
3) Check Network status by pressing 13. ACAP PING TEST in
EZ ADJUST. If it operates properly, it will show “Network is
operating properly.”If it does not, it will show “Network is
not working properly.”
4.2.2 Adjustment Method (Manufacturer)

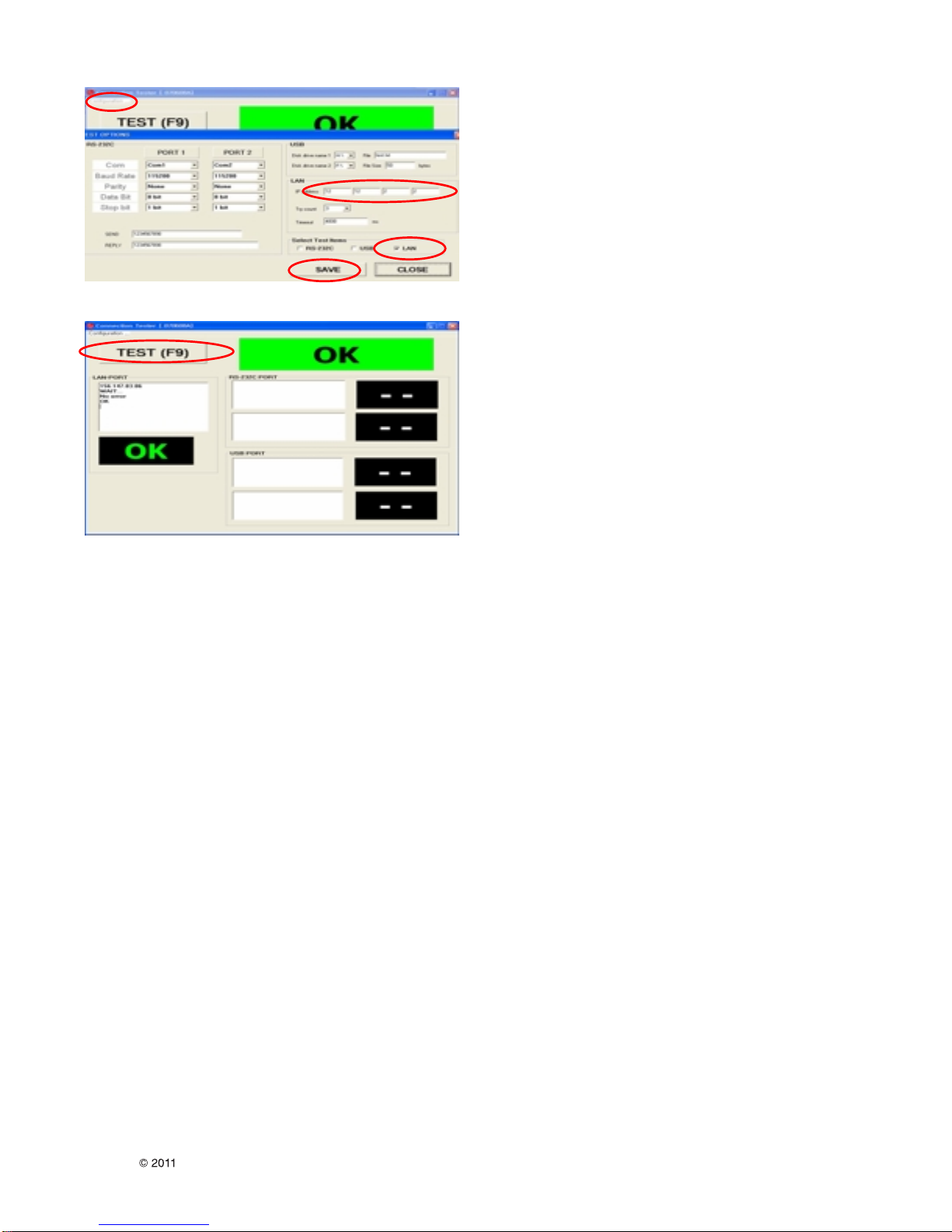

4) Connect the PC with PING Test program installed and the
LAN port of the SET via Cross LAN Cable. (The IP setting
of the PC has to be 12.12.2.3)
5) After the PING Test program has been executed, check the
program setting. (IP of the set will be 12.12.2.2. Double
check the setting. Do not check the Modem because it will
not be used.)
6) Press the Power Only Key in Adjustment remote control.
(IP of the set will be set)
7) Upon pressing “RUN”in the program, it will show “OK”or
“NG”according to the test result.
● After all the adjustments, to disable the IP setting, press
INSTOP key.

- 15 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4.3 EDID Download
4.3.1 Overview
•It is a VESA regulation. A PC or a MNT will display an
optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.
4.3.2 Equipment
•Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
•Adjust remocon.
4.3.3 Download method
1) Press Adj. key on the Adj. R/C,
2) Select EDID D/L menu.
3) By pressing Enter key, EDID download will begin
4) If Download is successful, OK is display, but If Download is
failure, NG is displayed.
5) If Download is failure, Re-try downloads.
* Caution) When EDID Download, must remove RGB/HDMI
Cable.
4.3.4 EDID DATA
# HDMI 1(C/S : 7F FD)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 2(C/S : 7F ED)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 02 03 31 F1 48 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 78 03 0C 00 10 00 B8 2D 20 C0 0E 01
20 | 40 00 14 08 10 18 10 28 10 38 10 48 10 E3 05 03
30 | 01 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00
40 | 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0
50 | 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55
60 | 00 A0 5A 00 00 00 1E 26 36 80 A0 70 38 1F 40 30
70 | 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 FD
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 02 03 31 F1 48 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 78 03 0C 00 20 00 B8 2D 20 C0 0E 01
20 | 40 00 14 08 10 18 10 28 10 38 10 48 10 E3 05 03
30 | 01 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00
40 | 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0
50 | 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55
60 | 00 A0 5A 00 00 00 1E 26 36 80 A0 70 38 1F 40 30
70 | 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 ED

- 16 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
# HDMI 3(C/S : 7F DD)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# HDMI 4(C/S : 7F CD)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
# RGB(C/S : 98)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 0, Bytes 0-127 [00H-7FH]
4.4 White Balance Adjustment
4.4.1 Overview
•W/B adj. Objective & How-it-works
- Objective: To reduce each Panel’s W/B deviation
- How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range.
In order to prevent saturation of Full Dynamic
range and data, one of R/G/B is fixed at 192,
and the other two is lowered to find the desired
value.
-Adj. condition: normal temperature
1) Surrounding Temperature: 25±5°C
2) Warm-up time: About 5 Min
3) Surrounding Humidity: 20% ~ 80%
4.4.2 Equipment
1) Color Analyzer : CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH 14 / ALEF: CH17)
2) Adj. Computer (During auto adj., RS-232C protocol is
needed)
3) Adjust Remocon
4)Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 217, Pattern: 78)
-> Only when internal pattern is not available
* Color Analyzer Matrix should be calibrated using CS-1000
4.4.3 Equipment connection MAP
4.4.4 Adj. Command (Protocol)
•RS-232C Command used during auto-adj.
Ex) wb 00 00 -> Begin white balance auto-adj.
wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
ja 00 ff -> Adj. data
jb 00 c0
...
...
wb 00 1f -> Gain adj. complete
*(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj.
wb 00 ff ->End white balance auto adj.
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 02 03 31 F1 48 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 78 03 0C 00 30 00 B8 2D 20 C0 0E 01
20 | 40 00 14 08 10 18 10 28 10 38 10 48 10 E3 05 03
30 | 01 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00
40 | 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0
50 | 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55
60 | 00 A0 5A 00 00 00 1E 26 36 80 A0 70 38 1F 40 30
70 | 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 DD
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 02 03 31 F1 47 10 22 20 05 84 03 02 01 26 15 07
10 | 50 09 07 07 78 03 0C 00 40 00 B8 2D 20 C0 0E 01
20 | 40 00 14 08 10 18 10 28 10 38 10 48 10 E3 05 03
30 | 01 02 3A 80 18 71 38 2D 40 58 2C 04 05 A0 5A 00
40 | 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0
50 | 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55
60 | 00 A0 5A 00 00 00 1E 26 36 80 A0 70 38 1F 40 30
70 | 20 25 00 A0 5A 00 00 00 1A 00 00 00 00 00 00 CD
0 1 2 3 4 5 6 7 8 9 A B C D E F
________________________________________________________________
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 15 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 39
60 | 3F 1F 52 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 7F
Color Analyzer
Computer
Pattern Generator
RS-232C
RS-232C
RS-232C
Probe
Signal Source
* If TV internal pattern is used, not needed
Connection Diagram of Automatic Adjustment
RS-232C COMMAND Meaning
[CMD ID DATA]
wb 00 00 Begin White Balance adj.
wb 00 ff End White Balance adj.(Internal pattern disappeared)

- 17 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
•Adj. Map
4.4.5 Adj. method
4.4.5.1 Auto adj. method
1) Set TV in adj. mode using POWER ON key
2) Zero calibrate probe then place it on the center of the
Display
3) Connect Cable(RS-232C)
4) Select mode in adj. Program and begin adj.
5) When adj. is complete (OK Sing), check adj. status pre
mode (Warm, Medium, Cool)
6) Remove probe and RS-232C cable to complete adj.
•W/B Adj. must begin as start command “wb 00 00”, and
finish as end command “wb 00 ff”, and Adj. offset if need
4.4.5.2 Manual adj. method
1) Set TV in Adj. mode using POWER ON
2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface..
3) Press ADJ key ->EZ adjust using adj. R/C 6. White-
Balance then press the cursor to the right (KEYG). When
KEY(G) is pressed 216 Gray internal pattern will be
displayed.
4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.
•If internal pattern is not available, use RF input. In EZ Adj.
menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner (ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.
•Adj. condition and cautionary items
1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to isolate
adj. area into dark surrounding.
2) Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface (80°~
100°)
3) Aging time
- After Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked using no
signal or Full-white pattern.
4.4.6 Reference (White Balance Adj. coordinate and color
temperature)
•Luminance: 204 Gray
•Standard color coordinate and temperature using CS-1000
(over 26 inch)
•Standard color coordinate and temperature using CA-
210(CH 14)
•Standard color coordinate and temperature using CA-
210(CH-14) –by aging time
1) ALEF LED Models :
47/55LW9500-NA/UA, 47/55LW7700-UA
47/55LW9600-NA, 42/47/55LW7700-NA,
2) Edge LED Models: 42/47/55LW7500-NB
ITEM Command Data Range Default
(Hex.) (Decimal)
Cmd 1 Cmd 2 Min Max
Cool R-Gain j g 00 C0
G-Gain j h 00 C0
B-Gain j i 00 C0
R-Cut
G-Cut
B-Cut
Medium R-Gain j a 00 C0
G-Gain j b 00 C0
B-Gain j c 00 C0
R-Cut
G-Cut
B-Cut
Warm R-Gain j d 00 C0
G-Gain j e 00 C0
B-Gain j f 00 C0
R-Cut
G-Cut
Mode Color Coordination Temp ∆UV
xy
COOL 0.269 0.273 13000K 0.0000
MEDIUM 0.285 0.293 9300K 0.0000
WARM 0.313 0.329 6500K 0.0000
Mode Color Coordination Temp ∆UV
xy
COOL 0.269±0.002 0.273±0.002 13000K 0.0000
MEDIUM 0.285±0.002 0.293±0.002 9300K 0.0000
WARM 0.313+0.002 0.329±0.002 6500K 0.0000
Cool Medium Warm
x y x y x y
GP2G Aging time
(Min) 269 273 285 293 313 329
1 0-2 276 285
2 3-5 274 282
3 6-9 273 280
4 10-19 272 278
5 20-35 271 276
6 36-49 269 274
7 50-79 269 273
8 Over 80 269 273
292 305 315 334
290 302 313 332
289 300 312 330
288 298 311 328
287 296 310 326
286 294 309 324
286 293 308 323
285 293 308 323
Cool Medium Warm
x y x y x y
GP2G Aging time
(Min) 269 273 285 293 313 329
1 0-2
2 3-5
3 6-9
4 10-19
5 20-35
6 36-49
7 50-79
8 Over 80
280 291 296 311 319 340
278 288 294 308 317 338
276 285 292 305 315 335
274 282 290 302 313 332
273 279 289 299 312 329
270 276 287 296 310 326
269 273 286 293 308 323
269 273 285 293 308 323

- 18 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4.4.7 THX Adjustment (47/55/60LW9500-UA)
•For THX models, White Balance 5 point automatic control
can be done through the below steps. (Warm axis)
1) 100 IRE White Balance Adjustment
2) Control Backlight so that the Maximum brightness is 120cd
3) With the controlled maximum brightness, adjust the Gamma
2.2 (IRE (80, 60, 40, and 20).
4) For 10 IRE, set R, G, B gain to 0, 0, and 0, respectively.
5) 5 point gamma and W/B adjustment done.
4.5 Option selection per country
4.5.1 Overview
4.5.2 Method
1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu.
2) Depending on destination, select KR or US, then on the
lower Country option, select US, CA, MX. Selection is done
using +, - KEY
4.6 Tool Option selection
•Method : Press Adj. key on the Adj. R/C, then select Tool
option.
4.7 Local Dimming Inspection (Optional)
4.7.1. ALEF/IOP LED models with local dimming
1) Press ‘TILT”key of the Adj. R/C and check moving patterns.
The black cross-bar patterns moves from top-left to
Bottom-right. If local dimming function does not work, a
whole screen shows full white.
4.7.2. Edge LED models with local dimming
1) Press ‘TILT”key of the Adj. R/C and check moving patterns.
The black cross-bar patterns moves from top-left to
Bottom-right. If local dimming function does not work, a
whole screen shows full white.
4.8 Ship-out mode check (In-stop)
•After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
•After final inspection, Always turn on the Mechanical S/W.
4.9 WIFI MAC ADDRESS CHECK
a. Using RS232
b. check the menu on in-start
Note that there are Wi-Fi MAC and MAC address.
Wi-Fi MAC is used for wireless network and MAC address is
used for wired network.
Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6
42LW7500-NB 33046 65 3327 23305 47661 665
47LW7500-NB 33048 65 3327 23305 47661 665
55LW7500-NB 33051 65 3327 23305 47661 665
42LW7700-NA TBD TBD TBD TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
47LW7700-NA TBD TBD TBD
55LW7700-NA TBD TBD TBD
47LW7700-UA TBD TBD TBD
55LW7700-UA TBD TBD TBD
60LW9600-NA 39277 4161 3327 31499 47663 697
60LW9500-UA 39261 4161 7551 31499 47633 697
55LW9500-NA
.AKRYLH (V6 Cell) 33115 4161 3327 39691 43567 697
55LW9500-NA
.AKRWLH (V5 Cell) 33115 12353 3327 39691 43567 697
55LW9600-NA 33131 4161 3327 39691 47663 697
33465
33465
55LW9500-UA 33115 4161 7551 39051 47695
47695
47LW9500-NA 33112 4161 3327 39691 43567 697
47LW9600-NA 33128 4161 3327 39691 47663 697
47LW9500-UA 33112 4161 7551 39051
Command Set ACK
transmission
[A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

- 19 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. GND and Internal Pressure check
5.1 Method
1) GND & Internal Pressure auto-check preparation
- Check that Power Cord is fully inserted to the SET.
(If loose, re-insert)
2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord; Antenna cable and A/V arrive
to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER (GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.
5.2 Checkpoint
•TEST voltage
- GND: 1.5KV/min at 100mA
- SIGNAL: 3KV/min at 100mA
•TEST time: 1 second
•TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
•LEAKAGE CURRENT: At 0.5mArms
6. EYE-Q Operation check
Step 1) Turn on the TV.
Step 2) Press EYE button in adjust remote control.
Step 3) Stay 6 seconds with Eye Q sensor hidden located on
the front of the set.
Step 4) Check the “Sensor Data”on the screen and check
whether the value is lower thanafter 6 seconds, the
value does not go below 10, Eye Q sensor is not
working properly. Then, change the sensor.
Step 5) Remove hand from the Eye Q II sensor and stay for 6
seconds.
Step 6) Check whether the “Back Light (xxx)”value has risen
on the screen. If after 6 seconds and the value still
does not go high, the eye Q II sensor is not working
properly. Replace the sensor.
7. Magic Motion Remote Control
Inspection
(47/55LW9500-NA, 60LW9600-NA,
42/47/55LW7700-NA, 447/55LW7700-
UA, 42/47/55LW7500-NB)
-Required Instruments: Inspection RF-remote control,
Inspection IR-KEY-CODE remote control.
- Prior to the test, AA battery for the RF-remote control should
be adequate. (Change the battery for each LOT is
recommended)
- Test procedures
a) Press the ‘START’key on the controller to pair with the
set.
b) Press the ‘OK’key in the controller and check whether the
cursor appears on the set.
c) Press ‘Vol+ (STOP)’key to de-pair with the set.
8. Audio
Measurement condition:
1. RF input: Mono, 1 KHz sine wave signal, 100% Modulation
2. CVBS, Component: 1 KHz sine wave signal 0.4Vrms
3. RGB PC: 1 KHz sine wave signal 0.7Vrms

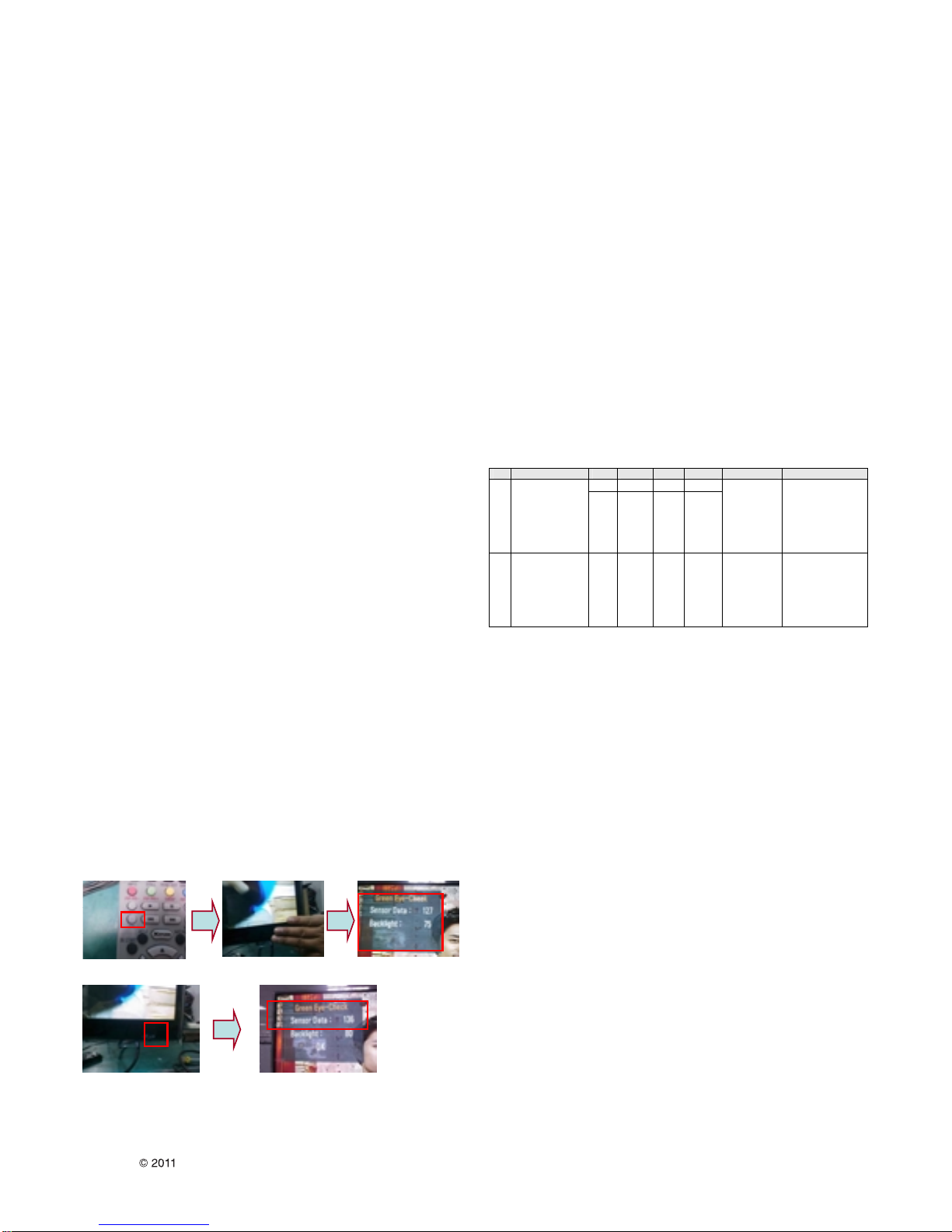

<Step1> <Step2> <Step3>
<Step4> <Step5>
No Item Min Typ Max Unit Remark
9.0 10.0 12.0 W1. Audio practical max
Output, L/R
(Distortion=10%
max Output)
8.5 8.9 9.8 Vrms
Measurement
condition
EQ Off
AVL Off
Clear Voice
Off
47/55LW9500-NA
47/55LW9600-NA
60LW9600-NA
47/55/60LW9500-UA
42/47/55LW7700-NA
47/55LW7700-UA
42/47/55LW7500-NB
2. Speaker (8Ω
Impedance) 10.0 15.0 W Measurement condition
EQ On
AVL On
Clear Voice
On
47/55LW9500-NA
47/55Lw9600-NA
60LW9600-NA
47/55/60LW9500-UA
42/47/55LW7700-NA
47/55LW7700-UA
42/47/55LW7500-NB

- 20 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
9. 3D function test
9.1 Test equipment
(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4
support)
(2) Pattern: HDMI mode (model No. 872, pattern No. 83)
9.2 Test method
(1) Input 3D test signal as Fig.1.
(2) Press ‘OK”key as a 3D input OSD is shown.
(3) Check pattern as Fig2 without 3D glasses. (3D mode
without 3D glasses)
9.3 2D to 3D function test
9.3.1. Equipment setting
1) Input Combination Pattern like Fig.1
(8 color 16 step gray / MSPG-XXXX pattern number 8) in any
Input
(Fig.1)
9.3.2. 2D to 3D Function Inspection
1) Enter the Swap Button (Yellow Color) (Refer Fig.3)
(Fig2) (Fig3)
2) Check the separated line in the SET
(Fig4)
•When you enter the swap button. 3D Depth value is set to
Maximum value (20) automatically.
And 3D Viewpoint value is set to Maximum Value (10)
automatically.
Worker has to enter the ETC Key Before using the swap
button.
O
K
O K
Fig.1
<HDMI Mode 872, Pattern No.83
Fig.2
